| Mounting Type |
Bolt installation |
| Manufacturing Date Code |
2023 |
| Model Number |
FGU-03N-X |
| Brand Name |
FUWEI |
| Usage |

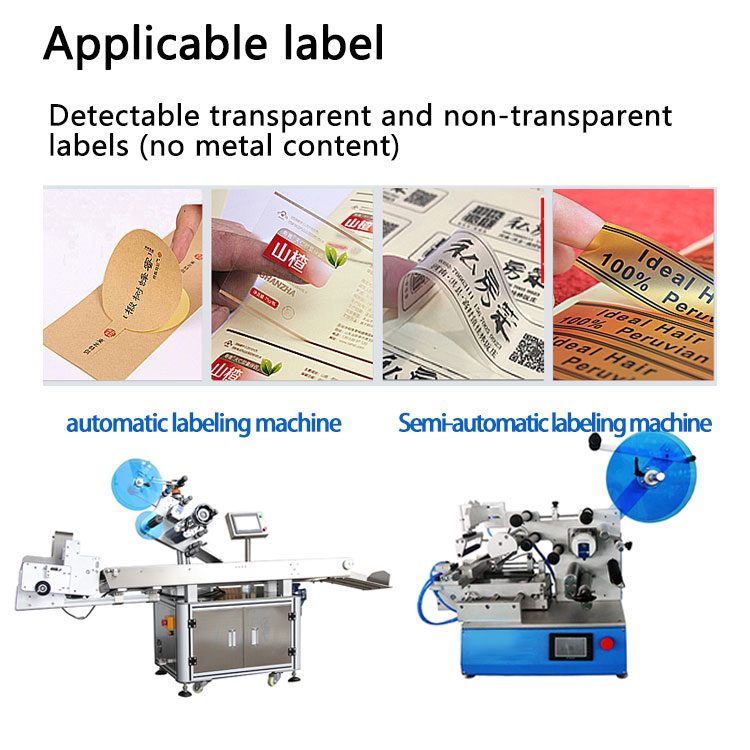

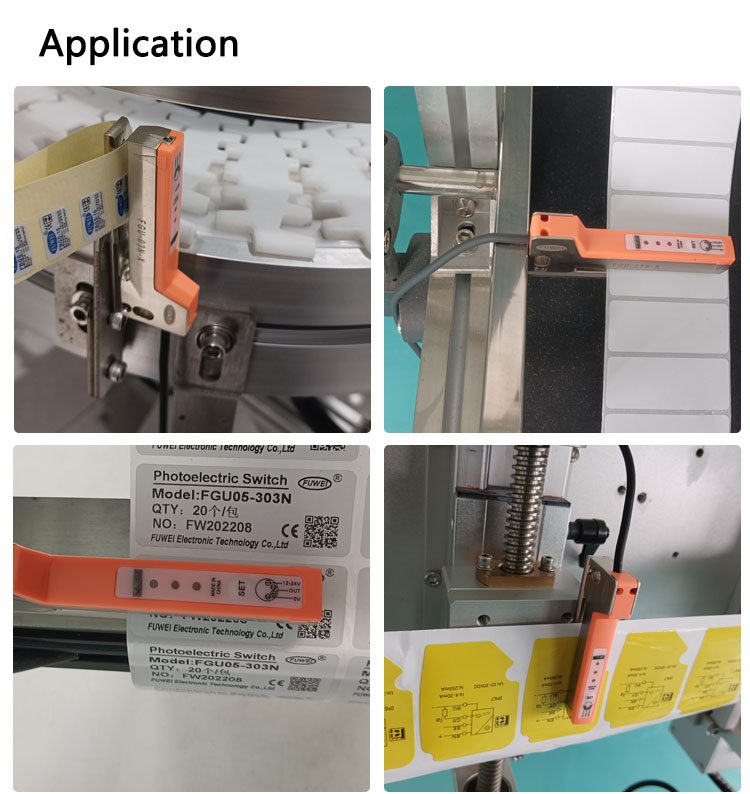

Labeling machine label positioning |
| Description |

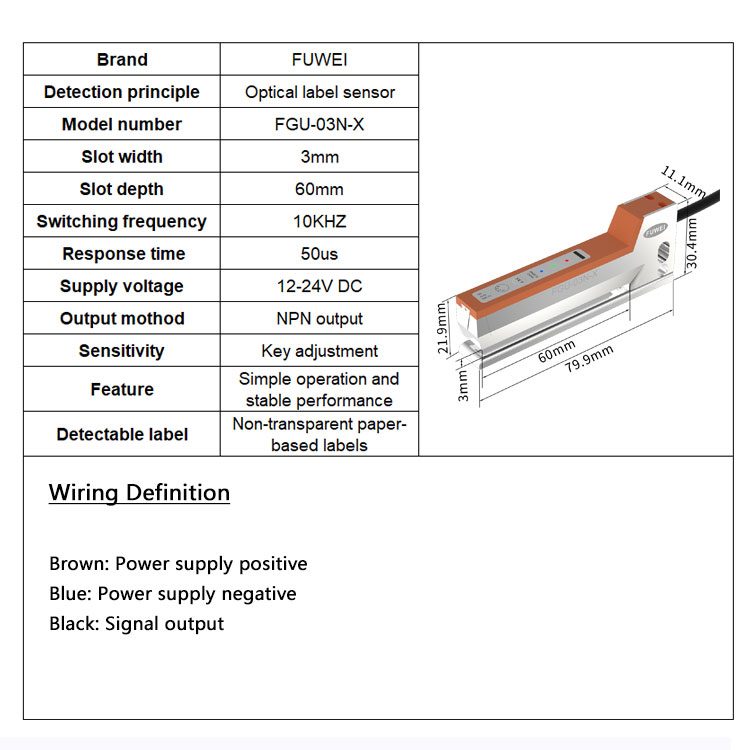

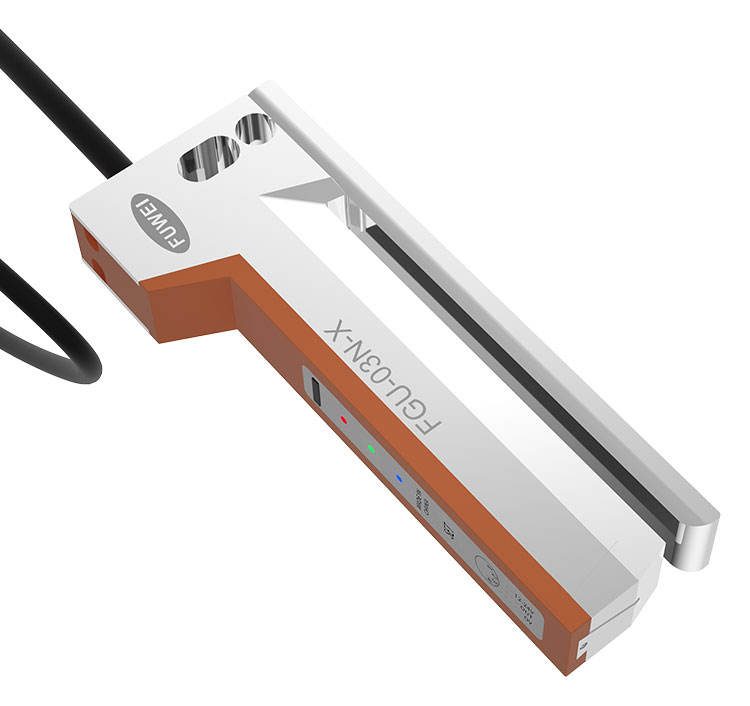

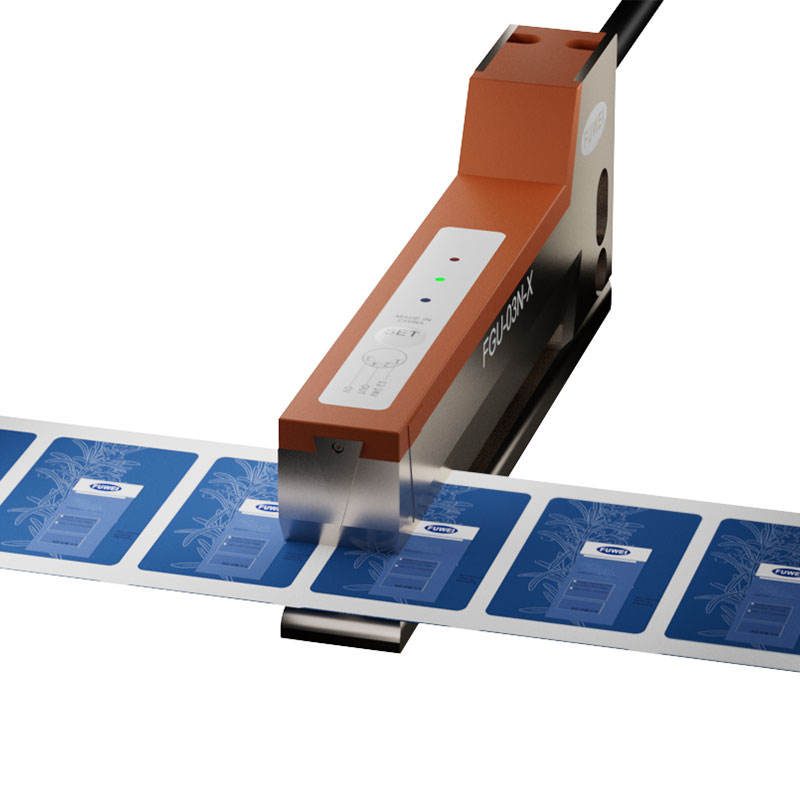

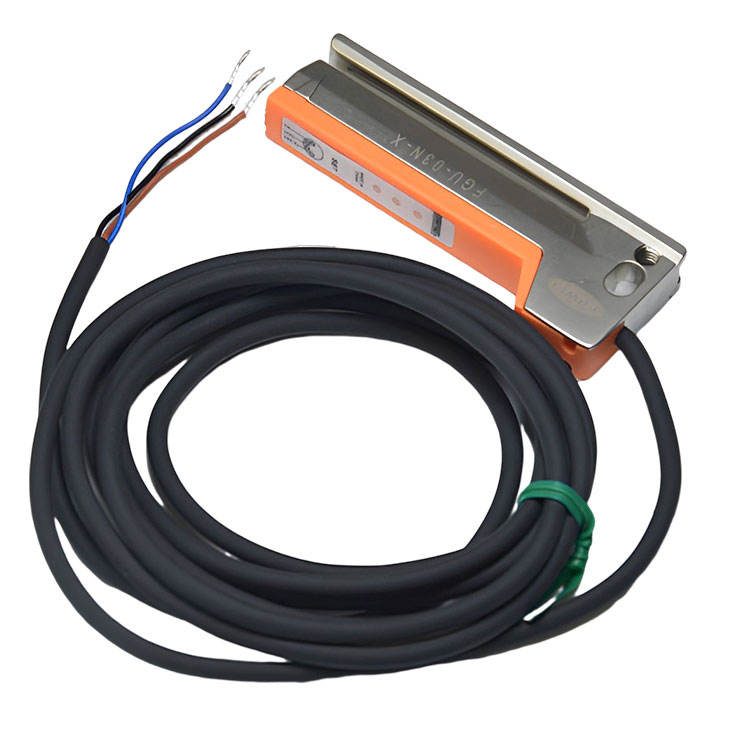

Photoelectric Label Gap Sensor, Label sensor |
| Type |
Label sensor |
| Series |
FGU-03N-X |
| Features |
Photoelectric label sensor |
| Place of Origin |
China |
| Theory |
Photoelectric label sensor |

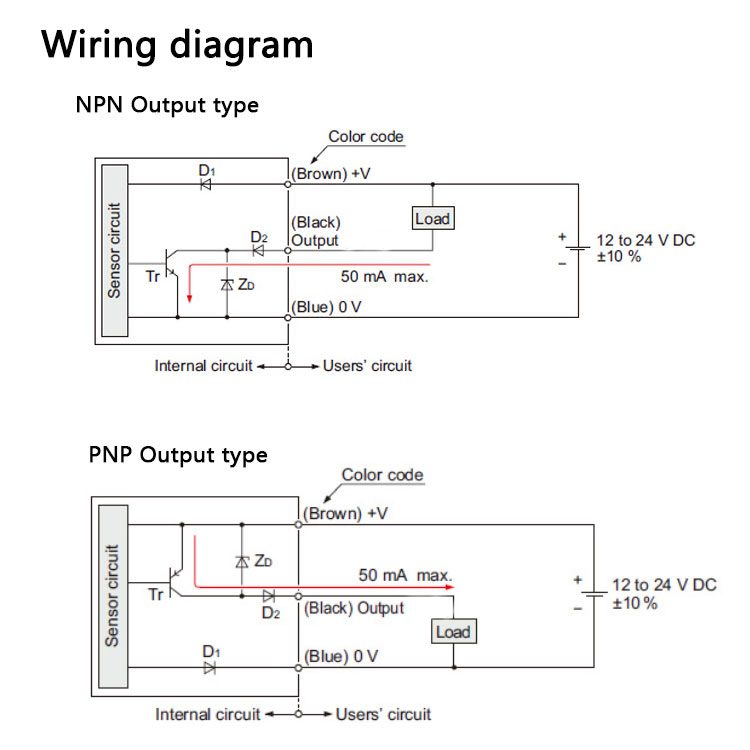

| Output |
NPN |

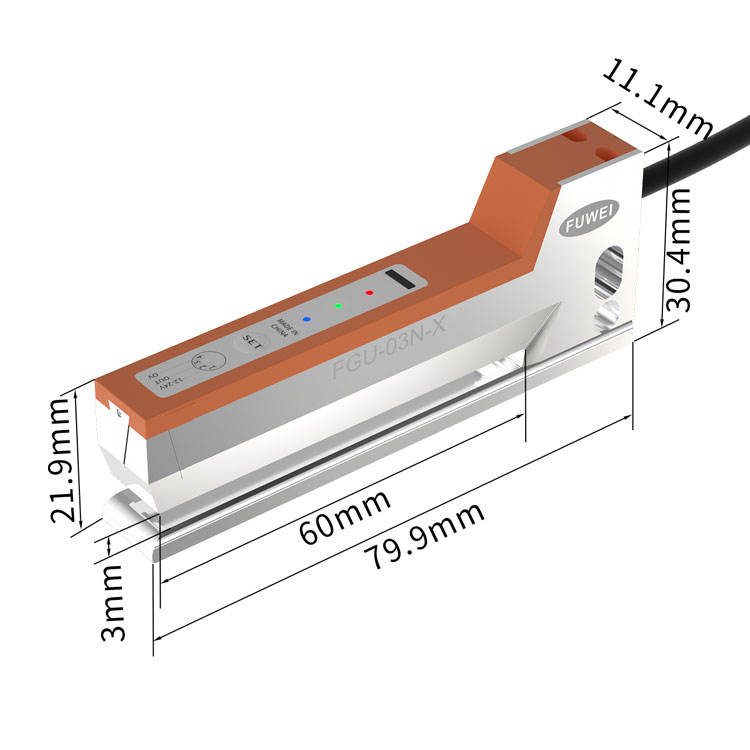

| Slot width |
3mm |
| Slot depth |
60mm |
| Operating voltage |
12-24V DC |
| Light source |
940nm |
| Response time |
50us |
| Switching frequency |
10KHZ |
| Sensitivity |
Key adjustment |

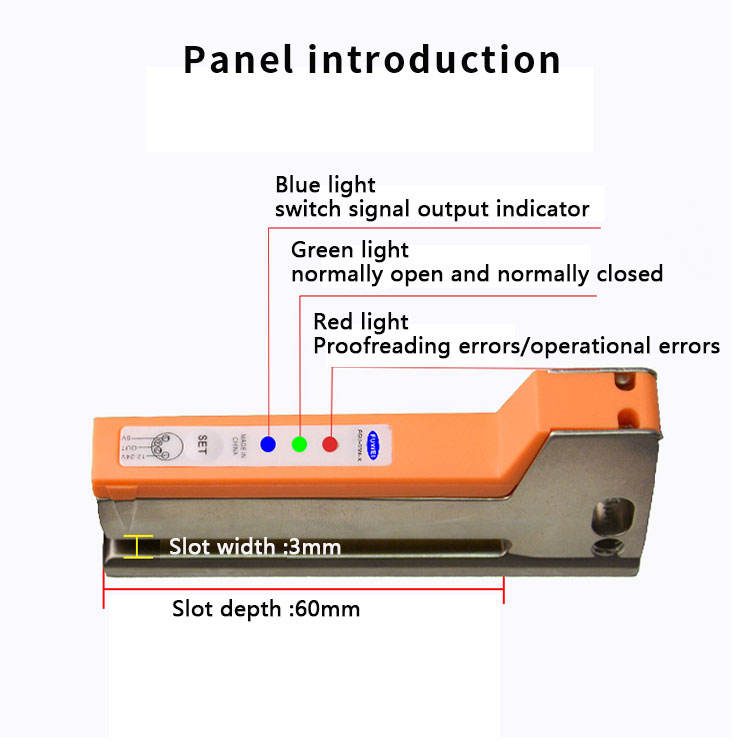

| Red light Indicator |
Proofreading errors/operational errors |
| Green light Indicator |
NO/NC |
| Blue light Indicator |
Switching signal output |
| Selling Units |
Single item |
| Single package size |
12X11X4 cm |
| Single gross weight |
0.170 kg |
