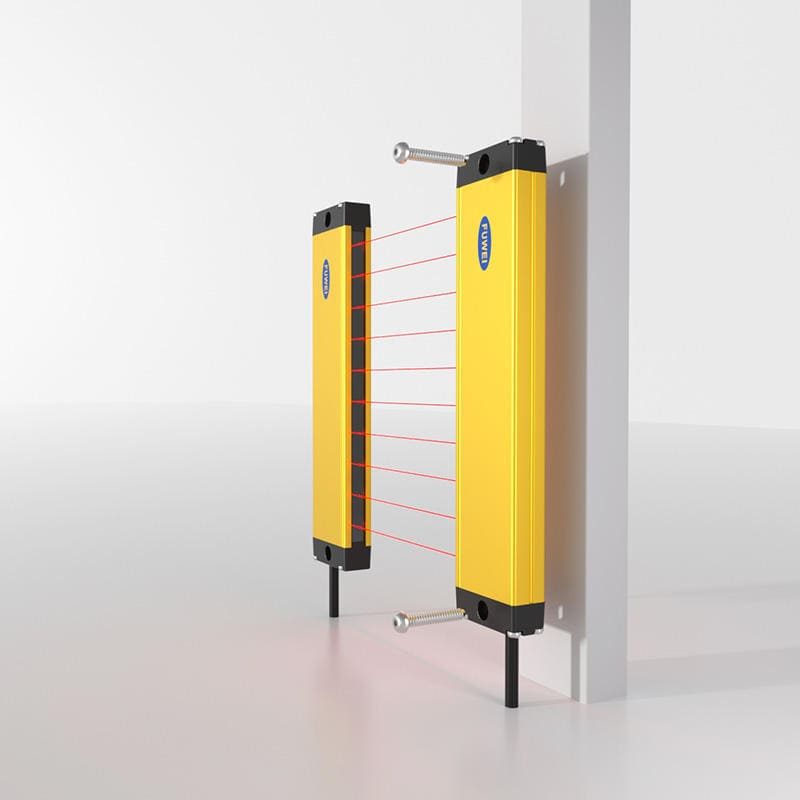

| Mounting Type |
Side mounting screws |
| Manufacturing Date Code |
2024 |

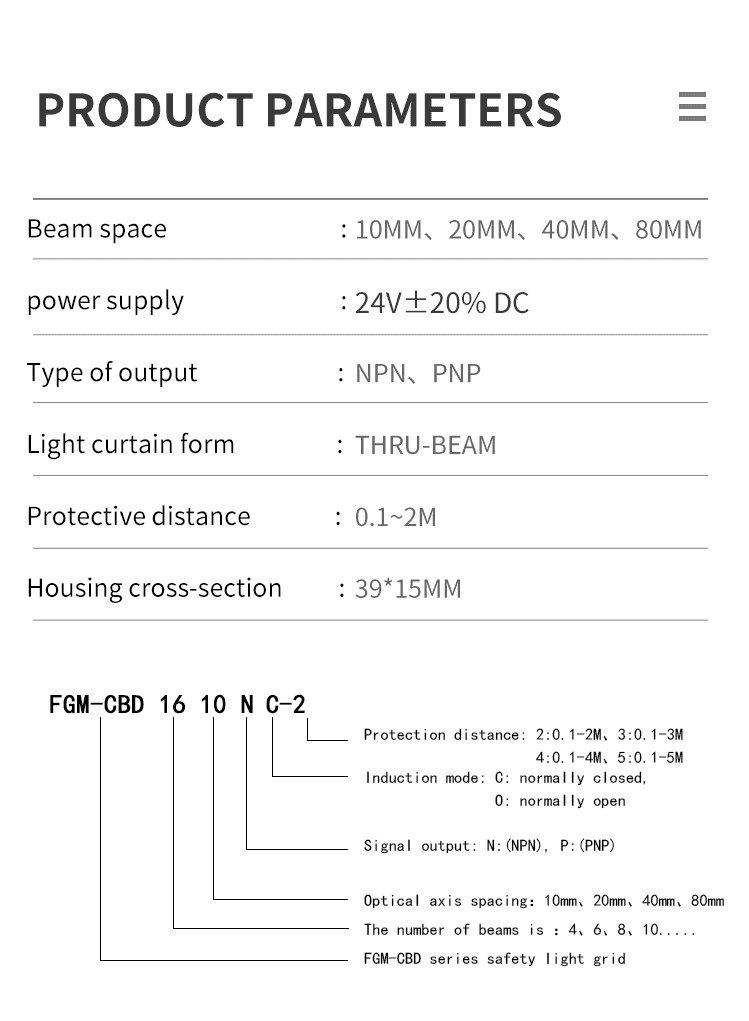

| Model Number |
FGM-CBD15-2010-NC-2 |
| Brand Name |
FUWEI |
| Usage |

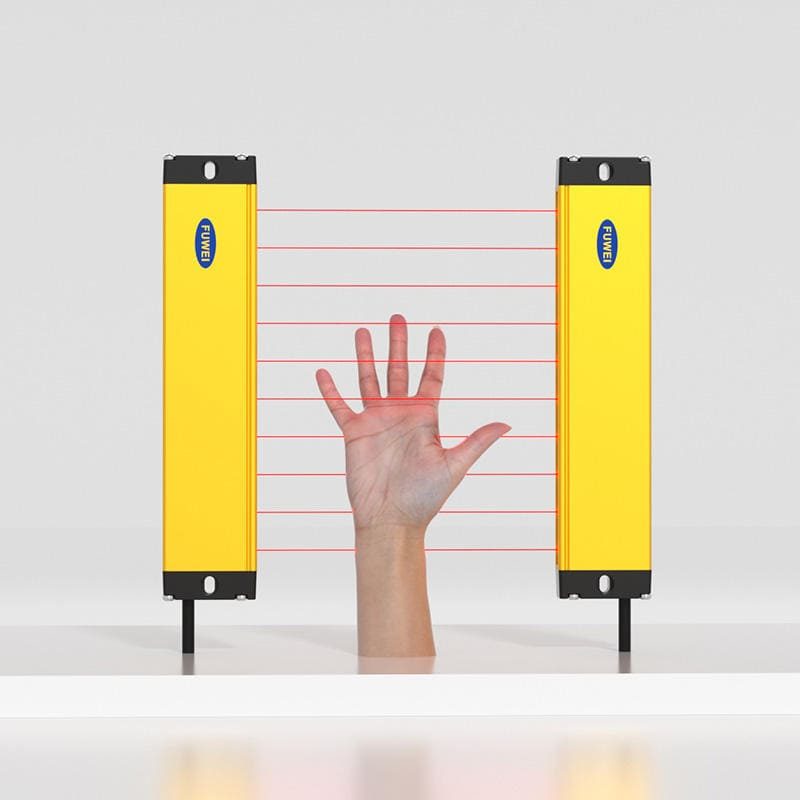

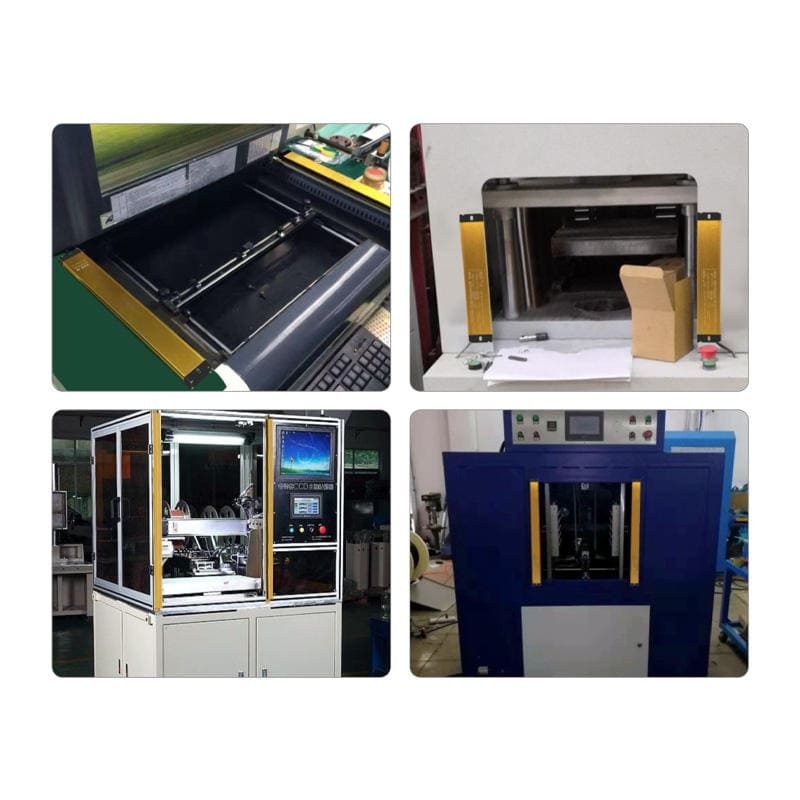

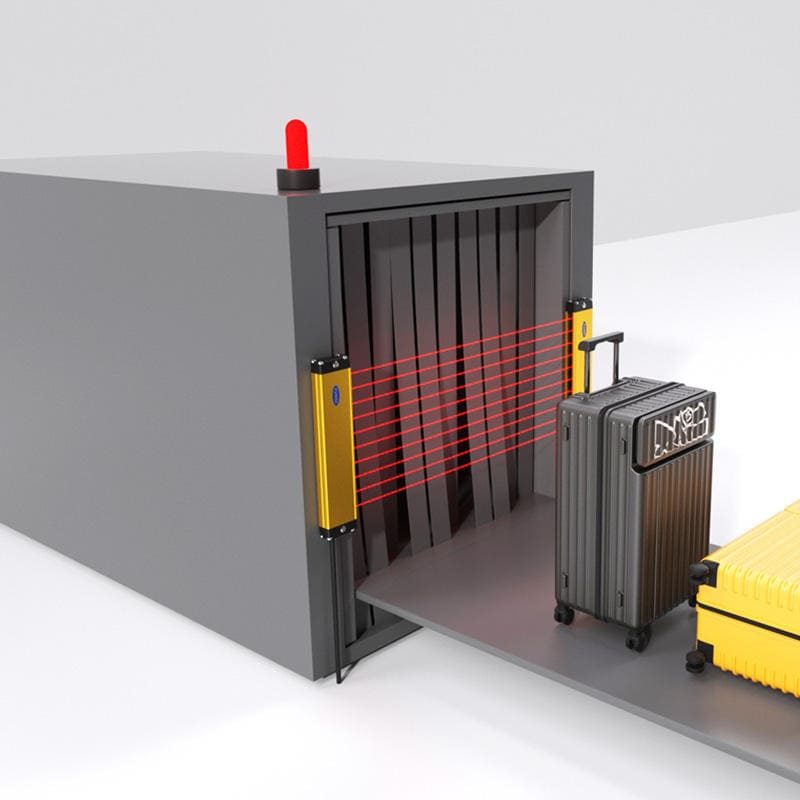

Machine safety protection |
| Description |
Machine safety protection |
| Type |
Infrared Safety Light Sensor |
| Series |
FGM-CBD15-2010-NC-2 |
| Place of Origin |
Guangdong, China |
| Theory |
Correlation infrared sensor |

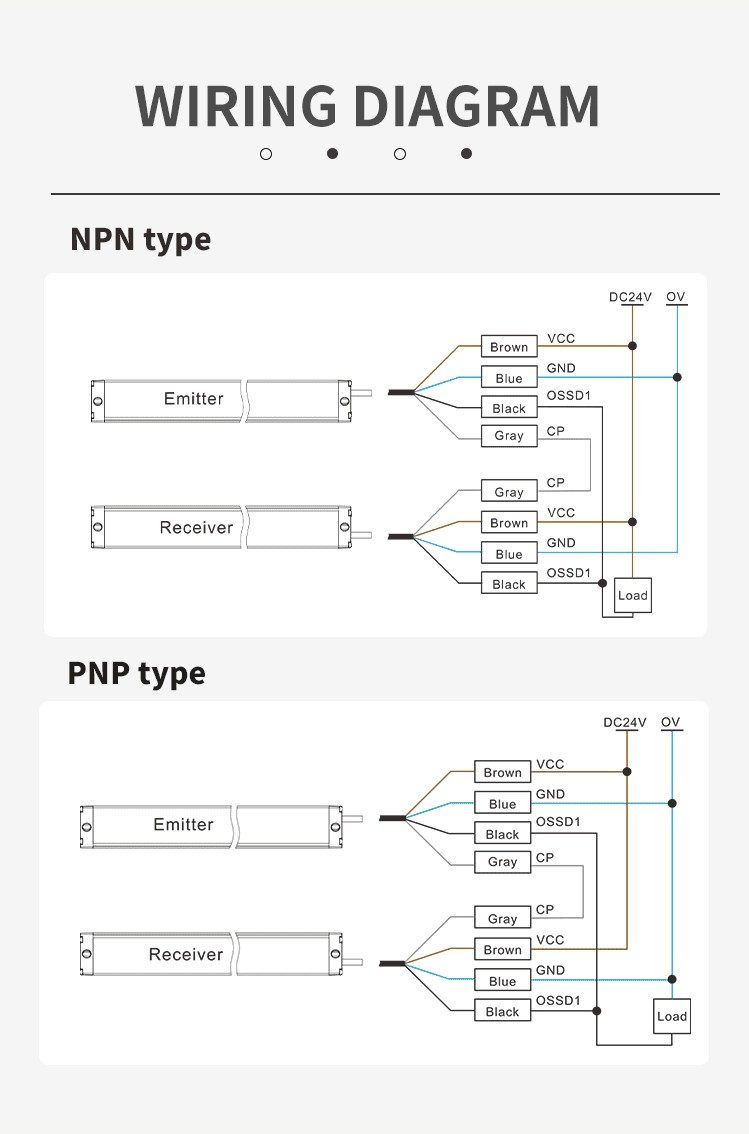

| Output |
NPN/PNP |
| Description |

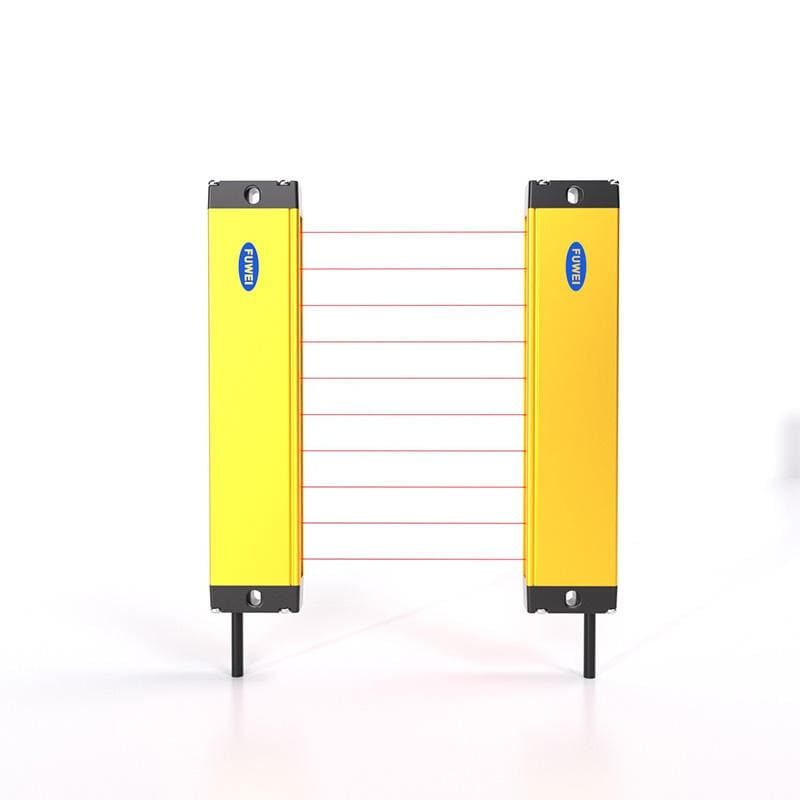

Safety light curtain sensors |
| Power supply |
DC10-30V |

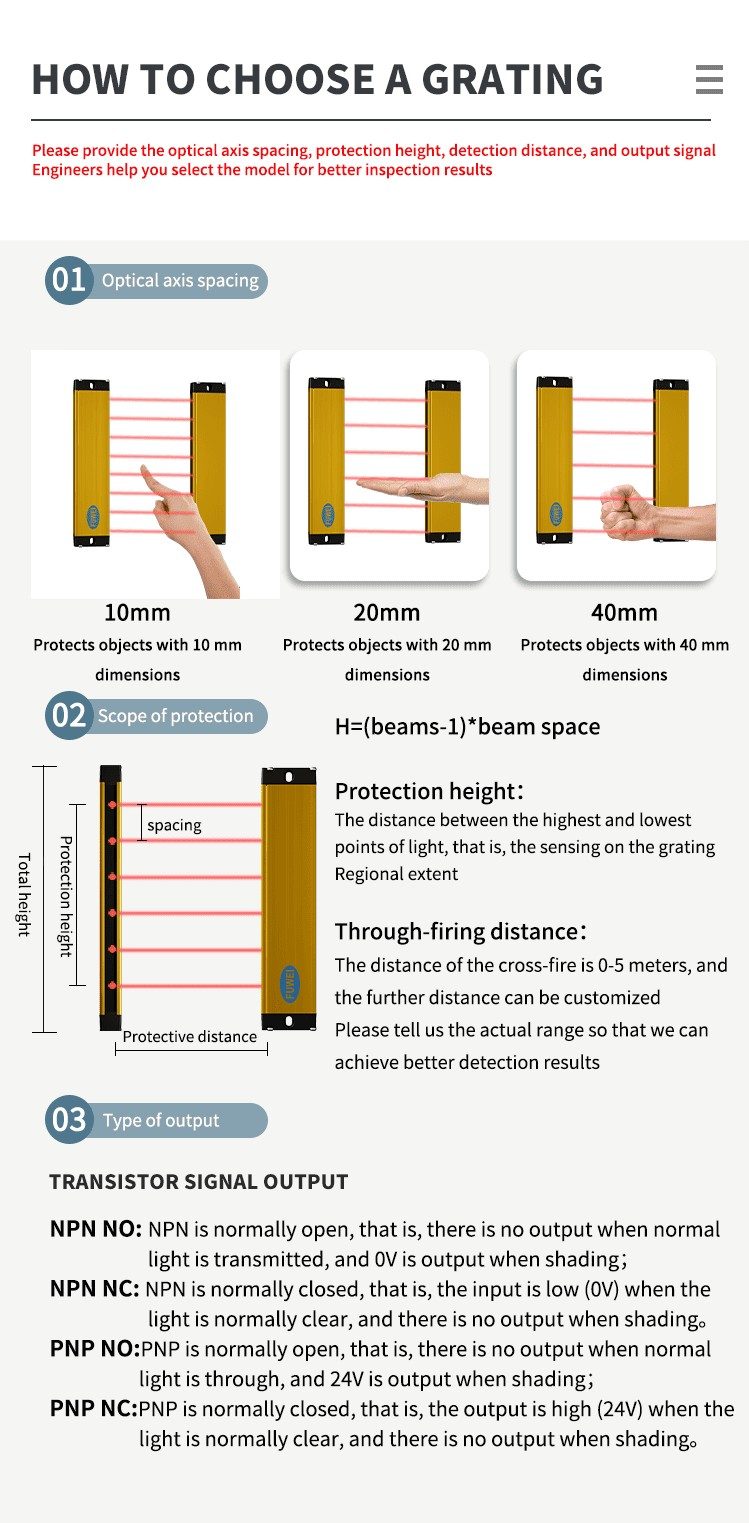

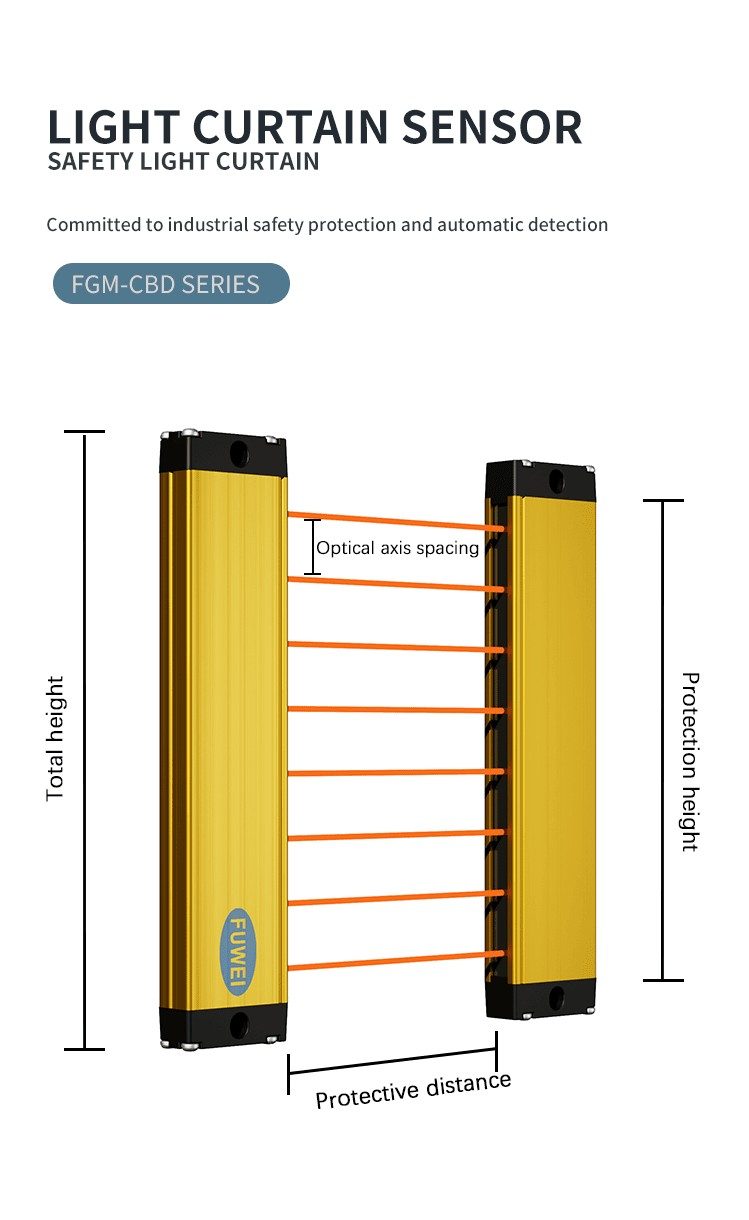

| Beam space |
10mm/20mm/40mm |
| Resolution |
20mm/30mm/45mm |
| Sensing distance |
0.1~2m |
| Anti-optical interference |
10000 Lux (angle>5°) |

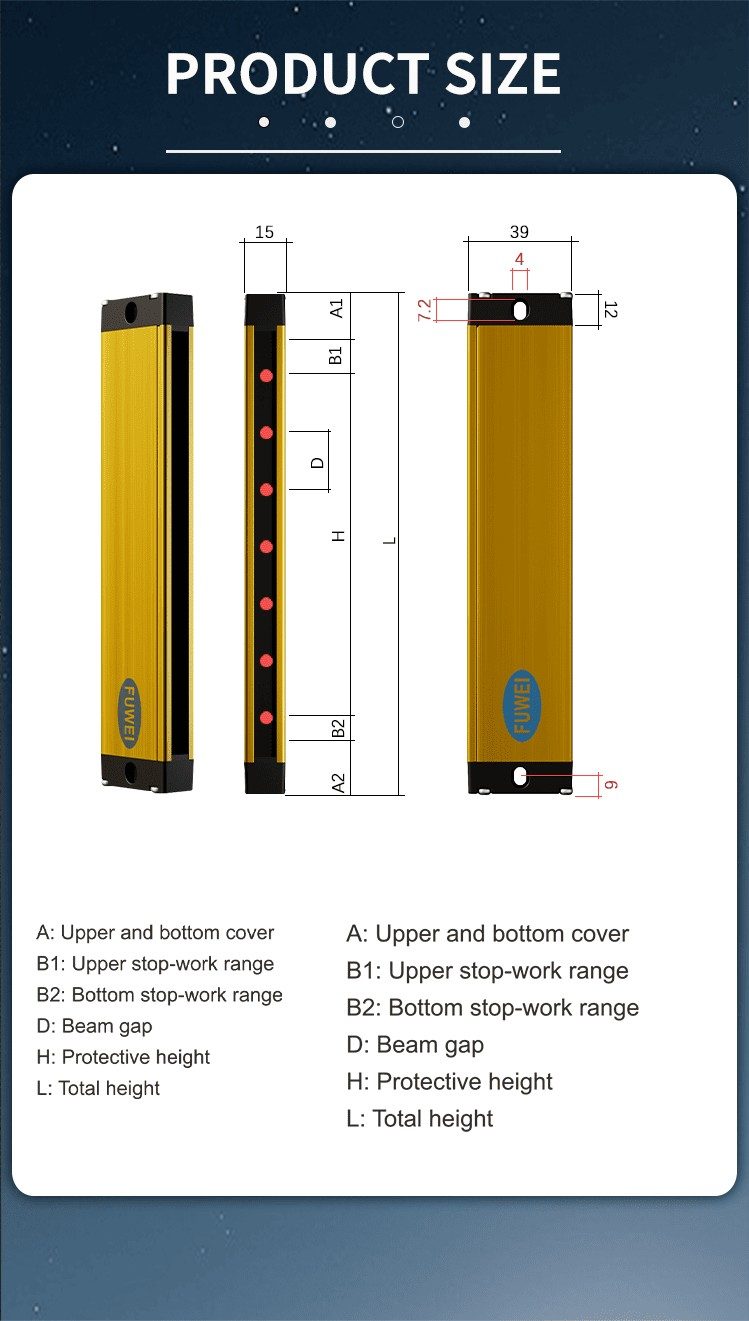

| Housing cross-section |
35*15mm |
| Enclosure rating |
IP65 |
| Ambient operating temperature |
-10°C~55°C (with no freezing) |
| Selling Units |
Single item |
| Single package size |
50X50X20 cm |
| Single gross weight |
1.000 kg |
