| Mounting Type |
Screw fixing |
| Manufacturing Date Code |
20240507 |
| Model Number |

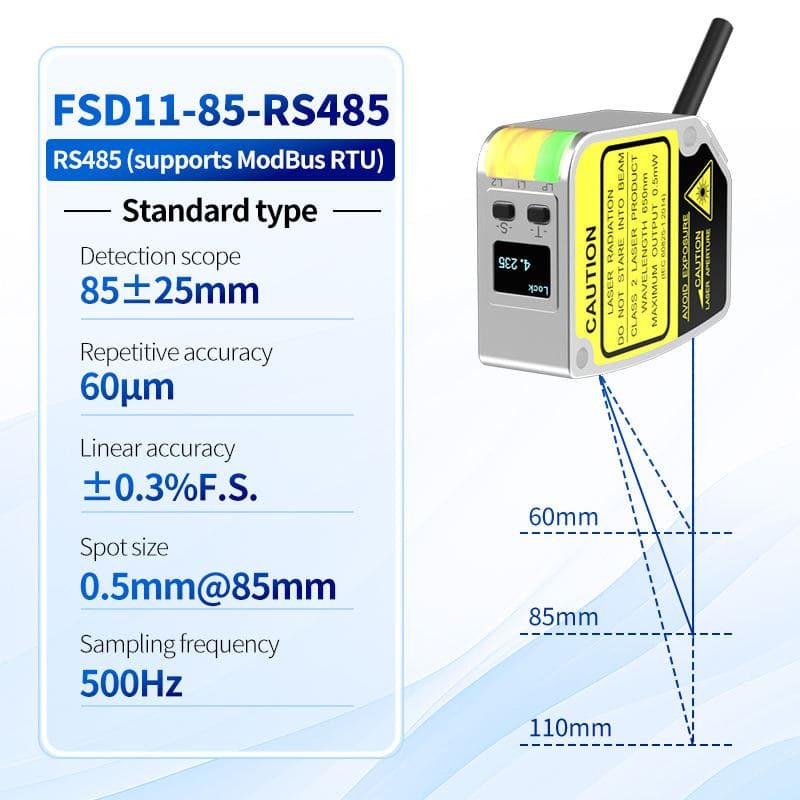

FSD11-85-RS485 |
| Brand Name |
FUWEI |
| Usage |
Measuring Distance |
| Description |
High precision laser displacement sensor |
| Type |
Laser Displacement Sensor |
| Series |
FSD11 |
| Features |
High precision measurement |
| Place of Origin |
Guangdong, China |
| Theory |
Laser triangulation principle measurement method |
| Output |

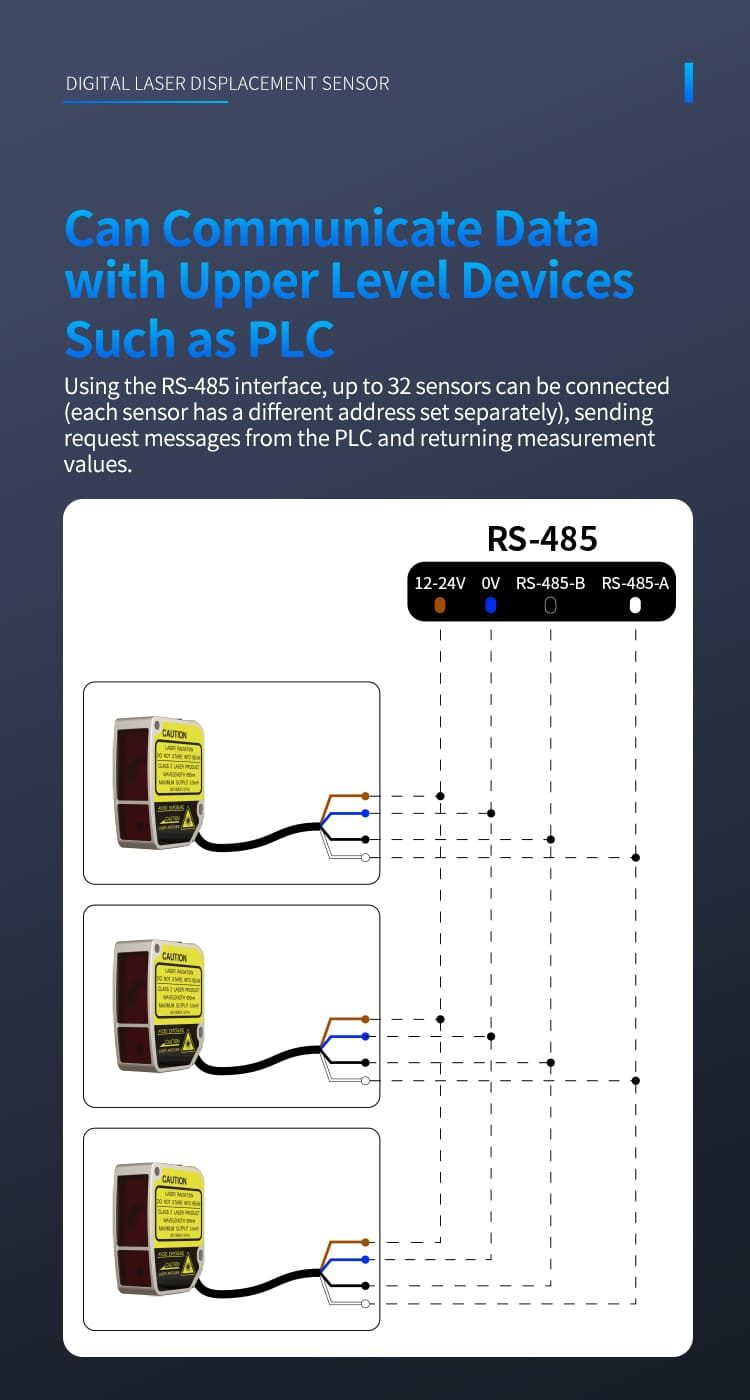

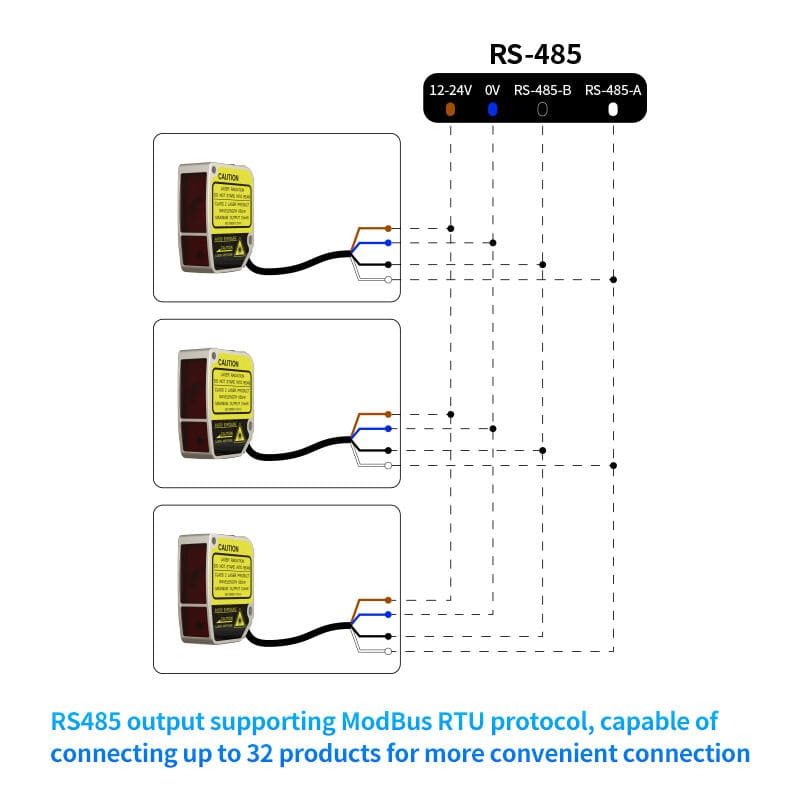

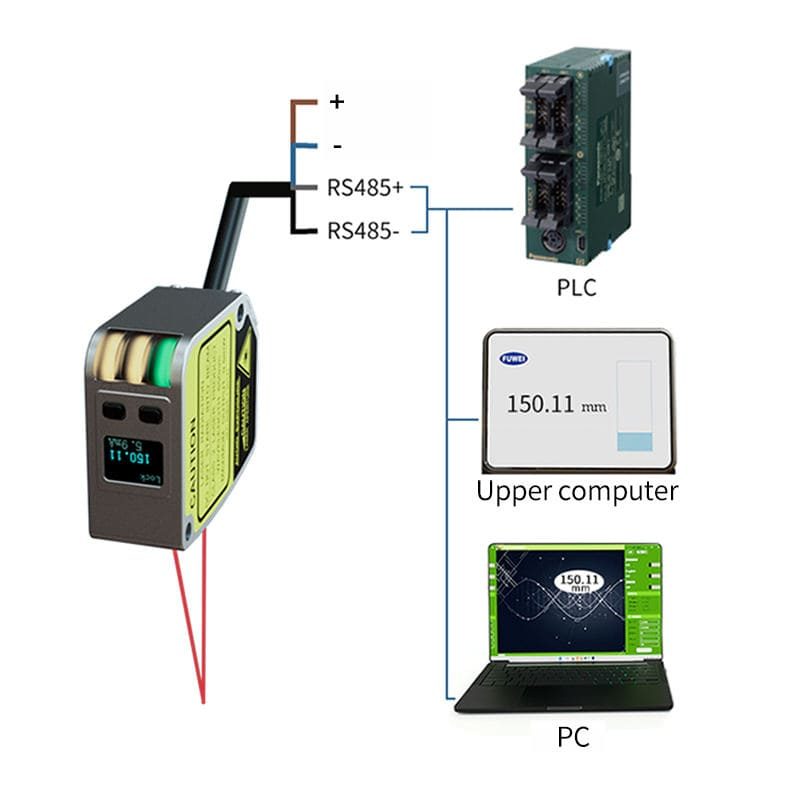

RS-485 (Support ModBus protocol) |

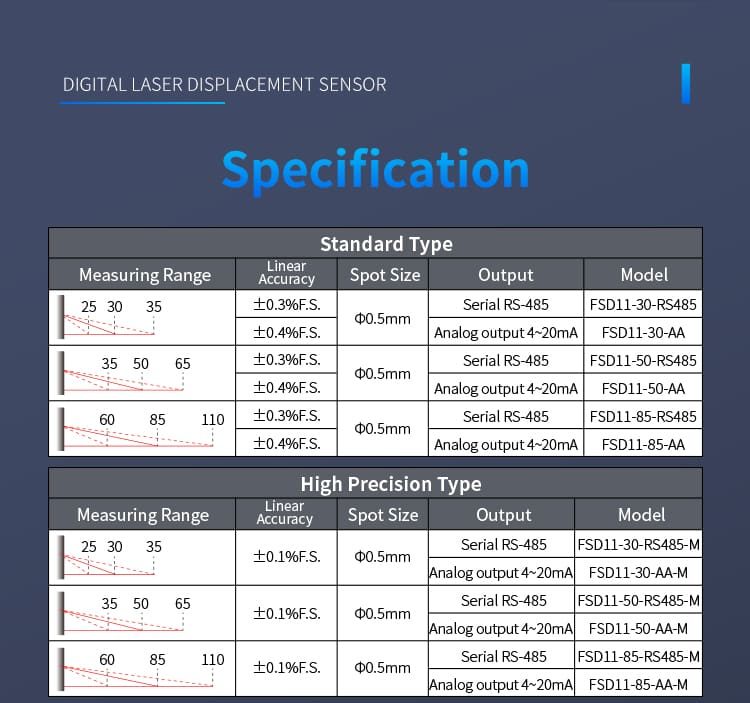

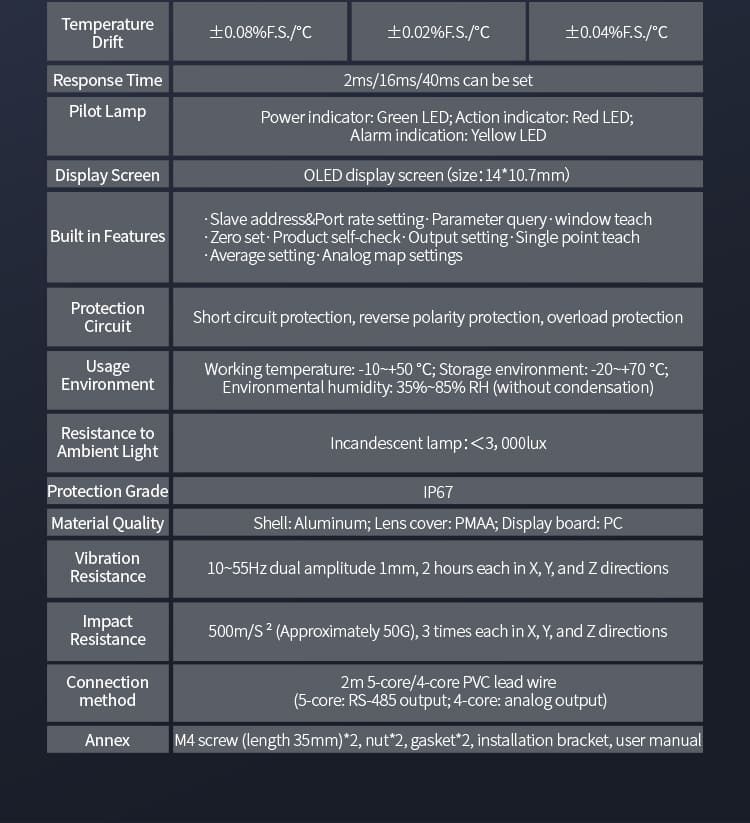

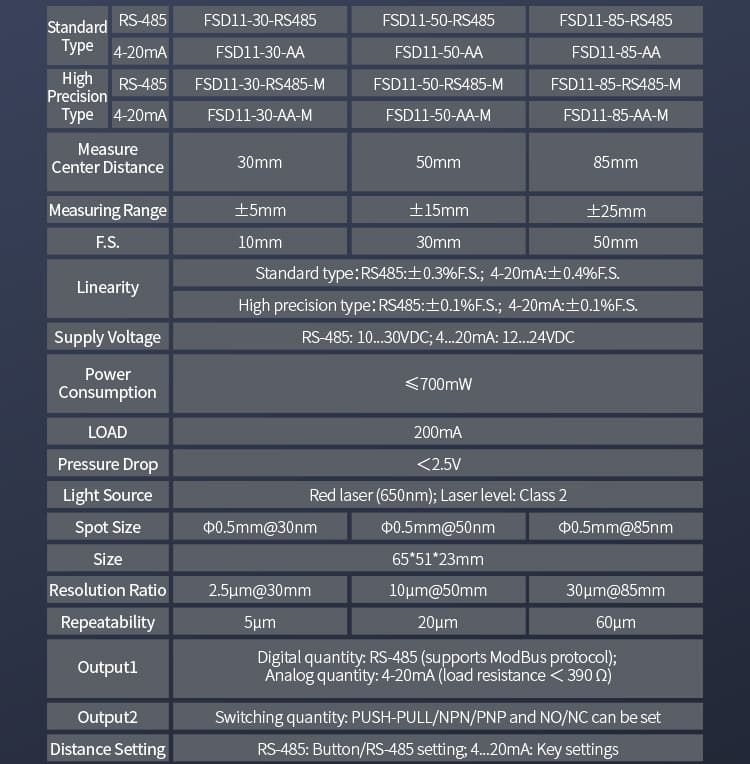

| Technical Parameters |

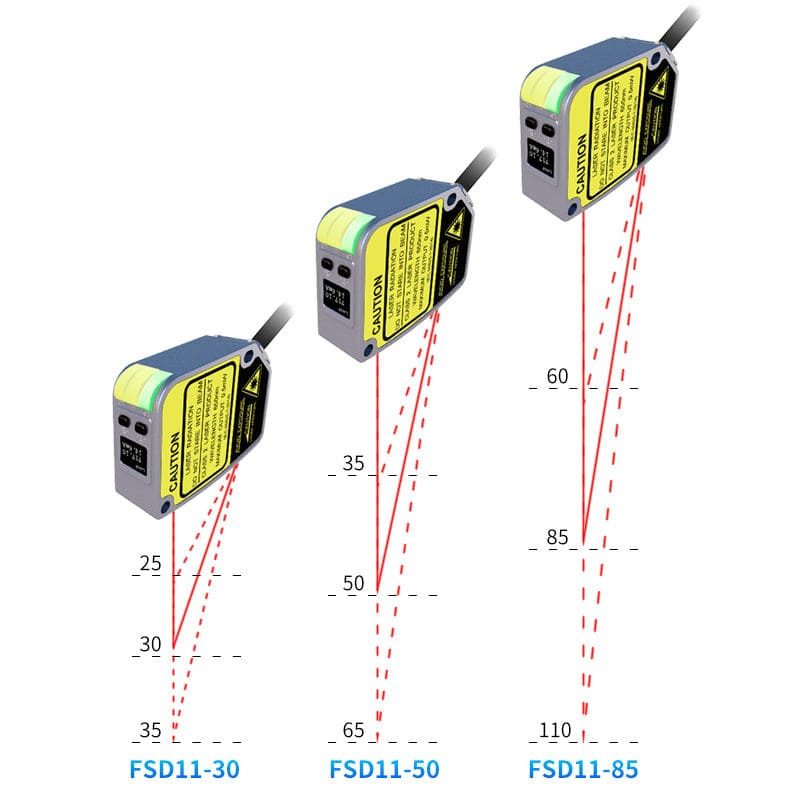

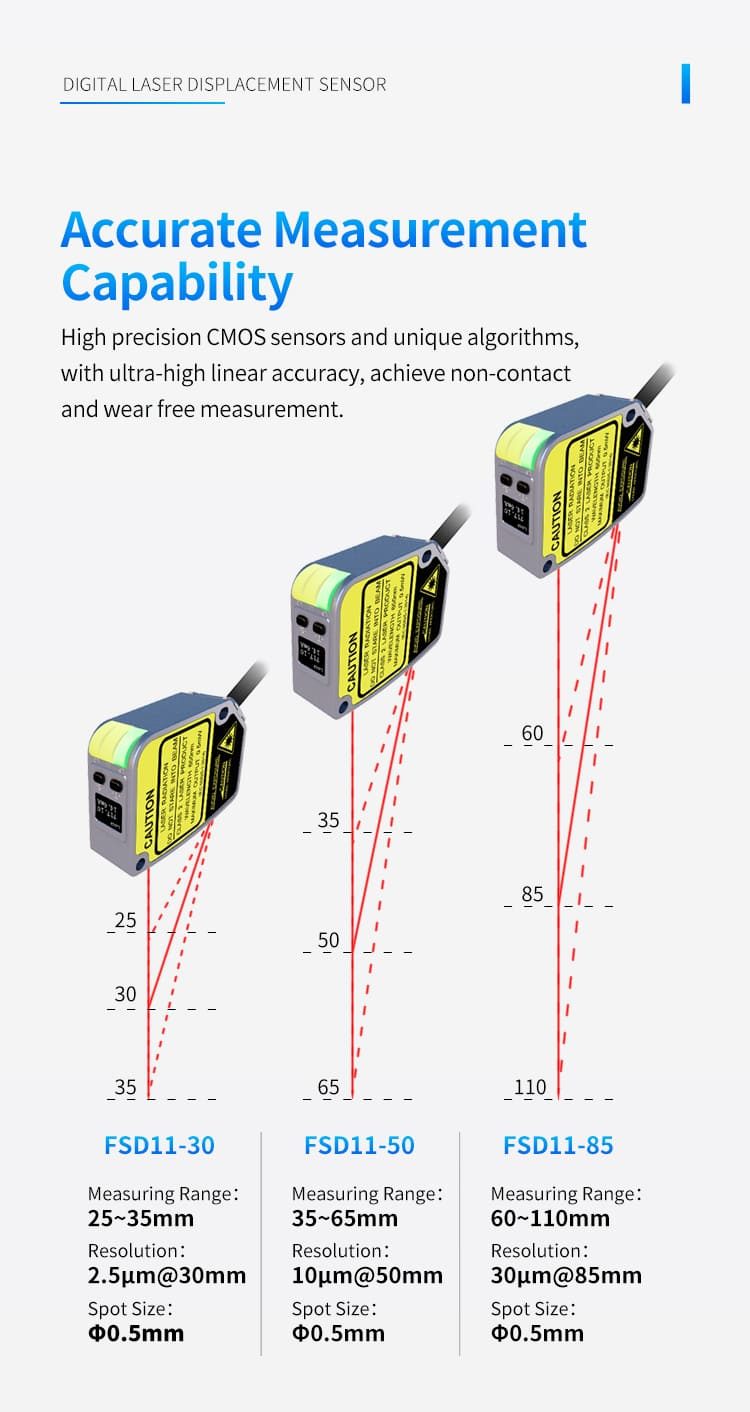

| Measuring Center Distance |
85 mm |
| Measuring Range |
±25 mm |
| Full Range (F.S.) |
50 mm |

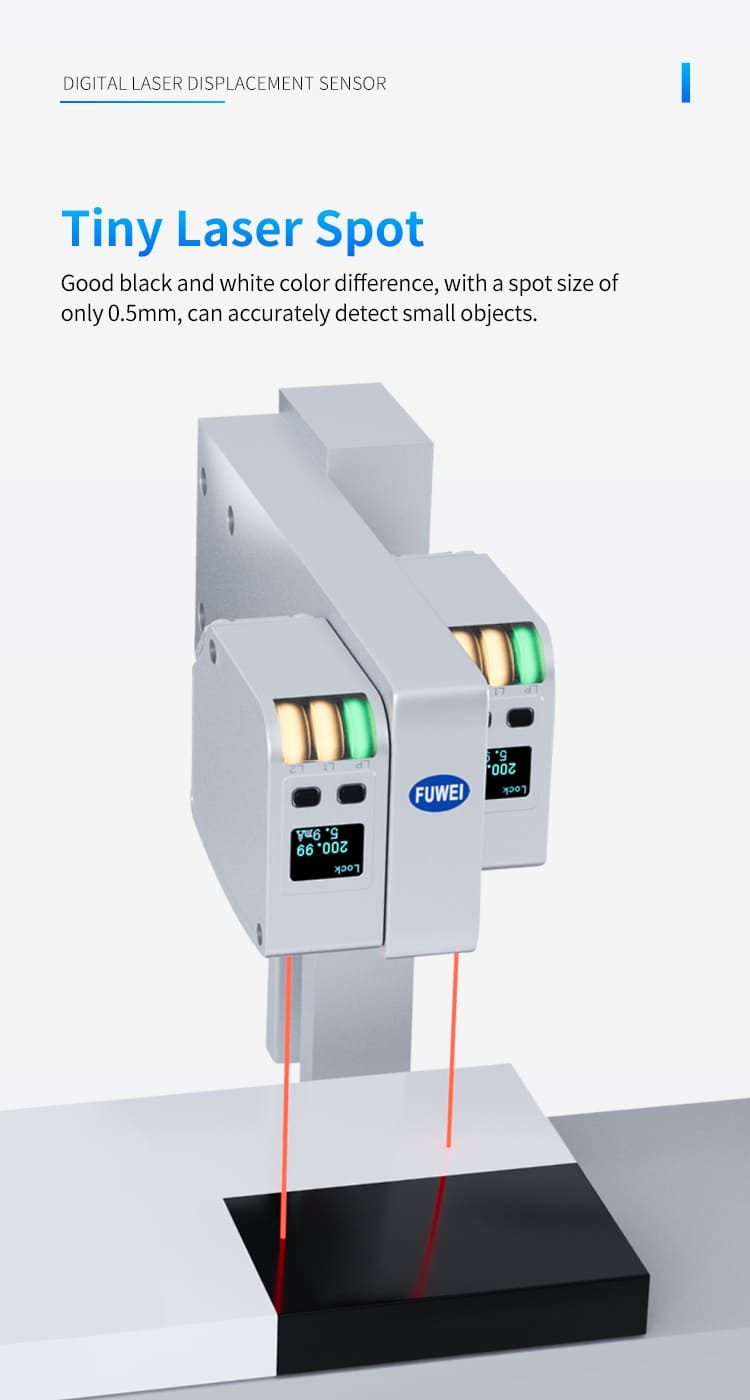

| Light Spot Size |
0.5 mm @ 85 mm |
| Resolution |
30 µm @ 30 mm |
| Repeat Accuracy |
60 µm |
| Temperature Drift |
±0.04% F.S./°C |
| Linear Accuracy |
±0.1% F.S. |
| Supply Voltage |
10–30 VDC |

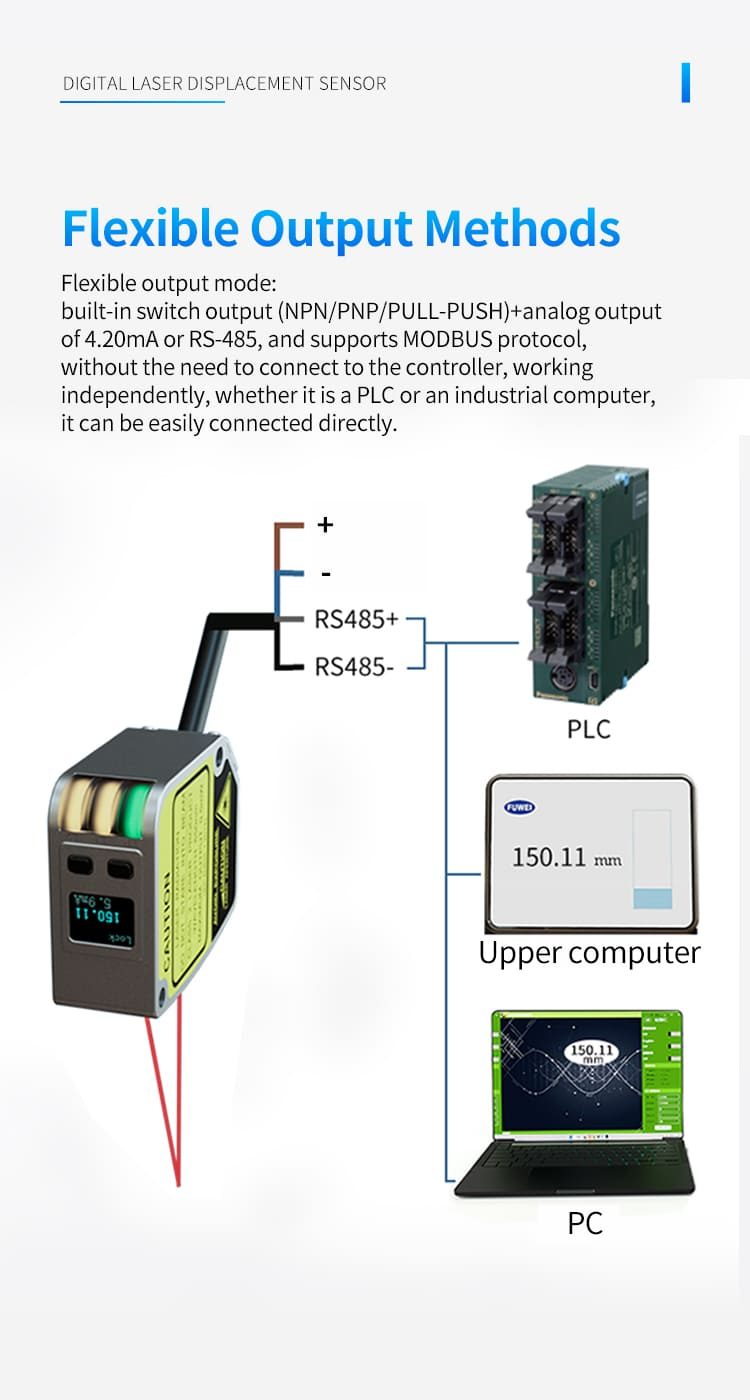

| Output 1 |
Digital value: RS-485 (Support ModBus protocol) |
| Packaging & Delivery |
| Selling Units |
Single item |
| Single Package Size |
10 × 10 × 4 cm |
| Single Gross Weight |
0.500 kg |
