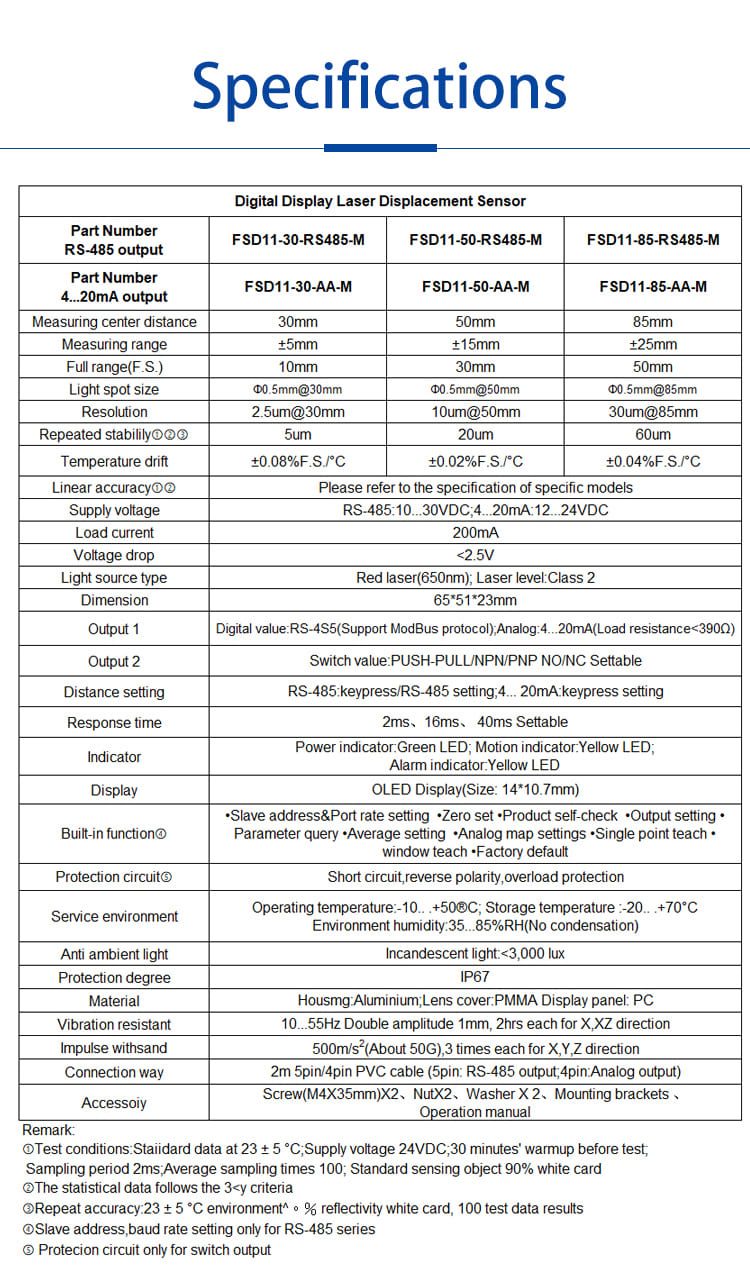

| Key Attributes | |

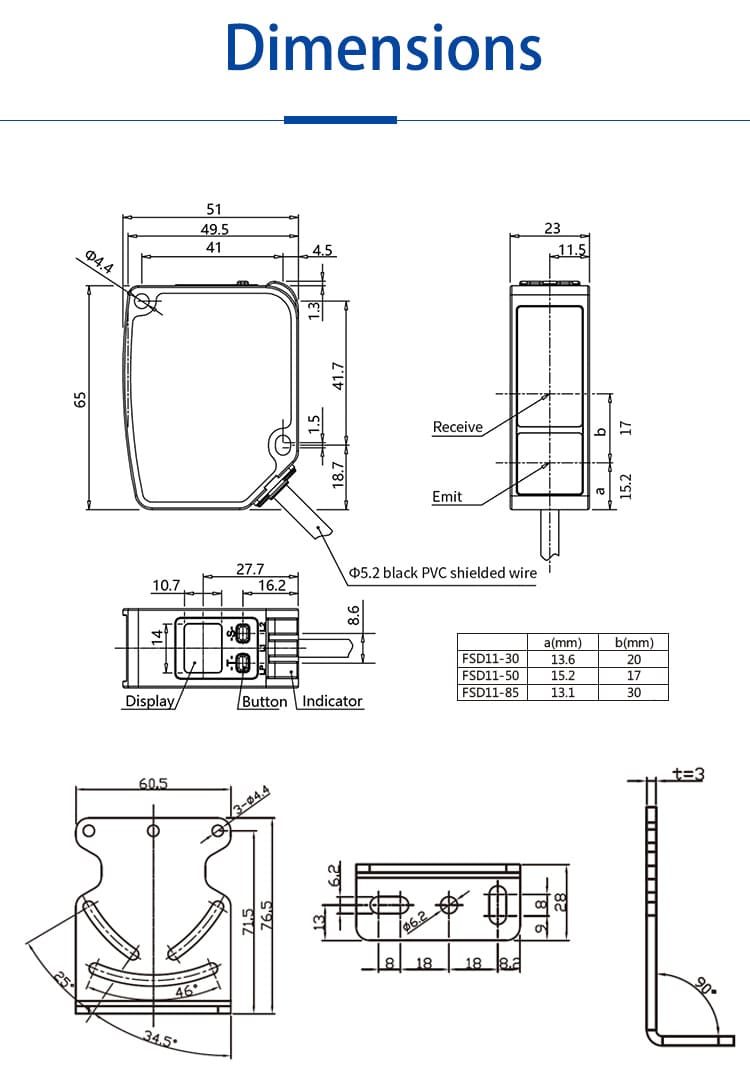

| Mounting Type | Screw fixing |
| Manufacturing Date Code | 2023 |
| Model Number | FSD11-30-RS485-M |
| Brand Name | FUWEI |

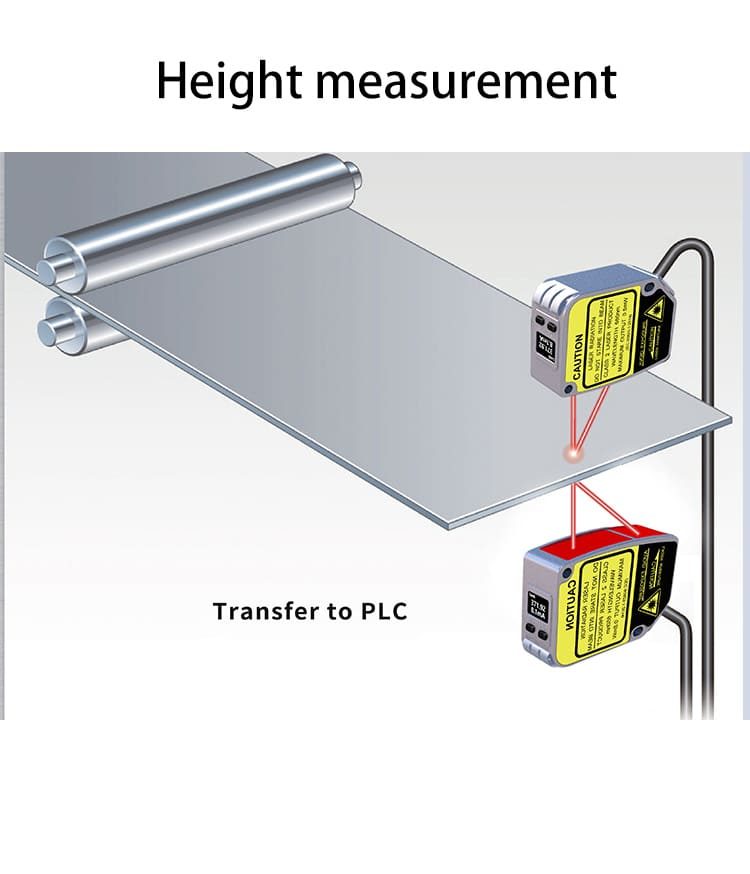

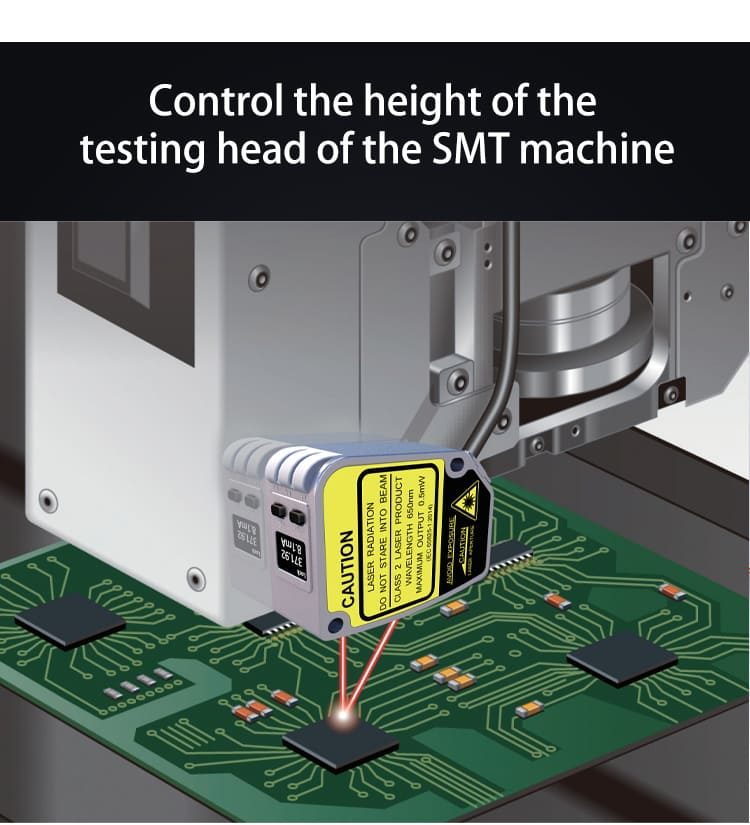

| Usage | Distance control, Thickness measurement |

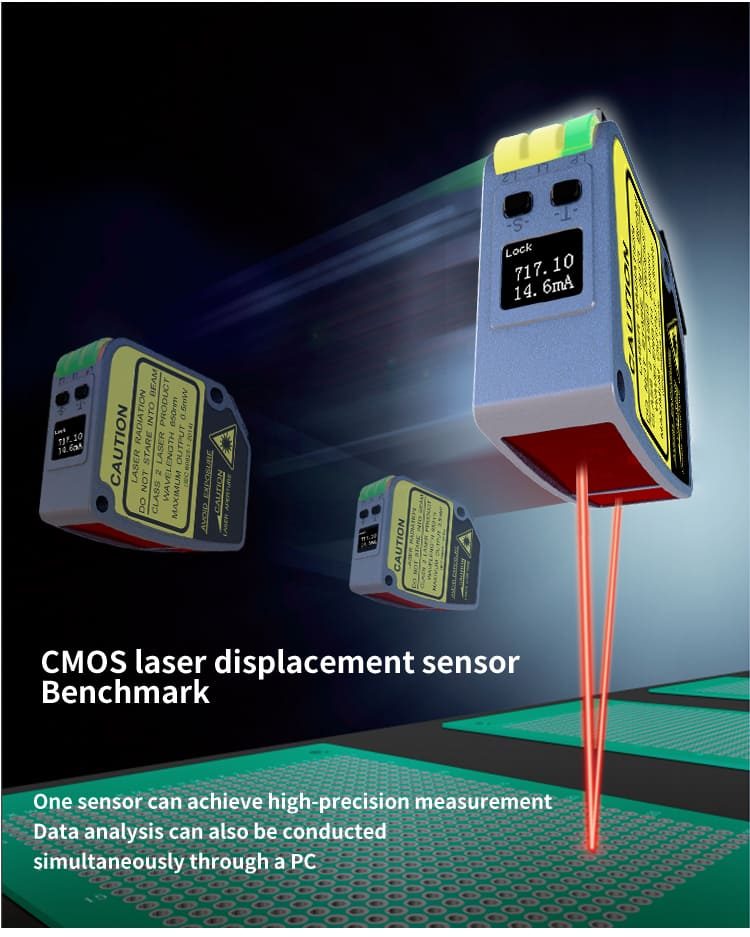

| Description | High precision laser displacement sensor |
| Type | Optical sensor |
| Series | FSD11 |
| Features | High precision measurement |
| Place of Origin | Guangdong, China |
| Theory | Laser triangulation principle measurement method |

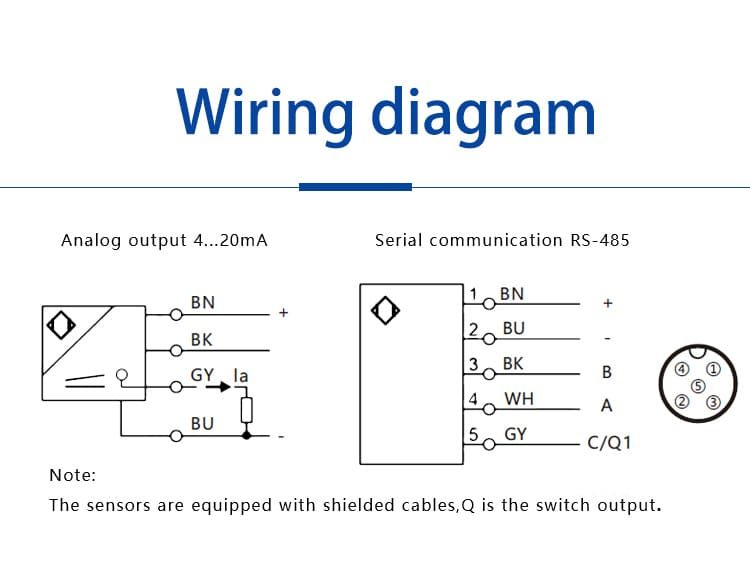

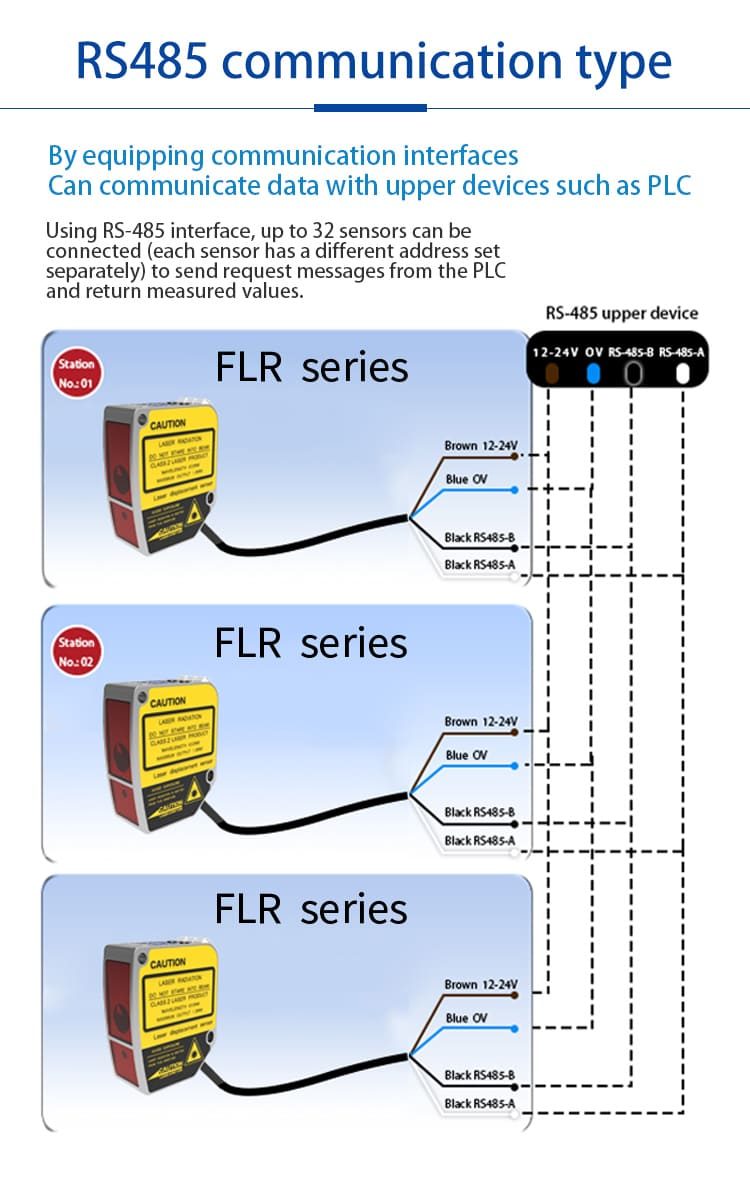

| Output | RS-485 (Support ModBus protocol) |

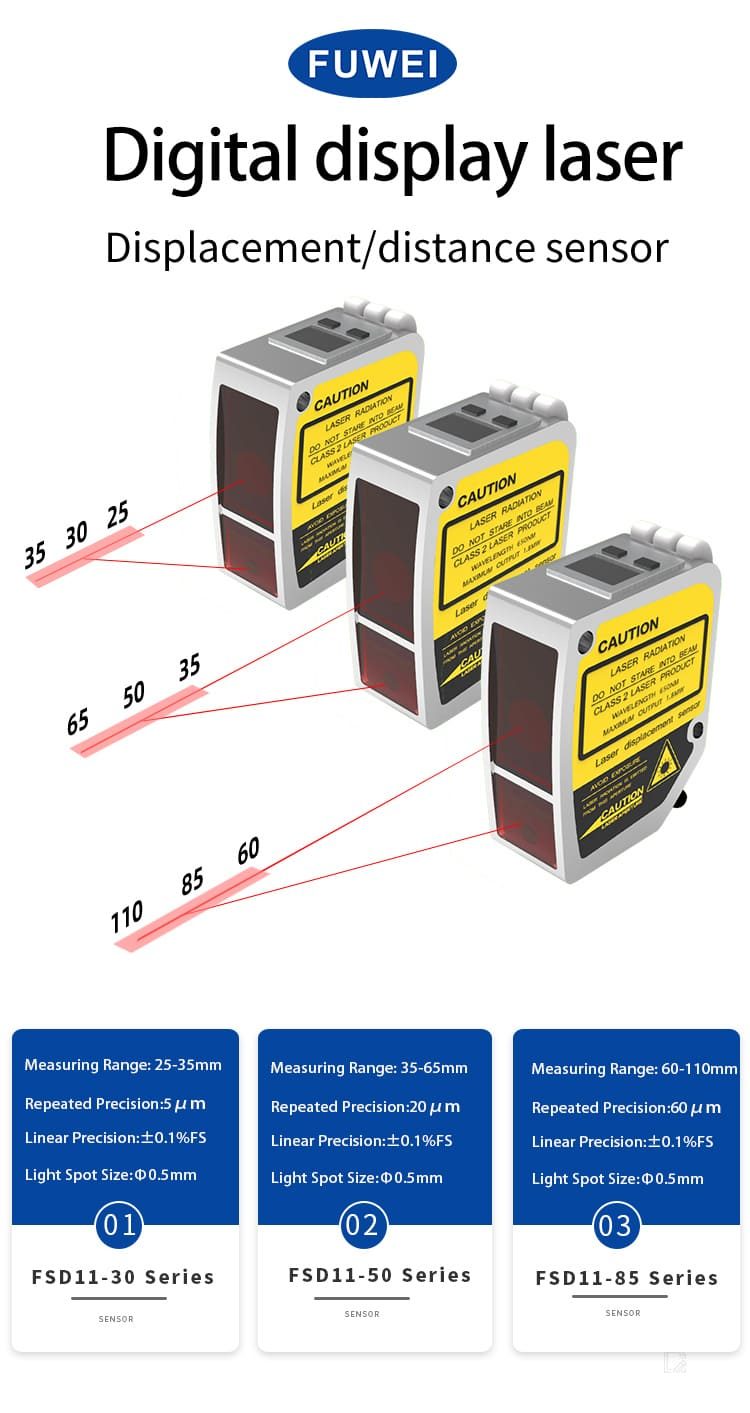

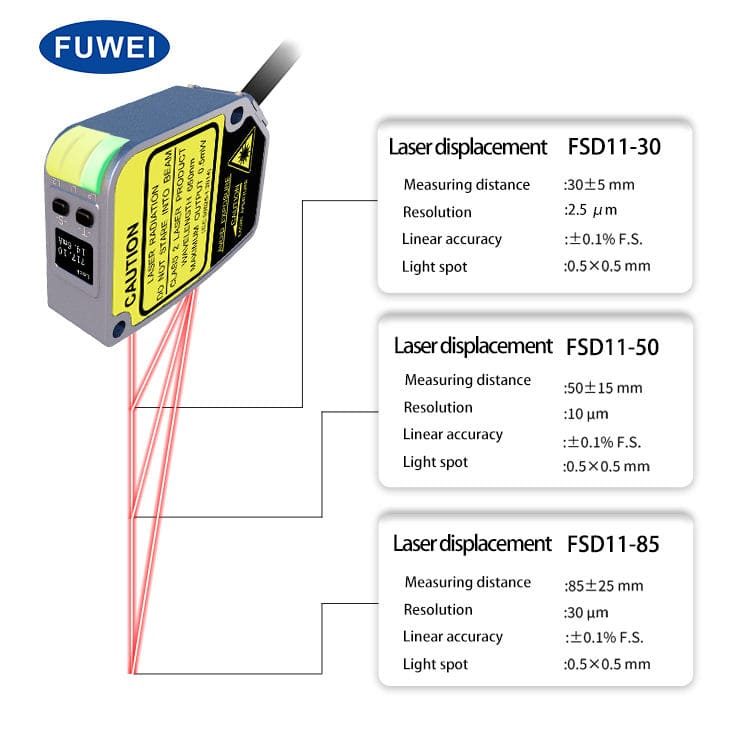

| Measuring Center Distance | 30mm |
| Measuring Range | ±5mm |
| Full Range (F.S.) | 10mm |
| Light Spot Size | 0.5mm @ 30mm |
| Repeat Accuracy | 5µm |
| Temperature Drift | ±0.08% F.S./°C |
| Linear Accuracy | ±0.1% F.S. |
| Supply Voltage | 10–30VDC |
| Packaging and Delivery | |
| Selling Units | Single item |
