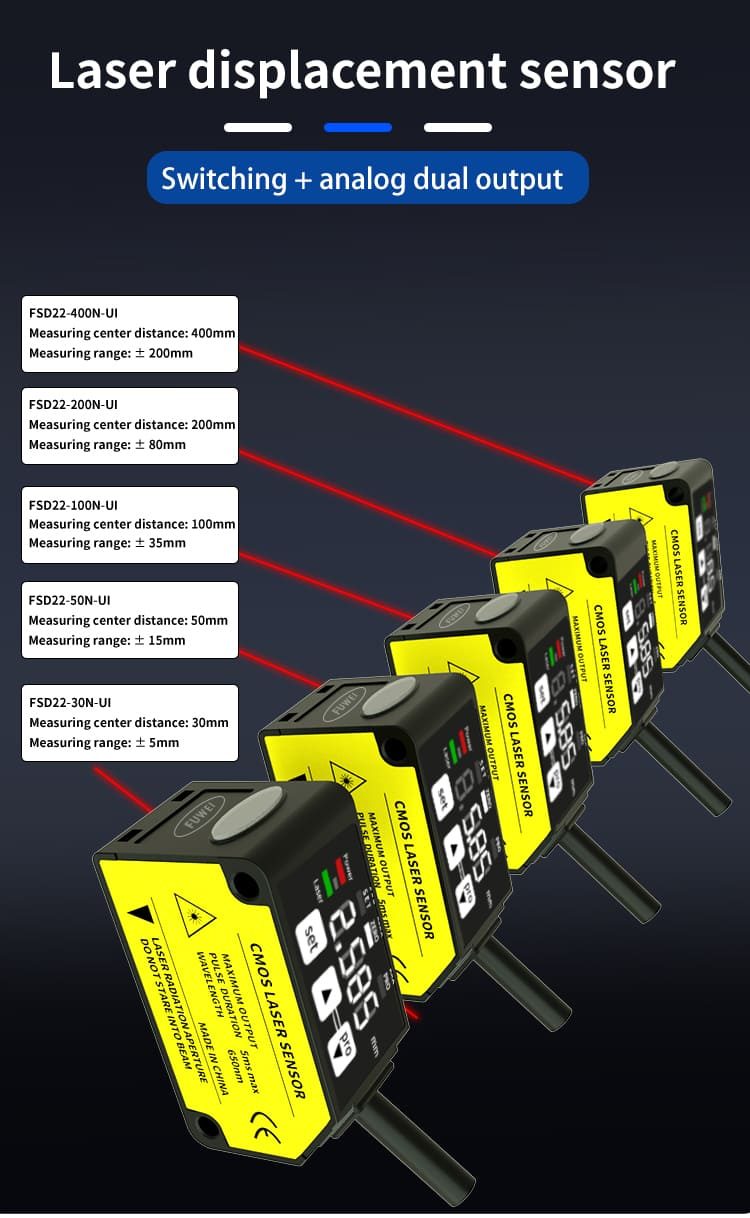

| FUWEI FSD22-200P-UI 激光位移传感器参数表 | |
|---|---|

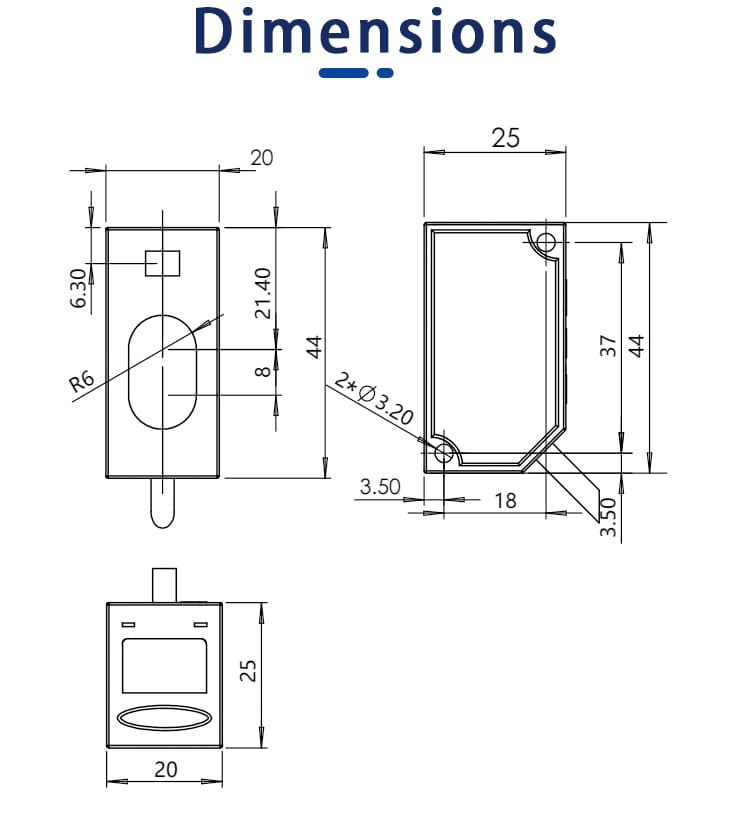

| Mounting Type | Screw fixing |
| Manufacturing Date Code | 2023 |
| Model Number | FSD22-200P-UI |
| Brand Name | FUWEI |

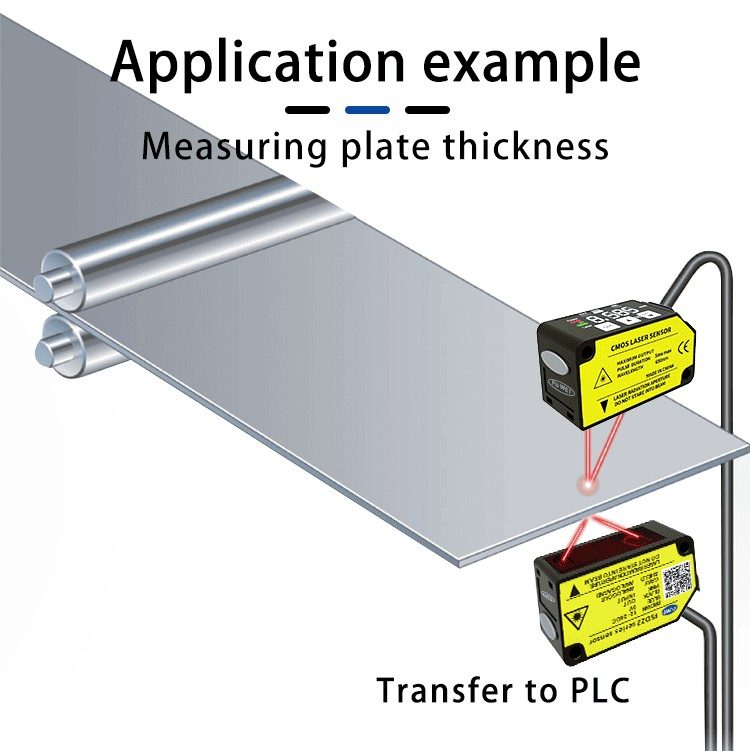

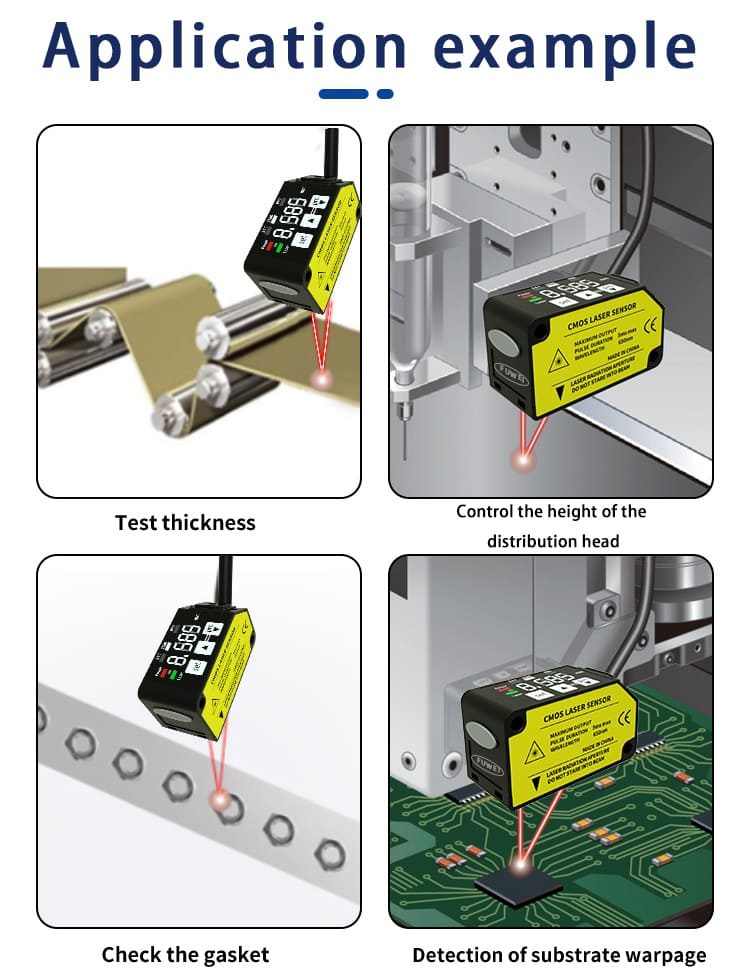

| Usage | Distance control |
| Description | High precision laser displacement sensor |
| Type | Linear Displacement Sensor |

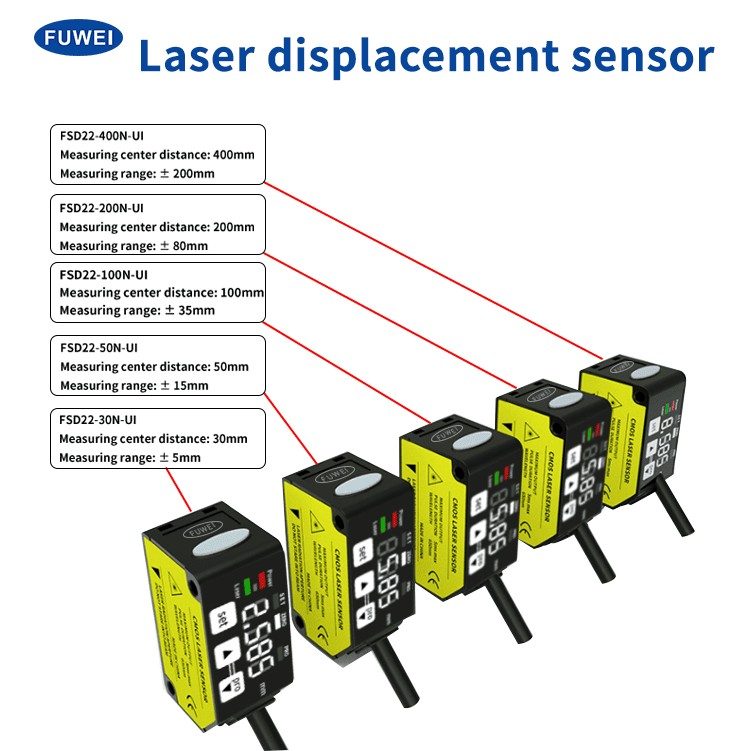

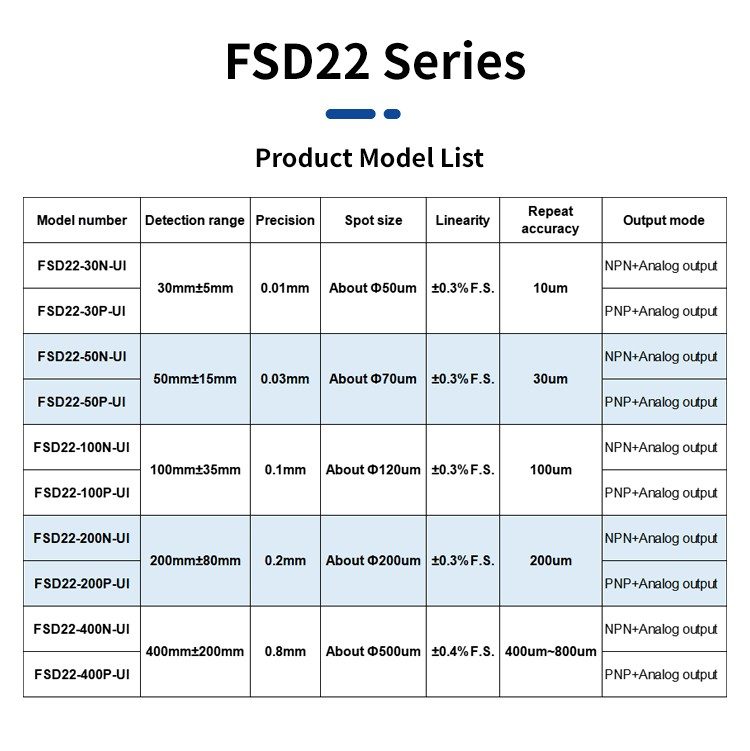

| Series | FSD22 |
| Features | High precision laser displacement sensor |
| Place of Origin | Guangdong, China |
| Theory | Laser triangulation principle measurement method |

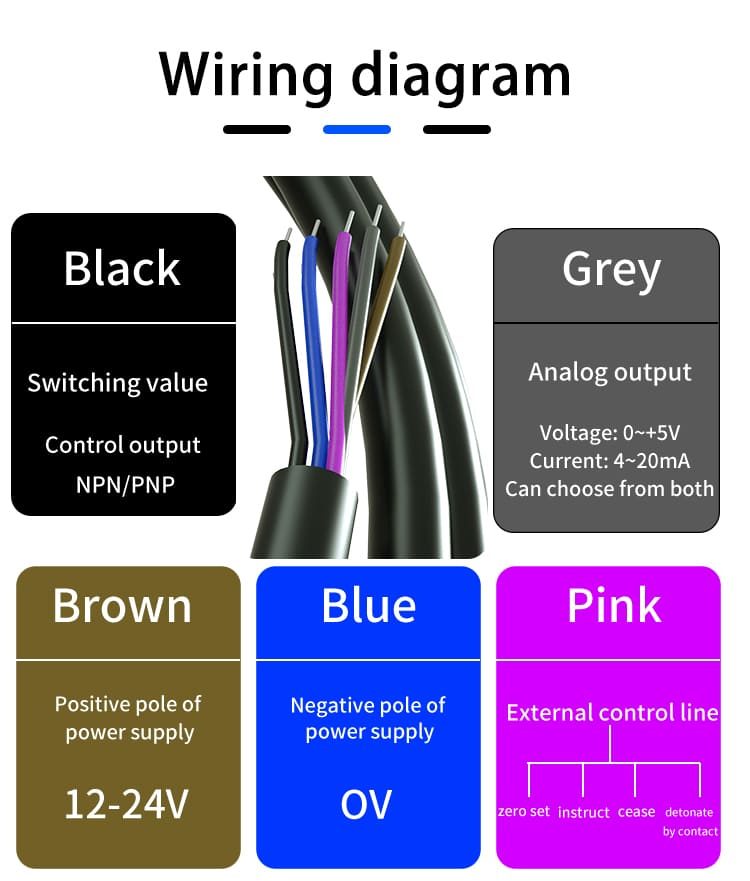

| Output | PNP / analog 0-5V / 4-20mA |
| Measurement Center Distance | 200mm |
| Measurement Range | ±80mm |
| Beam Diameter | 200μm |
| Repeatability | 300μm |
| Linearity | ±0.3% F.S. |
| Packaging and Delivery | |
| Selling Units | Single item |
| Single Package Size | 10 × 10 × 4 cm |
| Single Gross Weight | 0.500 kg |
