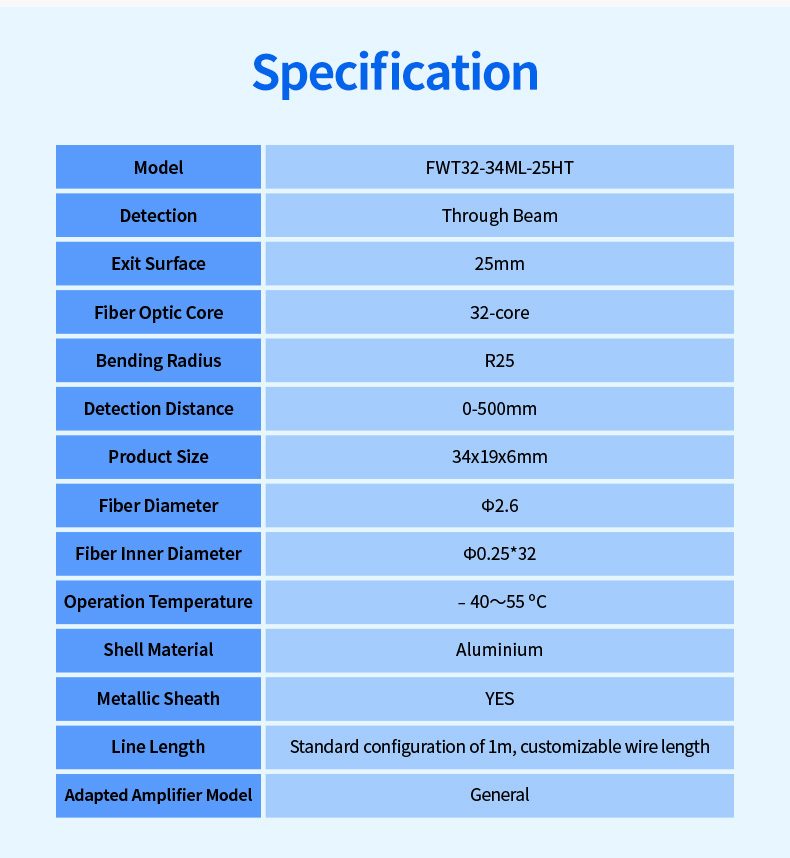

| Attribute | Details |
|---|---|
| Mounting Type | Bolt Mounting |
| Manufacturing Date Code | 2023 |

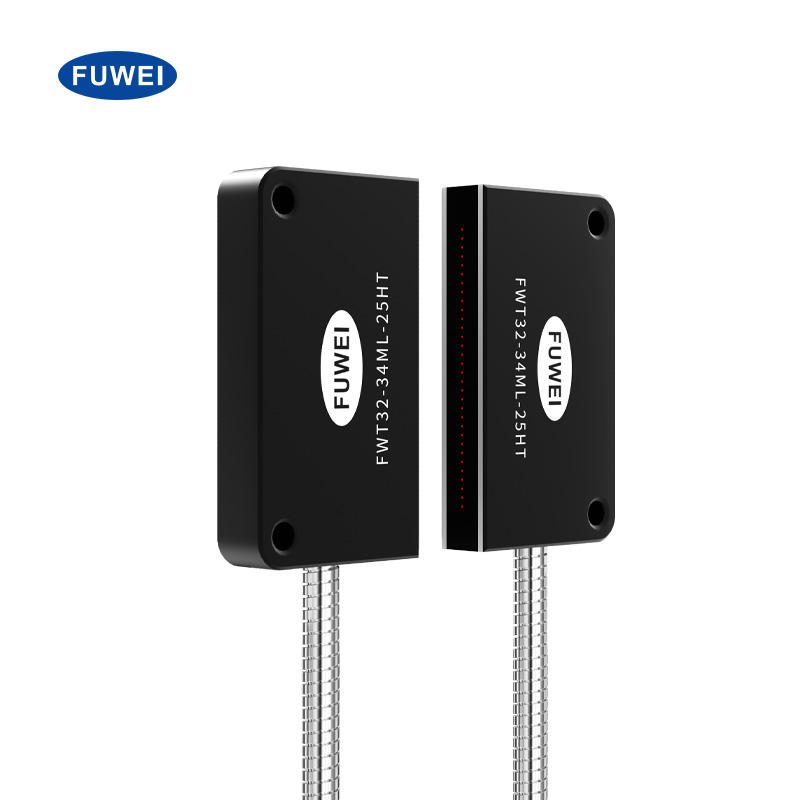

| Model Number | FWT32-34ML-25HT |
| Brand Name | FUWEI |

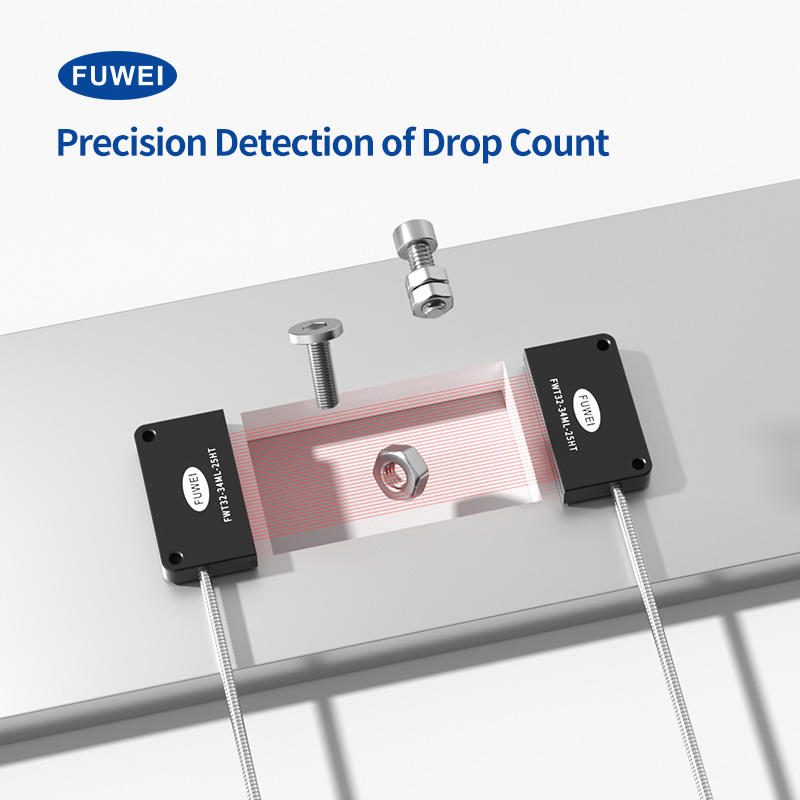

| Usage | Counting detection |

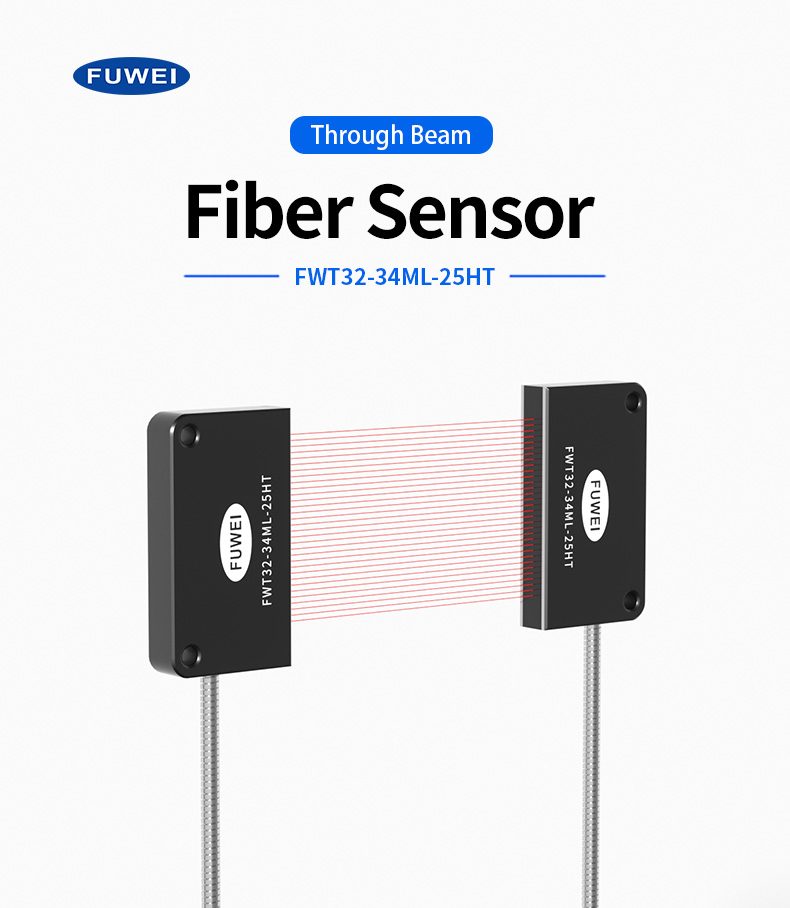

| Description | 35 Area Through Beam Optical Fiber |

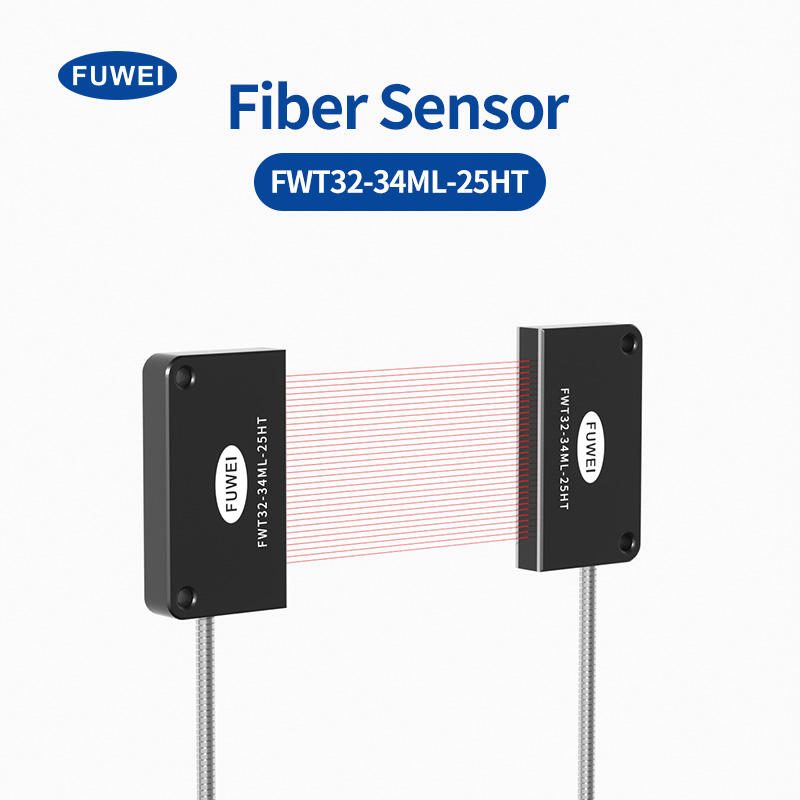

| Type | FIBER OPTIC SENSOR |
| Series | FWT32-34ML-25HT |
| Features | 35mm Effective detection width |
| Place of Origin | Guangdong, China |

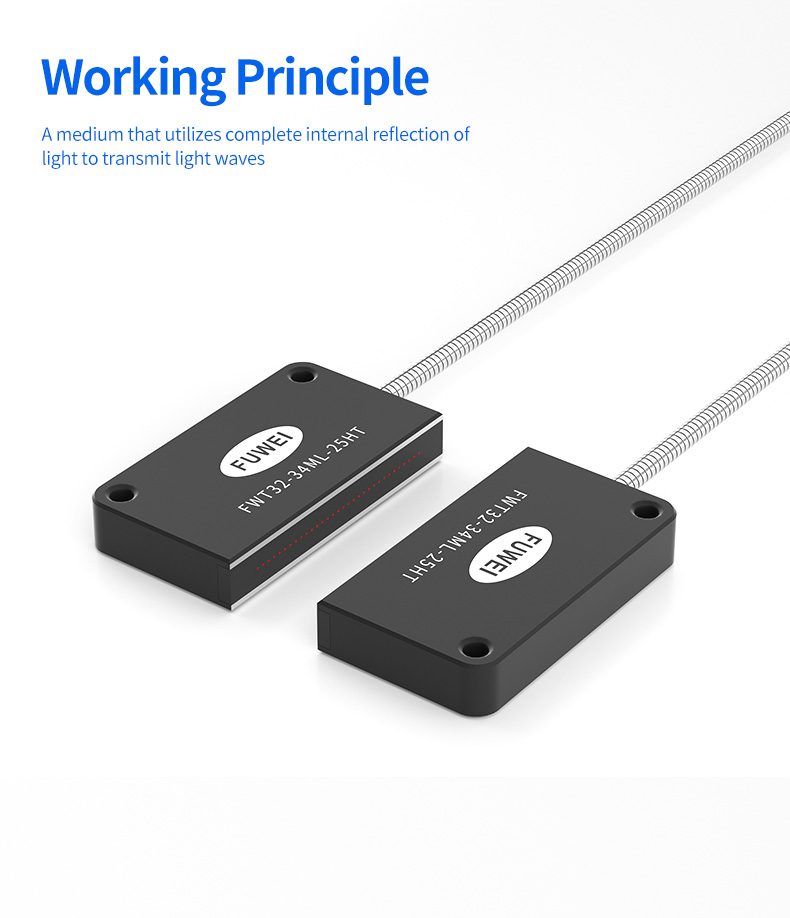

| Theory | Optic Principle |
| Description | Area Optical Fiber |
| Detection range (mm) | 500mm |
| Surface size (mm) | 25mm |
| Sensing method | Thru-beam |
| Overall dimension | 44x19x6mm |
| Bending radius | R25 |
| Working temperature | -10℃~70℃ |
| Fiber length (mm) | 1000mm |
| Selling Units | Single item |
| Single package size | 16X15X5 cm |
| Single gross weight | 0.140 kg |
