| Key Attributes | |
|---|---|
| Mounting Type | Bolt Mounting |
| Manufacturing Date Code | 2025 |

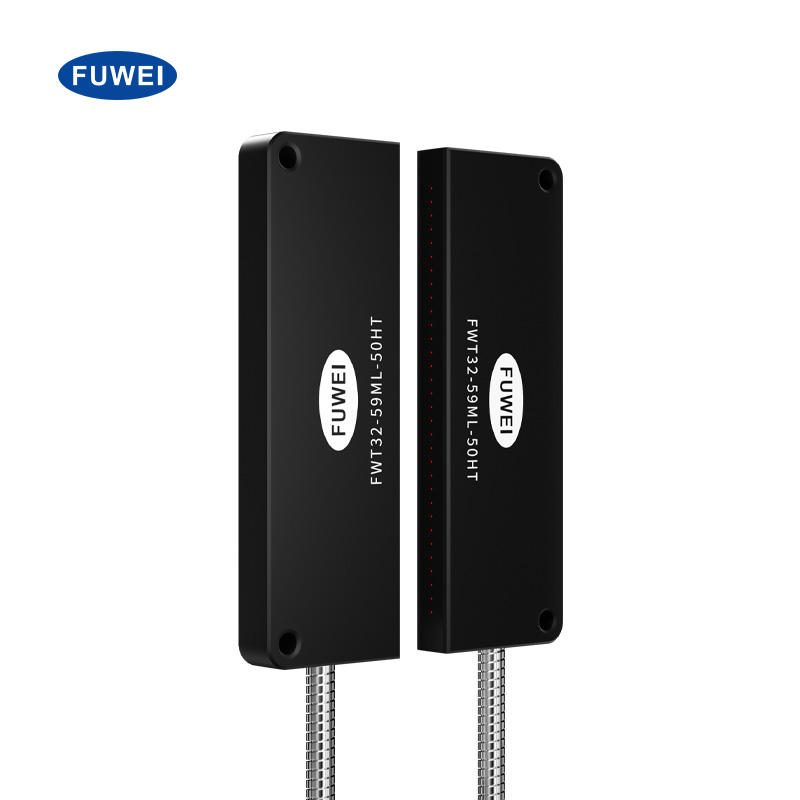

| Model Number | FWT32-59ML-50HT |
| Brand Name | FUWEI |

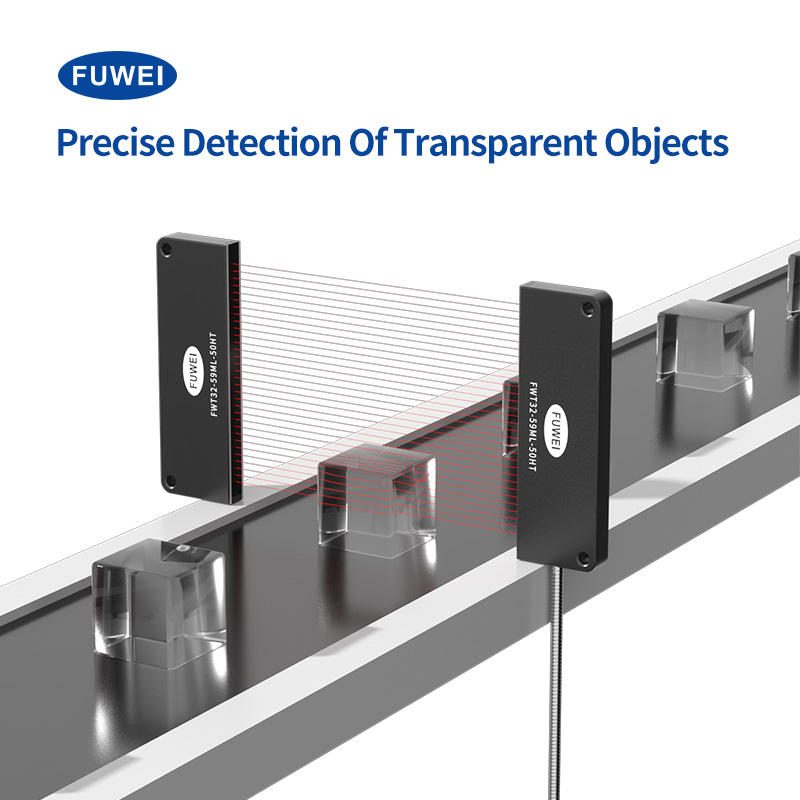

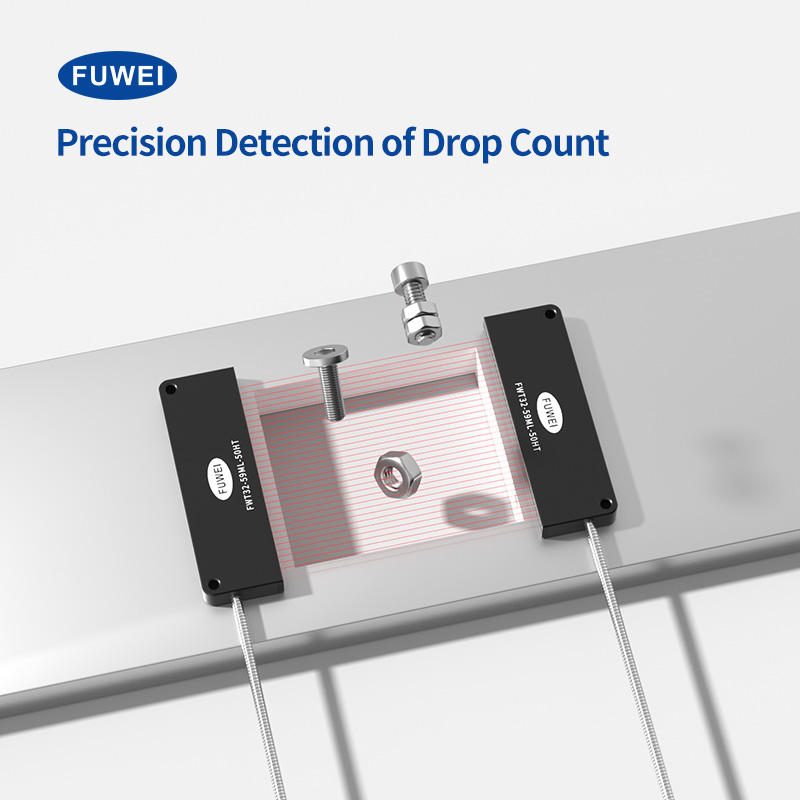

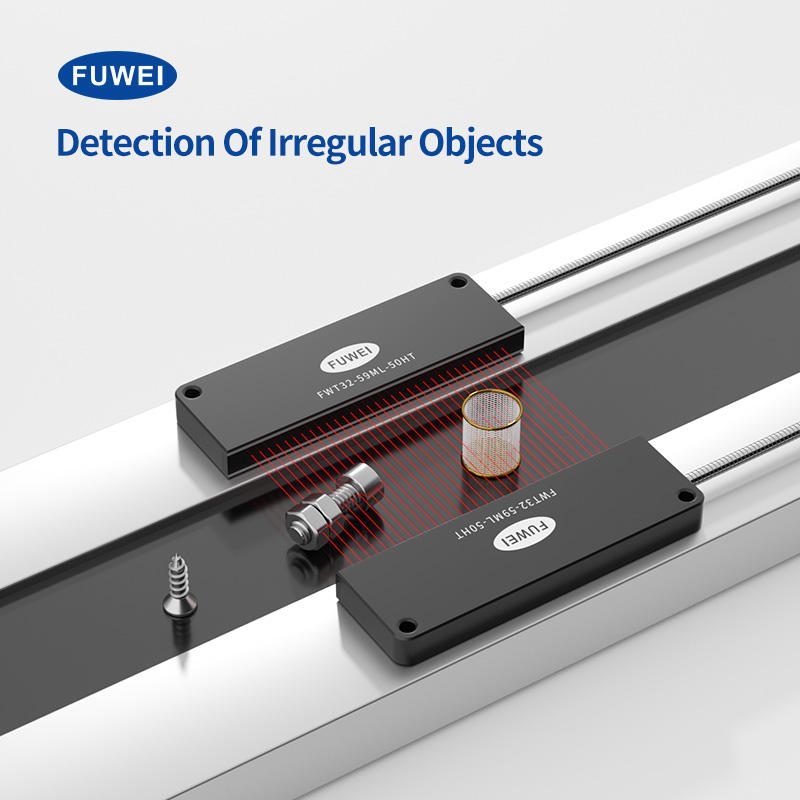

| Usage | Counting detection |

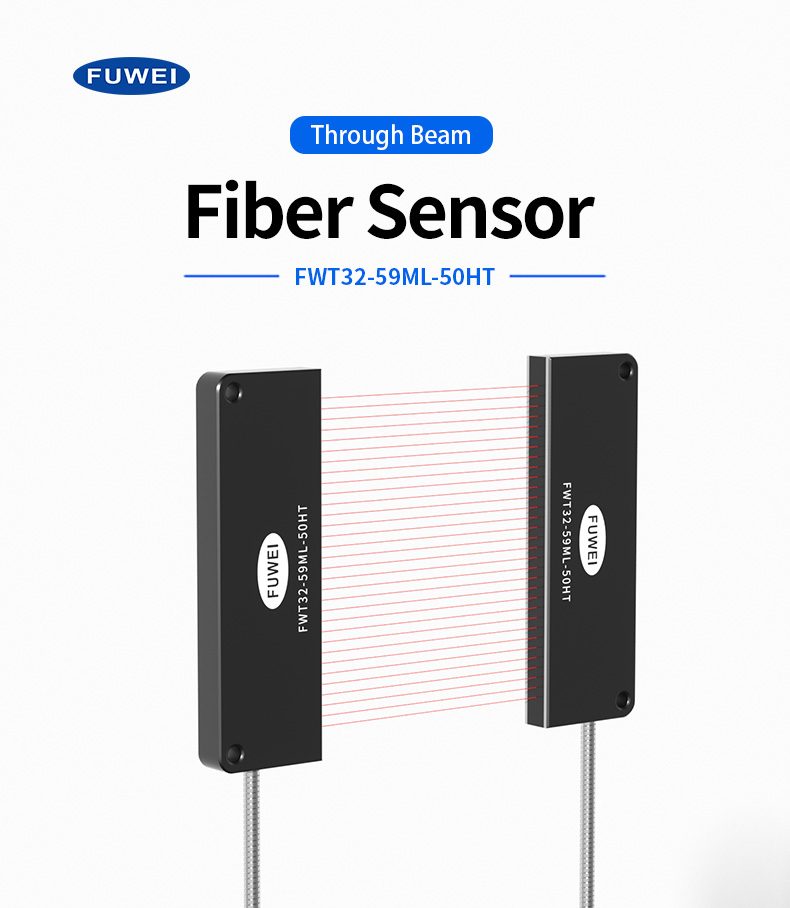

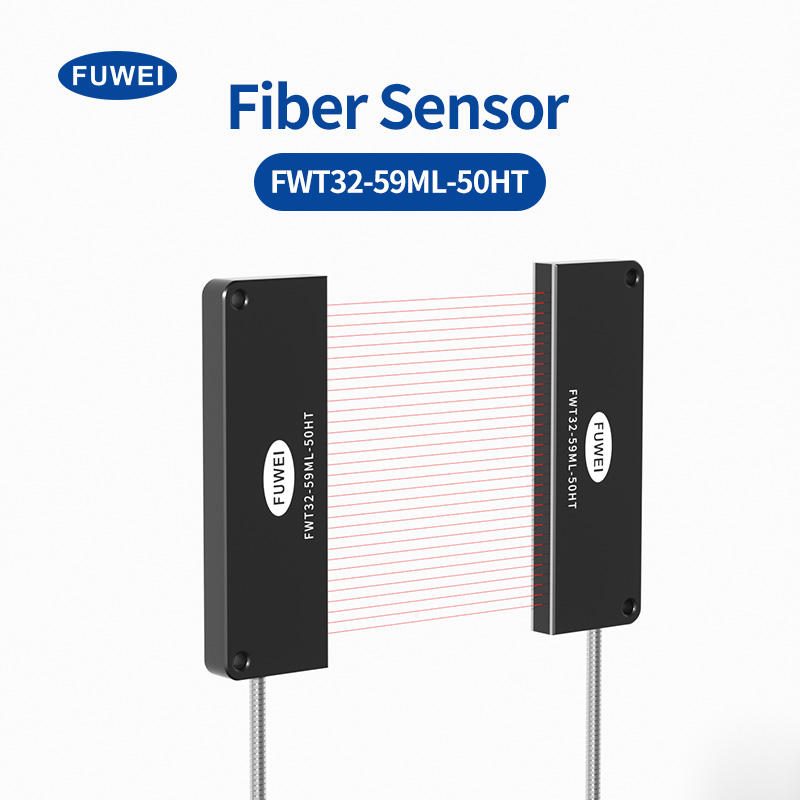

| Description | 50 Area Through Beam Optical Fiber |
| Type | FIBER OPTIC SENSOR |
| Series | FWT32-59ML-50HT |
| Features | 50mm Effective detection width |
| Place of Origin | Guangdong, China |

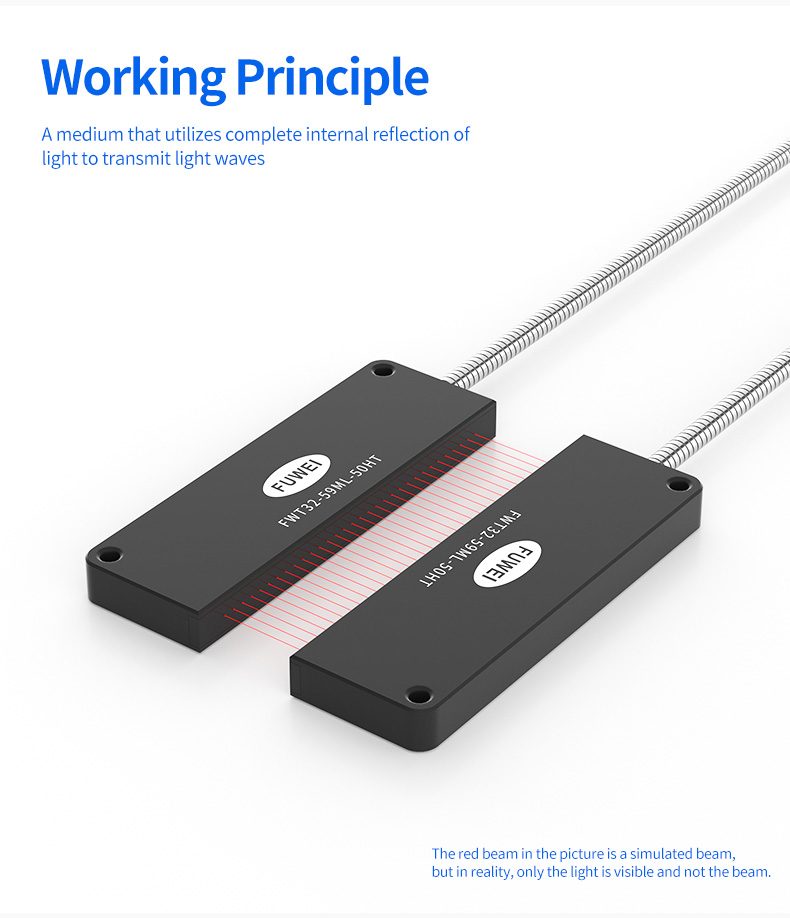

| Theory | Optic Principle |
| Detection range (mm) | 500mm |
| Surface size (mm) | 50mm |
| Sensing method | Thru-beam |

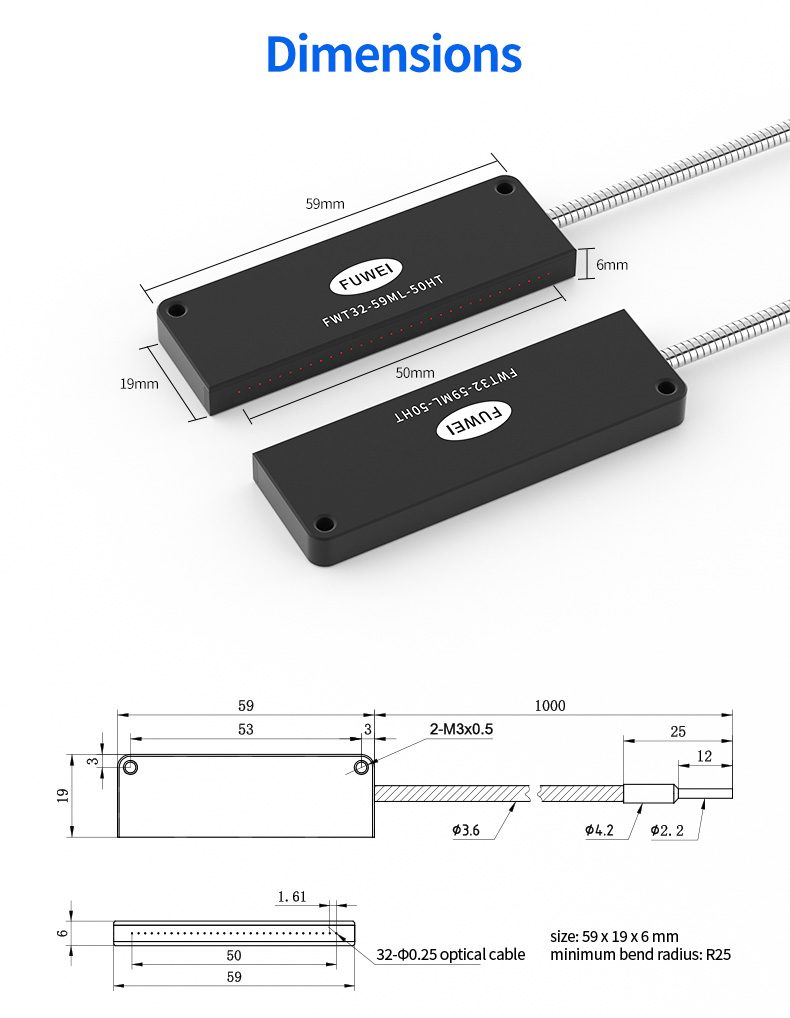

| Overall dimension | 44×19×6mm |
| Bending radius | R25 |
| Working temperature | -40℃~50℃ |
| Fiber length (mm) | 1000mm |
| Selling Units | Single item |
| Single package size | 16×15×5 cm |
| Single gross weight | 0.140 kg |
