| Key Attributes | |
|---|---|

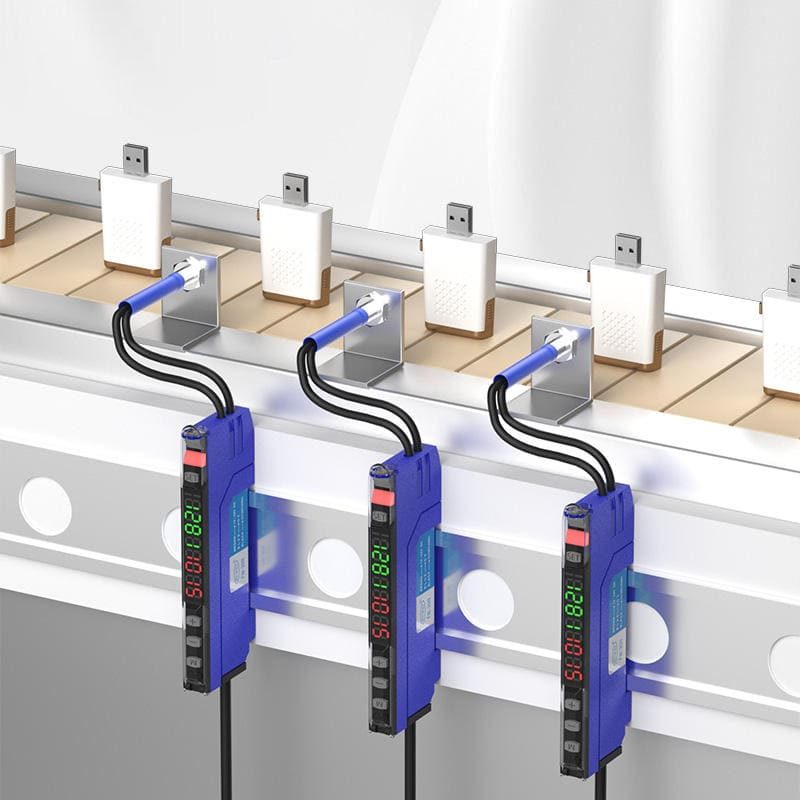

| Mounting Type | Base snap mount / DIN rail mount |
| Manufacturing Date Code | 2024 |

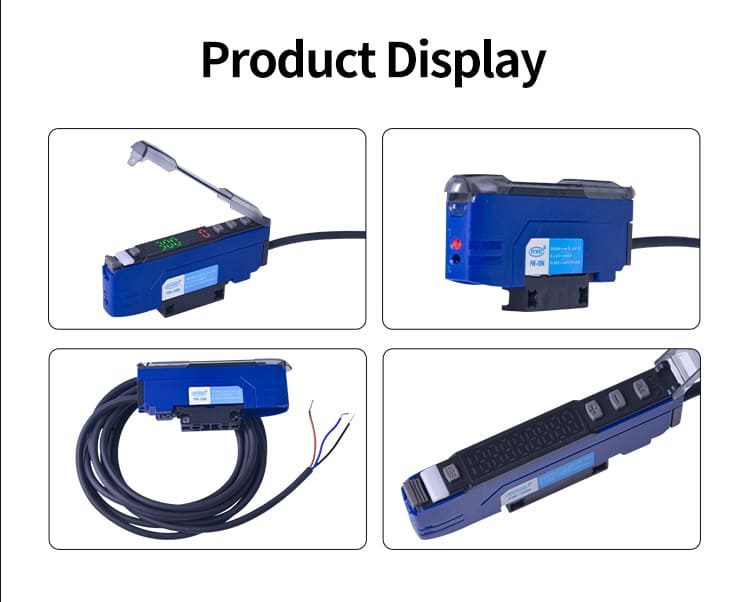

| Model Number | FW-30N |
| Brand Name | FUWEI |

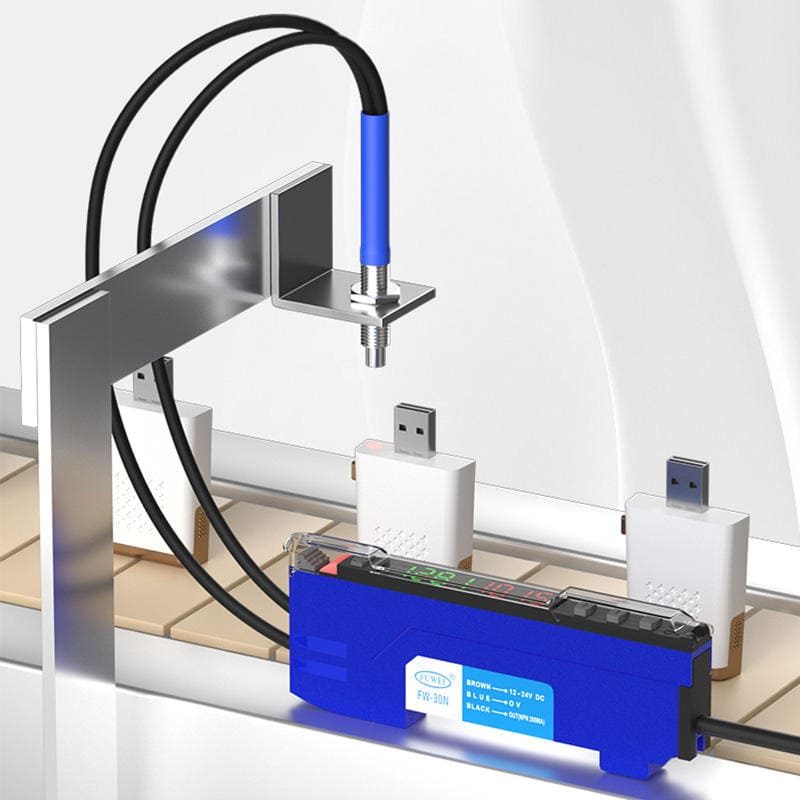

| Usage | With or without judgment, detection in place |

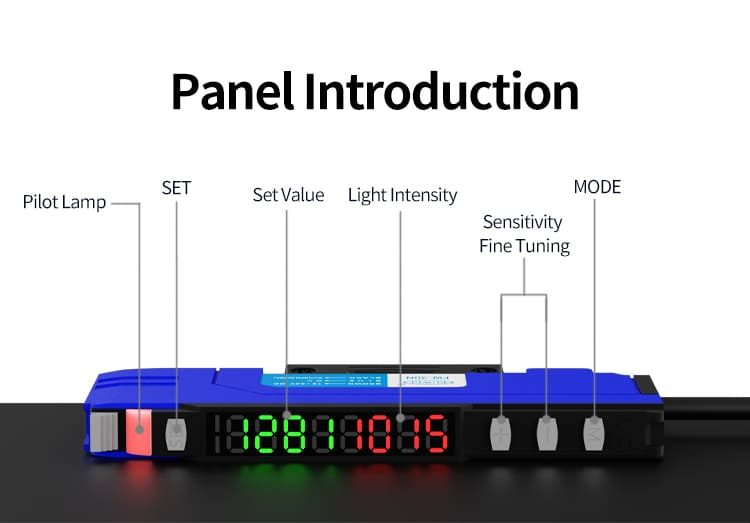

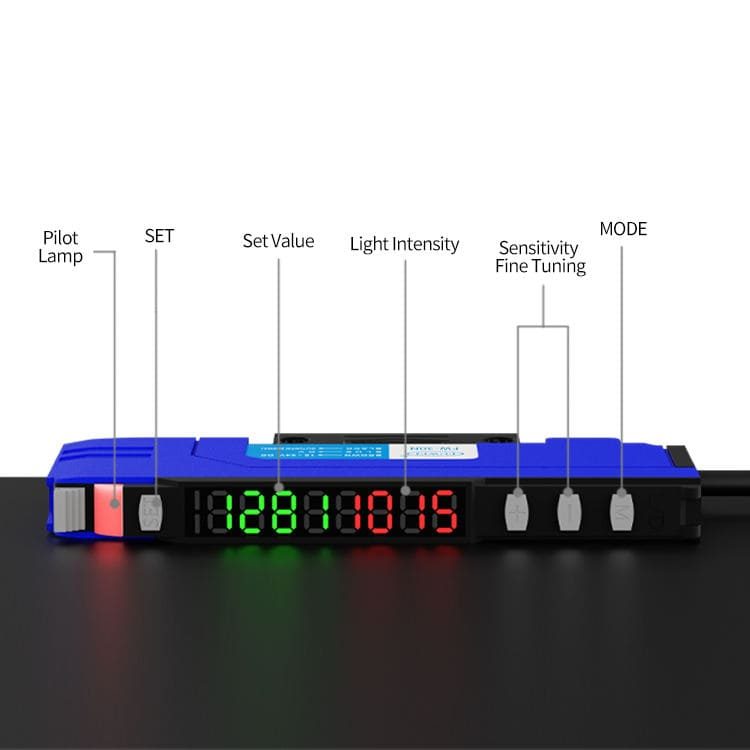

| Description | 8-digit display |
| Type | FIBER OPTIC SENSOR |
| Series | FW-30N |
| Features | 8-digit display, simple and convenient operation |
| Place of Origin | Guangdong, China |
| Theory | Optic Principle |
| Output | NPN, PNP |

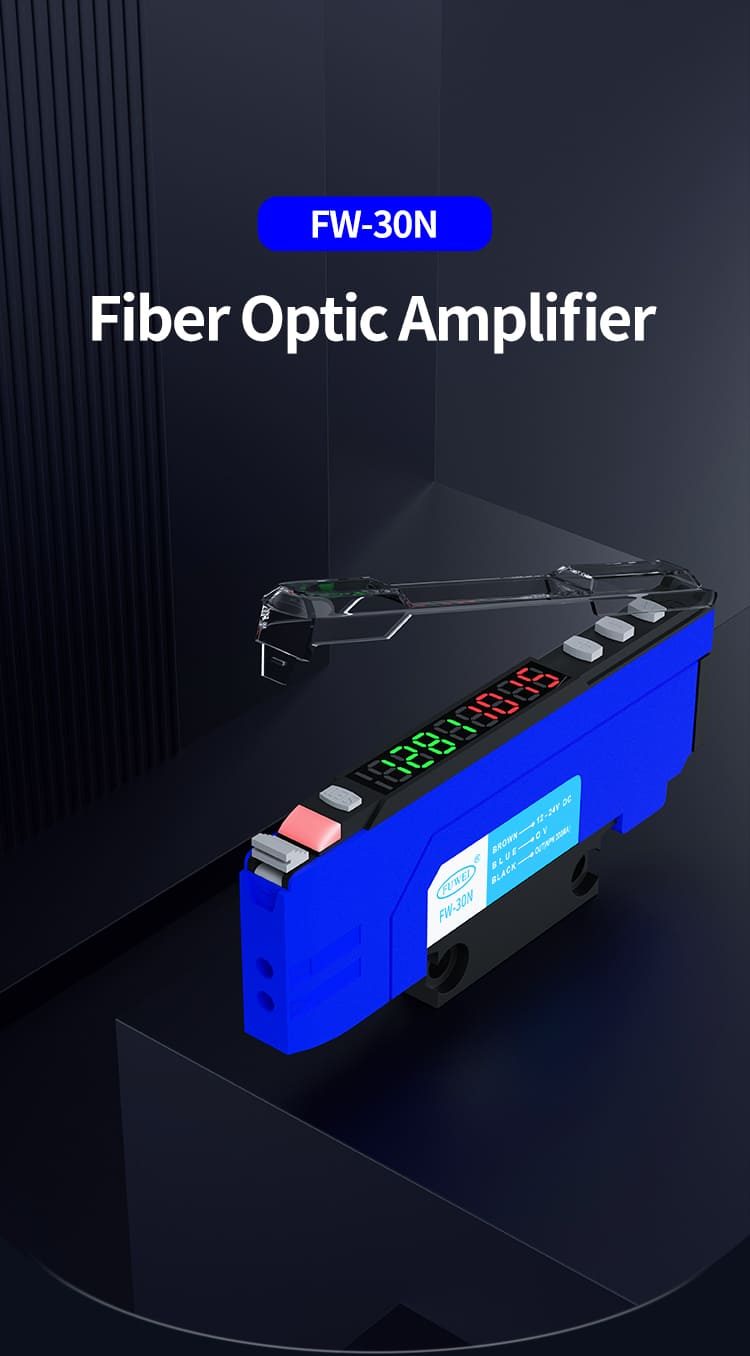

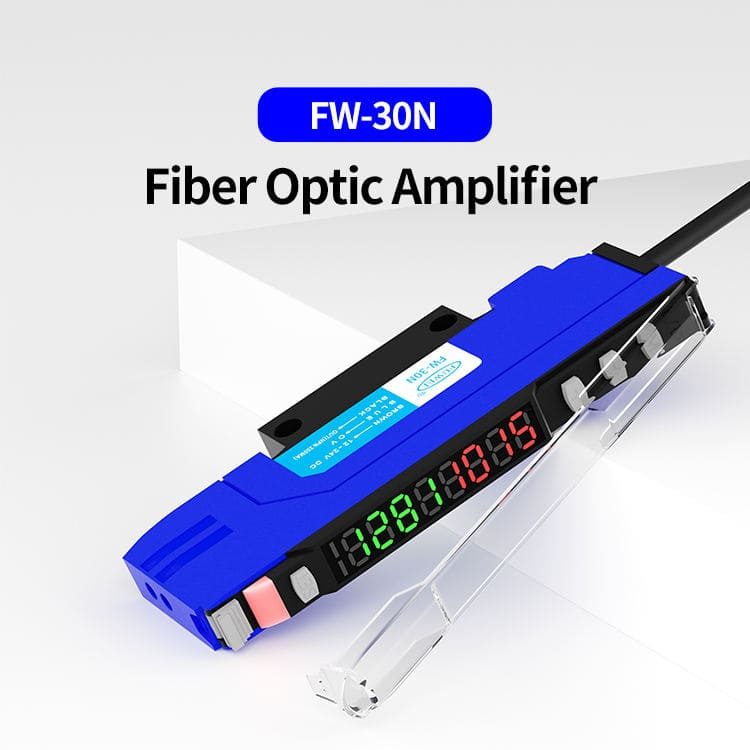

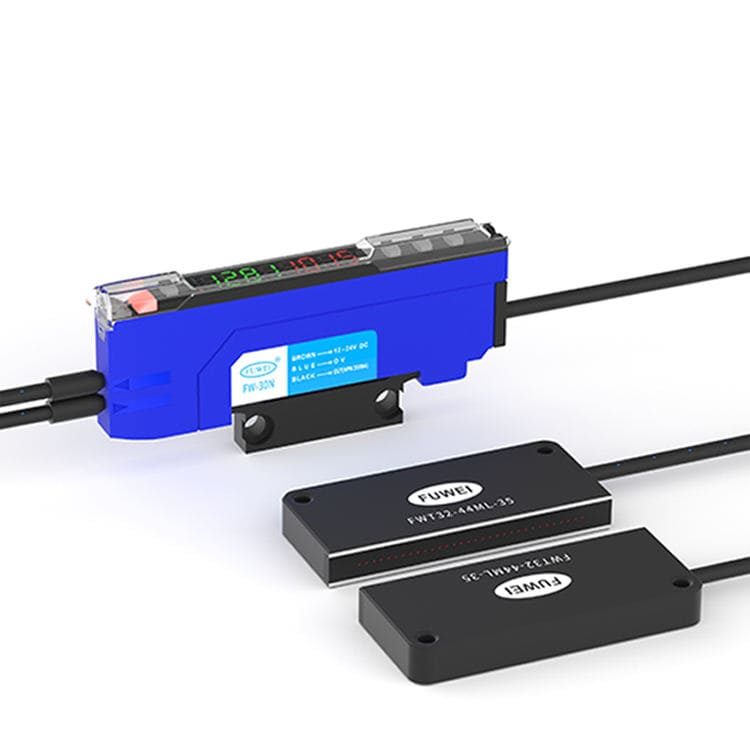

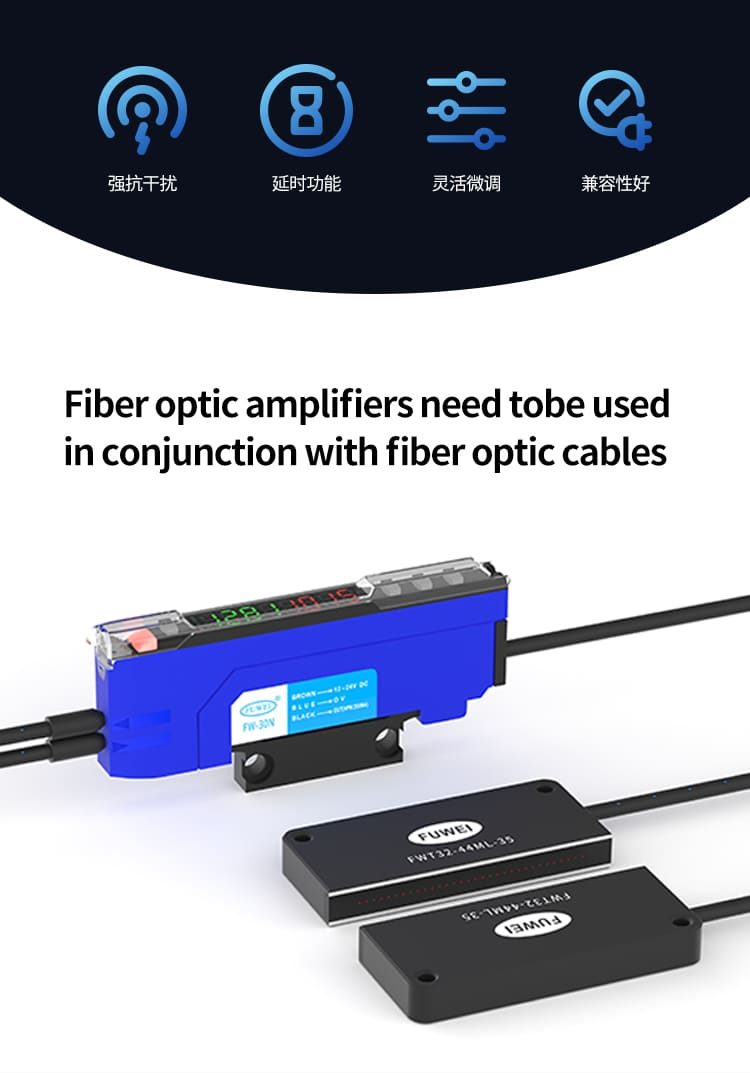

| Sensor Description | Fiber Optic Amplifier |
| Detection Distance | Diffuse reflection 200 mm; Through beam 1200 mm |
| Switching Frequency | 10 KHz |
| Supply Voltage | 12-24VDC |

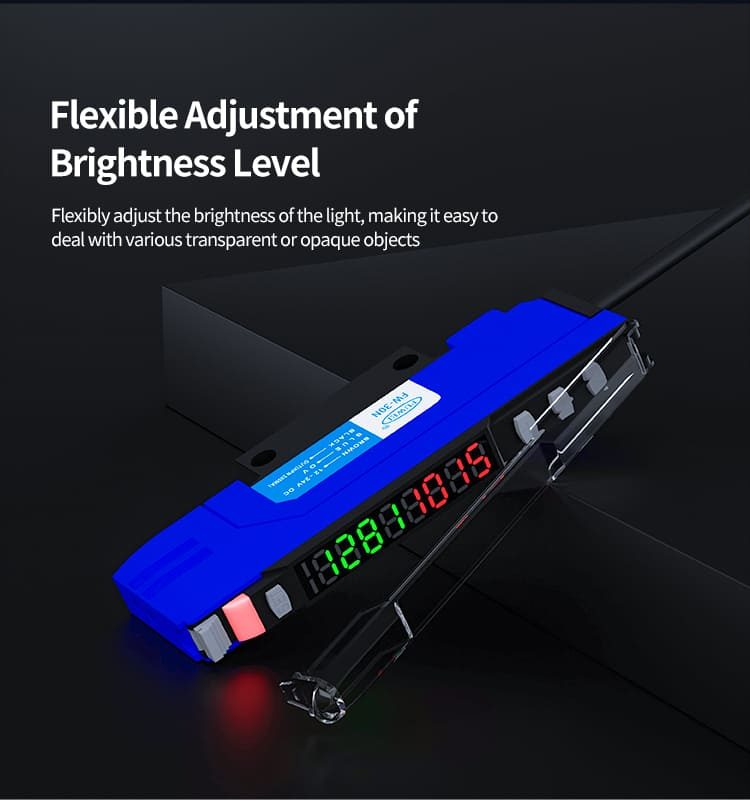

| Sensitivity | Key adjustment |
| Consumption Current | Below 20 mA |

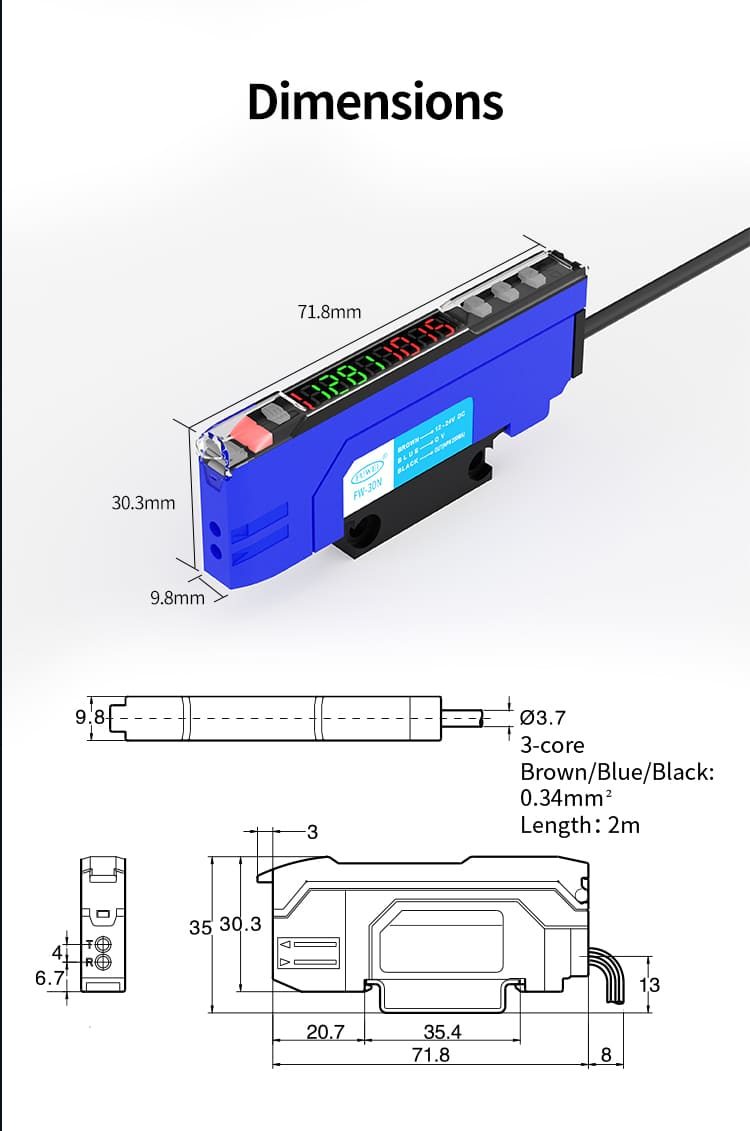

| Product Size | 71.8 × 30.3 × 10.5 mm |
| Response Time | HSP: 25 μs; FINE: 50 μs; SUPR: 100 μs; MEGA: 200 μs |
| Packaging and Delivery | |
| Selling Units | Single item |
| Single Package Size | 16 × 15 × 6 cm |
| Single Gross Weight | 0.085 kg |
