| Key Attributes | |
|---|---|

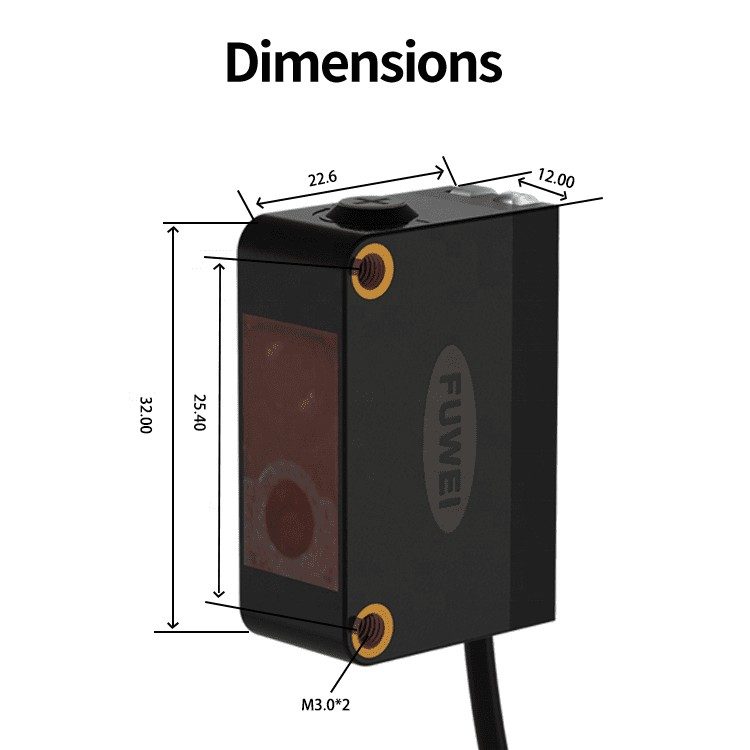

| Mounting Type | Bolt Installation |
| Manufacturing Date Code | 2024 |
| Model Number | FJN10-30NF-B |
| Brand Name | FUWEI |
| Usage | With or without judgment, detection in place |
| Description | Small spot recognition detection accuracy |

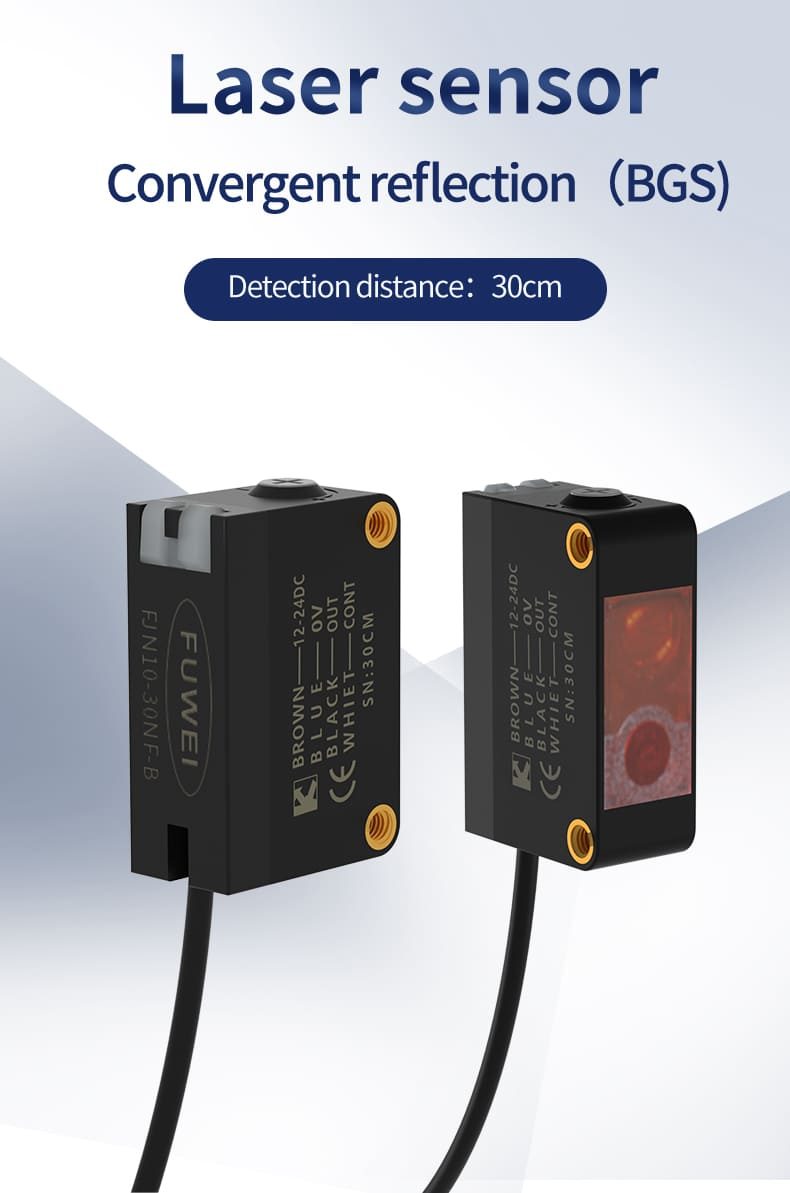

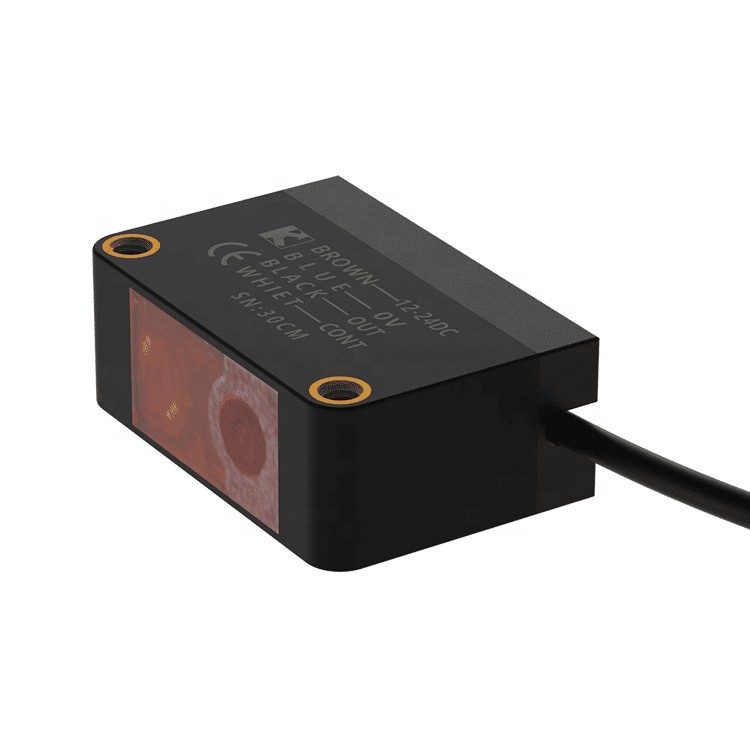

| Type | Laser sensor |
| Series | FJN10-30NF-B |
| Features | Small spot |
| Place of Origin | Guangdong, China |
| Theory | Photoelectric Detection Principle |

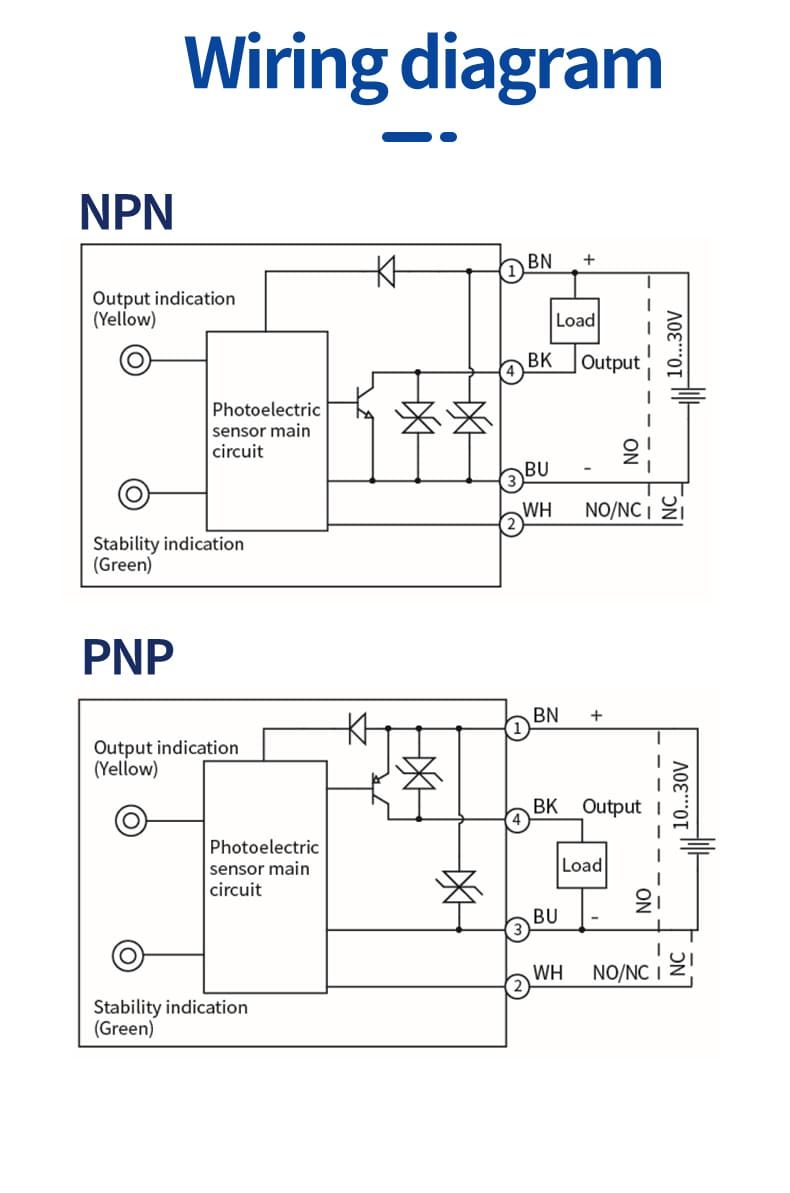

| Output | NPN |
| Sensor Type | Laser Sensor |
| Operating Voltage | 12~24V DC |
| Detection Distance | 30 cm |

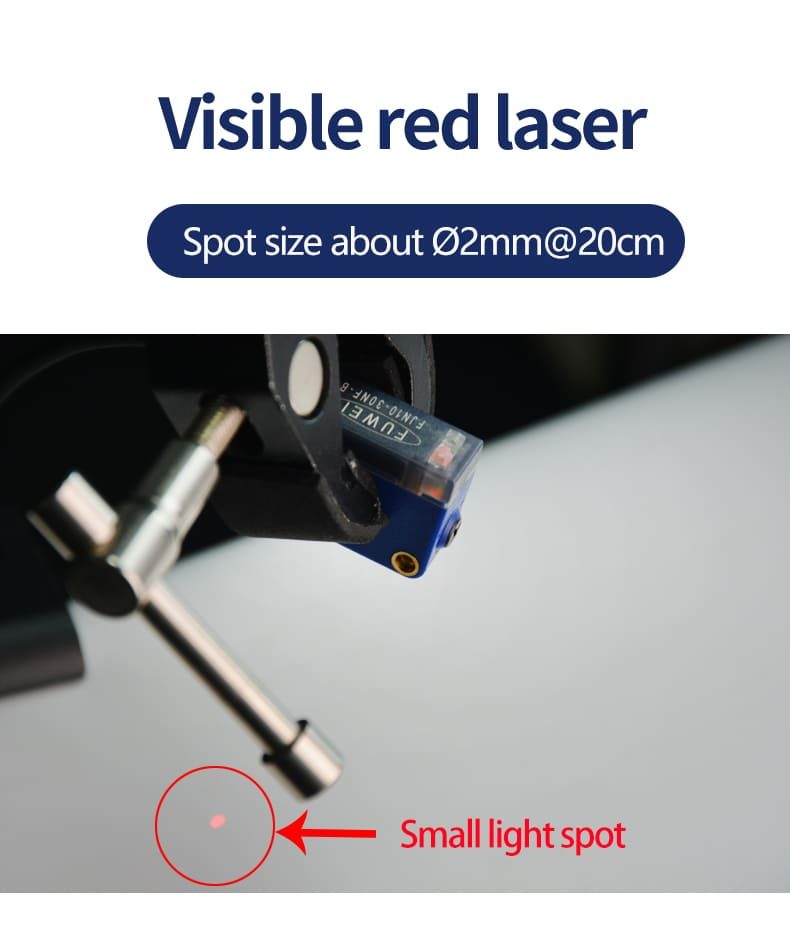

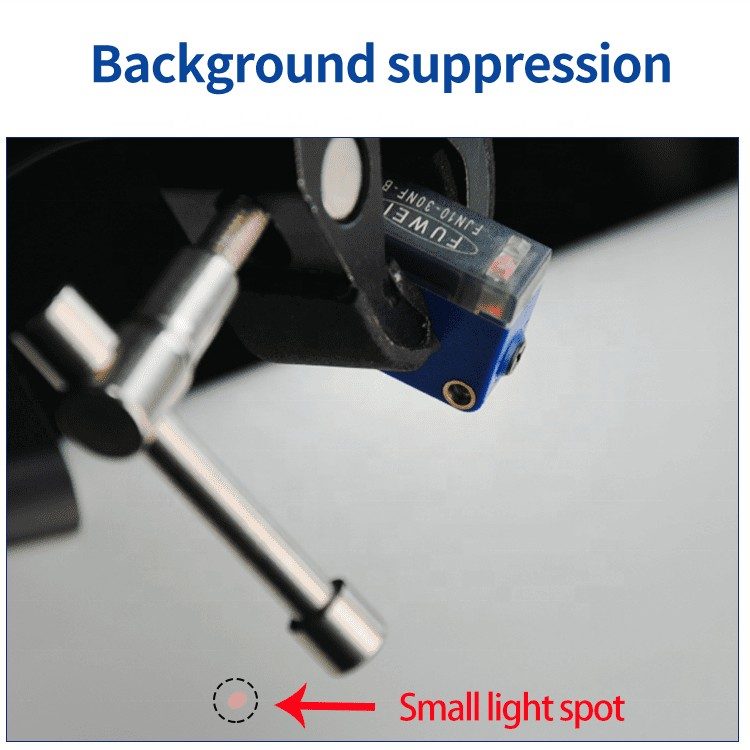

| Spot Size | About diameter 2 mm |
| Consumption Current | <20 mA |
| Load Current | <100 mA |
| Voltage Drop | ≤1V |
| Response Time | 5 ms |
| Operating Temperature | -25~55℃ |
| Short Circuit Protection | Built-in |
| Reverse Power Protection | Built-in |
| Packaging and Delivery | |
| Selling Units | Single item |
| Single Package Size | 10 × 10 × 4 cm |
| Single Gross Weight | 0.130 kg |
