| Key Attributes | |
|---|---|
| Mounting Type | Screw fixing |
| Manufacturing Date Code | 20240919 |
| Model Number | FSD23-150-AV |
| Brand Name | FUWEI |
| Usage | Measuring Distance |
| Description | High precision laser displacement sensor, Linear Displacement Sensor |
| Type | Laser Displacement Sensor |
| Series | FSD23 |
| Features | High precision laser displacement sensor |
| Place of Origin | Guangdong, China |
| Theory | Laser triangulation principle measurement method |

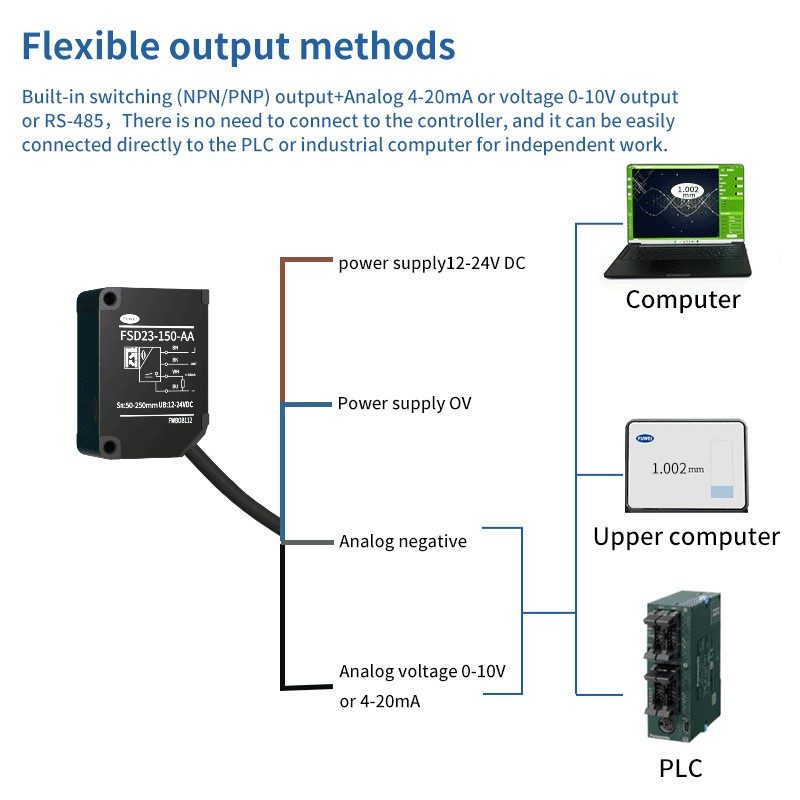

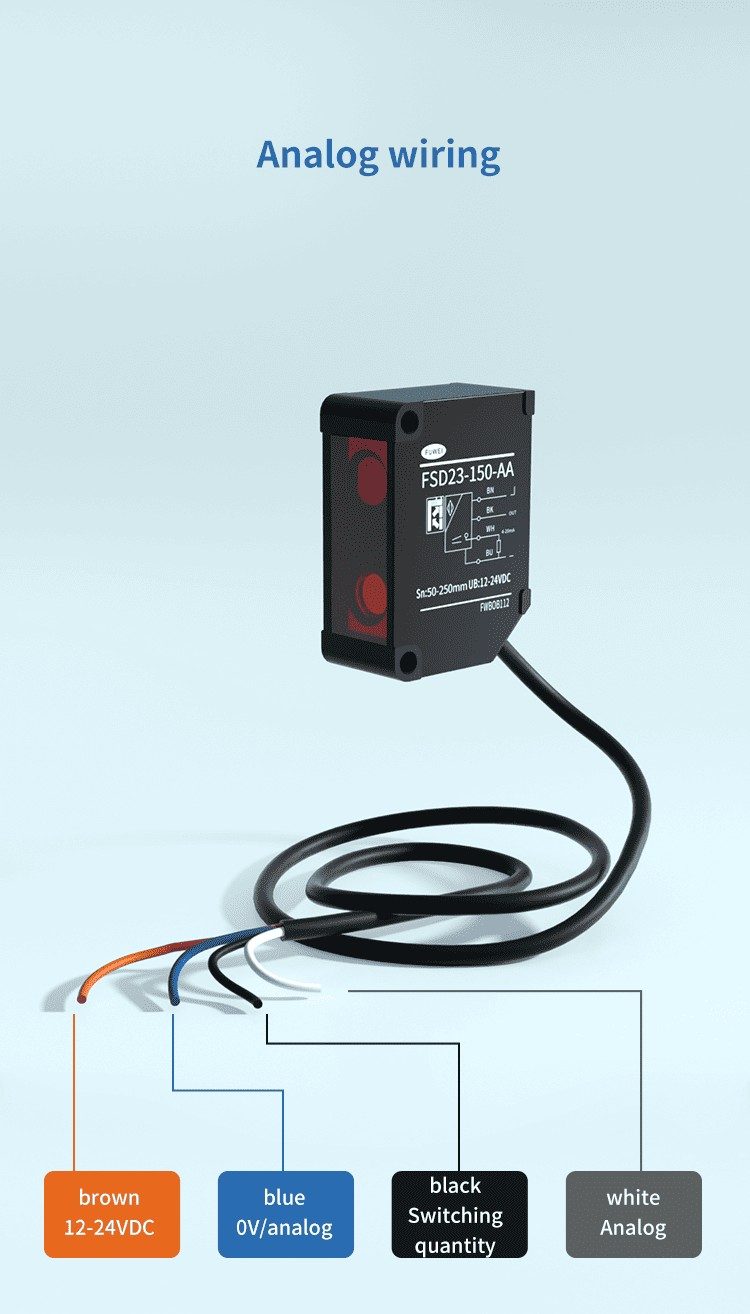

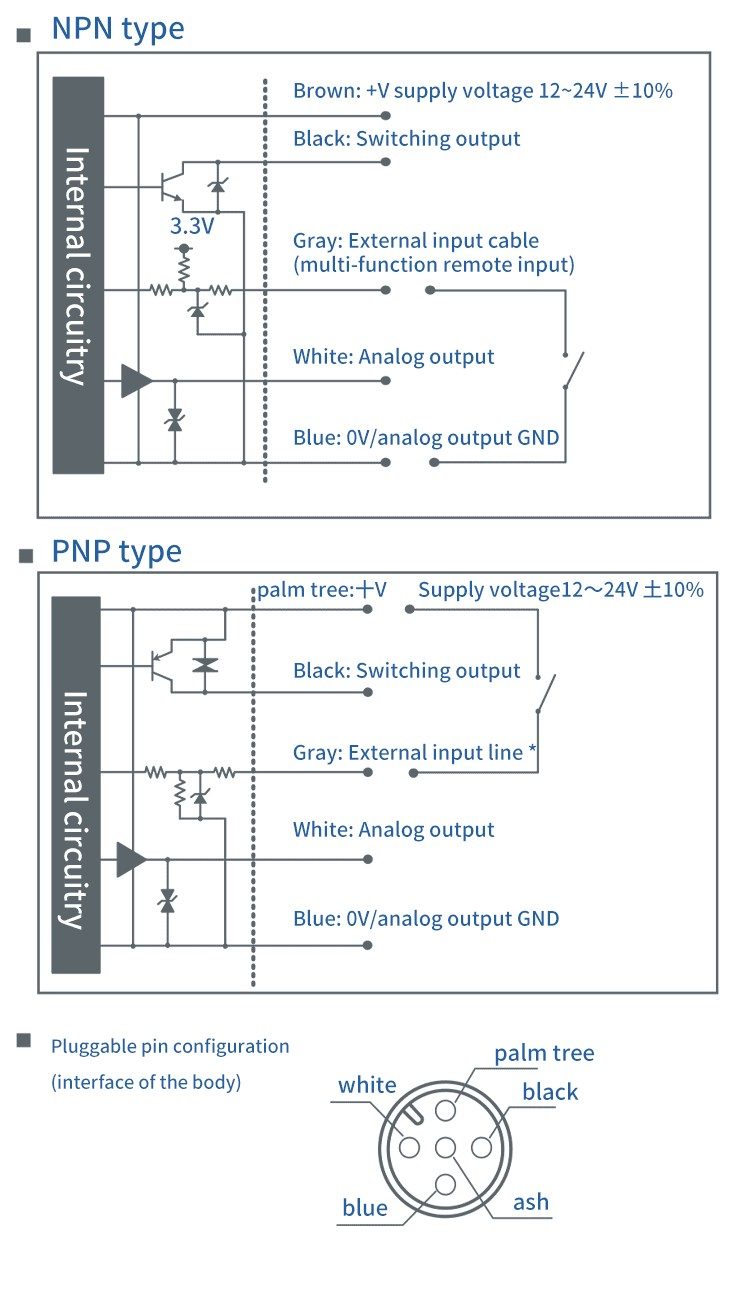

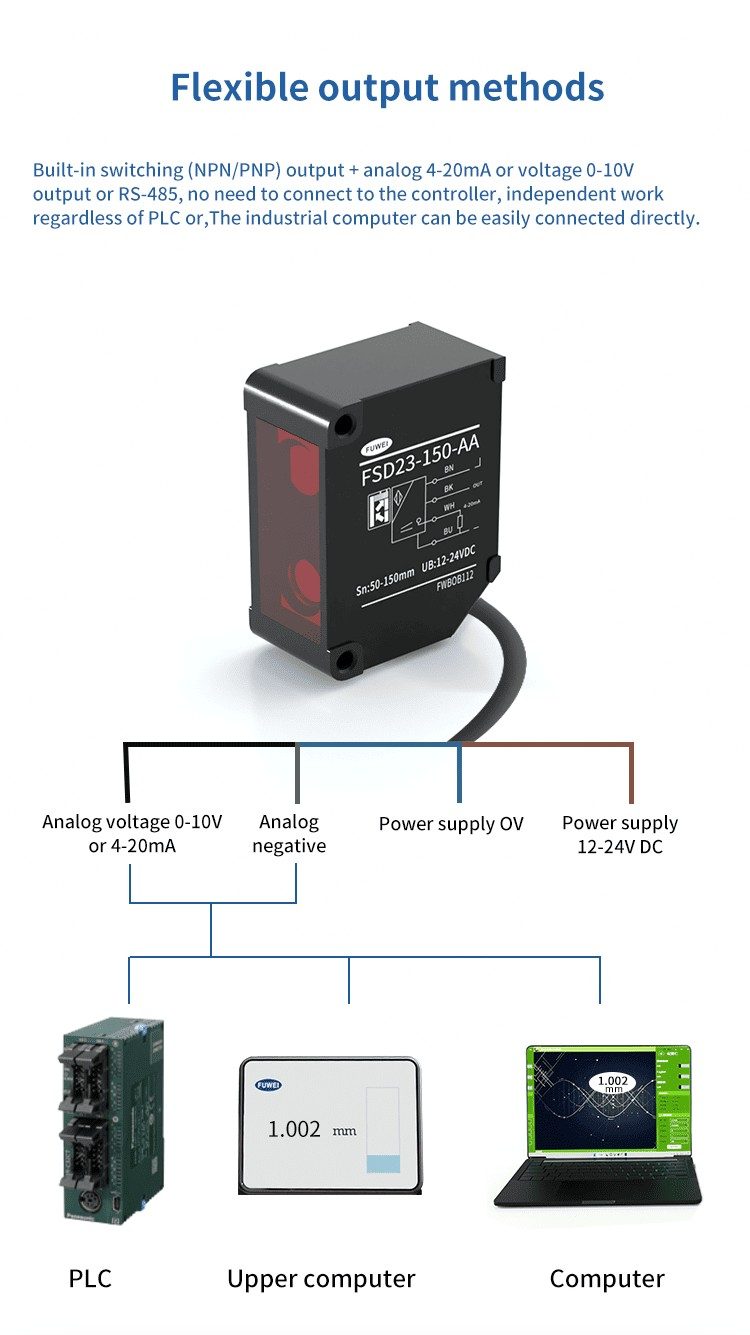

| Output | Analog voltage 0-10V/NPN/PNP |

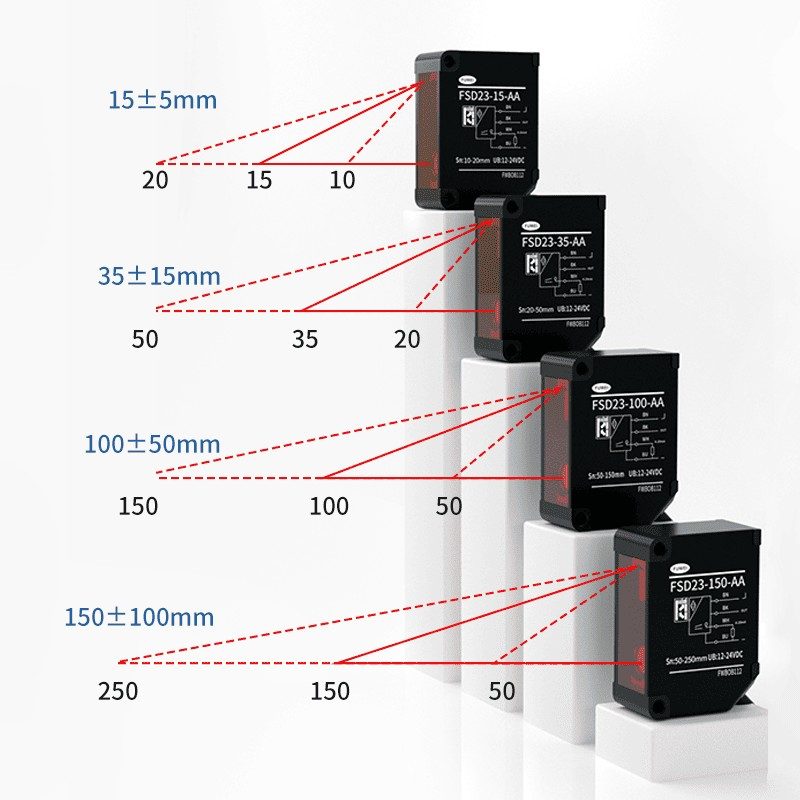

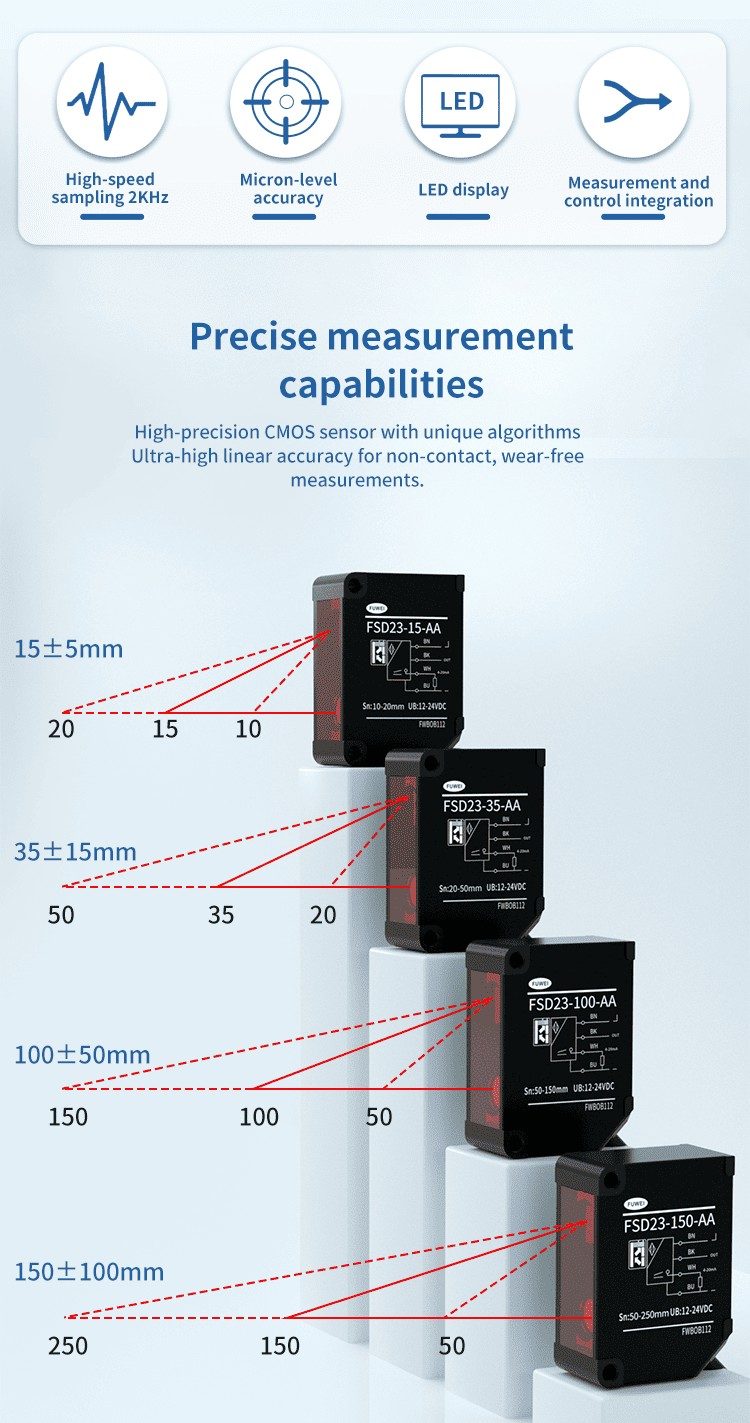

| Center of Measurement Range | 150mm |
| Measurement Range | ±100mm |
| Spot Size | 0.5*0.55mm |
| Linearity | ±0.5% F.S. |
| Repeatability | 60μm |
| Sampling Period | 500μs / 1000μs / 2000μs / 4000μs / AUTO |
| Medium Wavelength | Red laser Diode (wave length 650nm) |
| Current Consumption | 70mA max |
| Material | Aluminum |
| Packaging and Delivery | Single item, Package size: 16X15X5 cm, Gross weight: 0.350 kg |
