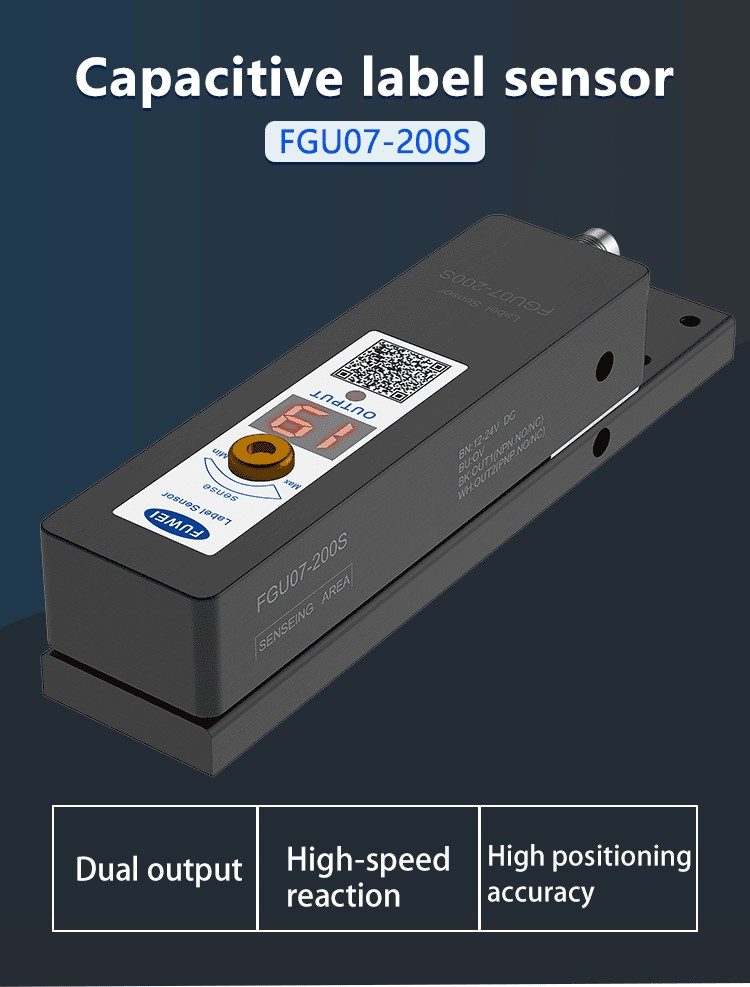

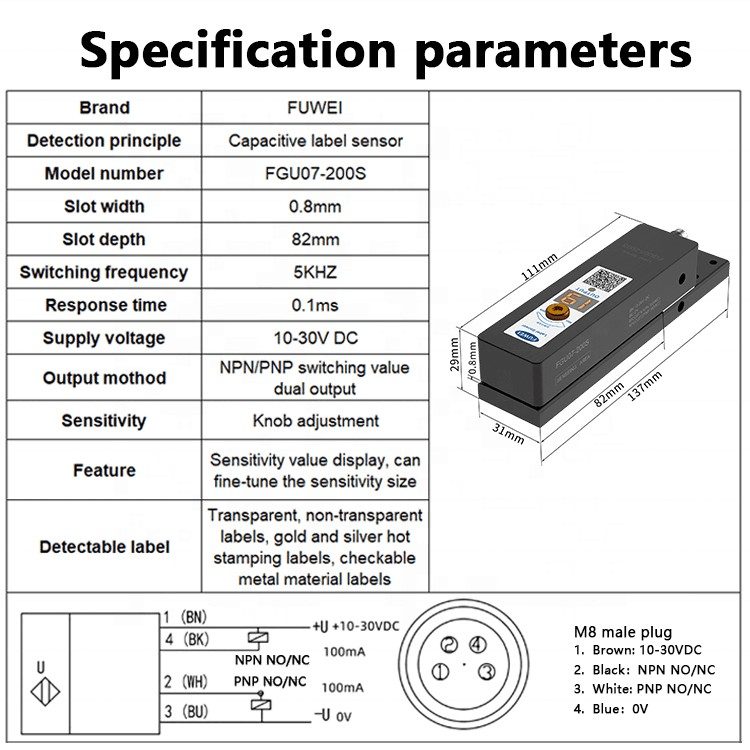

| Label Sensor Specifications – FGU07-200S | |
|---|---|
| Brand Name | FUWEI |
| Model Number | FGU07-200S |
| Series | FGU07-200S |
| Type | Label Sensor |
| Use | Label sensing recognition |
| Description | Label recognition sensor |
| Features | Label recognition sensor |
| Theory | Photoelectric detection |
| Mounting Type | Bolt installation |
| Slot Width | 0.7 mm |
| Slot Depth | 83.5 mm |
| Switch Frequency | 5 KHz |

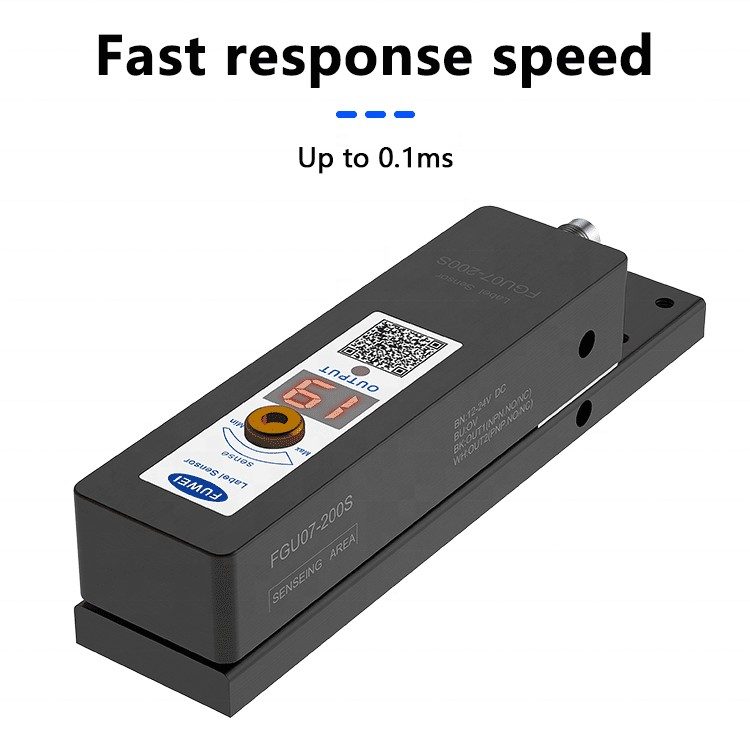

| Response Time | 0.1 ms |
| Supply Voltage | 10–30 VDC |
| Consumption Current | <25 mA |

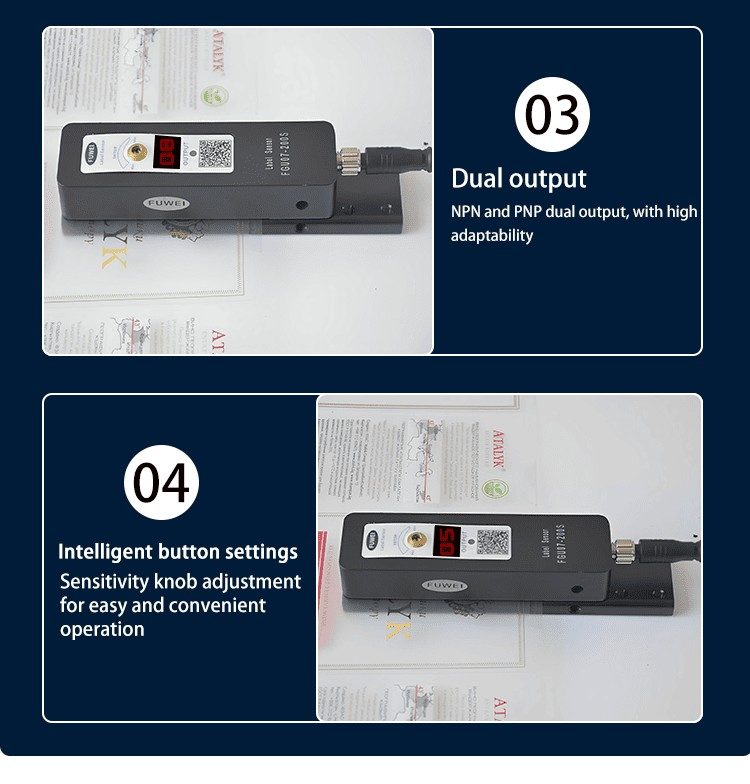

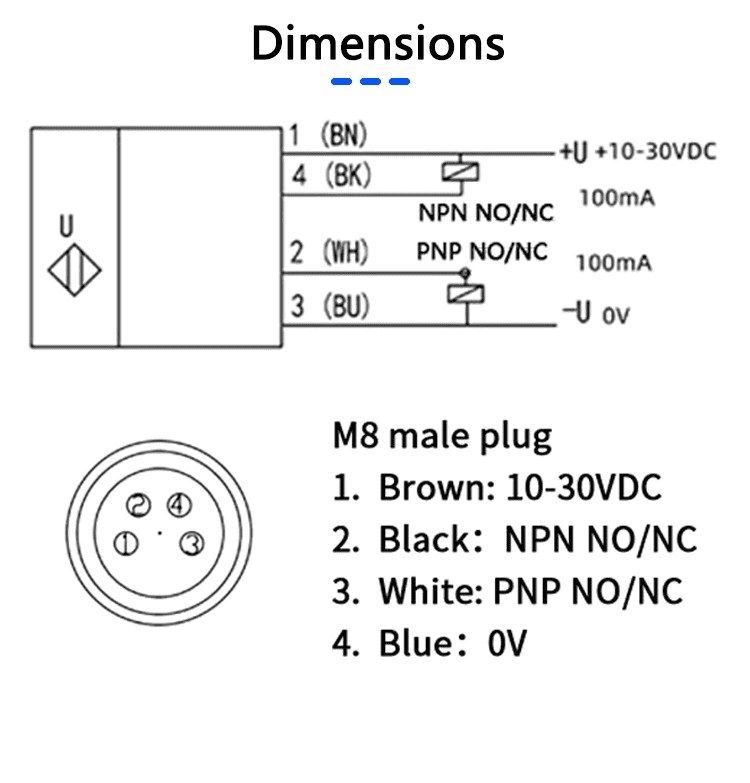

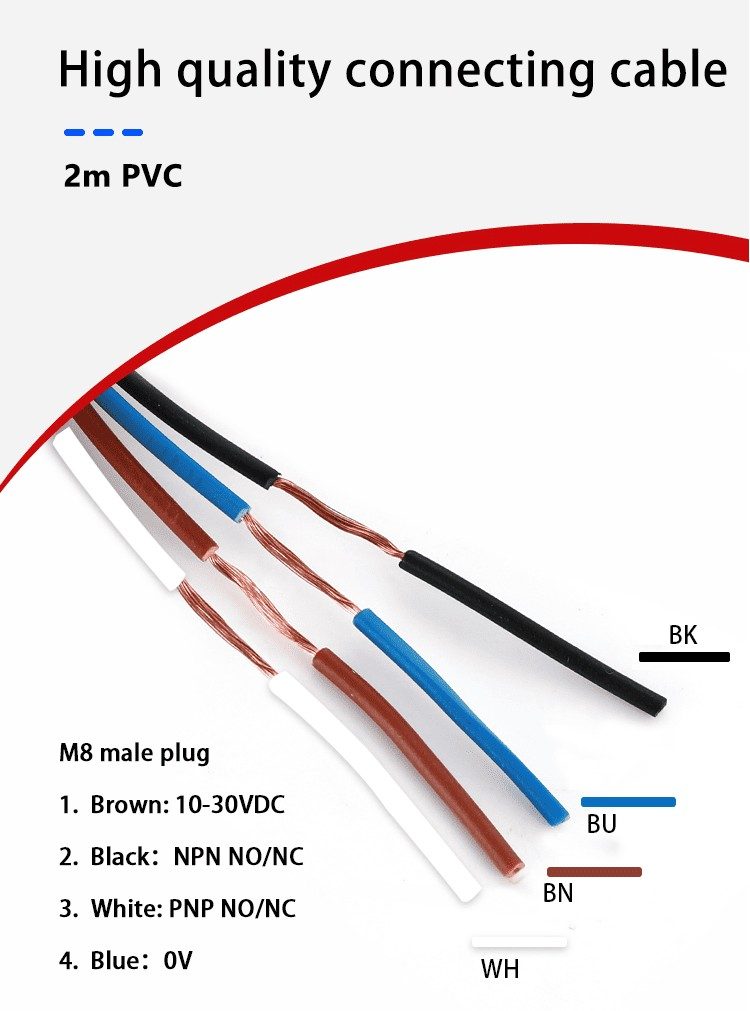

| Output | NPN + PNP |
| Output Signal | NPN + PNP |
| Output Current | 100 mA |

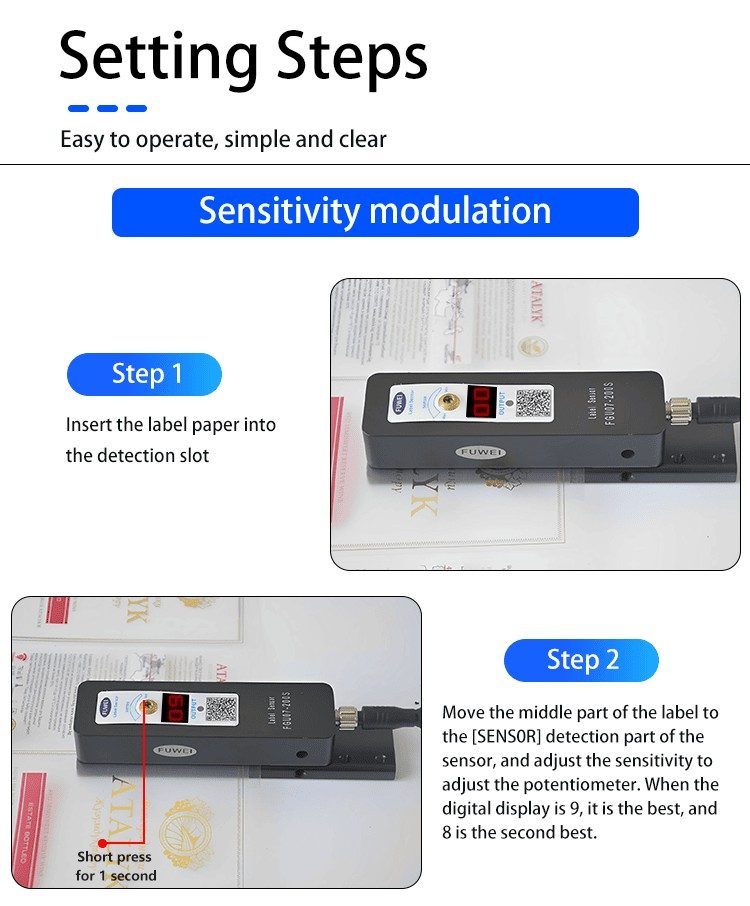

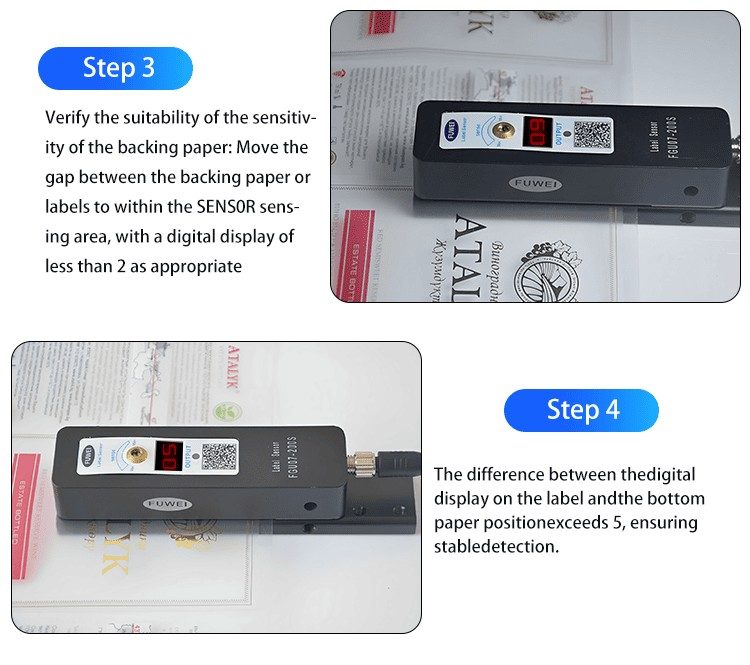

| Sensitivity Setting | Knob adjustment |
| Operating Temperature | -20~60℃, no freezing |
| Manufacturing Date Code | 2023 |
| Place of Origin | Guangdong, China |
| Selling Units | Single item |
| Single Package Size | 16 × 15 × 5 cm |
| Single Gross Weight | 0.500 KG |
