| Key Attributes | |
|---|---|

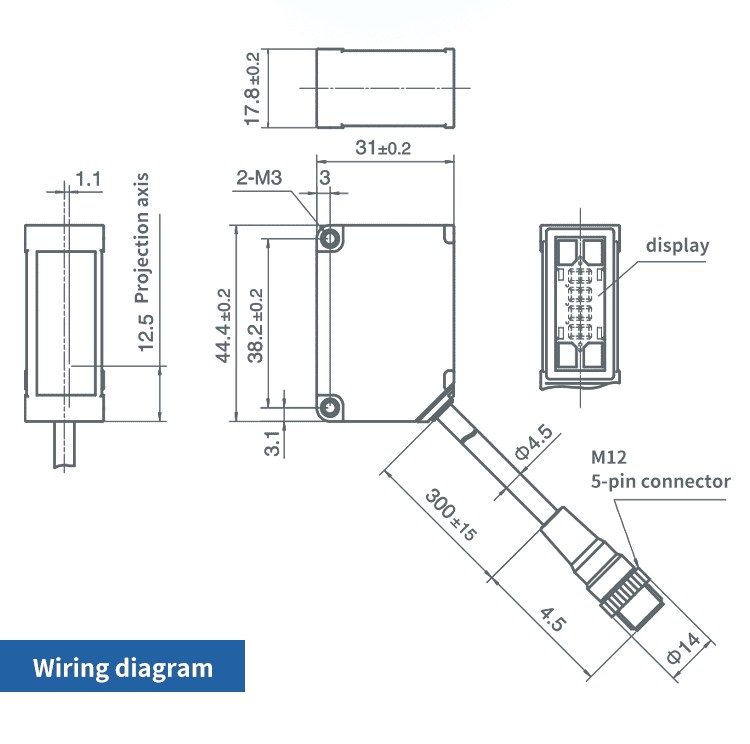

| Mounting Type | Screw fixing |
| Manufacturing Date Code | 20240106 |
| Model Number | FSD23-150-AA |
| Brand Name | FUWEI |

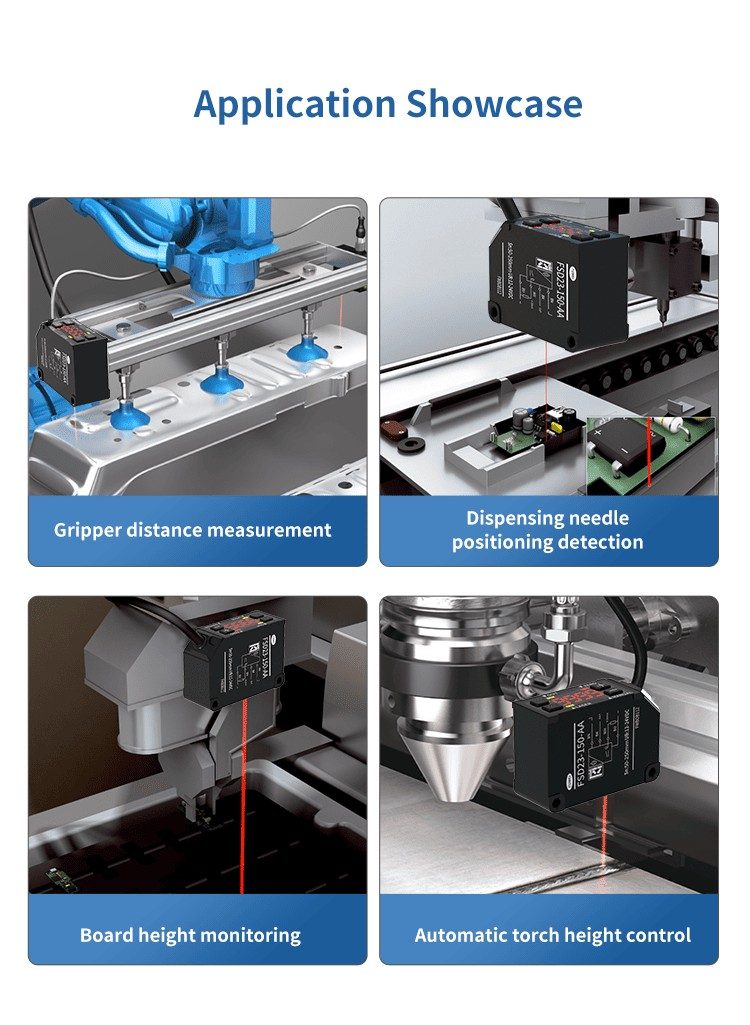

| Usage | Measuring Distance |
| Description | High precision laser displacement sensor |
| Type | Laser Displacement Sensor |

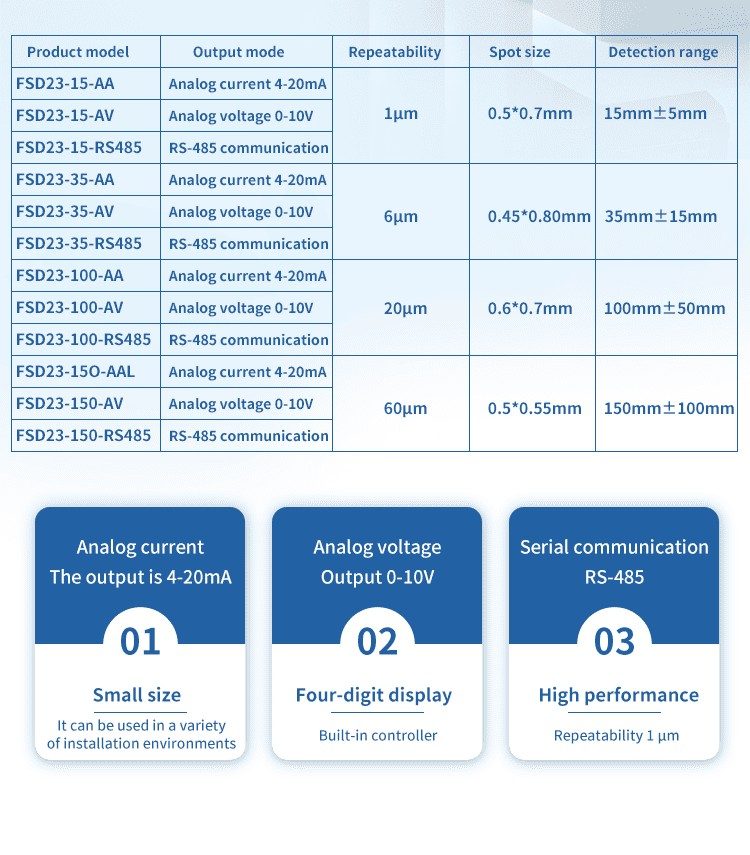

| Series | FSD23 |
| Features | High precision laser displacement sensor |
| Place of Origin | Guangdong, China |
| Theory | Laser triangulation principle measurement method |

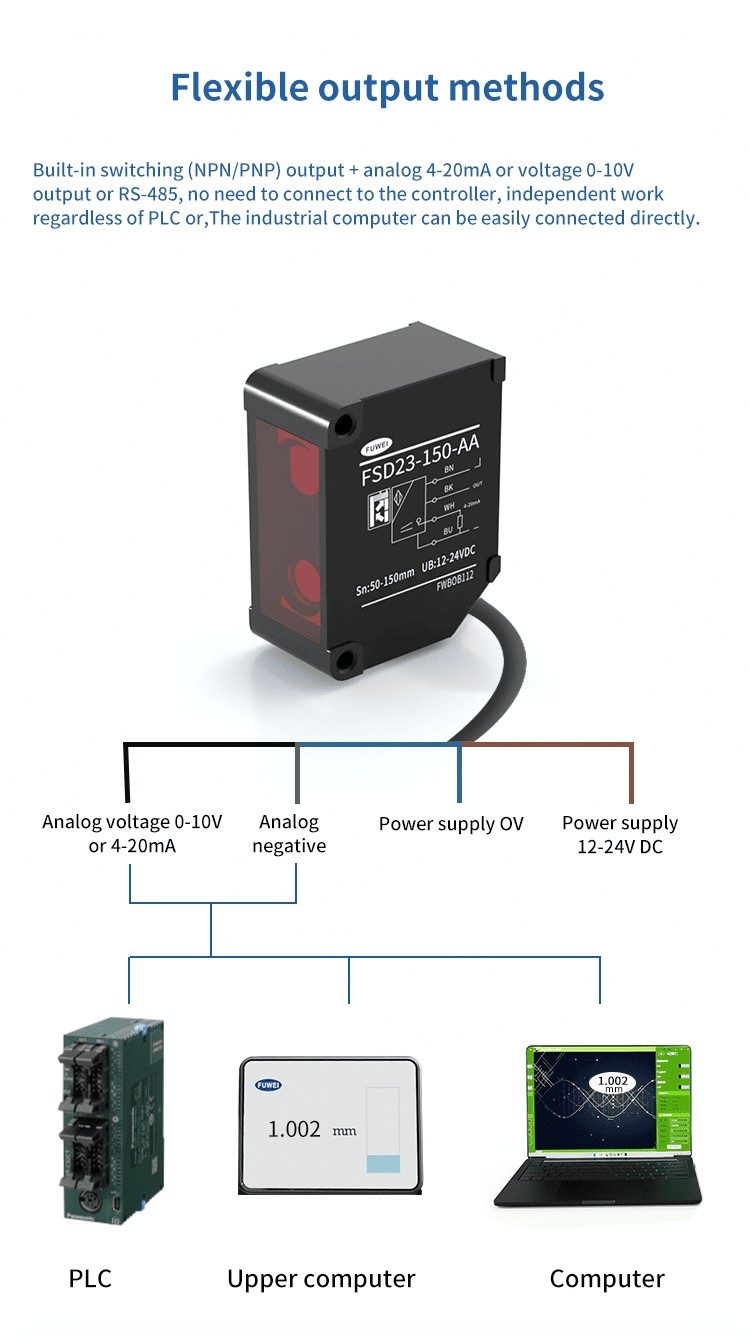

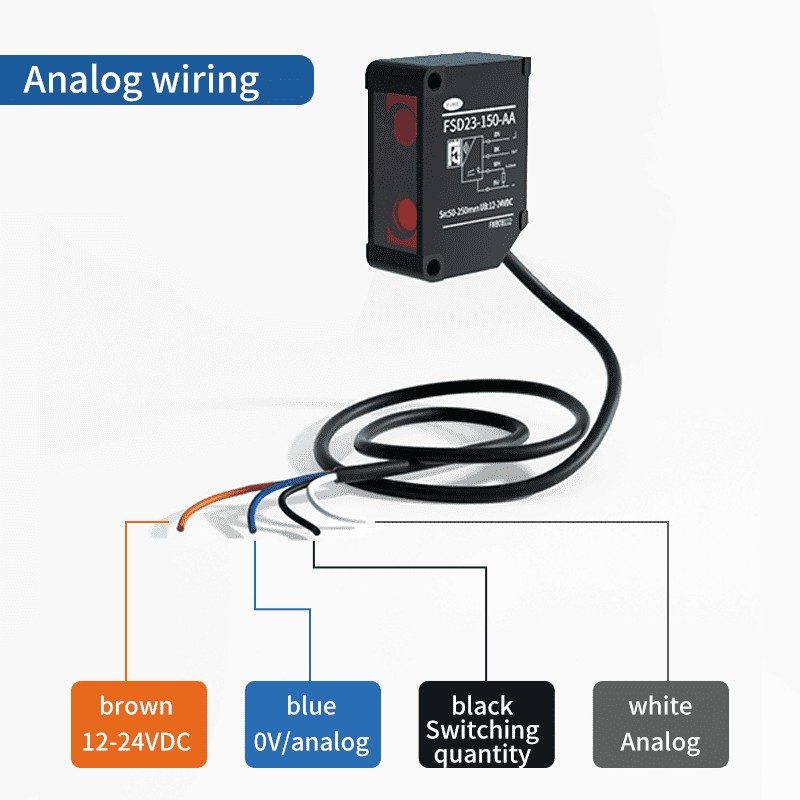

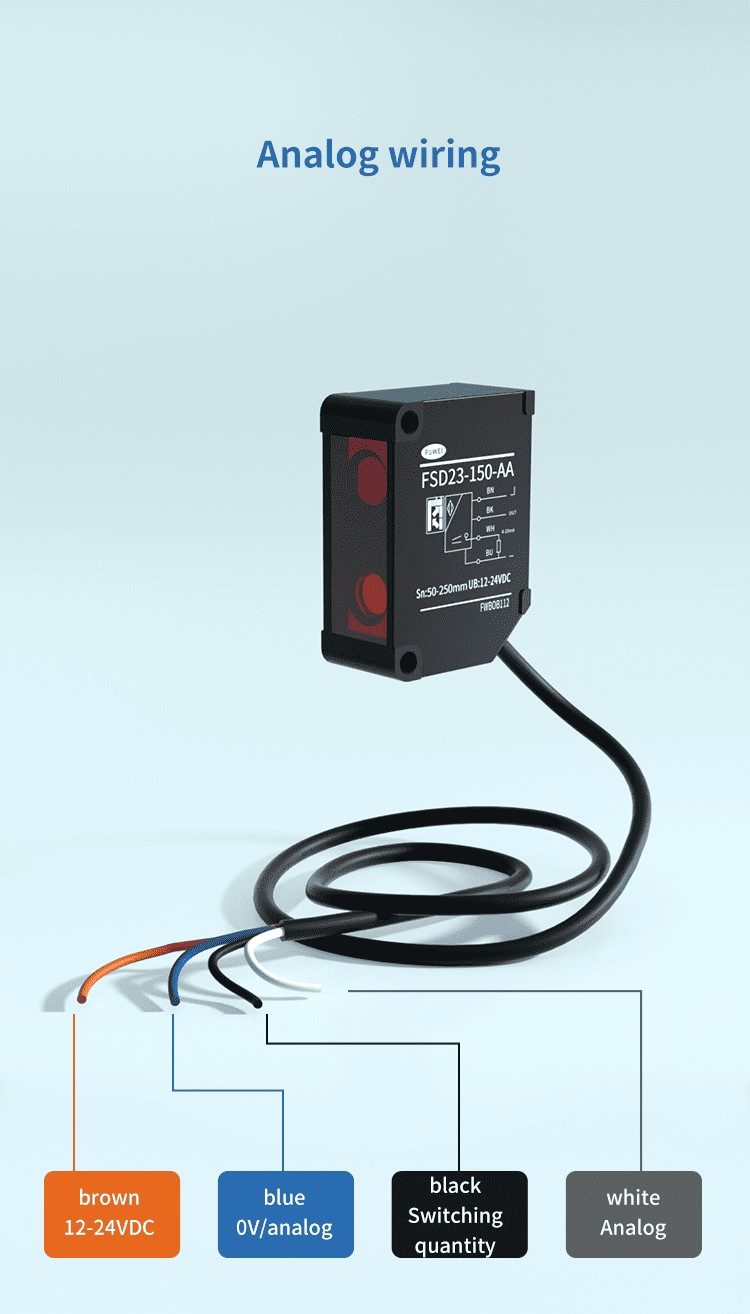

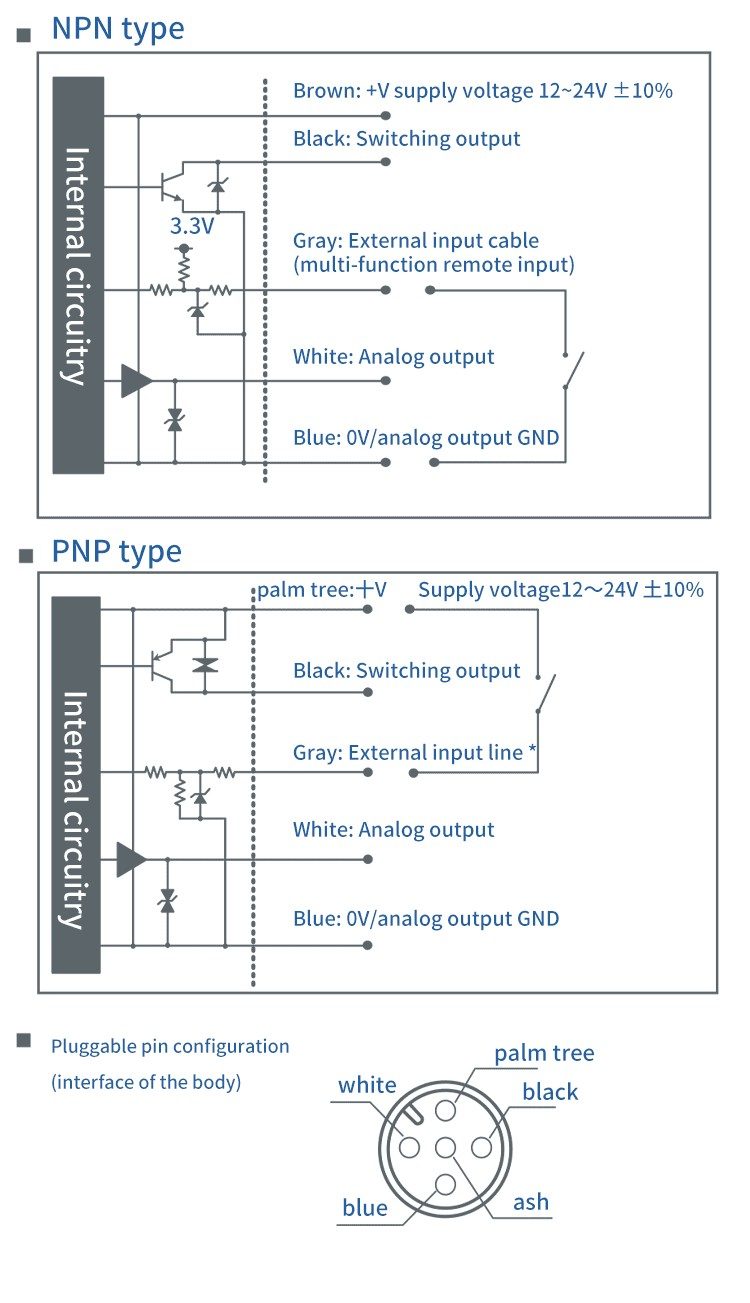

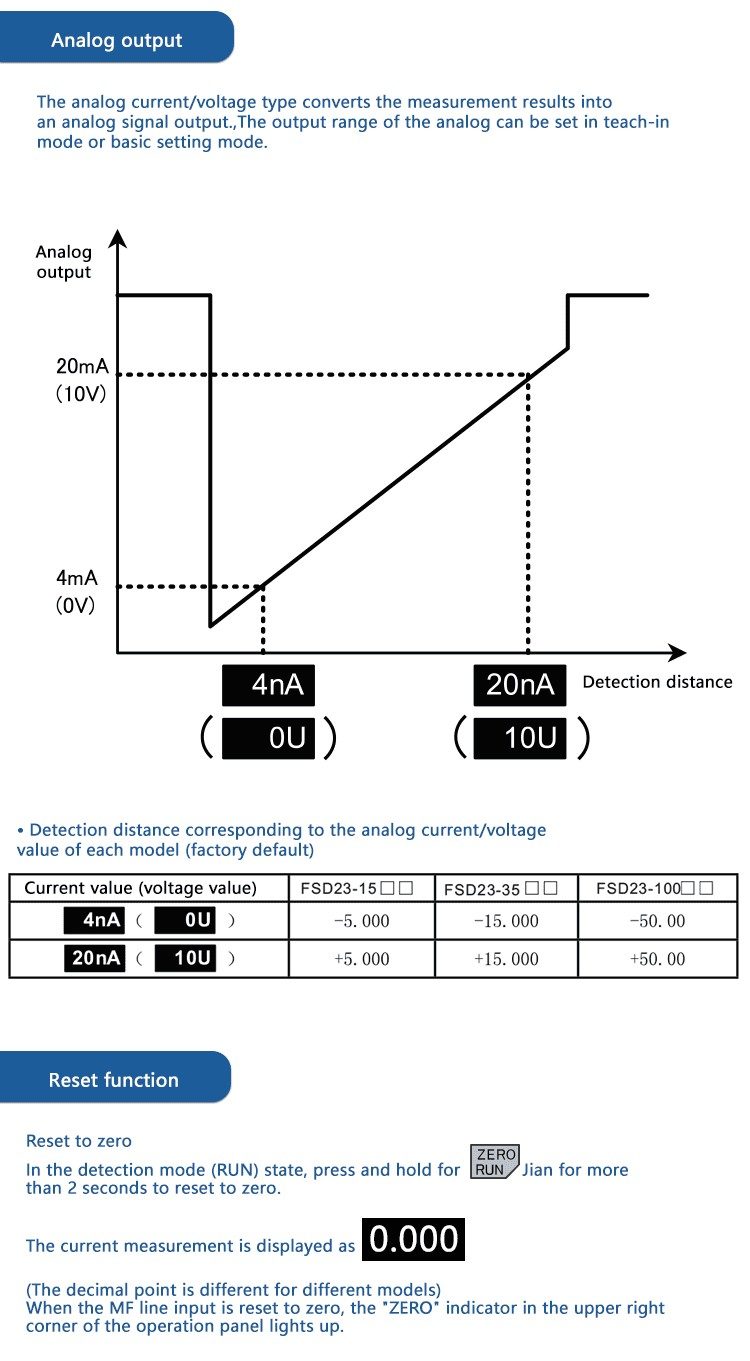

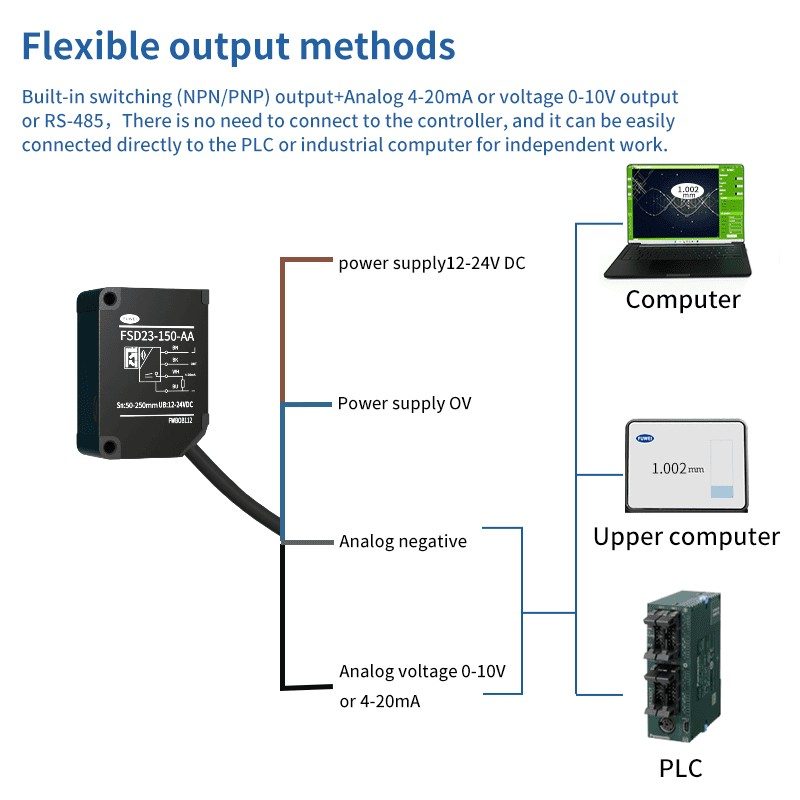

| Output | Analog current 4-20mA/NPN/PNP |

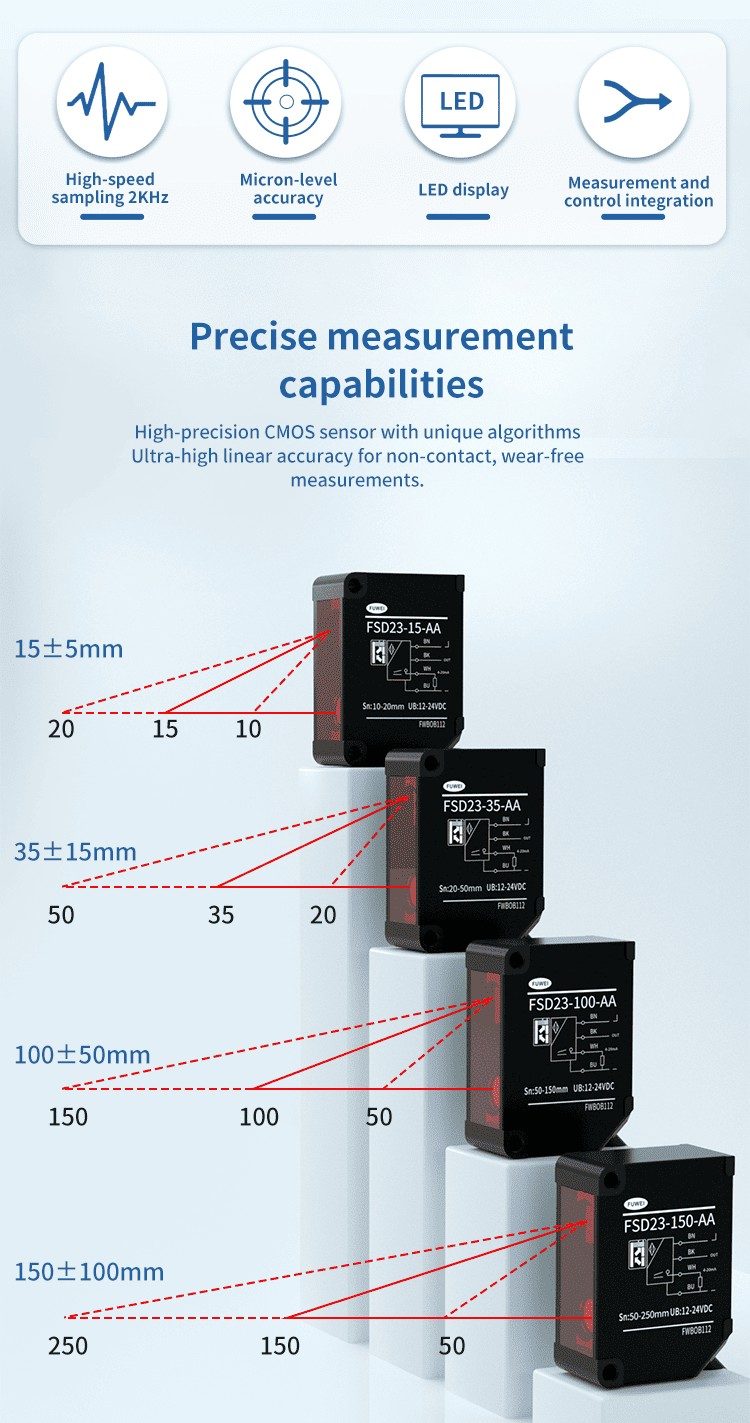

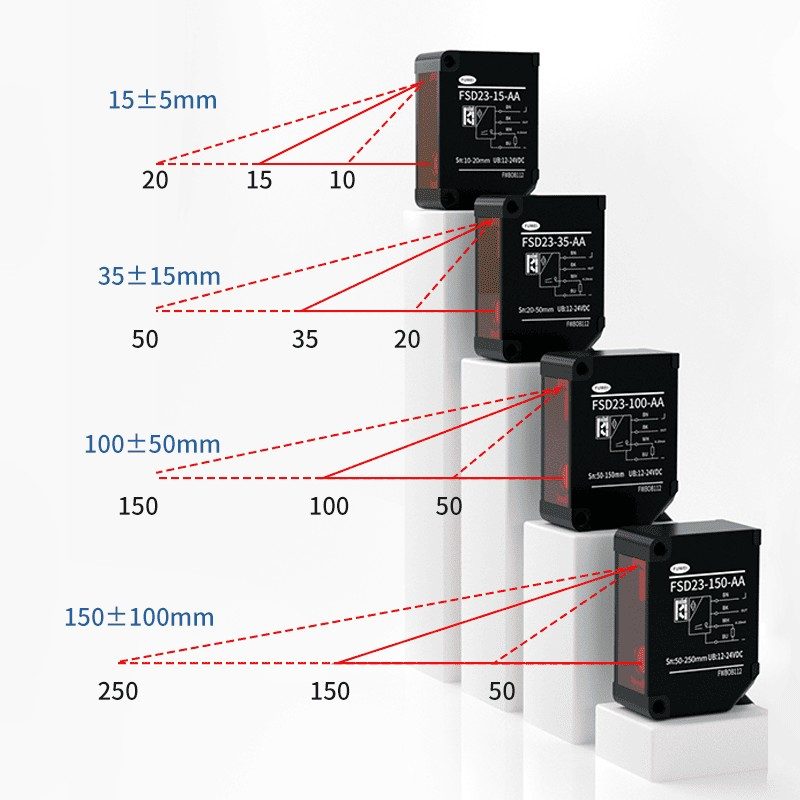

| Center of Measurement Range | 150mm |
| Measurement Range | ±100mm |
| Spot Size | 0.5*0.55mm |
| Linearity | ±0.5% F.S. |
| Repeatability | 60μm |
| Sampling Period | 500μs / 1000μs / 2000μs / 4000μs / AUTO |
| Medium Wavelength | Red laser Diode (wave length 650nm) |
| Current Consumption | 70mA max |
| Material | Aluminum |
| Packaging and Delivery | |
| Selling Units | Single item |
| Single Package Size | 18X12X5 cm |
| Single Gross Weight | 0.250 kg |
