| Mounting Type | Easy installation |
| Manufacturing Date Code | 20240809 |
| Model Number | FGNS04-30P-C |
| Brand Name | FUWEI |

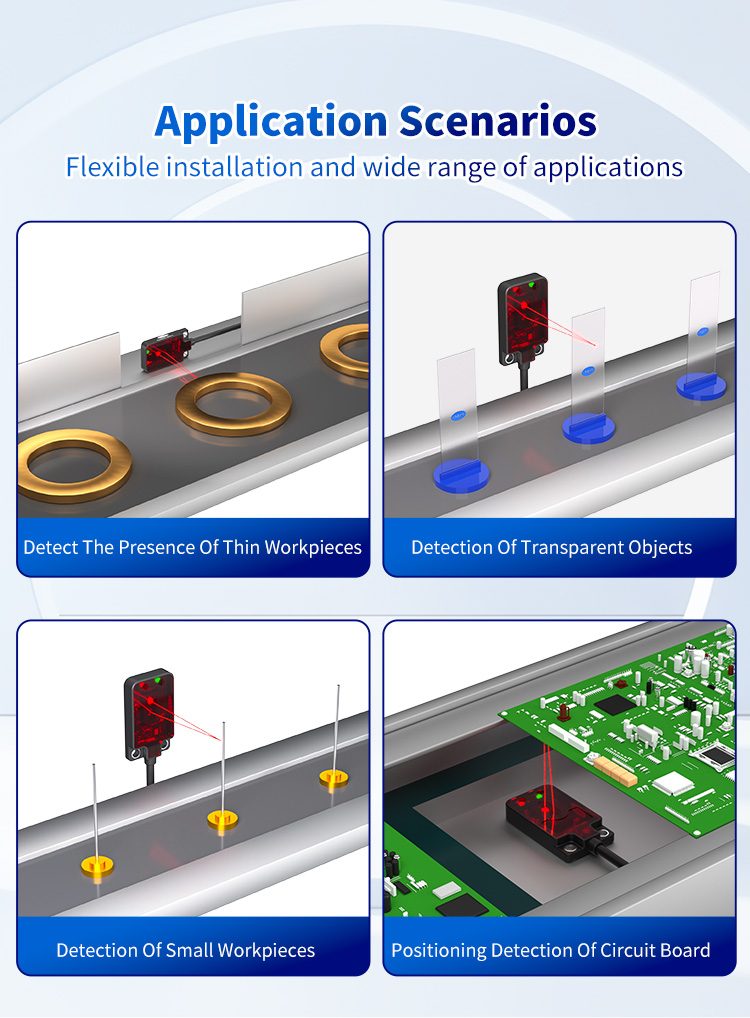

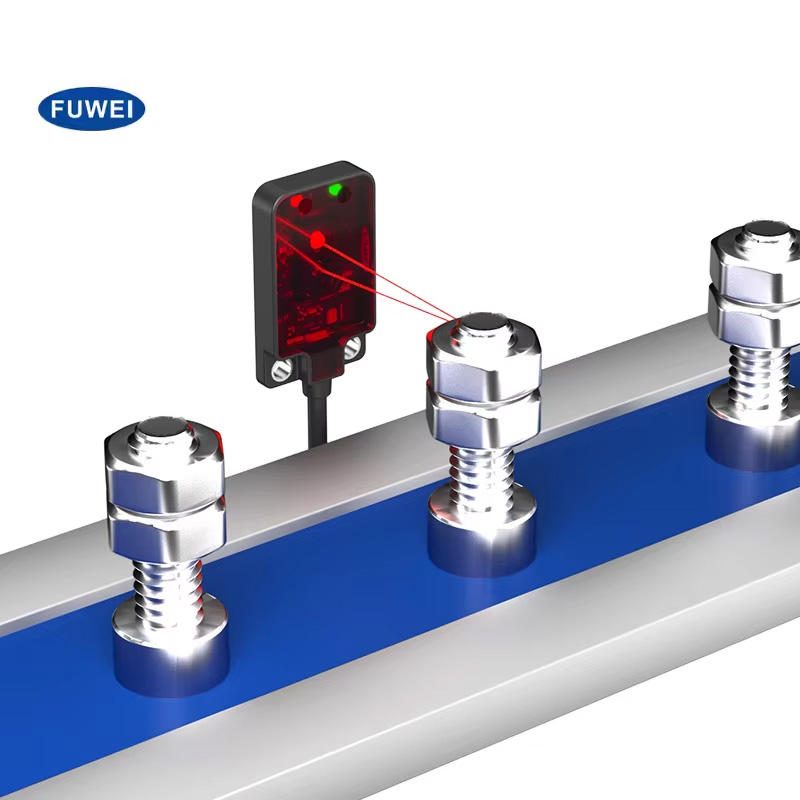

| Usage | Detecting object |

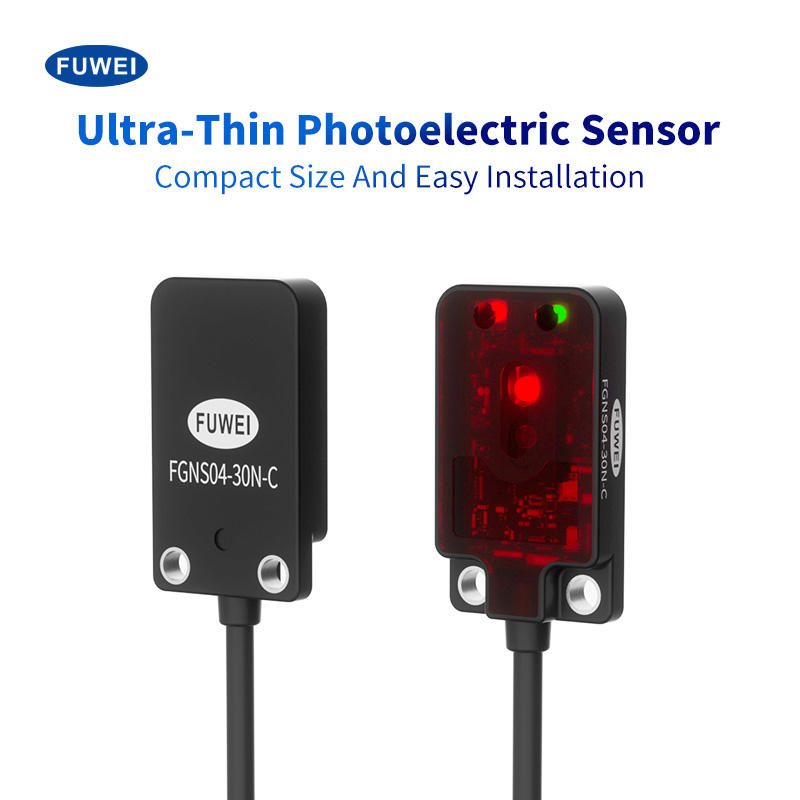

| Description | Ultra-Thin Photoelectric Sensor |
| Type | Photoelectric Sensor |
| Series | FGNS04-30P-C |
| Features | Light for accurate detection |
| Place of Origin | Guangdong, China |
| Theory | Optics |
| Output | NPN PNP |
| Voltage – Supply | 12-24VDC |
| Wavelength | 650nm |
| Product Name | Ultra-Thin Photoelectric Sensor |
| Product Model | FGNS04 Series |

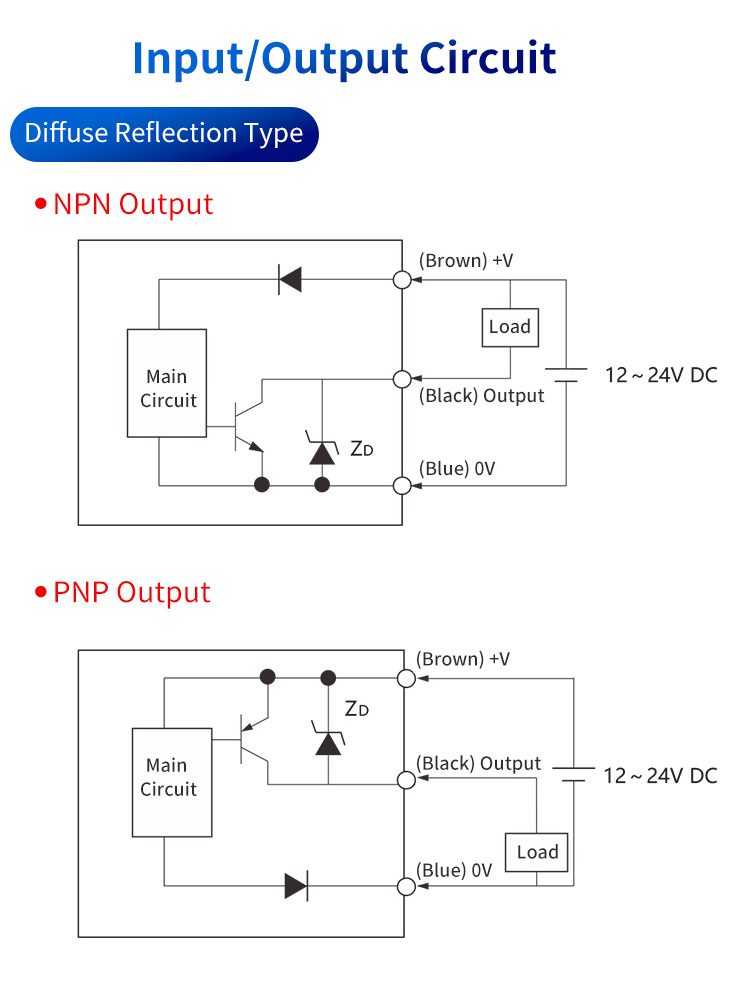

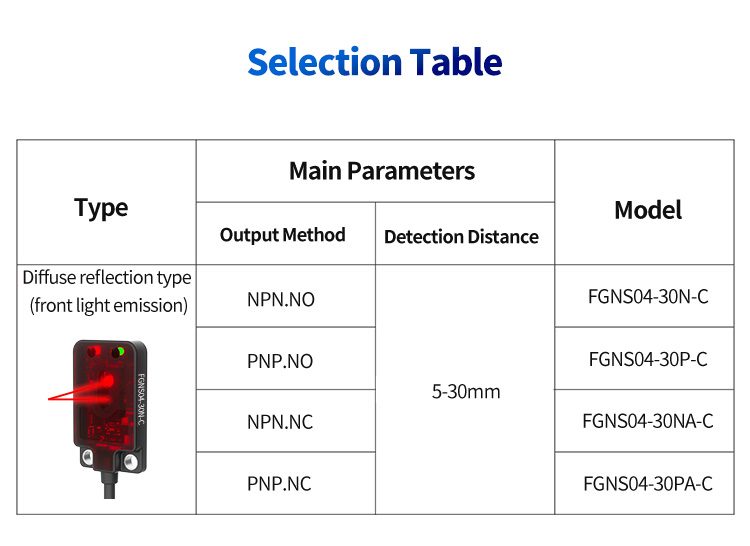

| Output Mode | NPN.NO / NPN.NC / PNP.NO / PNP.NC |
| Detection Distance | 5~30mm |
| Response Time | <1ms (Action/Reset) |
| Power Supply Voltage | 12-24VDC With Ripple Current(P-P)10% |
| Current Consumption | <20mA |

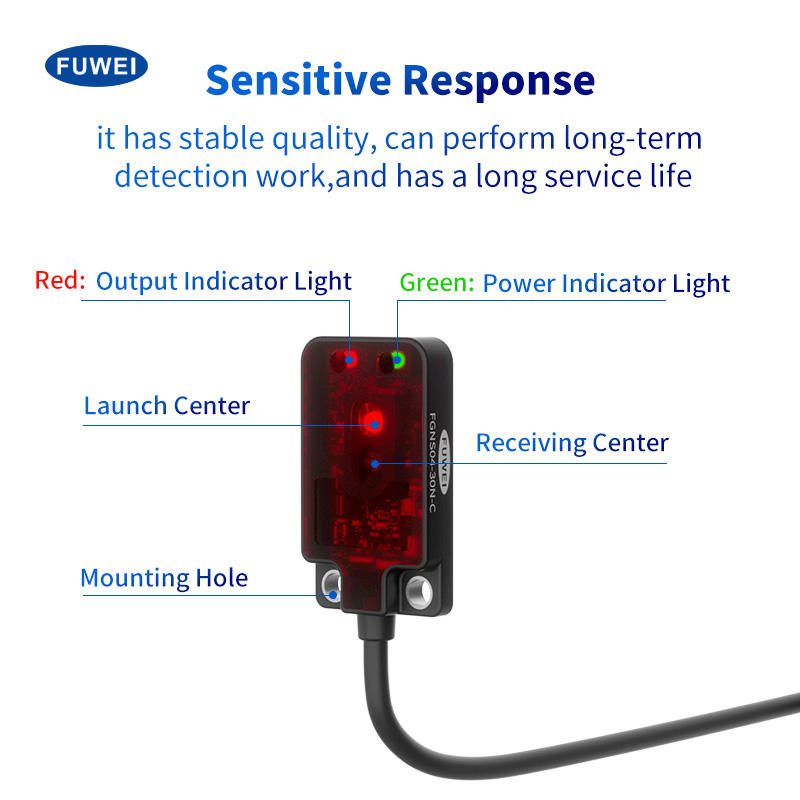

| Indicator Light | Green: Power Indicator Light; Red: Output Indicator Light |
| Protective Structure | IP65 |
| Ambient Temperature | -25~+55°C |
| Selling Units | Single item |
| Single Package Size | 16 x 15 x 5 cm |
| Single Gross Weight | 0.023 kg |
