| Key Attributes | |
|---|---|
| Mounting Type | Screw fixing |
| Manufacturing Date Code | 202507 |
| Model Number | FSD22-100P-UI |
| Brand Name | FUWEI |

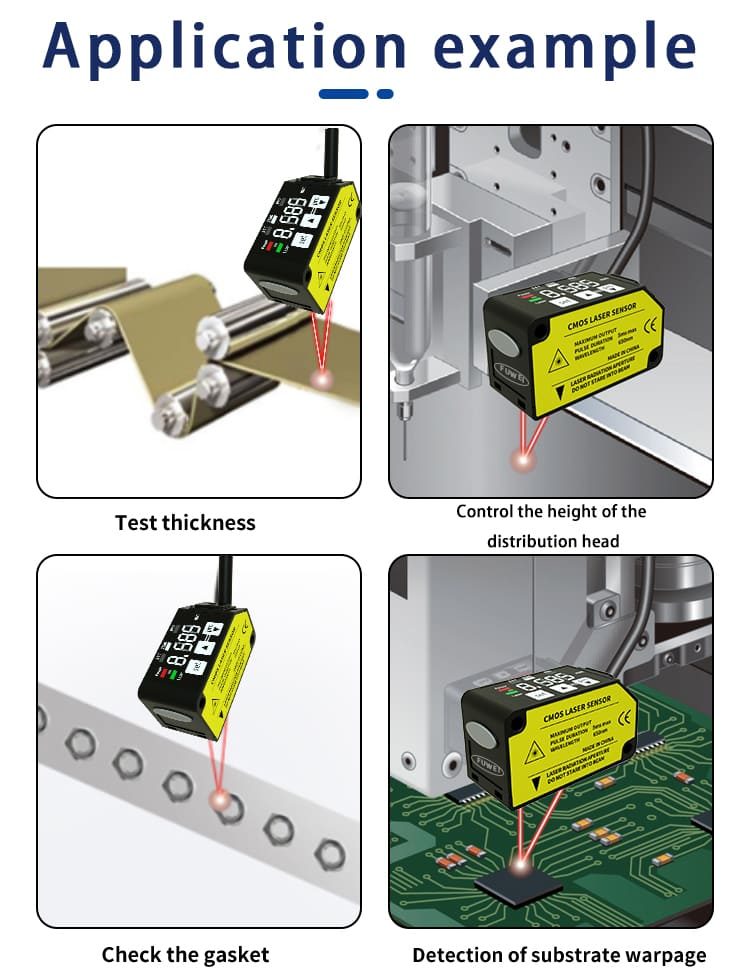

| Usage | Distance control |
| Voltage – Supply | 12-24VDC |
| Linear Range | 0.3% |

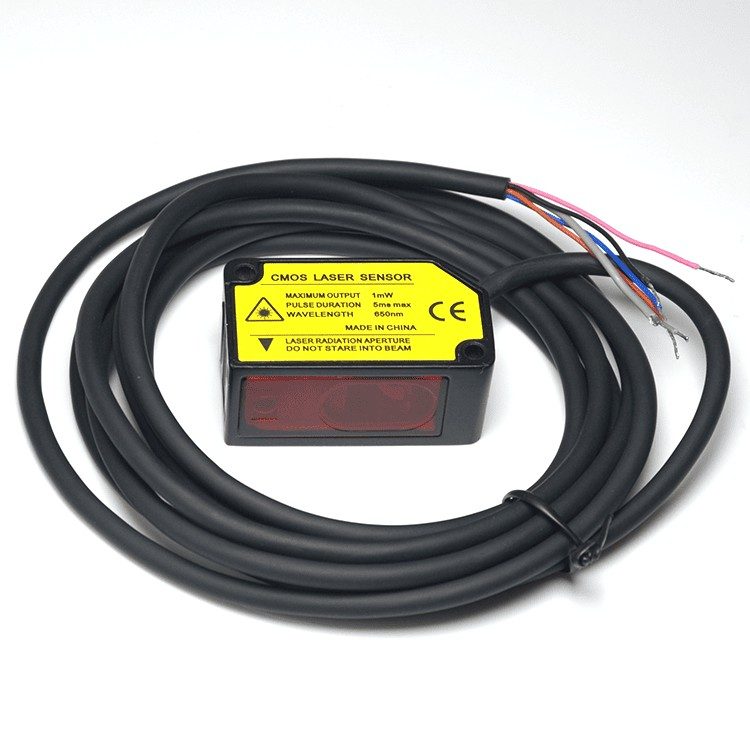

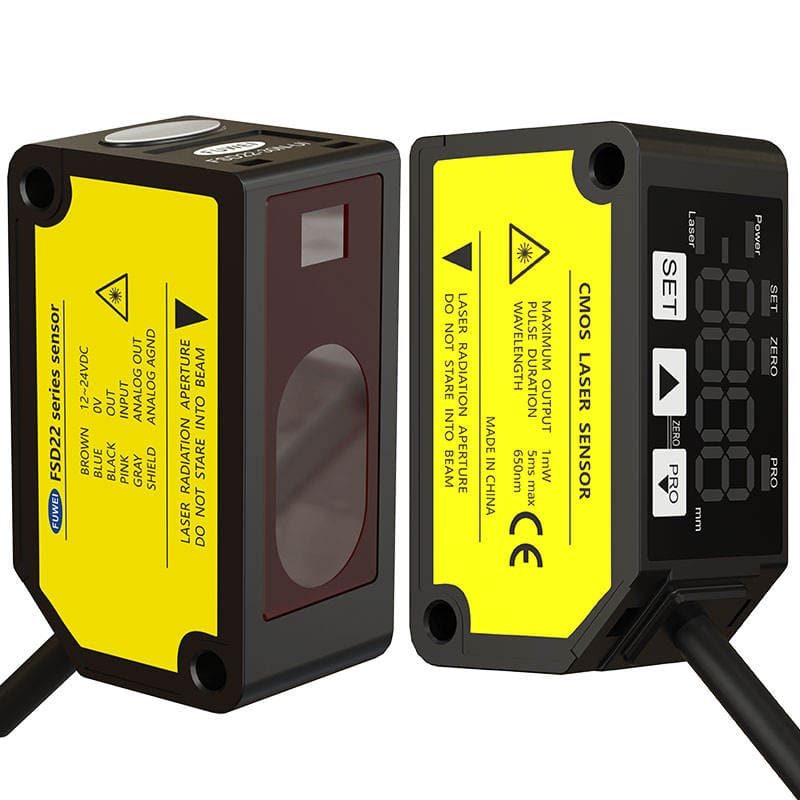

| Description | High precision laser displacement sensor |
| Type | Linear Displacement Sensor |

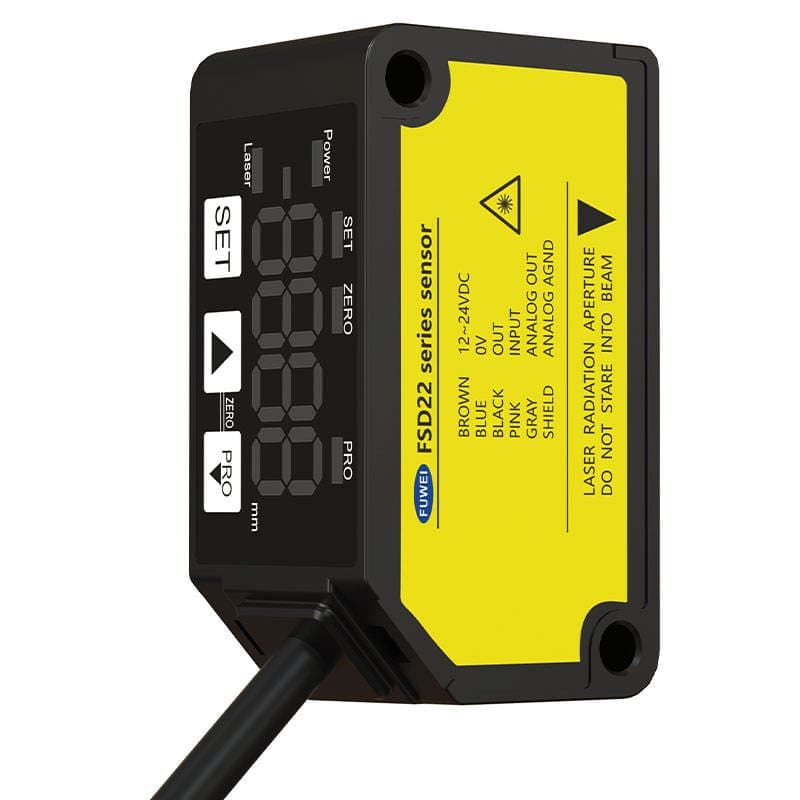

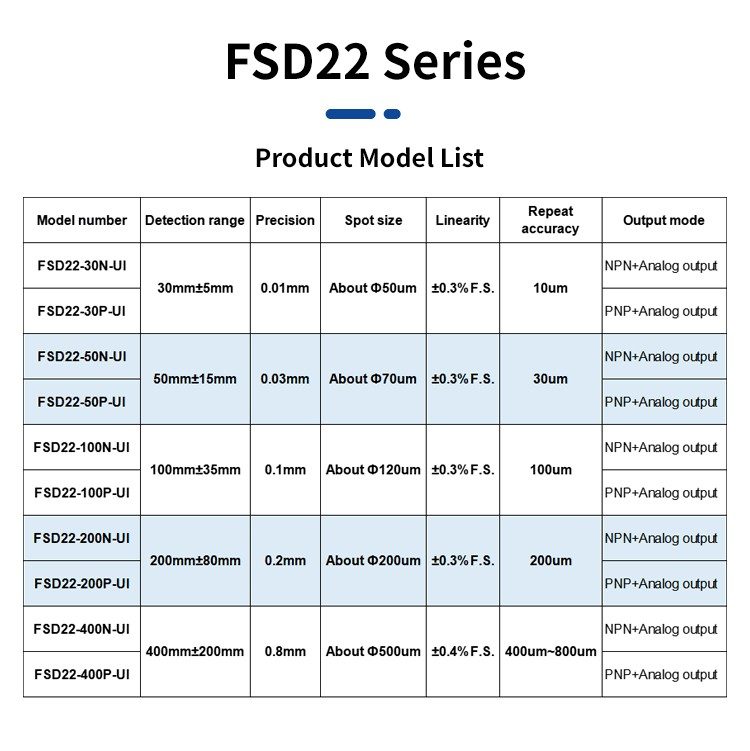

| Series | FSD22 |
| Features | High precision laser displacement sensor |
| Place of Origin | Guangdong, China |
| Theory | Laser triangulation principle measurement method |

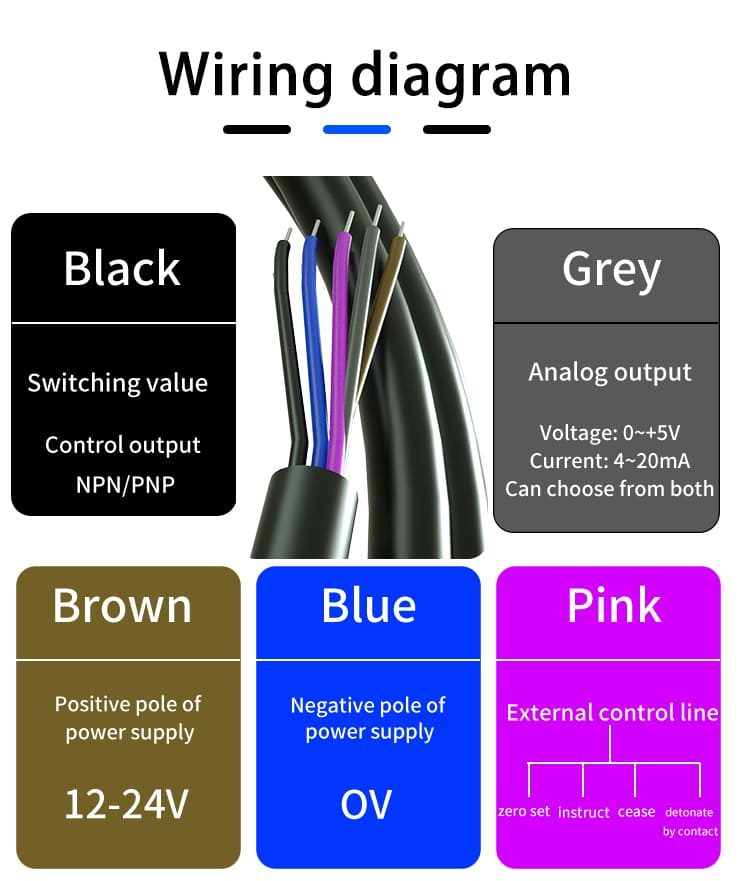

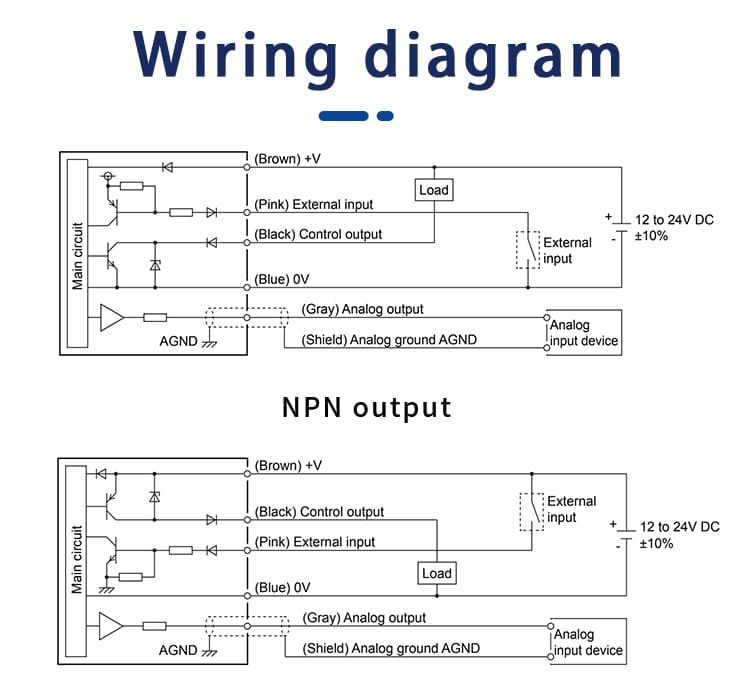

| Output | PNP/analog 0-5V/4-20mA |
| Specifications | |
| Linearity | ±0.3%F.S. |

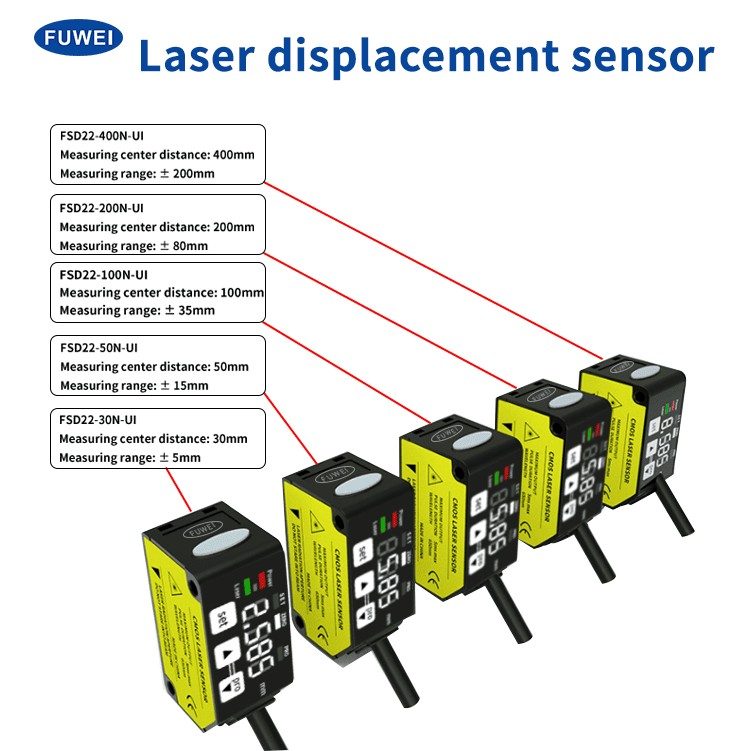

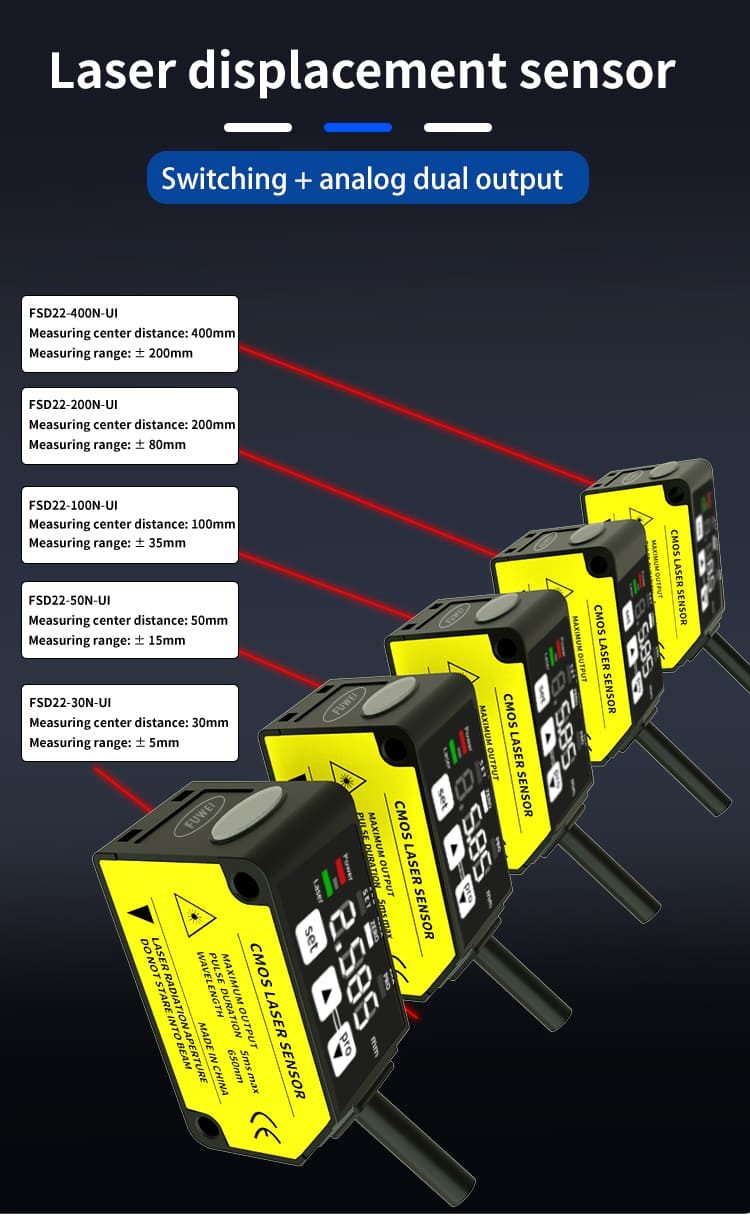

| Measurement Center Distance | 30mm / 50mm / 100mm / 200mm / 400mm |
| Measurement Range | ±5mm / ±15mm / ±35mm / ±80mm / ±200mm |
| Output | PNP/analog 0-5V/4-20mA |
| Packaging & Delivery | |
| Selling Units | Single item |
| Single Package Size | 10X10X4 cm |
| Single Gross Weight | 0.500 kg |
