| Key Attributes | |
|---|---|
| Mounting Type | Laser Displacement Sensor |
| Manufacturing Date Code | 20240130 |
| Model Number | FSD22-30P-UI |
| Brand Name | FUWEI |

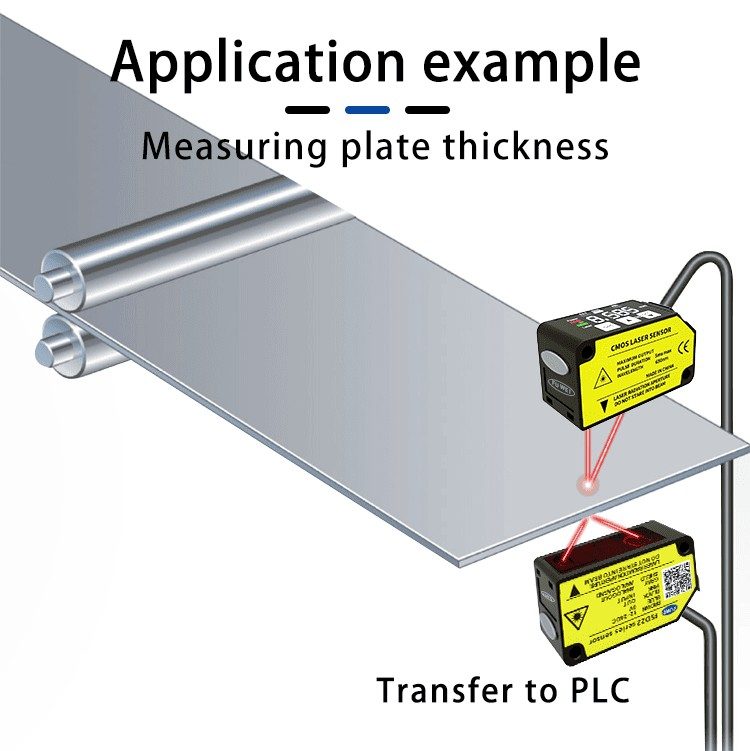

| Usage | Distance |
| Description | High precision laser displacement sensor |
| Type | Optical sensor |

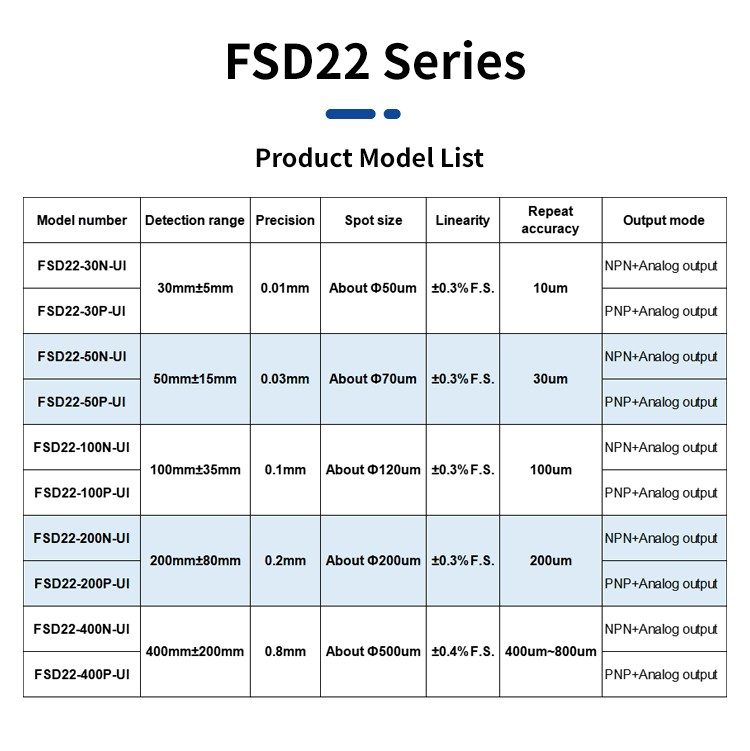

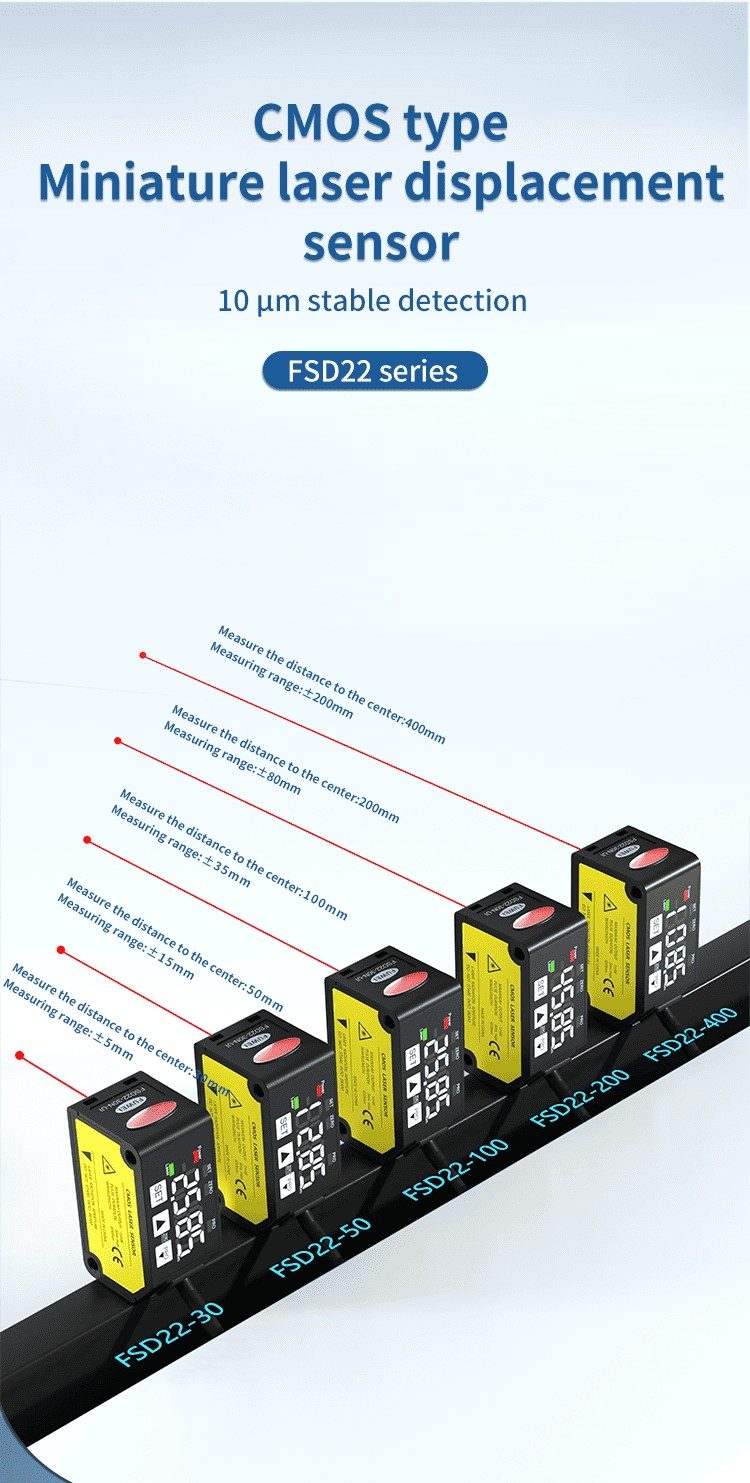

| Series | FSD22 |
| Features | High precision laser displacement sensor |
| Place of Origin | Guangdong, China |

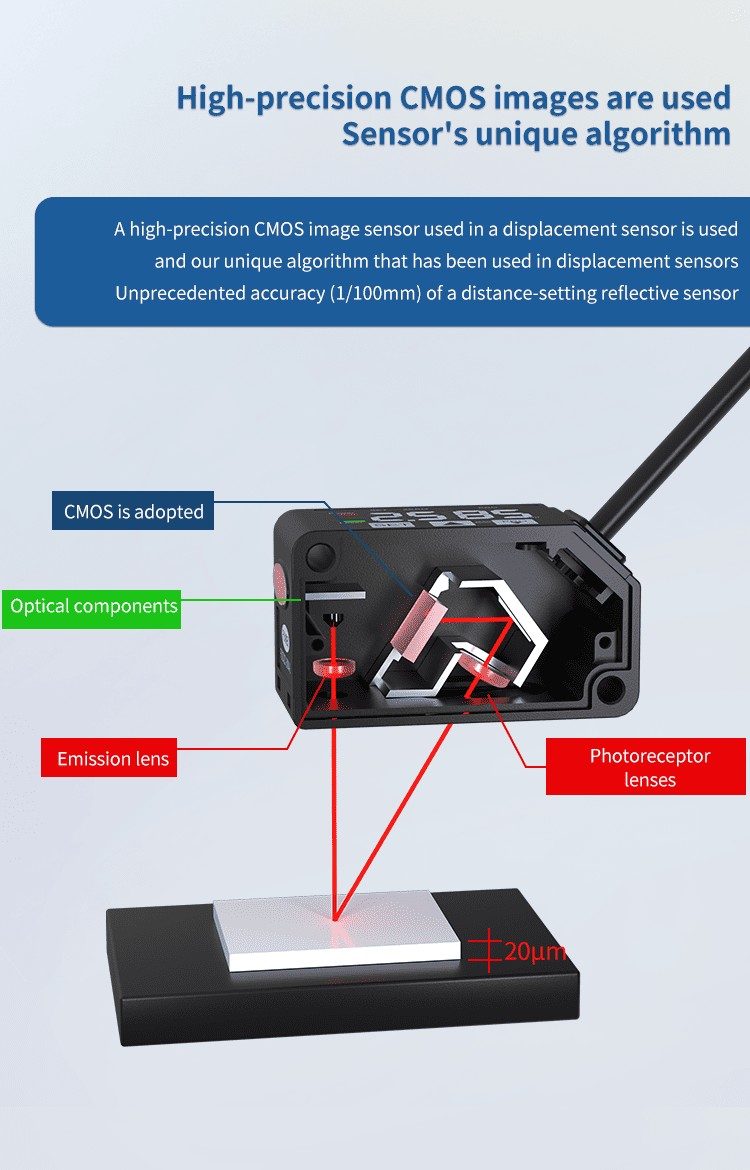

| Theory | Laser triangulation principle measurement method |
| Output | PNP |

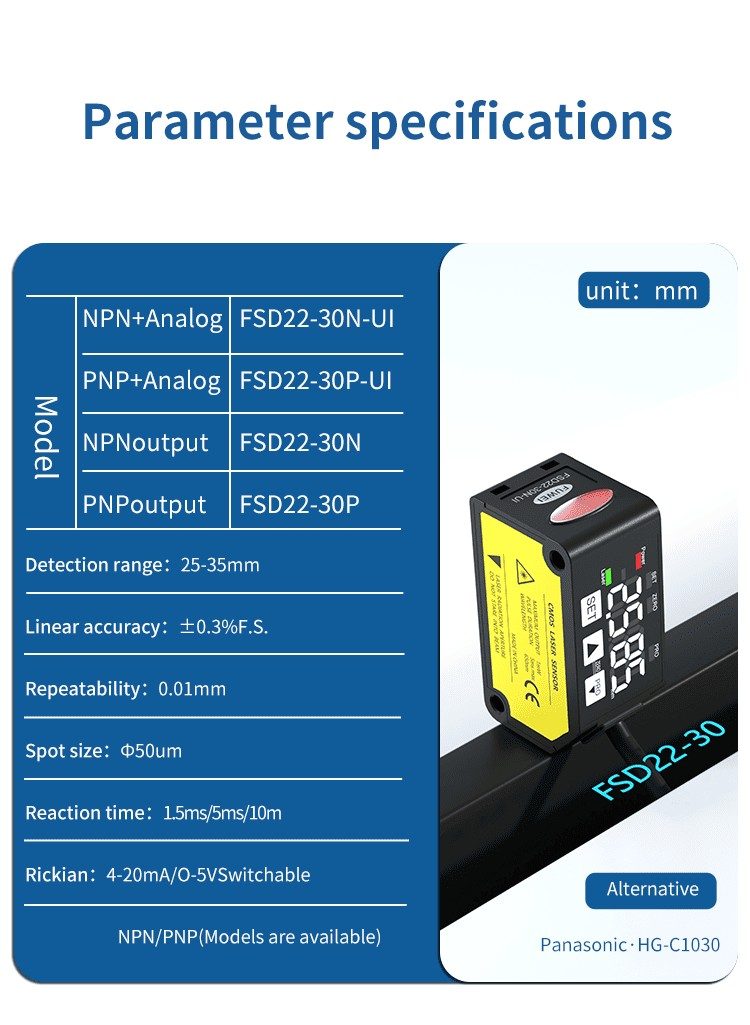

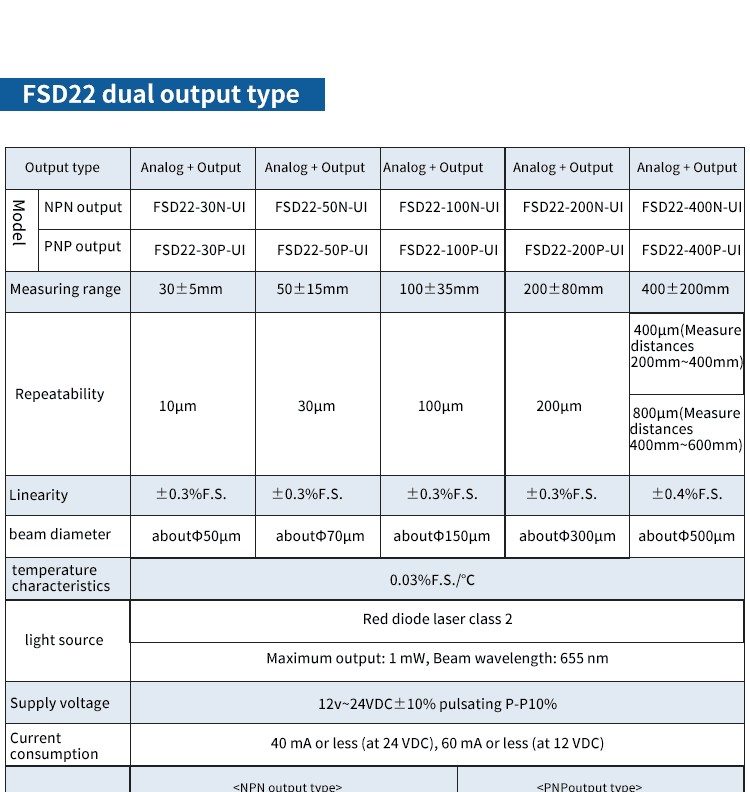

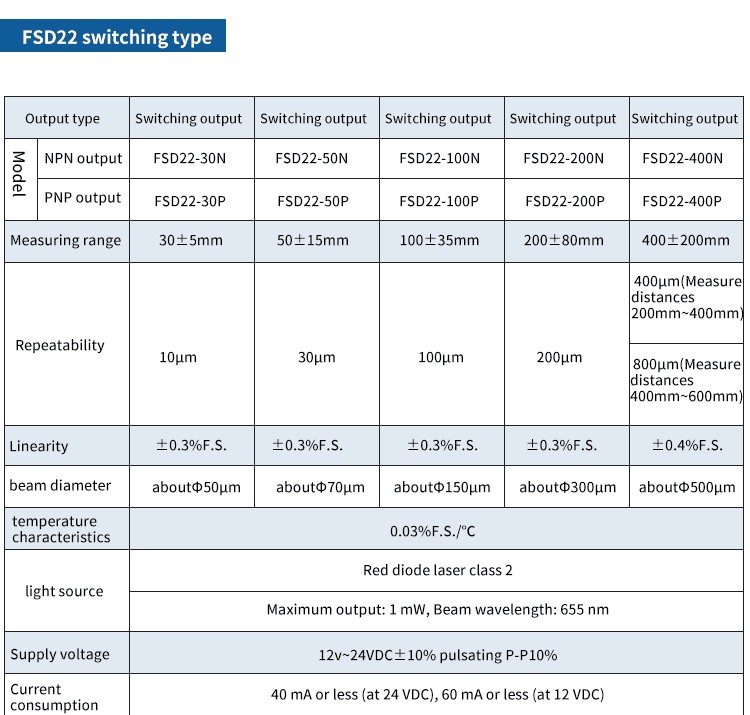

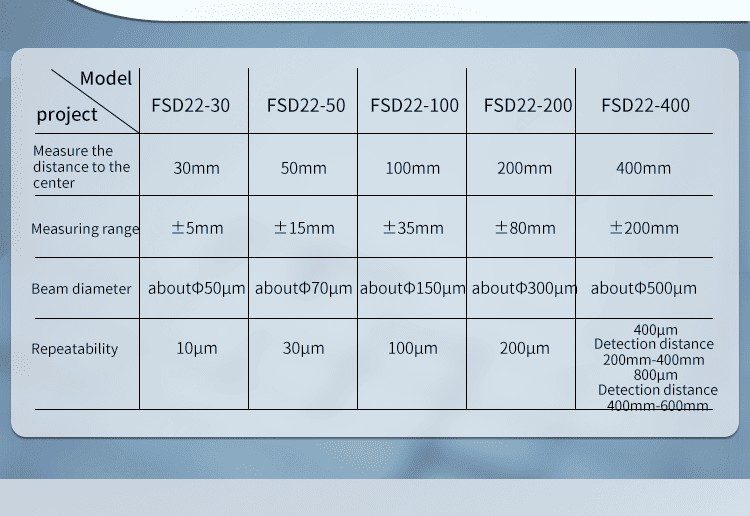

| Specifications | |
| Model | FSD22-30P-UI |
| Measurement Range | ±35mm |
| Linearity | ±0.3%F.S. |
| Measurement Center Distance | 30mm |
| Beam Diameter | 120μm |
| Repeatability | 100μm |
| Repeat Accuracy | 5μm |
| Supply Voltage | 10-30VDC |
| Full Range (F.S.) | 10mm |
| Packaging & Delivery | |
| Selling Units | Single item |

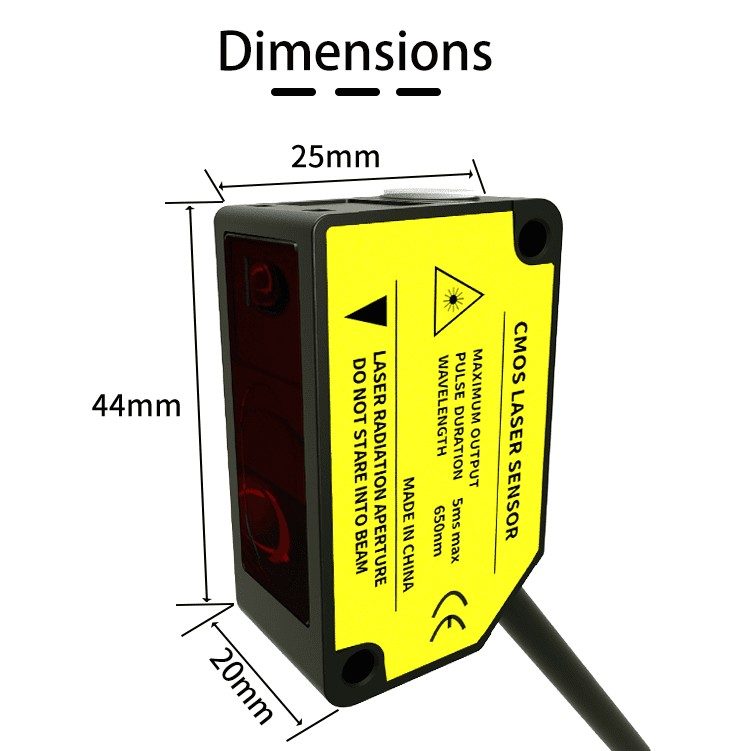

| Single Package Size | 16X15X5 cm |
| Single Gross Weight | 0.170 kg |
