| Brand Name |
FUWEI |
| Model Number |
FGS-22N |
| Series |
FGS-22 |
| Type |

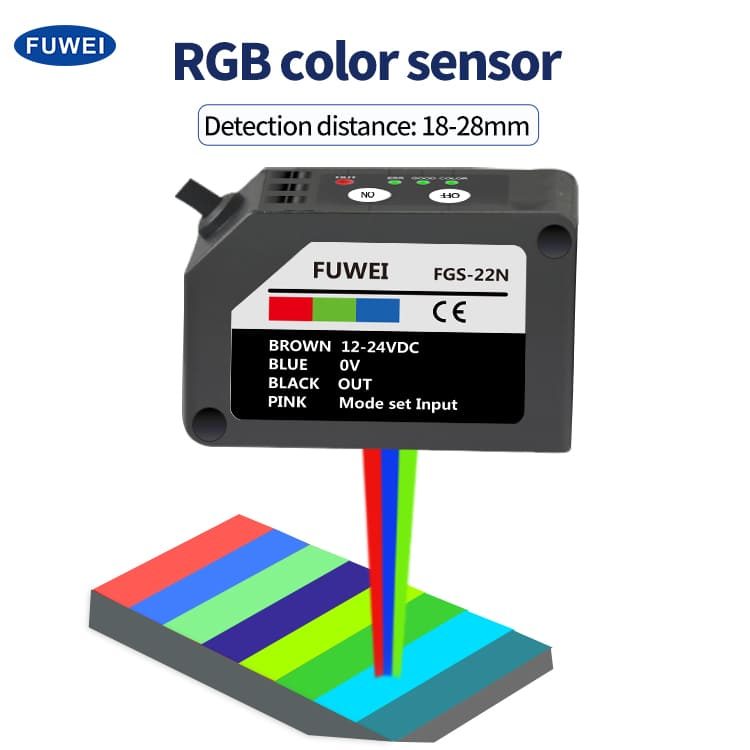

Color Mark Sensor |
| Use |
Color Recognition Detection |
| Description |
Precise Color Recognition |
| Features |
Color sensing |
| Theory |
Photoelectric Detection Principle |
| Mounting Type |
Bolt Mounting |
| Detection Distance |
18–28 mm |
| Spot Size |
At 23mm: 1.5 mm × 7 mm |
| Detection Mode |
Color Scale / Color Mode |
| Light Projection Elements |

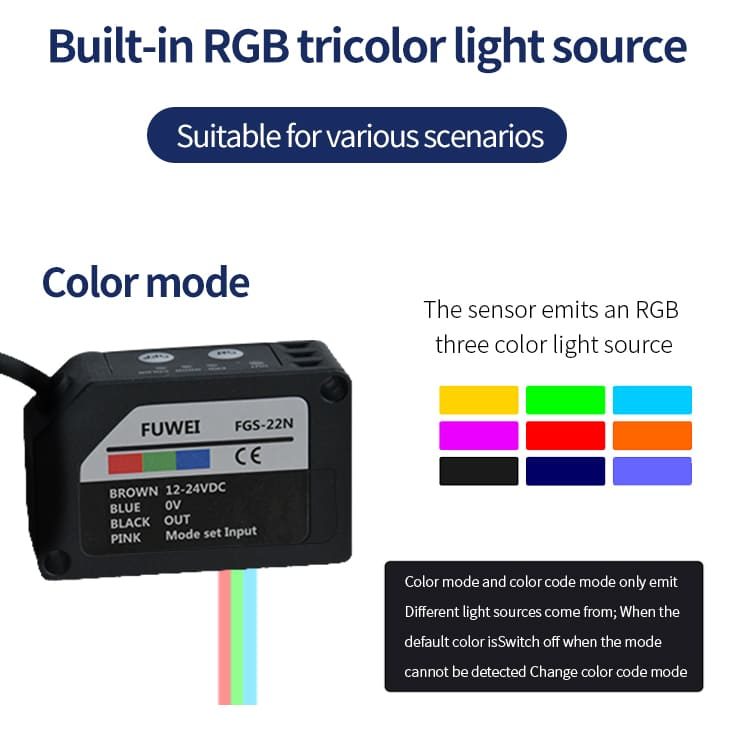

Composite LED (R/G/B): 640nm / 525nm / 470nm |

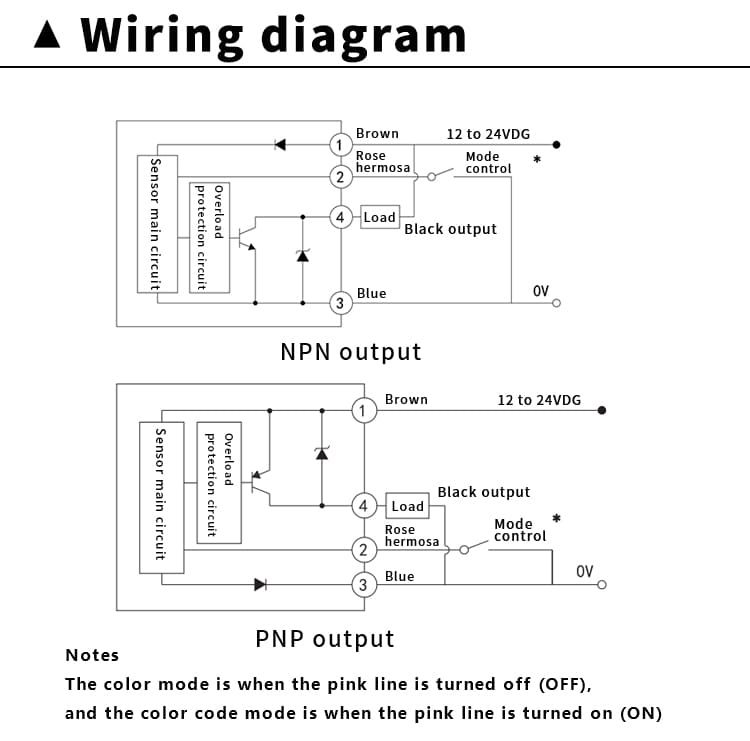

| Output |
NPN |
| Supply Voltage |
24 VDC ±10% |
| Consumption Current |
<35 mA |
| Response Time |
<200 μs |
| Short Circuit Protection |
Built-in |
| Ambient Temperature |
-10℃ ~ 55℃ |
|
