| Key Attributes | |
|---|---|
| Mounting Type | Easy Installation |
| Manufacturing Date Code | 20240126 |
| Model Number | FSD22-400N-UI |
| Brand Name | FUWEI |
| Usage | Distance |

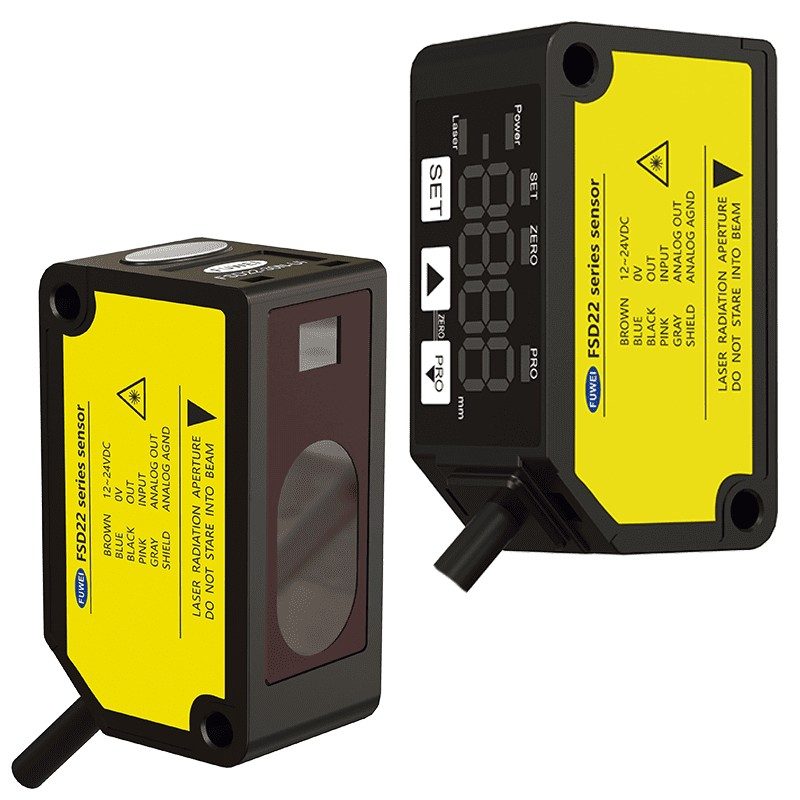

| Description | High precision laser displacement sensor |
| Type | Optical sensor |

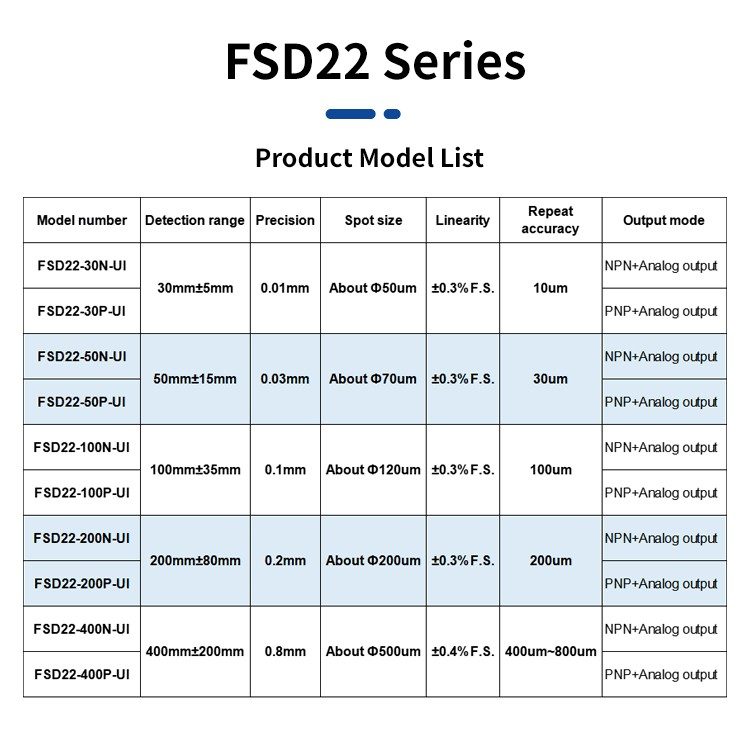

| Series | FSD22 |
| Features | High precision laser displacement sensor |
| Place of Origin | Guangdong, China |

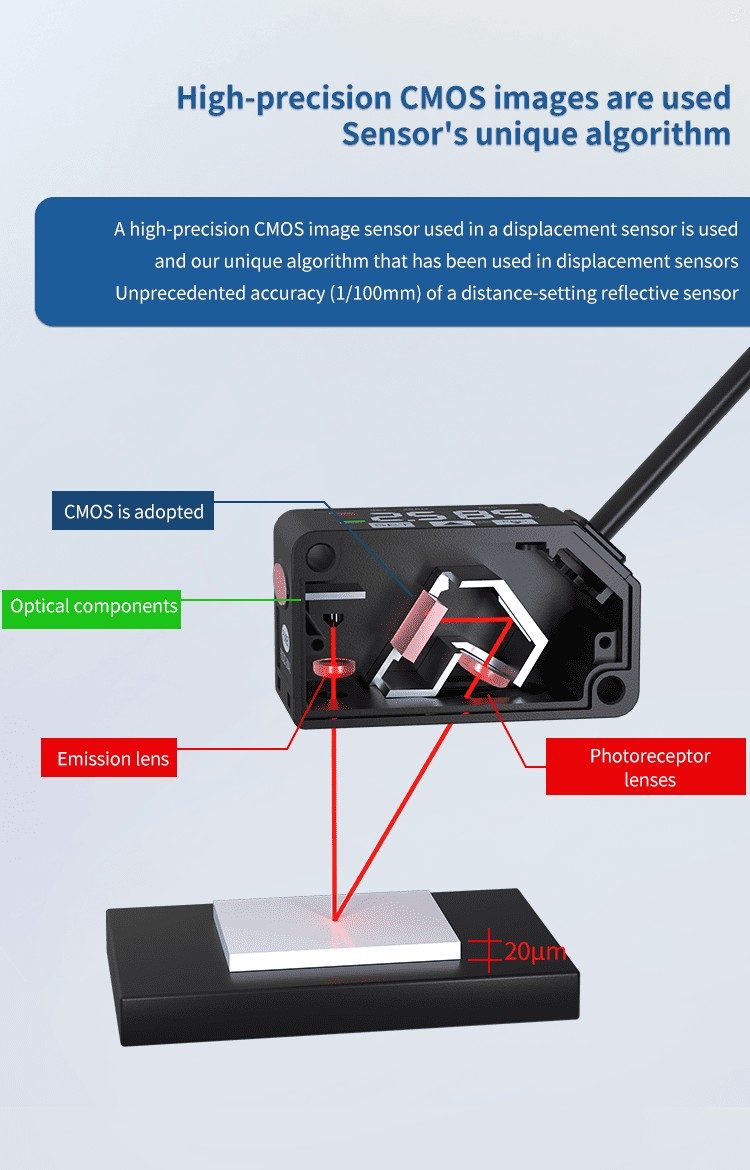

| Theory | Laser triangulation principle measurement method |

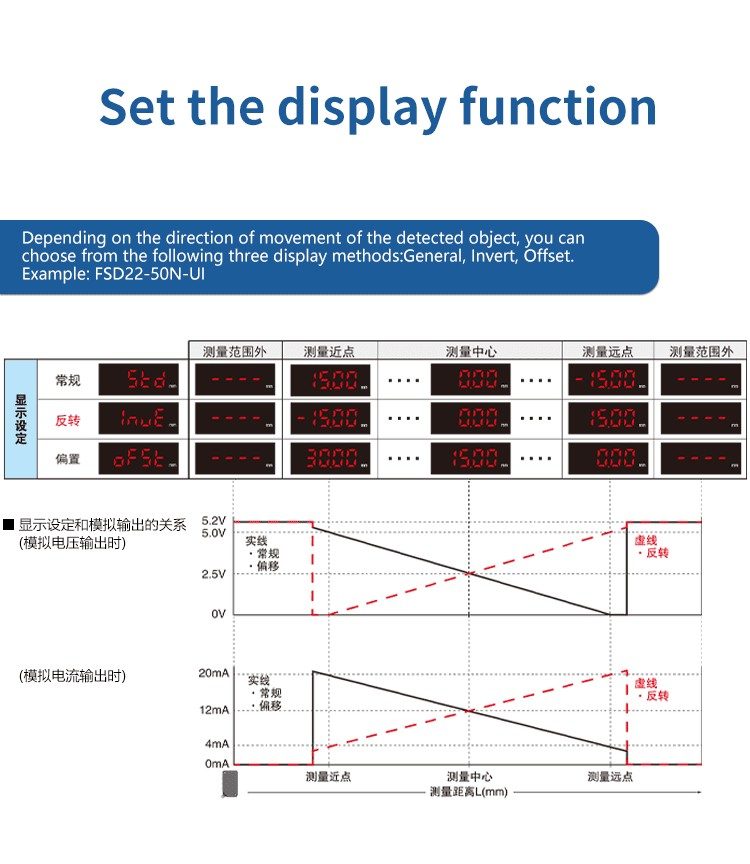

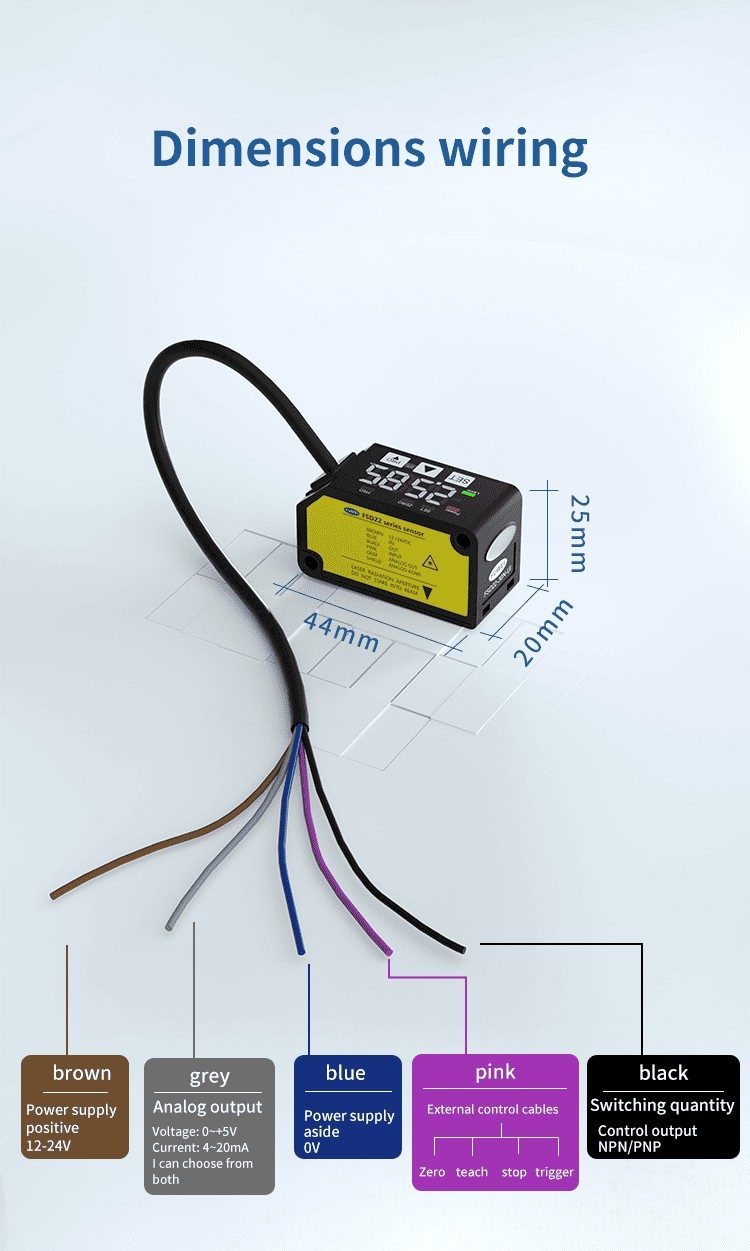

| Output | NPN/analog 0-5V/4-20mA |
| Model | FSD22-400N-UI |
| Measurement range | ±35mm |
| Linearity | ±0.3%F.S. |
| Measurement center distance | 30mm |
| Beam diameter | 120μm |
| Repeatability | 100μm |
| Repeat accuracy | 5μm |
| Supply voltage | 10-30VDC |
| Full range (F.S.) | 10mm |
| Packaging and Delivery | |
| Selling Units | Single item |
| Single package size | 16X15X5 cm |
| Single gross weight | 0.170 kg |
