| Mounting Type |
Screw fixing |
| Manufacturing Date Code |
2025 |
| Model Number |
FSD11-50-AA-M |
| Brand Name |
FUWEI |
| Usage |

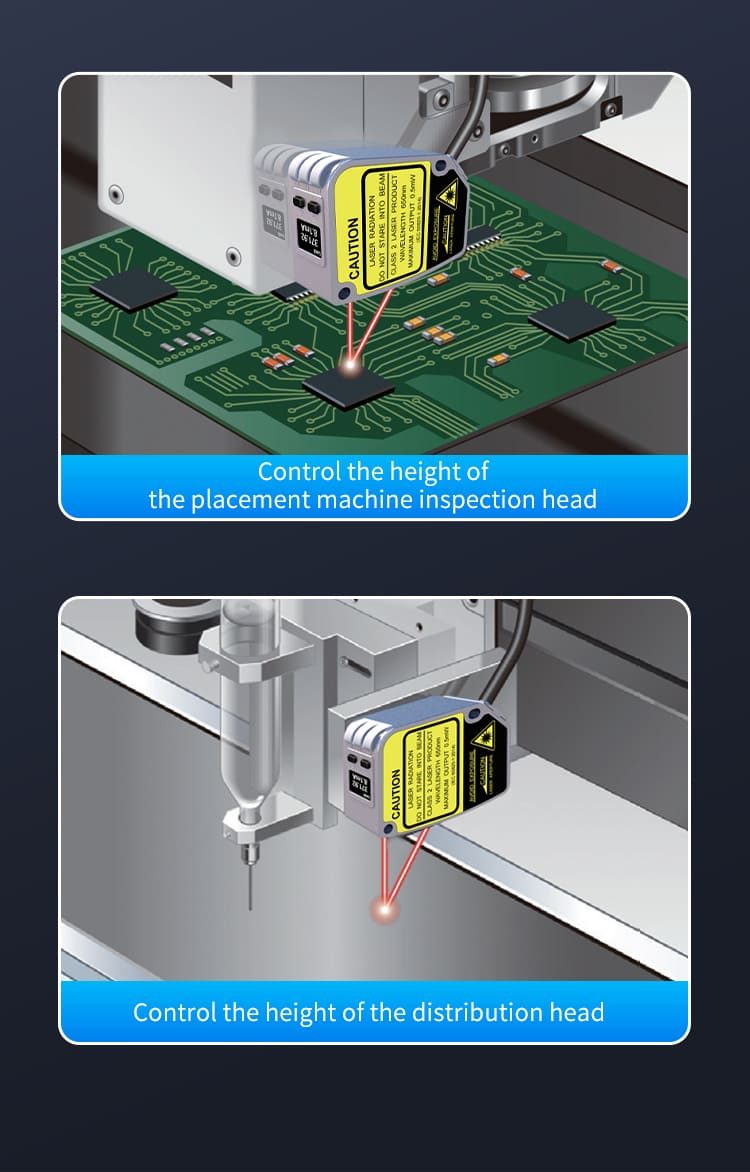

Measuring Distance |
| Description |

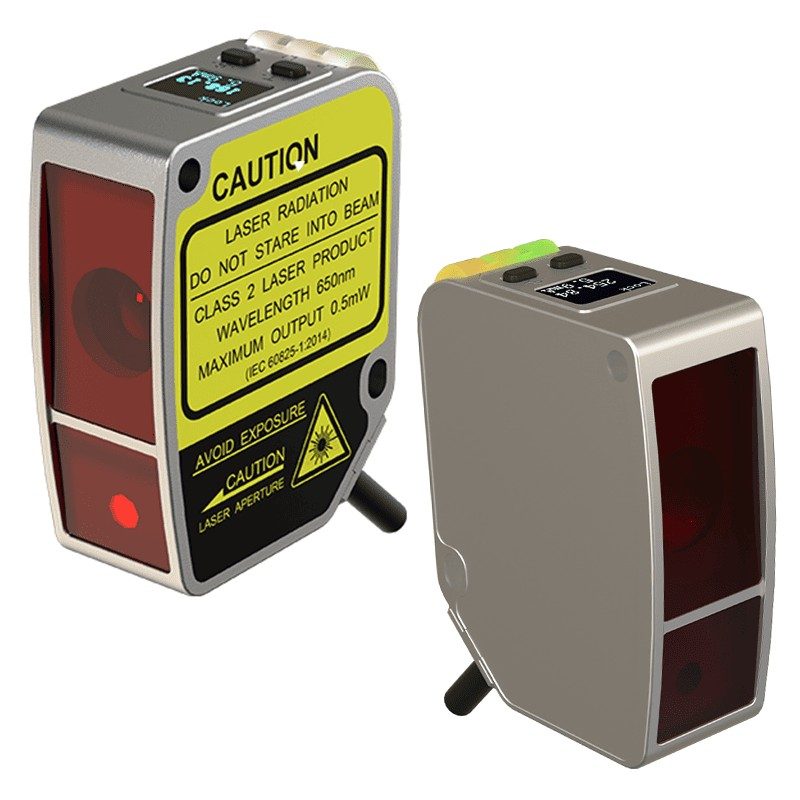

High precision laser displacement sensor |
| Type |
Laser Displacement Sensor |
| Series |
FSD11 |
| Features |
High precision measurement |
| Place of Origin |
Guangdong, China |
| Theory |
Laser triangulation principle measurement method |

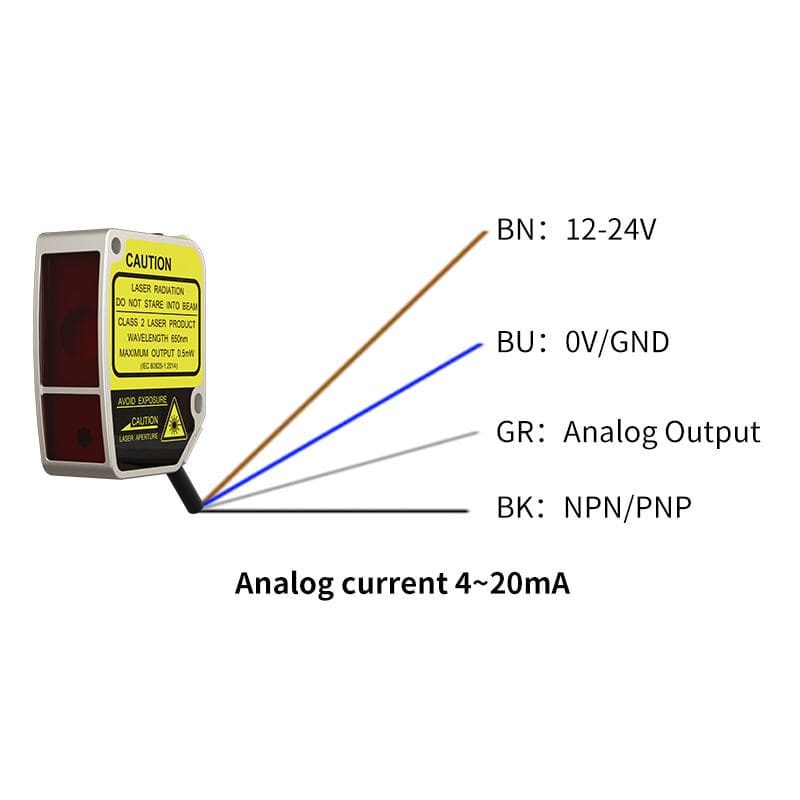

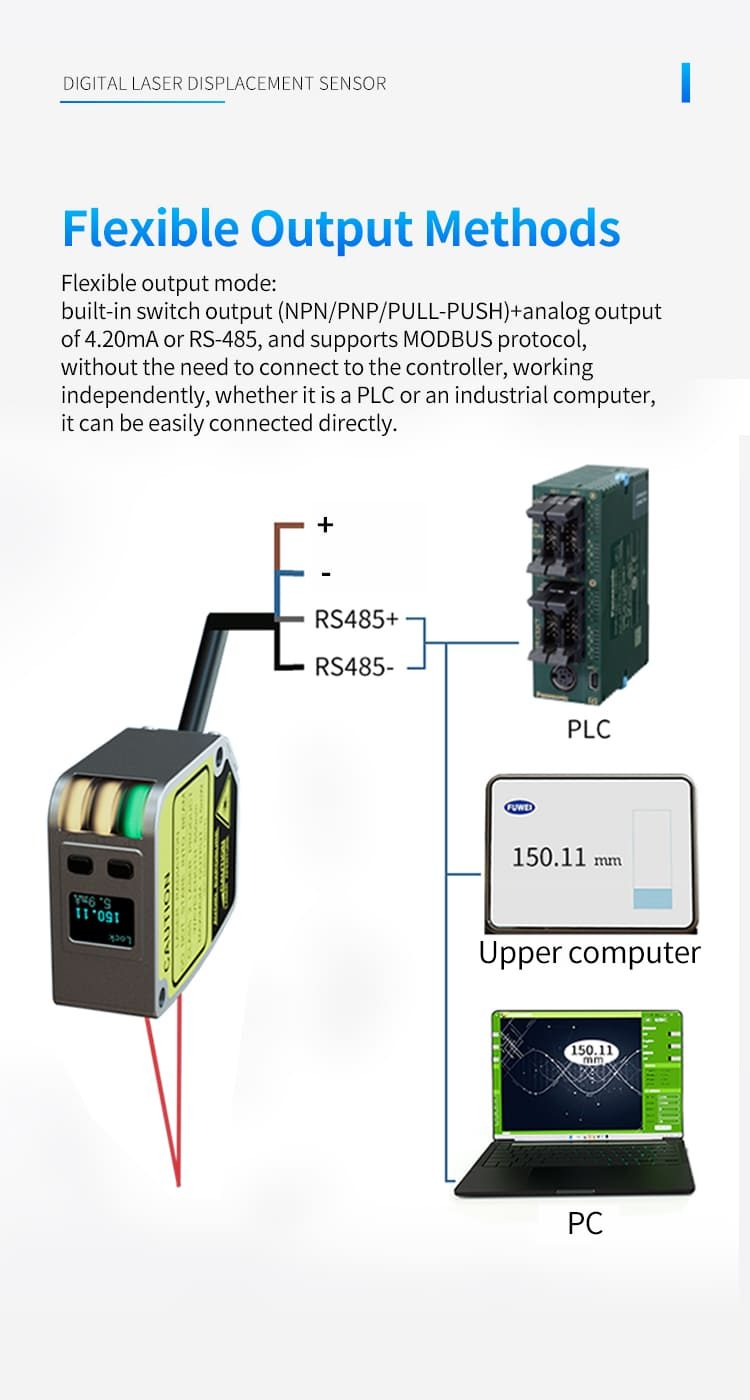

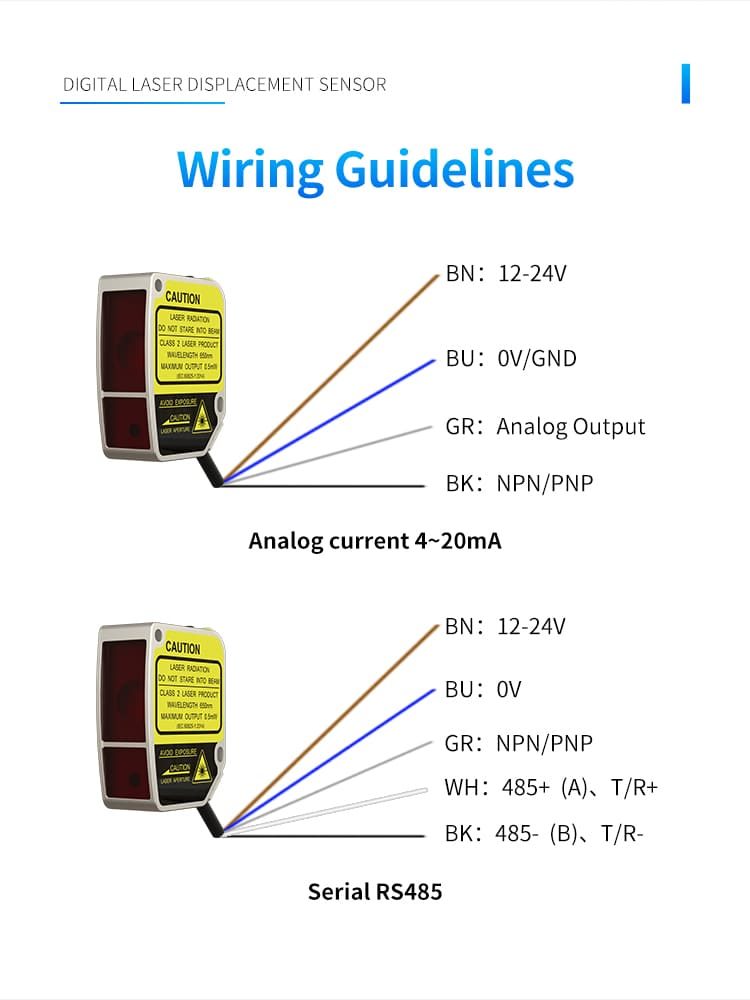

| Output |
Analog: 4…20mA (Load resistance < 390Ω) |

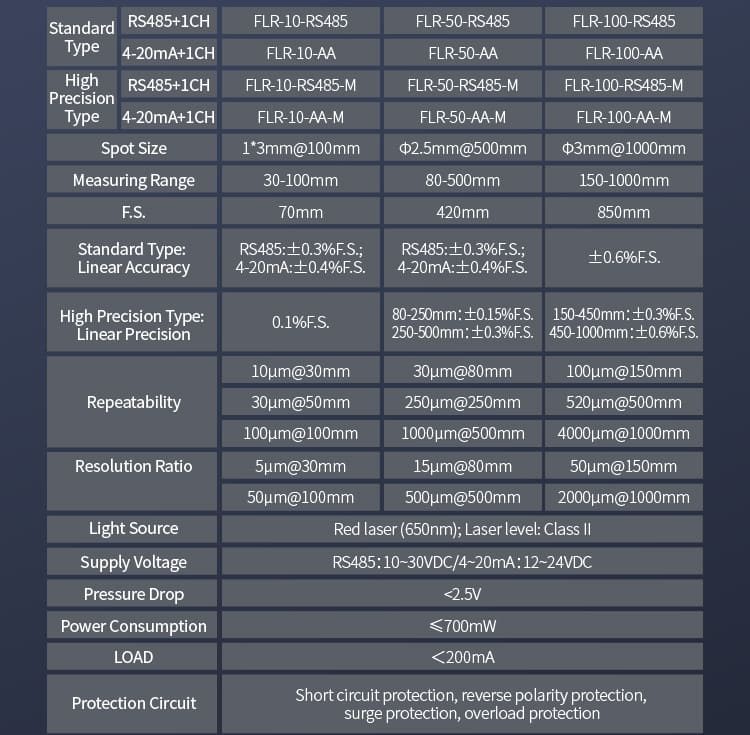

| Technical Parameters |

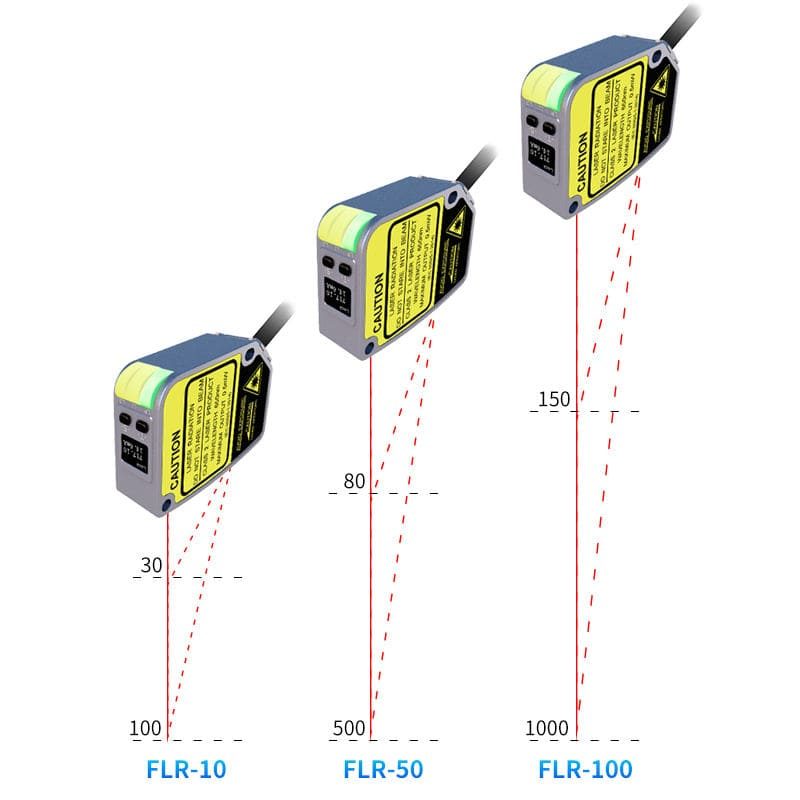

| Measuring Range |
80-500 mm |
| Full Range (F.S.) |
420 mm |
| Light Spot Size |
2.5 mm @ 500 mm |
| Resolution |
15 µm @ 80 mm; 500 µm @ 500 mm |
| Repeat Accuracy |
30 µm @ 80 mm; 250 µm @ 250 mm; 1000 µm @ 500 mm |

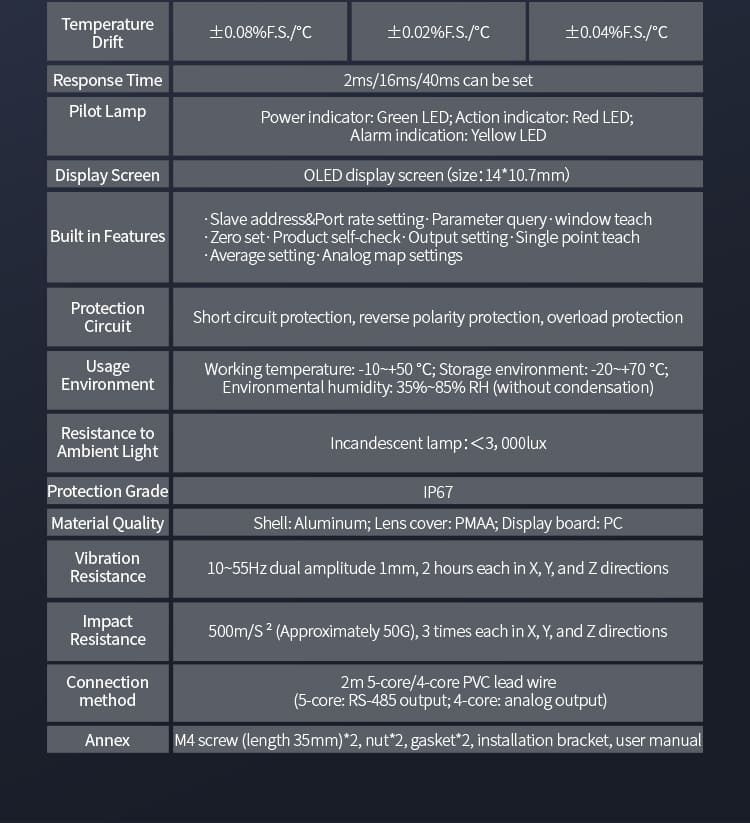

| Temperature Drift |
±0.02% F.S./°C |
| Linear Accuracy |
±0.15% F.S. (80-250 mm); ±0.3% F.S. (250-500 mm) |
| Supply Voltage |
10–30 VDC |

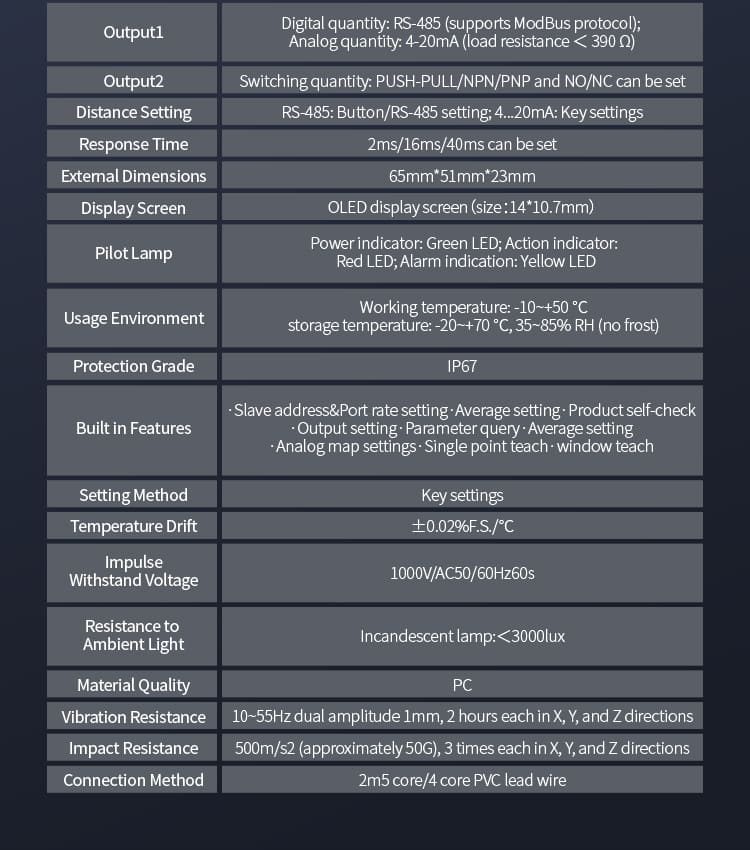

| Output 1 |
Analog: 4…20mA (Load resistance < 390Ω) |
| Waterproof Rating |
IP67 |
| Packaging & Delivery |
| Selling Units |
Single item |
| Single Package Size |
10 × 10 × 4 cm |
| Single Gross Weight |
0.390 kg |
