| Mounting Type |
Screw fixing |
| Manufacturing Date Code |
2025 |
| Model Number |
FSD11-30-RS485 |
| Brand Name |
FUWEI |
| Usage |
Measuring Distance |
| Description |
High precision laser displacement sensor |
| Type |
Laser Displacement Sensor |
| Series |
FSD11 |
| Features |
High precision measurement |
| Place of Origin |
Guangdong, China |
| Theory |
Laser triangulation principle measurement method |

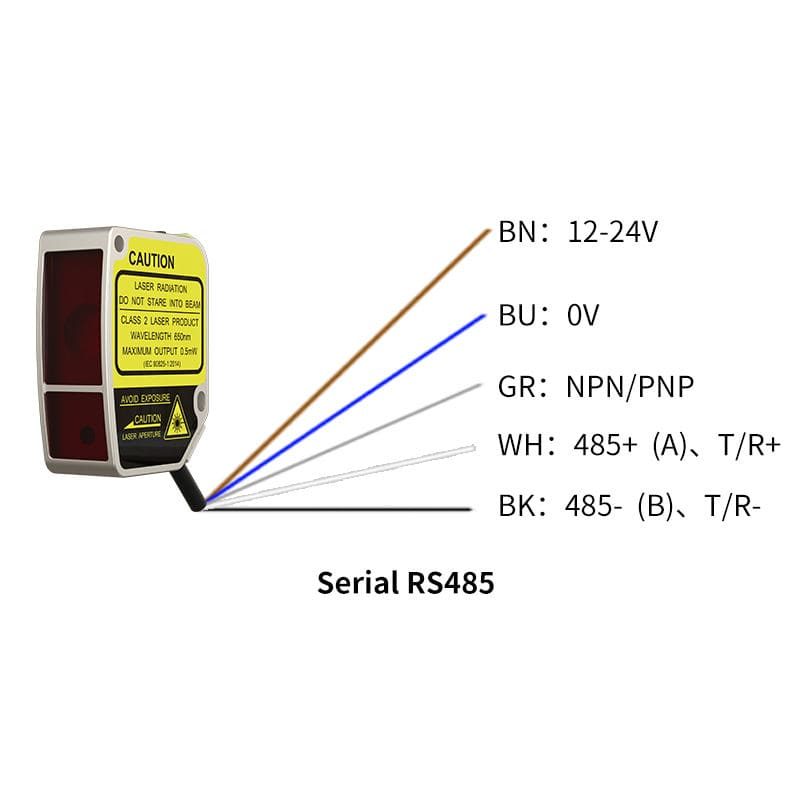

| Output |

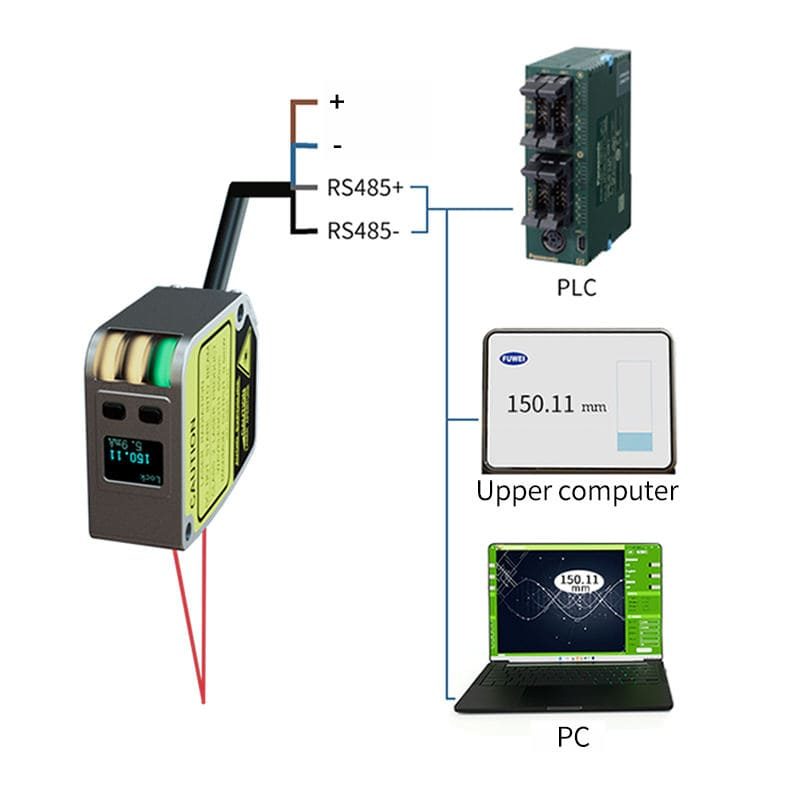

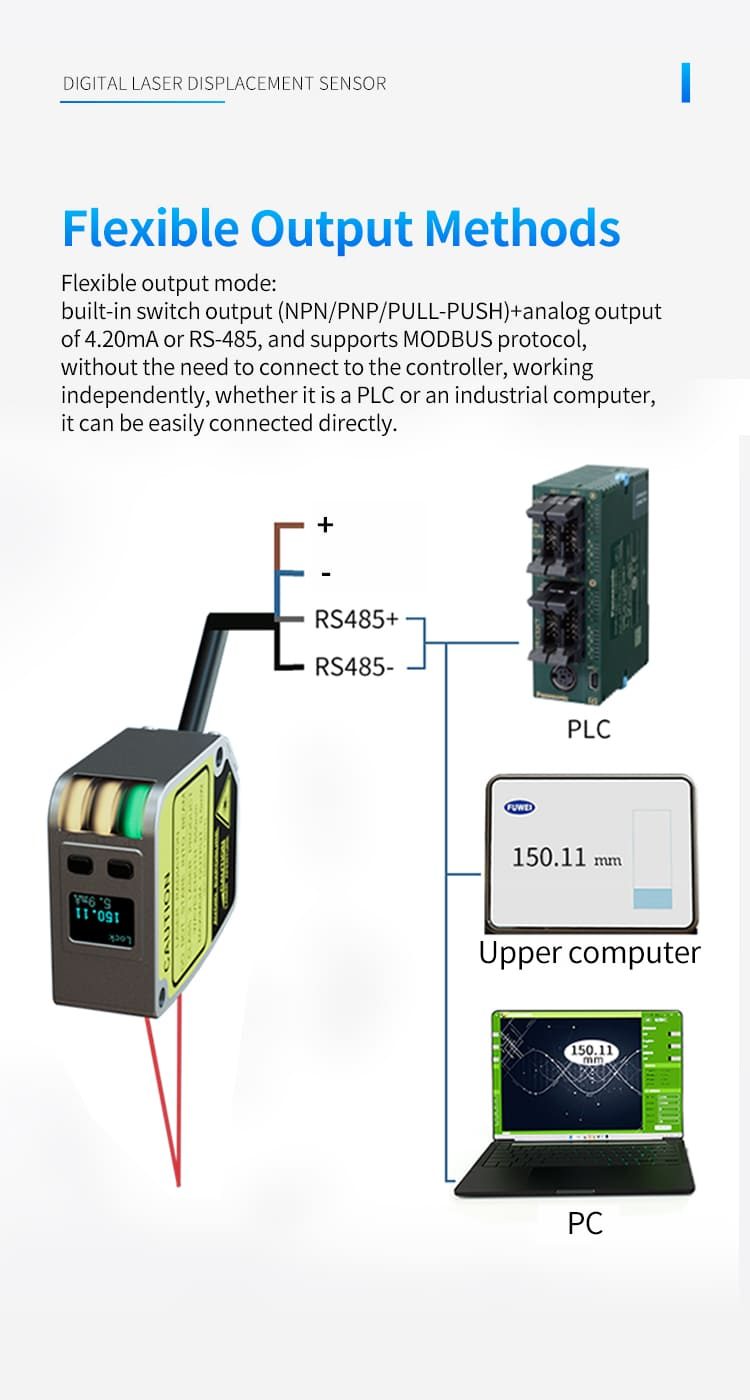

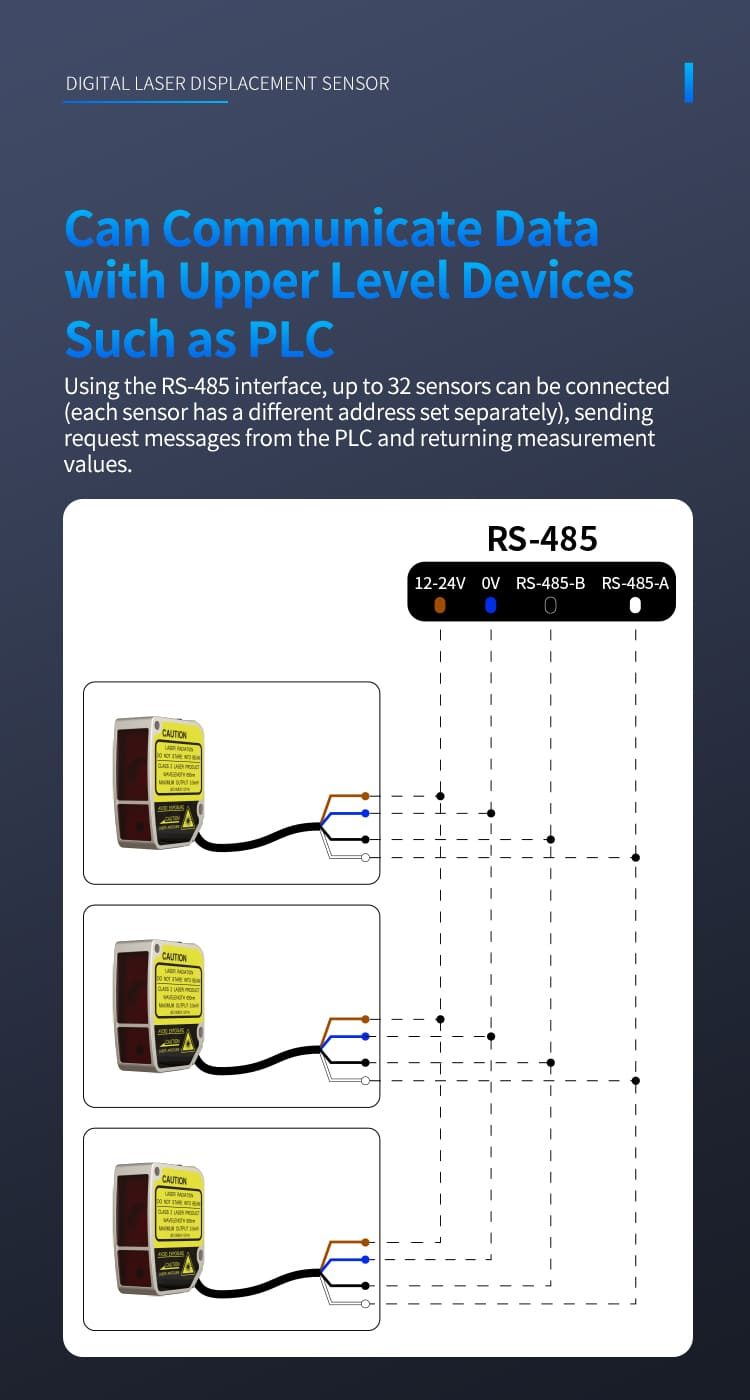

RS-485 (Support ModBus protocol) |

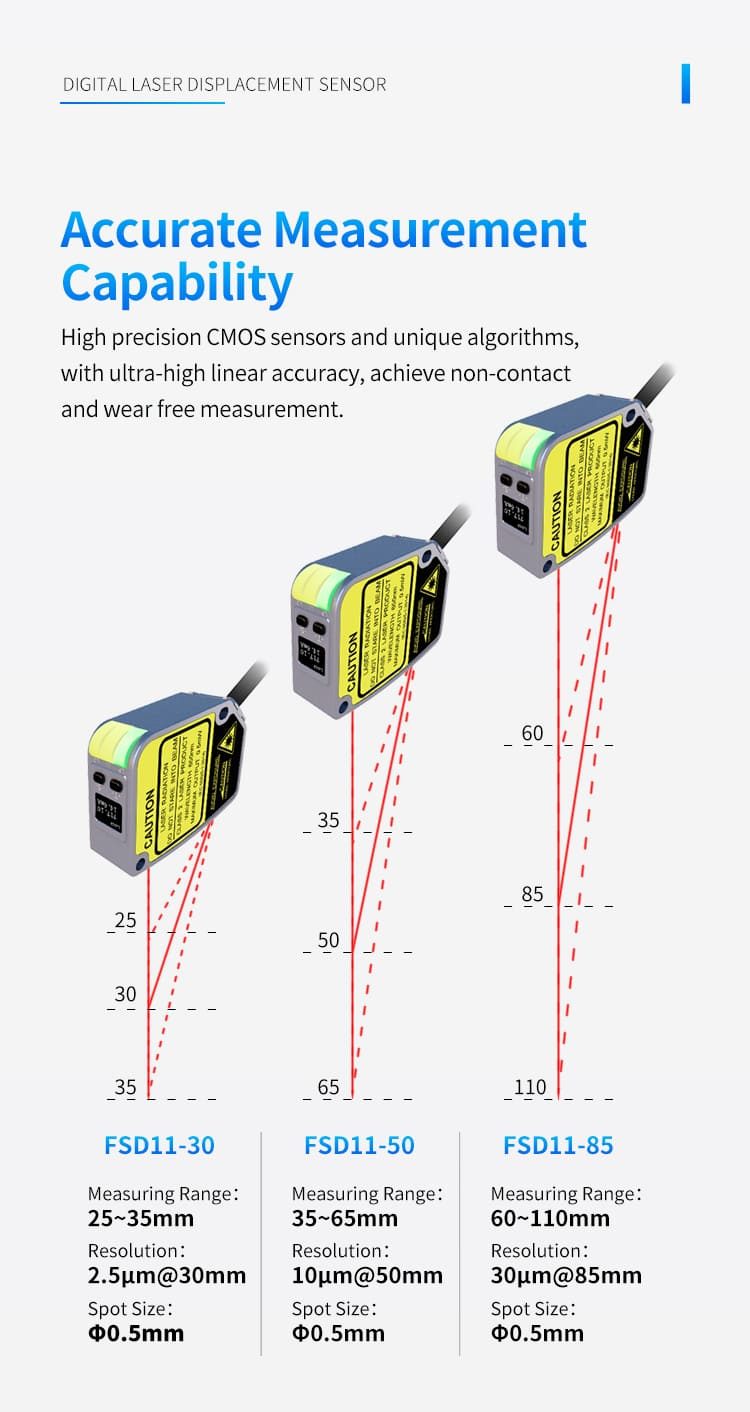

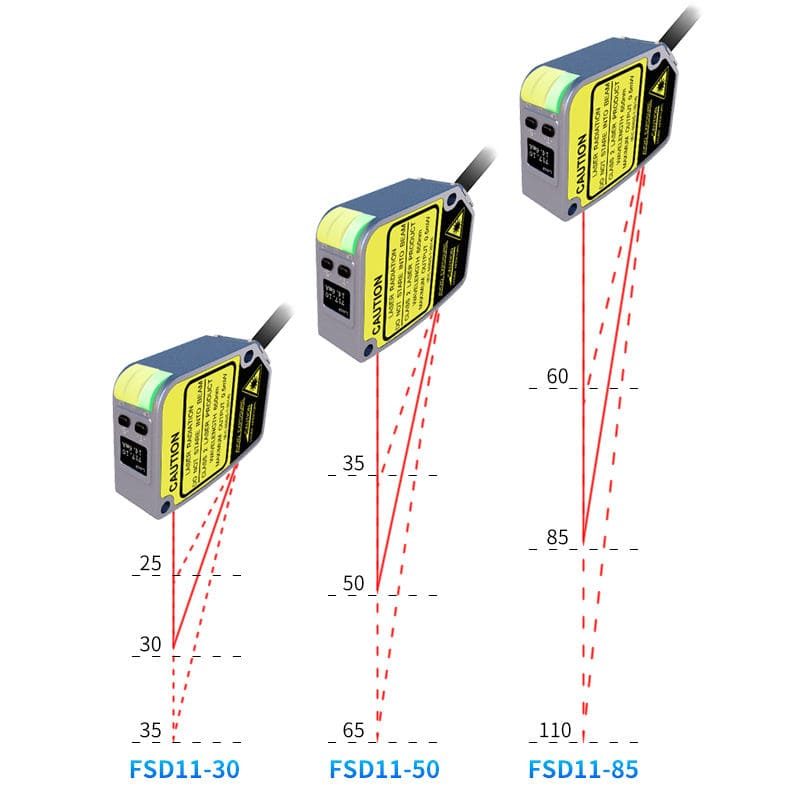

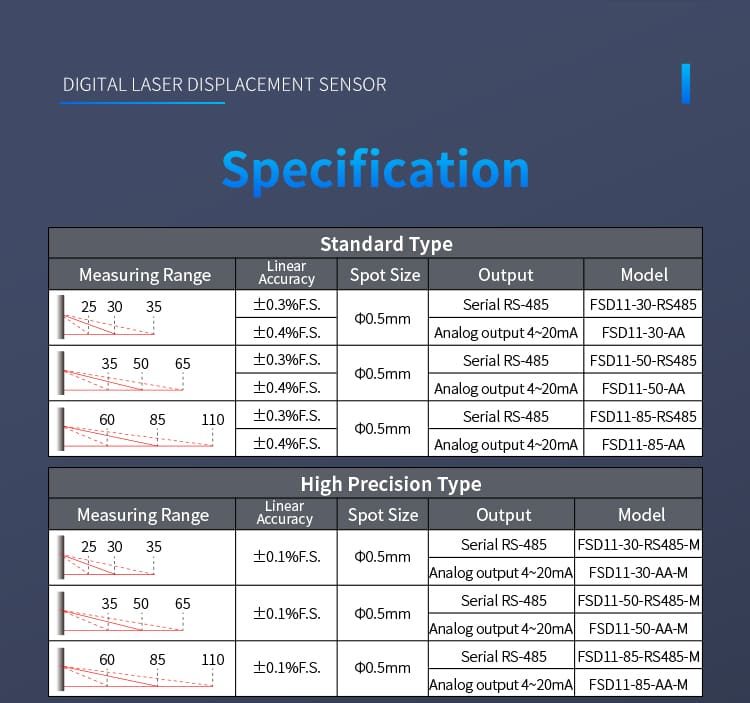

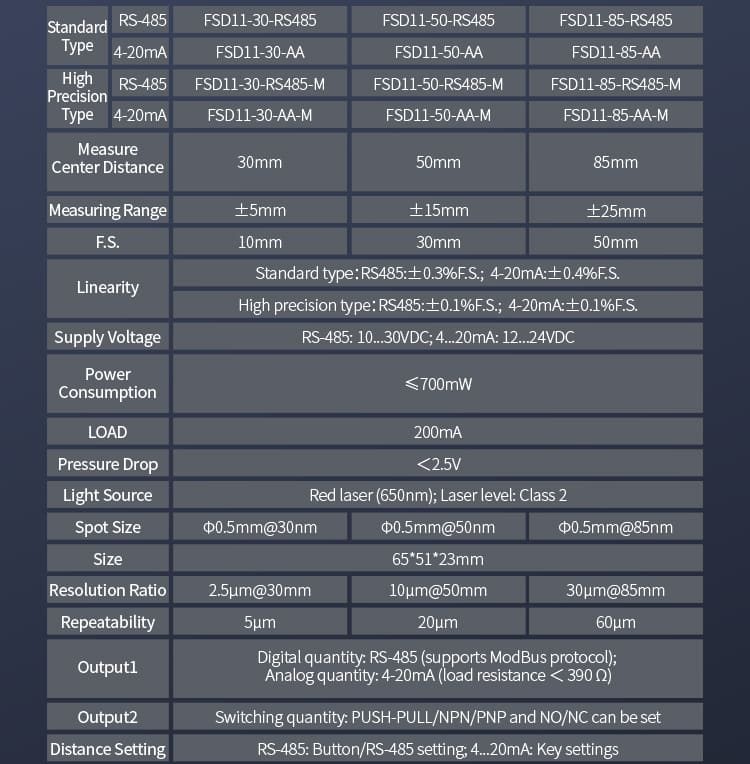

| Measuring Center Distance |
30mm |
| Measuring Range |
±5mm |
| Full Range (F.S.) |
10mm |

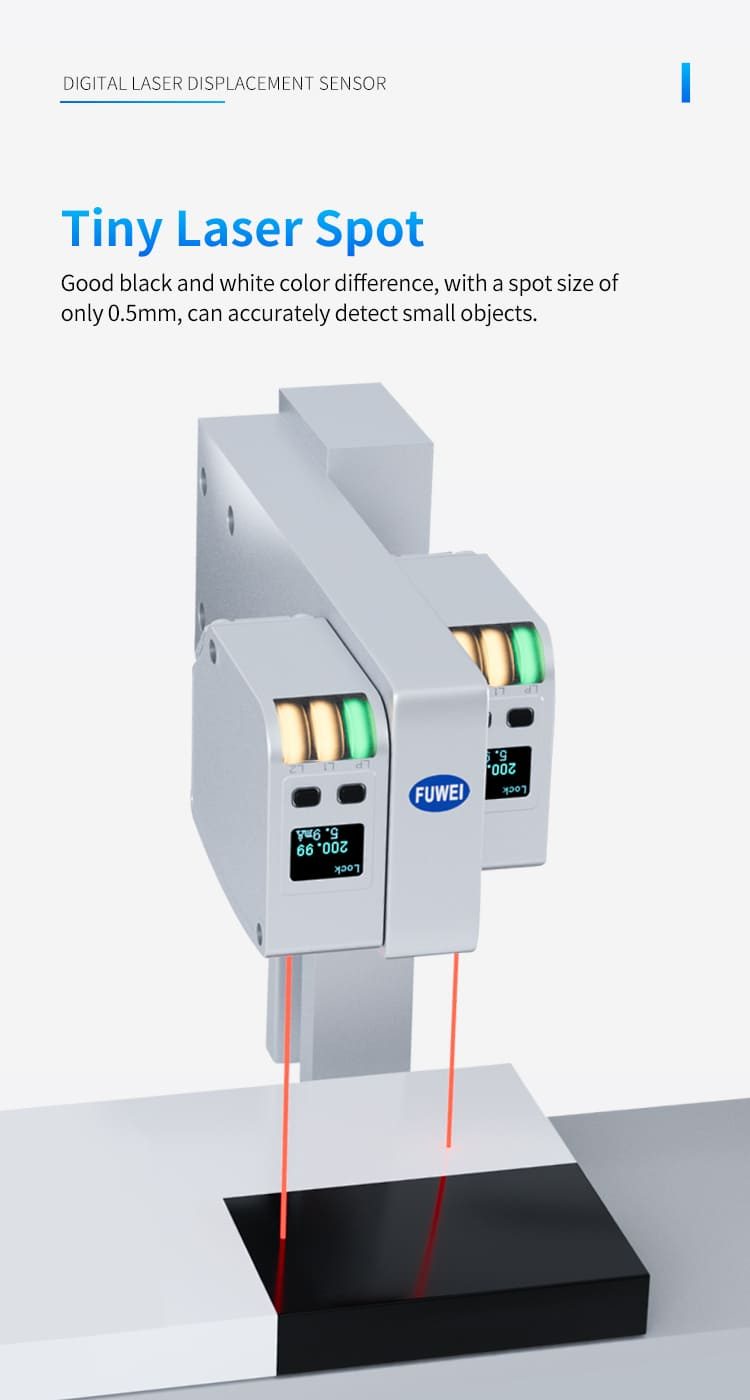

| Light Spot Size |
0.5mm @ 30mm |
| Resolution |
2.5µm @ 30mm |
| Repeat Accuracy |
5µm |

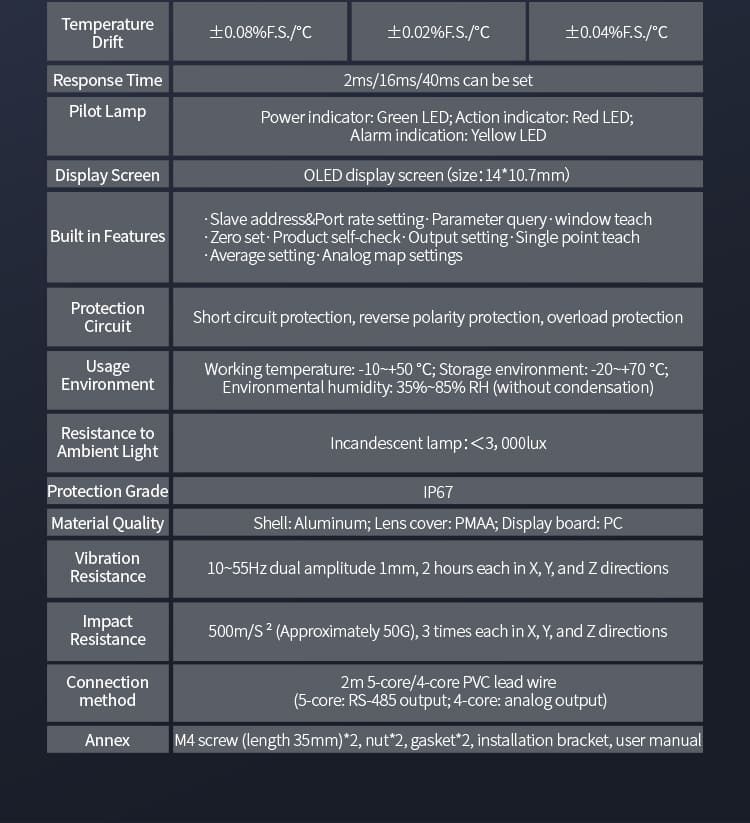

| Temperature Drift |
±0.08% F.S./°C |
| Linear Accuracy |
±0.1% F.S. |
| Supply Voltage |
10-30VDC |
| Output 1 |
Digital value: RS-485 (Support ModBus protocol) |
| Packaging and Delivery |
| Selling Units |
Single item |

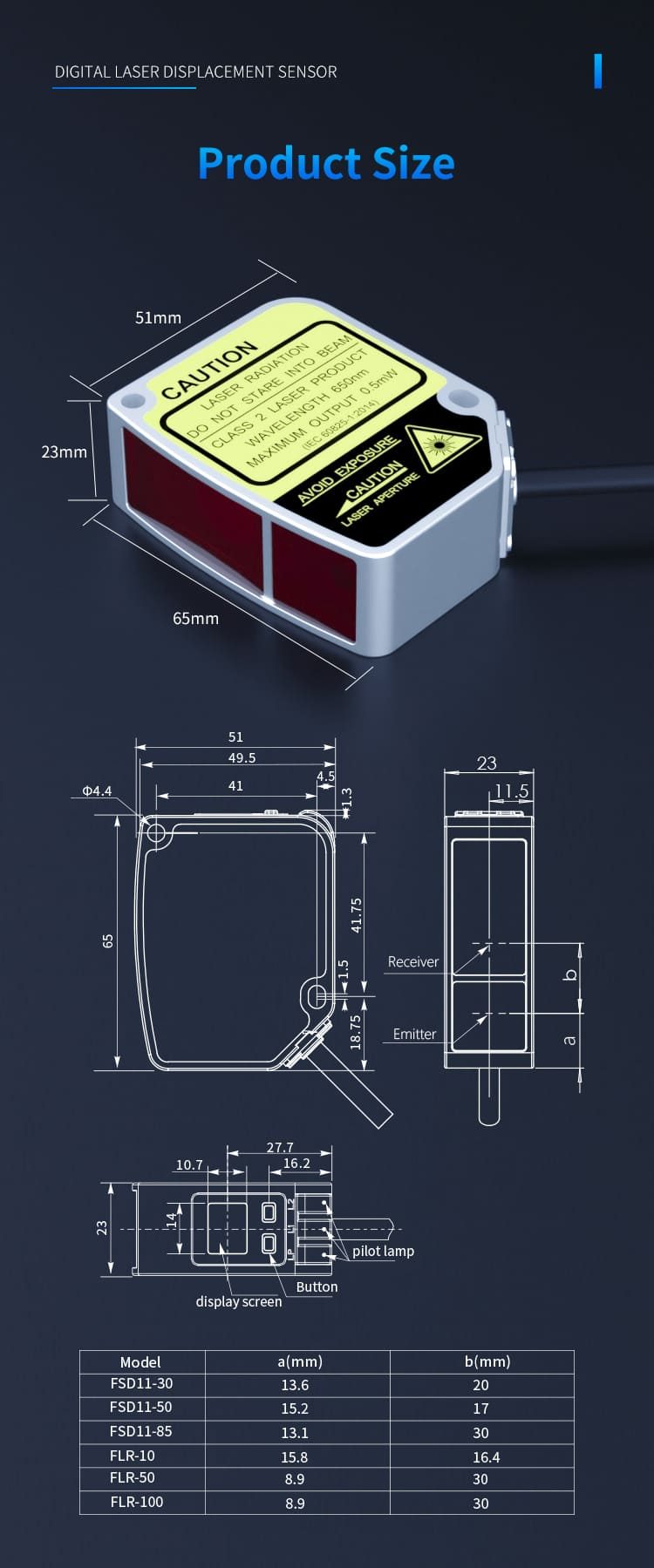

| Single Package Size |
12 x 12 x 5 cm |
| Single Gross Weight |
0.390 kg |
