| Mounting Type |
Screw fixing |
| Manufacturing Date Code |
20240122 |
| Model Number |
FSD11–50-RS485 |
| Brand Name |
FUWEI |
| Usage |
Measuring Distance |
| Description |

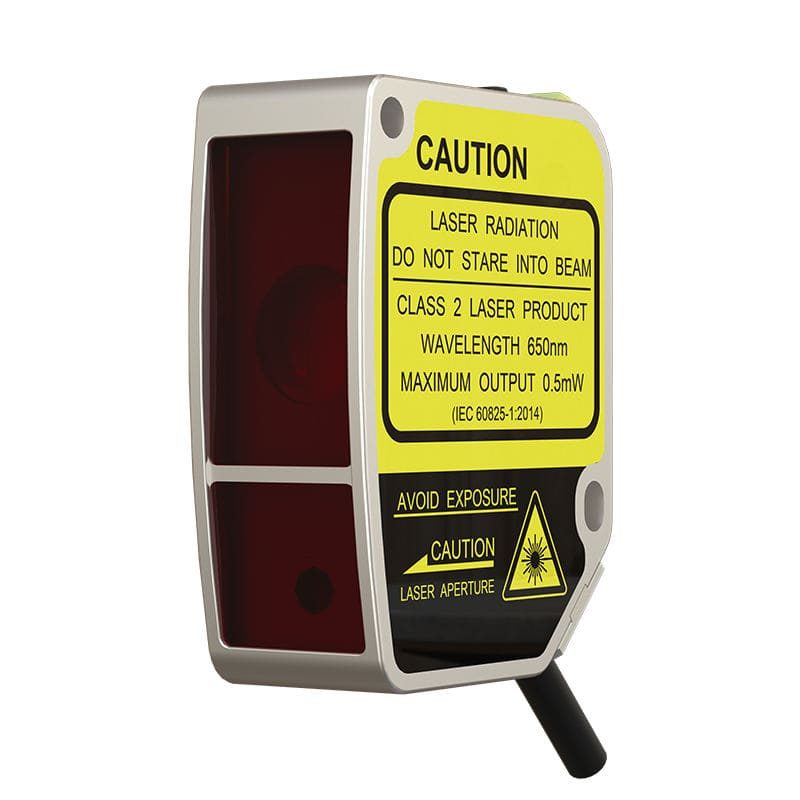

High precision laser displacement sensor |
| Type |
Laser Displacement Sensor |
| Series |
FSD11 |
| Features |
High precision measurement |
| Place of Origin |
Guangdong, China |
| Theory |
Laser triangulation principle measurement method |
| Output |

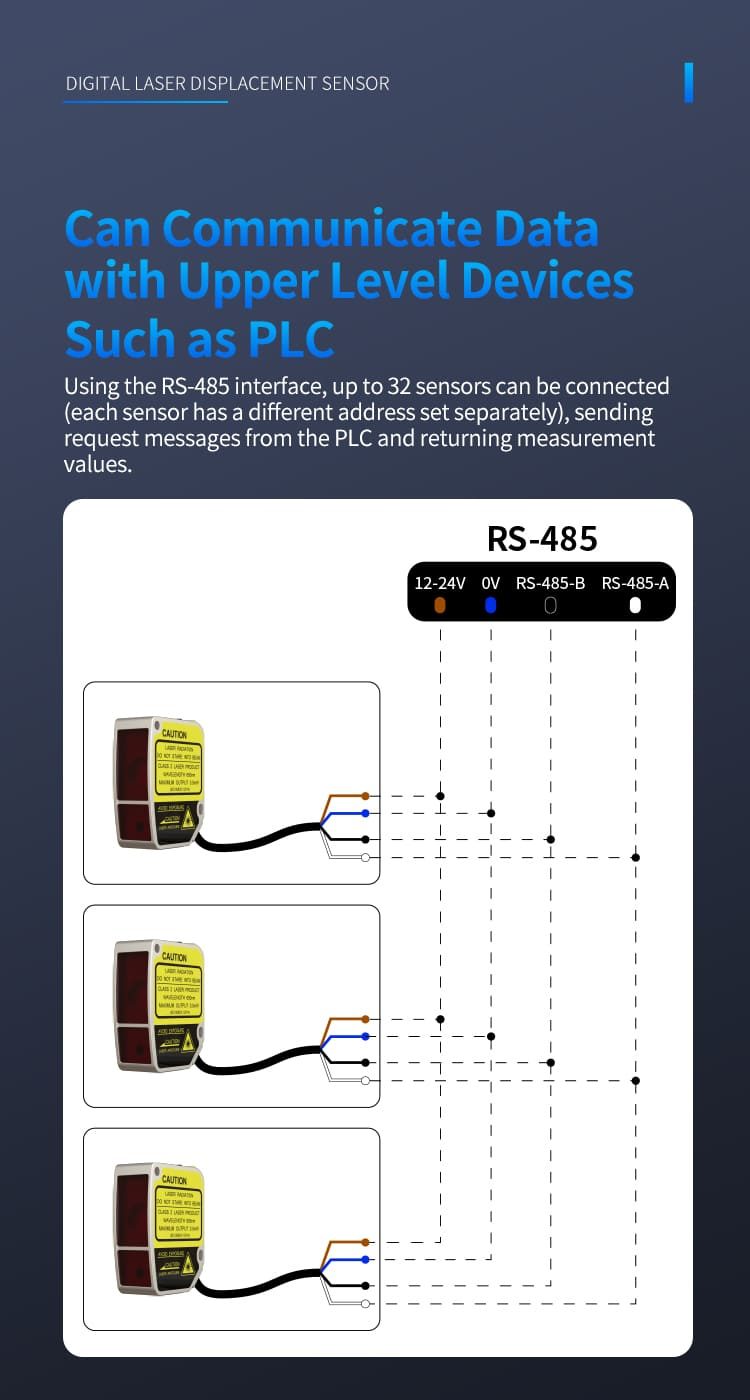

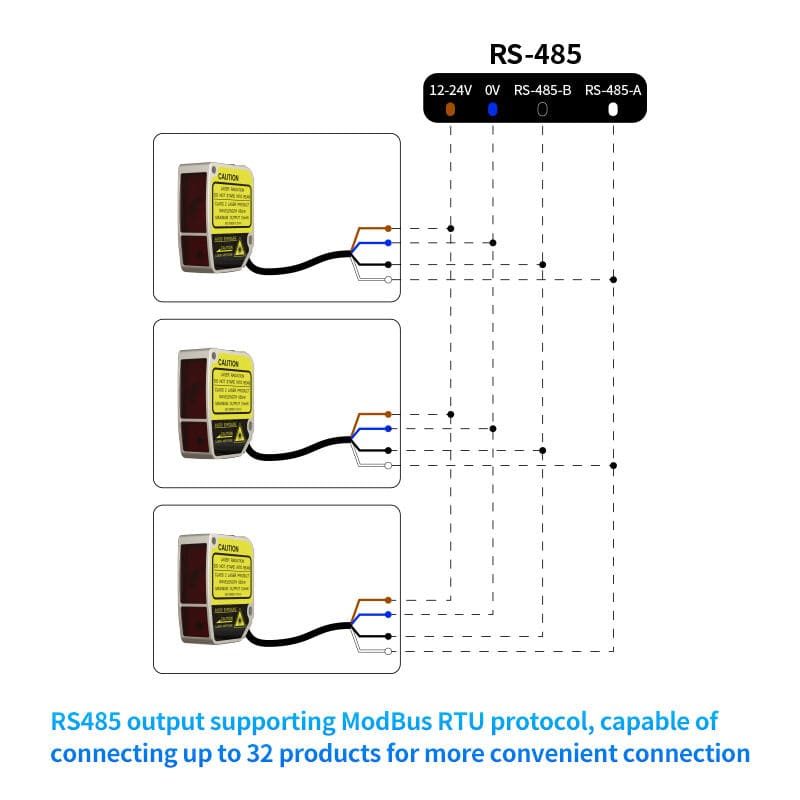

RS-485 (Support ModBus protocol) |

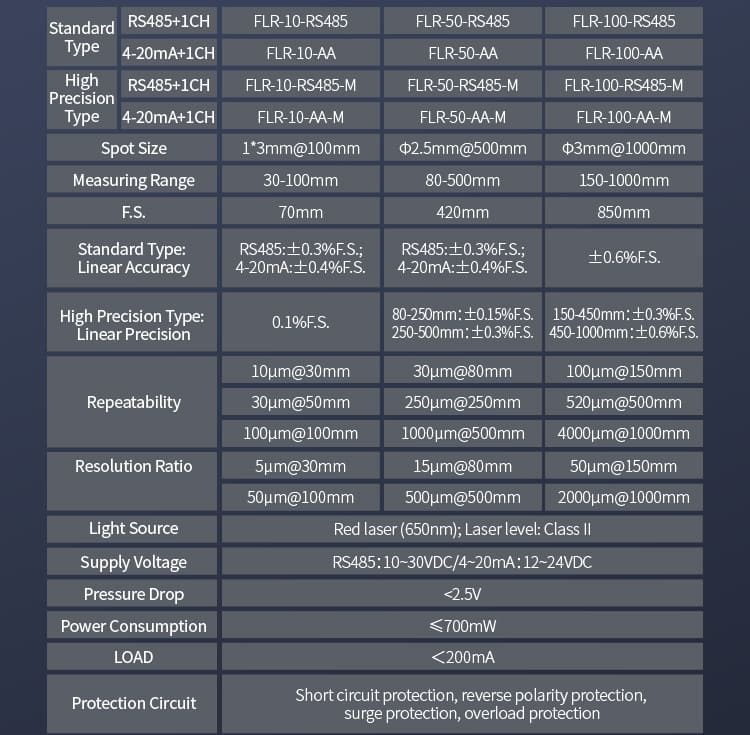

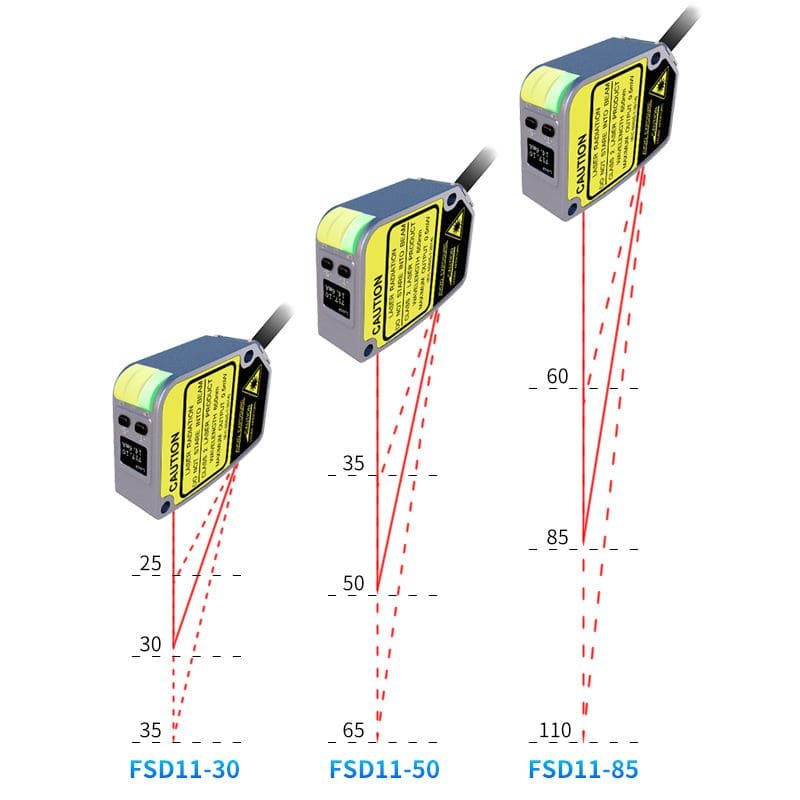

| Measuring Range |
80-500mm |
| Full Range (F.S.) |
420mm |

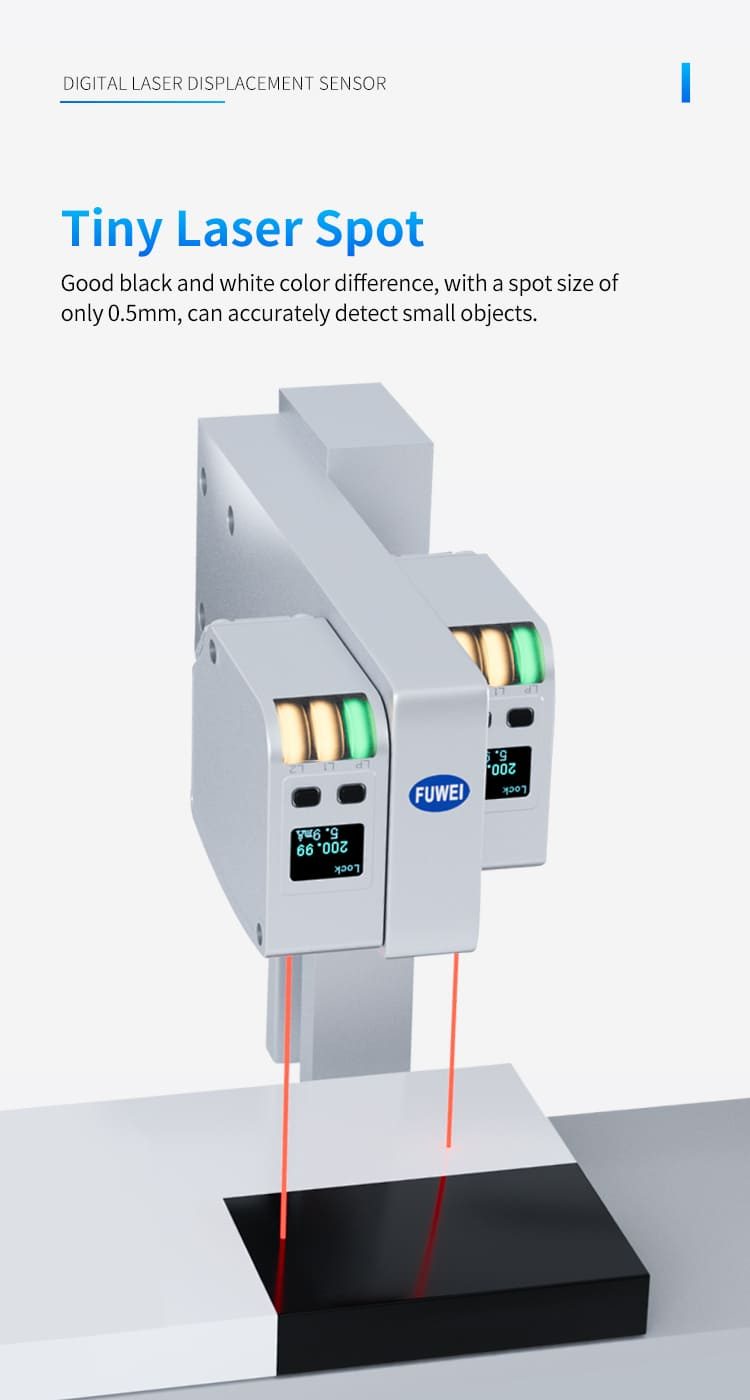

| Light Spot Size |
2.5mm @ 500mm |
| Resolution |
15µm @ 80mm; 500µm @ 500mm |
| Repeat Accuracy |
30µm @ 80mm; 250µm @ 250mm; 1000µm @ 500mm |
| Temperature Drift |
±0.02% F.S./°C |
| Linear Accuracy |
±0.15% F.S. (80-250mm); ±0.3% F.S. (250-500mm) |
| Supply Voltage |
10-30VDC |

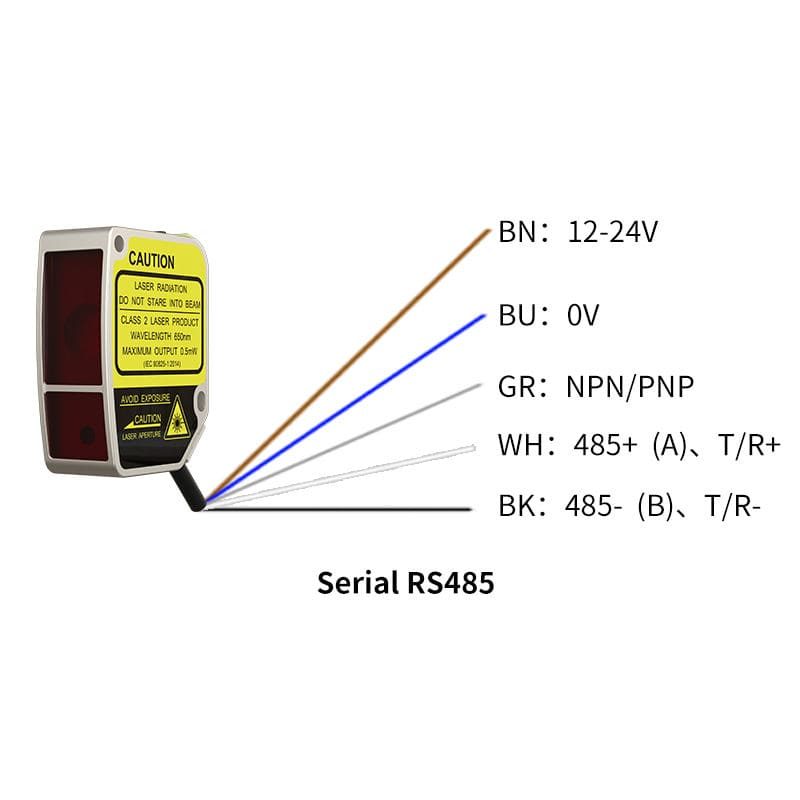

| Output 1 |

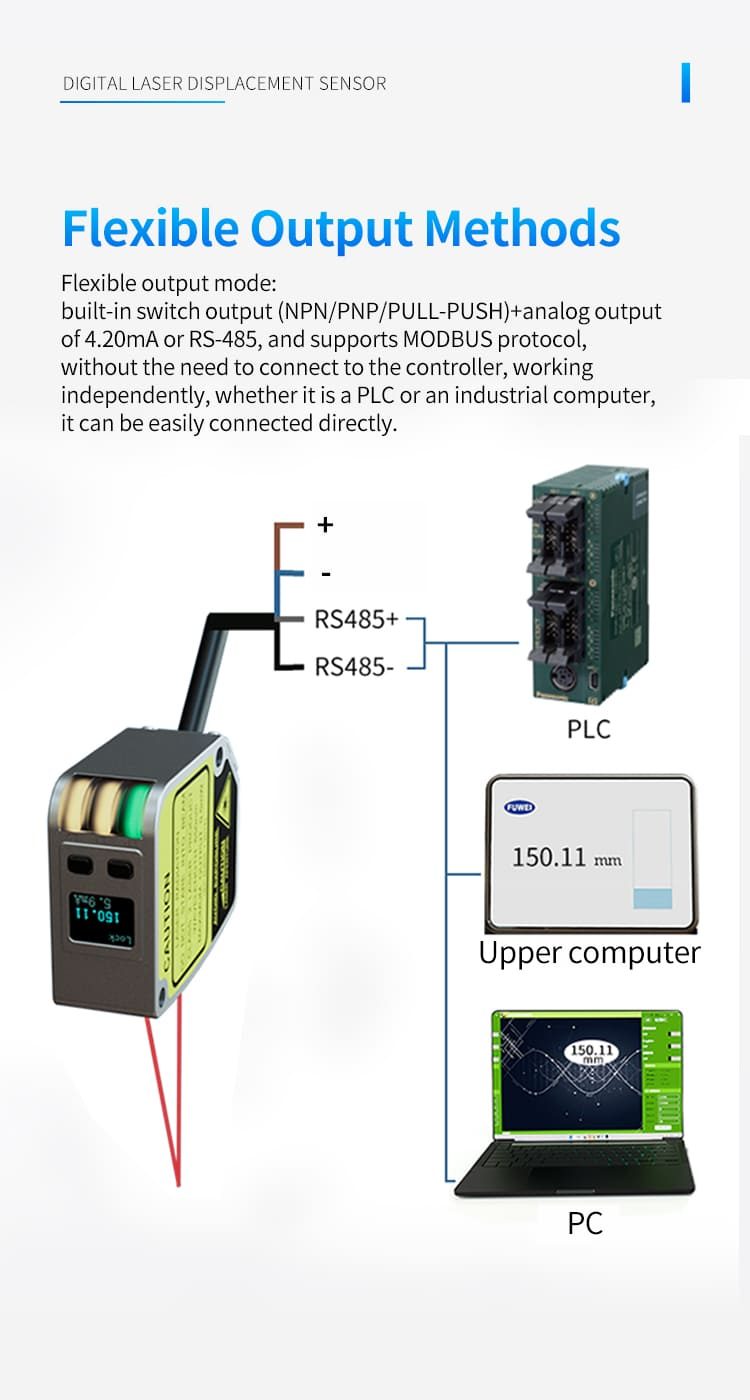

Digital value: RS-485 (Support ModBus protocol) |
| MOQ |
1 Pcs |
| Packaging and Delivery |
| Selling Units |
Single item |
| Single Package Size |
10 x 10 x 4 cm |
| Single Gross Weight |
0.500 kg |
