| Key Attributes |
Details |
| Mounting Type | Bundled Installation |
| Manufacturing Date Code | 2023 |

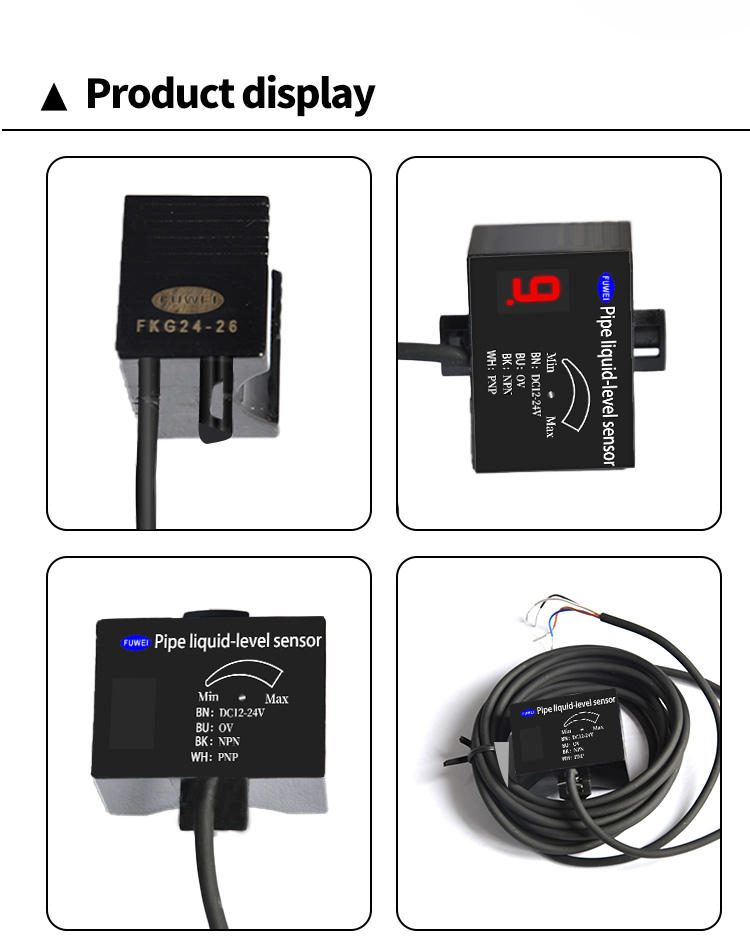

| Model Number | FKG24-26 |
| Brand Name | FUWEI |

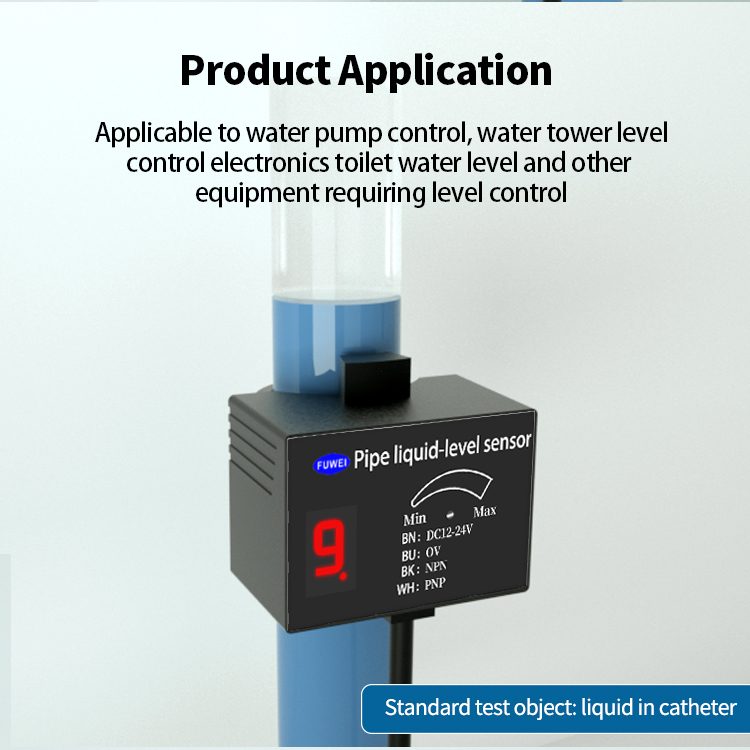

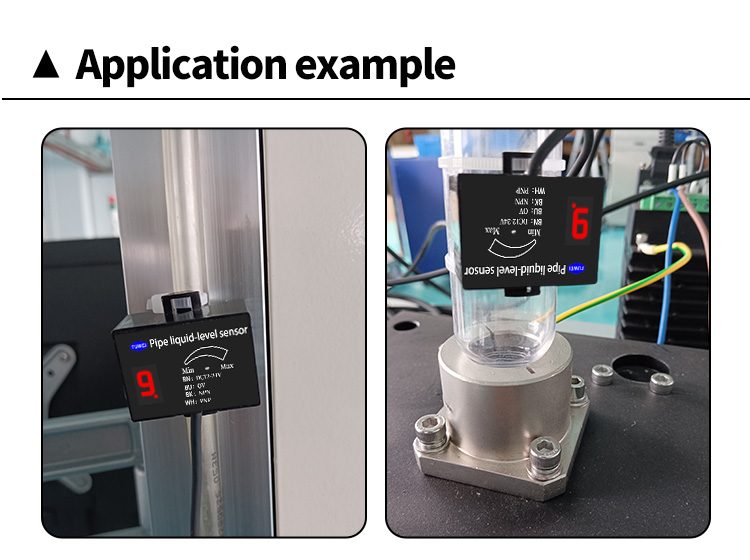

| Usage | Liquid Level Detection Control |

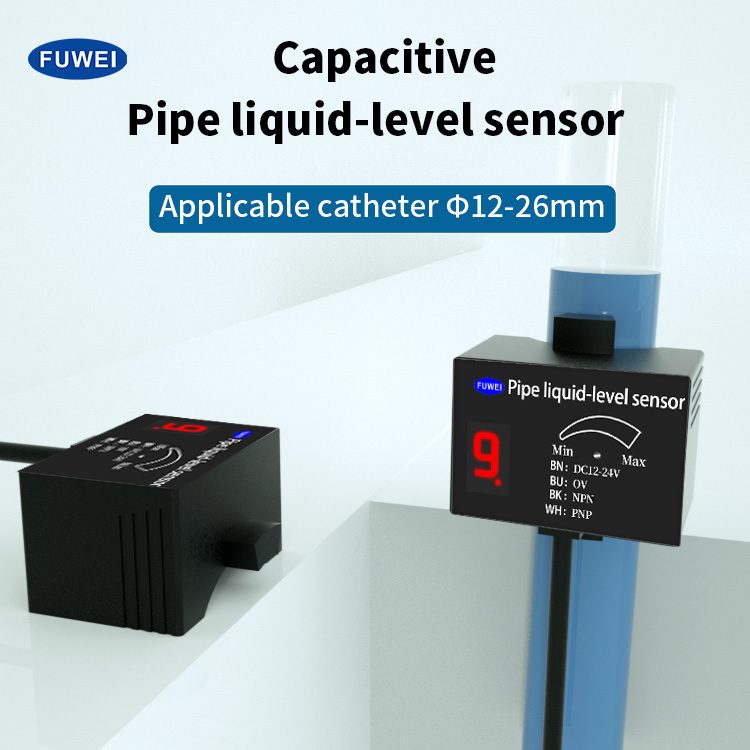

| Theory | Capacitive Detection Principle |
| Description | Precise Liquid Level Measurement |

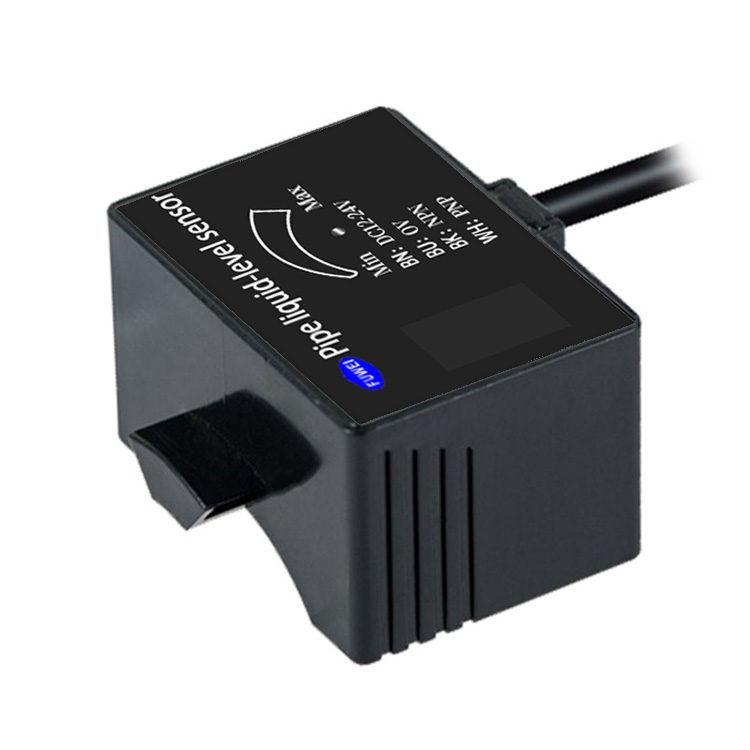

| Type | Liquid Level Sensor |
| Series | FKG24-26 |
| Features | Liquid level sensing precision |
| Place of Origin | Guangdong, China |

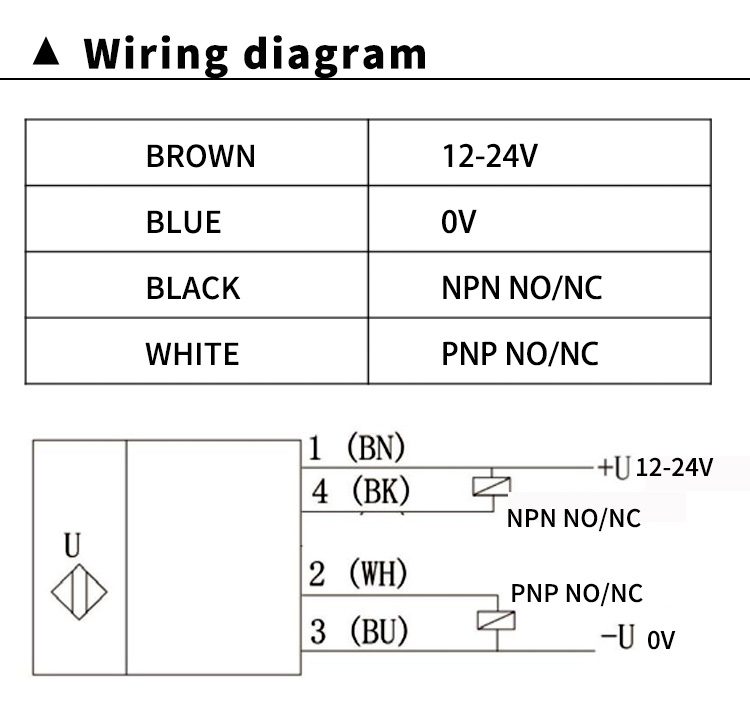

| Output | NPN, PNP |

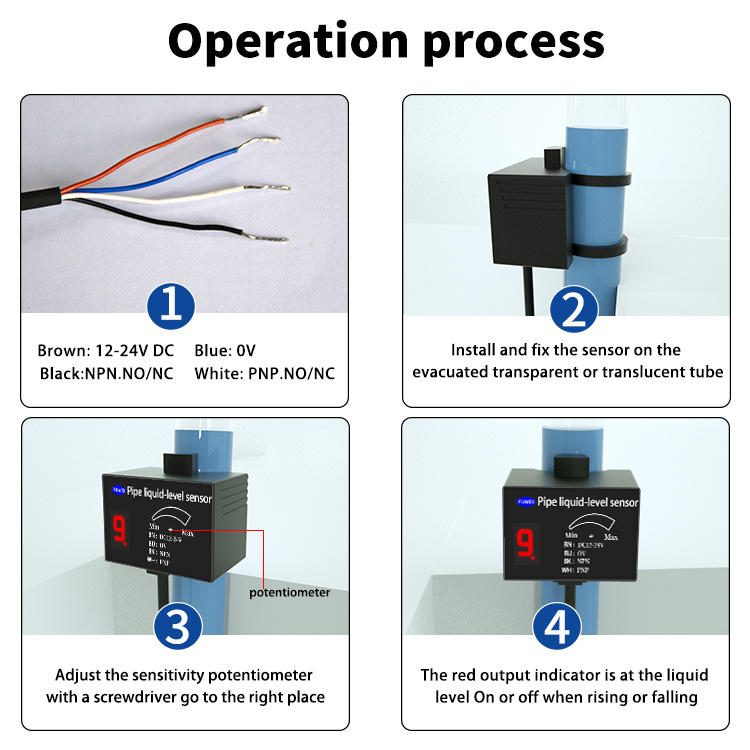

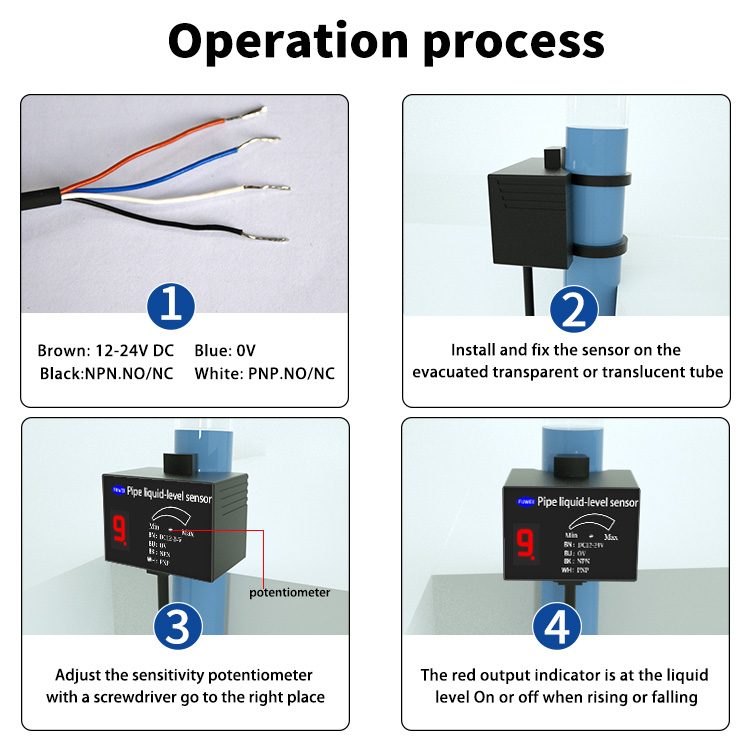

| Connection Way | 2m PVC Cable |

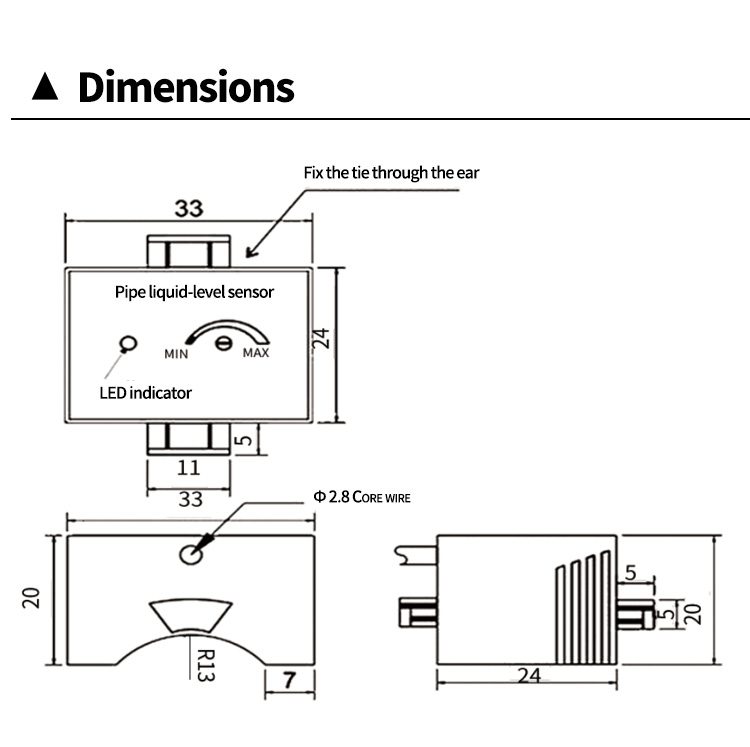

| Applicable Pipe Outer Diameter | 13-26mm |
| Applicable Pipe Wall Thickness | <3mm |
| Supply Voltage | 10-30VDC |
| Consumption Current | <15mA |

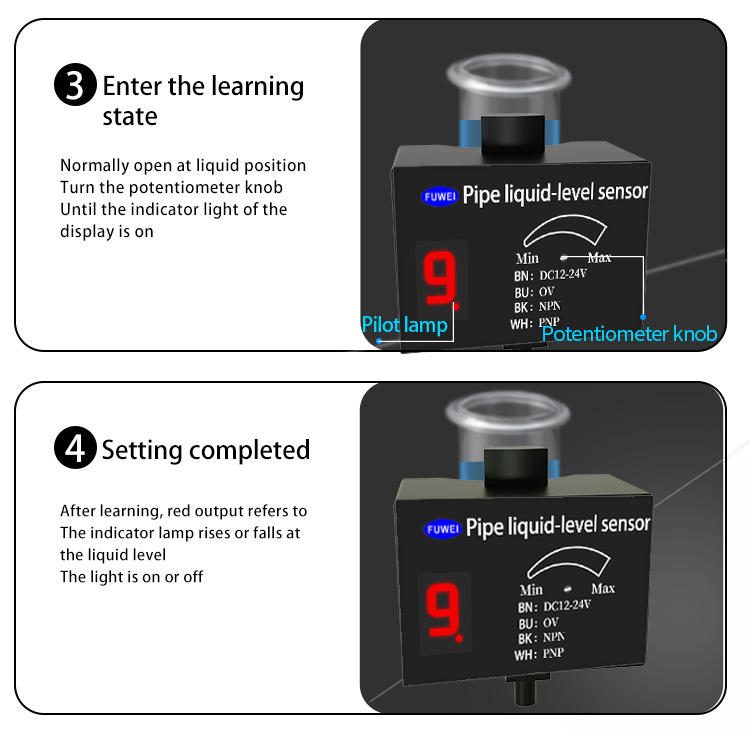

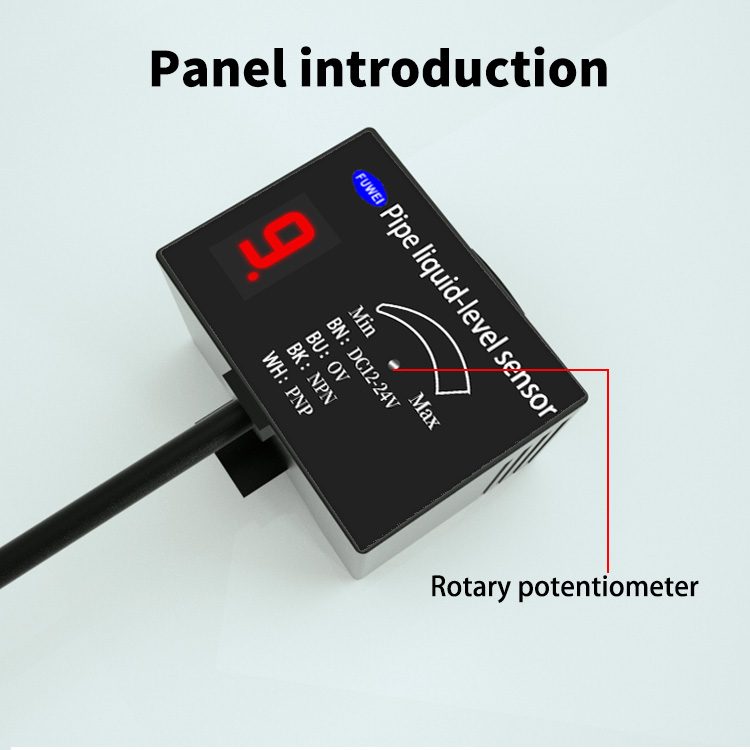

| Sensitivity Adjustment | Knob Adjustment |
| Short-circuit Protection | Built-in |
| Reverse Power Protection | Built-in |
| Ambient Temperature | -10…+55℃ |
| Ambient Humidity | 35…95% |
| Packaging and Delivery |
| Selling Units | Single Item |
| Single Package Size | 12 x 11 x 4 cm |
| Single Gross Weight | 0.120 kg |
