| Key Attributes |
|---|
| Mounting Type | Bundled Installation |
| Manufacturing Date Code | 2024 |
| Model Number | FKG24-13-S |
| Brand Name | FUWEI |

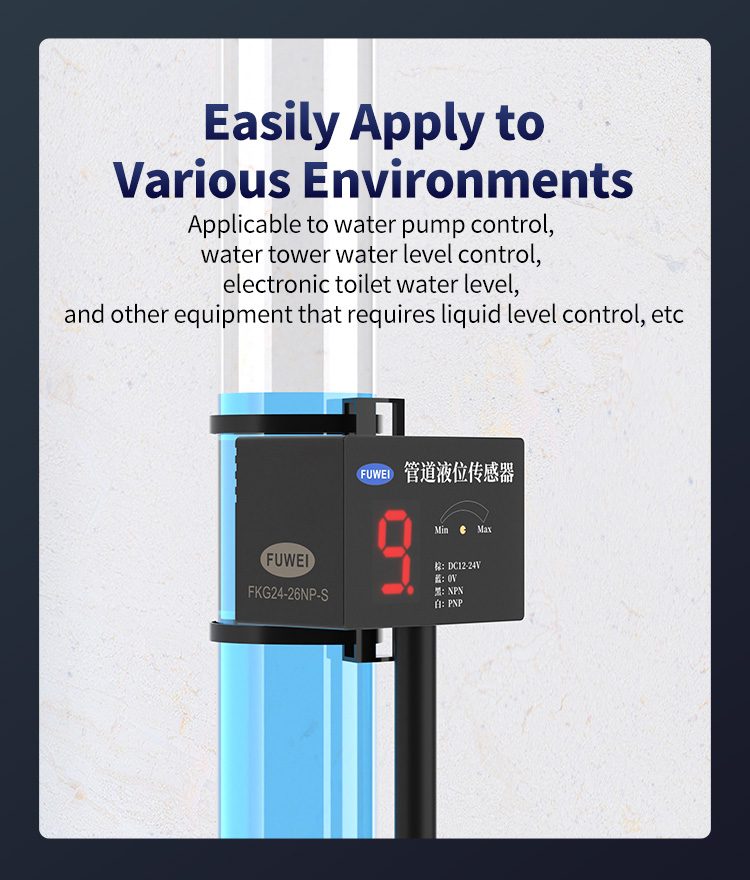

| Usage | Liquid Level Detection Control |
| Power Source | 24VDC |
| Description | Precise Liquid Level Measurement |

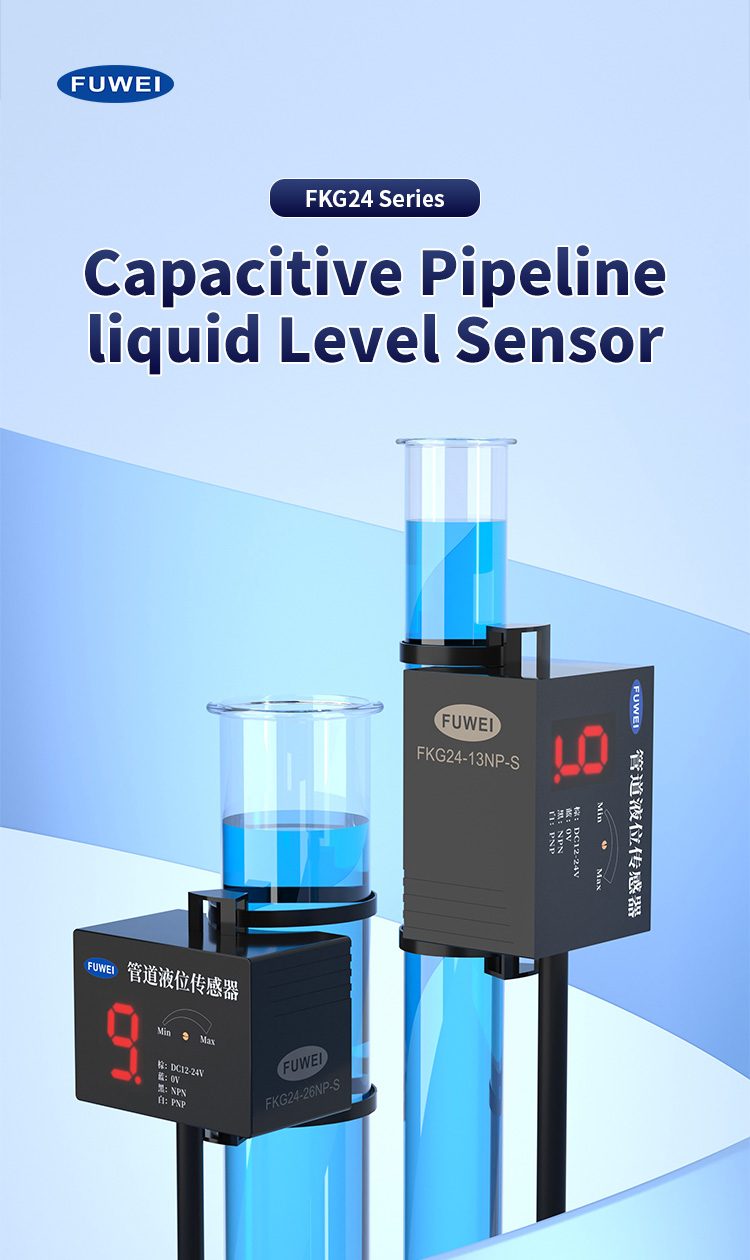

| Type | Liquid Level Sensor |
| Series | FKG24-13-S |
| Features | Liquid level sensing precision |
| Place of Origin | Guangdong, China |

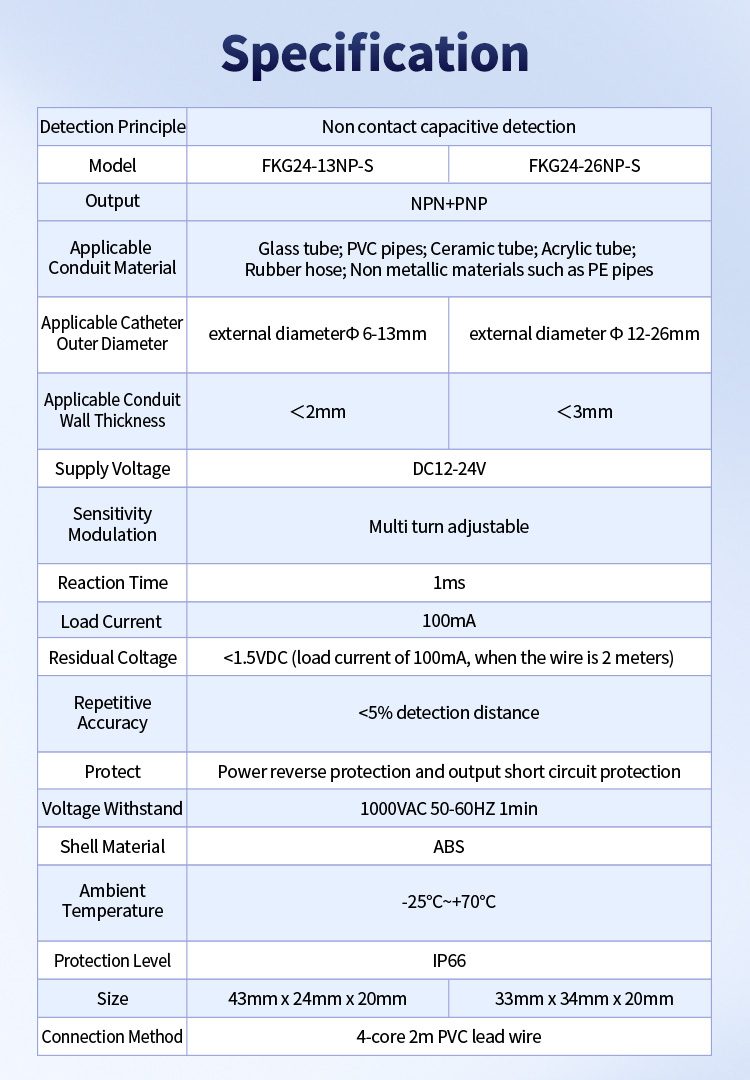

| Theory | Capacitive Detection Principle |

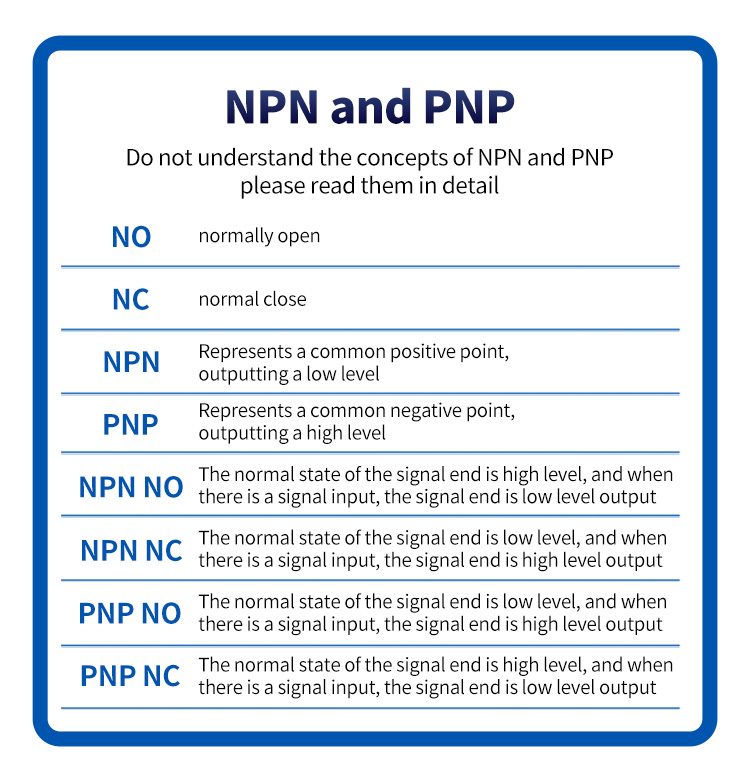

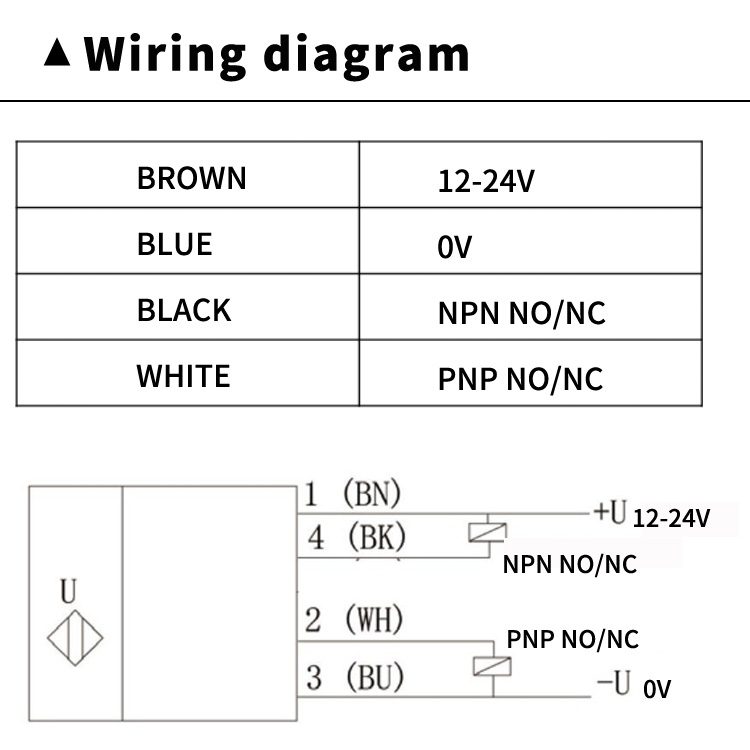

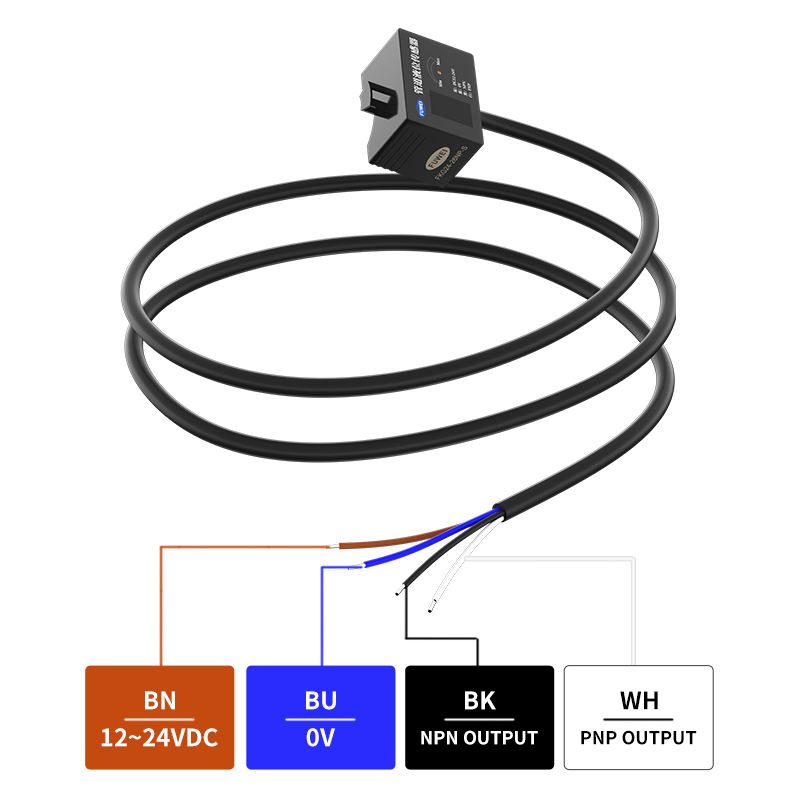

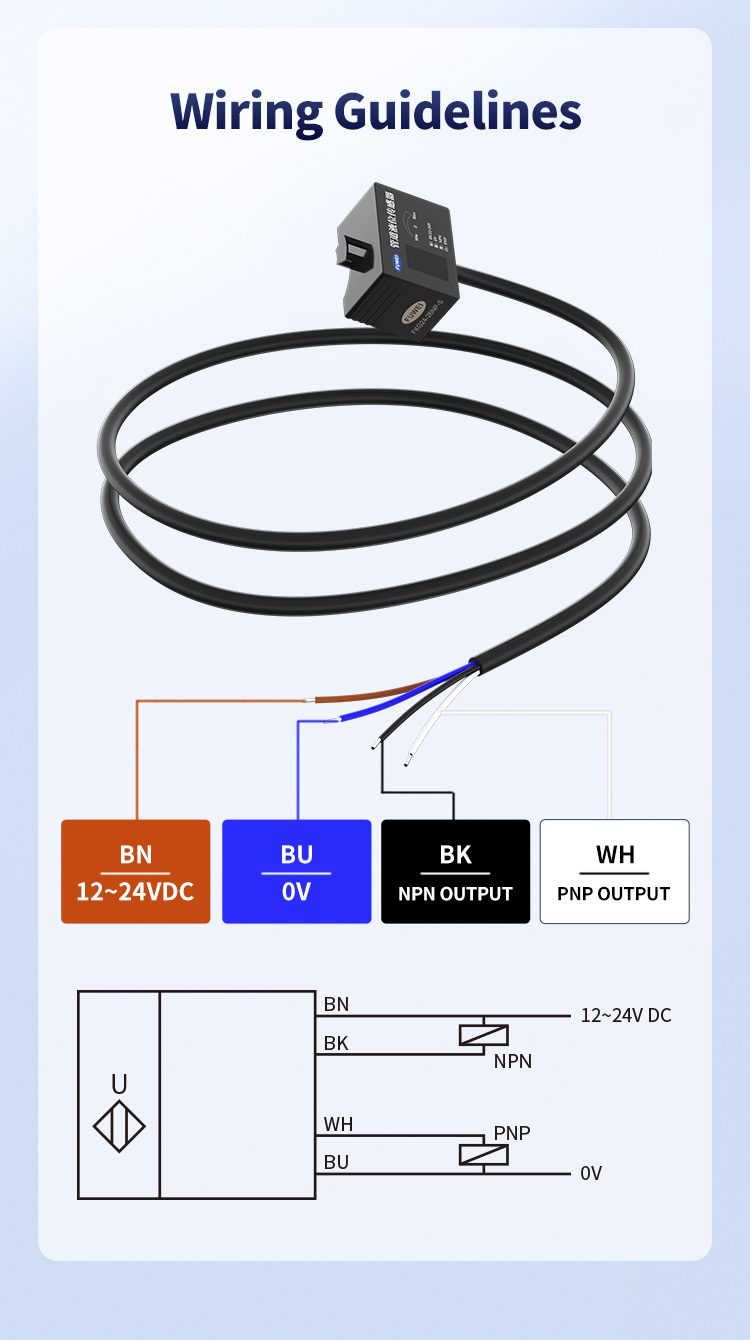

| Output | NPN, PNP |

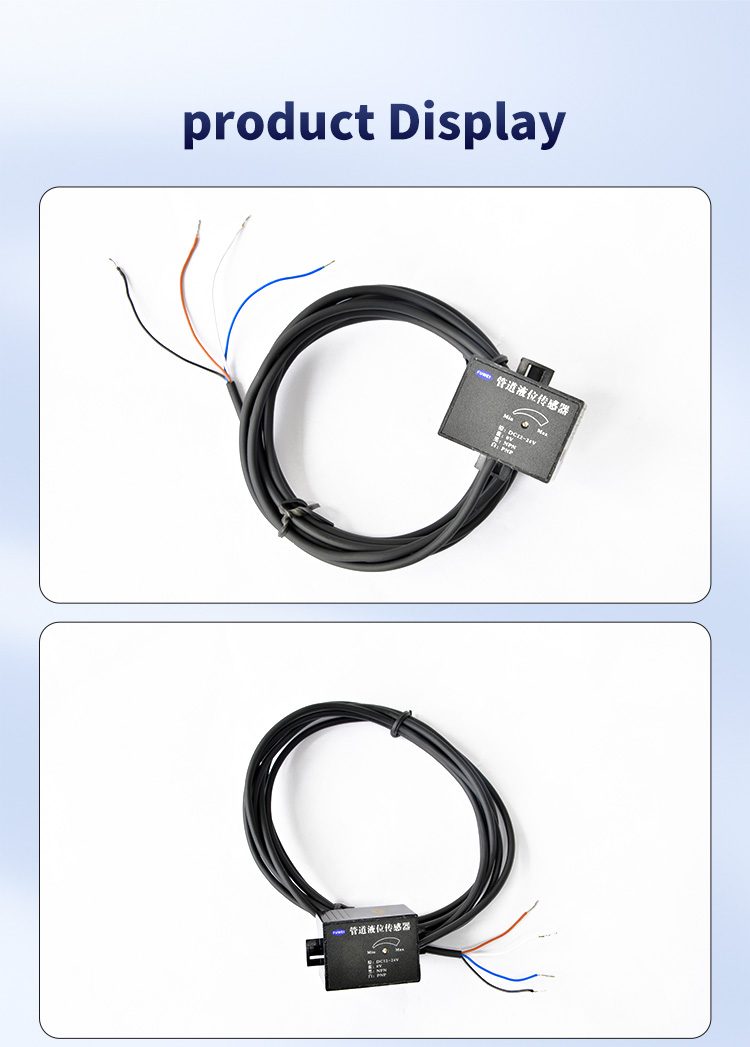

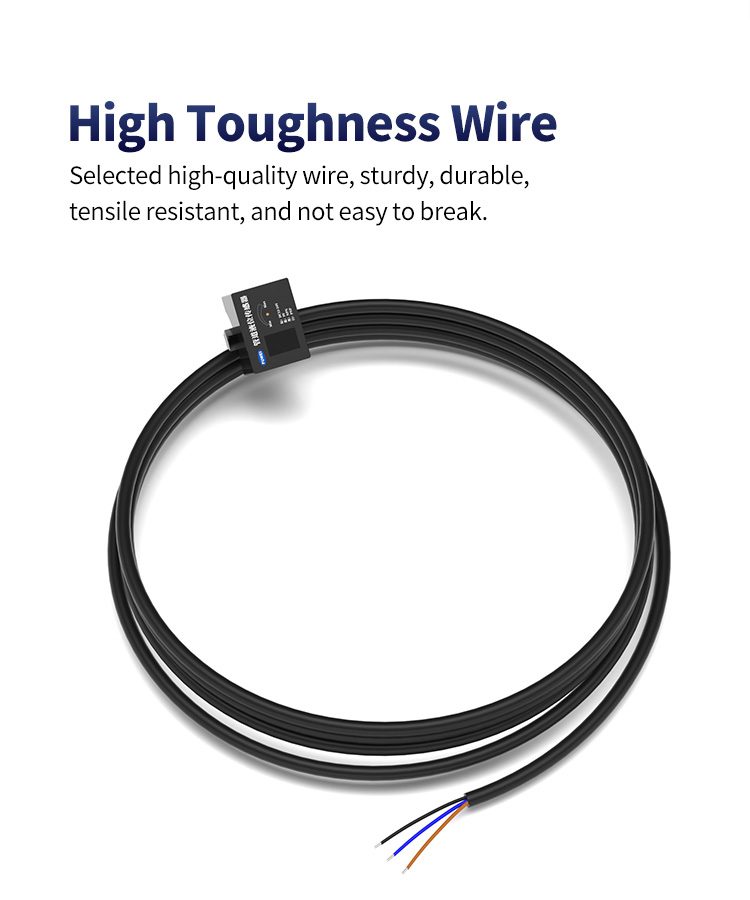

| Connection way | 2m PVC cable |

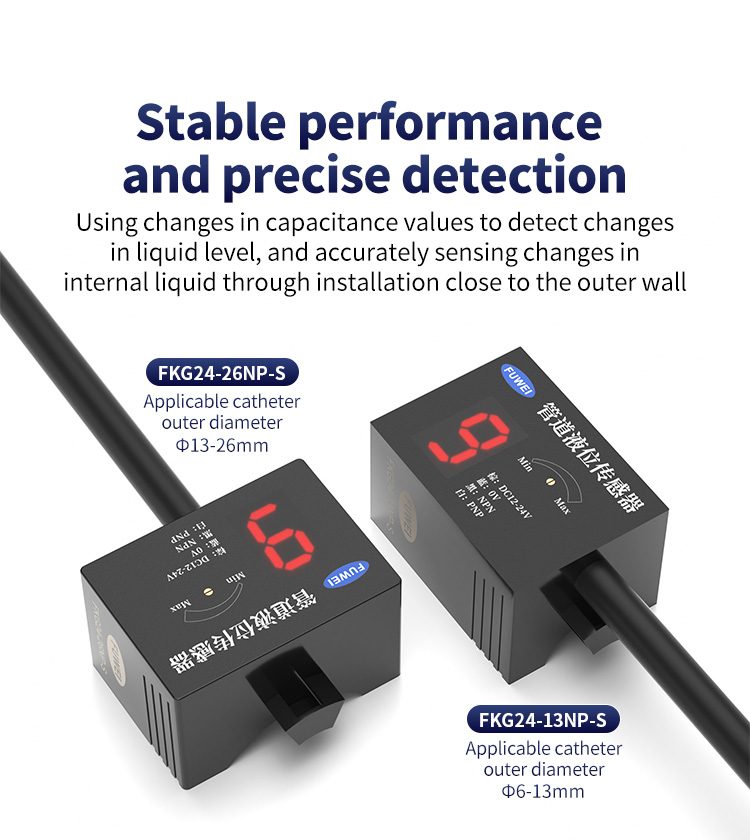

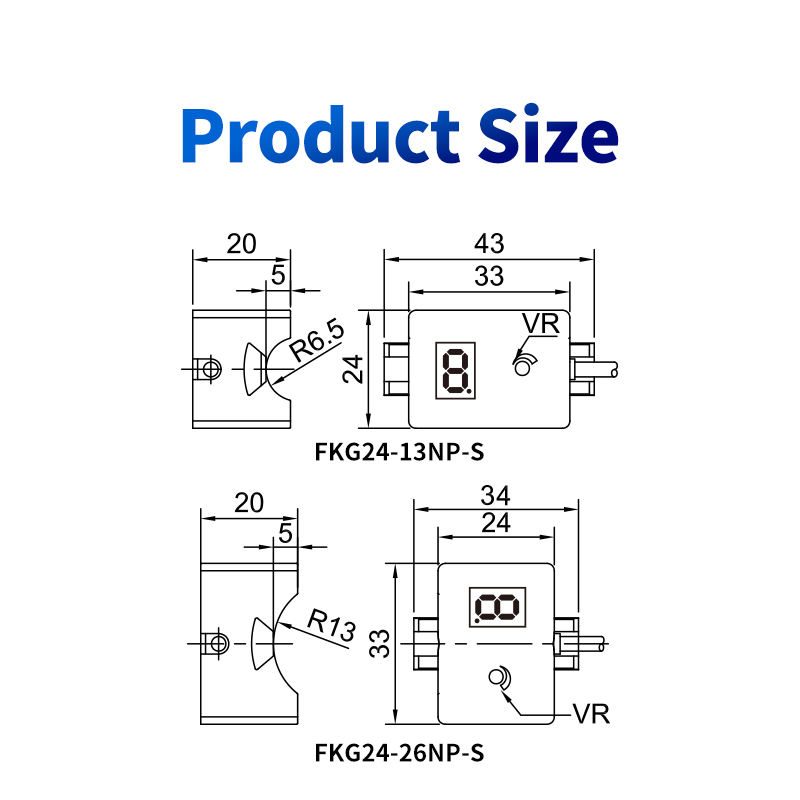

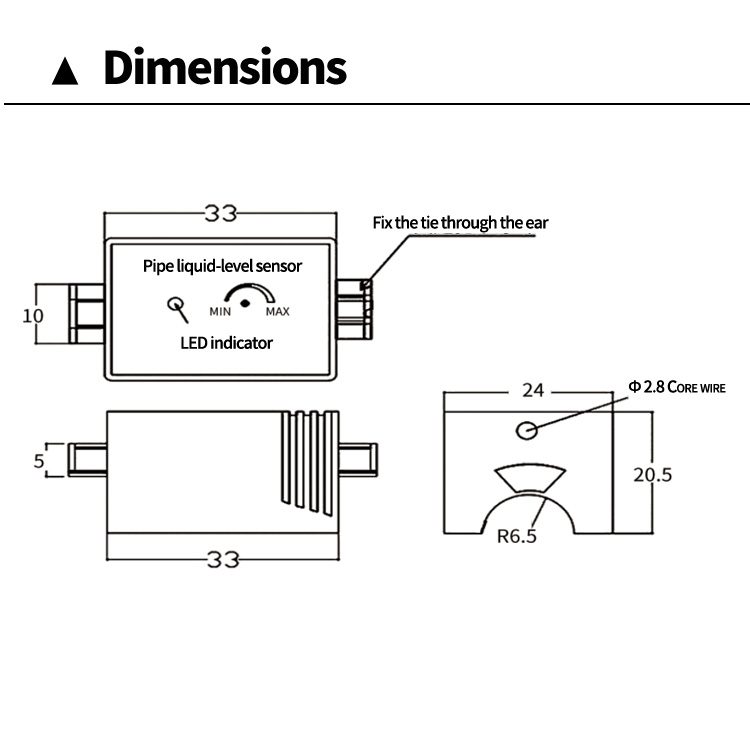

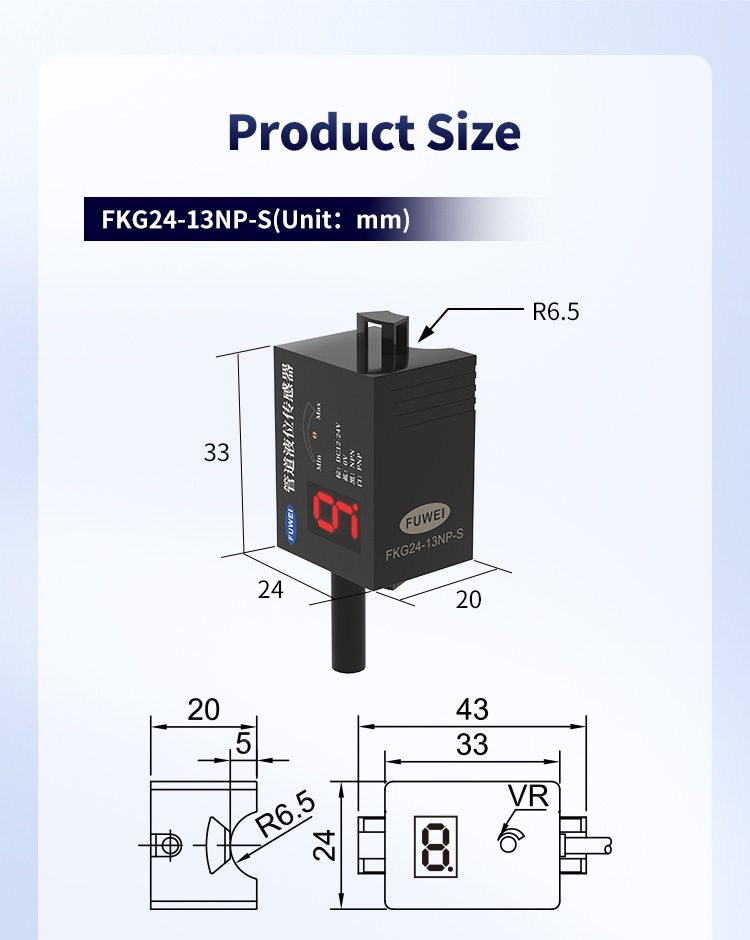

| Applicable pipe outer diameter | 6-13mm |
| Applicable pipe wall thickness | <2mm |
| Supply voltage | 10-30VDC |
| Consumption current | <15mA |

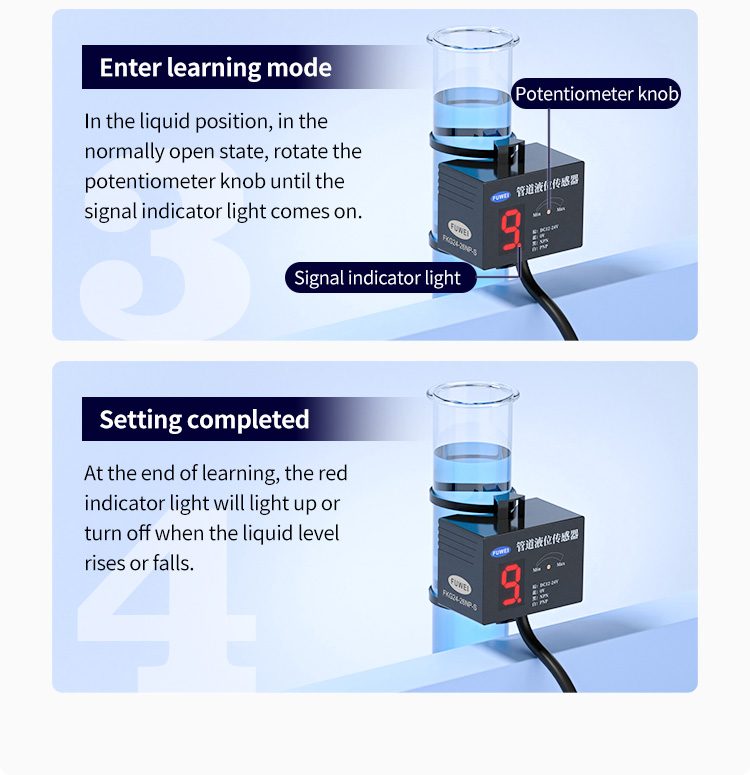

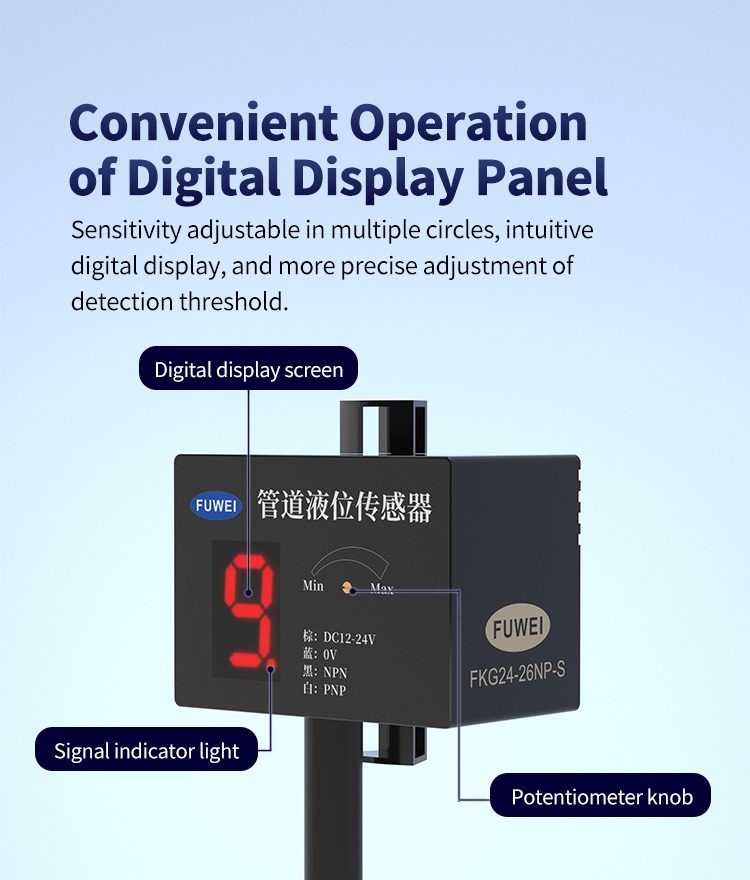

| Sensitivity adjustment | Knob adjustment |
| Short-circuit protection | Built-in |
| Reverse Power Protection | Built-in |
| Ambient temperature | -10…+55℃ |
| Ambient humidity | 35…95% |
| Packaging and Delivery |
|---|
| Selling Units | Single item |
| Single package size | 16X15X6 cm |
| Single gross weight | 0.065 kg |
