| Key Attributes | |
|---|---|
| Mounting Type | Bolt Mounting |
| Manufacturing Date Code | 20240606 |
| Model Number | FGS-22N |
| Brand Name | FUWEI |
| Usage | Color Recognition Detection |
| Description | Precise Color Recognition |
| Type | Color Mark Sensor |
| Series | FGS-22 |
| Features | Color sensing |
| Place of Origin | Guangdong, China |
| Theory | Photoelectric Detection Principle |
| Output | NPN |
| Description | Color Mark Sensor |

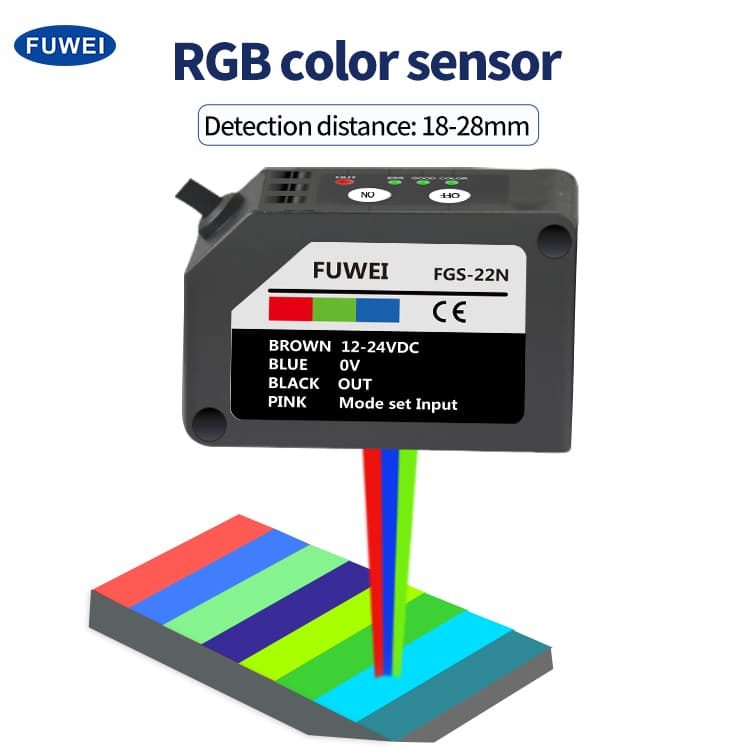

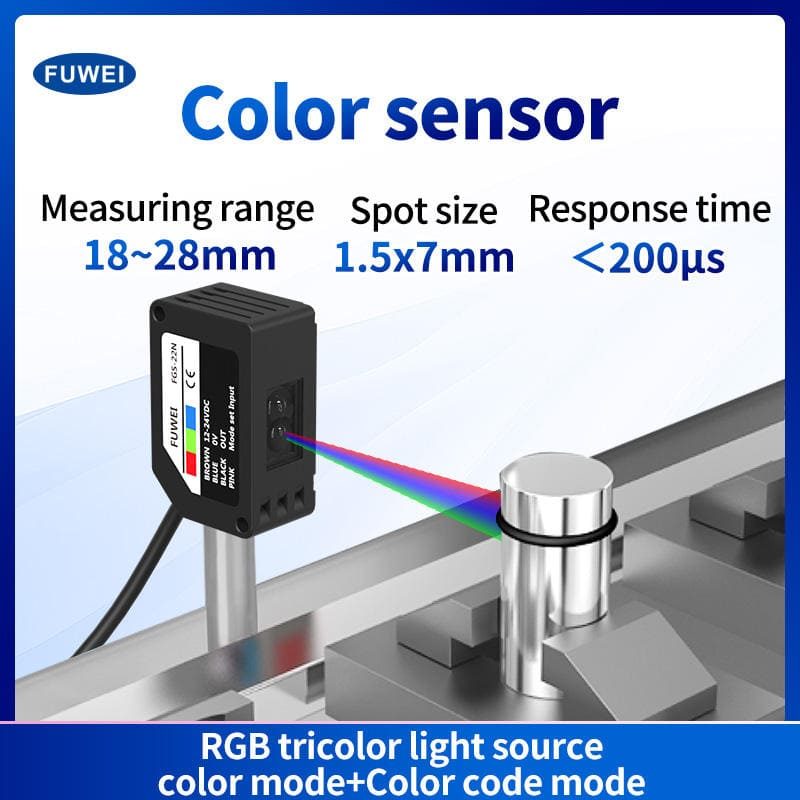

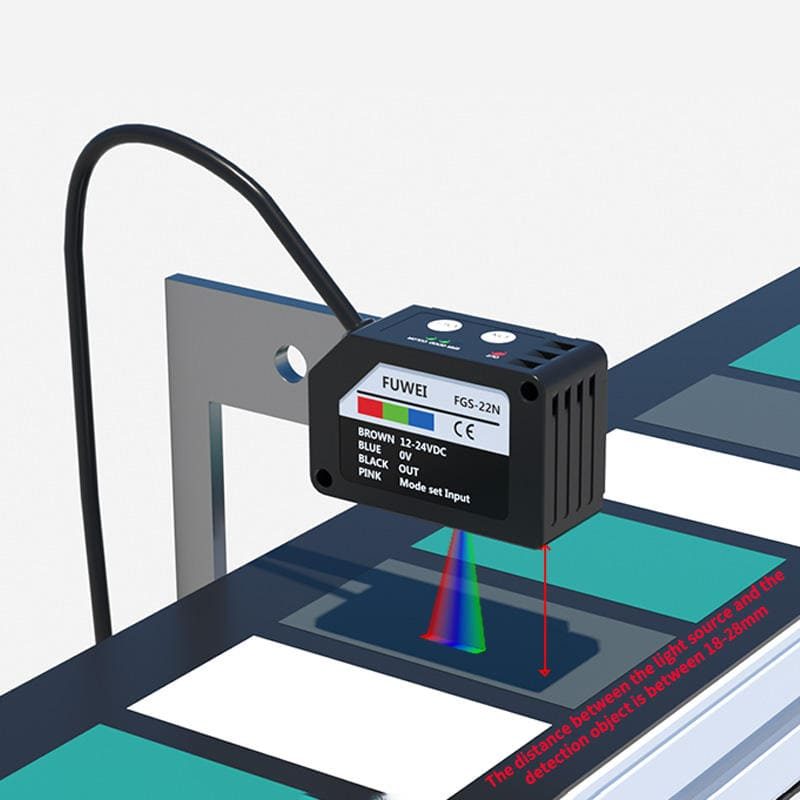

| Detection Distance | 18-28mm |

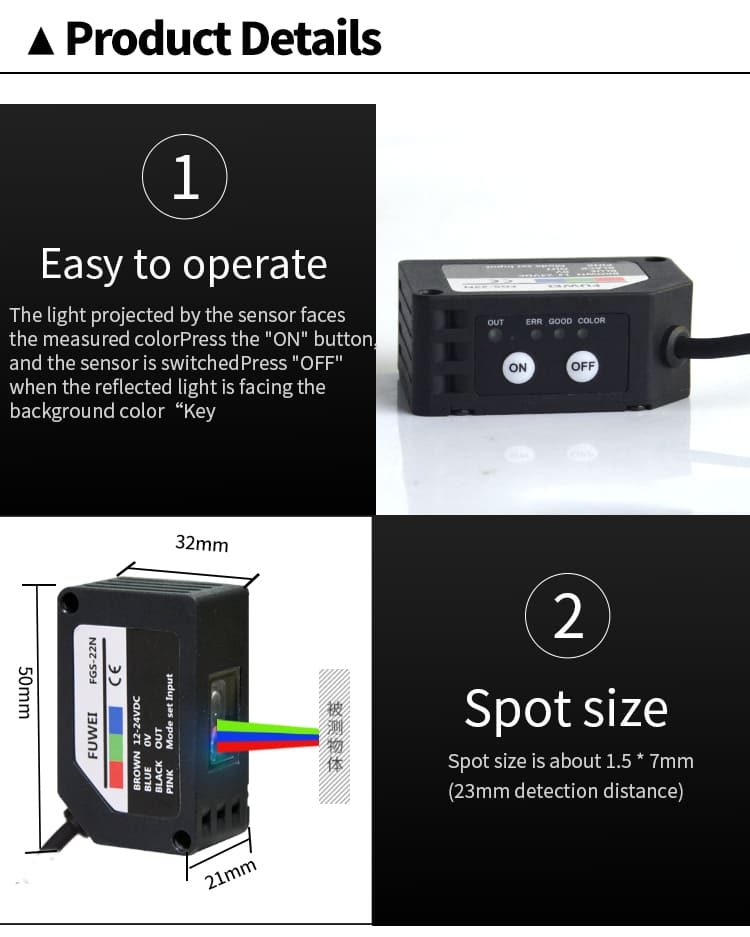

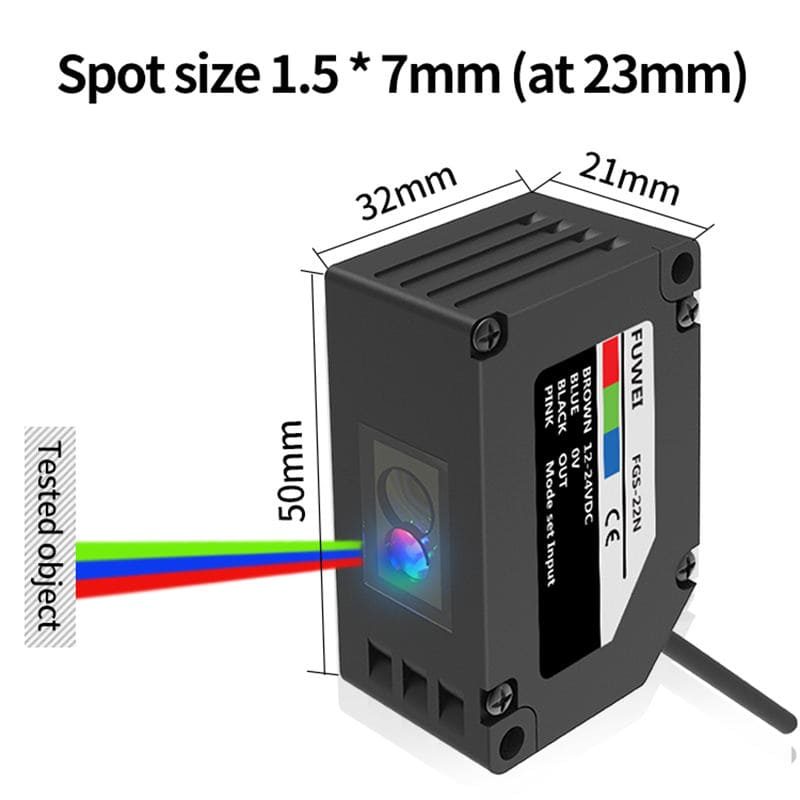

| Spot Size | Detection distance at 23mm Spot size: 1.5mm*7mm |
| Supply Voltage | 24VDC±10% |
| Consumption Current | <35mA |
| Response Time | <200us |

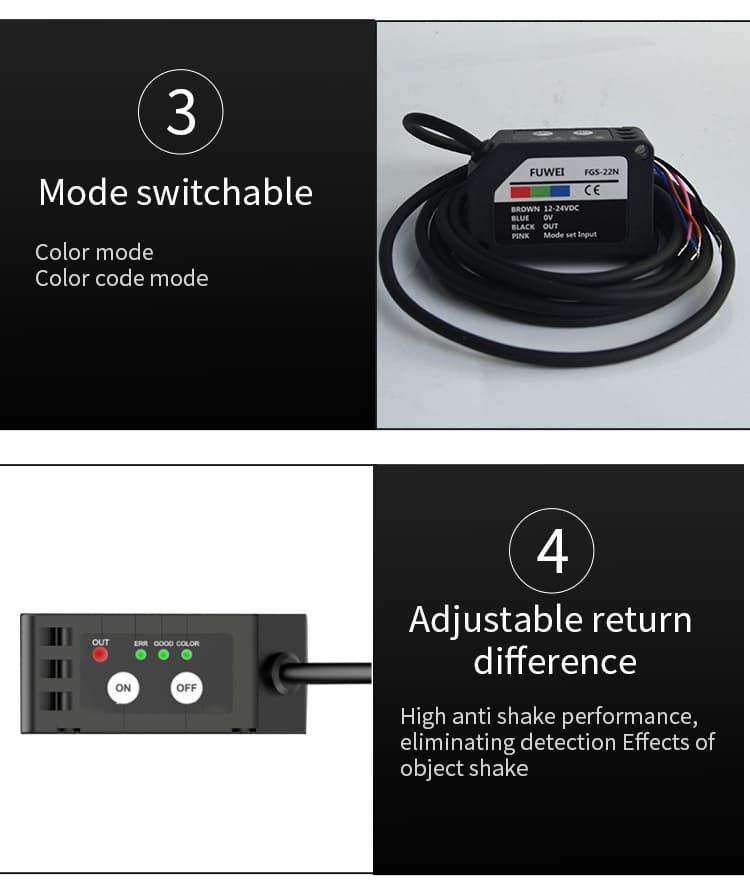

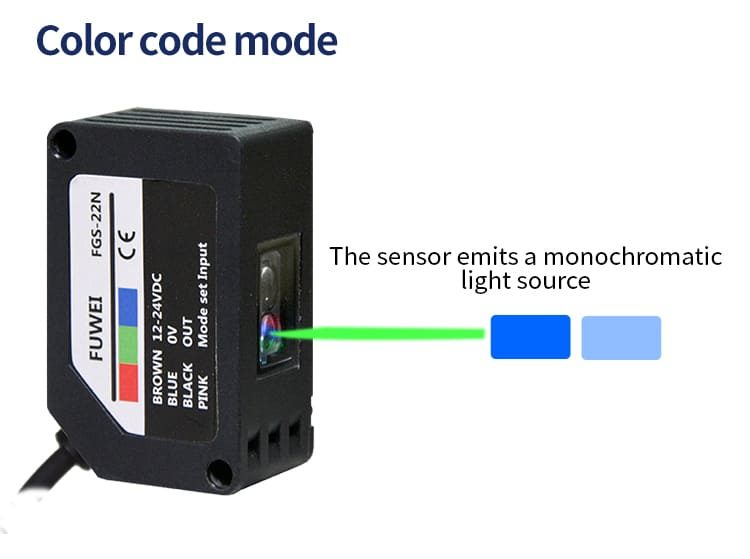

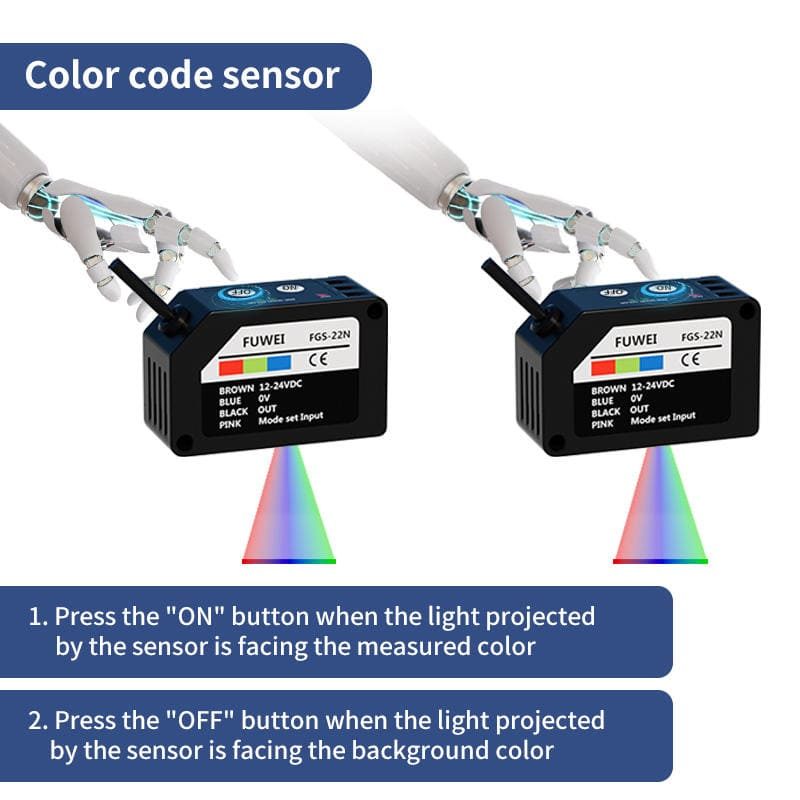

| Detection Mode | Color Scale/Color Mode |

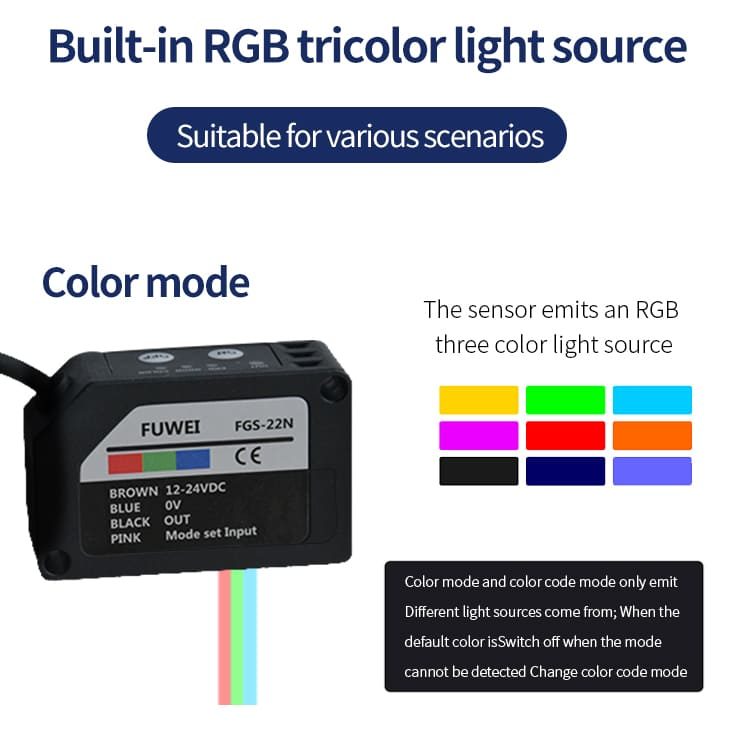

| Light Projection Elements | Composite LED: red/green/blue (640nm/525nm/470nm) |
| Ambient Temperature | -10℃~55℃ |
| Ambient Humidity | 35%~88%RH |
| Short Circuit Protection | Built-in |
| Selling Units | Single item |
| Single package size | 15X12X5 cm |
| Single gross weight | 0.170 kg |
