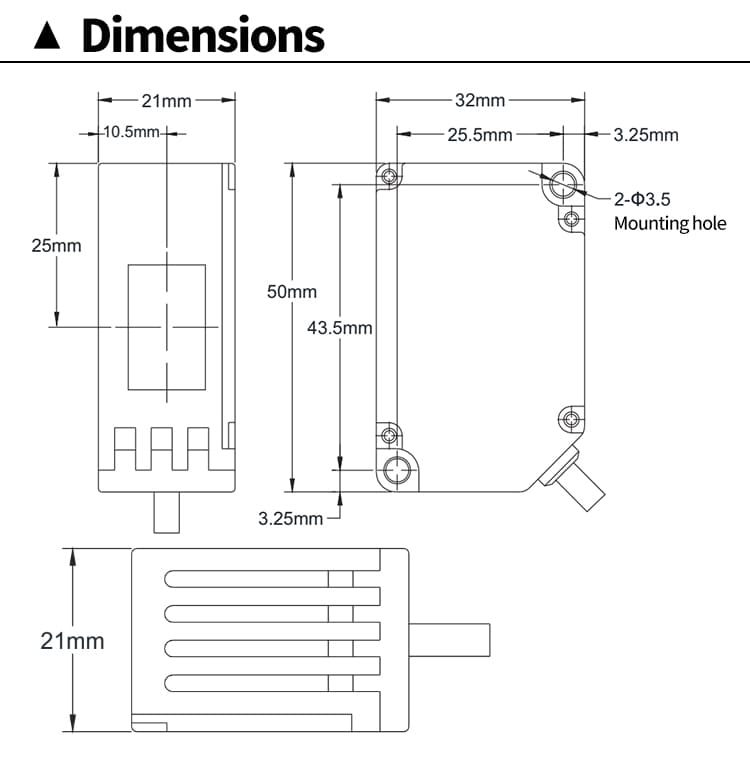

| Mounting Type |
Bolt Mounting |
| Manufacturing Date Code |
20240110 |

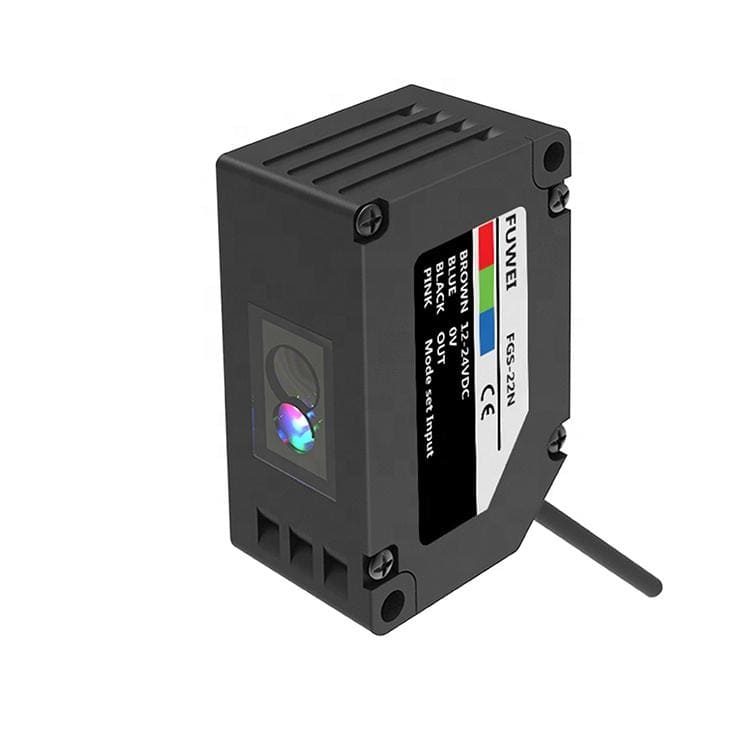

| Model Number |
FGS-22N |
| Brand Name |
FUWEI |

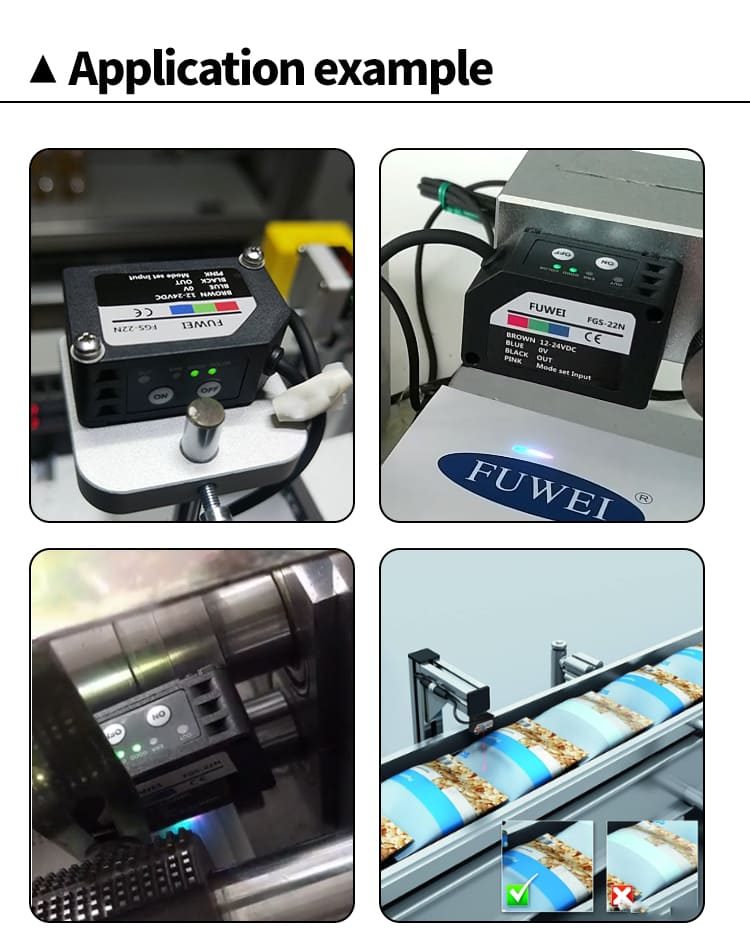

| Usage |
Color Recognition Detection |
| Description |
Precise Color Recognition |
| Type |
Color Mark Sensor |
| Series |
FGS-22 |
| Features |
Color sensing |
| Place of Origin |
Guangdong, China |
| Theory |
Photoelectric Detection Principle |

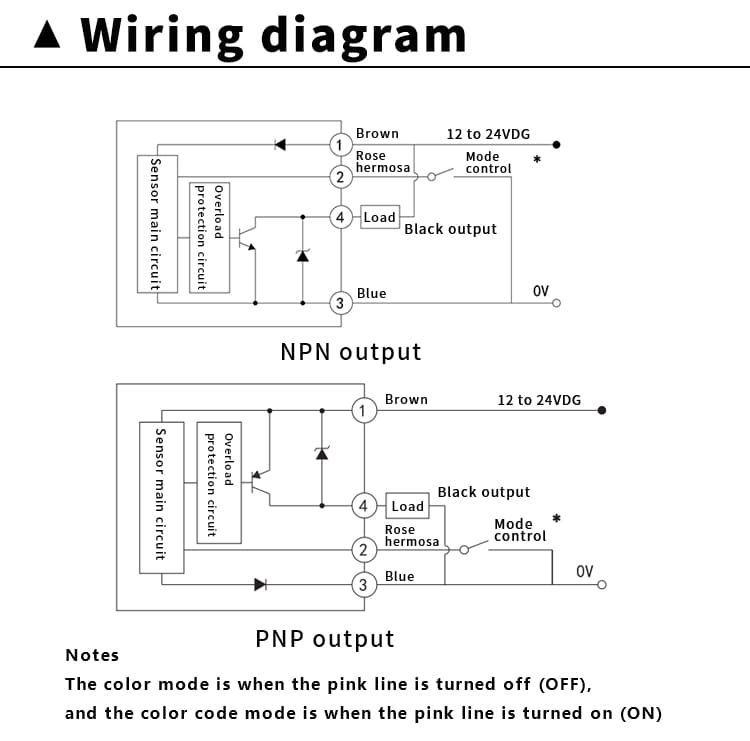

| Output |
NPN |
| Description |
Color Mark Sensor |

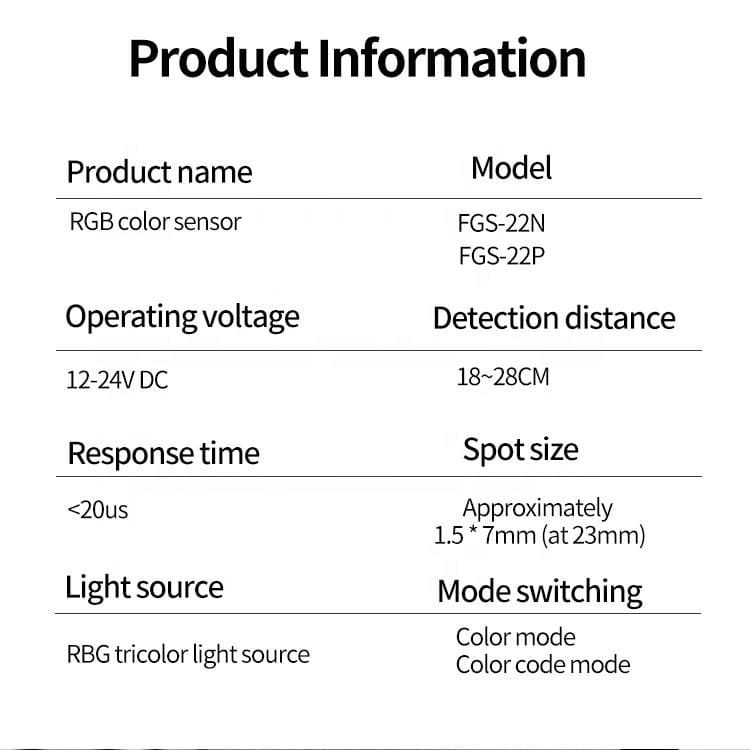

| Detection Distance |
18-28mm |

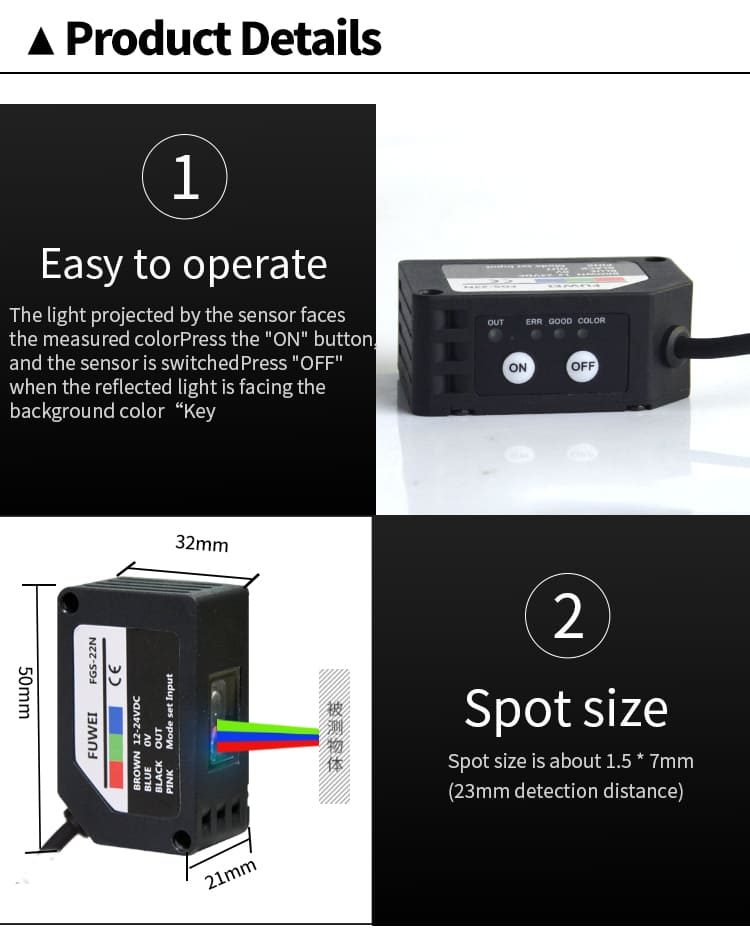

| Spot Size |
Detection distance at 23mm Spot size: 1.5mm*7mm |
| Supply Voltage |
24VDC±10% |
| Consumption Current |
<35mA |
| Response Time |
<200us |

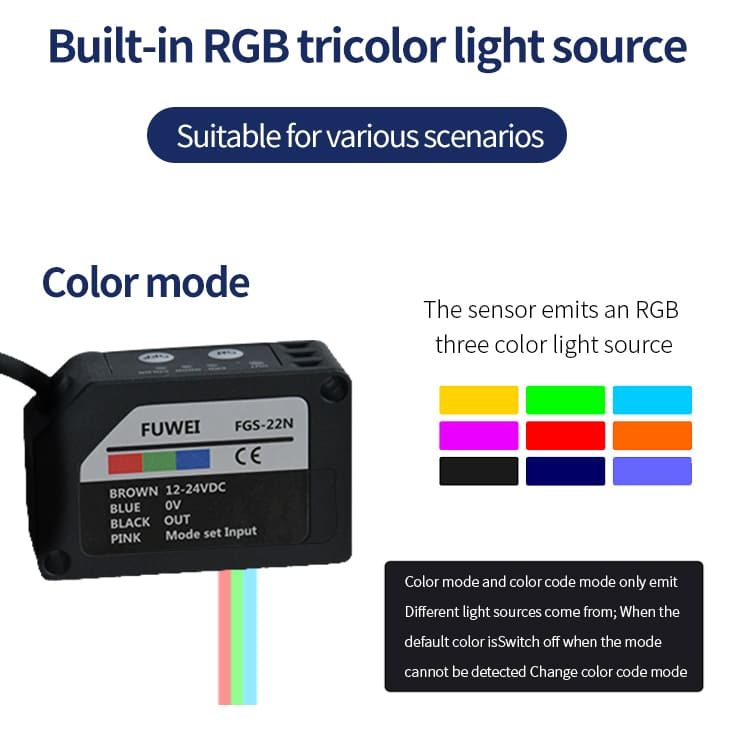

| Detection Mode |
Color Scale/Color Mode |
| Light Projection Elements |
Composite LED: red/green/blue (640nm/525nm/470nm) |
| Ambient Temperature |
-10℃~55℃ |
| Ambient Humidity |
35%~88%RH |
| Short Circuit Protection |
Built-in |
| Selling Units |
Single item |
| Single package size |
15X12X5 cm |
| Single gross weight |
0.170 kg |
| Supply Ability |
100 pieces per Week |
