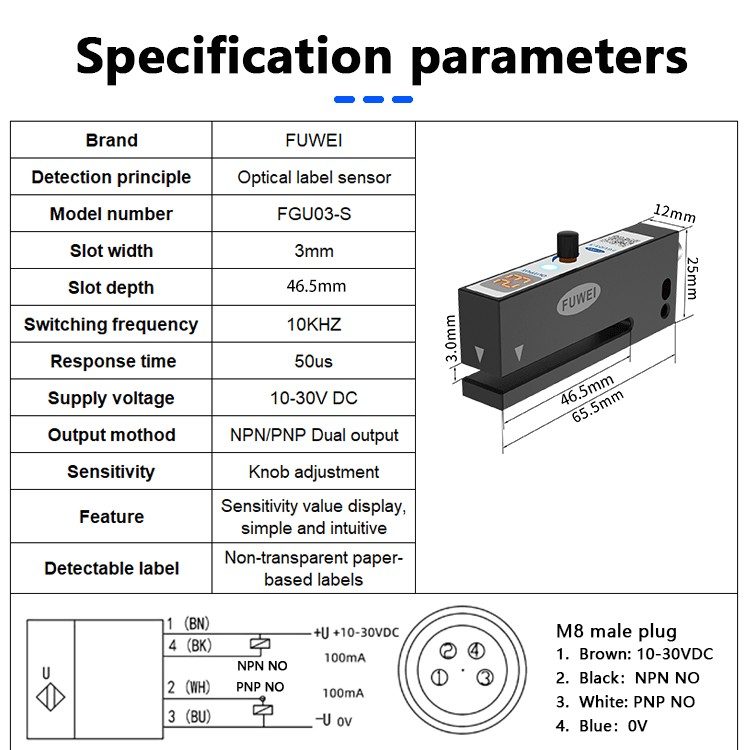

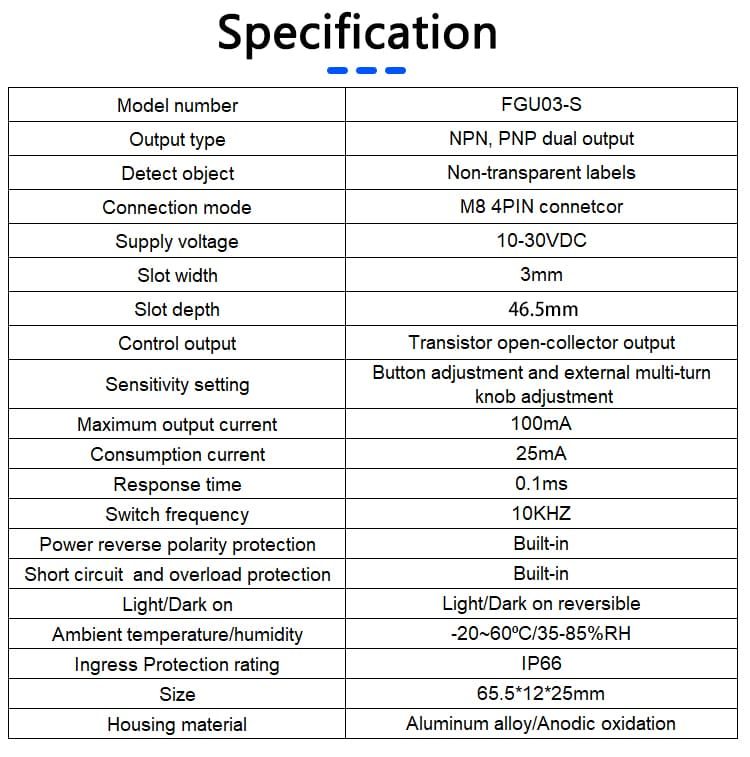

| Key Attributes |
| Mounting Type | Bolt Mounting |
| Manufacturing Date Code | 2024 |
| Model Number | FGU03-S |
| Brand Name | FUWEI |

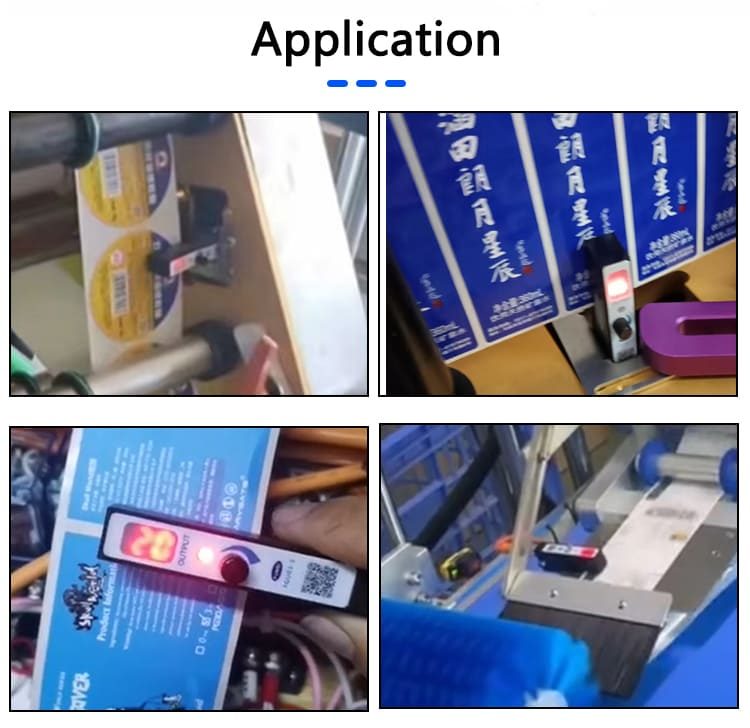

| Usage | Labeling Machine Label Detection |

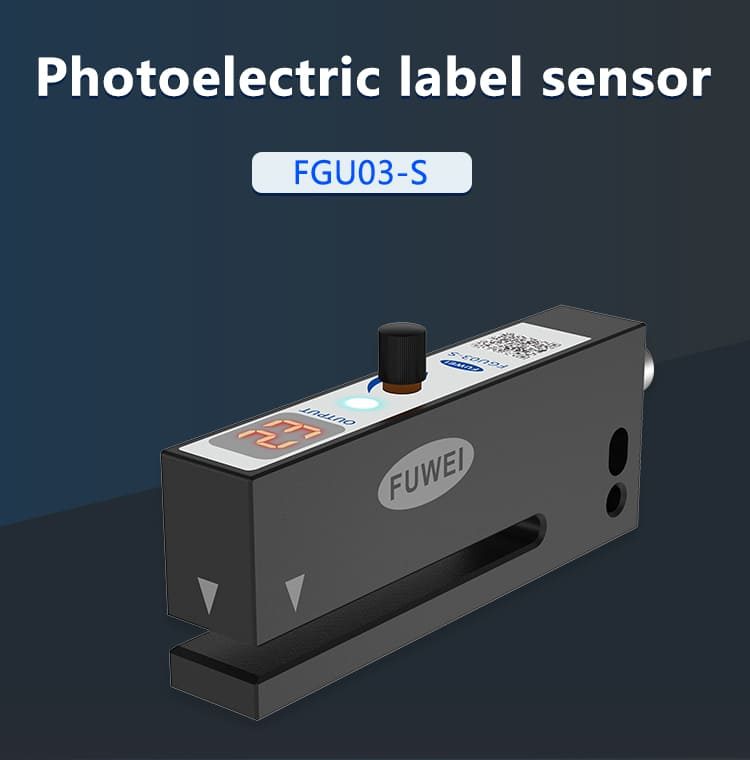

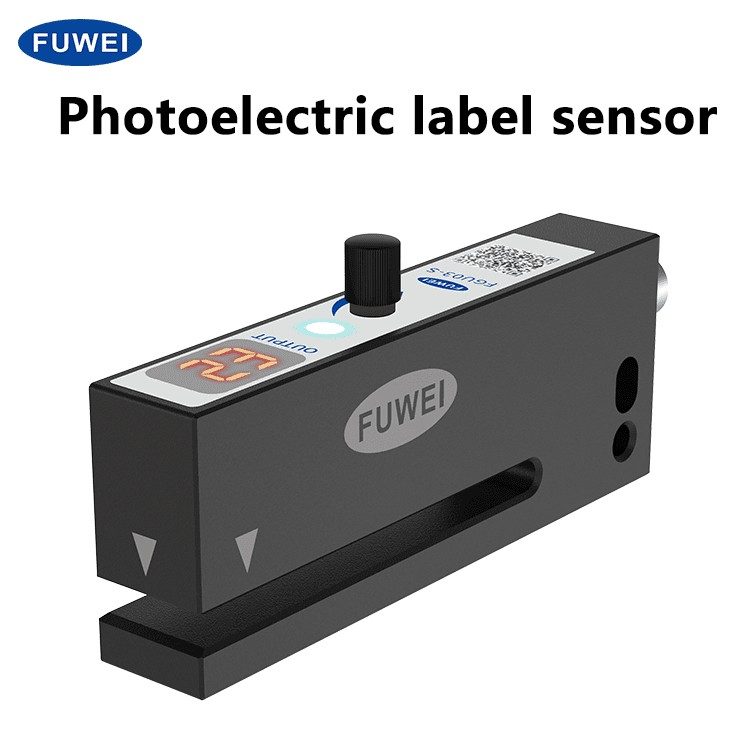

| Description | Non-transparent Labeling Machine, Label Sensor |
| Type | Optical Sensor |
| Series | FGU03-S |

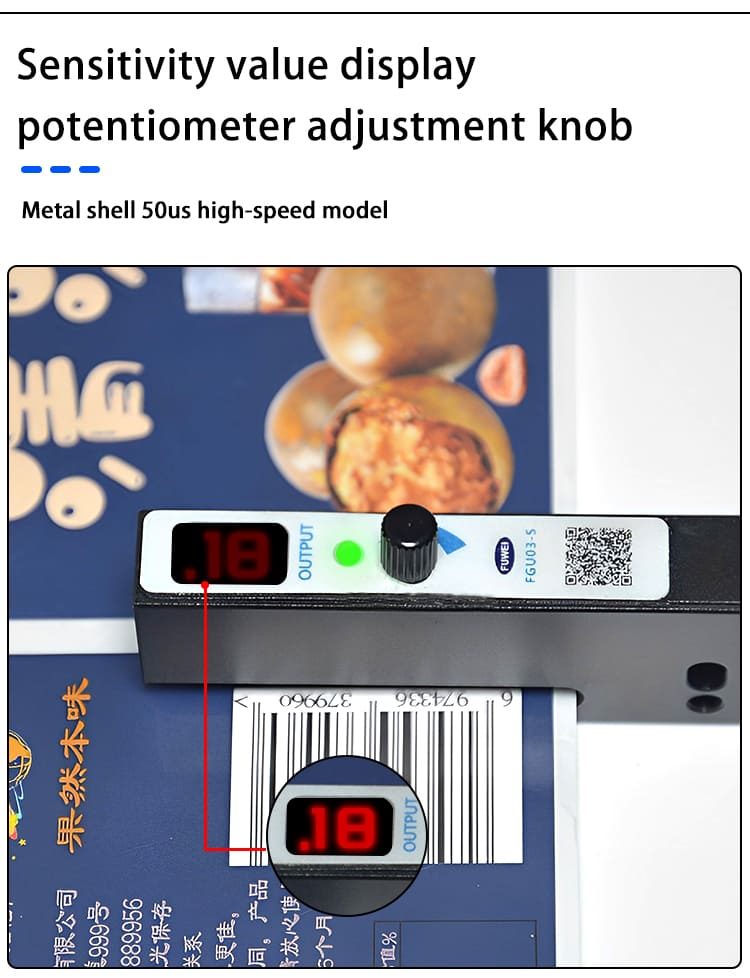

| Features | Sensing Sensitivity |
| Place of Origin | Guangdong, China |
| Theory | Photoelectric Detection Principle |

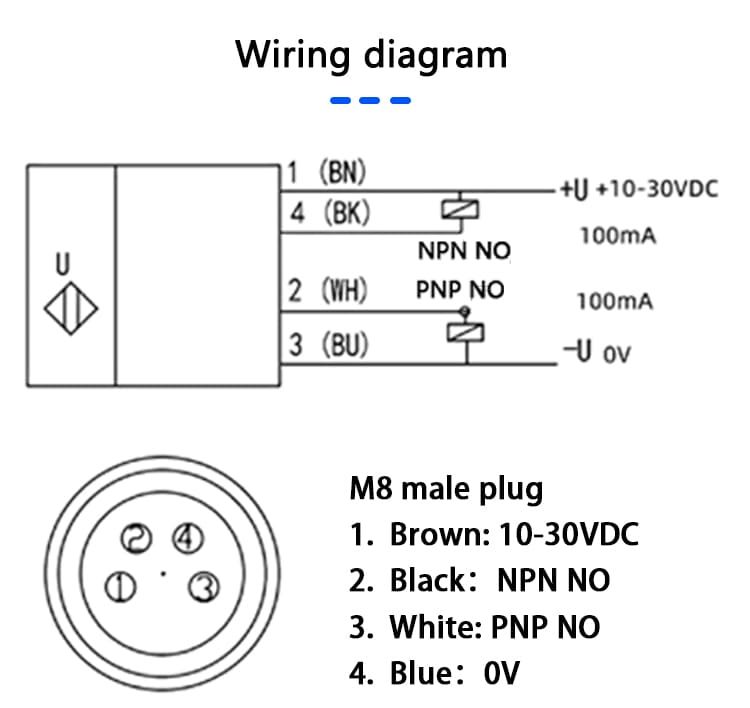

| Output | NPN, PNP Dual Output |

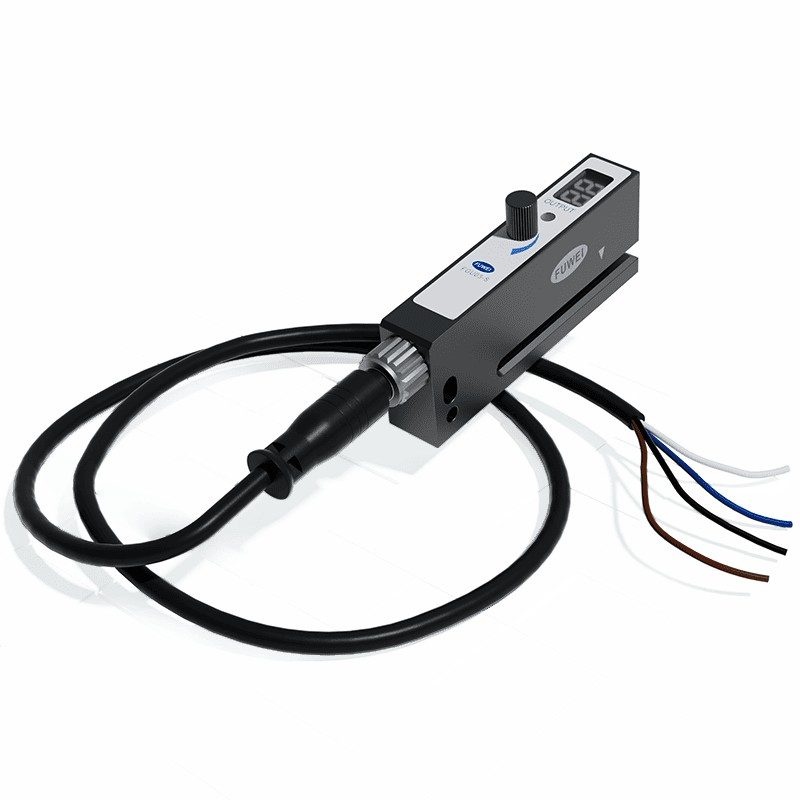

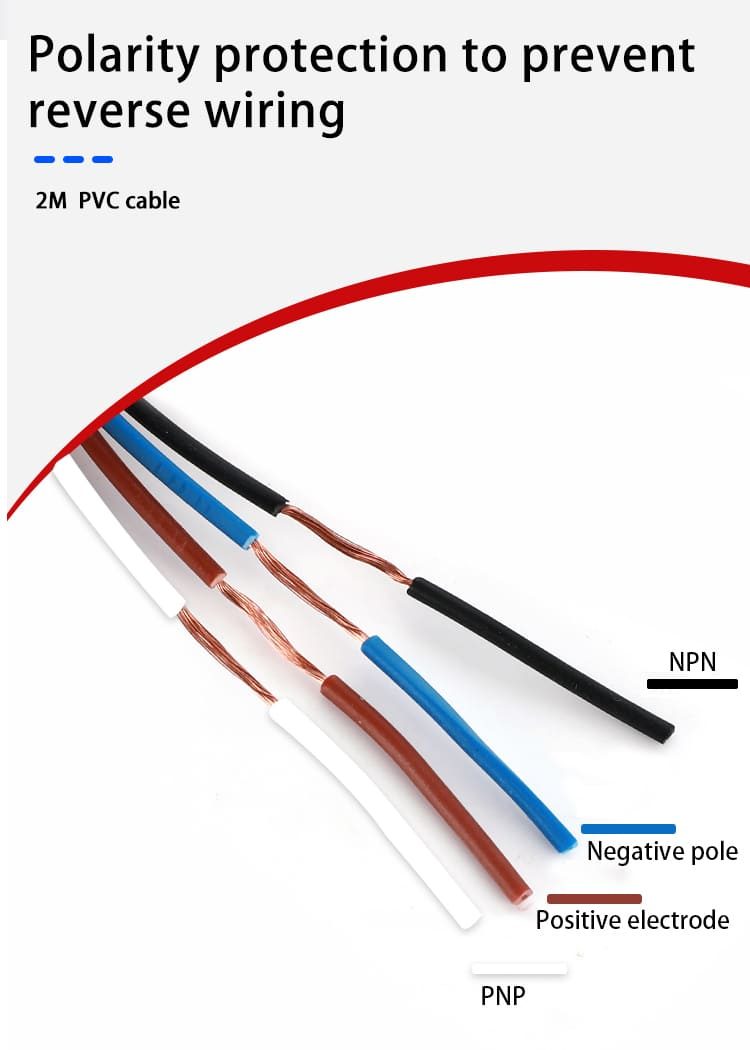

| Connection Mode | M8 4PIN Connector |
| Output Type | NPN, PNP Dual Output |
| Detect Object | Non-transparent Labels |

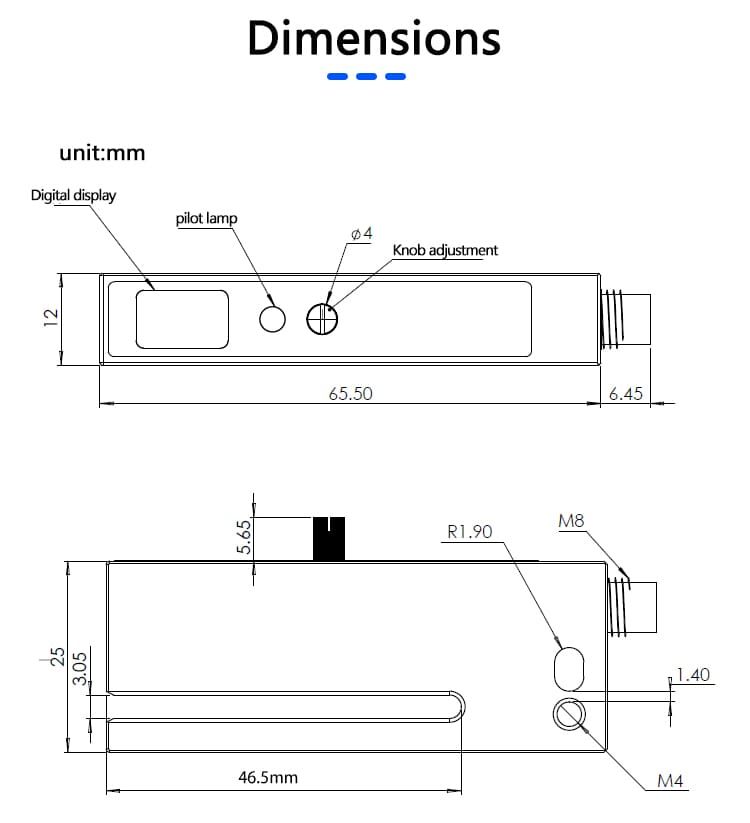

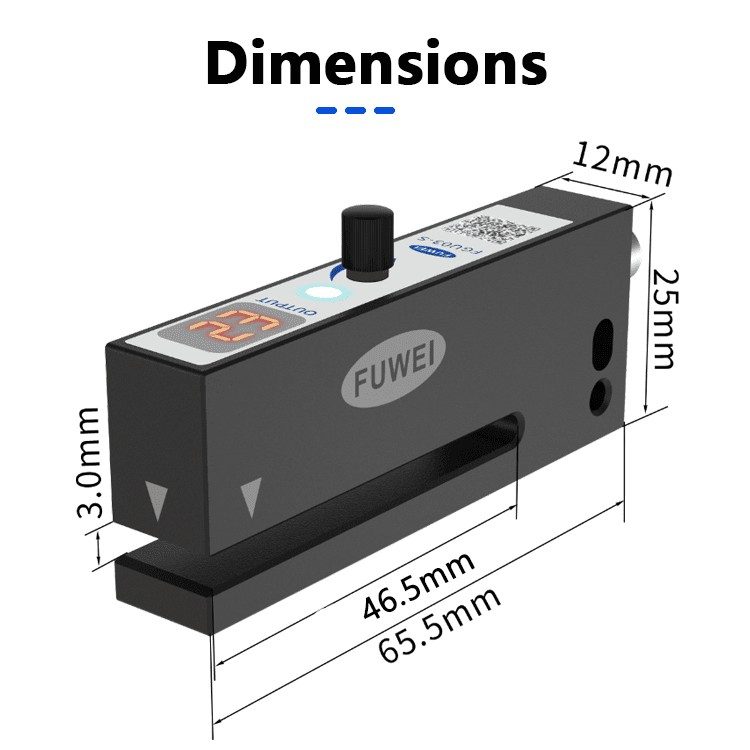

| Slot Width | 3mm |
| Slot Depth | 44mm |
| Supply Voltage | 10-30VDC |
| Maximum Output Current | 100mA |
| Response Time | 0.1ms |
| Switch Frequency | 10kHz |
| Ingress Protection Rating | IP66 |
| Packaging and Delivery |
| Selling Units | Single Item |
| Single Package Size | 16X15X5 cm |
| Single Gross Weight | 0.320 kg |
