| Attribute | Value |
|---|---|
| Mounting Type | Inductive type |
| Manufacturing Date Code | 2023 |
| Model Number | FSNS08D-2.5N |
| Brand Name | fuwei |

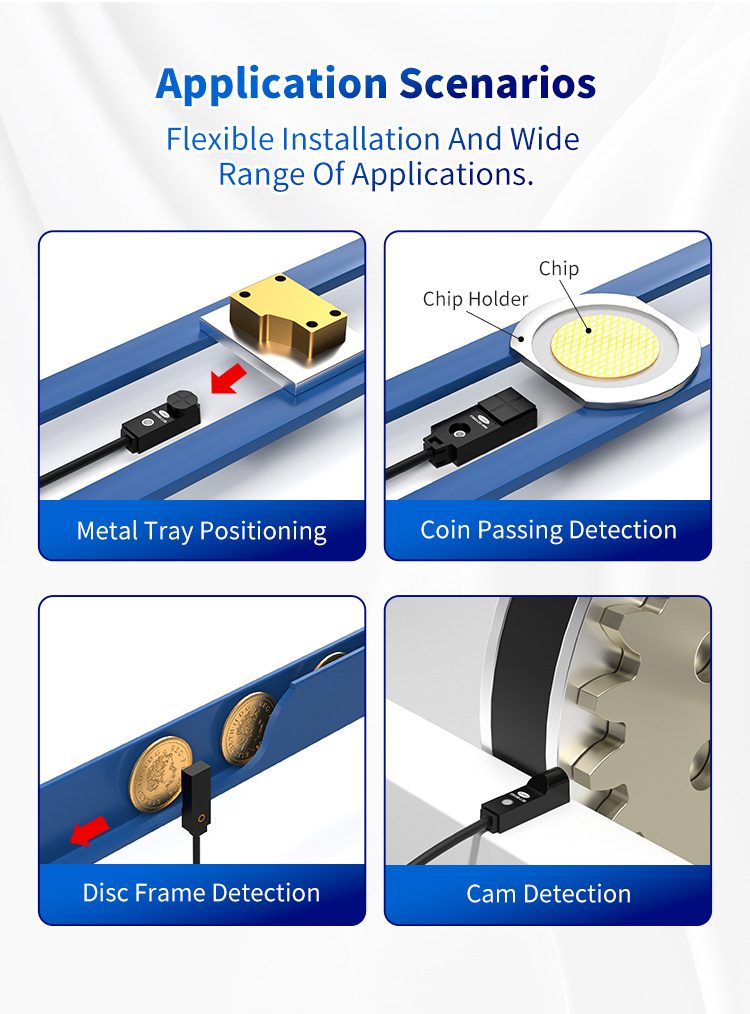

| Usage | Industrial automation production testing |
| Theory | Inductive type |

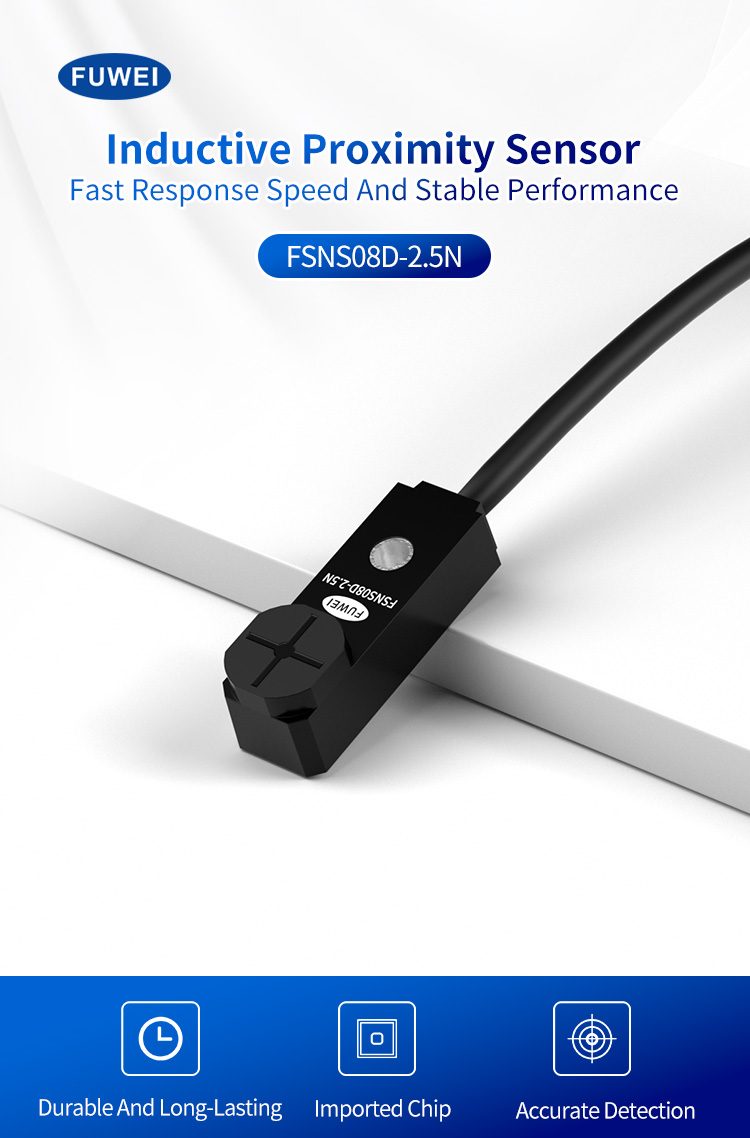

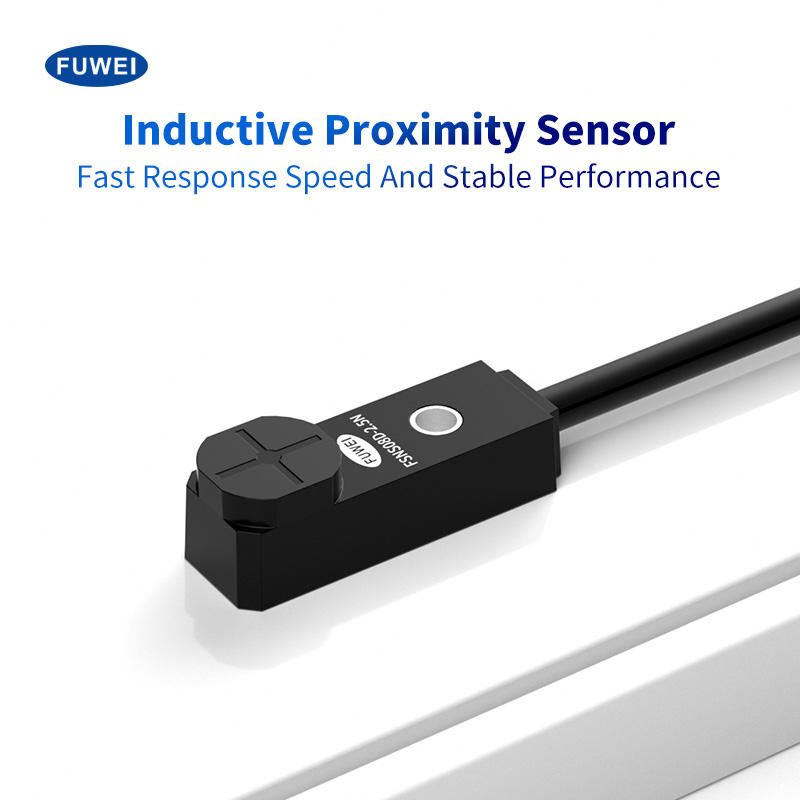

| Description | square inductive proximity switch sensor |
| Type | Inductive Proximity Sensor |

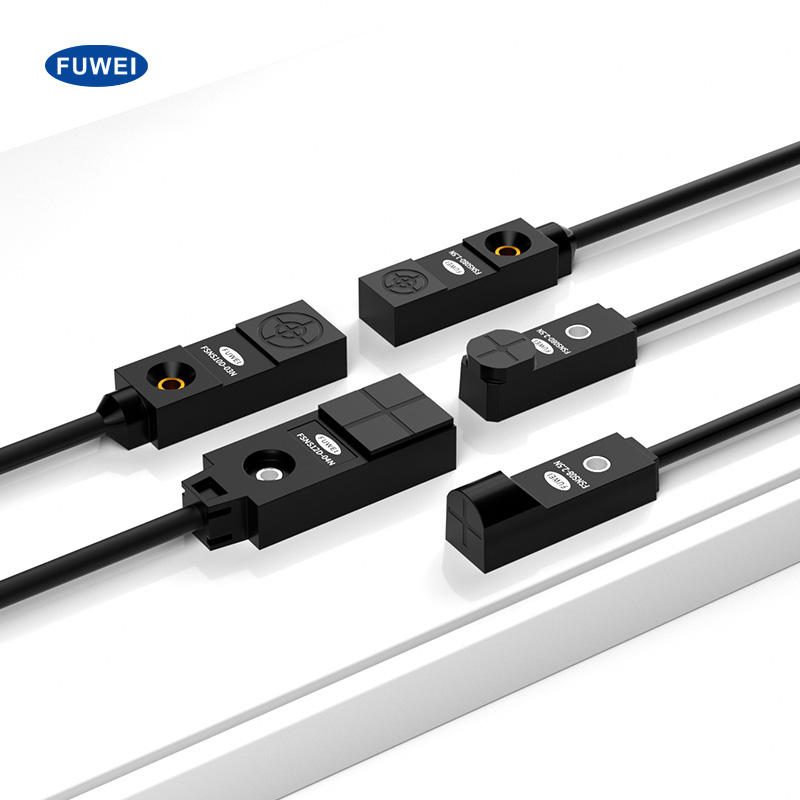

| Series | FSNS08 |

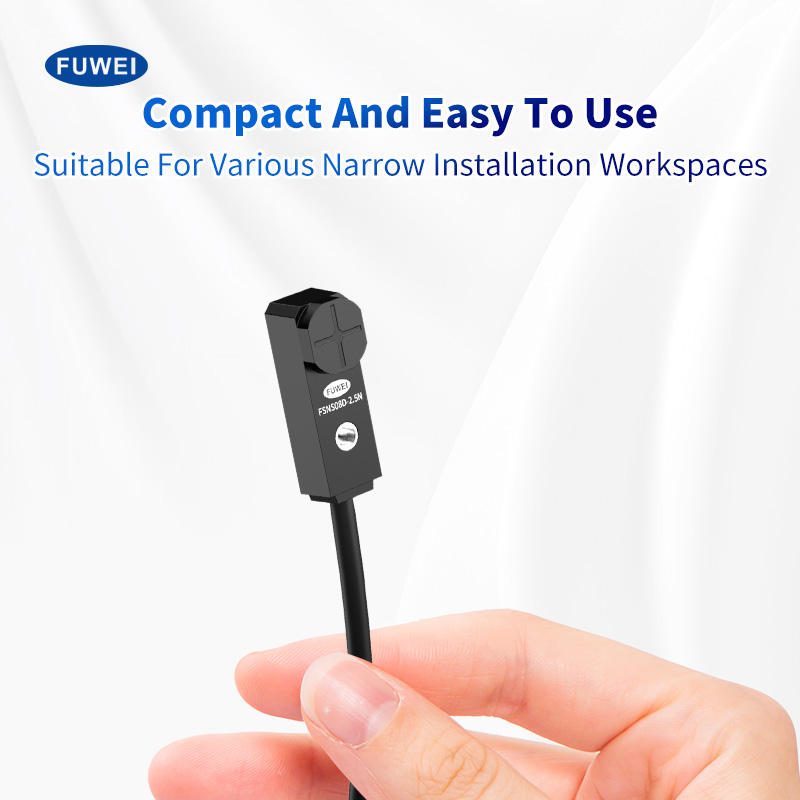

| Features | Square proximity sensor |
| Place of Origin | Guangdong, China |

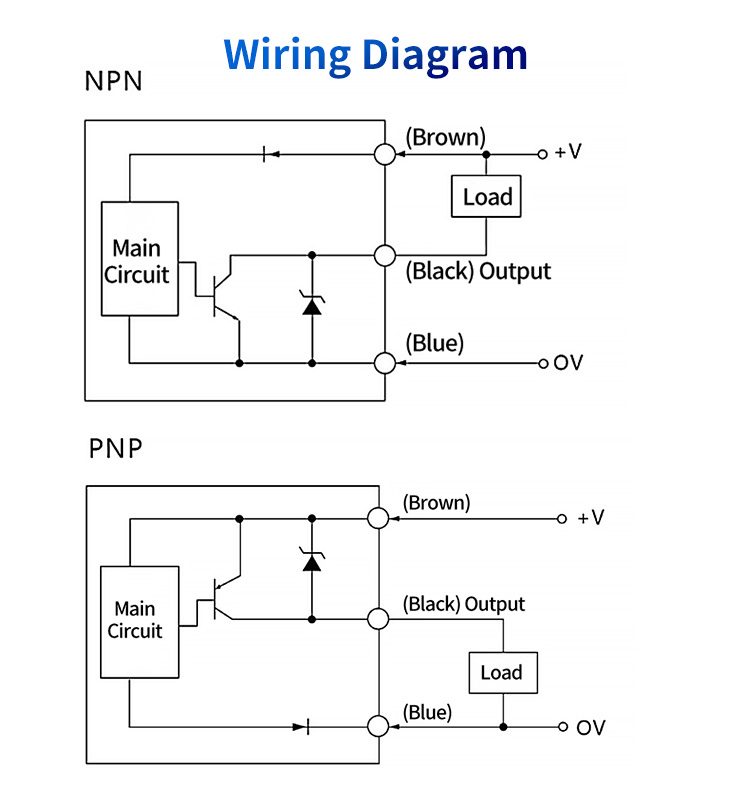

| Output | NPN.ON/NPN.NC/PNP.NO/PNP.NC |
| Supply Voltage | DC12~2V pulsation (p-p) below 10% |

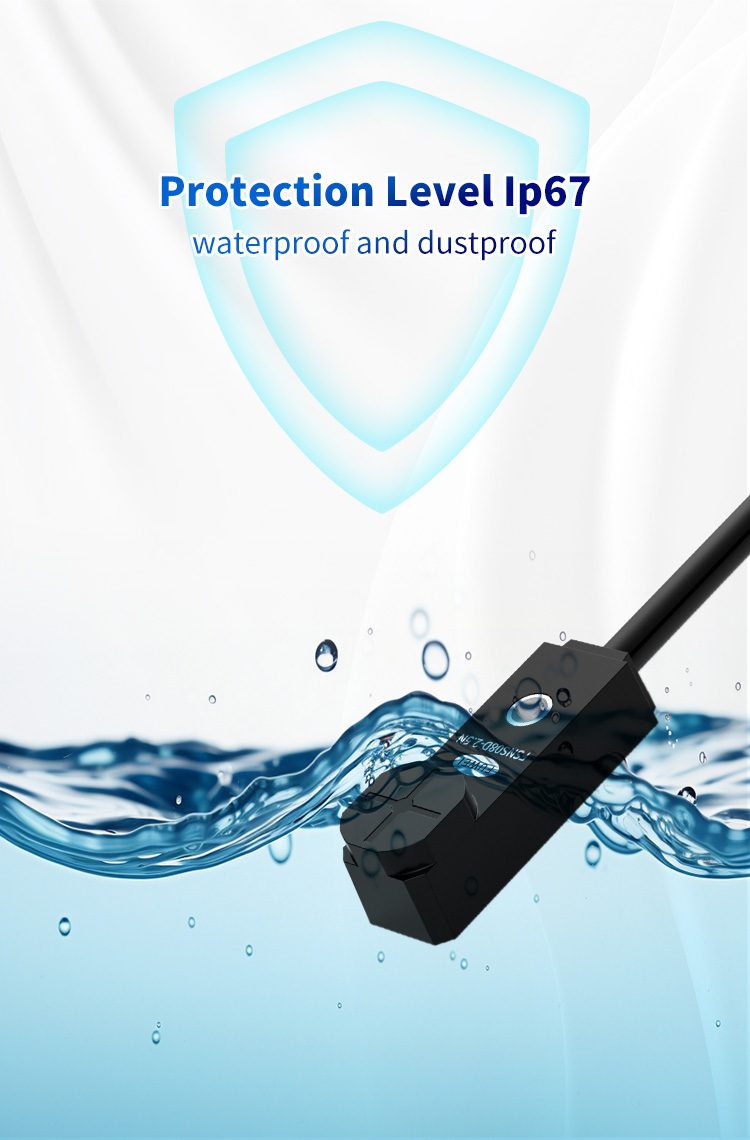

| Ingress Protection | IP67 |

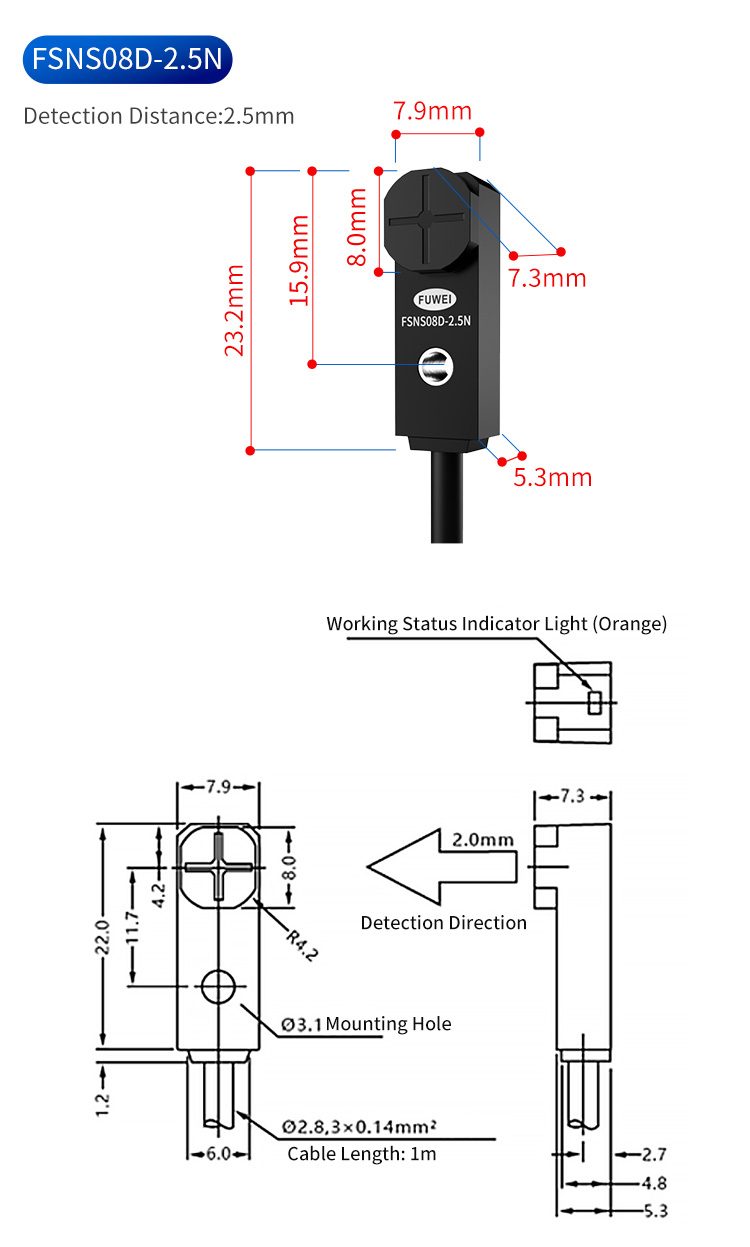

| Sensing Distance | 1.5/2.5/3/4mm optional |

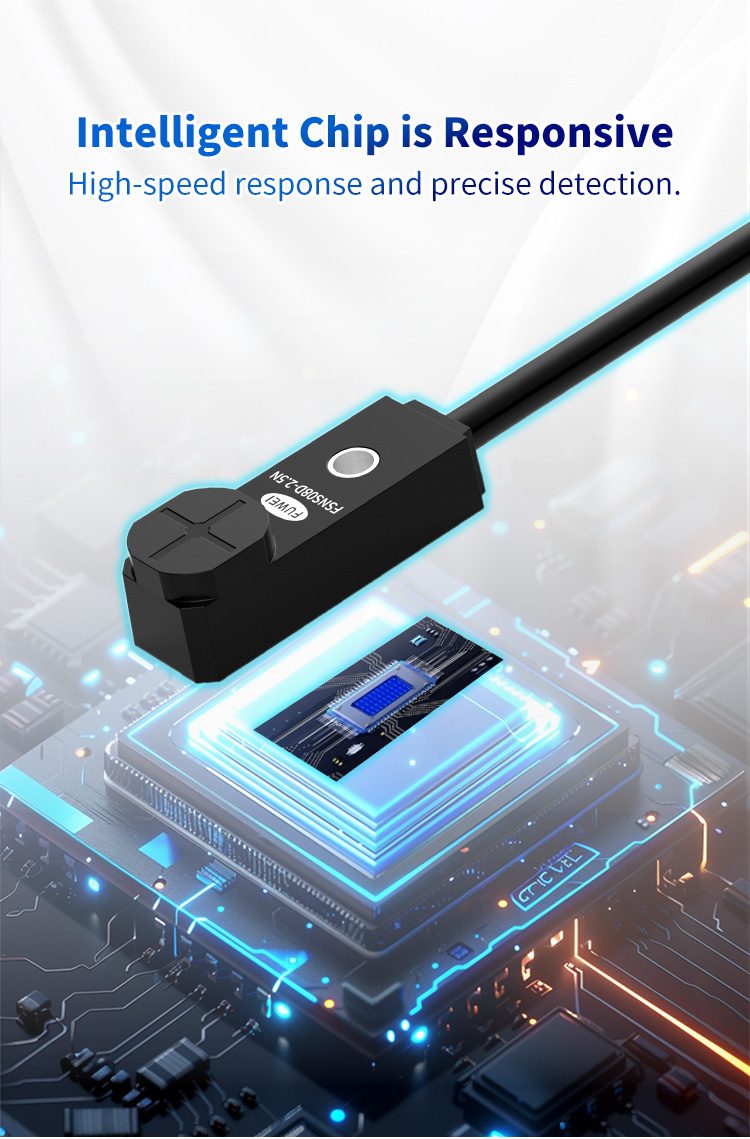

| Response Frequency | 10~500Hz |
| Pilot lamp | Orange LED |
| Protection circuit | equip |
| Maximum inflow current | 100MA |
| Protect the structure | IP67 |
| Casing | Body: PBT, indicator light: polyester |
| Connection | Wire lead out type |
| Packaging and delivery | Selling Units |
| Single package size | 15X15X5 cm |
| Single gross weight | 0.150 kg |
