| Mounting Type | Nut fastening installation |
| Manufacturing Date Code | 2025 |

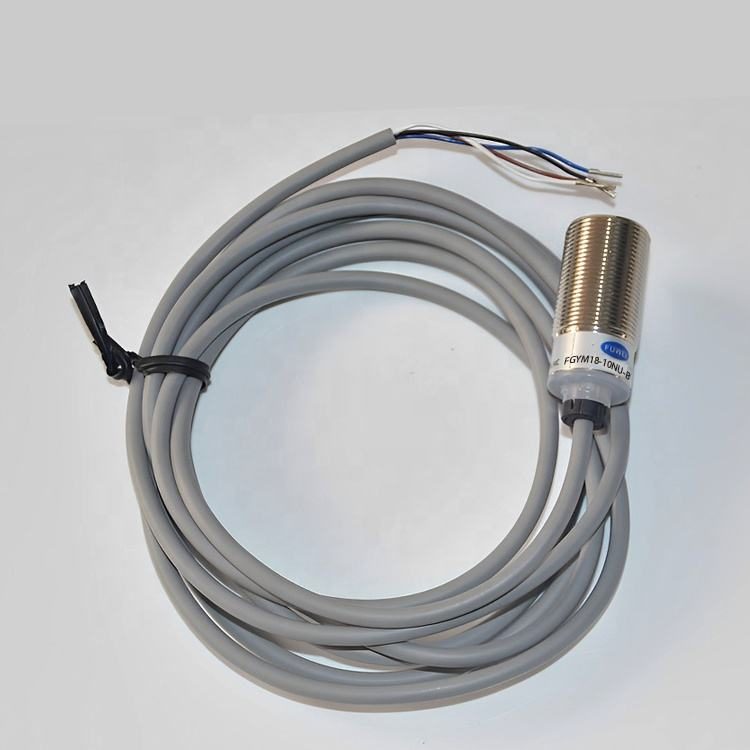

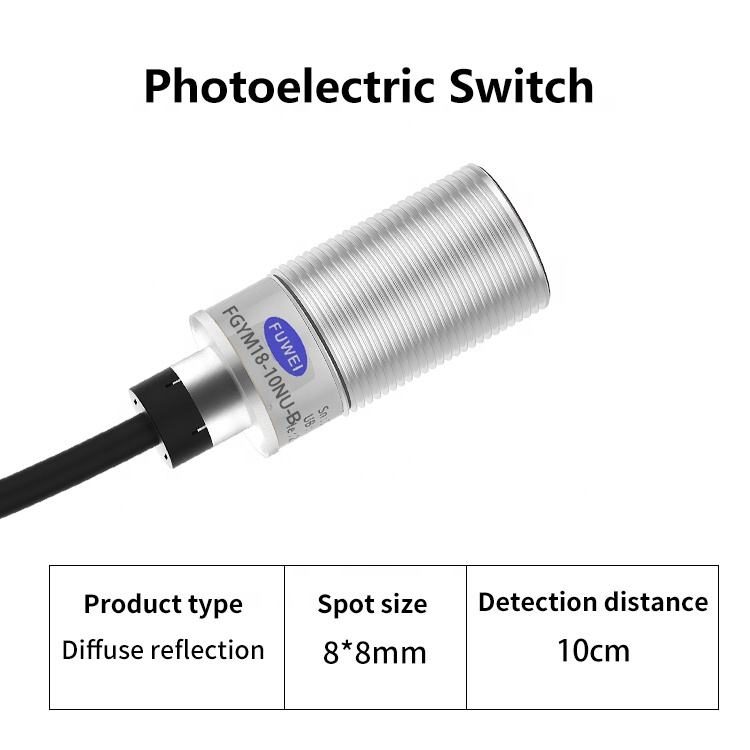

| Model Number | FGYM18-10NU-B |
| Brand Name | FUWEI |

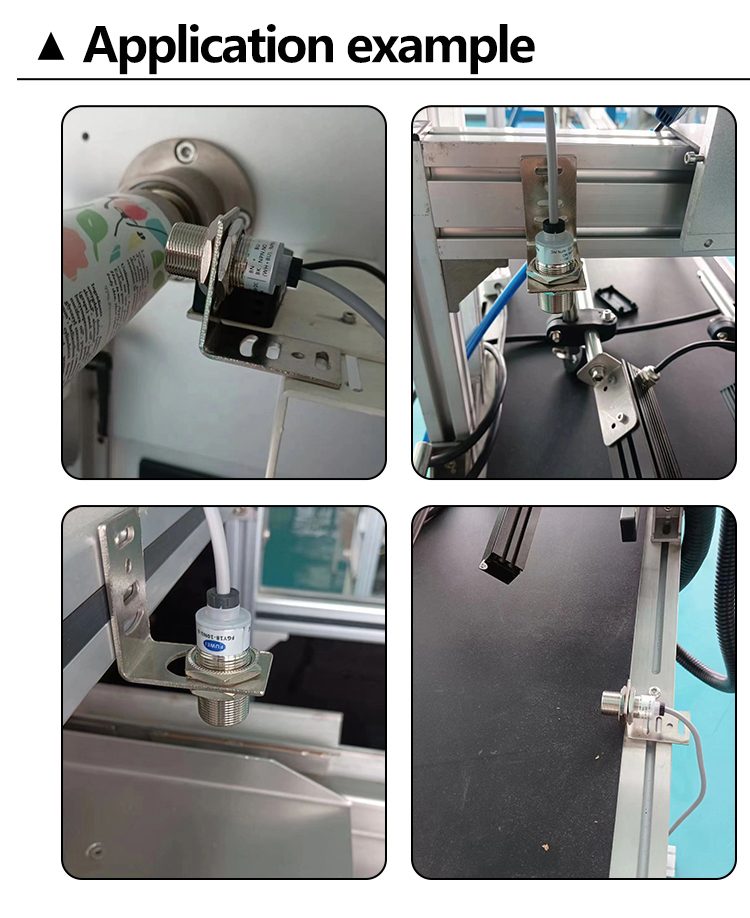

| Usage | With or without judgment, detection in place |
| Description | Not easily influenced by color |
| Type | Photoelectric Sensor |
| Series | FGYM18-10NU-B |

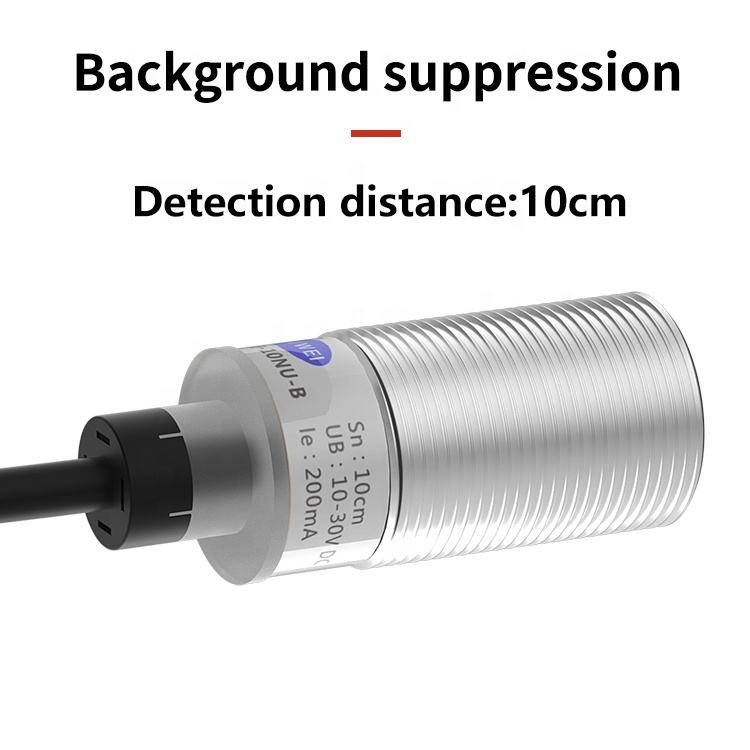

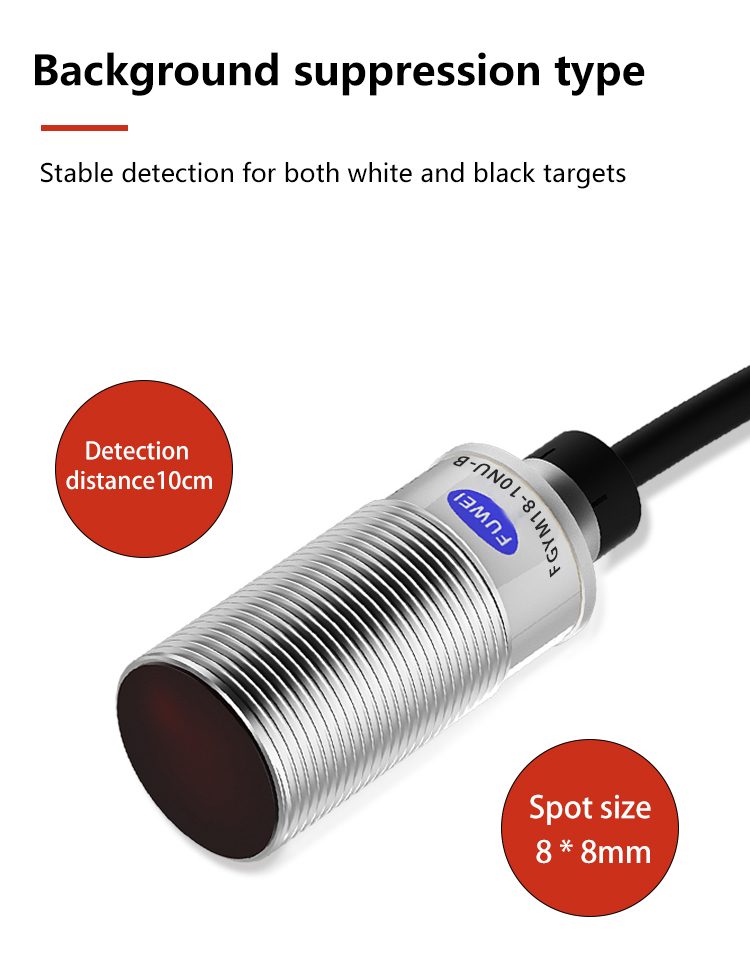

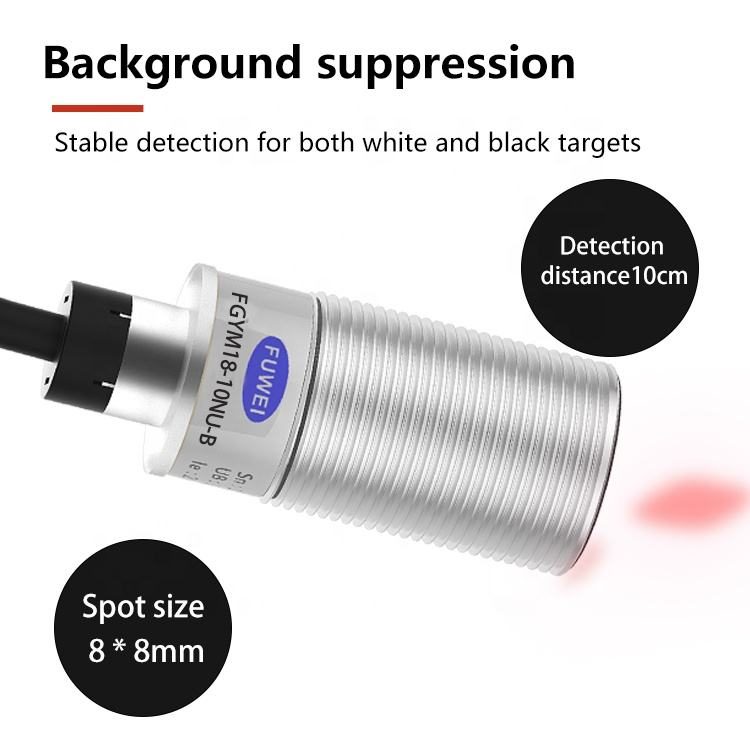

| Features | Background suppression type |
| Place of Origin | Guangdong, China |
| Theory | Photoelectric Detection Principle |

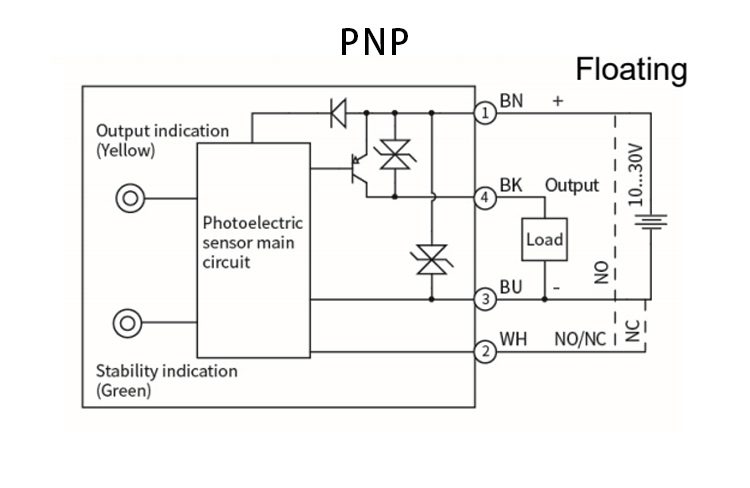

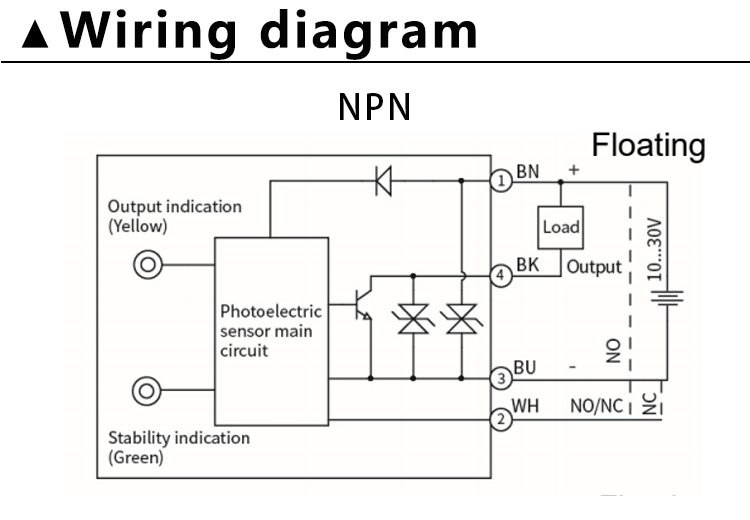

| Output | NPN, PNP |

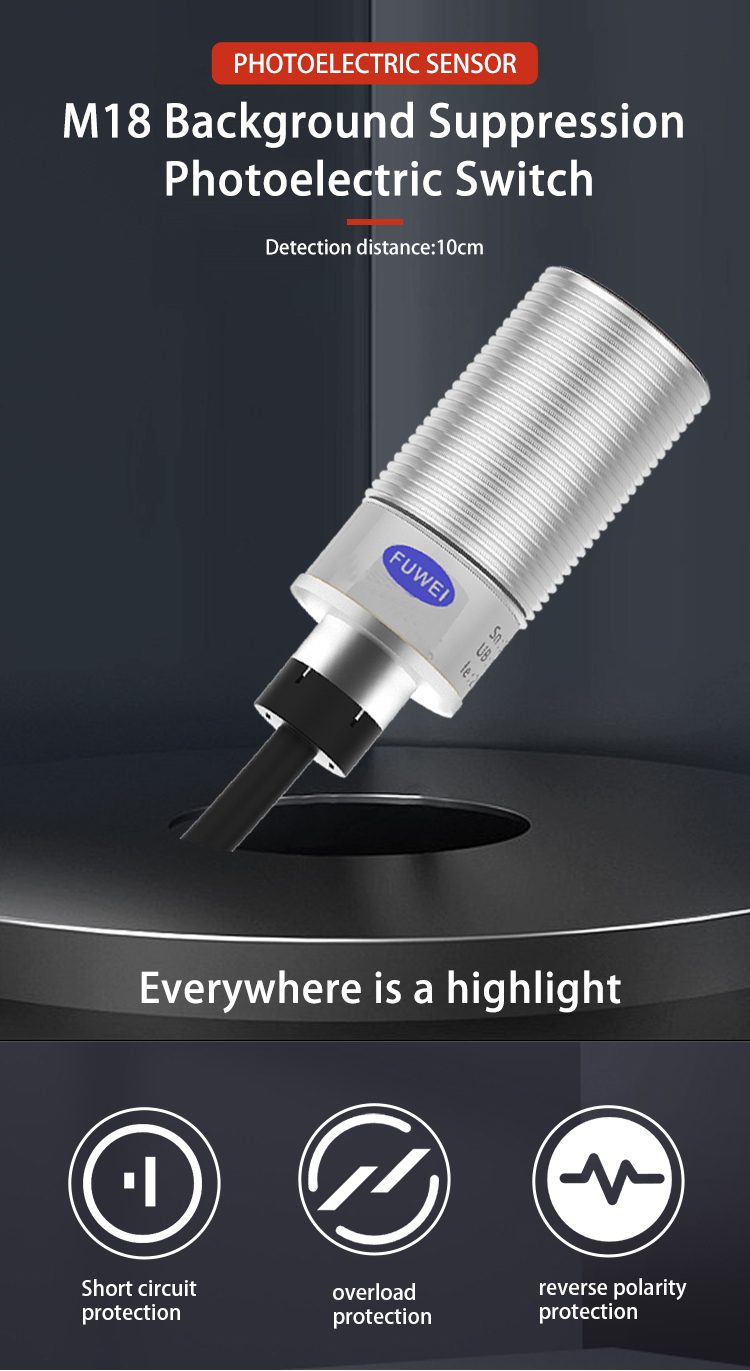

| Description | Background Suppression Photoelectric Sensor |

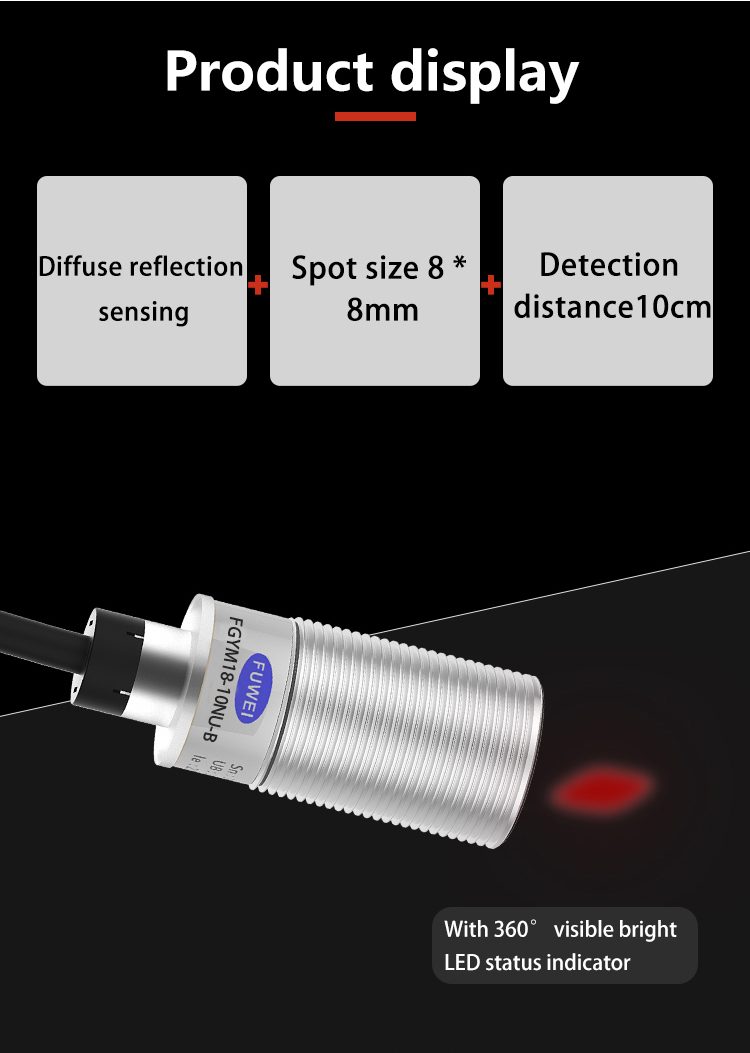

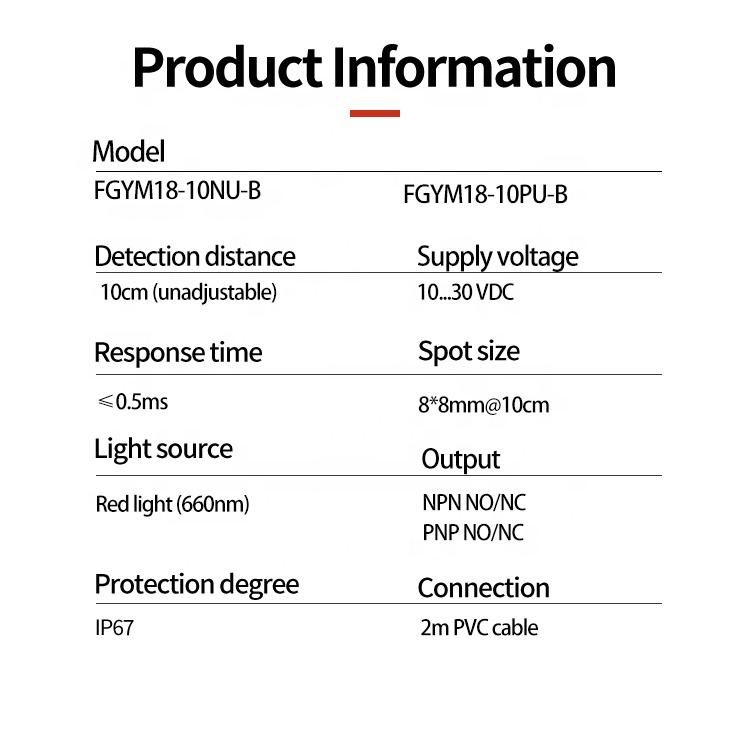

| Detection Distance | 10cm (unadjustable) |
| Light Source | Red light (660nm) |
| Supply Voltage | 10…30V DC |
| Green LED | power, stable |
| Yellow LED | output, short circuit or overload |
| Operating Temperature | -20…55°C |
| Storage Temperature | -35…70°C |
| Protection Degree | IP67 |
| Annex | M18 nut(2pcs), instruction manual |
| Circuit Protection | Short-circuit, overload, reverse polarity protection |
| Packaging and Delivery |
| Selling Units | Single item |
| Single Package Size | 16×15×6 cm |
| Single Gross Weight | 0.032 kg |
