| Key Attributes | |
|---|---|
| Mounting Type | Simple Installation |
| Manufacturing Date Code | 20240401 |

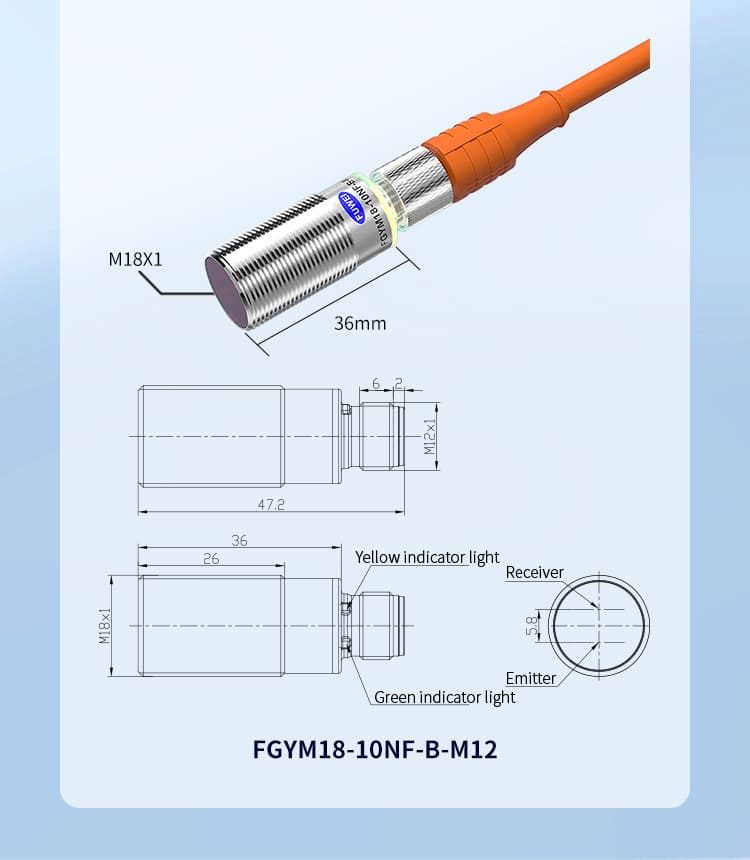

| Model Number | FGYM18-10NF-B-M12 |
| Brand Name | FUWEI |
| Usage | Detecting the presence or absence of |
| Theory | Proximity sensors |

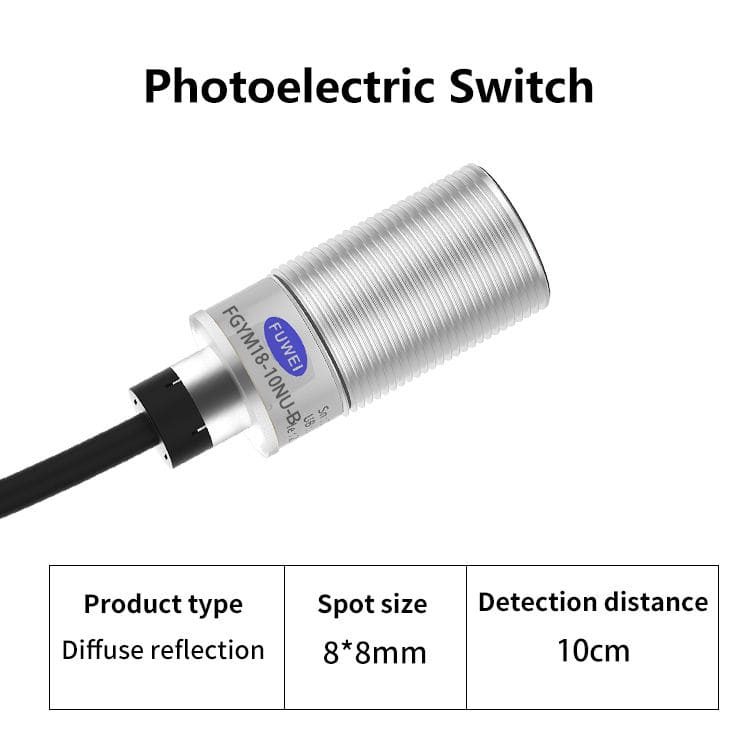

| Description | M12 Photoelectric Sensor |
| Type | Inductive Proximity Sensor |
| Series | FGYM18-10NF-B-M12 |
| Features | metal material |
| Place of Origin | Guangdong, China |
| Output | NPN/PNP |
| Description | Proximity sensors |
| Protection Grade | IP67 |

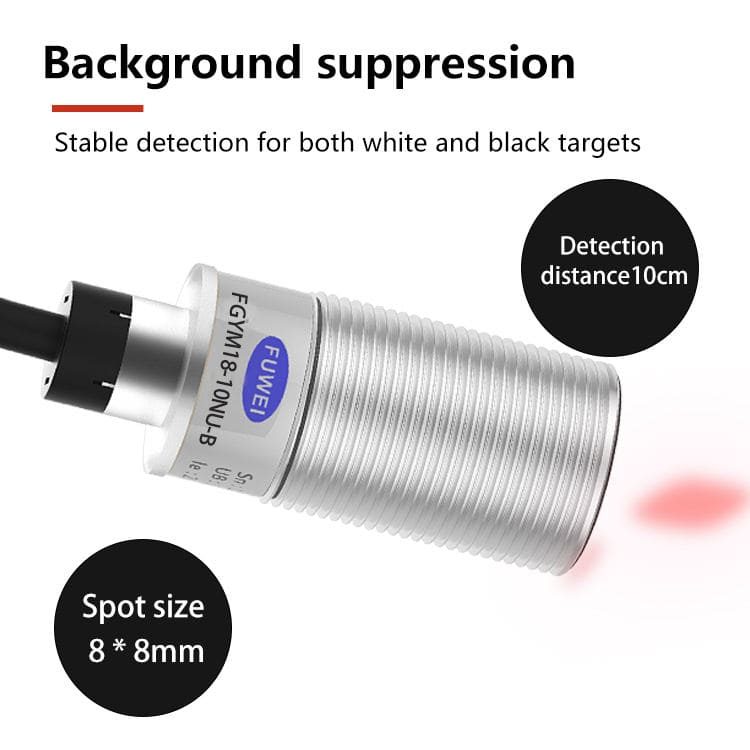

| Detection Distance | 10cm (Non adjustable) |
| Light Source | Red light (660nm) |
| Spot Size | 8×8mm @10cm |
| Response Time | ≤0.5ms |

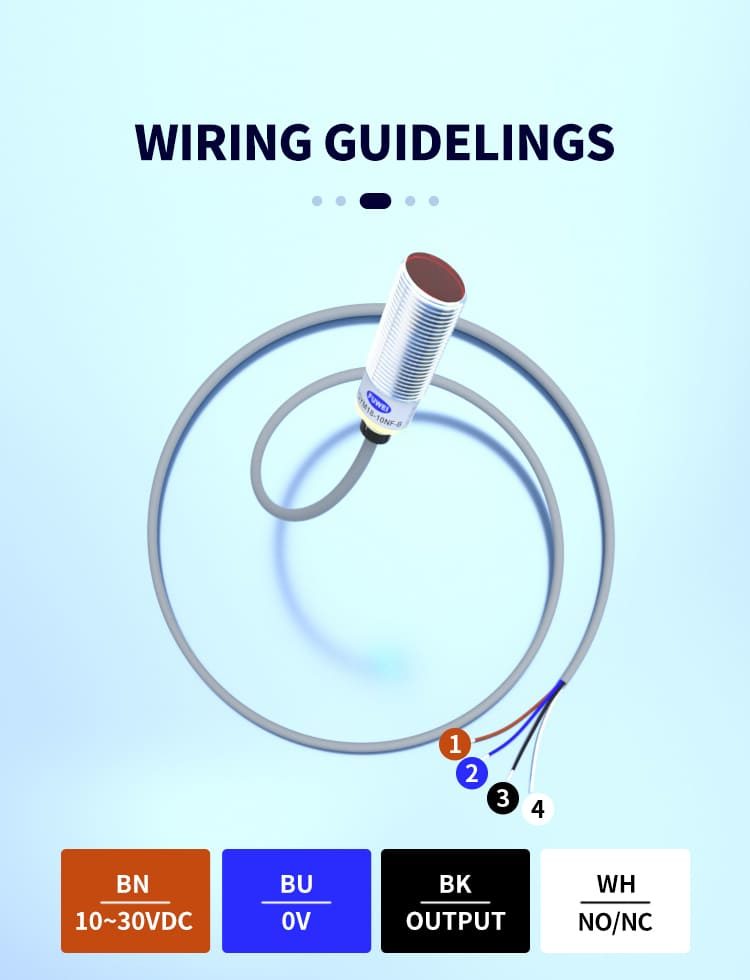

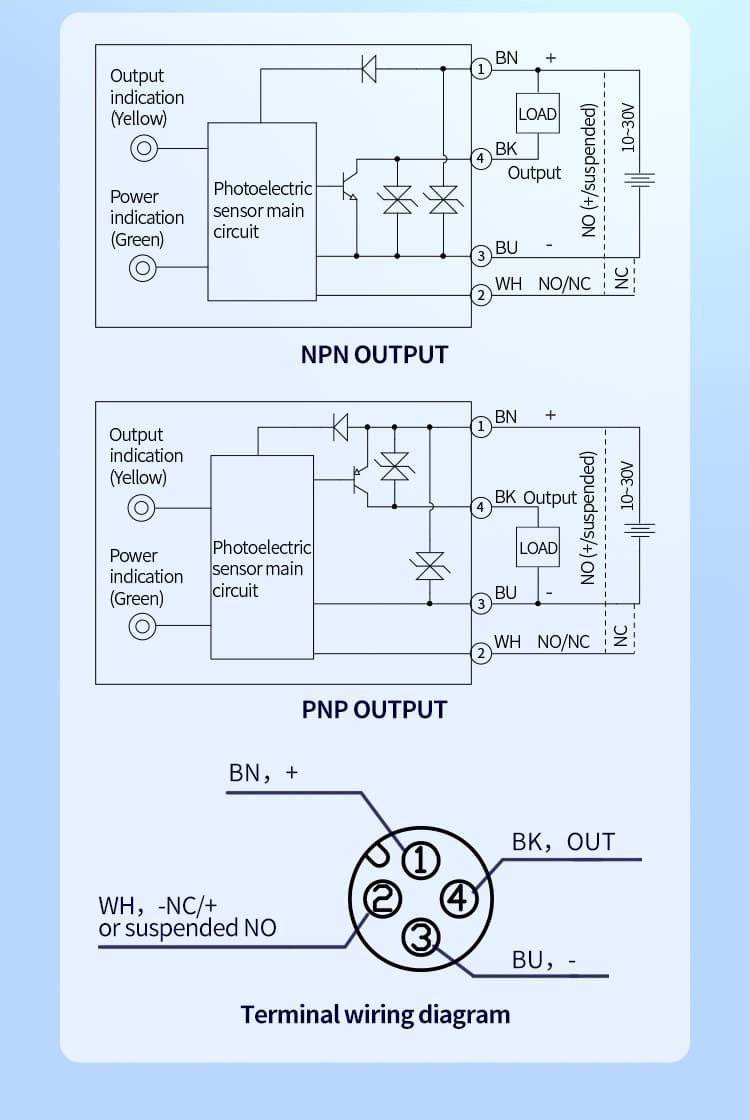

| Output | NPN NO/NC or PNP NP/NC |
| Supply Voltage | 10~30V DC |
| Ambient Temperature | -20℃~55℃ |
| Storage Temperature | 35℃~70℃ |
| Plastic Shell Material | PC+ABS |
| Packaging and Delivery | |
| Selling Units | Single item |
| Single Package Size | 16×13×6 cm |
| Single Gross Weight | 0.065 kg |
