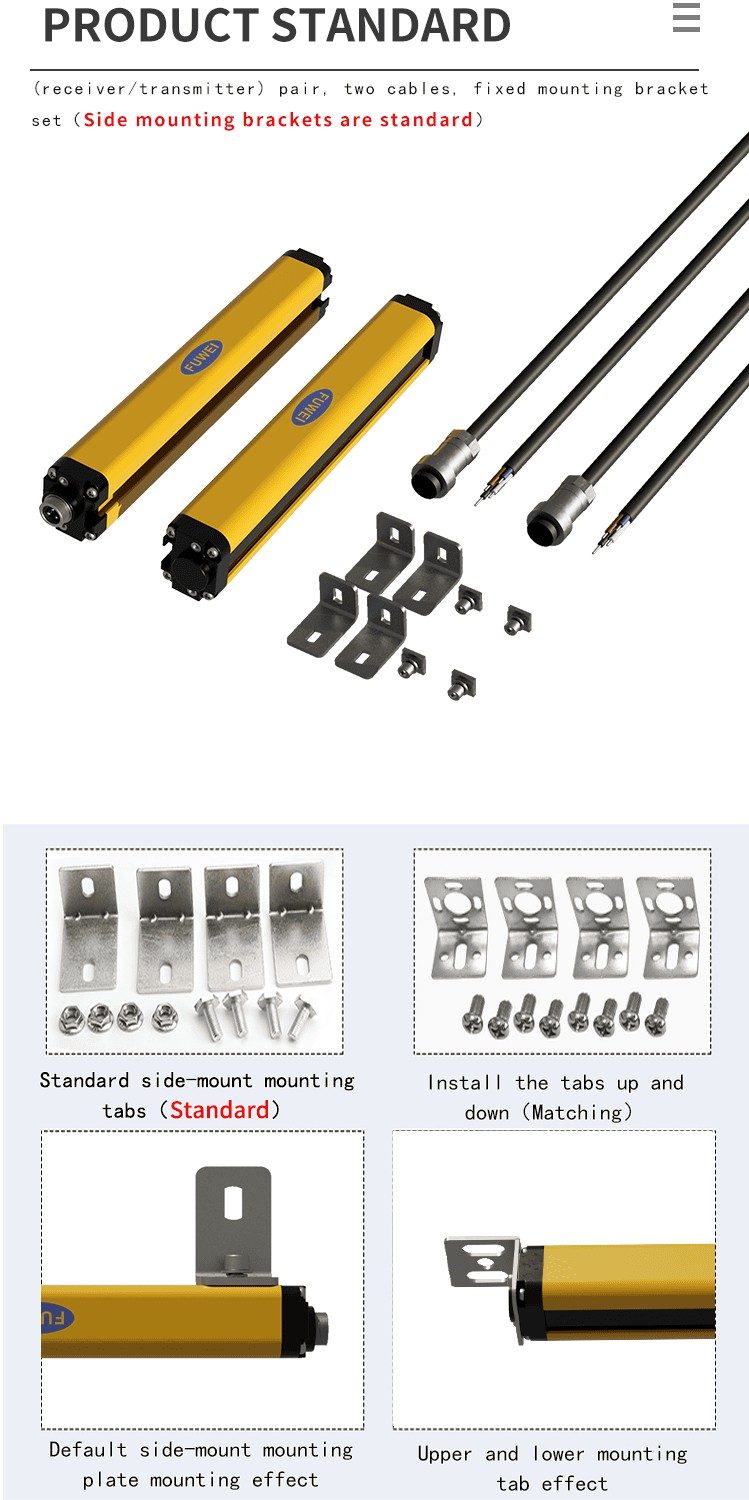

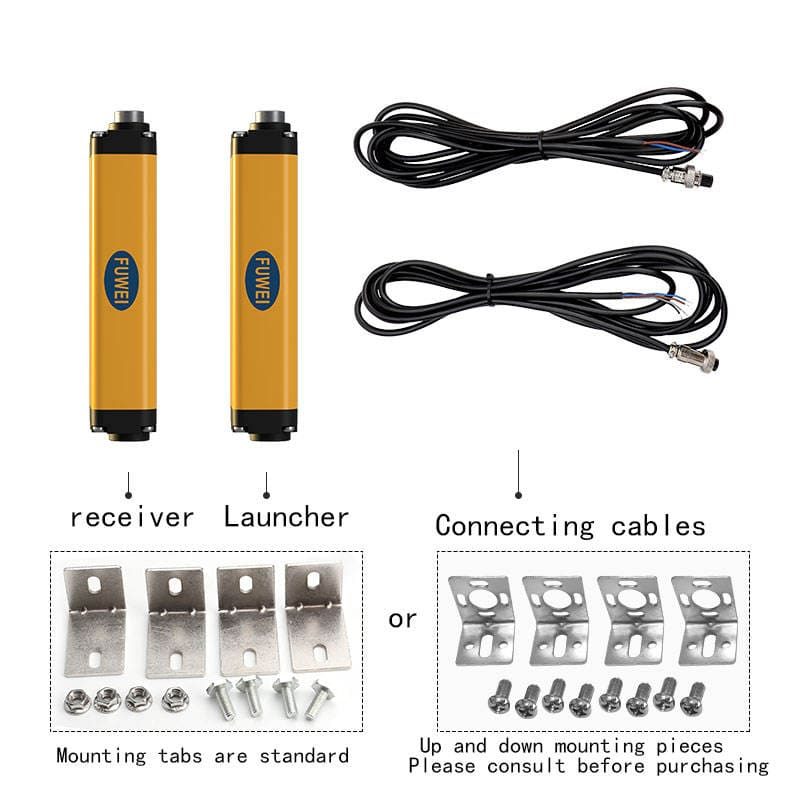

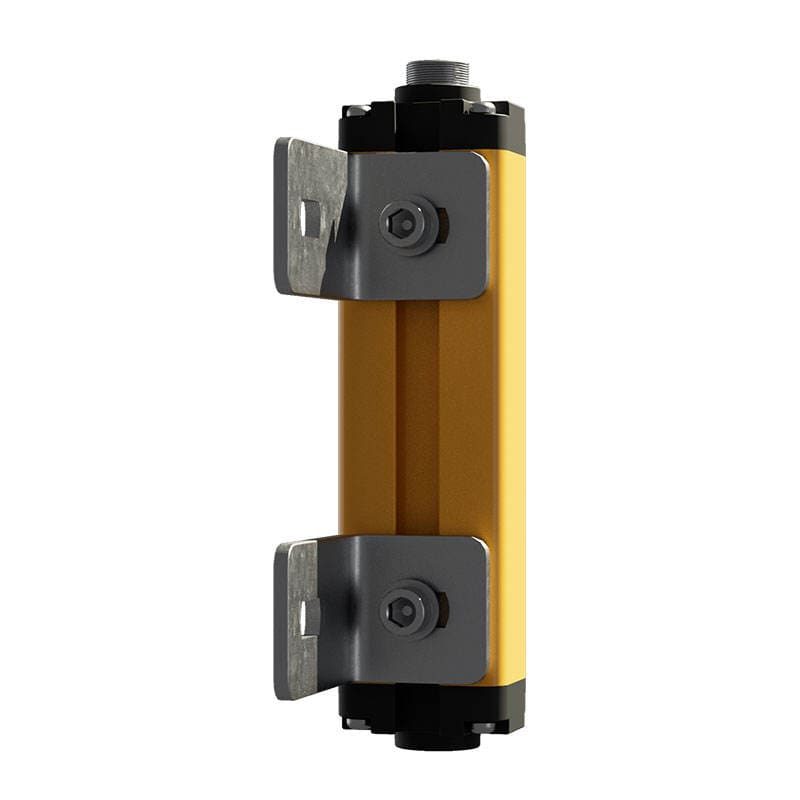

| Mounting Type | Side mounting screws |
| Manufacturing Date Code | 2025 |
| Model Number | FGM-LG 20mm |
| Brand Name | FUWEI |

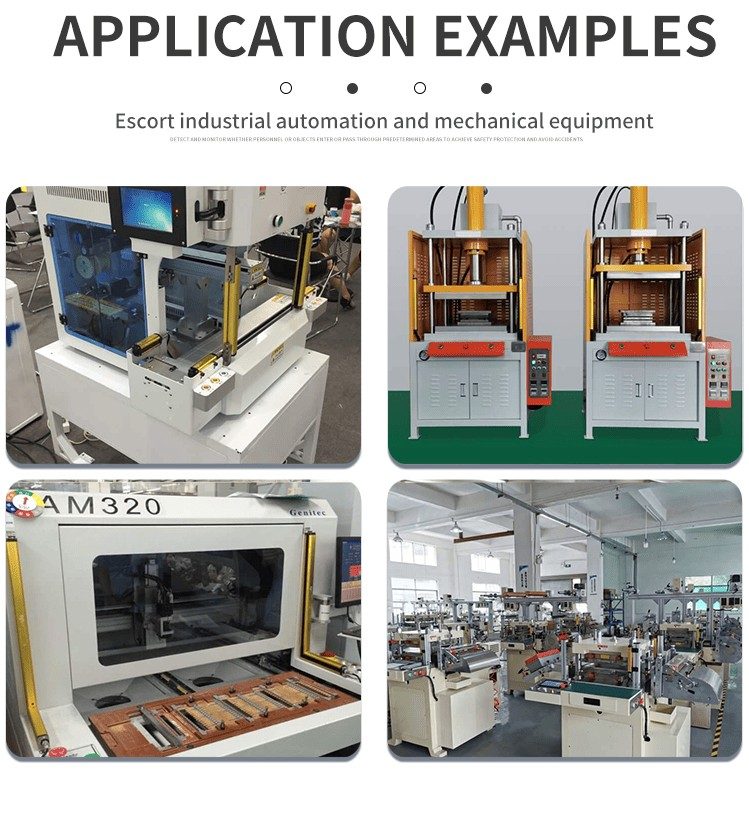

| Usage | Machine safety protection |
| Description | Machine safety protection |

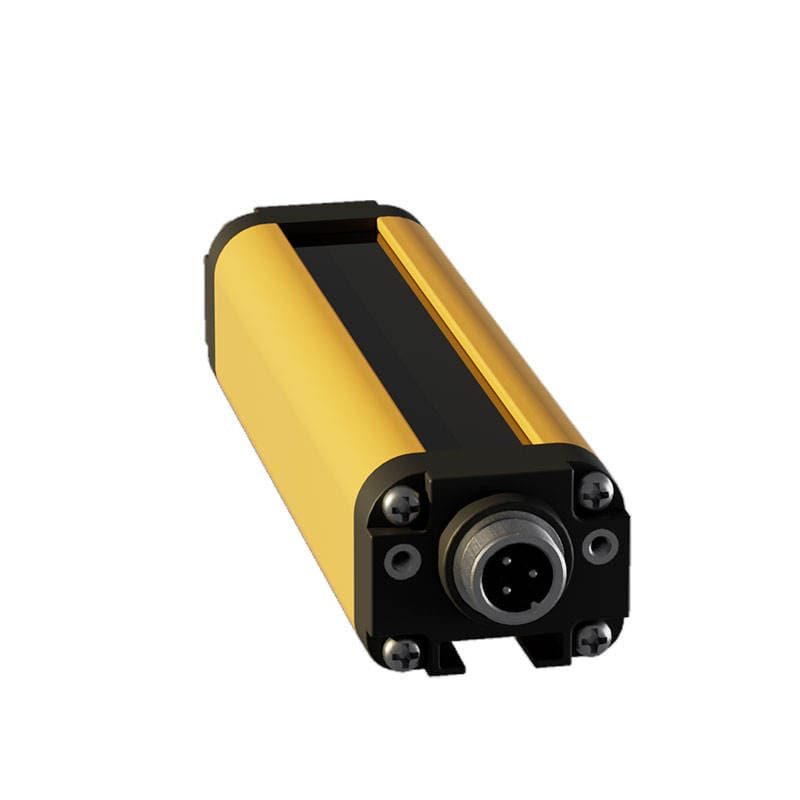

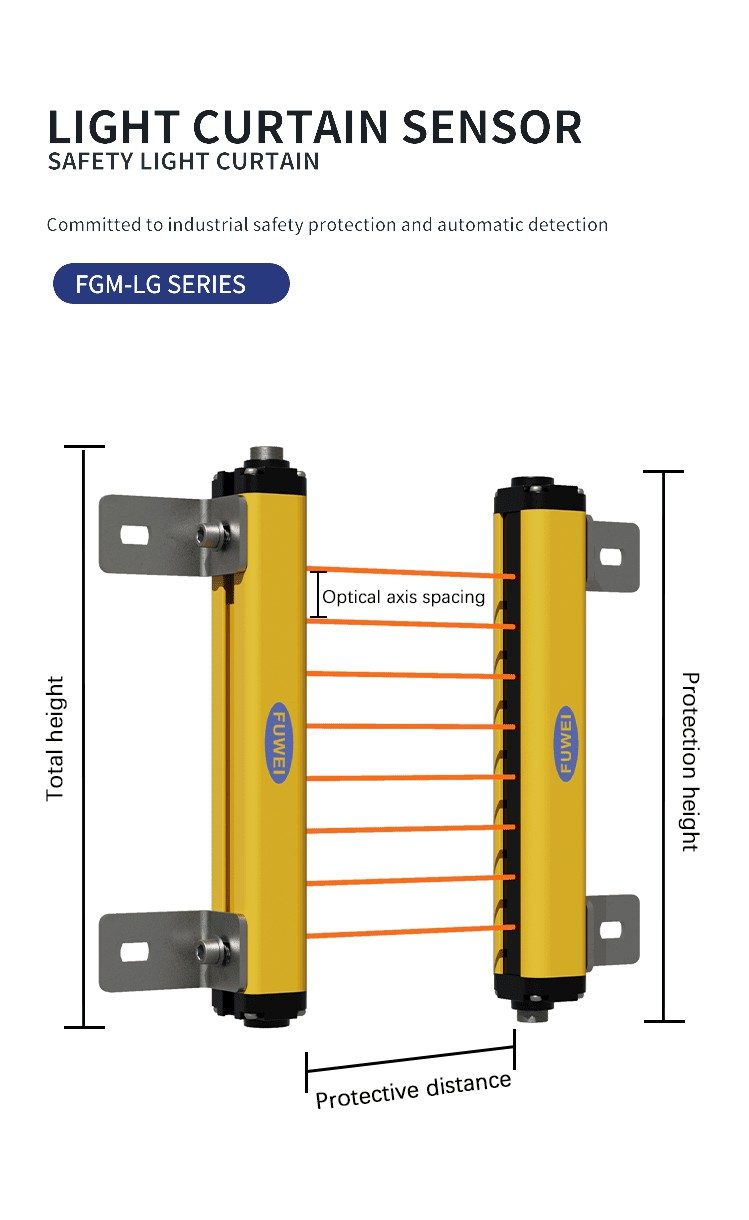

| Type | Infrared Safety Light Sensor |
| Series | FGM-LG series |
| Place of Origin | Guangdong, China |
| Theory | Correlation infrared sensor |

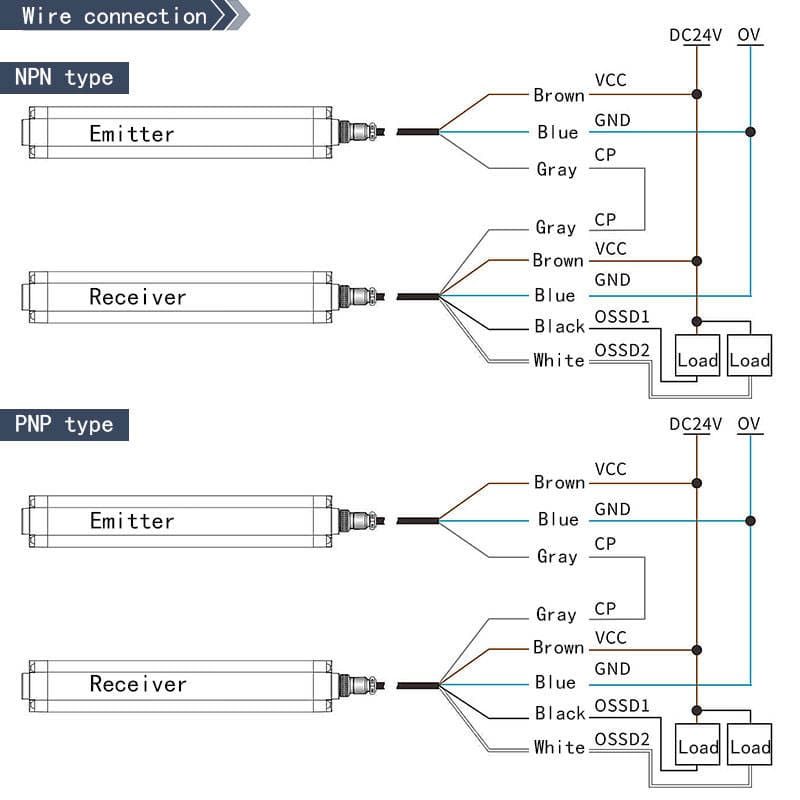

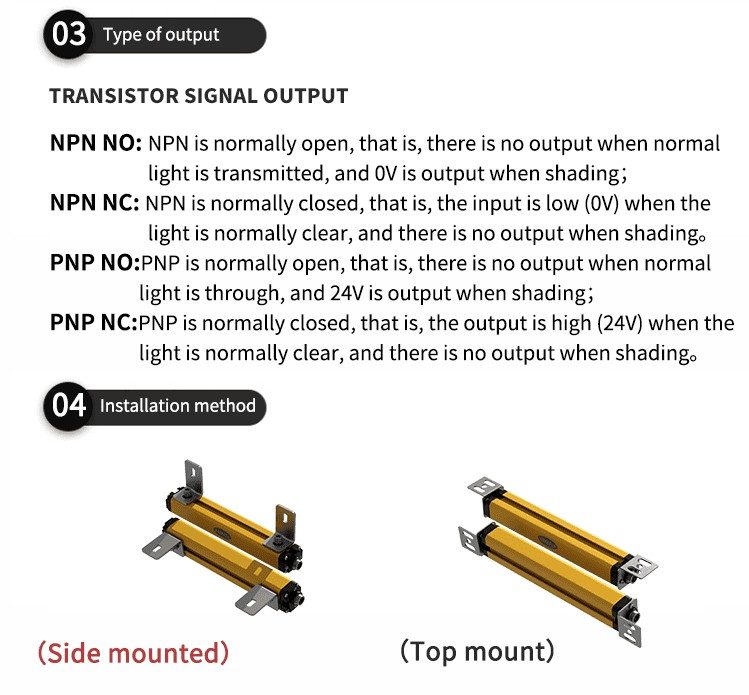

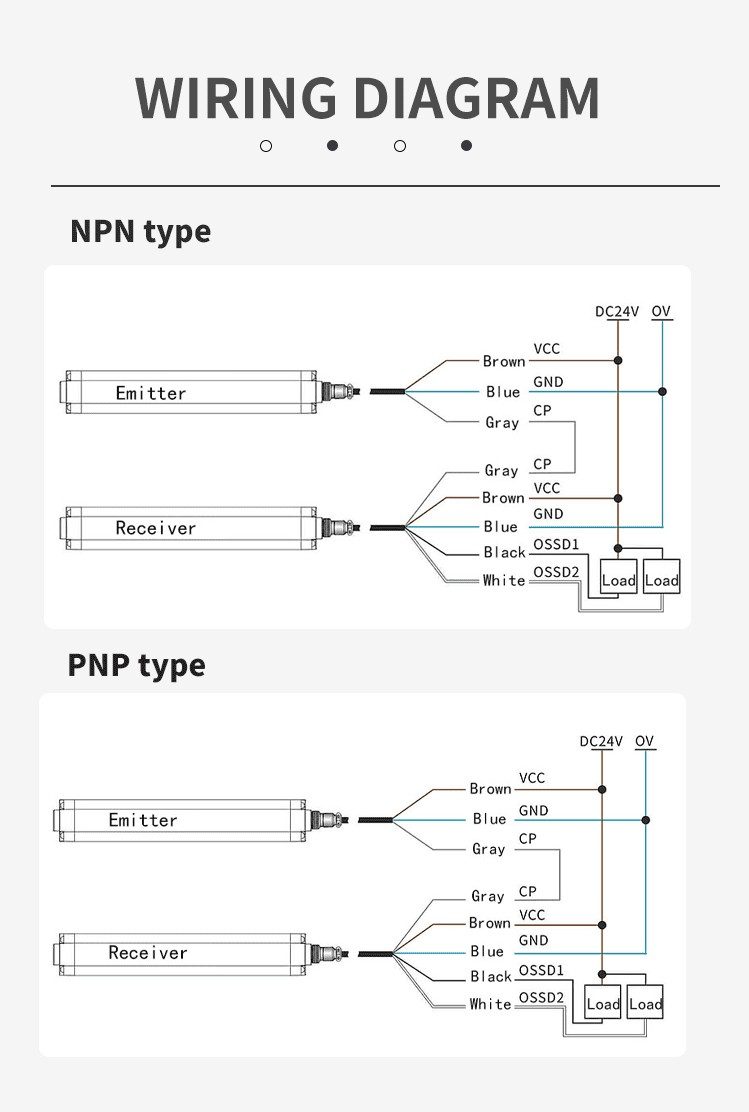

| Output | NPN/PNP |
| Description | Safety light curtain sensors |
| Power supply | DC10-30V |

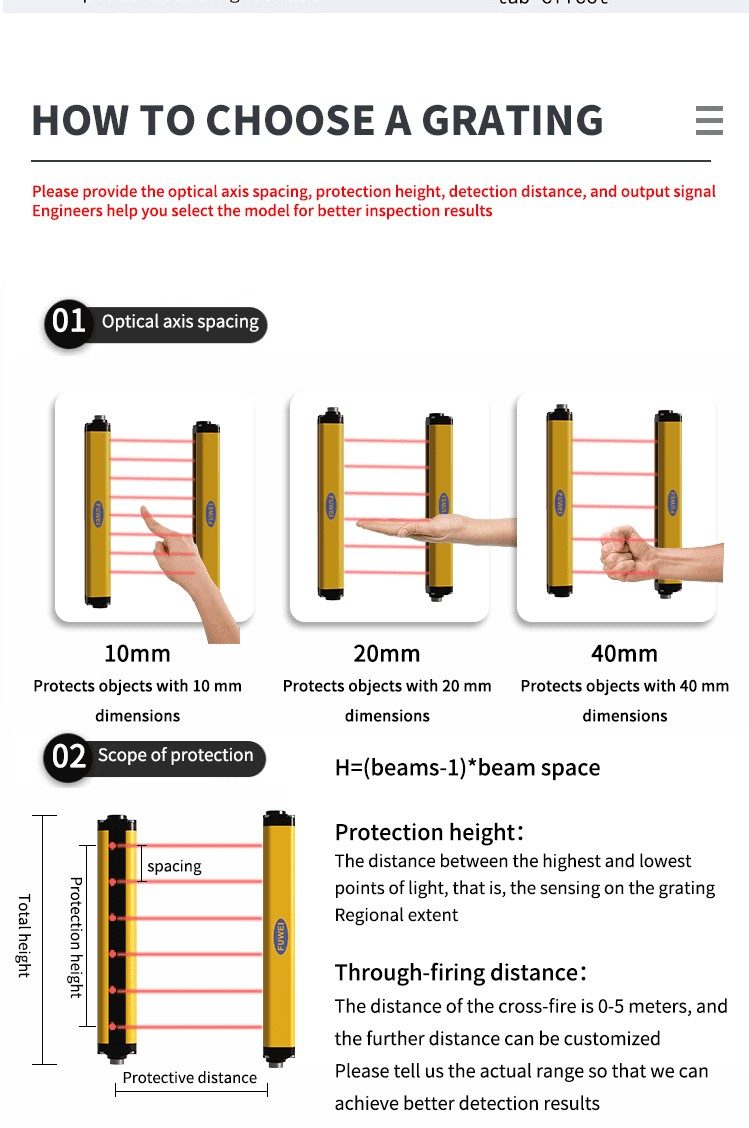

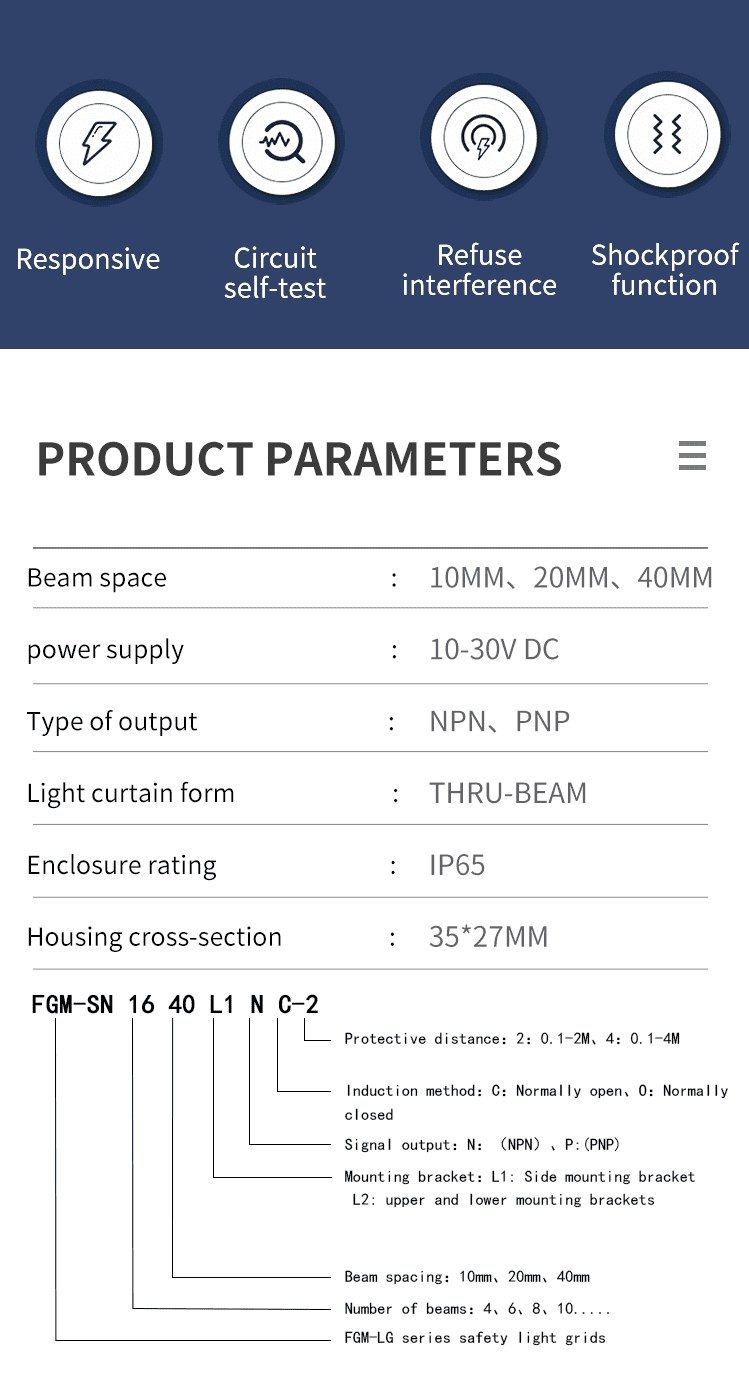

| Beam space | 10mm / 20mm / 40mm |
| Resolution | 20mm / 30mm / 50mm |
| Sensing distance | 0.1 ~ 2m |
| Anti-optical interference | 10000 Lux (angle > 5°) |

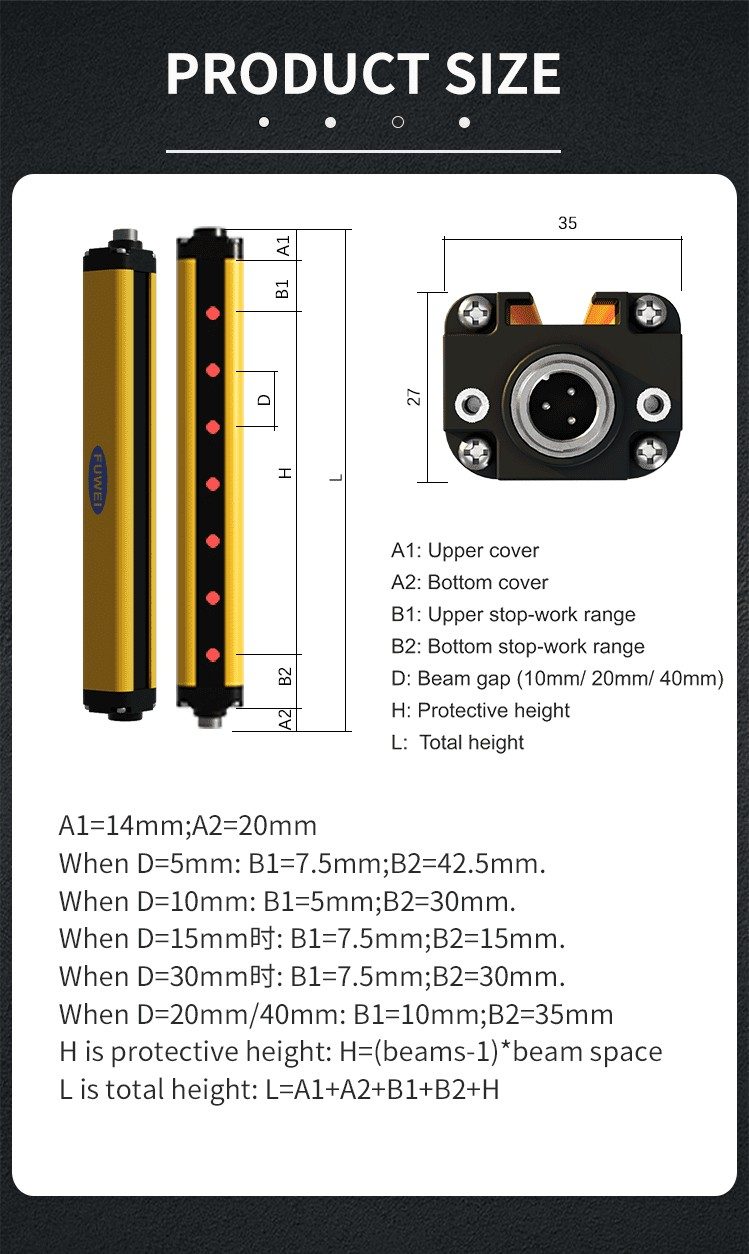

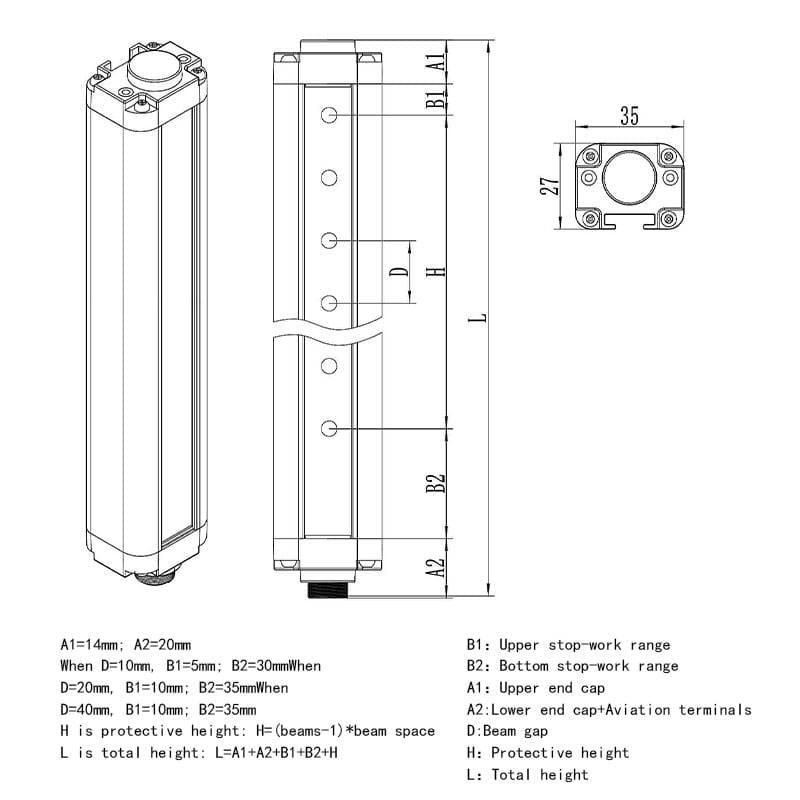

| Housing cross-section | 35 × 27mm |

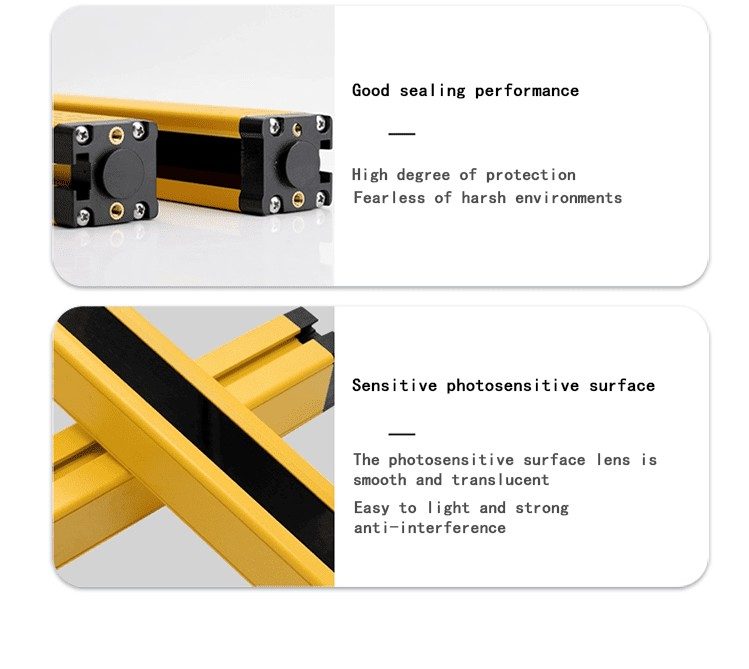

| Enclosure rating | IP65 |
| Ambient operating temperature | -10°C ~ 55°C (no freezing) |
| Packaging and Delivery |
| Selling Units | Single item |
| Single package size | 34 × 12 × 4 cm |
| Single gross weight | 1.170 kg |
