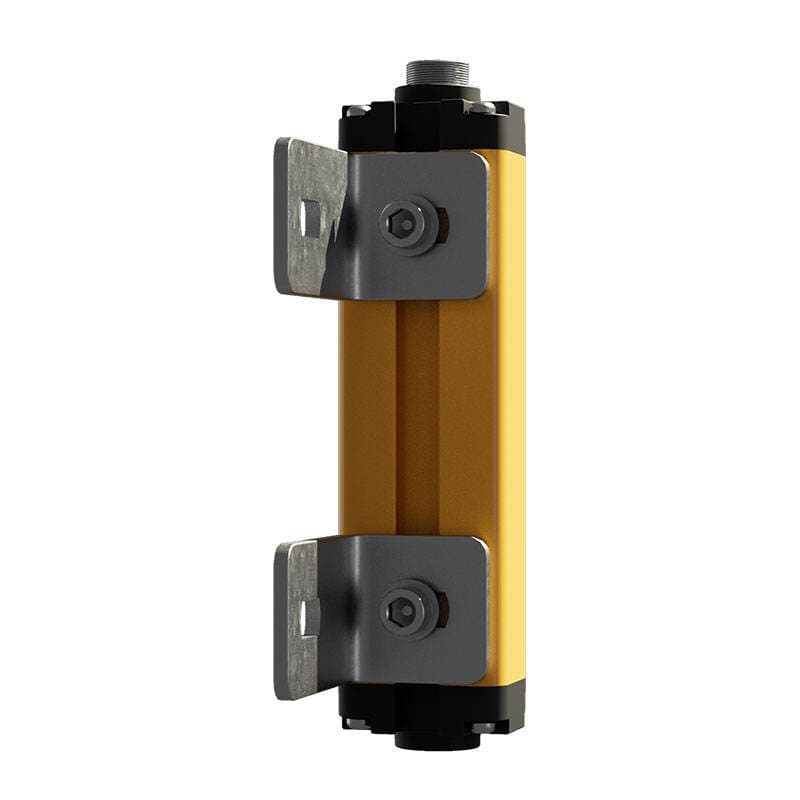

| Mounting Type |
Side mounting |
| Manufacturing Date Code |
2024 |
| Model Number |
FGM-LG |
| Brand Name |
FUWEI |
| Usage |

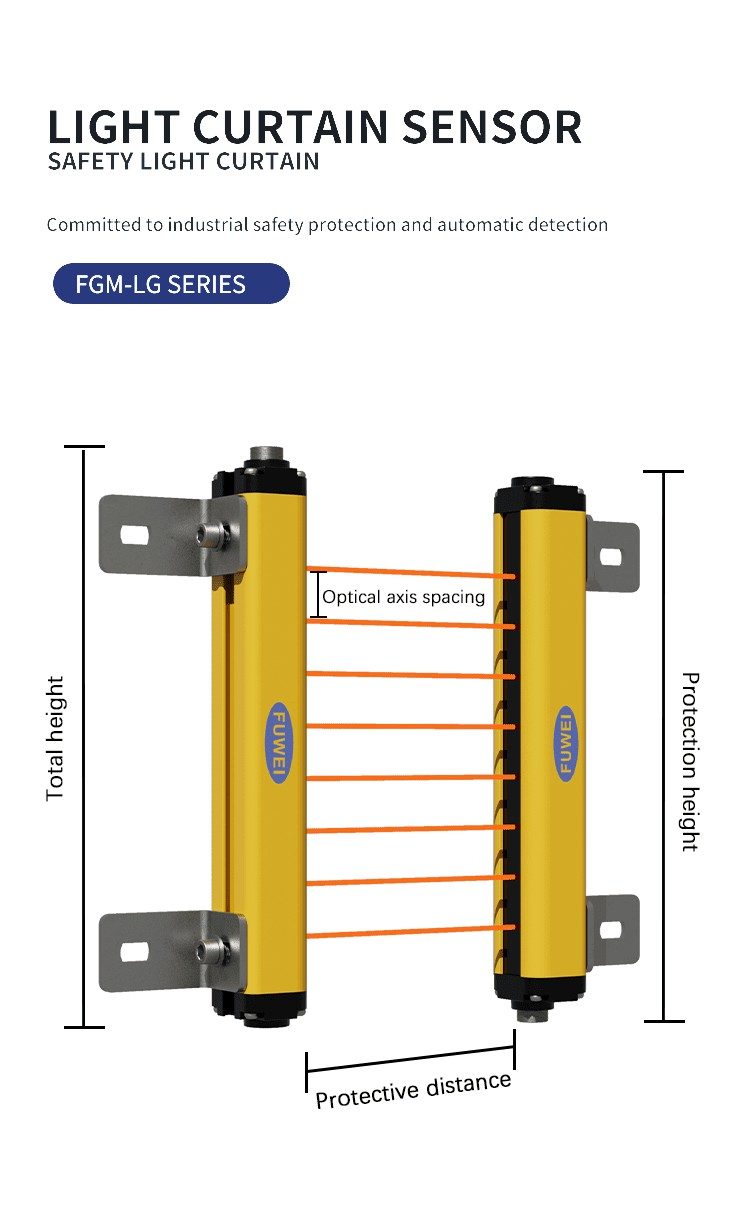

Safety light curtain |
| Description |

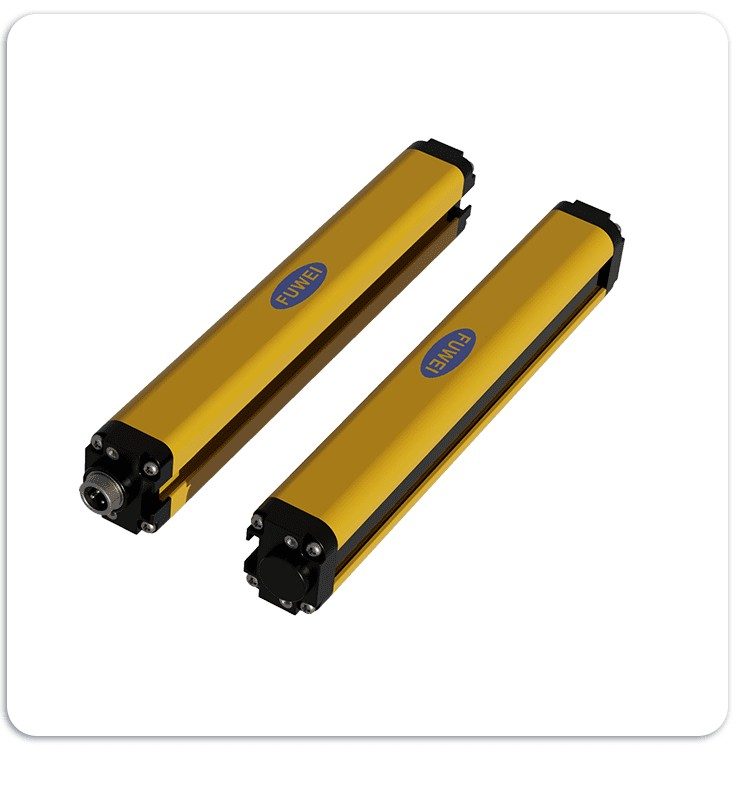

Safety light curtain |
| Type |
Safety light curtain |
| Series |
FGM-LG |
| Place of Origin |
Guangdong, China |
| Theory |
Light curtain |

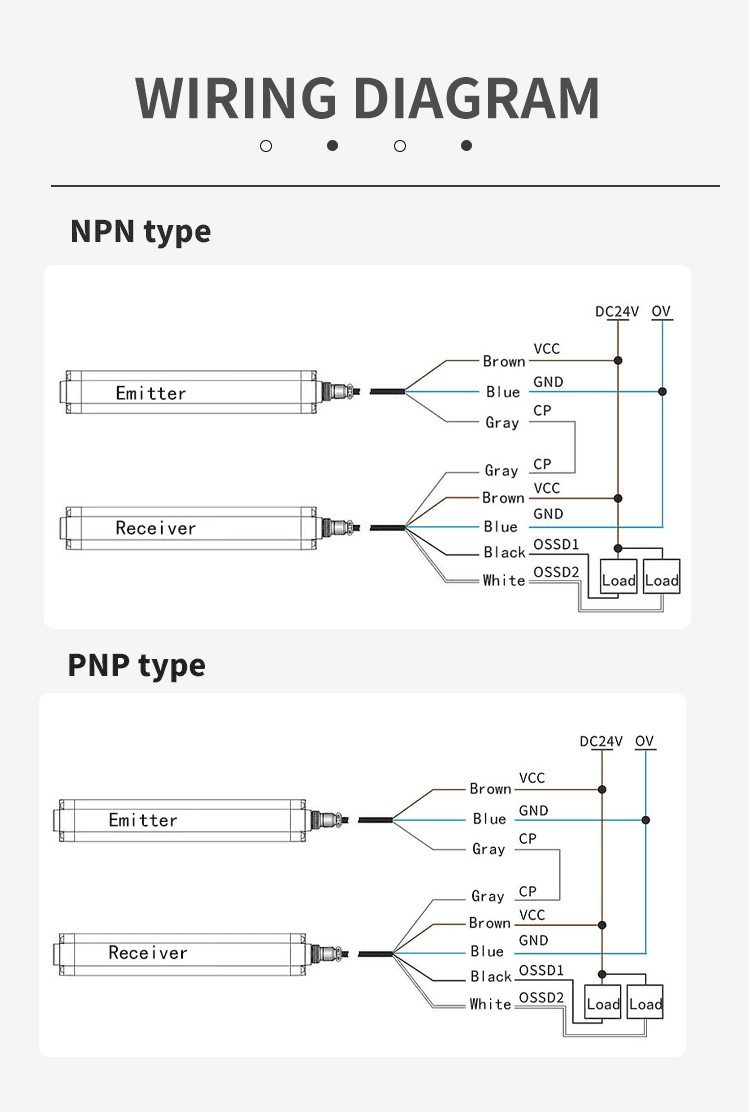

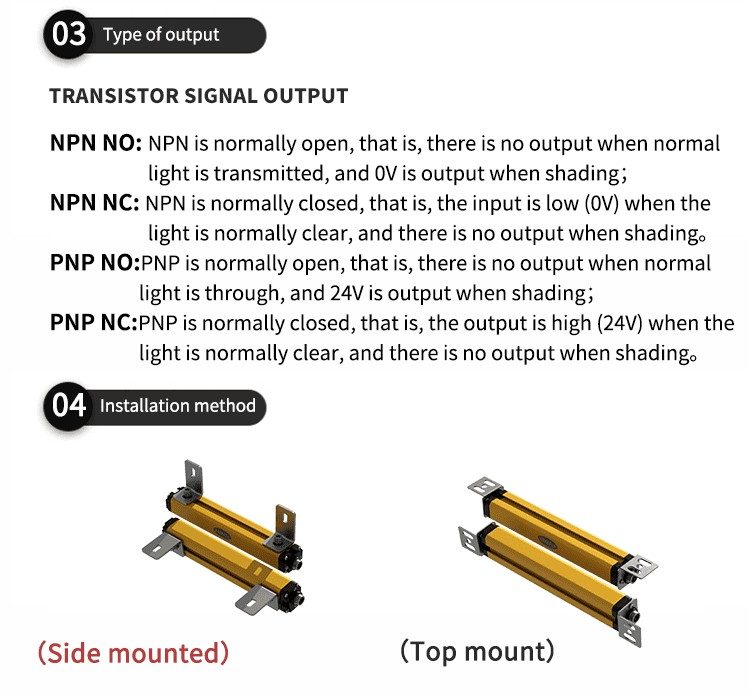

| Output |
NPN/PNP semiconductors, current |
| Description |
Sensor |

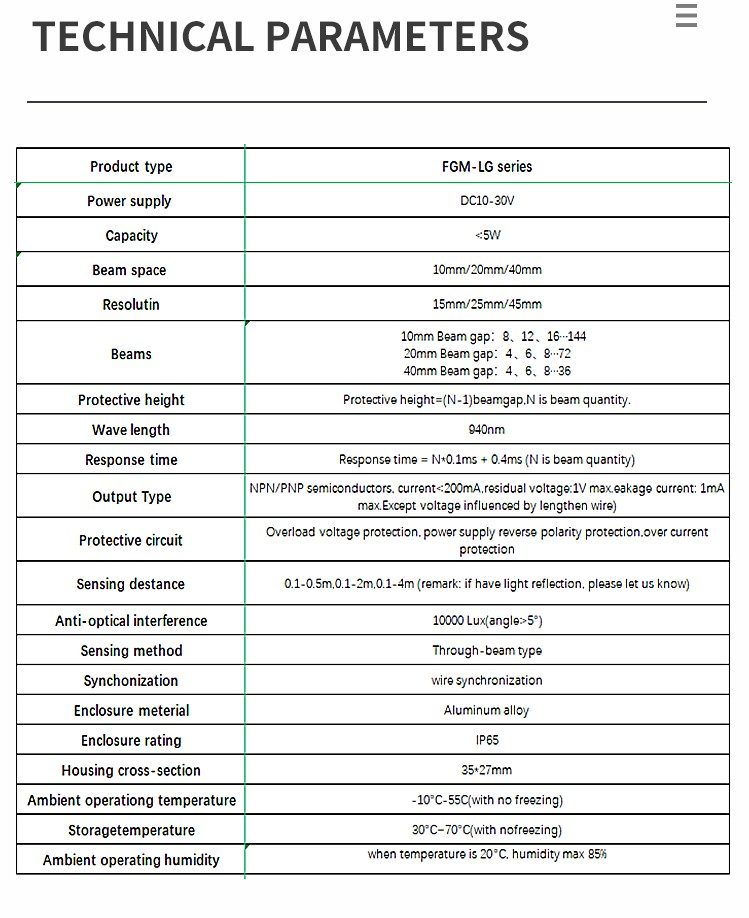

| Product type |
FGM-LG series |
| Power supply |
DC10-30V |
| Capacity |
<5W |

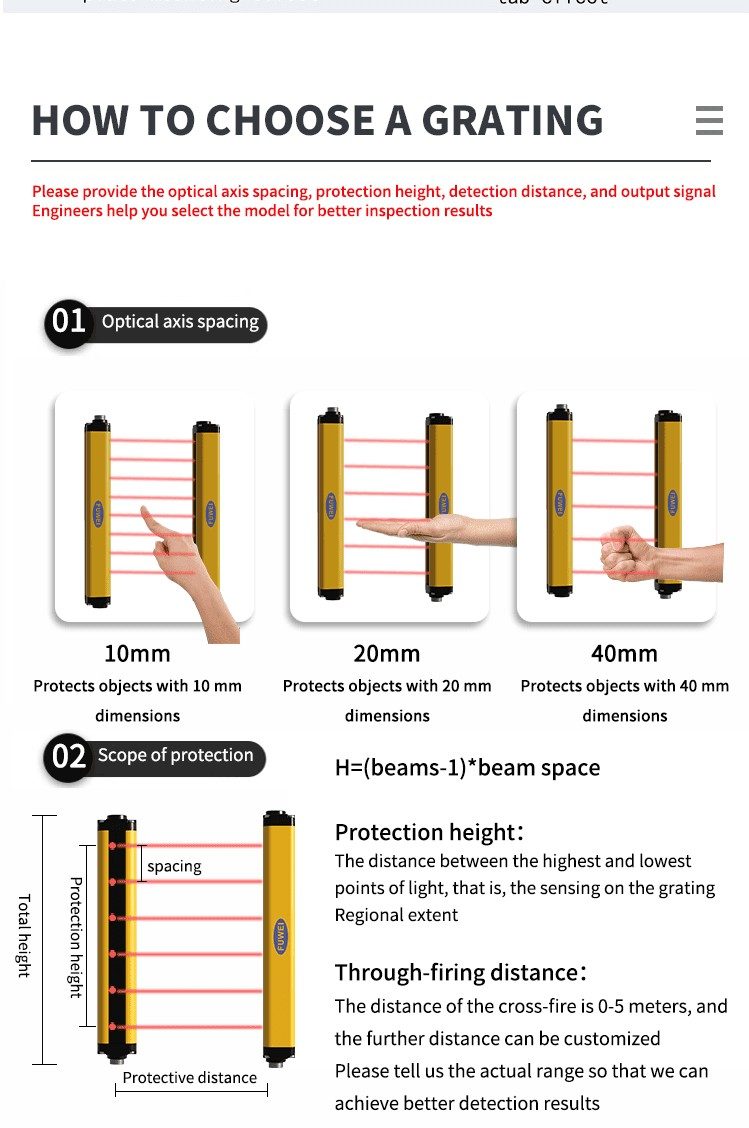

| Beam space |
10mm / 20mm / 40mm |
| Resolution |
15mm / 25mm / 45mm |
| Wave length |
940nm |
| Response time |
Response time = N × 0.1ms + 0.4ms |
| Sensing distance |
0.1–0.5m / 0.1–2m / 0.1–4m |
| Enclosure rating |
IP65 |

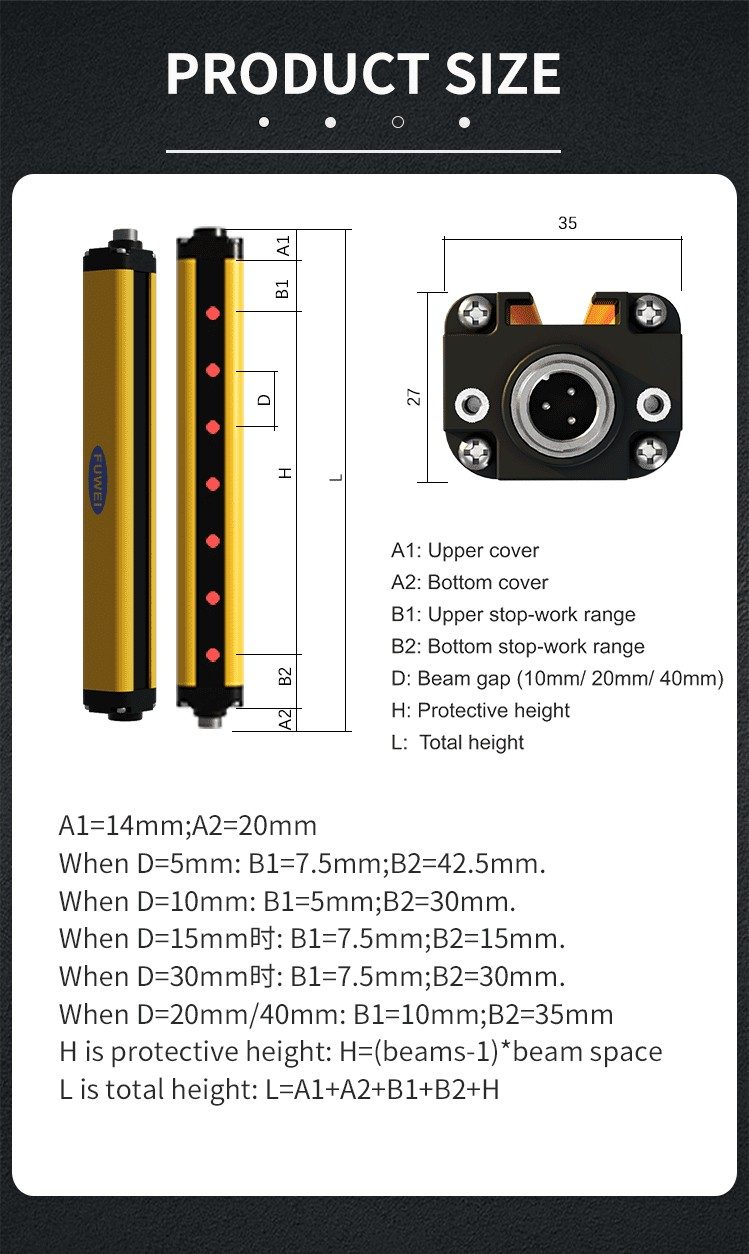

| Housing cross-section |
35 × 27mm |
| Packaging and Delivery |
| Selling Units |
Single item |
| Single package size |
30 × 30 × 30 cm |
| Single gross weight |
2.000 kg |
