| Key Attributes | |
|---|---|
| Mounting Type | Side mounting screws |
| Manufacturing Date Code | 2024 |

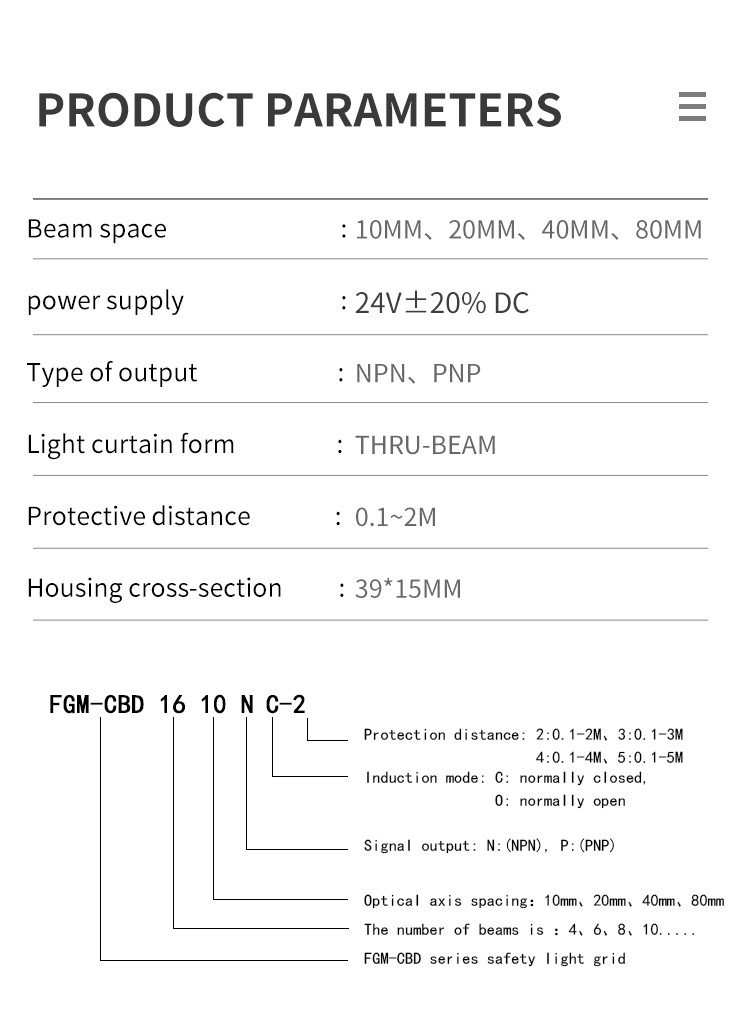

| Model Number | FGM-CBD15-0440-NC-2 |
| Brand Name | FUWEI |

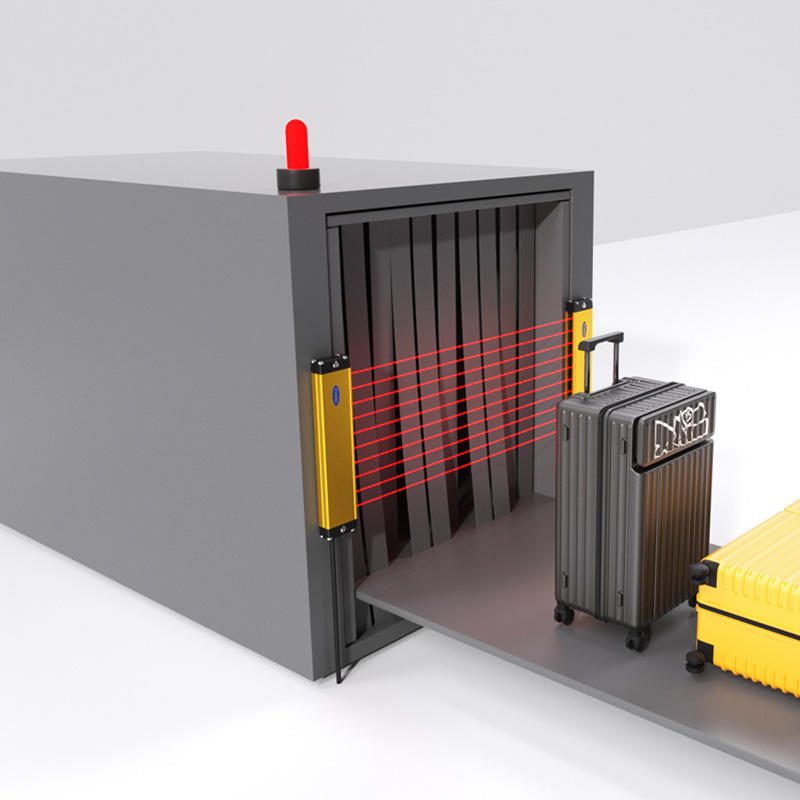

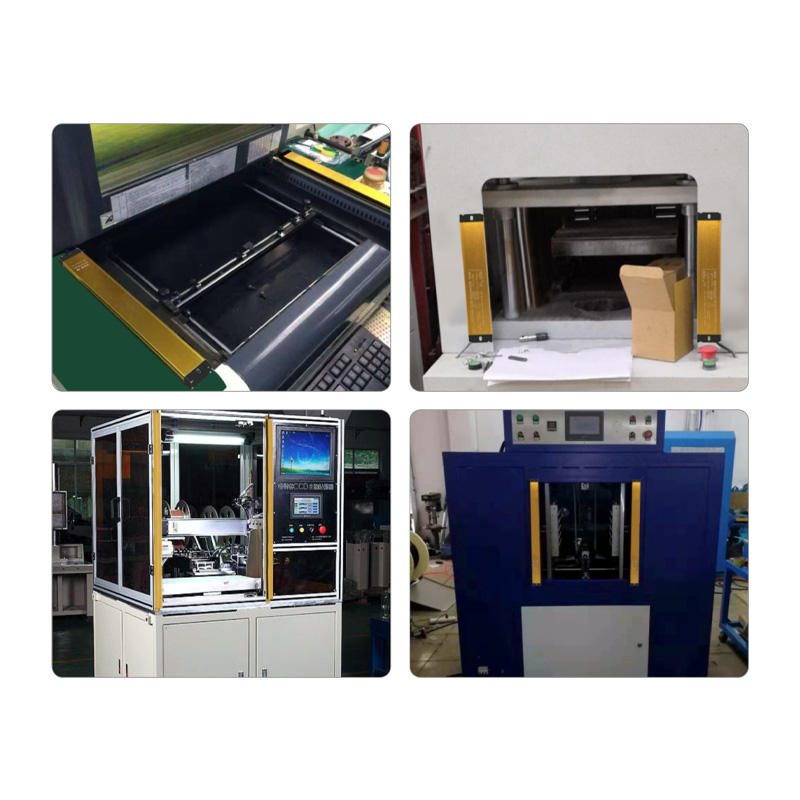

| Usage | Machine safety protection |
| Description | Machine safety protection |

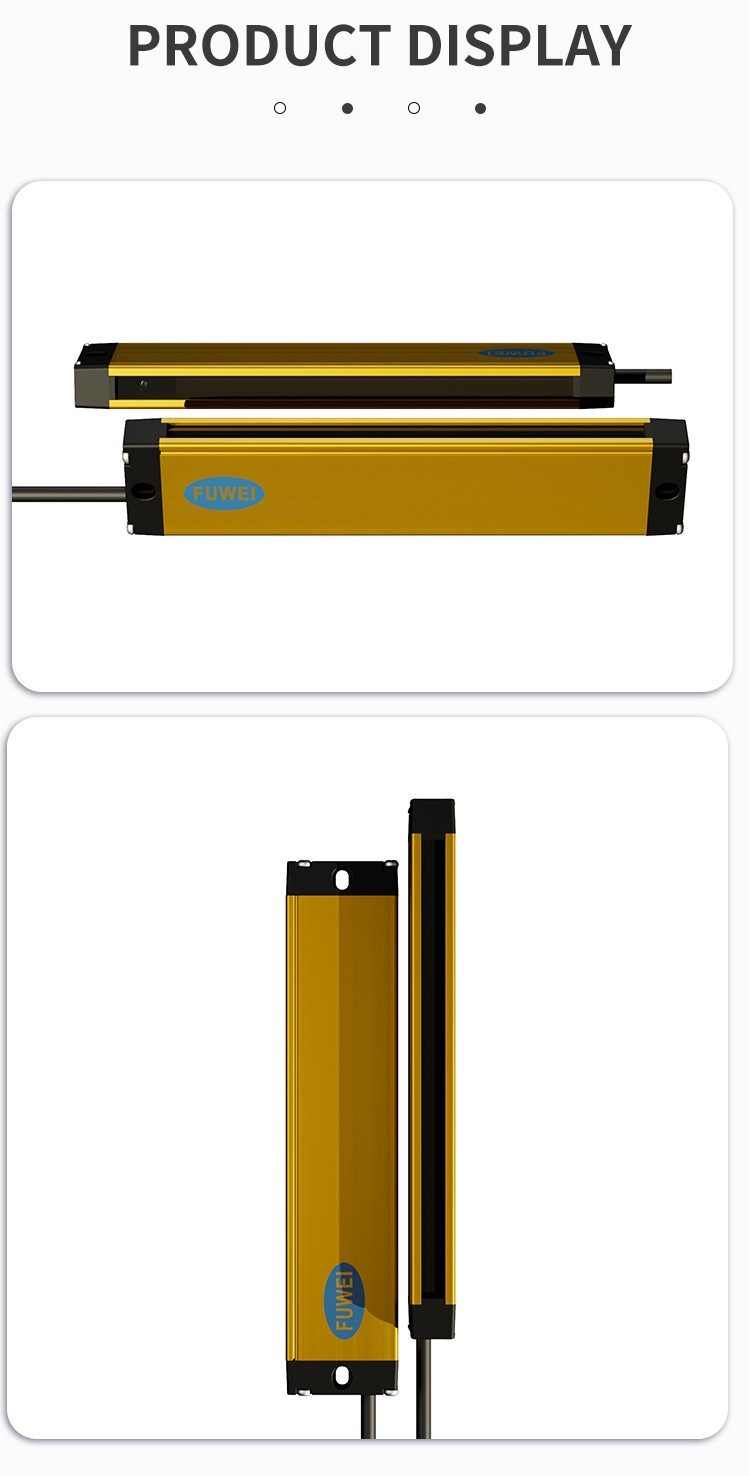

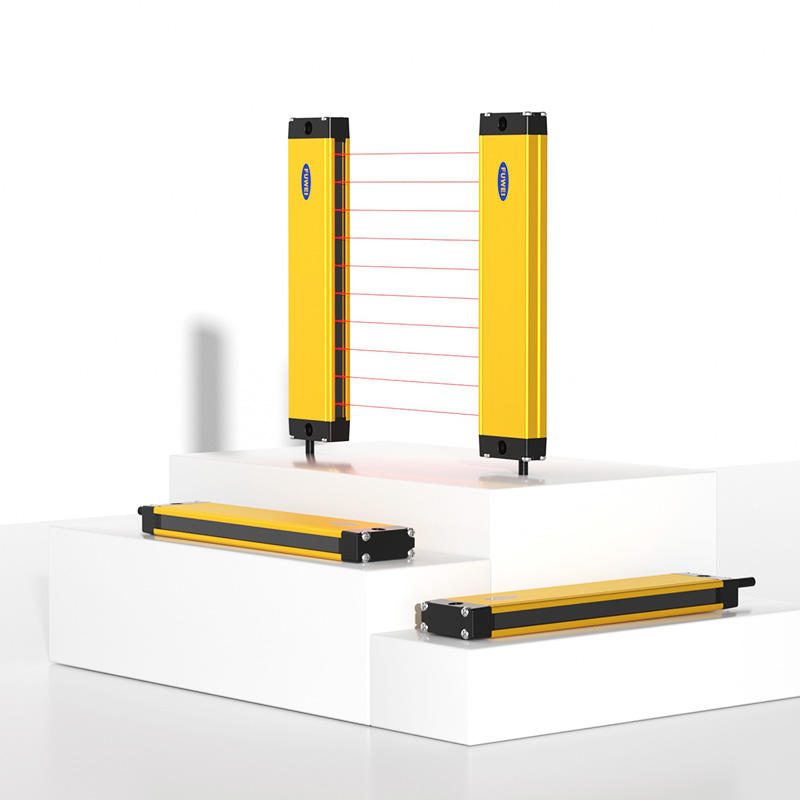

| Type | Infrared Safety Light Sensor |
| Series | FGM-CBD15-0440-NC-2 |
| Place of Origin | Guangdong, China |
| Theory | Correlation infrared sensor |

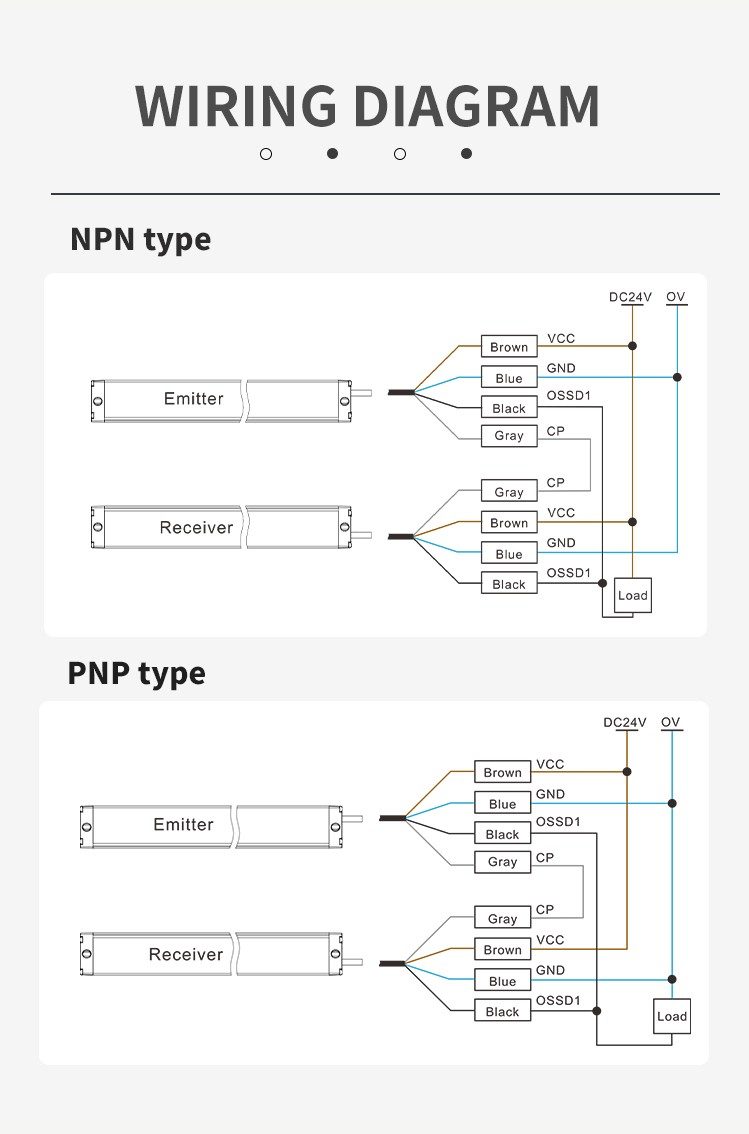

| Output | NPN/PNP |
| Description | Safety light curtain sensors |
| Power supply | DC10-30V |

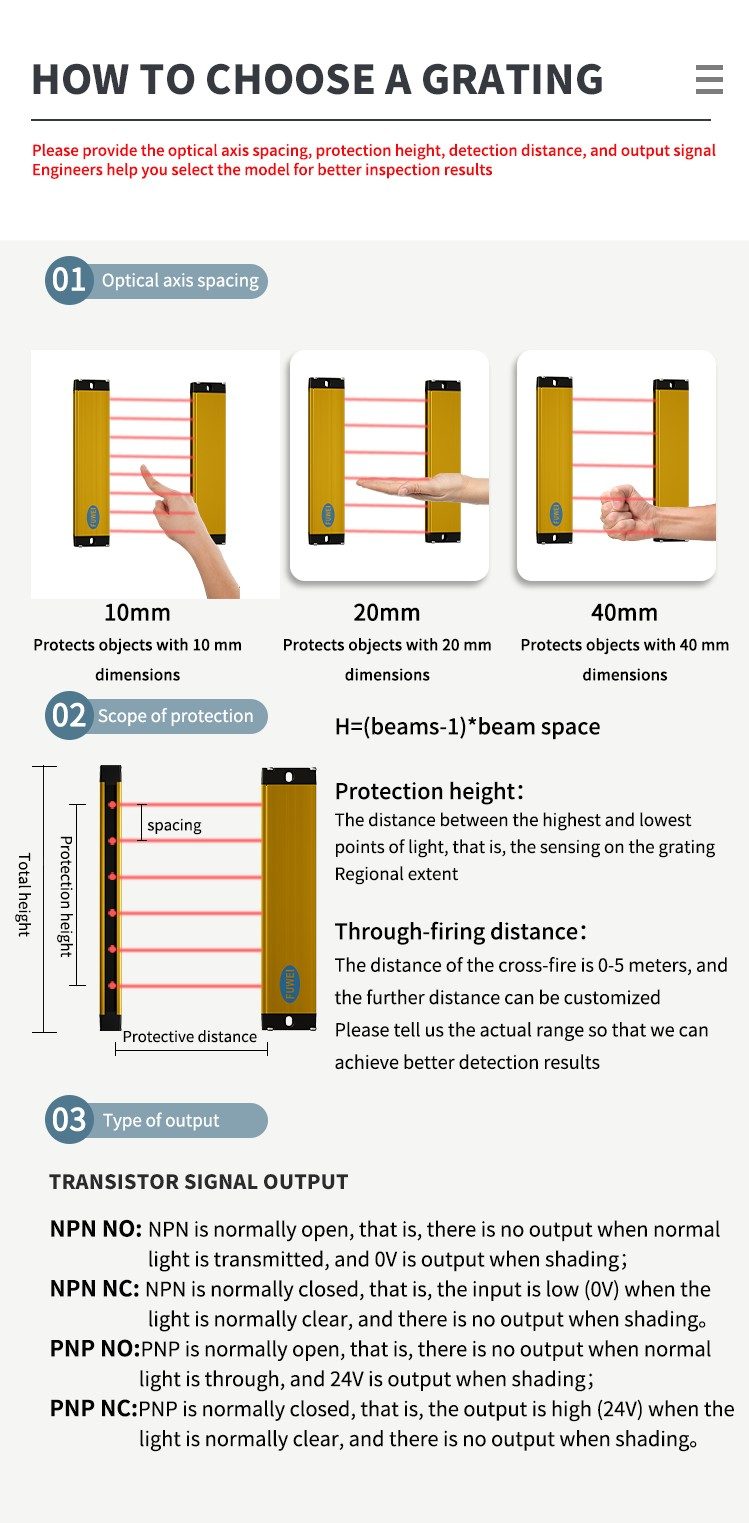

| Beam space | 10mm/20mm/40mm |
| Resolution | 20mm/30mm/45mm |
| Sensing distance | 0.1~2m |
| Anti-optical interference | 10000 Lux (angle > 5°) |

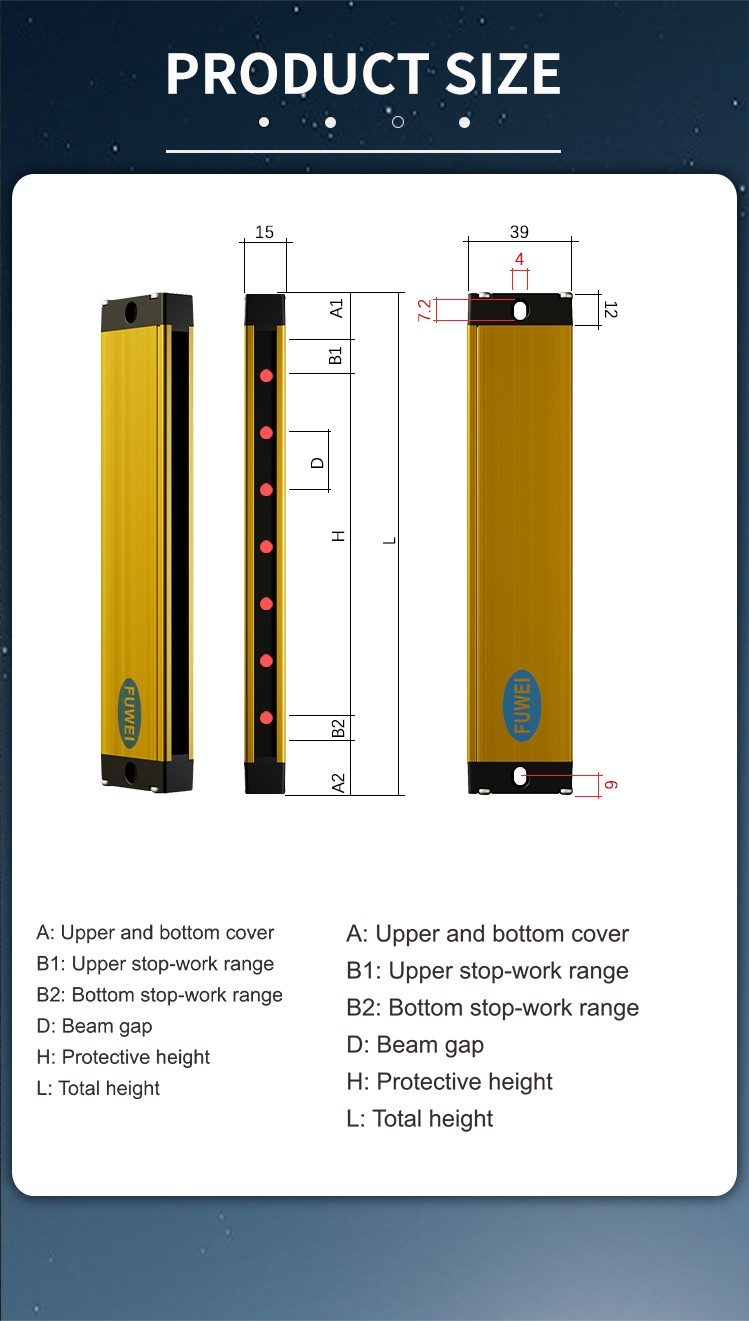

| Housing cross-section | 35*15mm |
| Enclosure rating | IP65 |
| Ambient operating temperature | -10°C ~ 55°C (no freezing) |
| Packaging and Delivery | |
| Selling Units | Single item |
| Single package size | 50 × 50 × 20 cm |
| Single gross weight | 2.000 kg |
