| Key Attributes | |
|---|---|

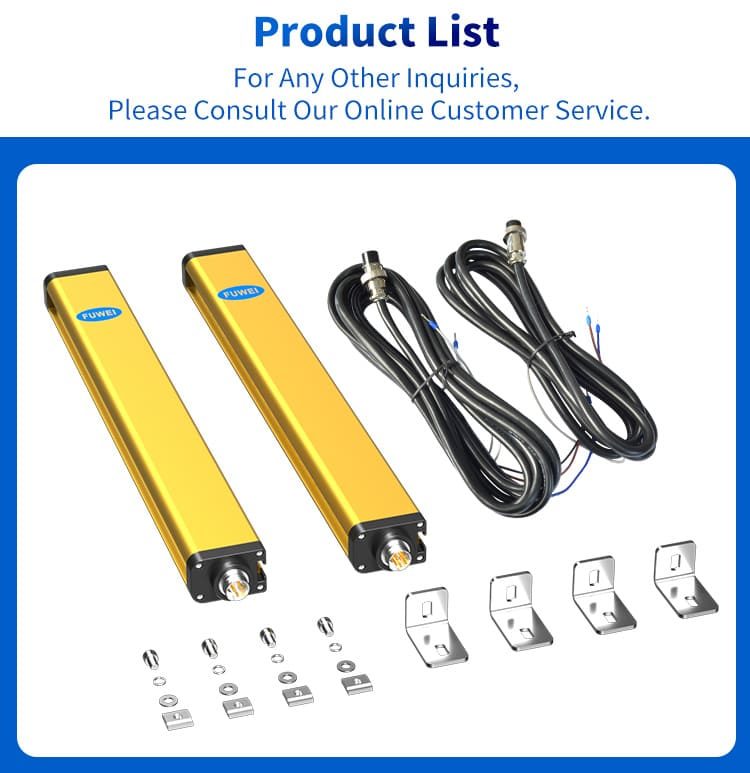

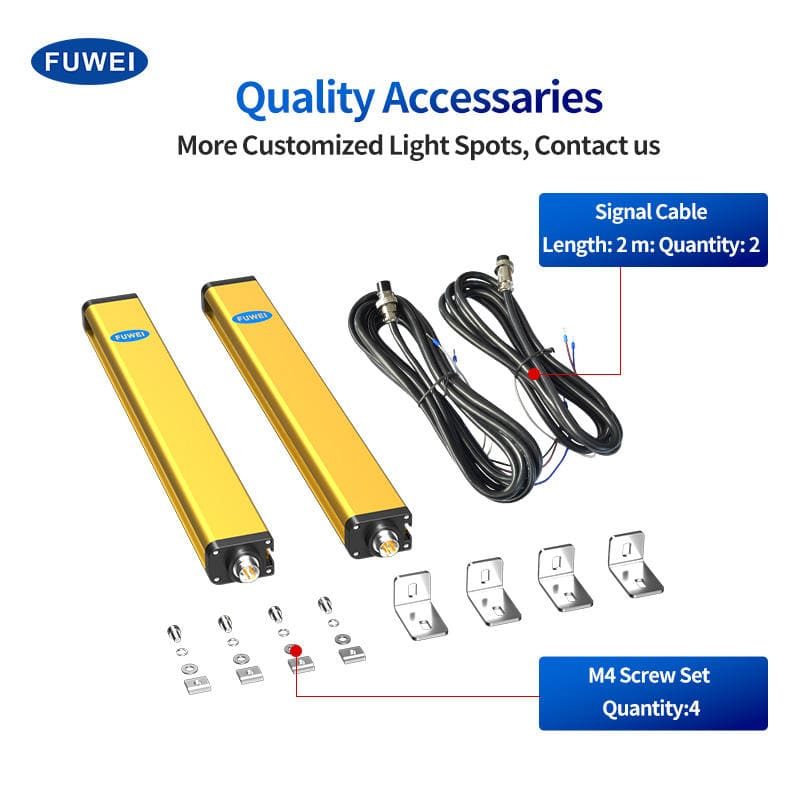

| Mounting Type | Bolt bracket fixing installation |
| Manufacturing Date Code | 2024 |

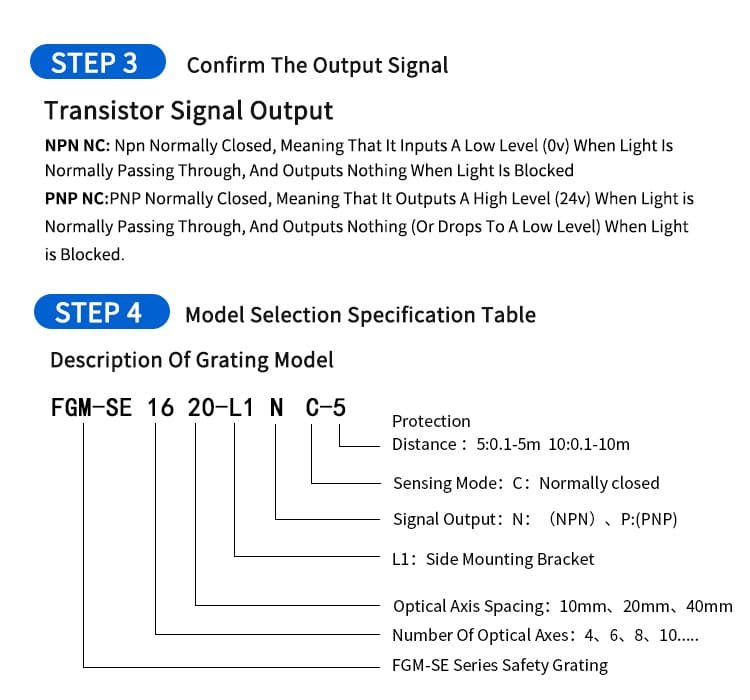

| Model Number | FGM-SE1620-L1PC-5 |
| Brand Name | FUWEI |
| Usage | Safety protection device |
| Description | Safety protection device |
| Type | Photoelectric Sensor |
| Series | FGM-SE1620-L1PC-5 |
| Features | Sensing sensitivity |
| Place of Origin | Guangdong, China |
| Theory | Principles of Infrared Optics |
| Output | NPN |

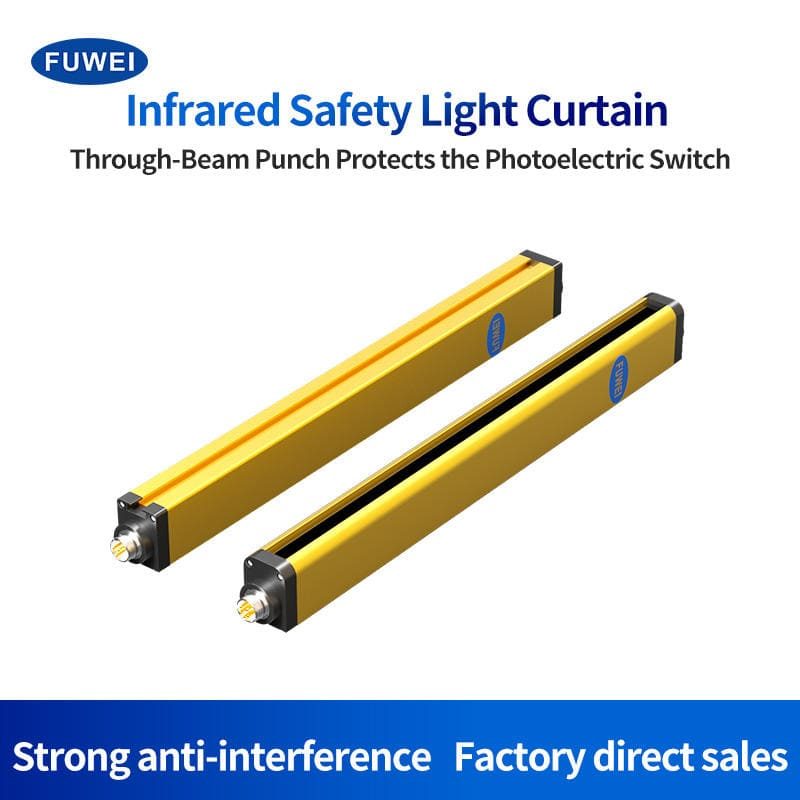

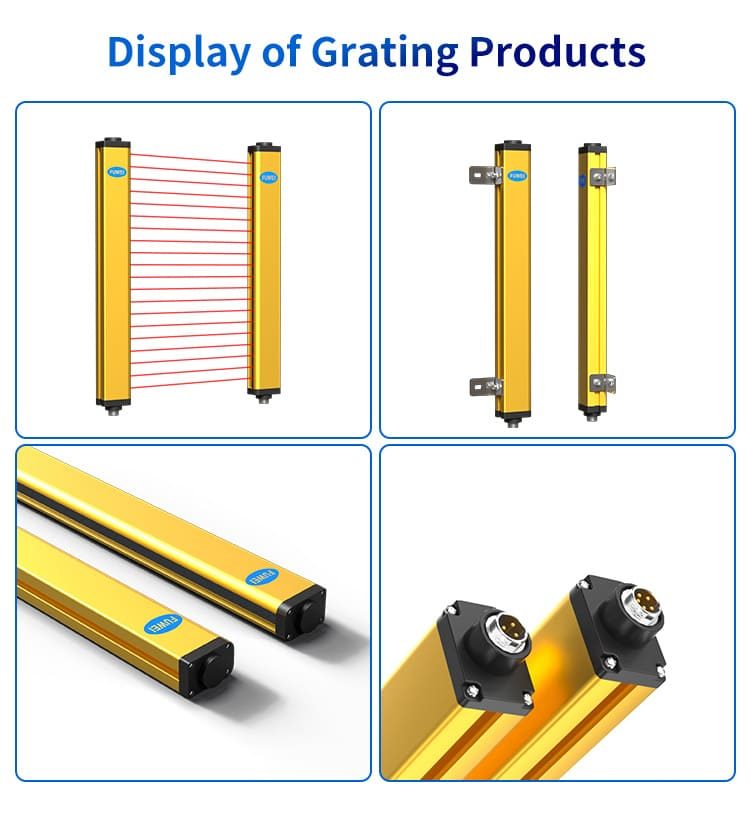

| Description | Safety light curtain |
| Working power supply | DC10V~30V |

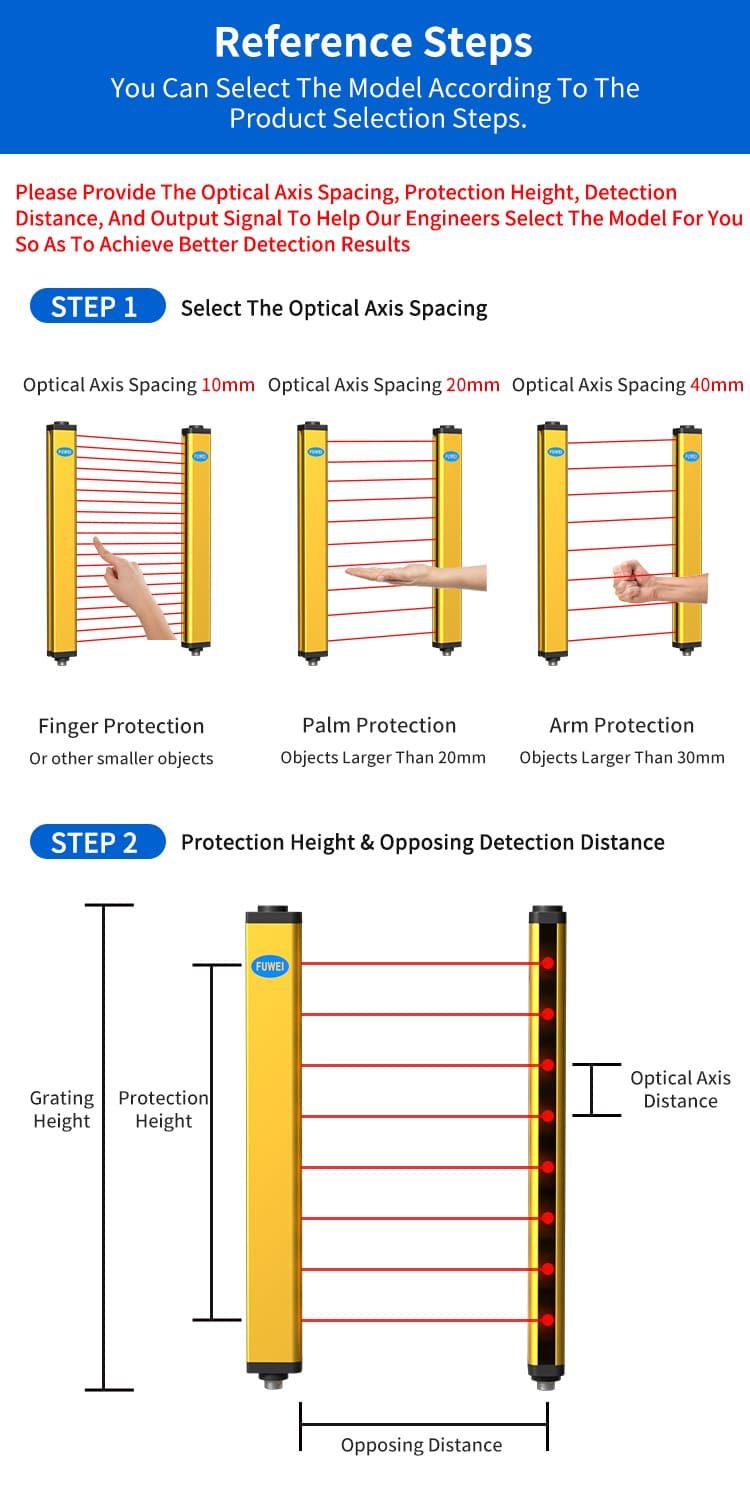

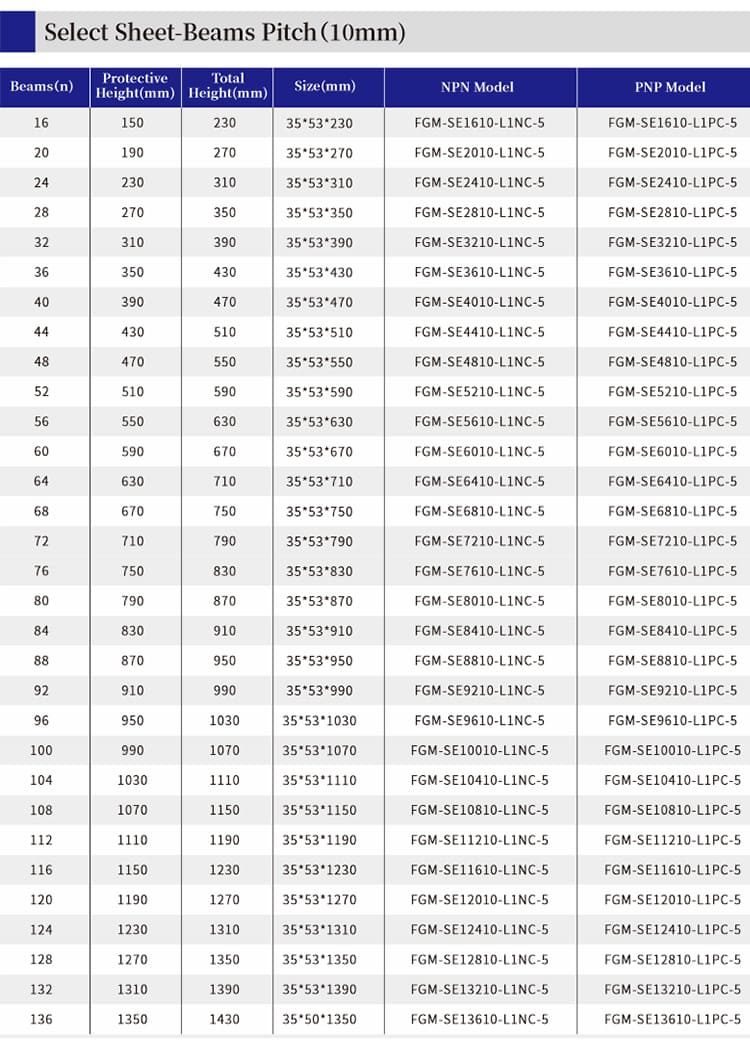

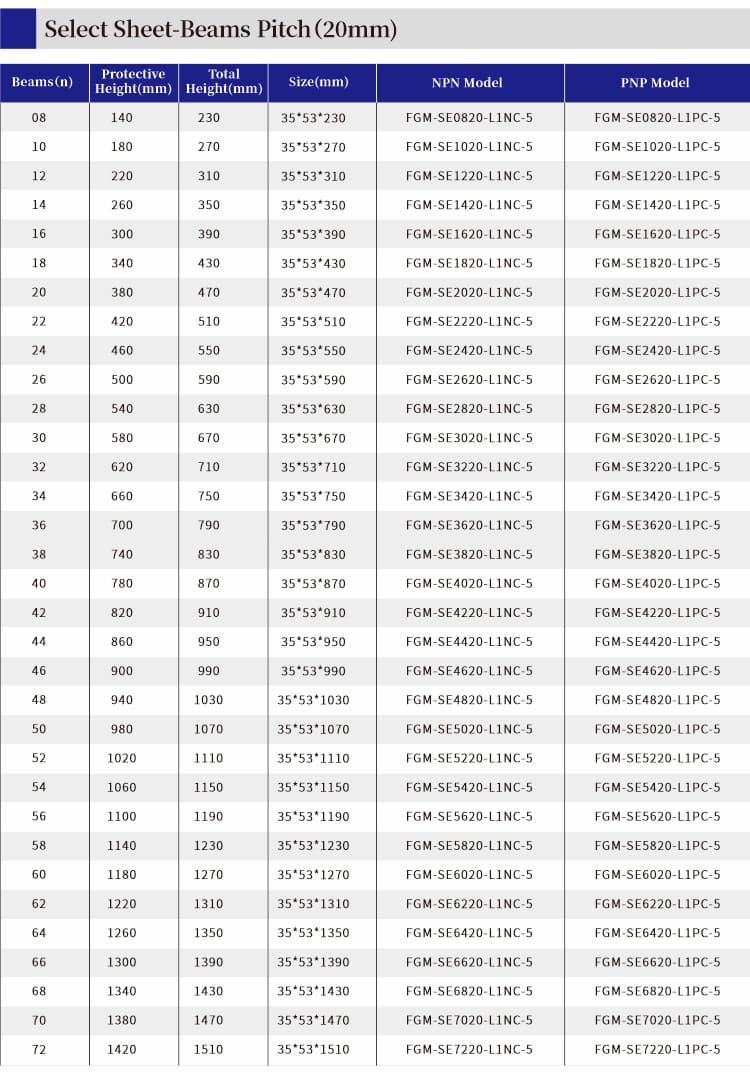

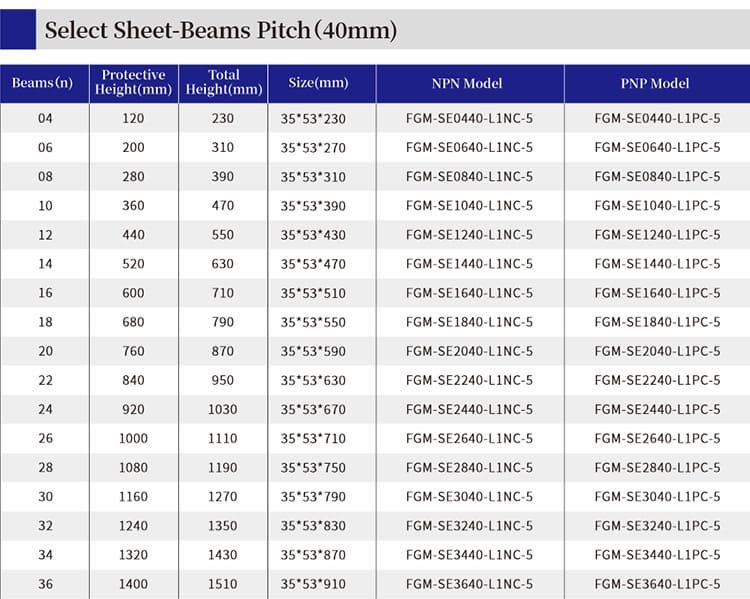

| Beam pitch | 10/20/40mm |
| Resolution ratio | 20mm/30mm/50mm |
| Shooting distance | 0.1~0.5m, 0.1~2m, 0.1~5m, 0.1~10m, 0.1~20m, 0.1~30m |

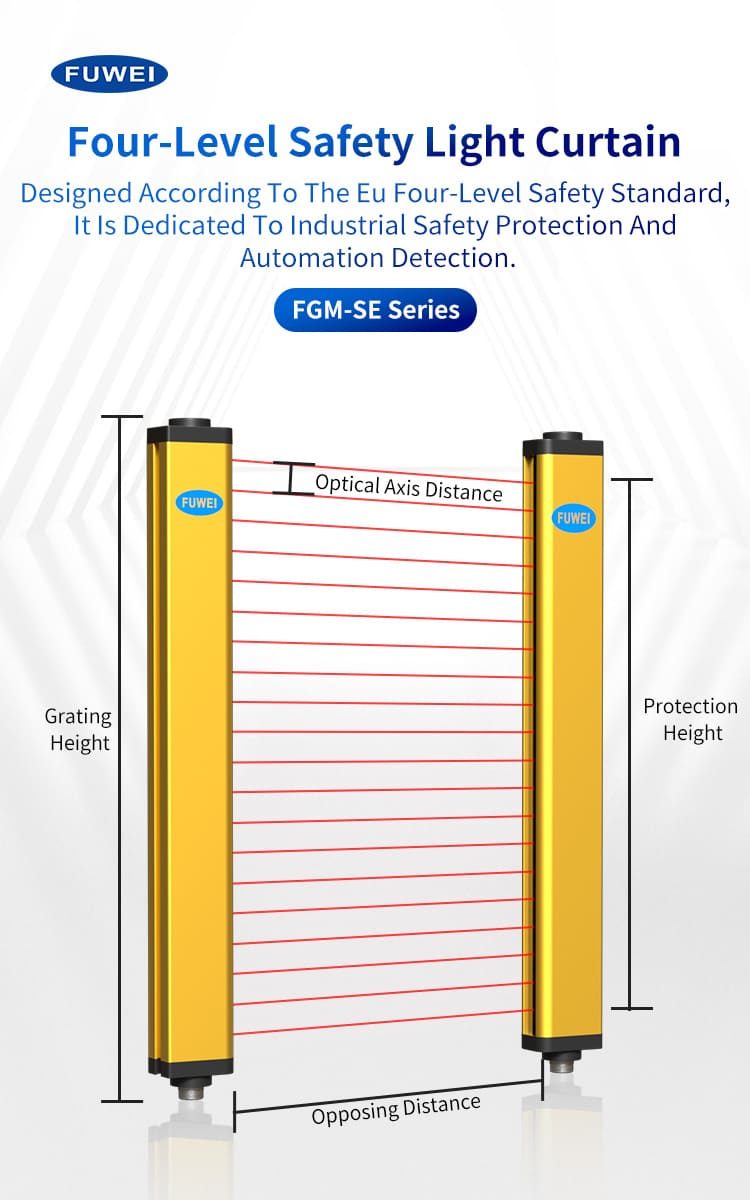

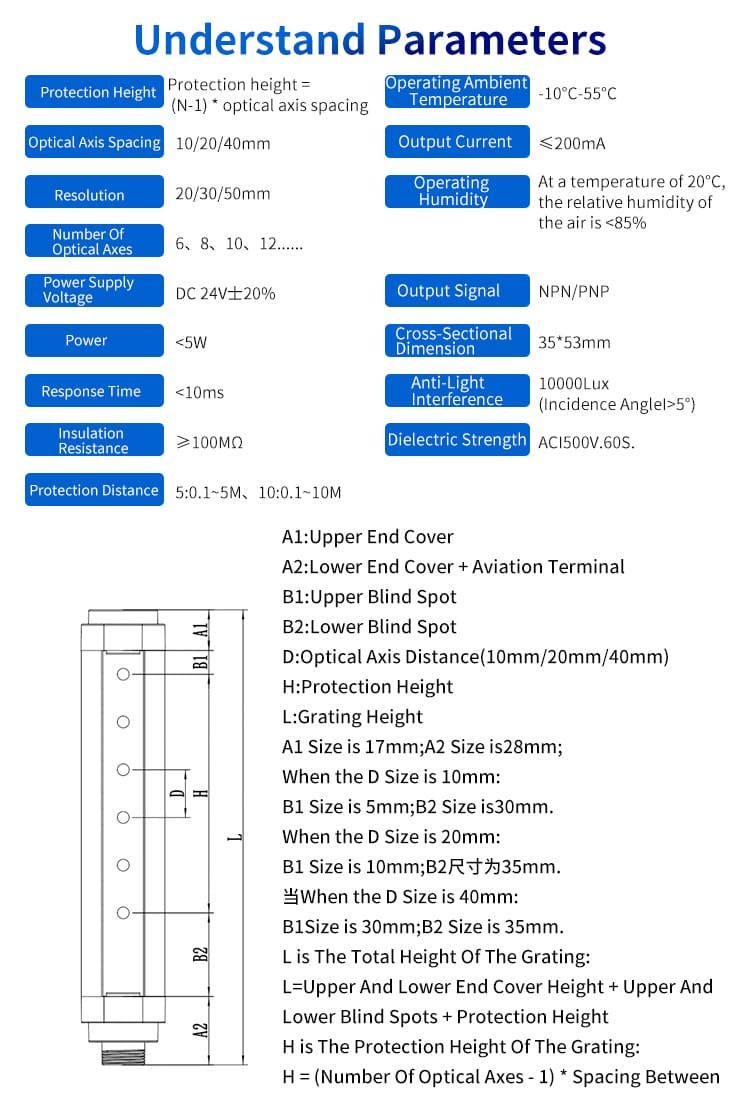

| Protective Height | (N-1) beam gap, N is beam quantity |

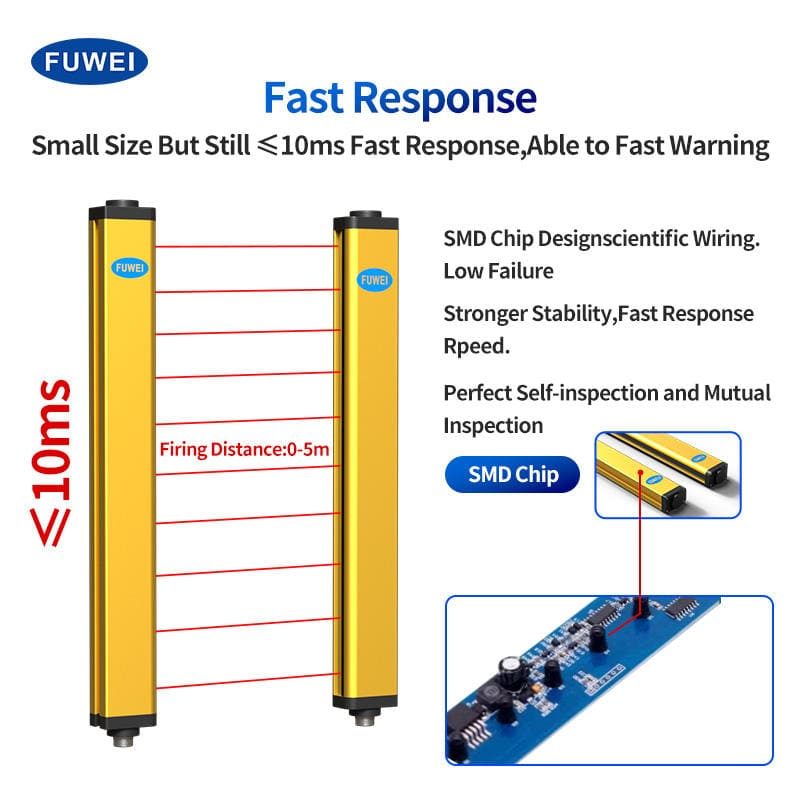

| Response Time | (N * 0.1ms)+0.4ms (N is the number of optical axes) |
| Enclosure Material | Aluminum alloy |
| Enclosure Rating | |
