| Mounting Type |
Bolt bracket fixing installation |
| Manufacturing Date Code |
2024 |

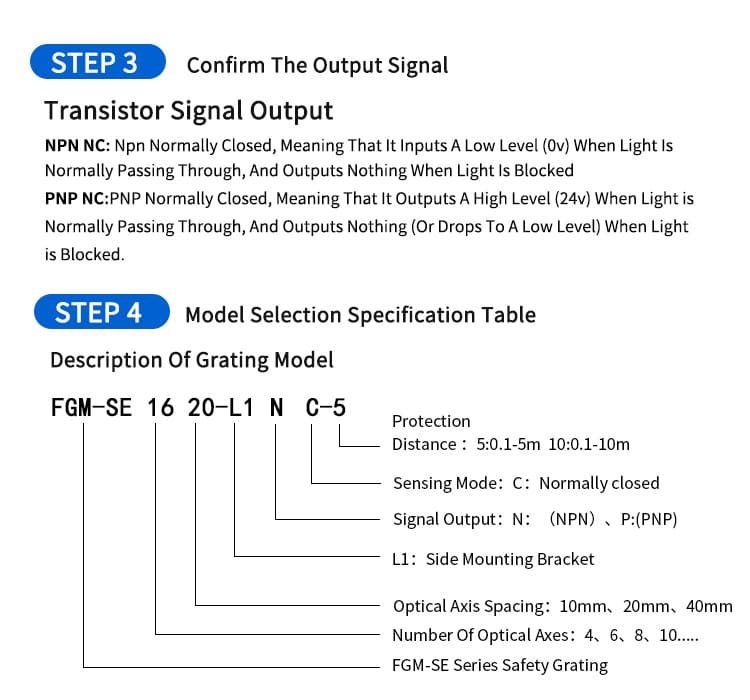

| Model Number |

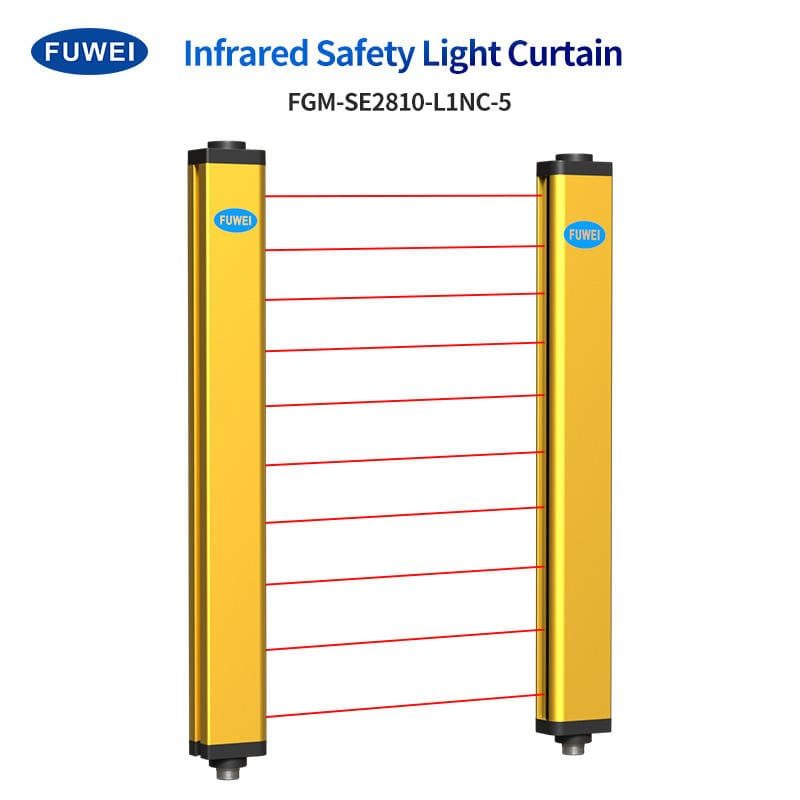

FGM-SE2810-L1NC-5 |
| Brand Name |
FUWEI |
| Usage |
Safety protection device |
| Description |
Safety protection device |
| Type |

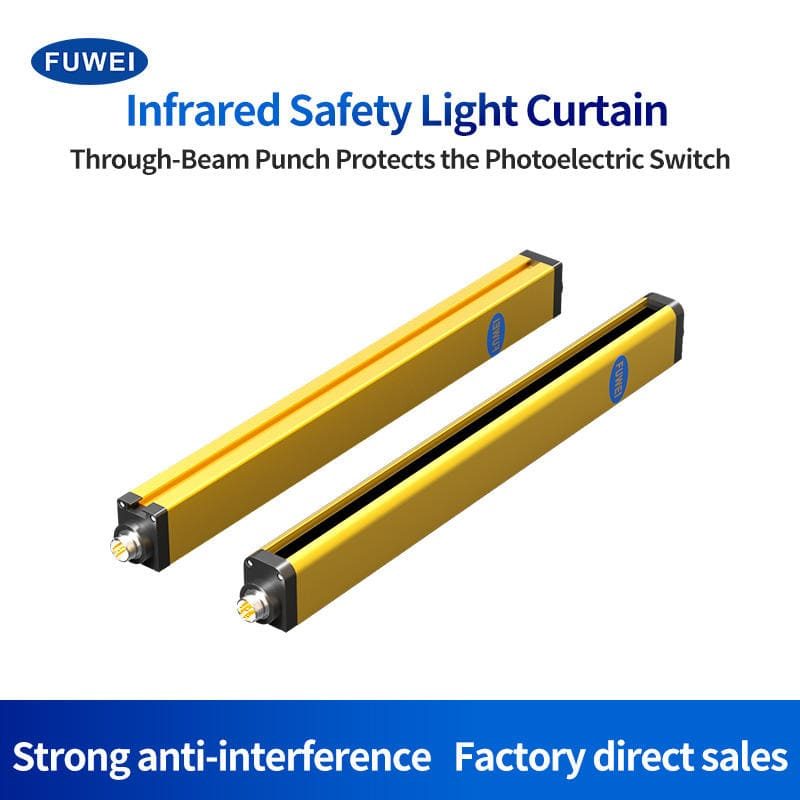

Photoelectric Sensor |
| Series |
FGM-SE2810-L1NC-5 |
| Features |
Sensing sensitivity |
| Place of Origin |
Guangdong, China |
| Theory |
Principles of Infrared Optics |

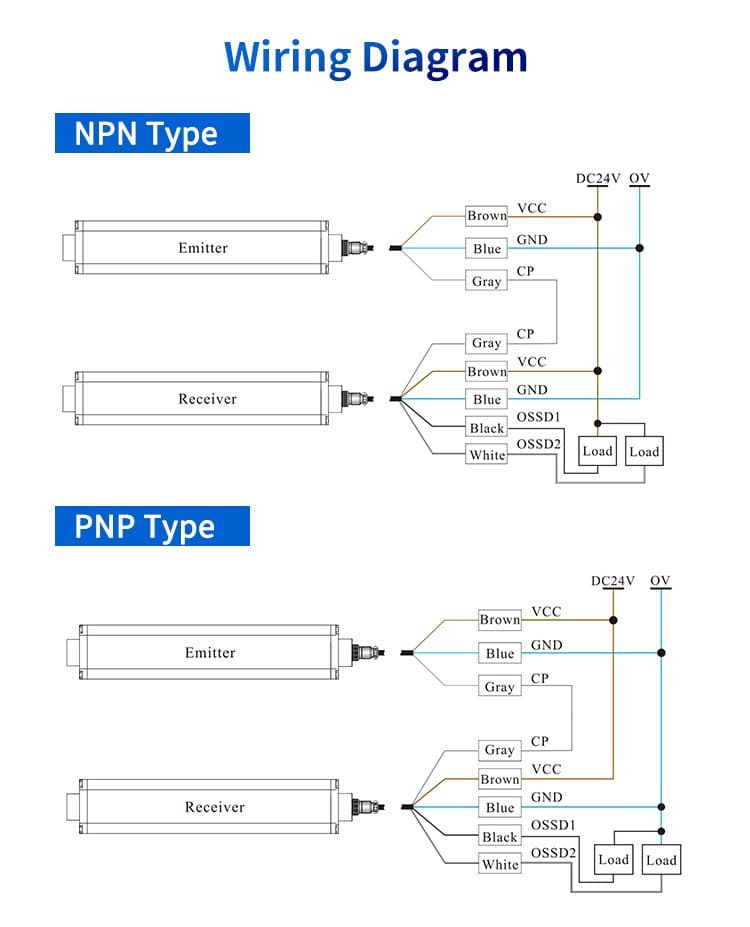

| Output |
NPN |
| Working power supply |
DC10V~30V |

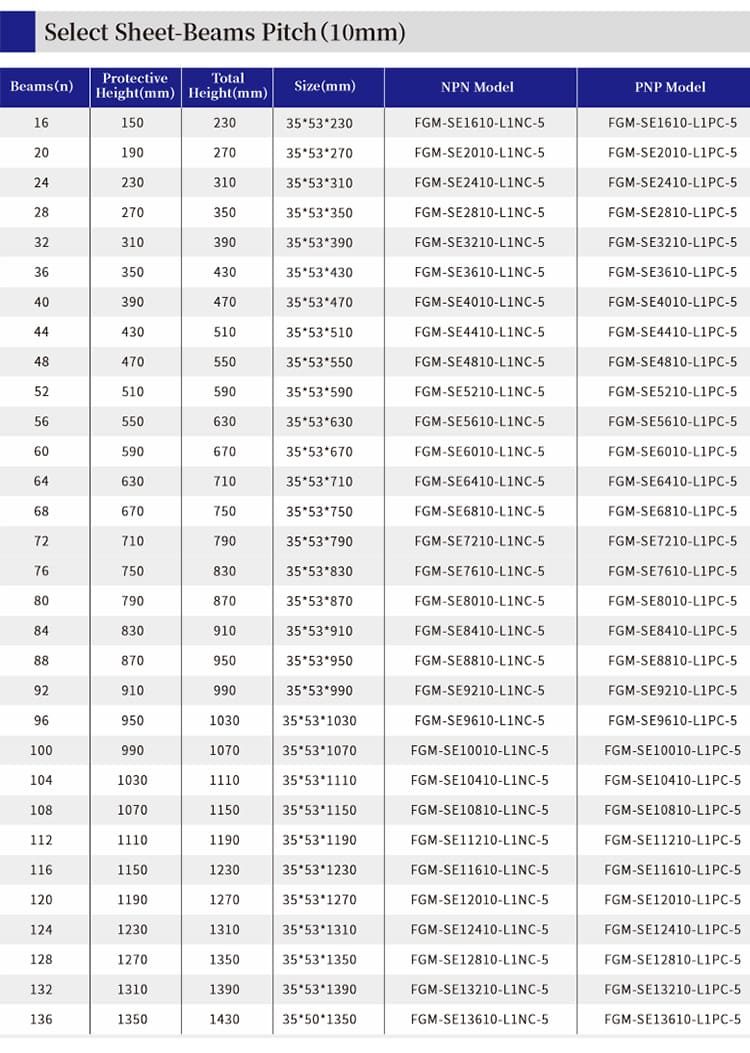

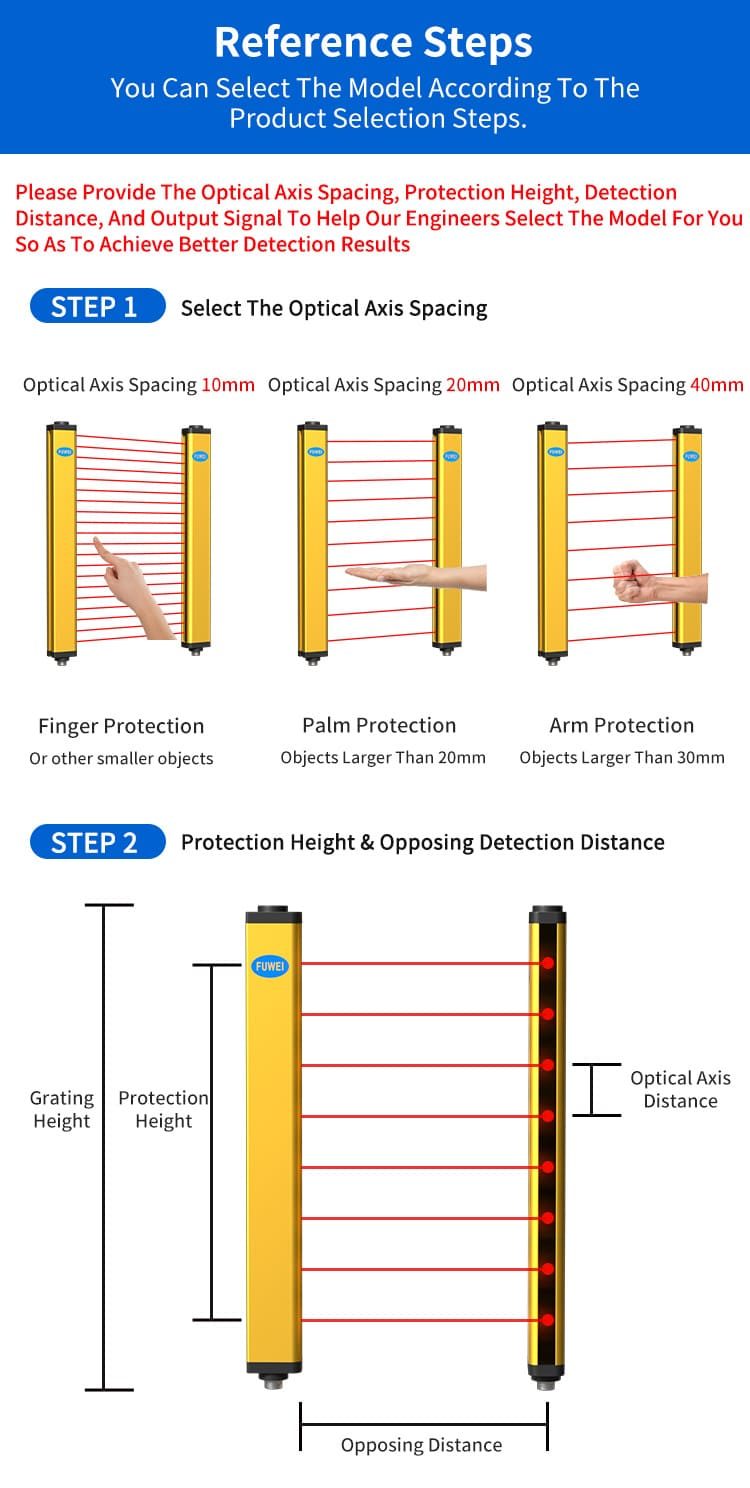

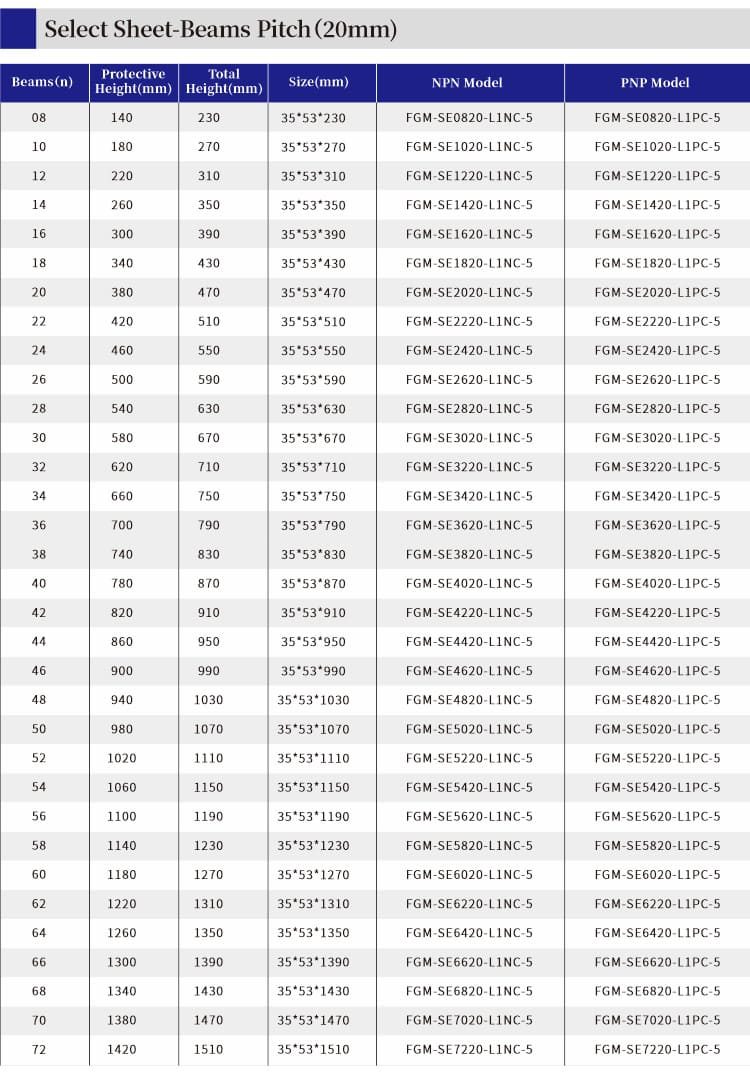

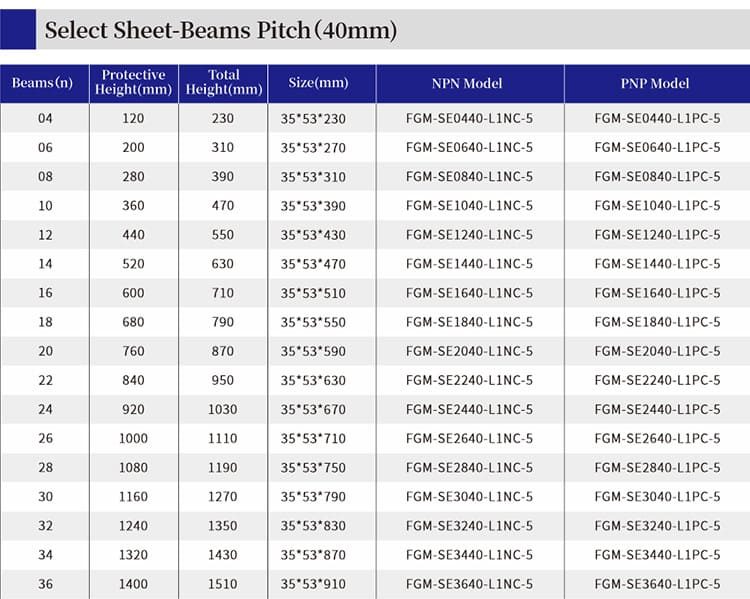

| Beam pitch |
10/20/40mm |
| Resolution ratio |
20mm/30mm/50mm |
| Shooting distance |
0.1~0.5m, 0.1~2m, 0.1~5m, 0.1~10m, 0.1~20m, 0.1~30m |

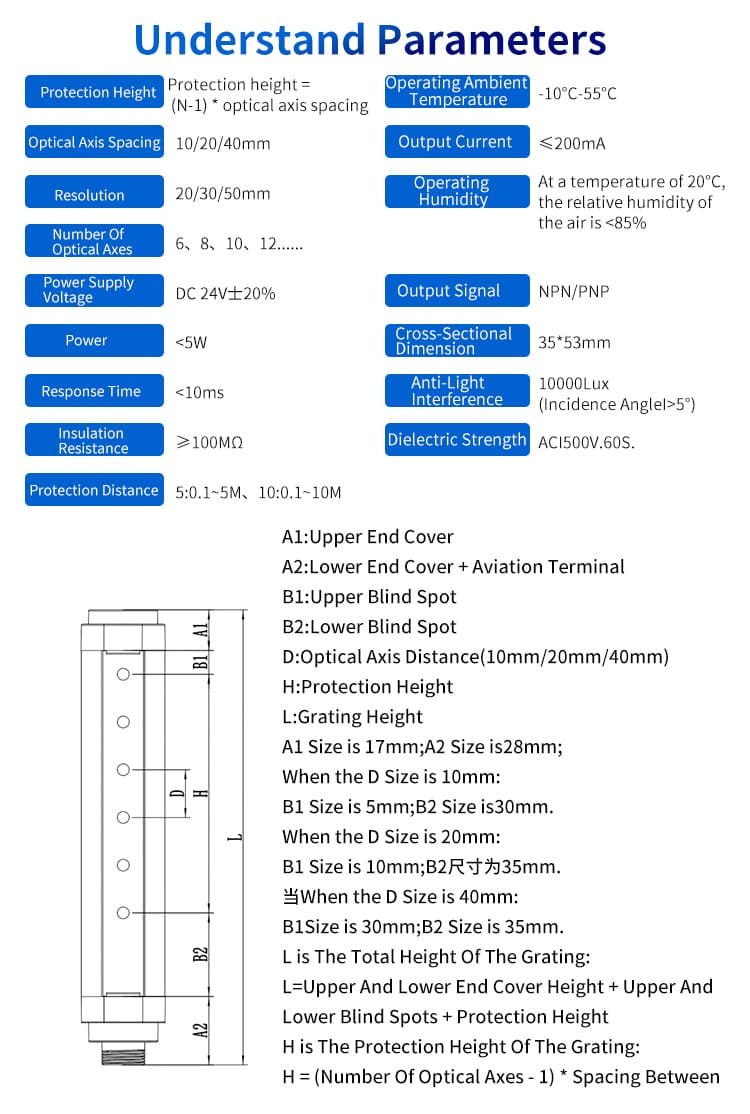

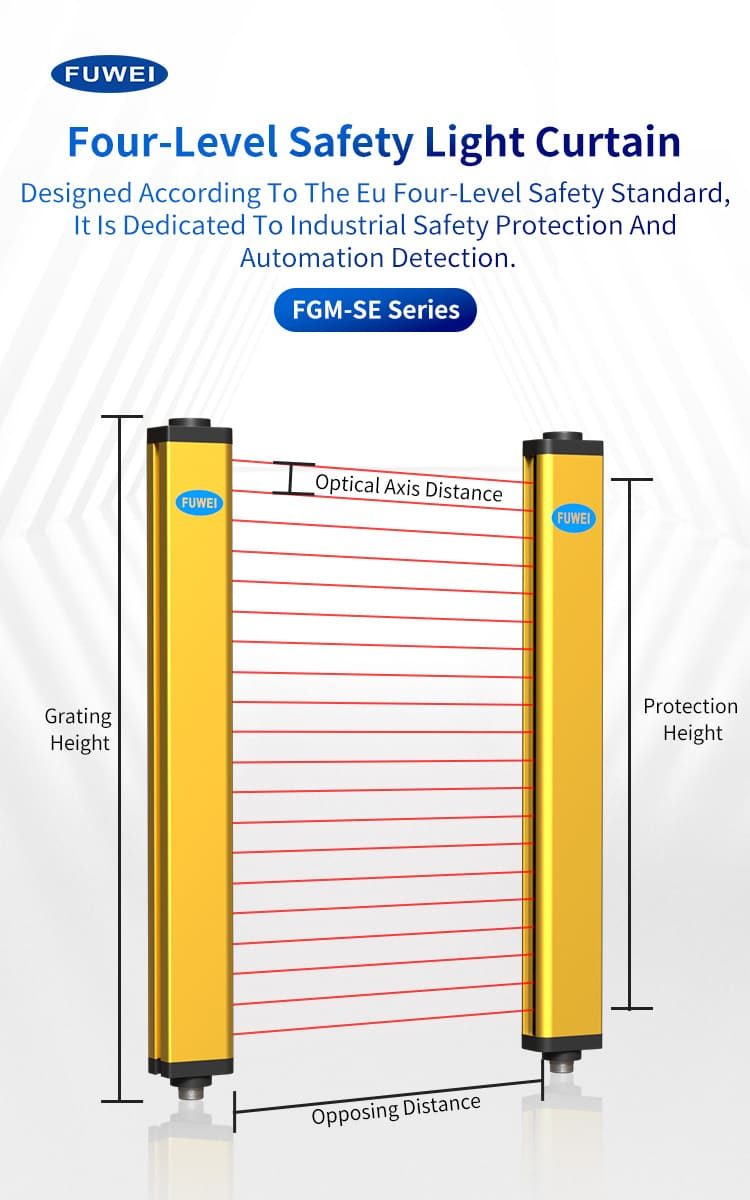

| Protective Height |
(N-1) beam gap, N is beam quantity |

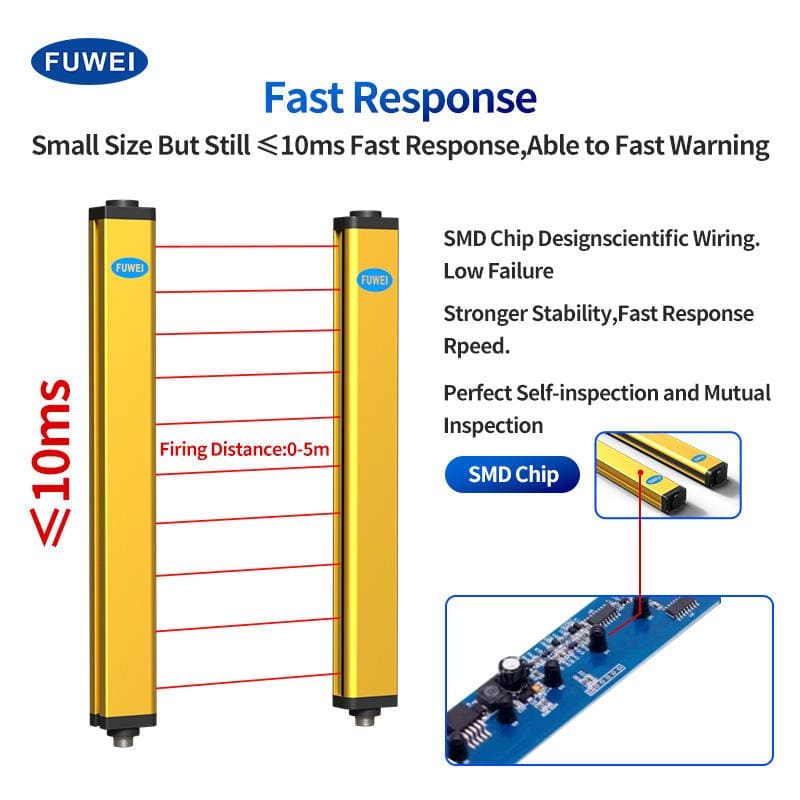

| Response Time |
(N * 0.1ms)+0.4ms (N is the number of optical axes) |
| Enclosure Material |
Aluminum alloy |
| Enclosure Rating |
IP65 |
| Selling Units |
Single item |

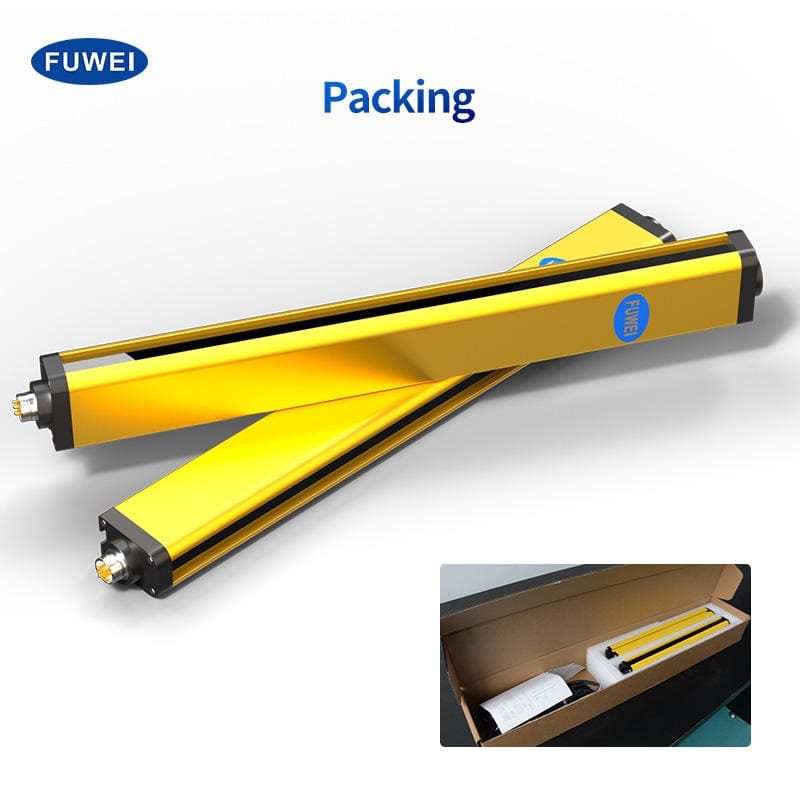

| Single package size |
110X11X5 cm |
| Single gross weight |
6.000 kg |
