| Attribute | Value |
|---|---|
| Mounting Type | Bolt bracket fixing installation |
| Manufacturing Date Code | 20240530 |

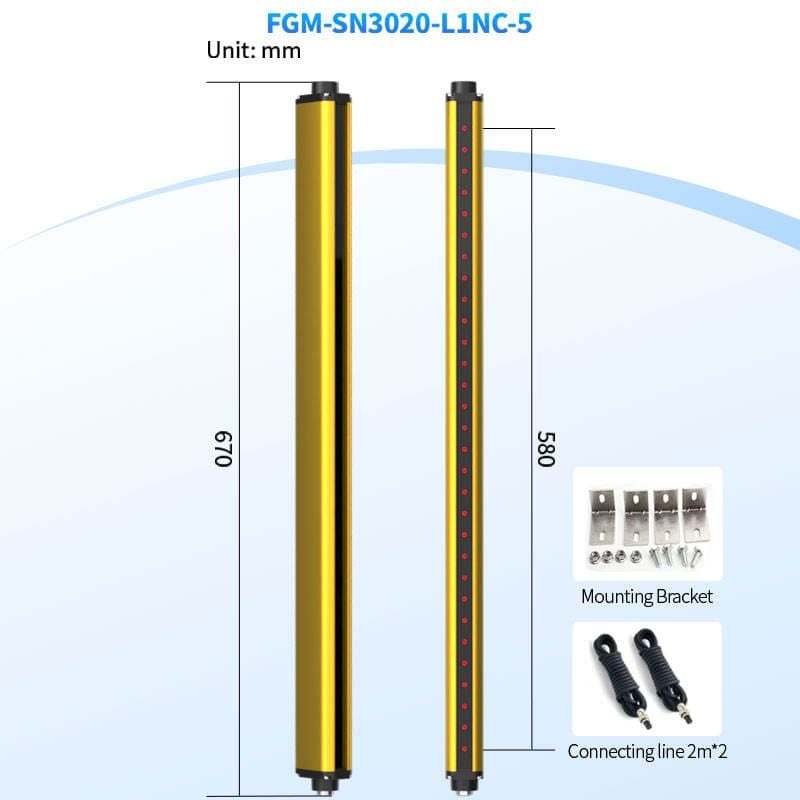

| Model Number | FGM-SN3020L1NC-5 |
| Brand Name | FUWEI |

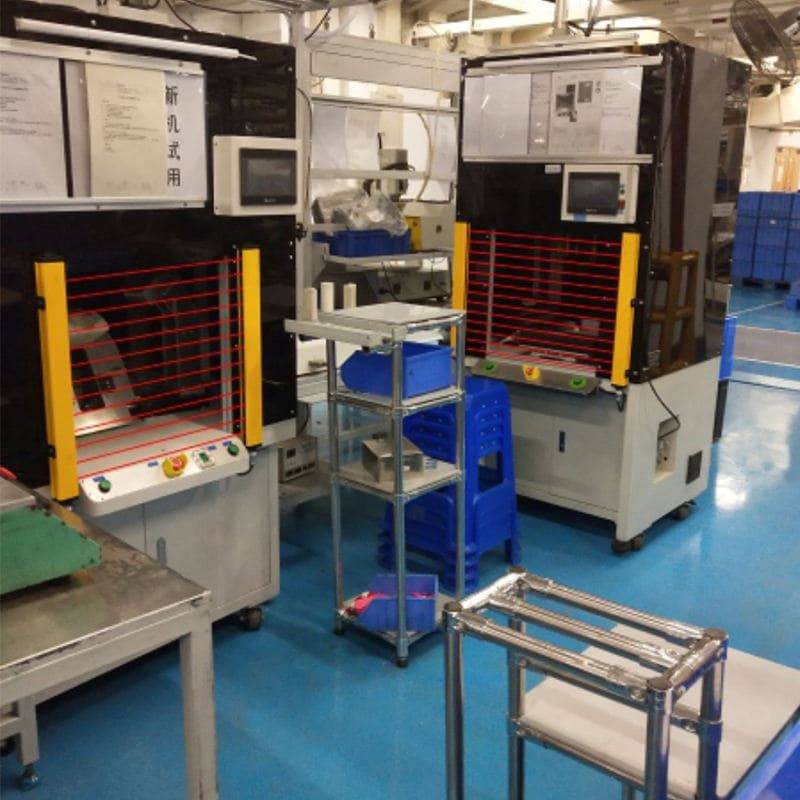

| Usage | Safety protection device |

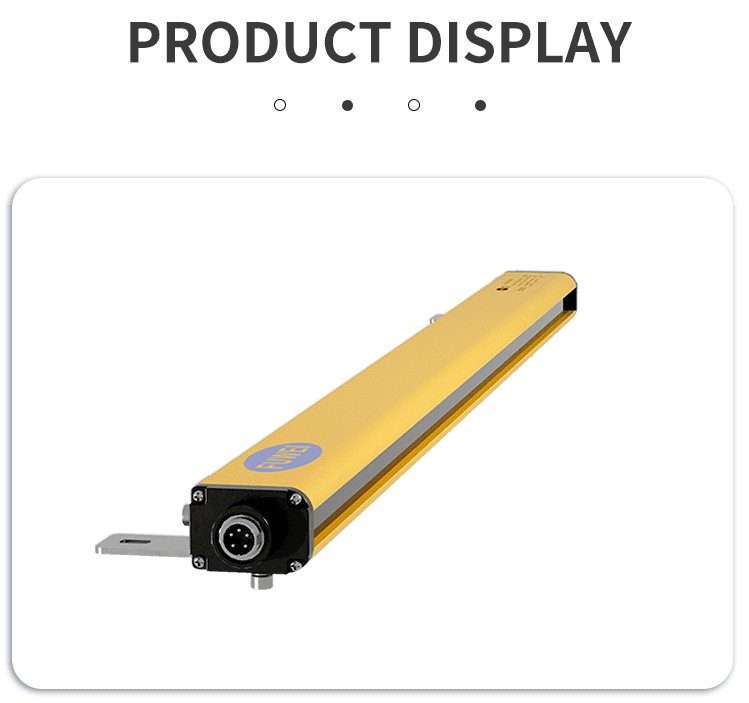

| Description | Safety light curtain |
| Type | Photoelectric Sensor |
| Series | FGM-SN |
| Features | Sensing sensitivity |
| Place of Origin | Guangdong, China |
| Theory | Principles of Infrared Optics |

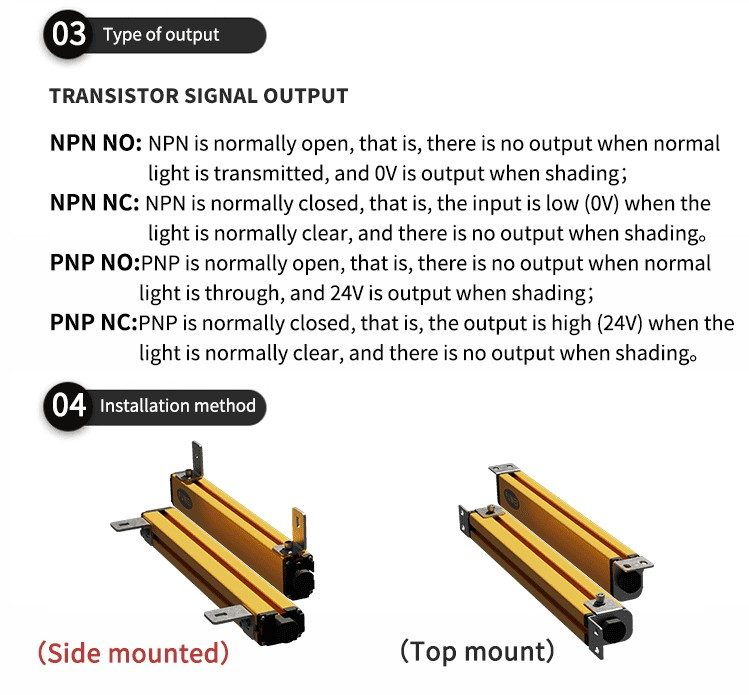

| Output | NPN.NC |
| Working power supply | DC10V~30V |

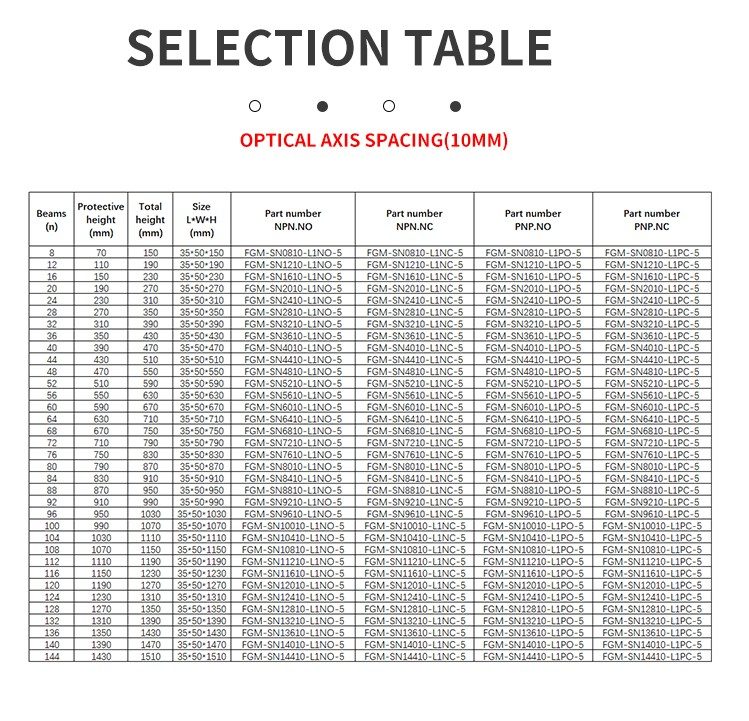

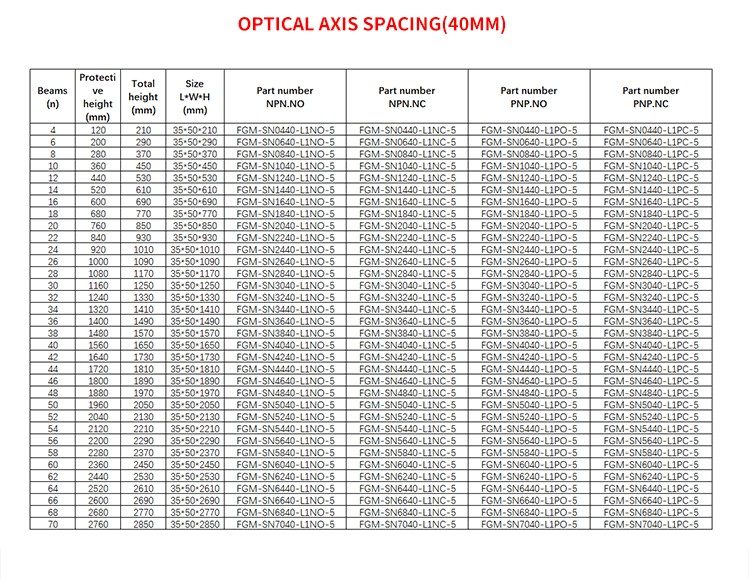

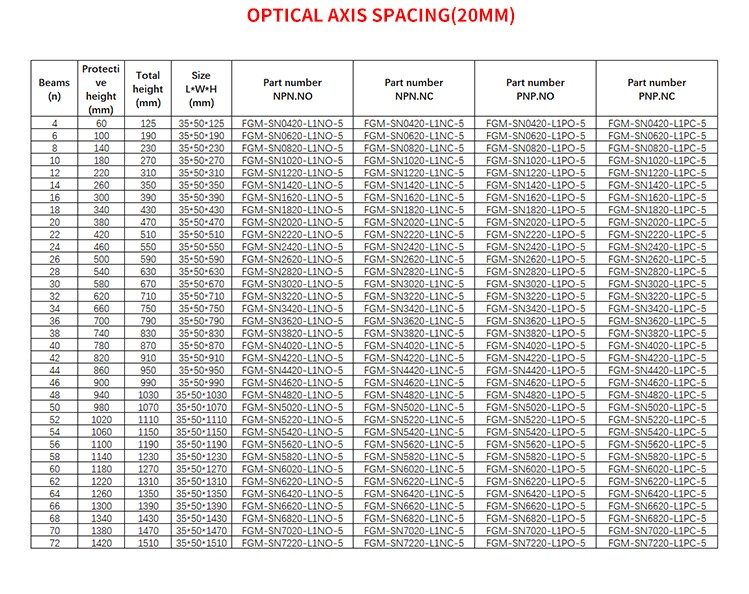

| Beam pitch | 10/20/40mm |
| Resolution ratio | 20mm/30mm/50mm |
| Shooting distance | 0.1~0.5m, 0.1~2m, 0.1~5m, 0.1~10m, 0.1~20m, 0.1~30m |
| Protective Height | (N-1)beam gap, N is beam quantity |
| Response Time | (N * 0.1ms)+0.4ms (N is the number of optical axes) |
| Enclosure Material | Aluminum alloy |
| Protection level | IP65 |
| Selling Units | Single item |
| Single package size | 110X11X5 cm |
| Single gross weight | 2.000 kg |
