| Mounting Type |
Bolt bracket fixing installation |
| Manufacturing Date Code |
20240525 |

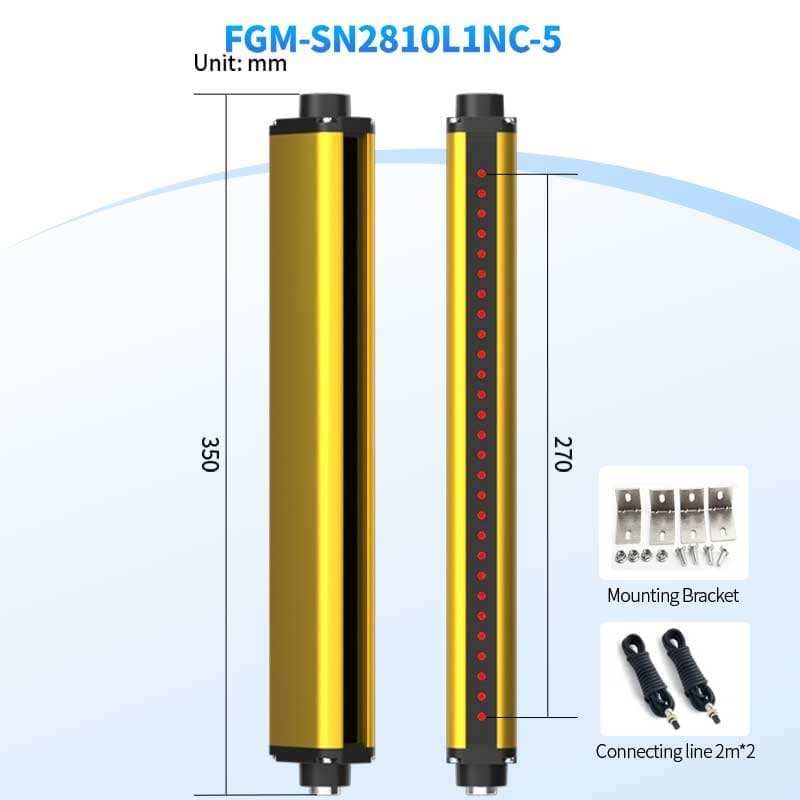

| Model Number |
FGM-SN2810 |
| Brand Name |
FUWEI |
| Usage |
Safety protection device |
| Description |

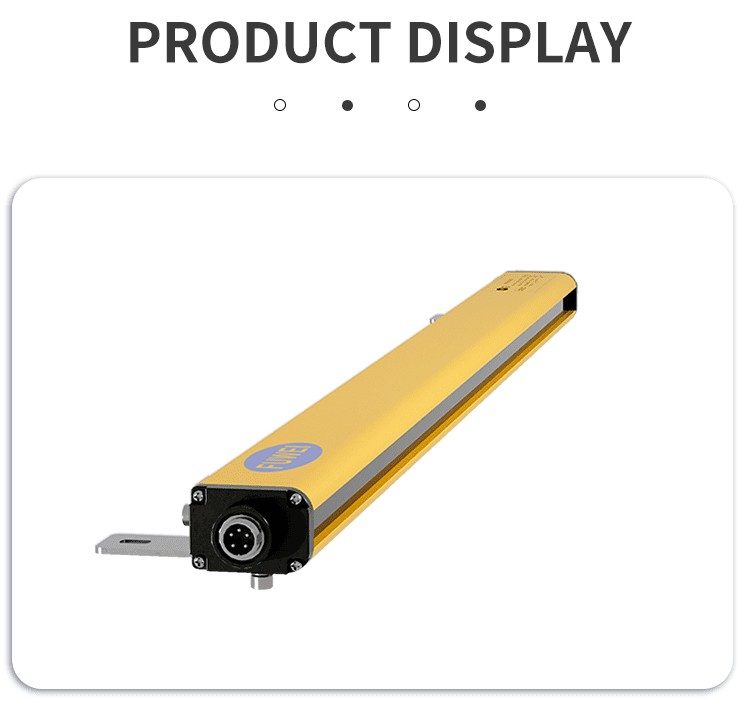

Safety light curtain |
| Type |
Photoelectric Sensor |
| Series |
FGM-SN |
| Features |
Sensing sensitivity |
| Place of Origin |
Guangdong, China |
| Theory |
Principles of Infrared Optics |

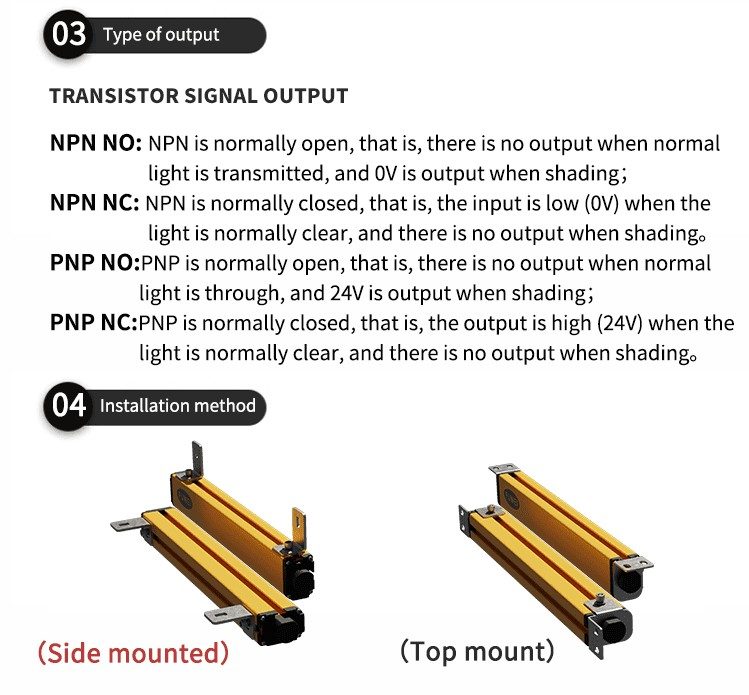

| Output |
NPN.NC |
| Working Power Supply |
DC10V~30V |

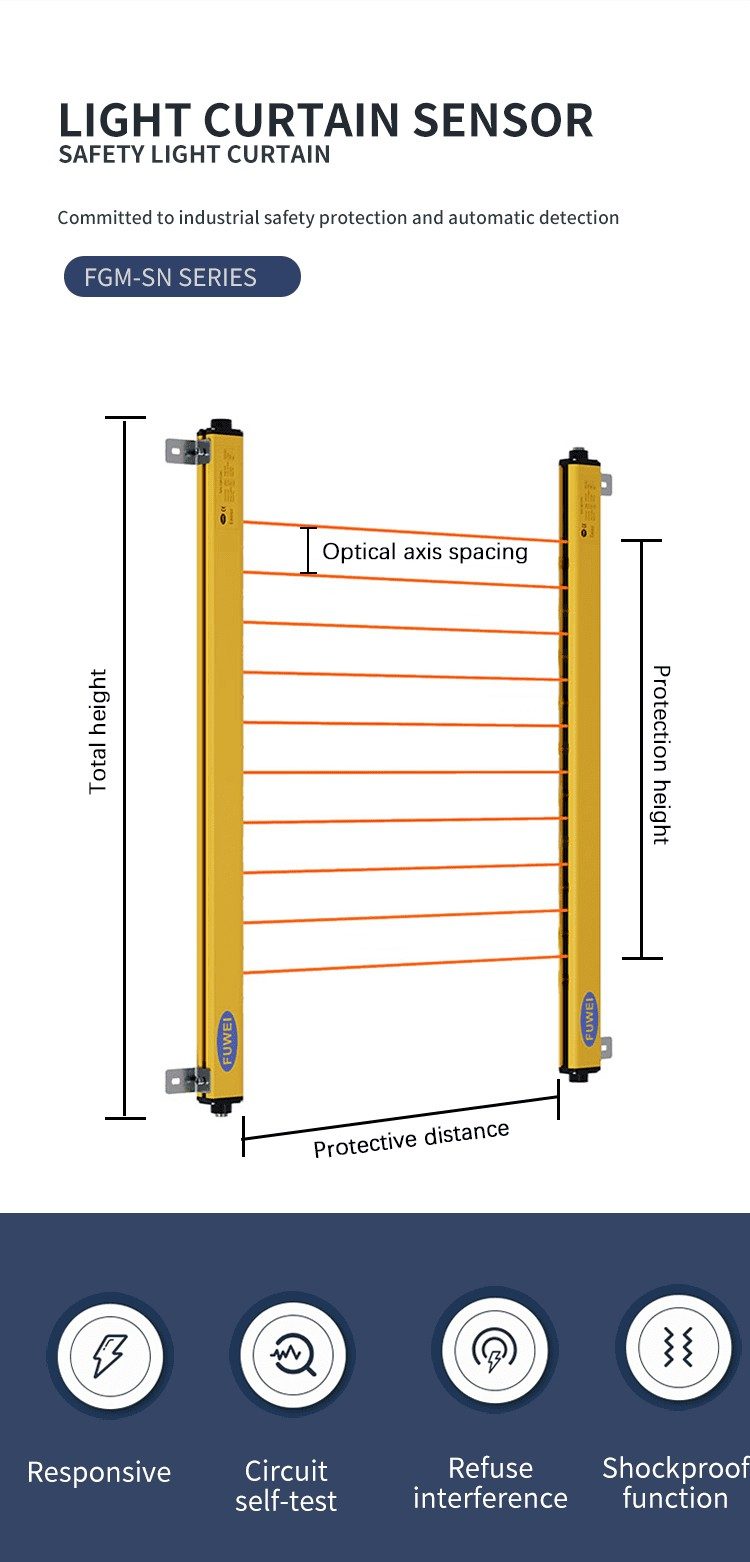

| Beam Pitch |
10/20/40mm |
| Resolution Ratio |
20mm/30mm/50mm |
| Shooting Distance |
0.1~0.5m, 0.1~2m, 0.1~5m, 0.1~10m, 0.1~20m, 0.1~30m |
| Protective Height |
(N-1) beam gap, N is beam quantity |
| Response Time |
(N * 0.1ms) + 0.4ms (N is the number of optical axes) |
| Enclosure Material |
Aluminum alloy |
| Protection Level |
IP65 |
| Packaging and Delivery |
| Selling Units |
Single item |
| Single Package Size |
110 × 11 × 5 cm |
| Single Gross Weight |
2.000 kg |
