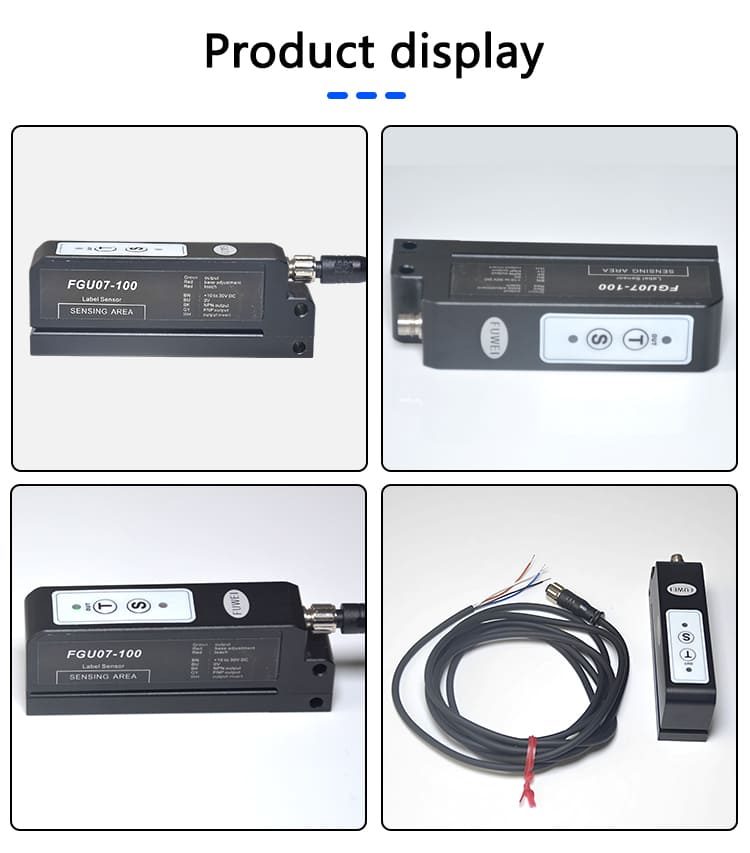

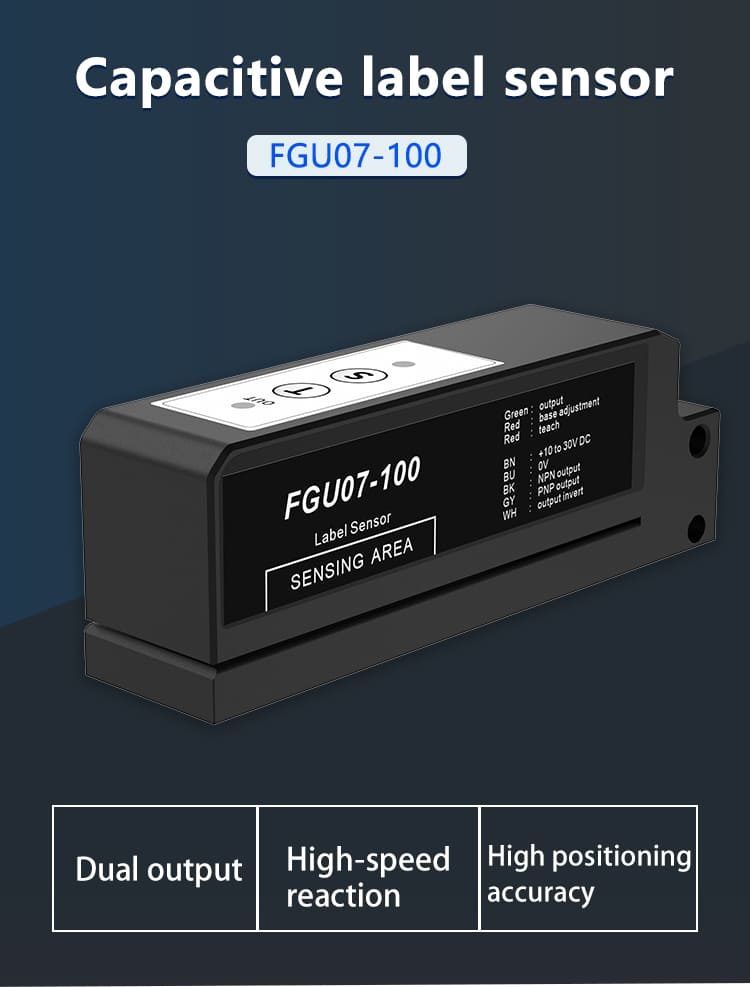

FGU07-100 Labeling Machine Sensor
Key Attributes
| Attribute | Details |
|---|---|

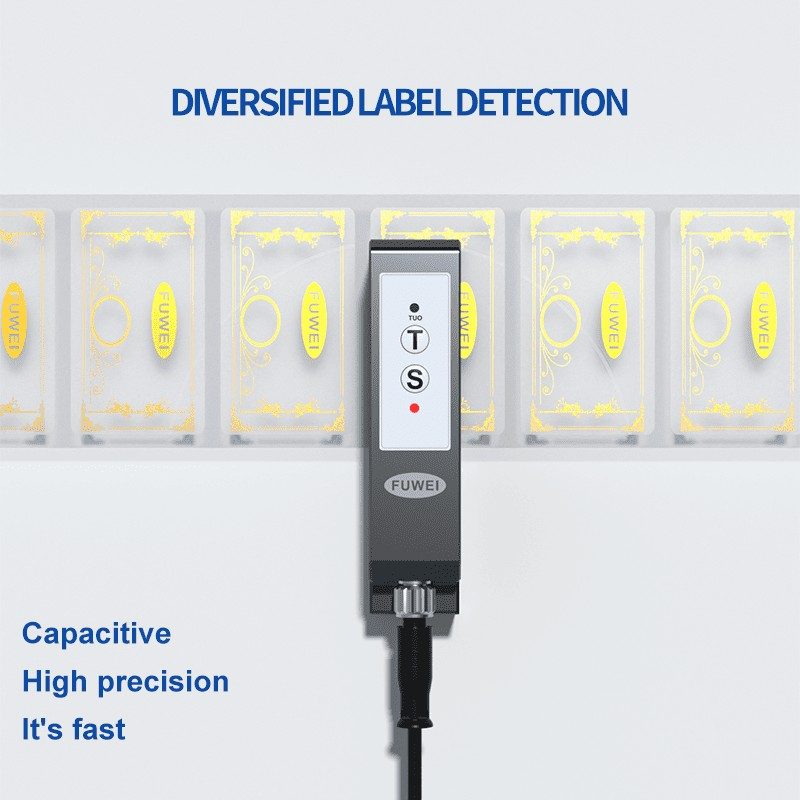

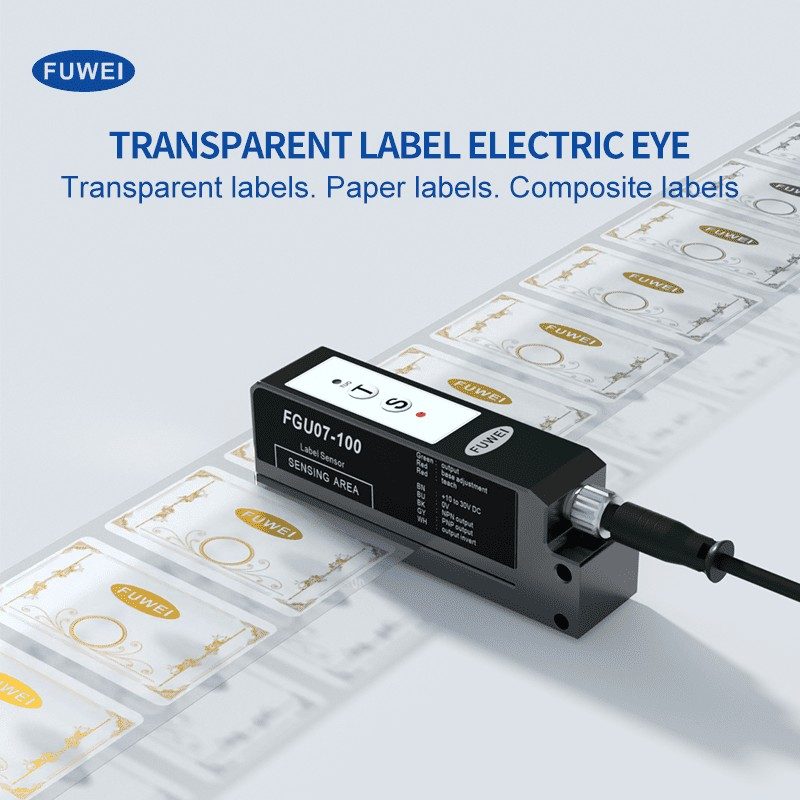

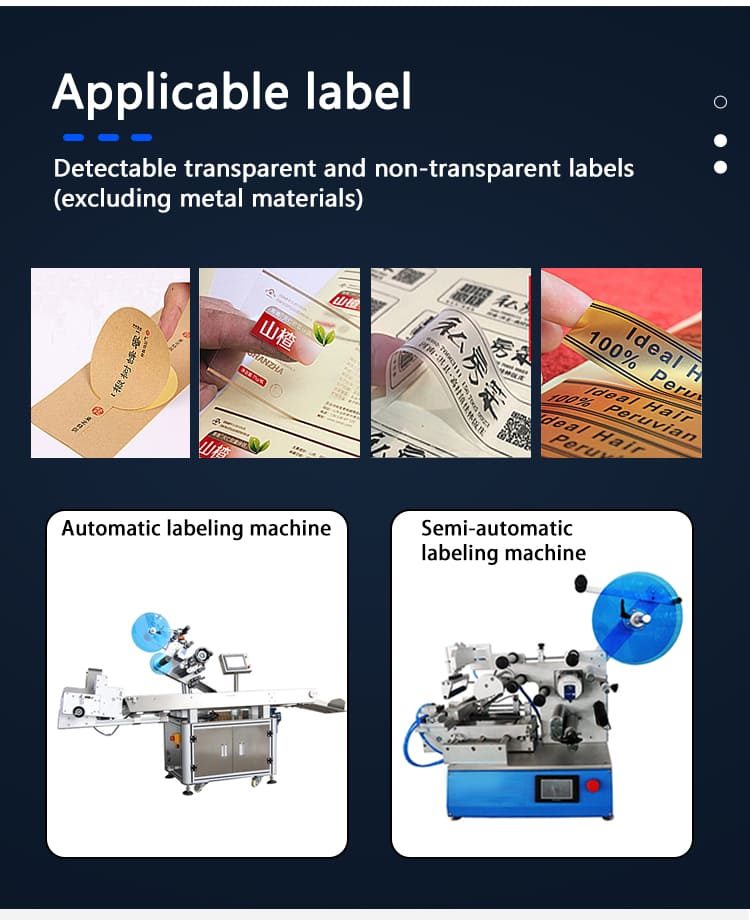

| Use | Labeling machine label detection |
| Mounting Type | Bolt Mounting |
| Model Number | FGU07-100 |
| Type | Capacitive Sensor |
| Series | FGU07-100 |
| Features | Sensing sensitivity |
| Manufacturing Date Code | 2023 |
| Place of Origin | Guangdong, China |
| Brand Name | FUWEI |

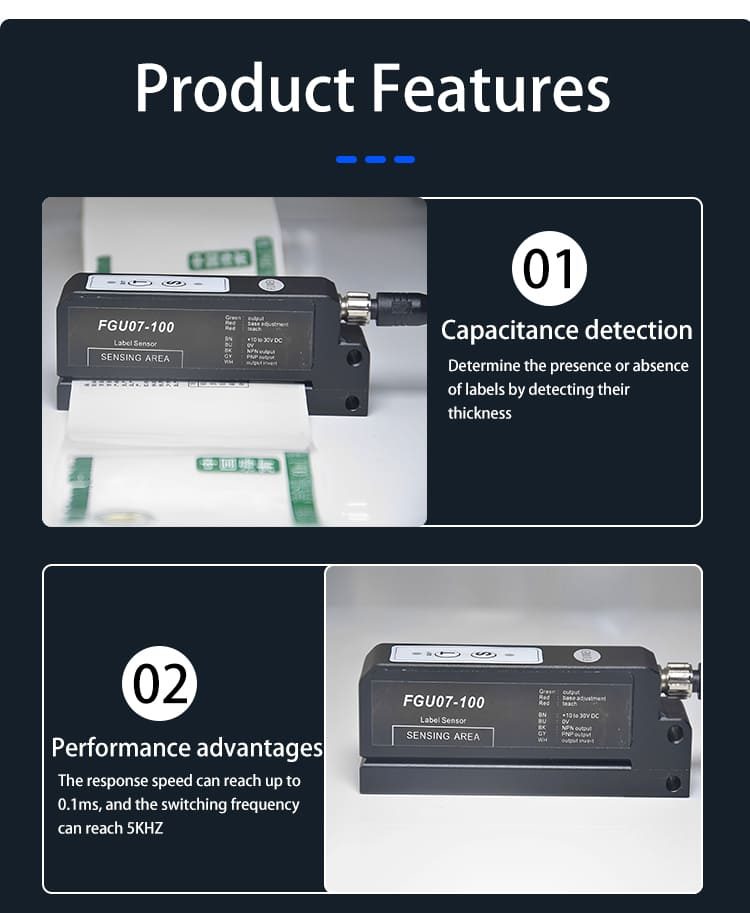

| Theory | Capacitive Detection Principle |

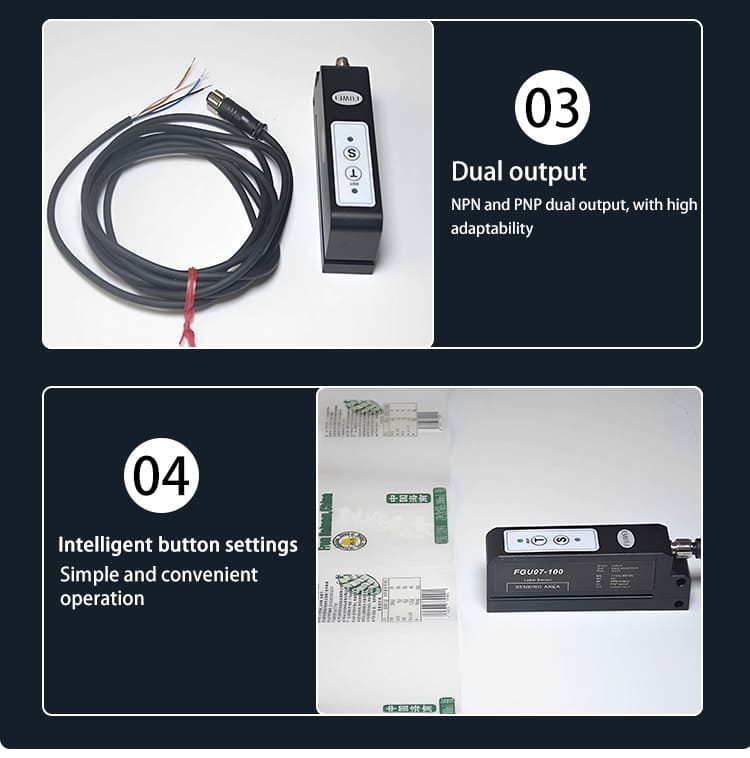

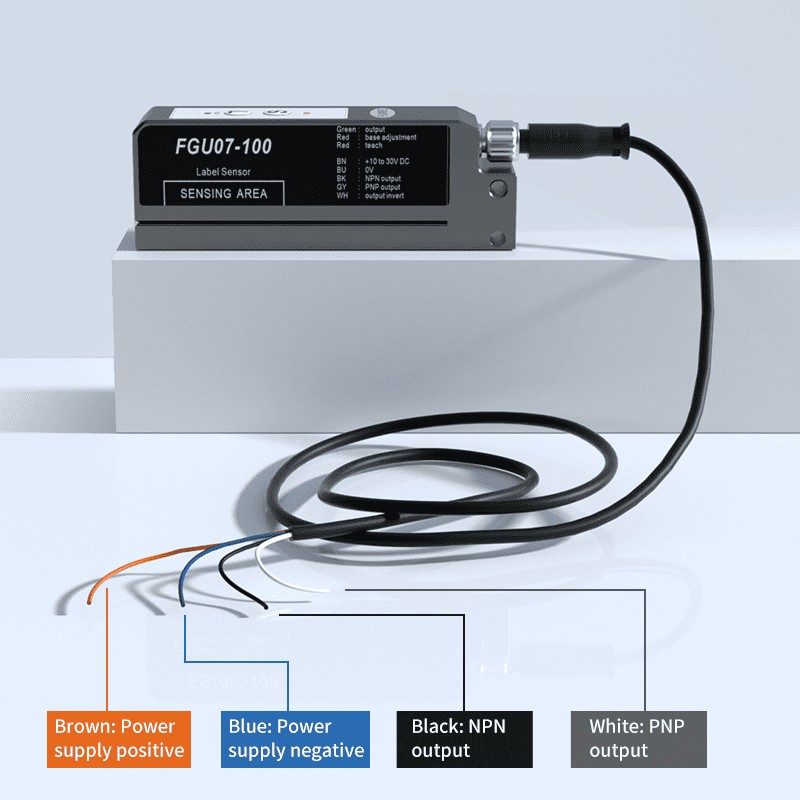

| Output | NPN+PNP Dual output |
Technical Specifications
| Attribute | Value |
|---|---|
| Slot Width | 0.7mm |
| Slot Depth | 80mm |
| Switch Frequency | 5KHZ |
| Response Time | 0.1ms |
| Supply Voltage | 10-30VDC |
| Consumption Current | <25mA |
| Output Current | 100mA |

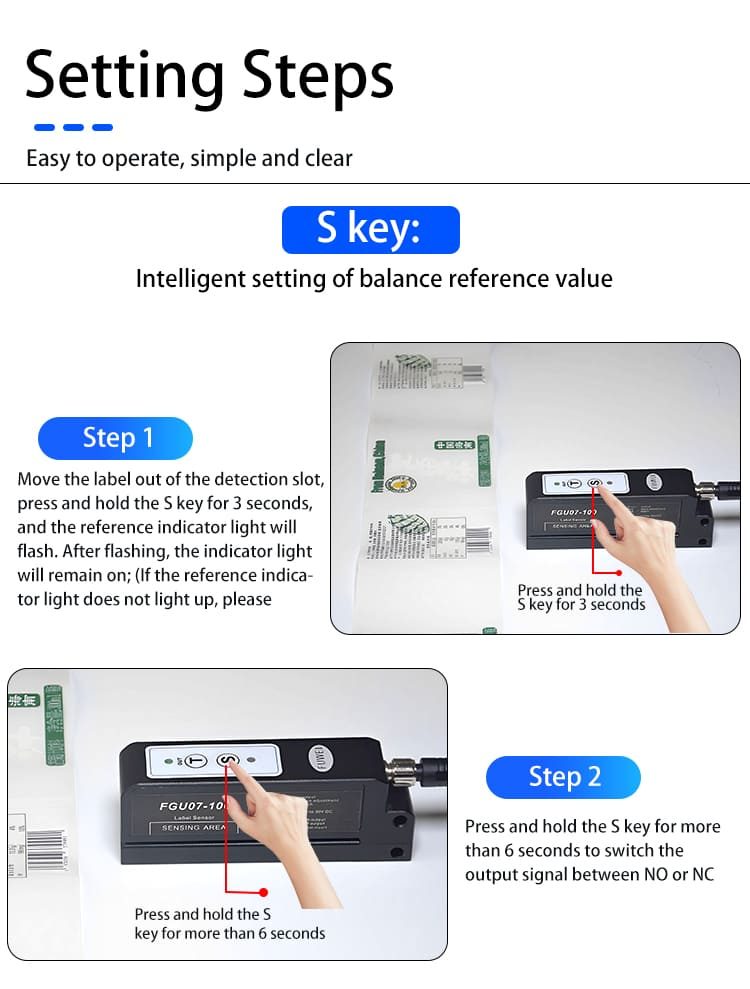

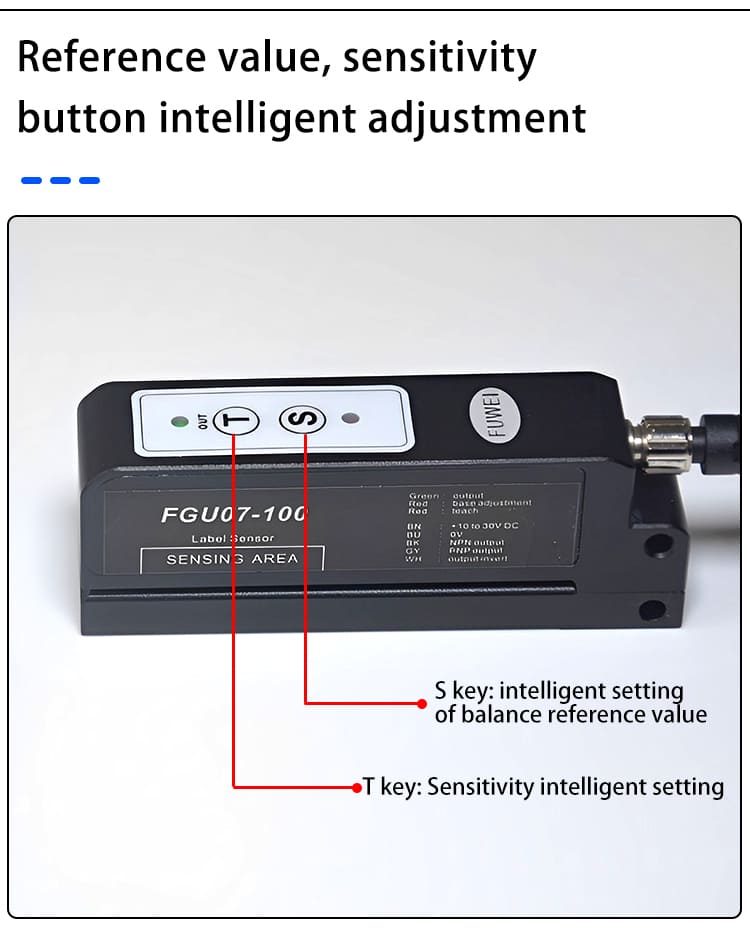

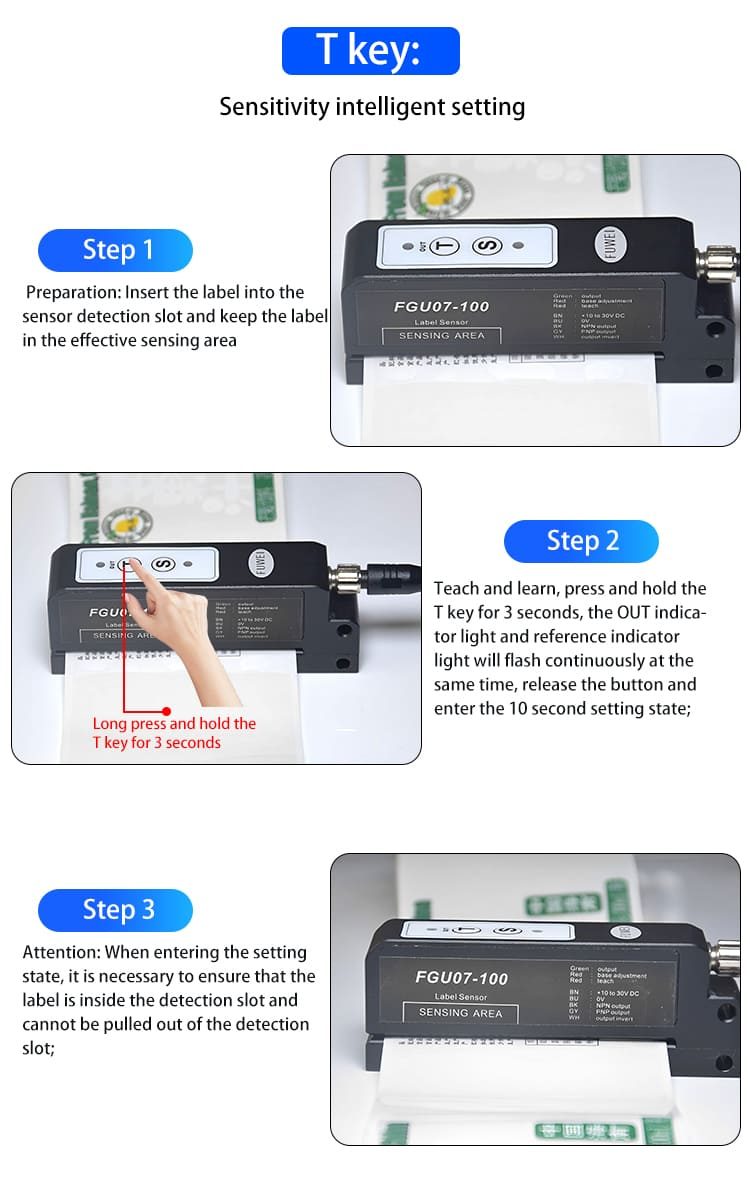

| Sensitivity Setting | Key setting |
| Operating Temperature | -20~+60℃ , no freezing |
| Detection Principle | Differential capacitance detection |
Packaging and Delivery
Selling Units: Single item Single Package Size: 16X15X5 cm Single Gross Weight: 0.350 KG
