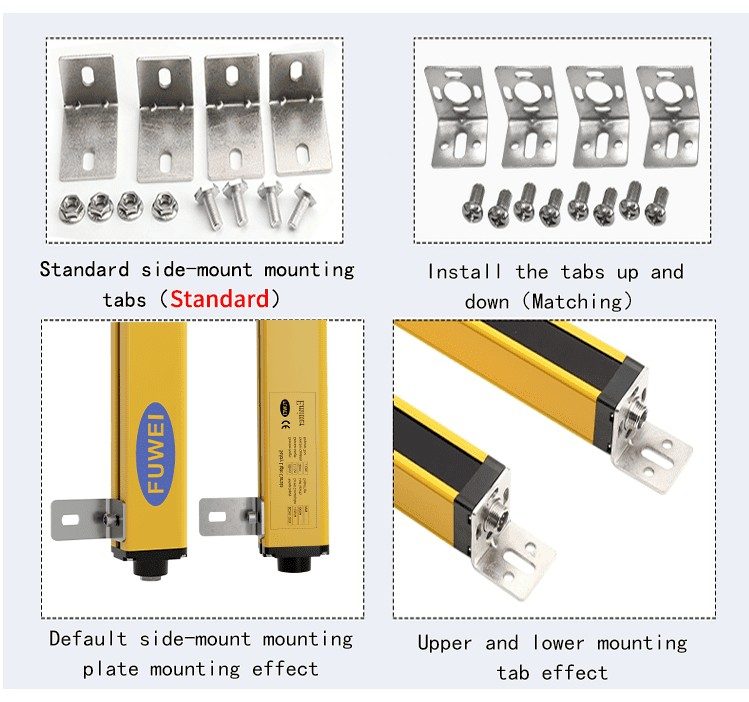

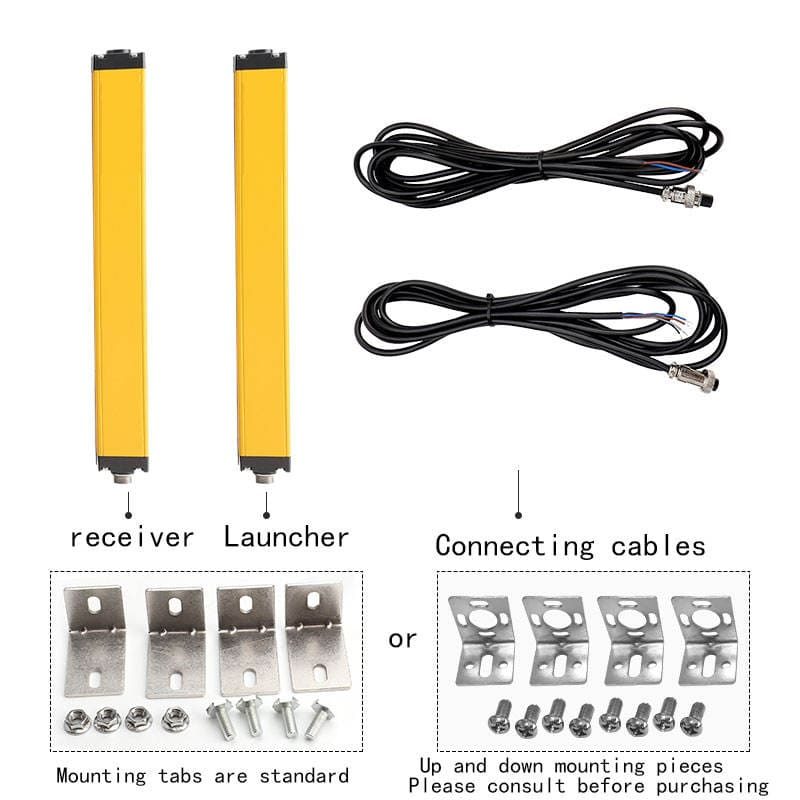

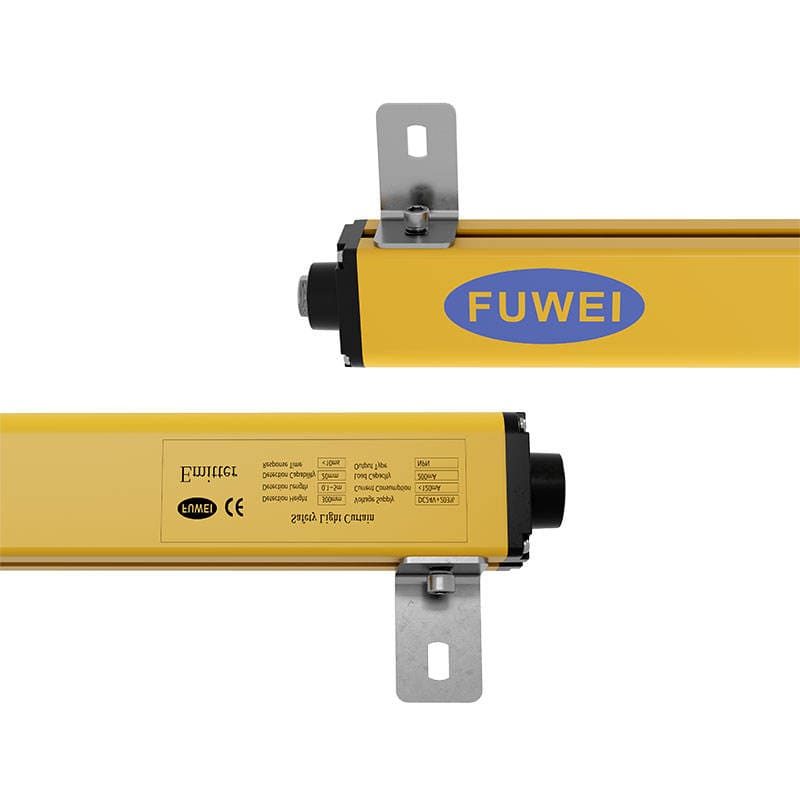

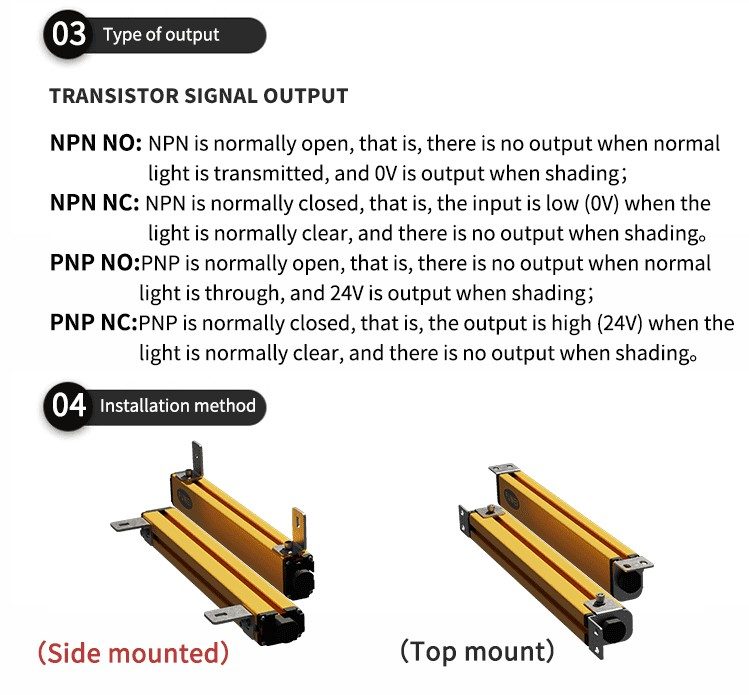

| Mounting Type |
Bolt bracket fixing installation |
| Manufacturing Date Code |
2024 |

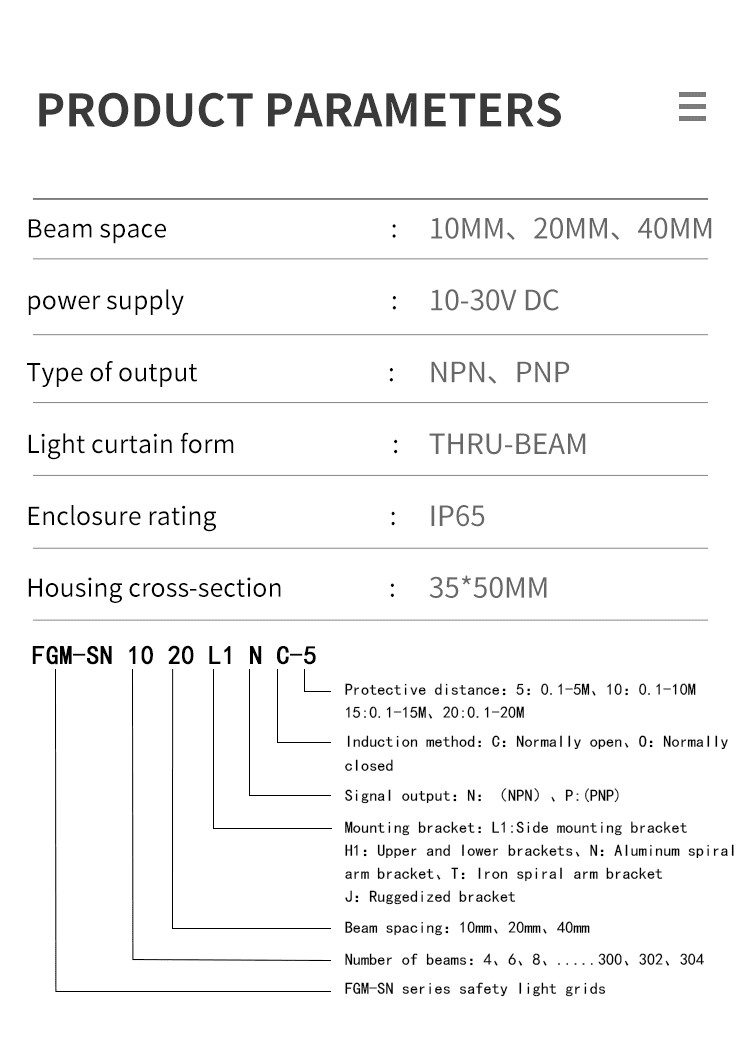

| Model Number |
FGM-SN8010-L1PC-5 |
| Brand Name |
FUWEI |
| Usage |
Safety protection device |
| Description |

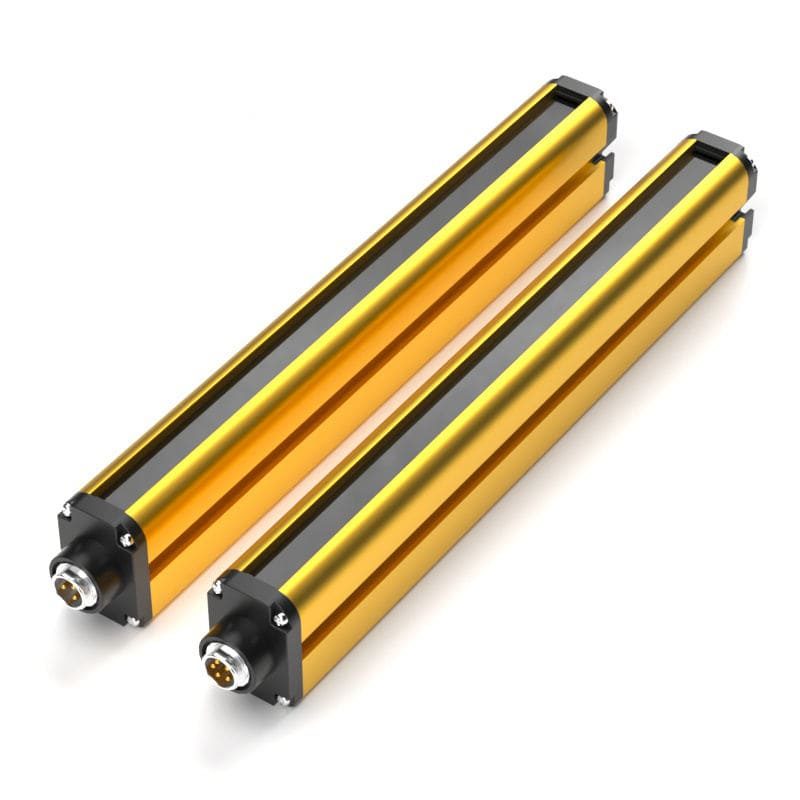

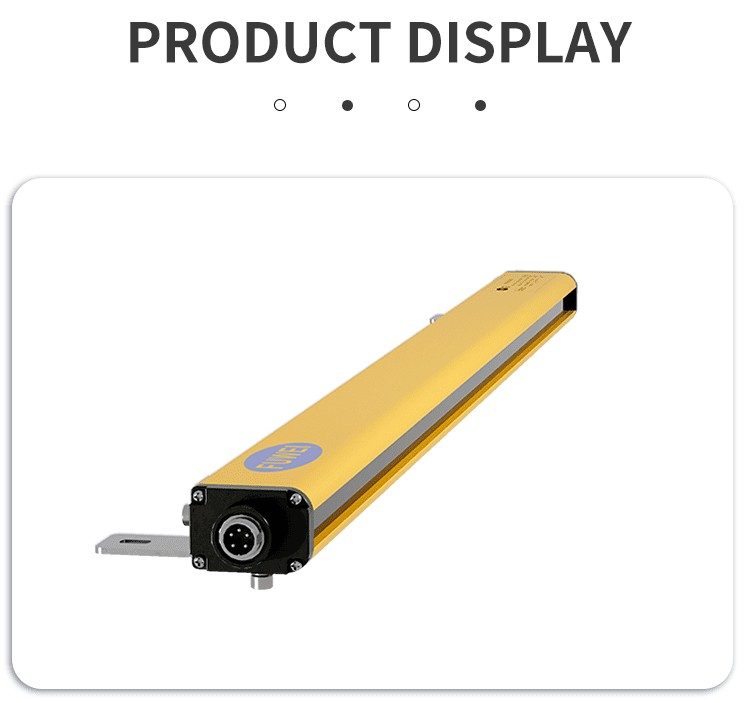

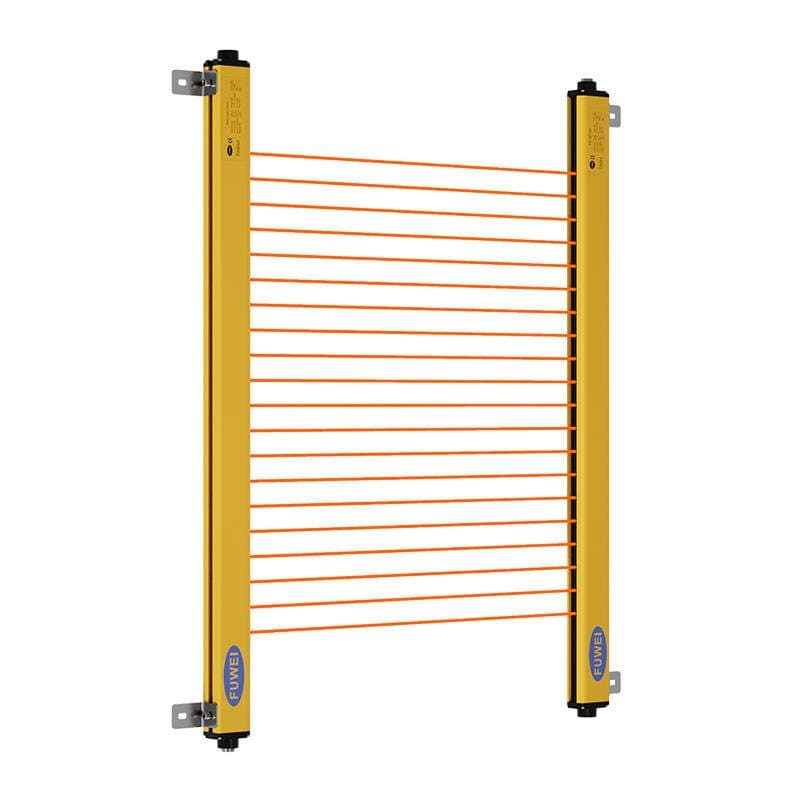

Safety protection device / Safety light curtain |
| Type |
Photoelectric Sensor |
| Series |
FGM-SN |
| Features |
High sensing sensitivity |
| Place of Origin |
Guangdong, China |
| Theory |
Principles of Infrared Optics |

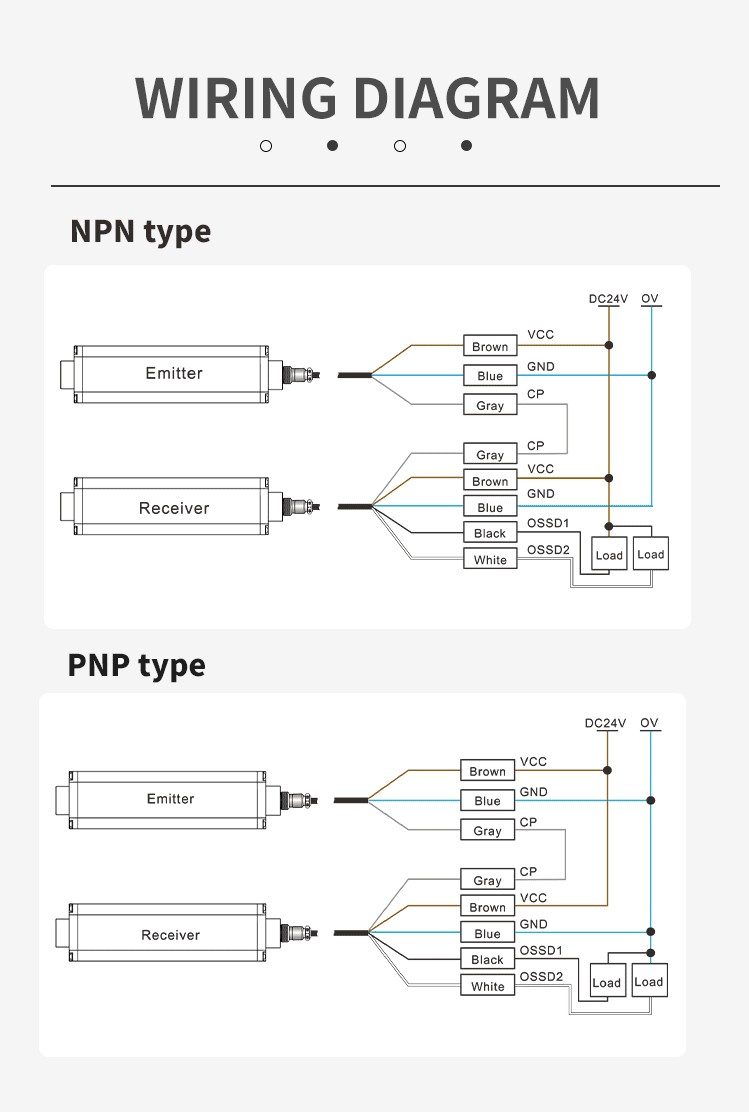

| Output |
NPN/PNP |
| Working Power Supply |
DC10V~30V |

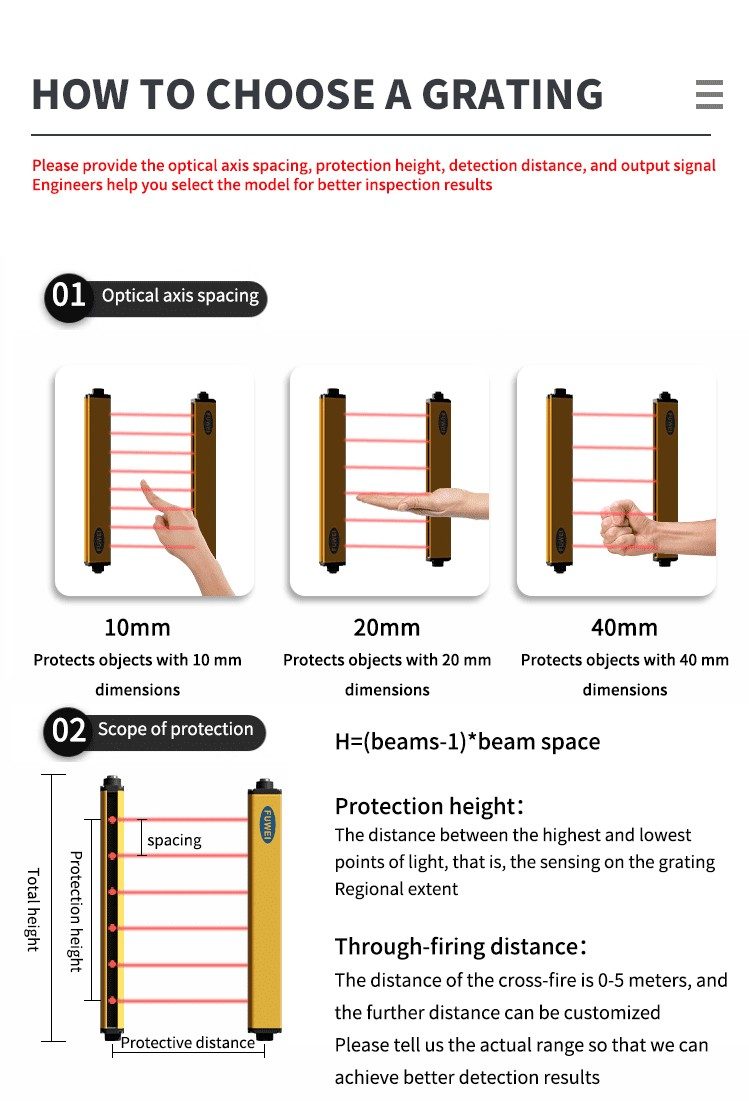

| Beam Pitch |
10mm / 20mm / 40mm |
| Resolution Ratio |
20mm / 30mm / 50mm |
| Shooting Distance |
0.1~0.5m, 0.1~2m, 0.1~5m, 0.1~10m, 0.1~20m, 0.1~30m |

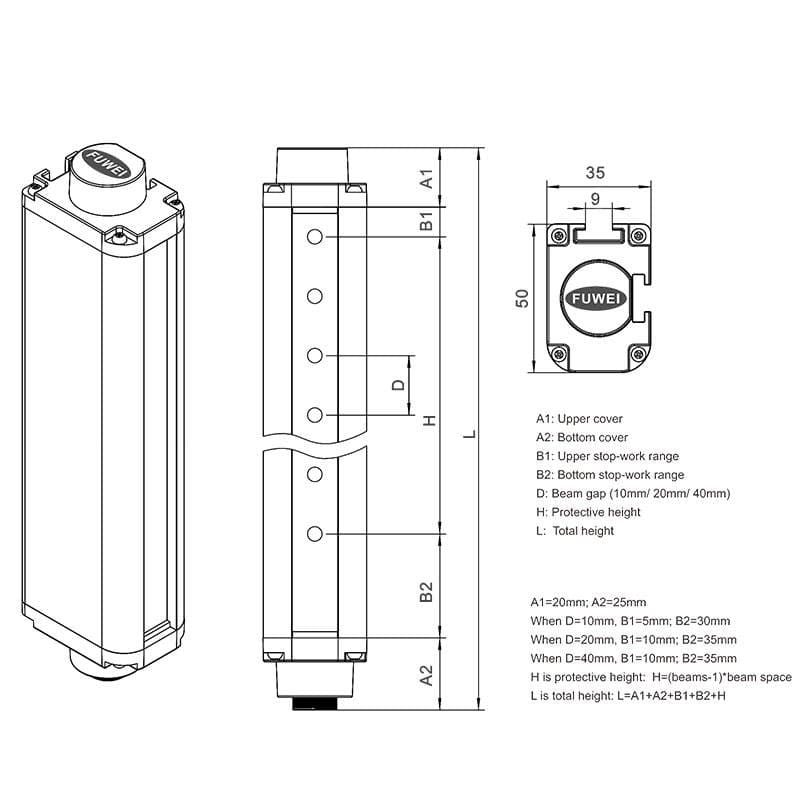

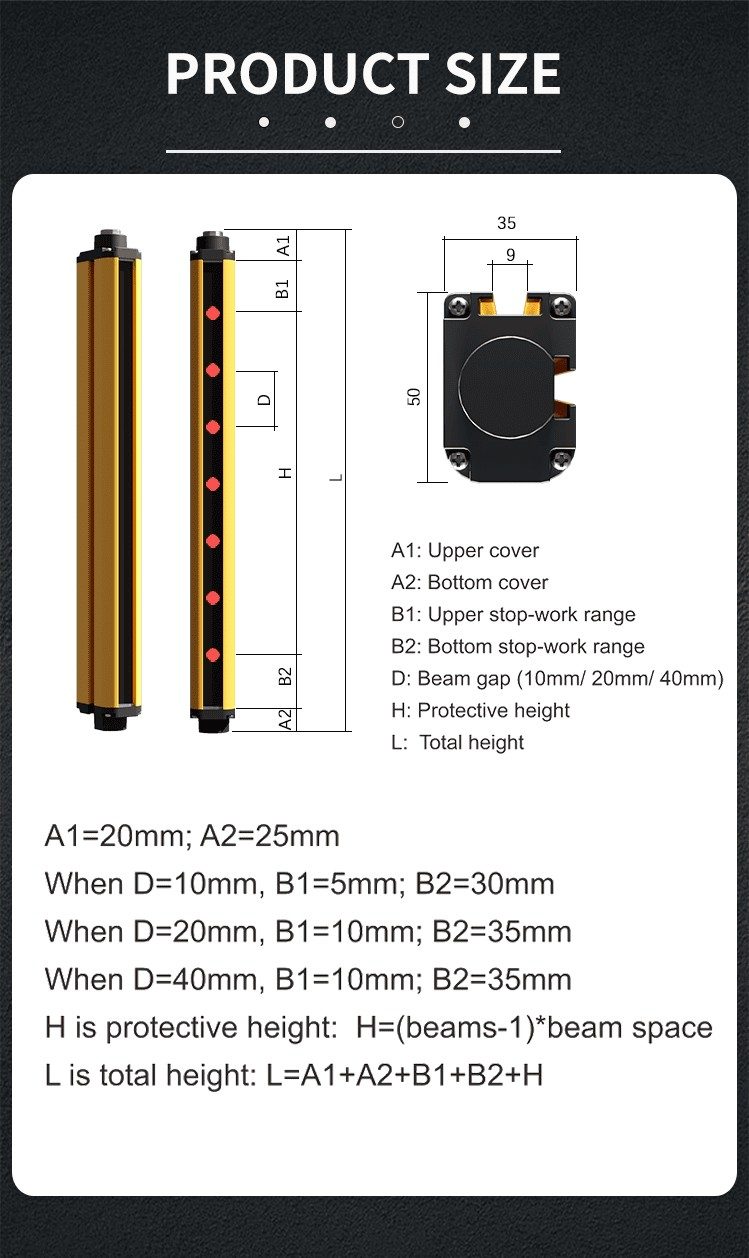

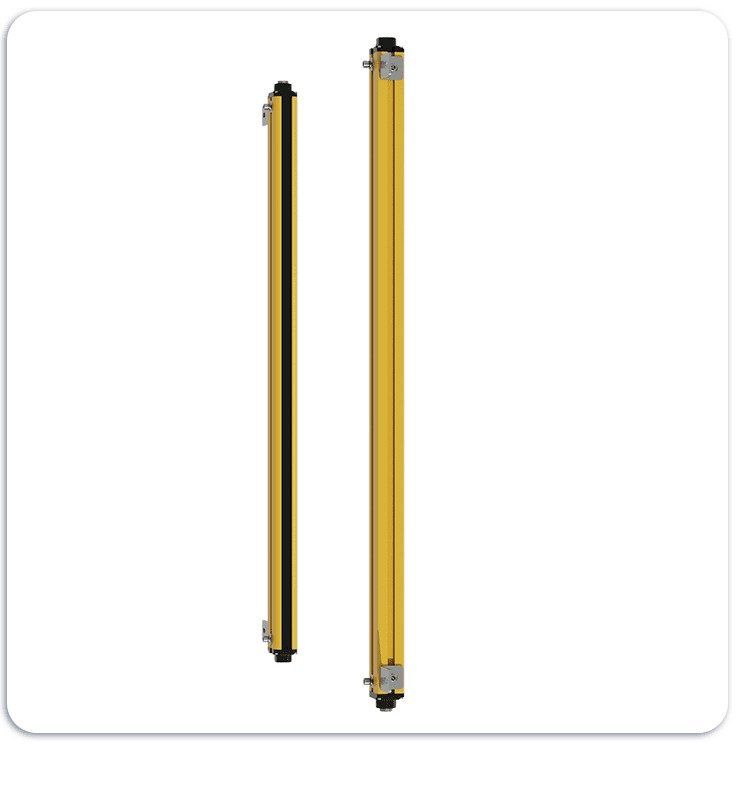

| Protective Height |
(N-1) × beam gap, N is beam quantity |
| Response Time |
(N × 0.1ms) + 0.4ms (N is number of optical axes) |
| Enclosure Material |
Aluminum alloy |

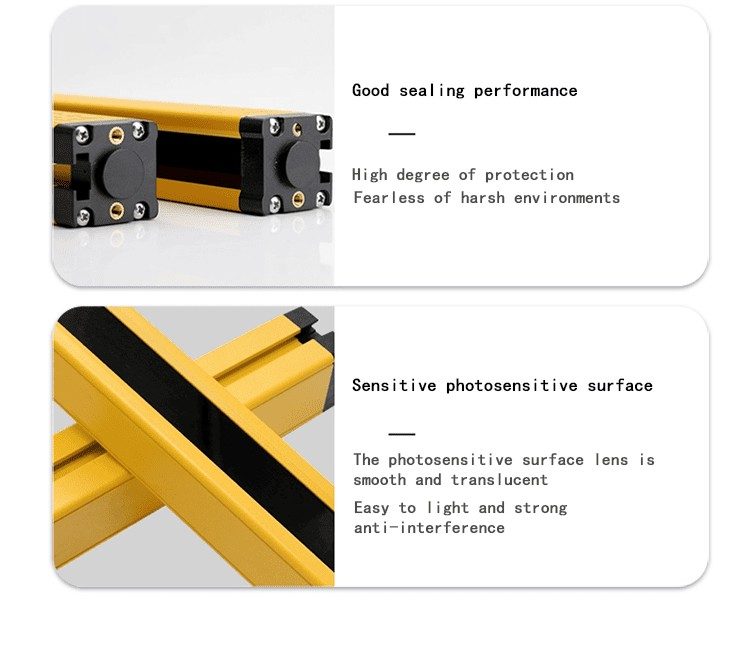

| Enclosure Rating |
IP65 |
| Selling Units |
Single item |
| Package Size |
110 × 11 × 8 cm |
| Gross Weight |
4.000 kg |
