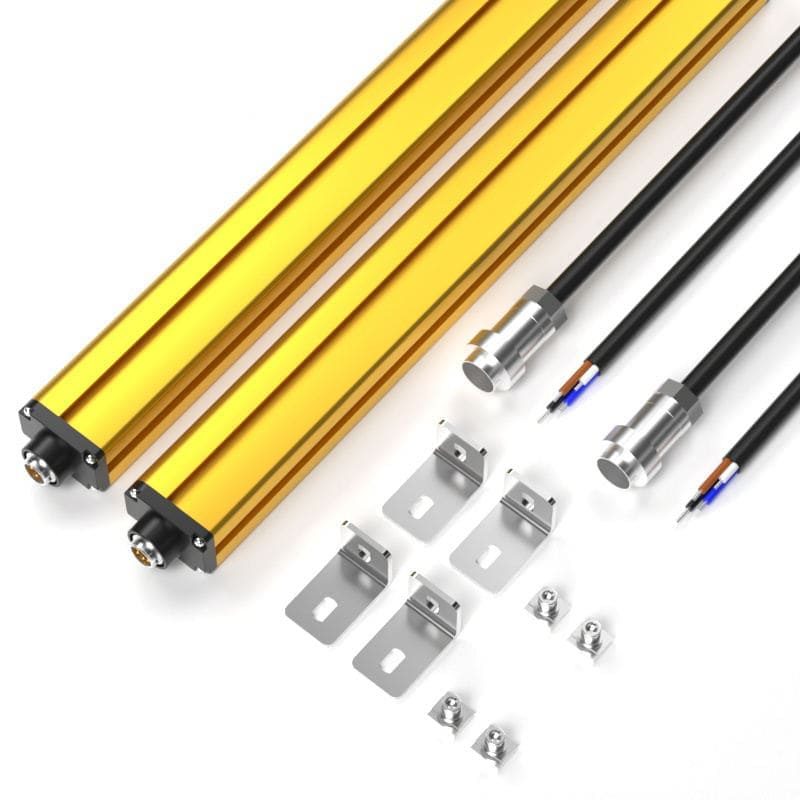

| Mounting Type | Bolt bracket fixing installation |
| Manufacturing Date Code | 2024 |
| Model Number | FGM-SN8010L1PC-5 |
| Brand Name | FUWEI |
| Usage | Safety protection device |
| Description | Safety protection device |
| Type | Photoelectric Sensor |
| Series | FGM-SN |
| Features | Sensing sensitivity |
| Place of Origin | Guangdong, China |
| Theory | Principles of Infrared Optics |

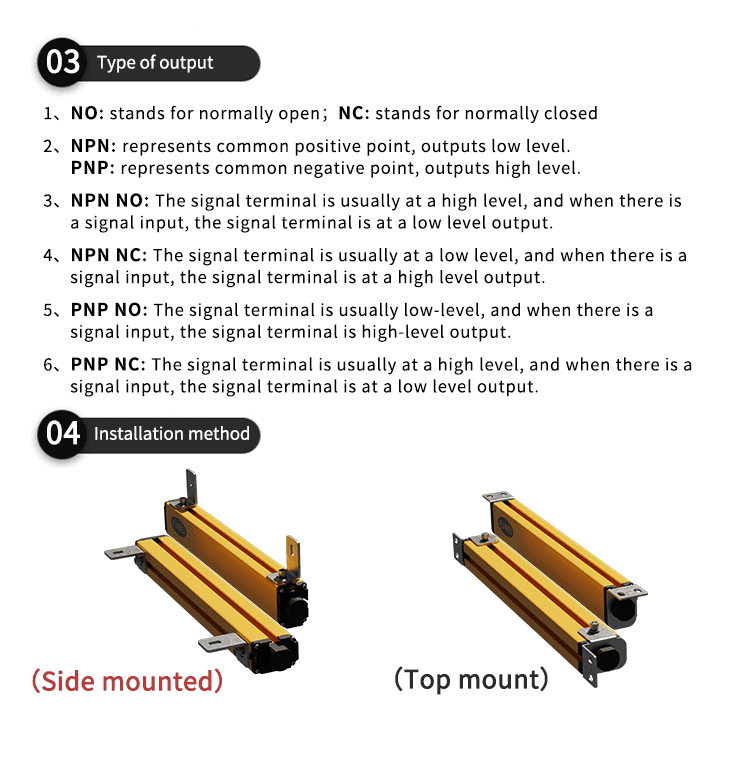

| Output | NPN / PNP |

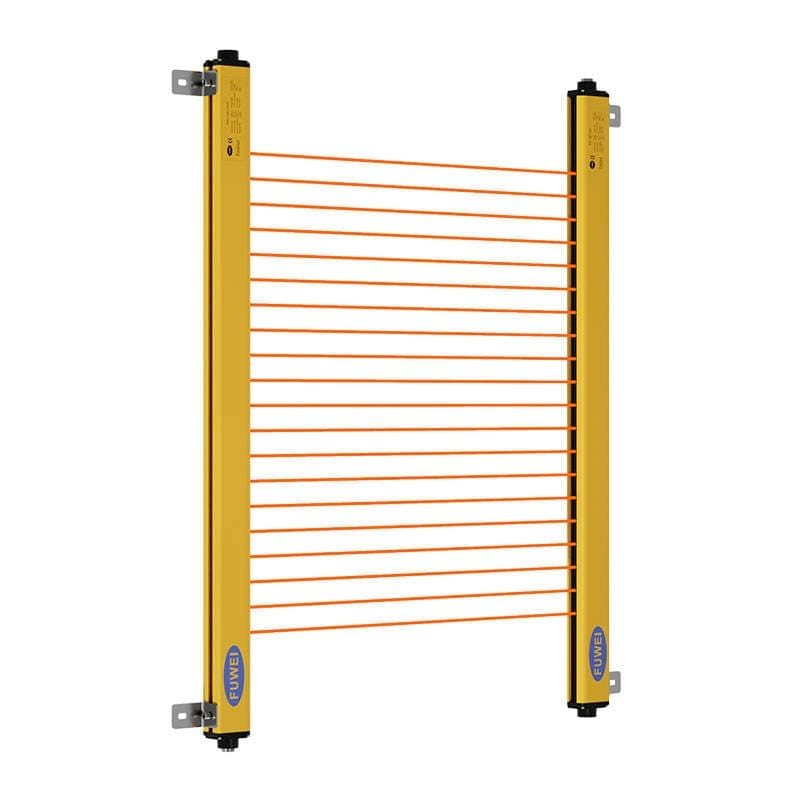

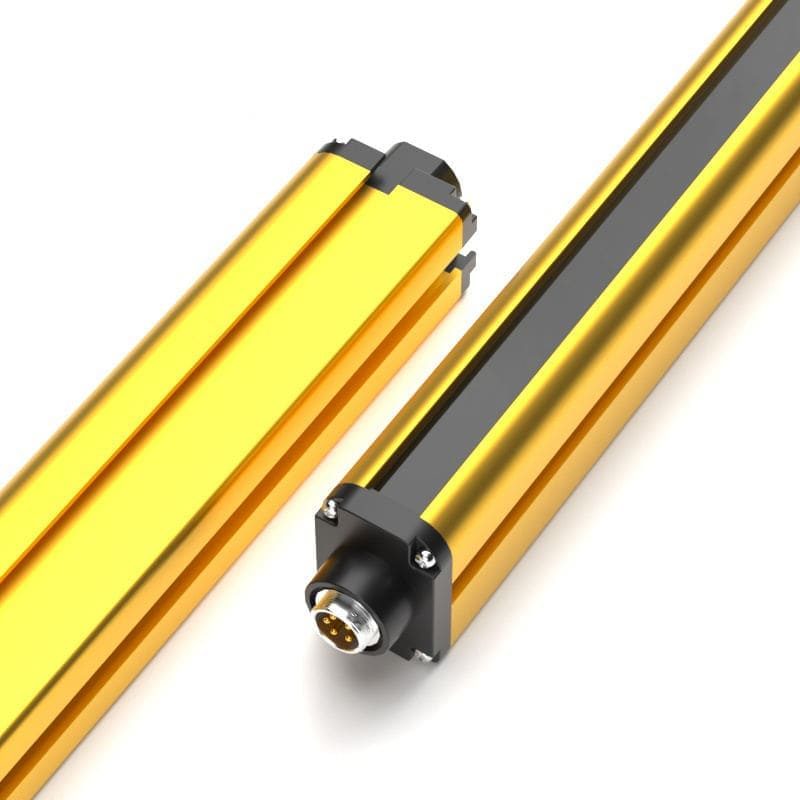

| Description | Safety light curtain |
| Working Power Supply | DC10V ~ 30V |

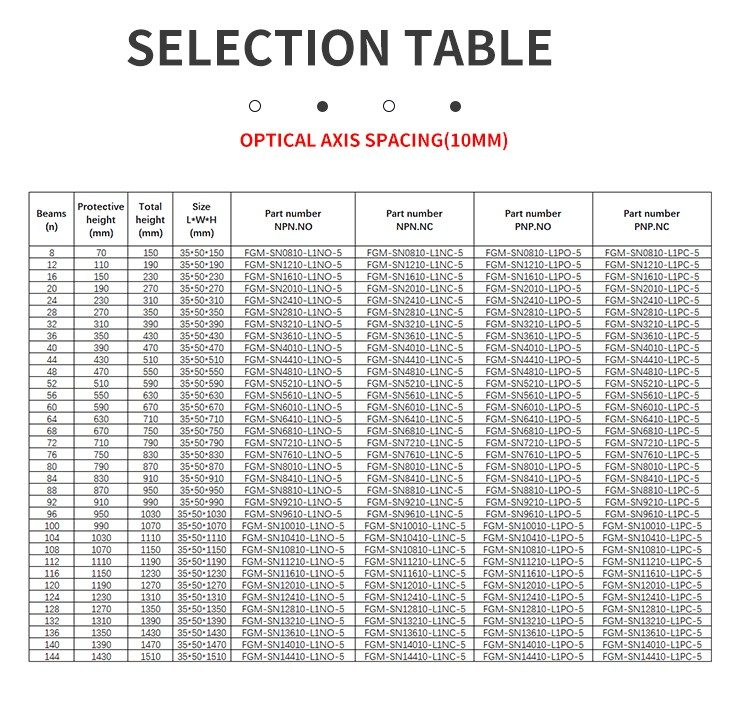

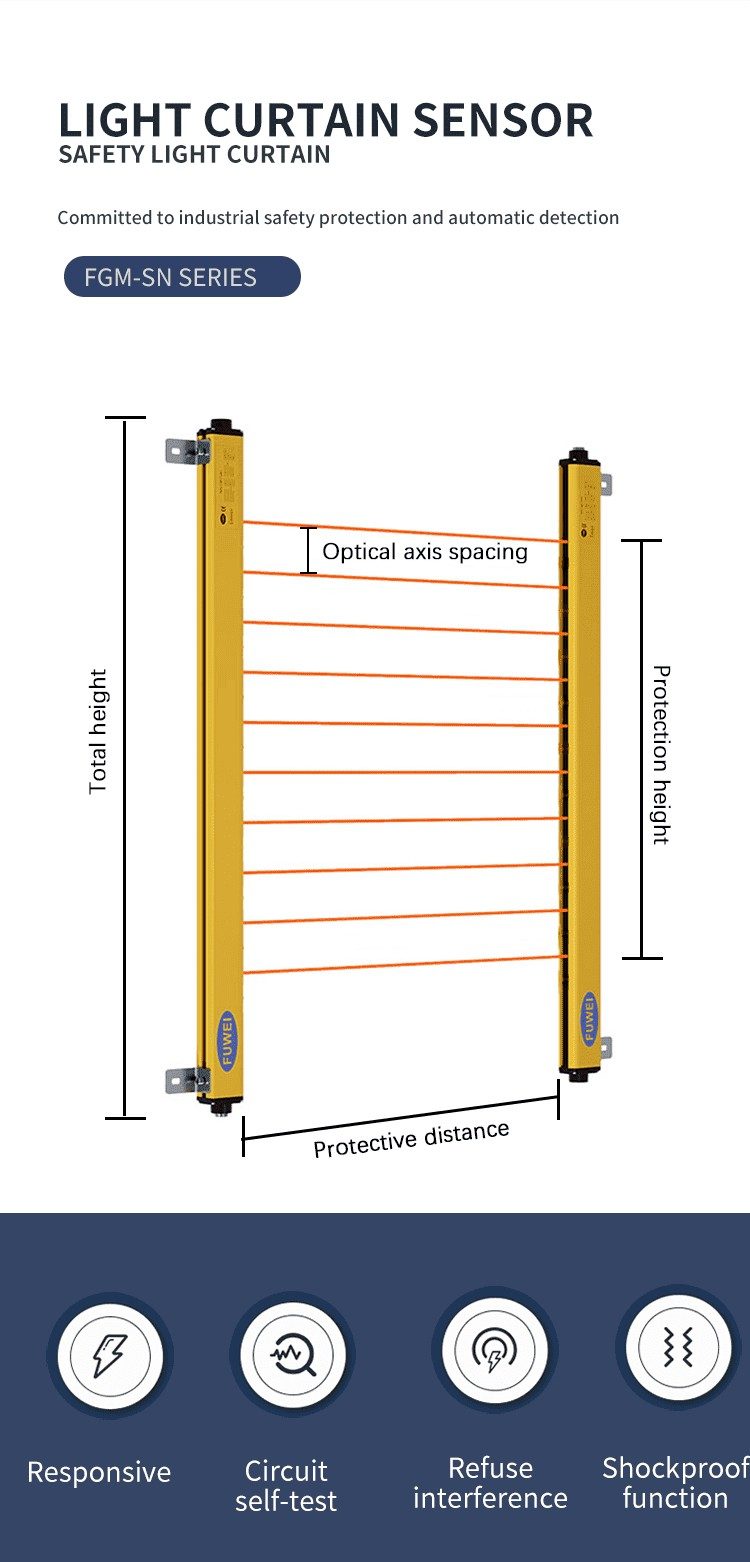

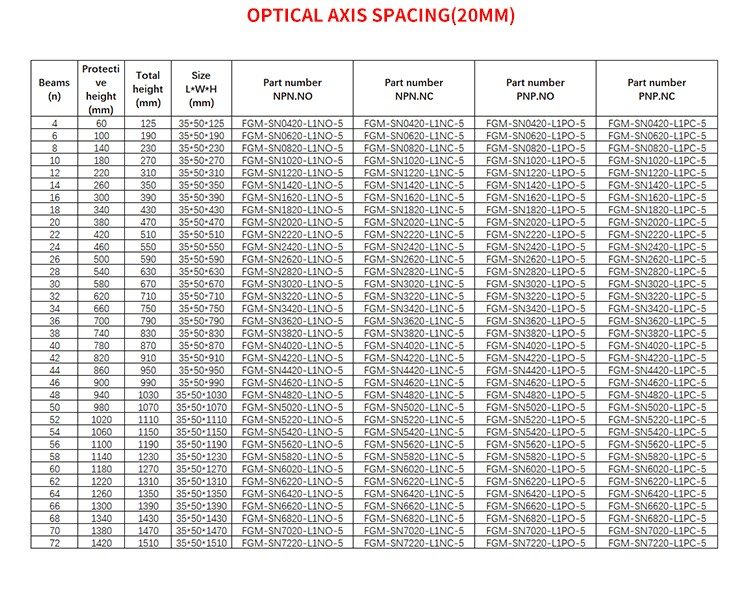

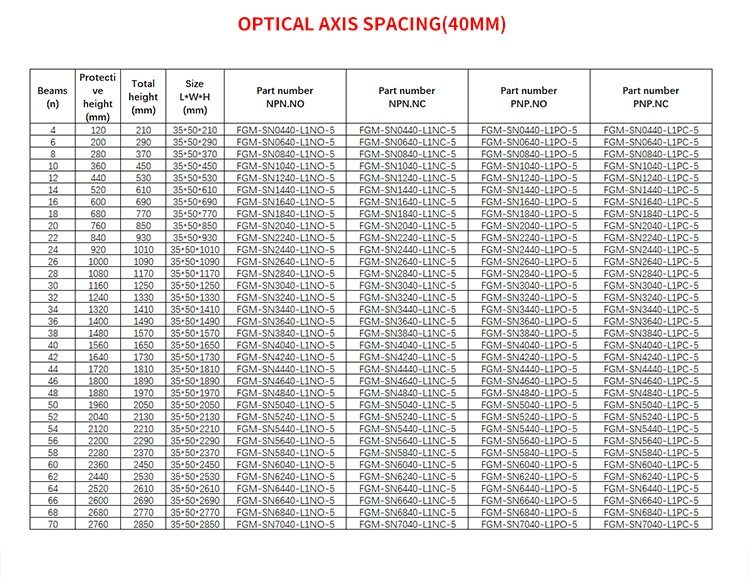

| Beam Pitch | 10 / 20 / 40mm |
| Resolution Ratio | 20mm / 30mm / 50mm |
| Shooting Distance | 0.1~0.5m, 0.1~2m, 0.1~5m, 0.1~10m, 0.1~20m, 0.1~30m |

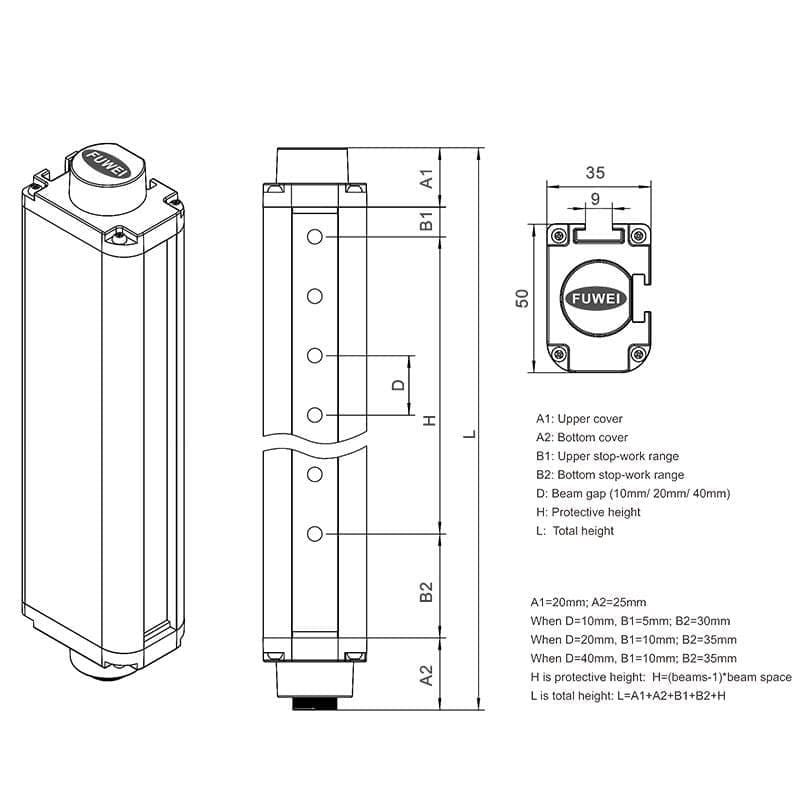

| Protective Height | (N-1) beam gap, N is beam quantity |
| Response Time | (N × 0.1ms) + 0.4ms (N is number of optical axes) |
| Enclosure Material | Aluminum alloy |
| Enclosure Rating | IP65 |
| Packaging and Delivery |
| Selling Units | Single item |
| Single Package Size | 110 × 11 × 8 cm |
| Single Gross Weight | 4.000 kg |
