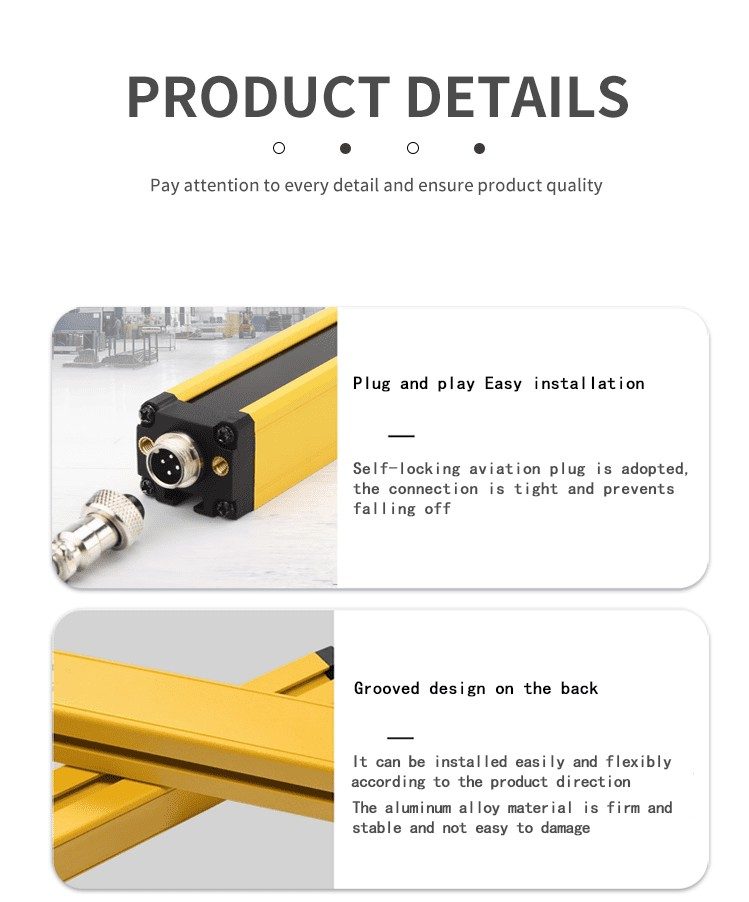

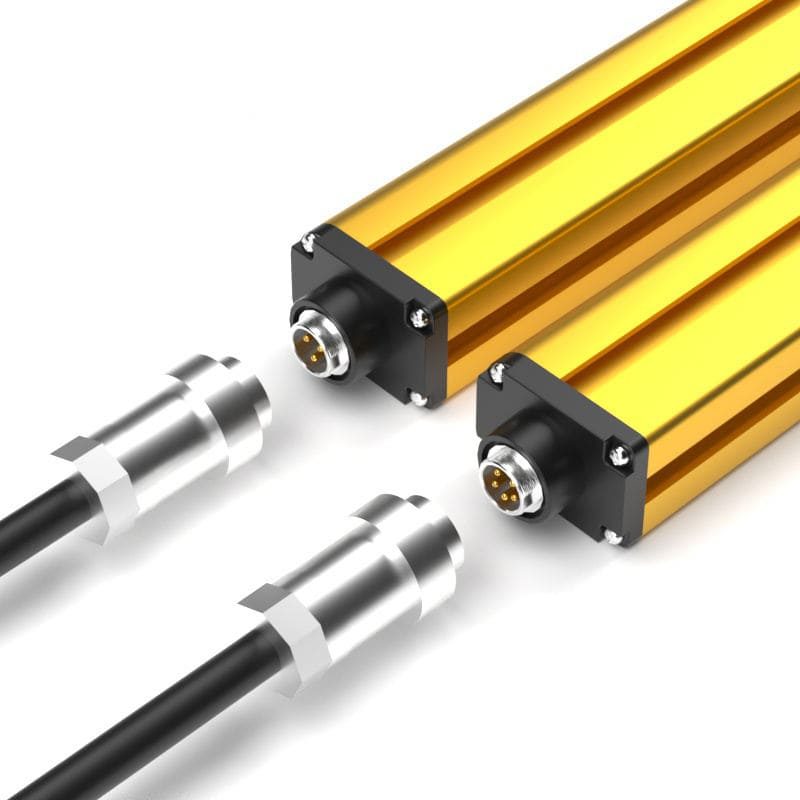

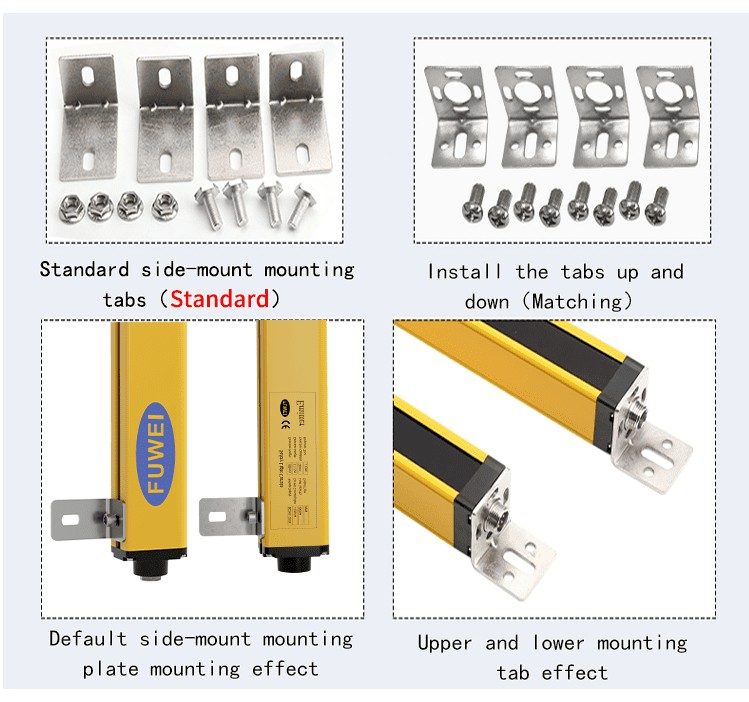

| Mounting Type | Side mounting screws |
| Manufacturing Date Code | 2024 |

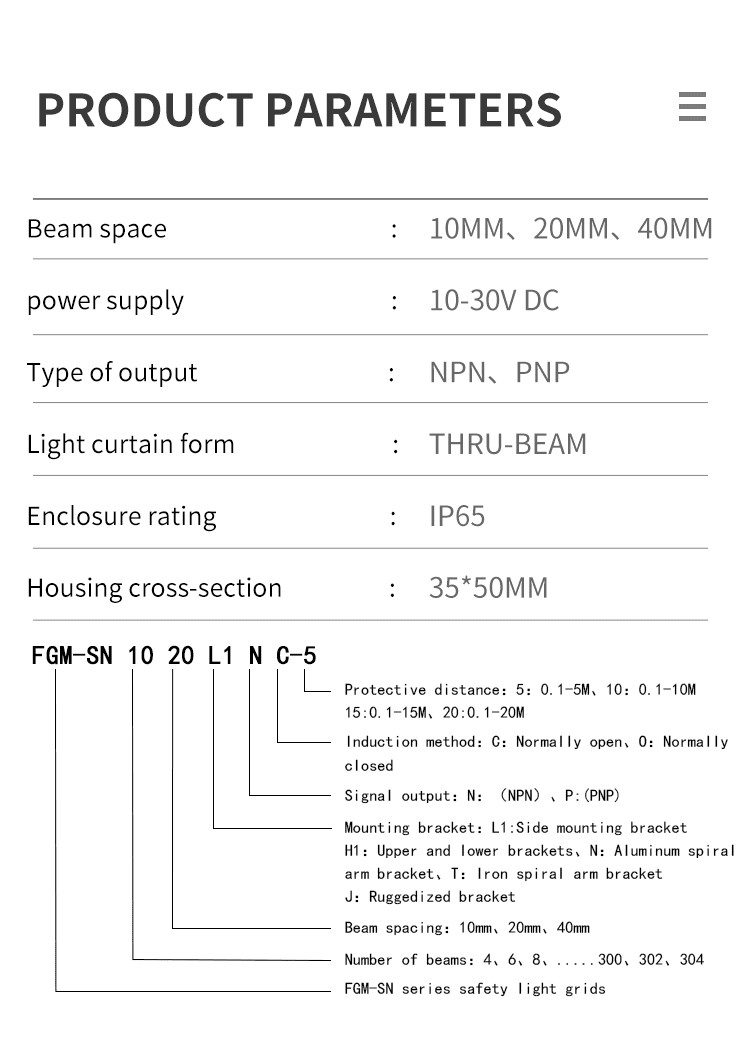

| Model Number | FGM-SN1240L1NC-5 |
| Brand Name | FUWEI |

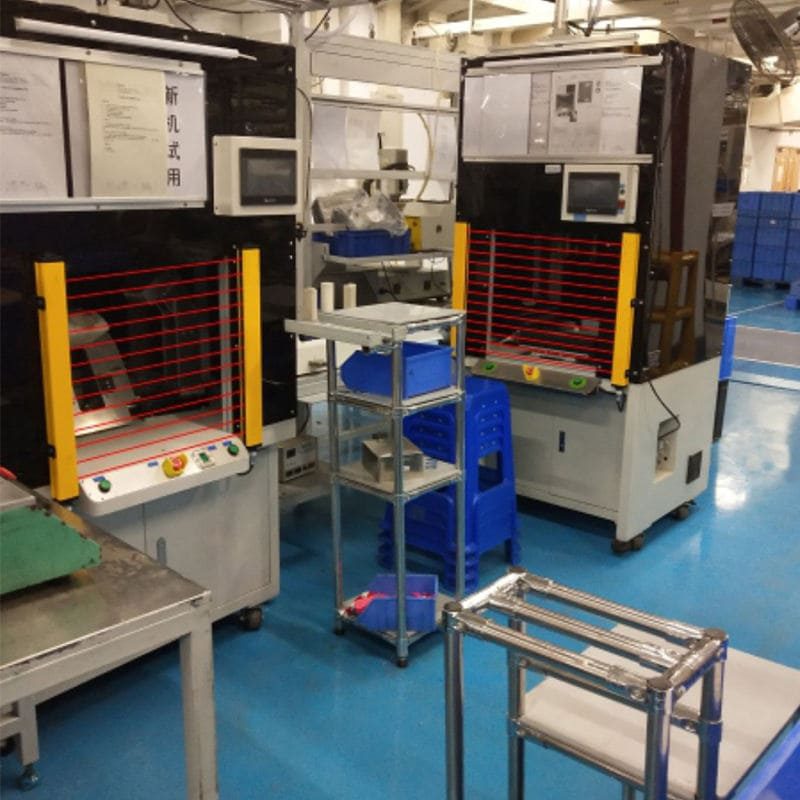

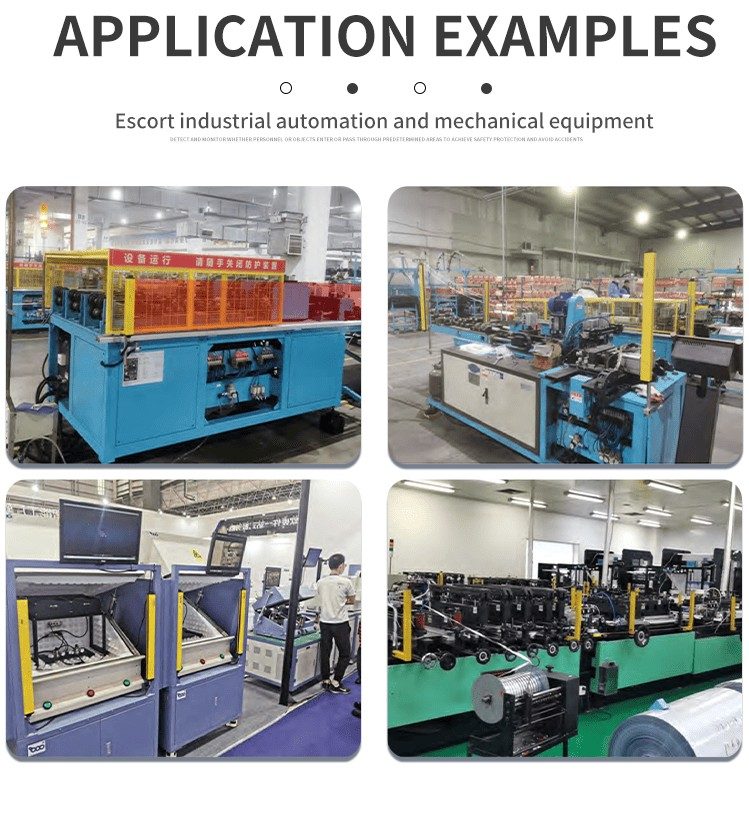

| Usage | Machine safety protection |

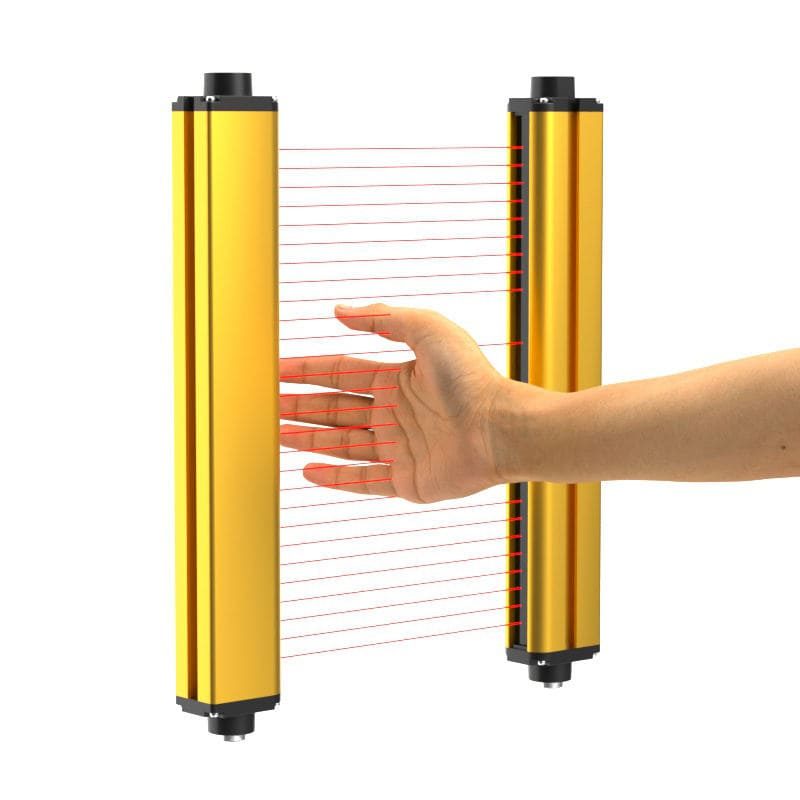

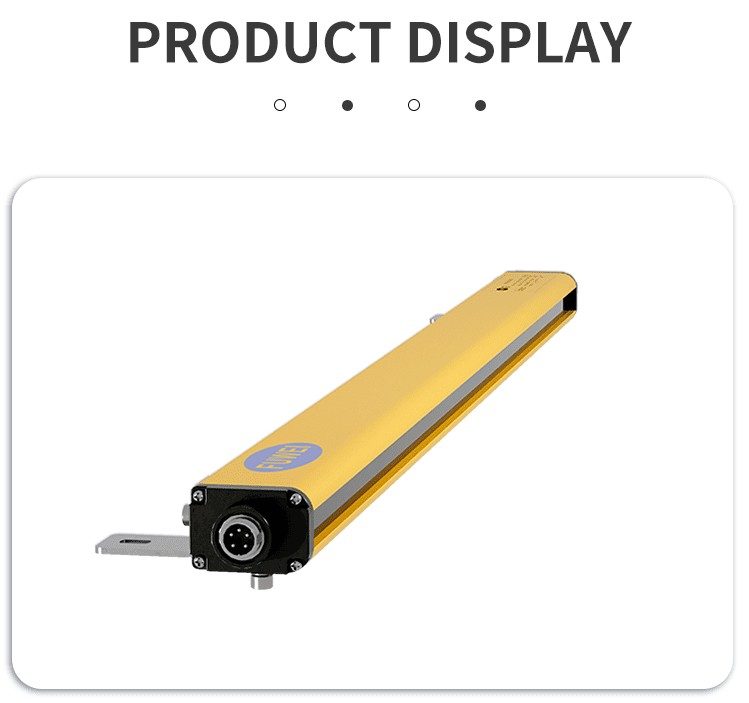

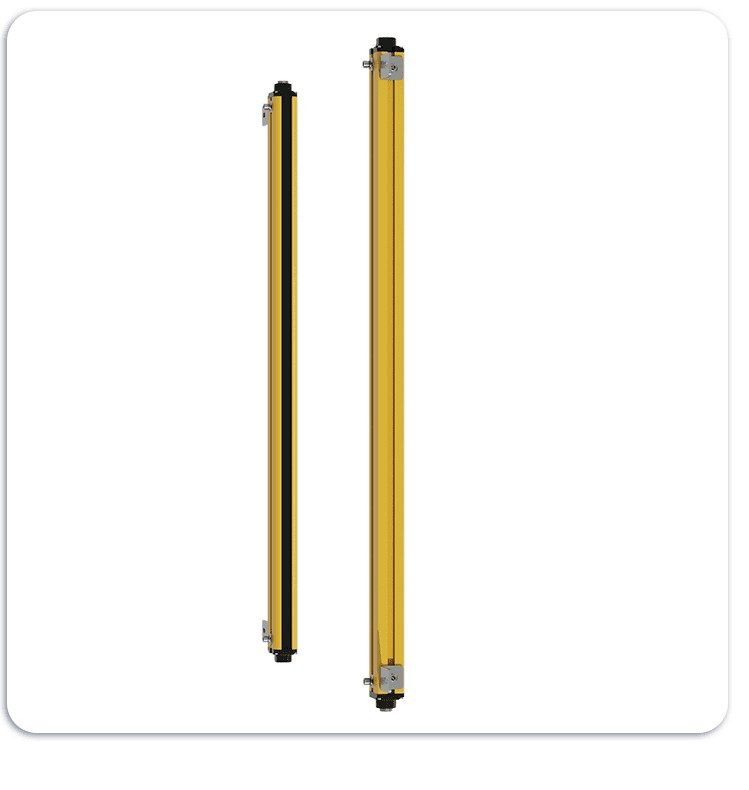

| Type | Infrared Safety Light Sensor |
| Series | FGM-SN series |
| Place of Origin | Guangdong, China |
| Theory | Correlation infrared sensor |

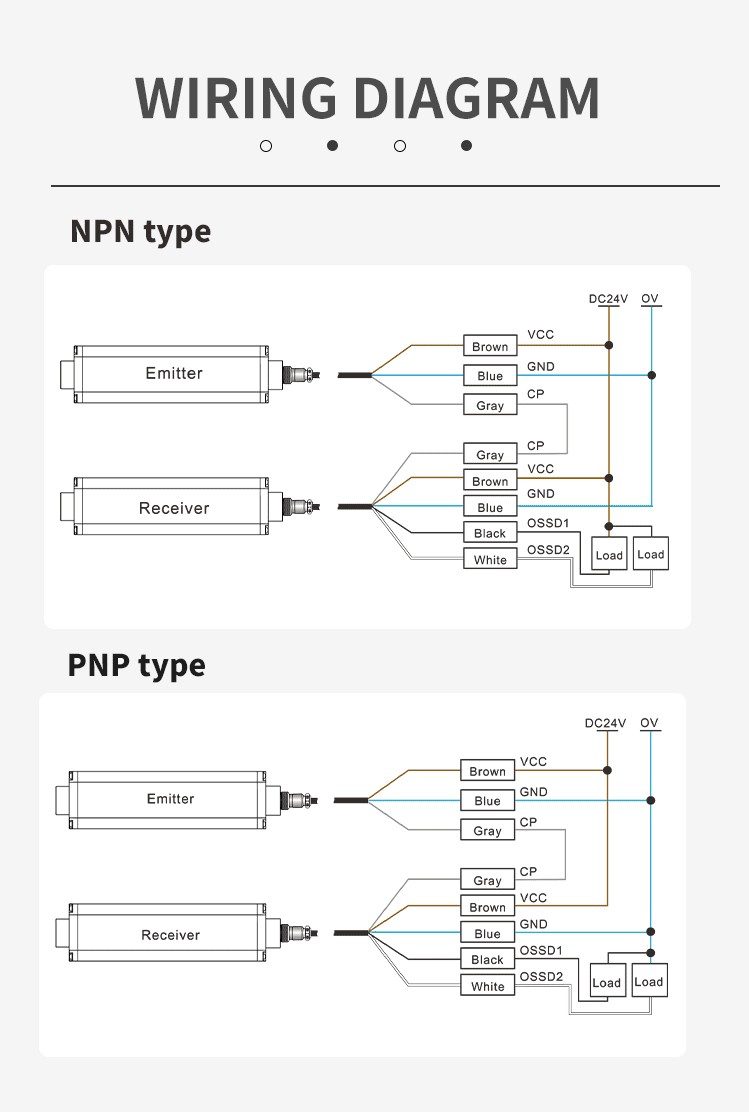

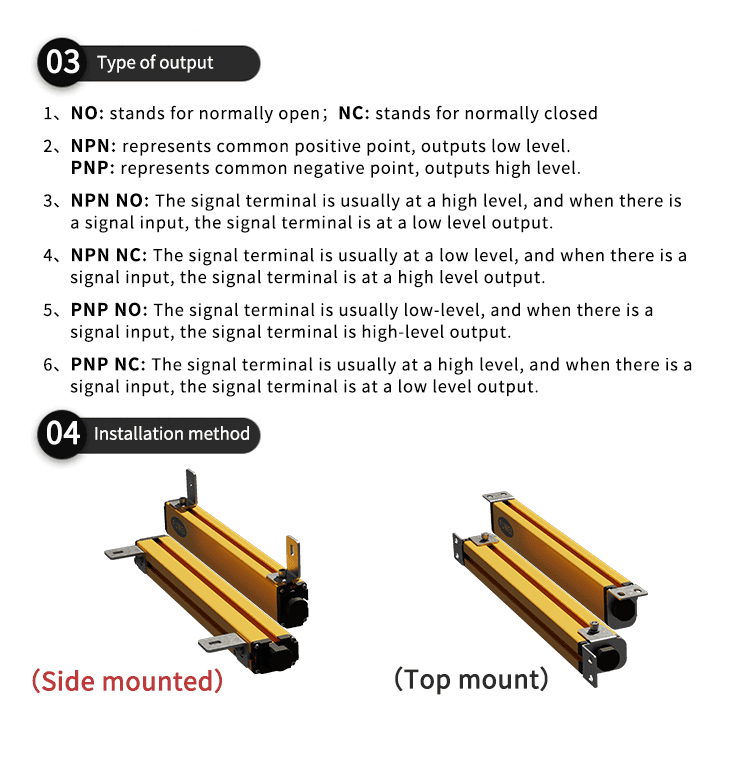

| Output | NPN / PNP |

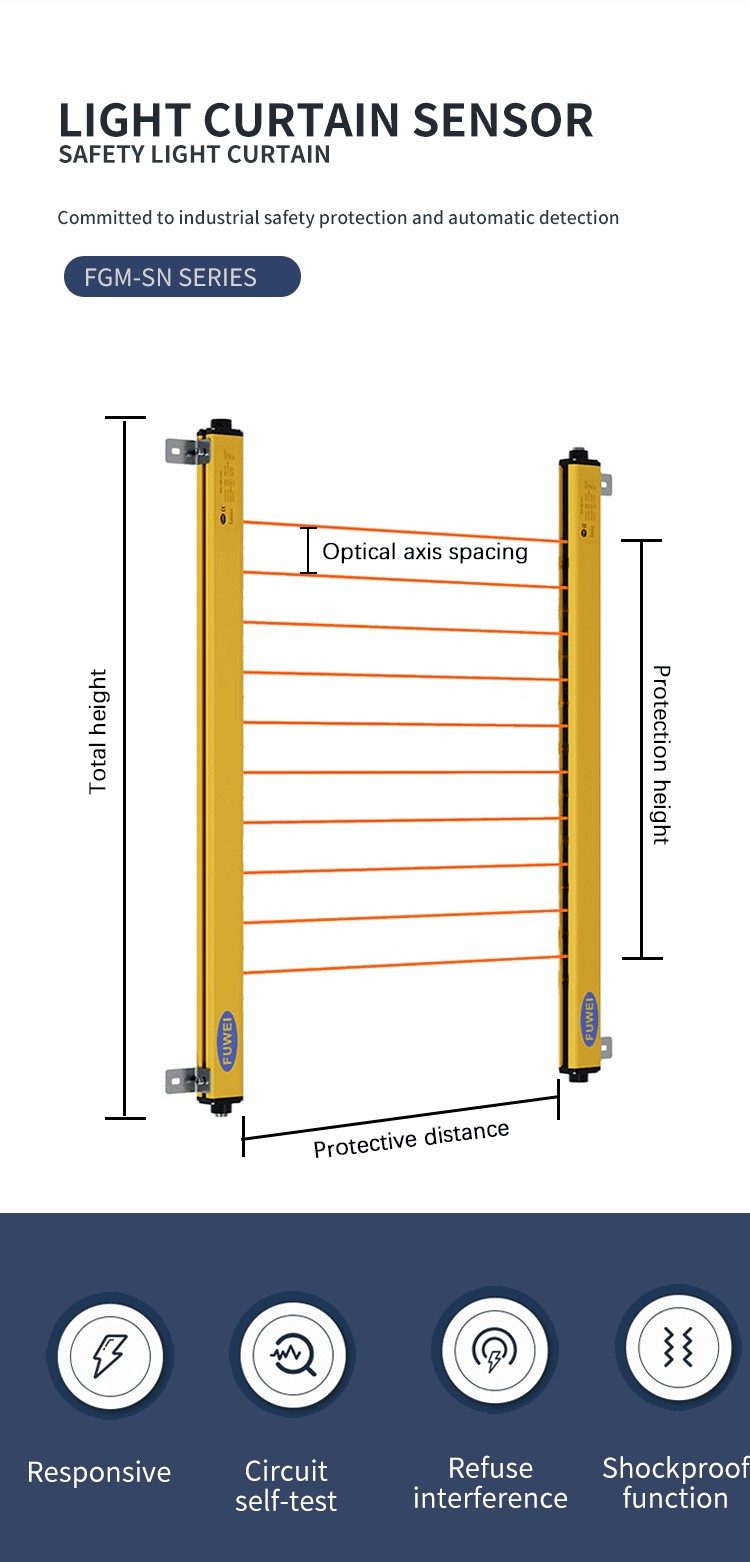

| Description | Safety light curtain sensors |
| Power Supply | DC10–30V |

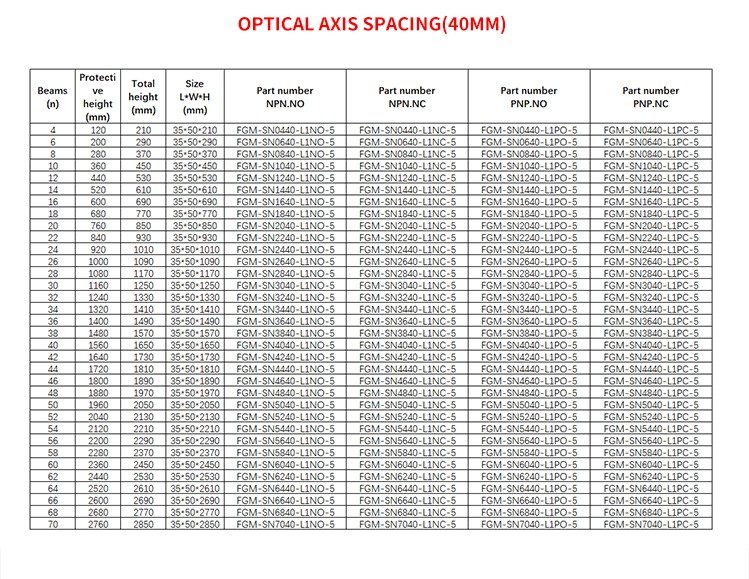

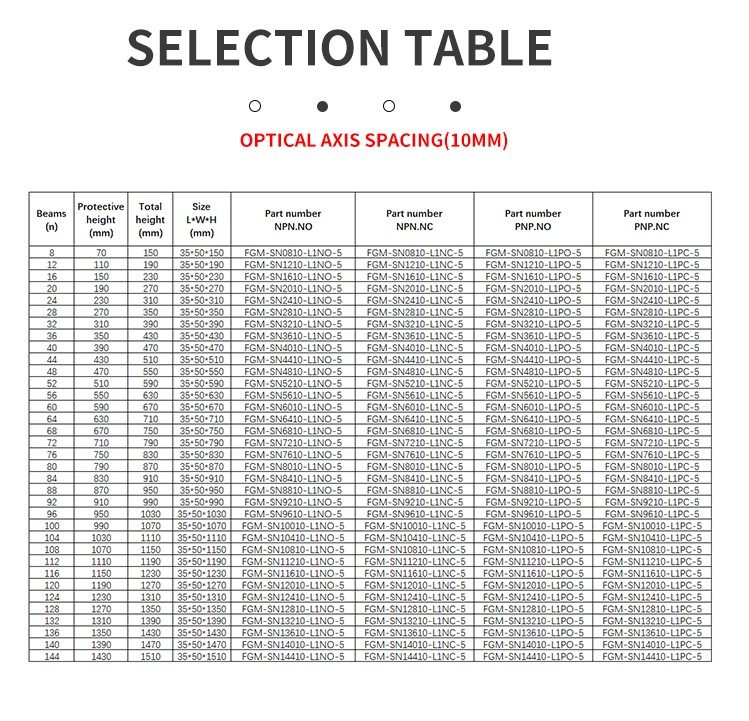

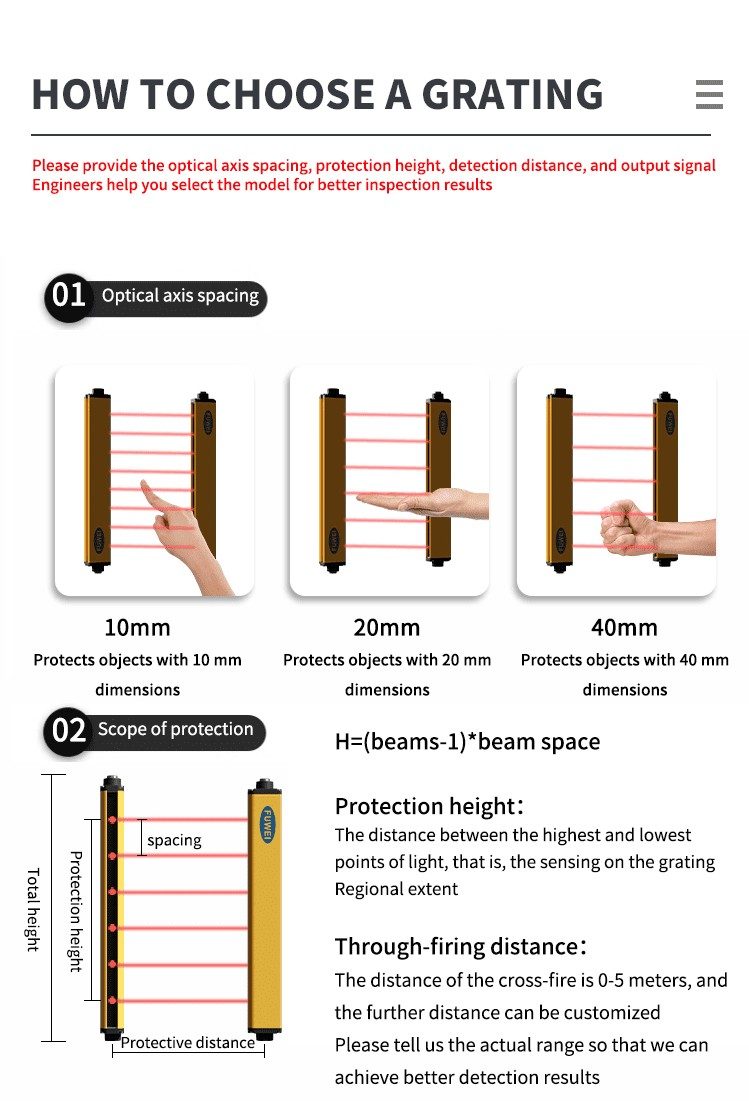

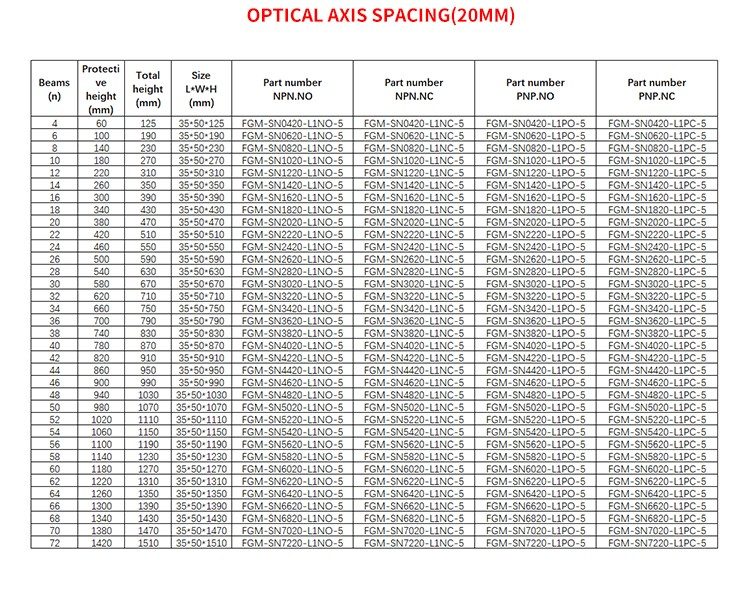

| Beam Space | 10mm / 20mm / 40mm |
| Resolution | 20mm / 30mm / 50mm |
| Sensing Distance | 0.1 ~ 5m |
| Anti-optical Interference | 10000 Lux (angle > 5°) |

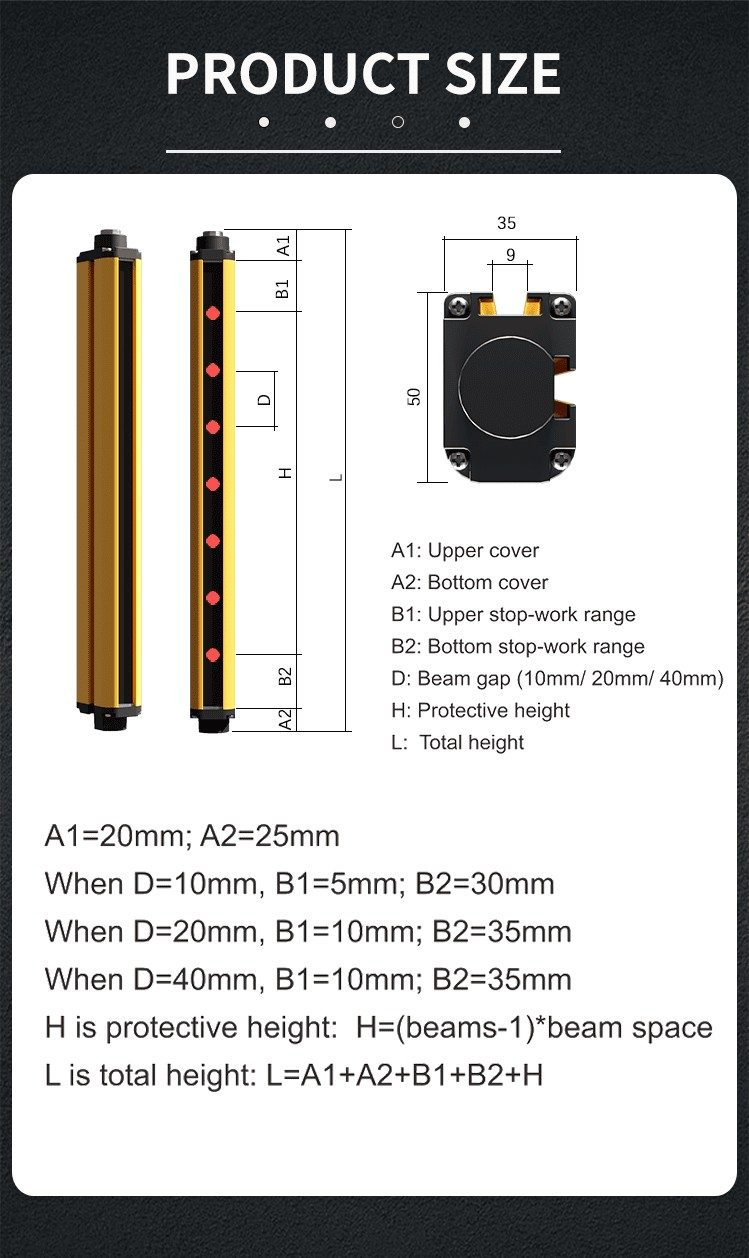

| Housing Cross-section | 35 × 50mm |

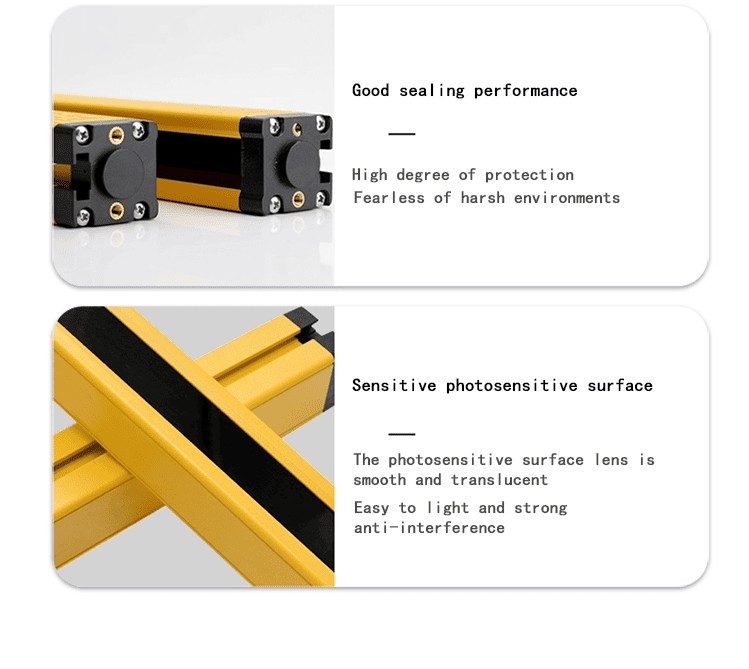

| Enclosure Rating | IP65 |
| Ambient Operating Temperature | -10°C ~ 55°C (no freezing) |
| Packaging and Delivery |
| Selling Units | Single item |
| Single Package Size | 55 × 20 × 17 cm |
| Single Gross Weight | 3.000 kg |
