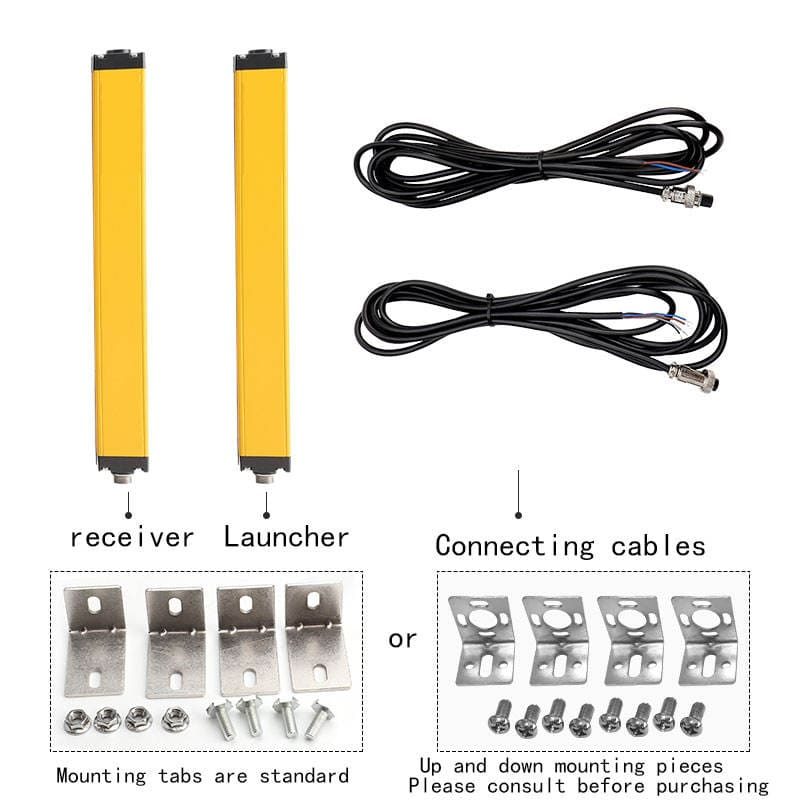

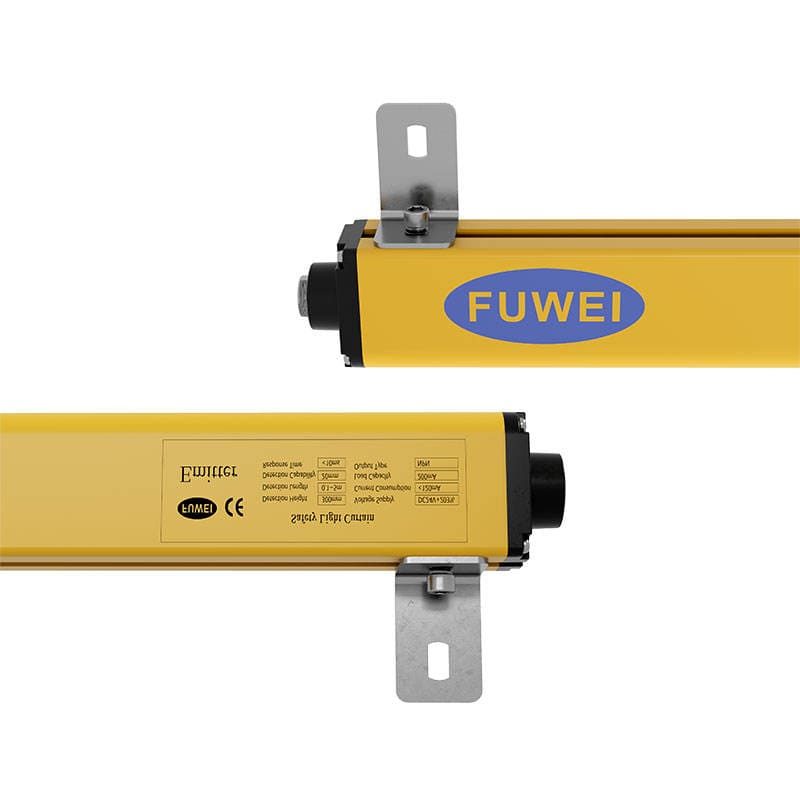

| Mounting Type | Bolt bracket fixing installation |
| Manufacturing Date Code | 2025 |

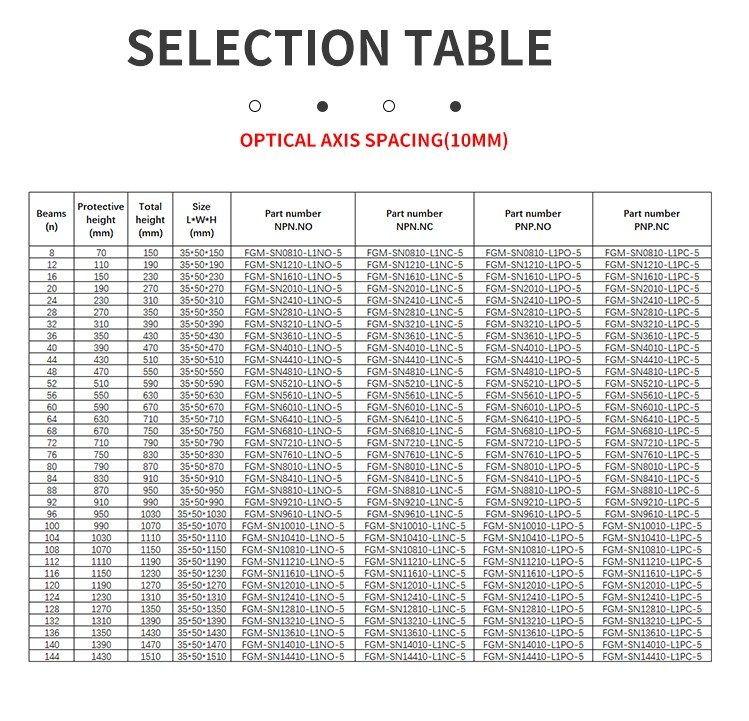

| Model Number | FGM-SN1020L1NC-5 |
| Brand Name | FUWEI |
| Usage | Safety protection device |
| Type | Photoelectric Sensor |
| Series | FGM-SN |
| Features | Sensing sensitivity |
| Place of Origin | Guangdong, China |
| Theory | Principles of Infrared Optics |

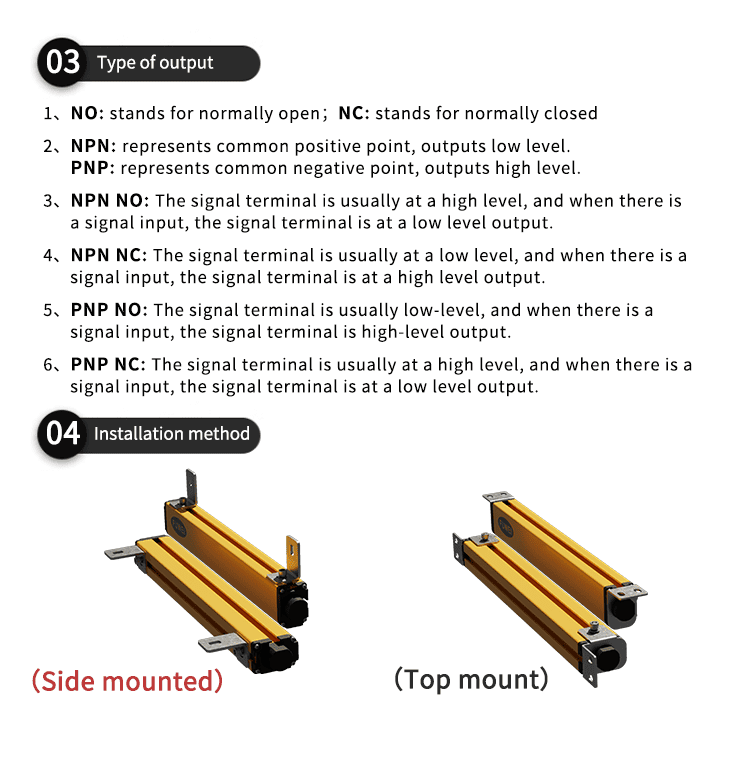

| Output | NPN |

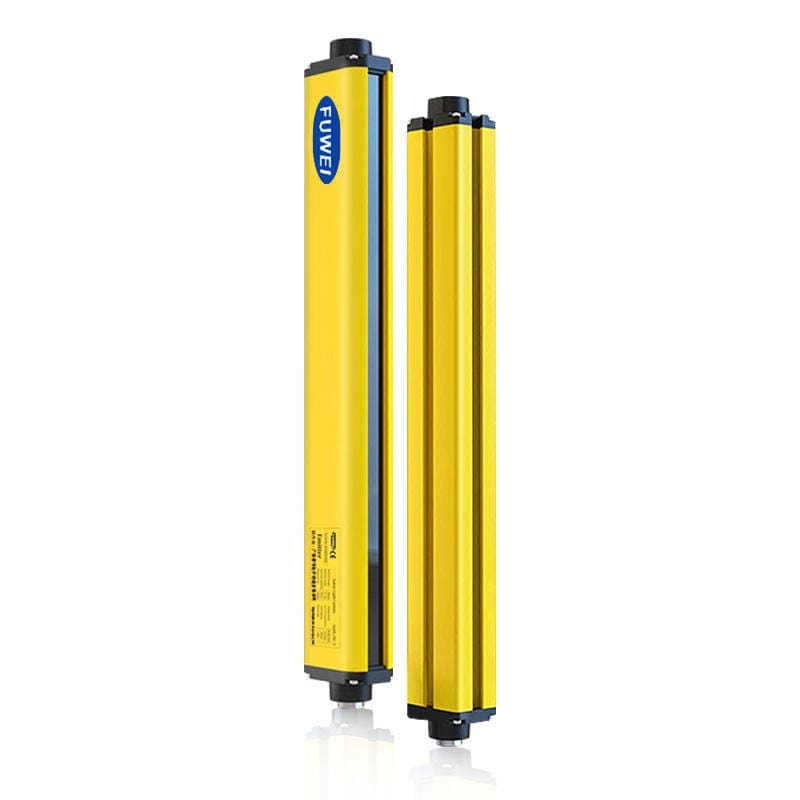

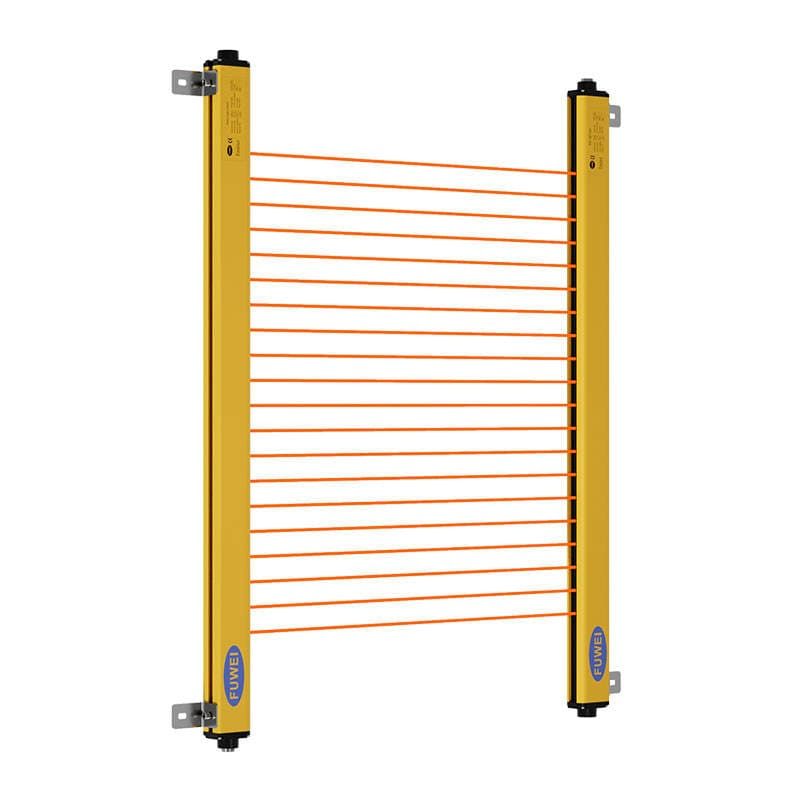

| Description | Safety light curtain |
| Working power supply | DC10V~30V |

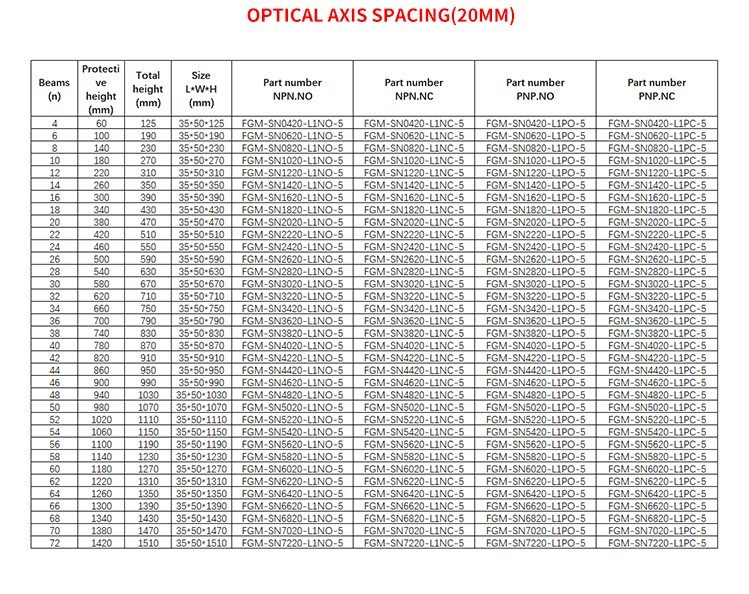

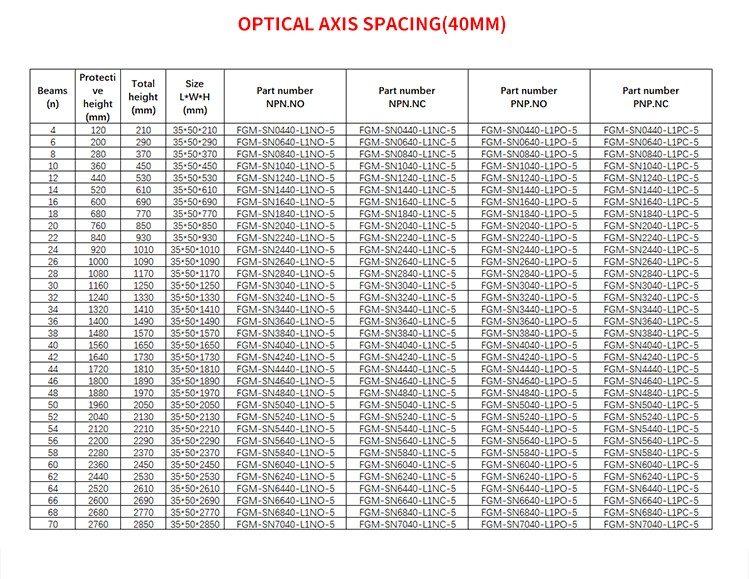

| Beam pitch | 10/20/40mm |
| Resolution ratio | 20mm / 30mm / 50mm |
| Shooting distance | 0.1~0.5m, 0.1~2m, 0.1~5m, 0.1~10m, 0.1~20m, 0.1~30m |

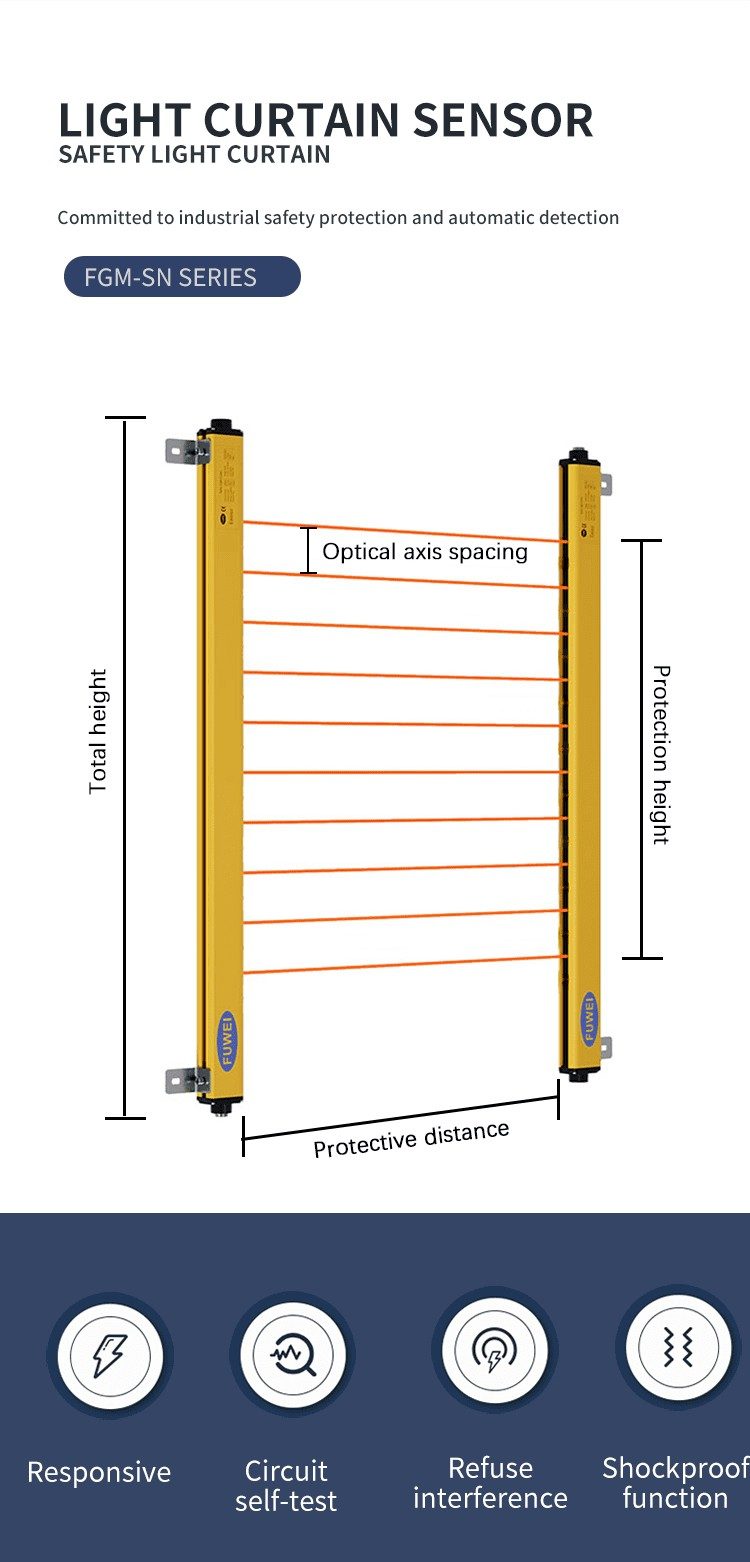

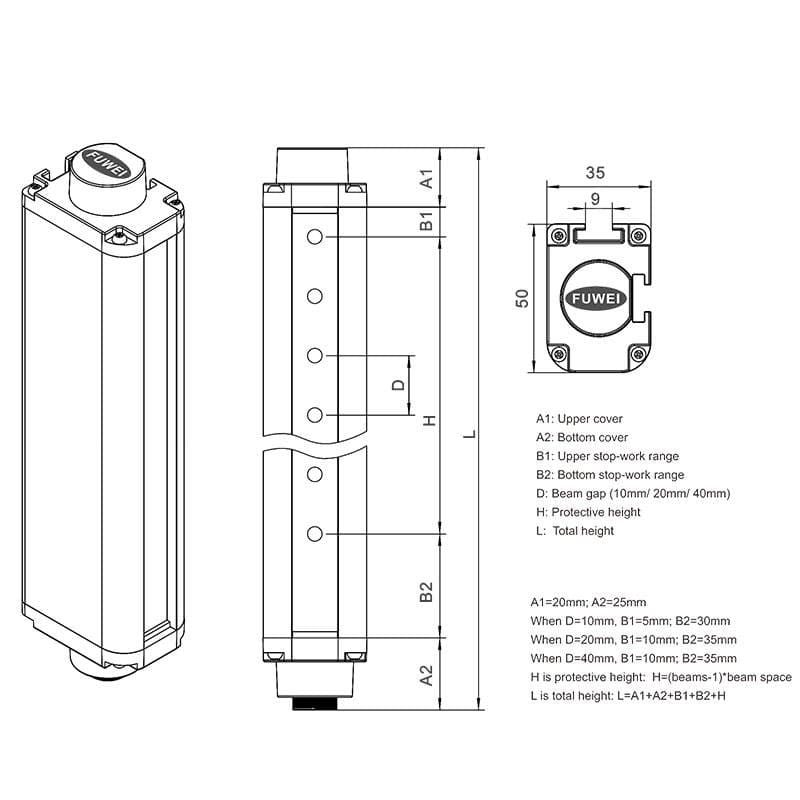

| Protective Height | (N-1) × beam gap, N is beam quantity |
| Response Time | (N × 0.1ms) + 0.4ms (N is number of optical axes) |
| Enclosure Material | Aluminum alloy |
| Enclosure Rating | IP65 |
| Packaging and Delivery |
| Selling Units | Single item |
| Single package size | 110 × 11 × 5 cm |
| Single gross weight | 2.000 kg |
