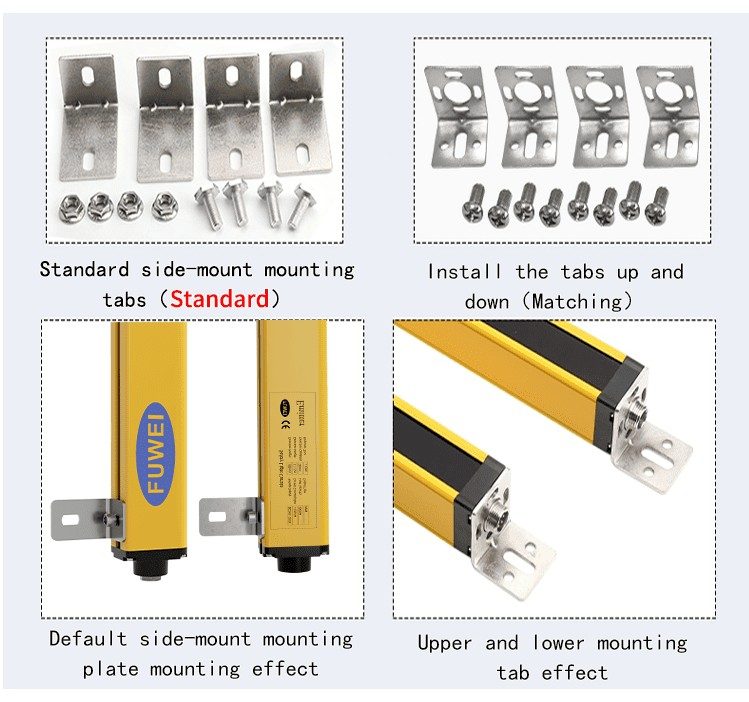

| Mounting Type |
Bolt bracket fixing installation |
| Manufacturing Date Code |
2024 |
| Model Number |

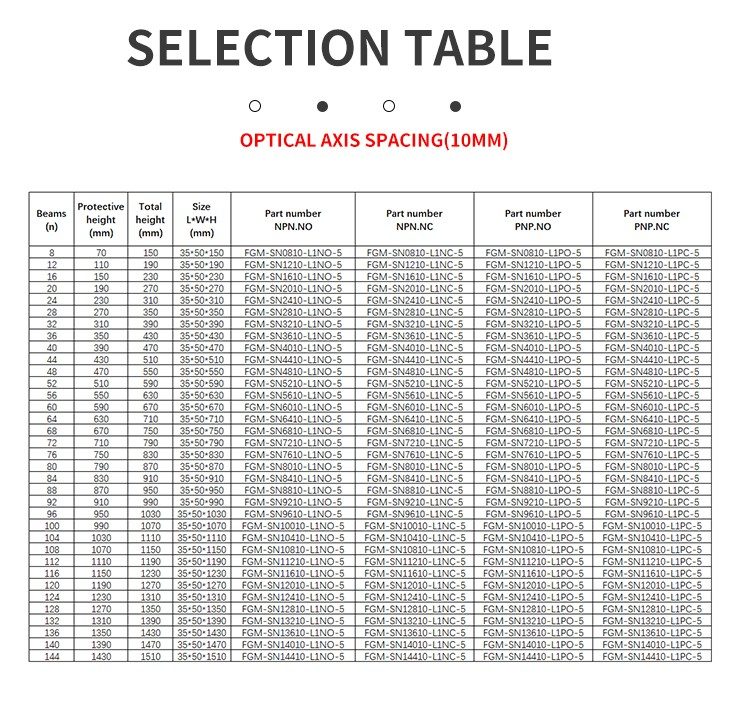

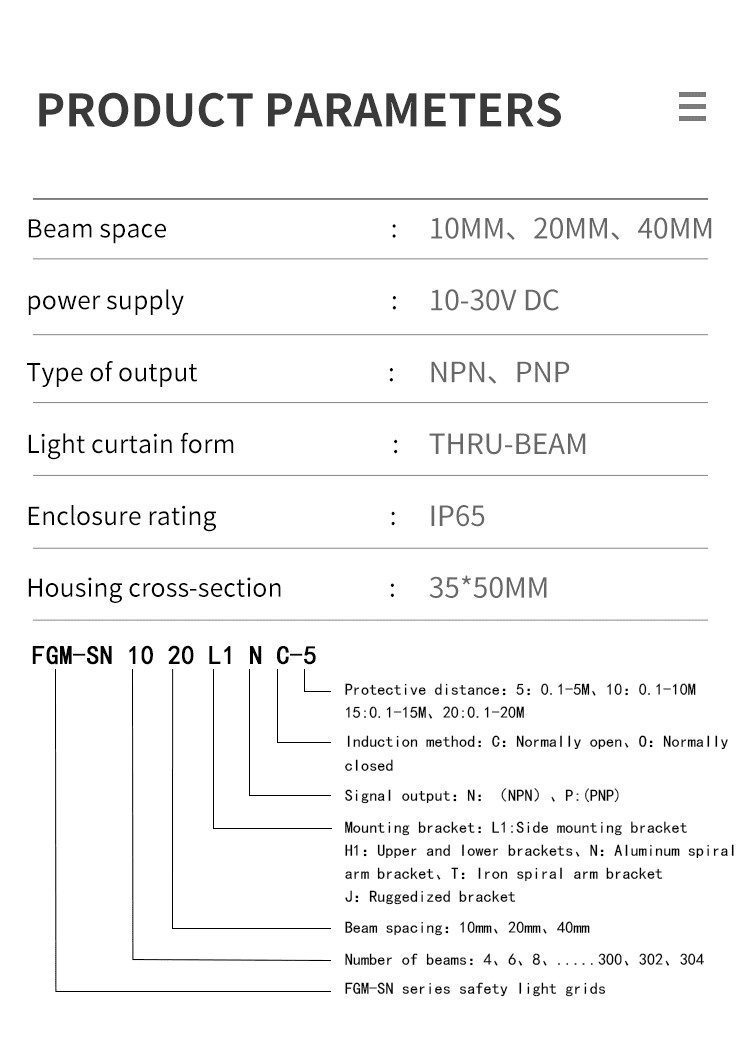

FGM-SN3220H1PC-5 |
| Brand Name |
FUWEI |
| Usage |
Safety protection device |
| Description |
Safety protection device |
| Type |
Photoelectric Sensor |
| Series |
FGM-SN |
| Features |
Sensing sensitivity |
| Place of Origin |
Guangdong, China |
| Theory |
Principles of Infrared Optics |

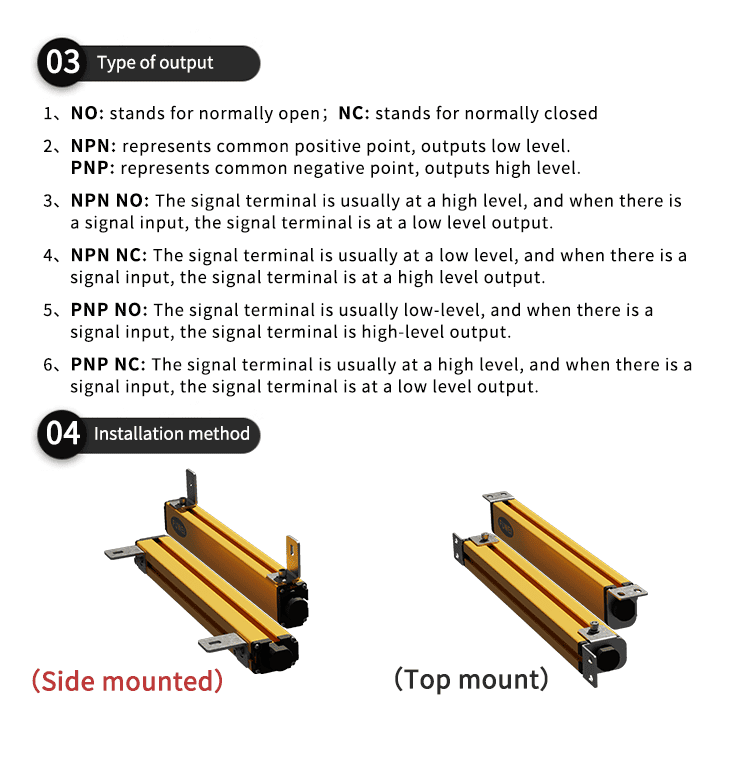

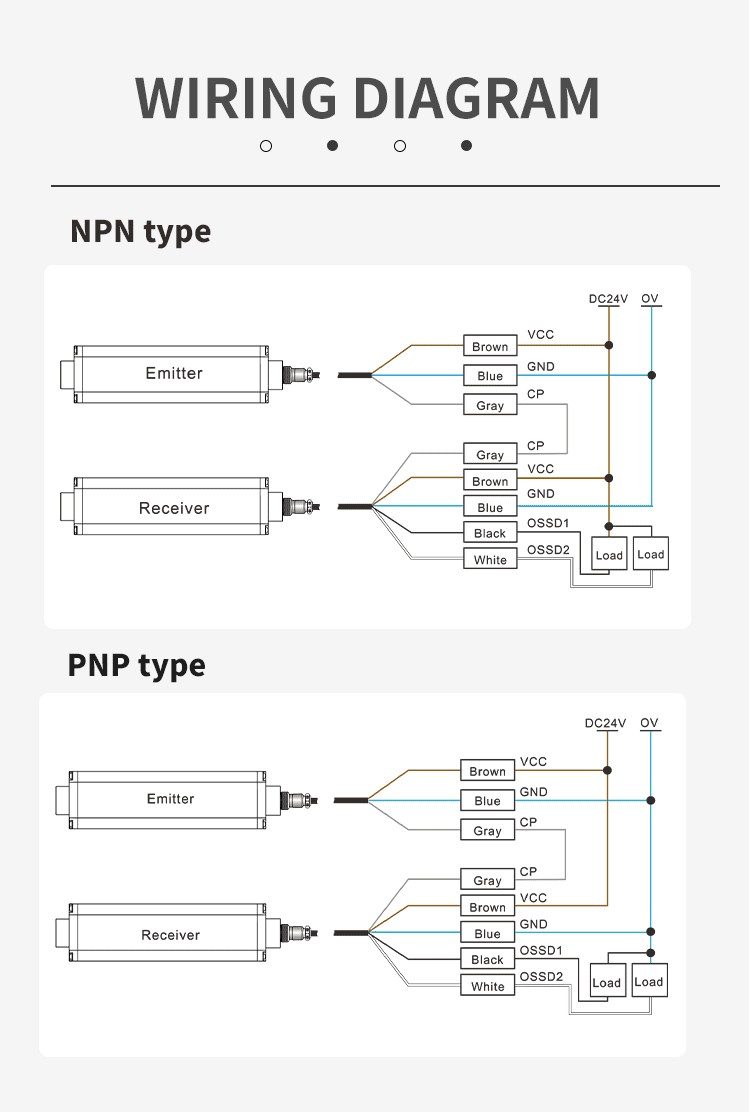

| Output |
PNP |
| Description |

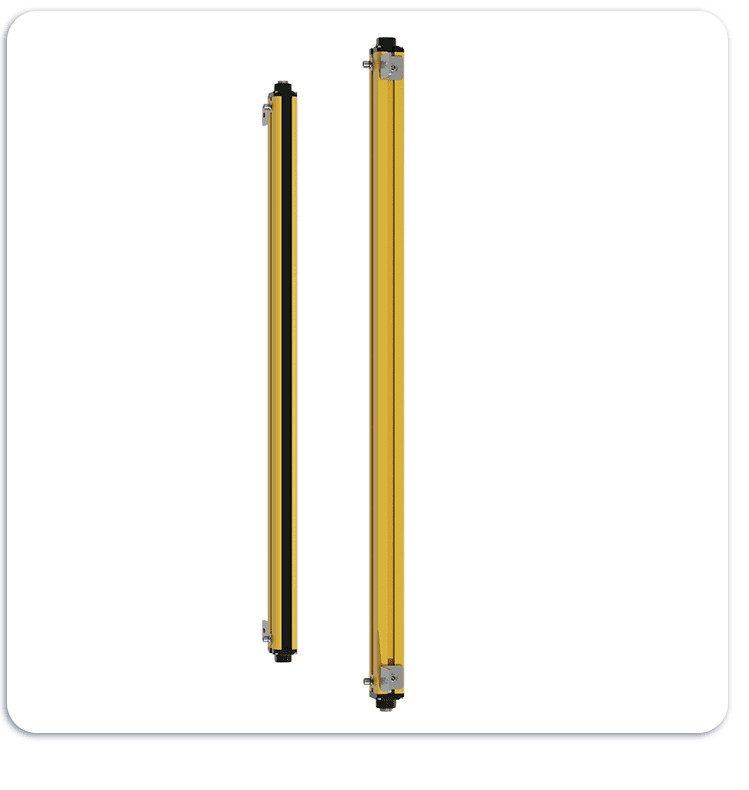

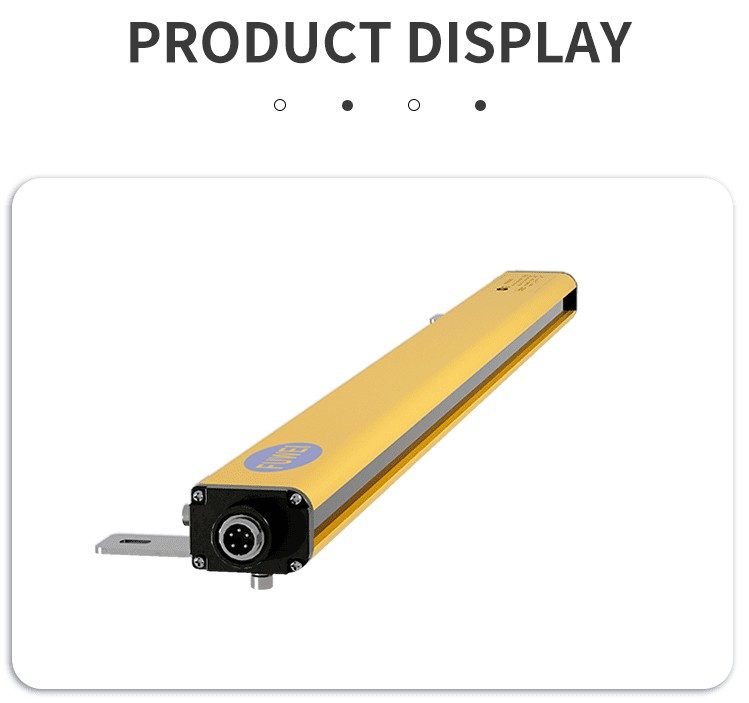

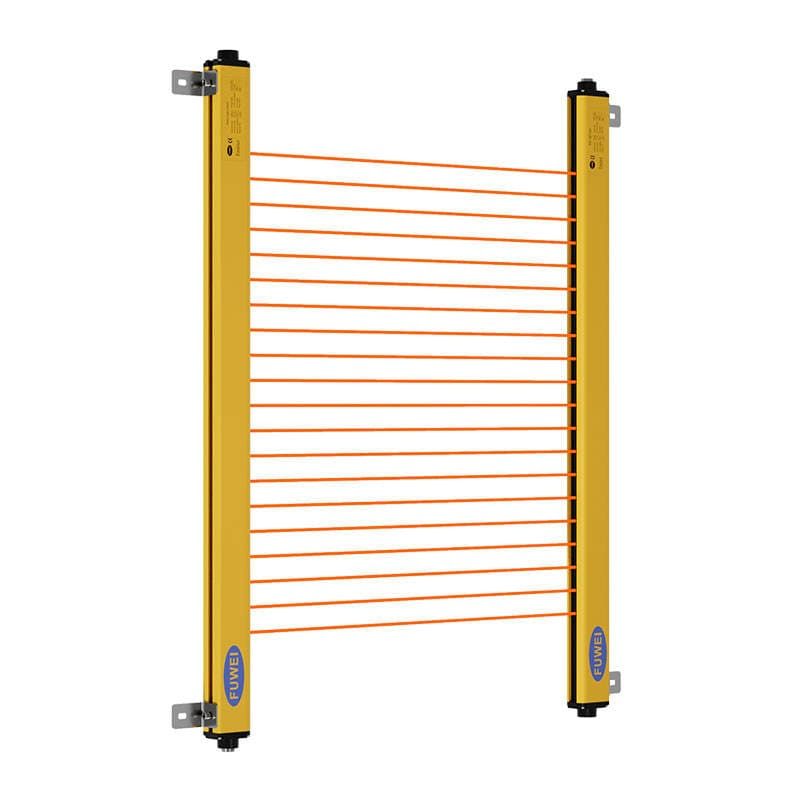

Safety light curtain |
| Working power supply |
DC10V~30V |

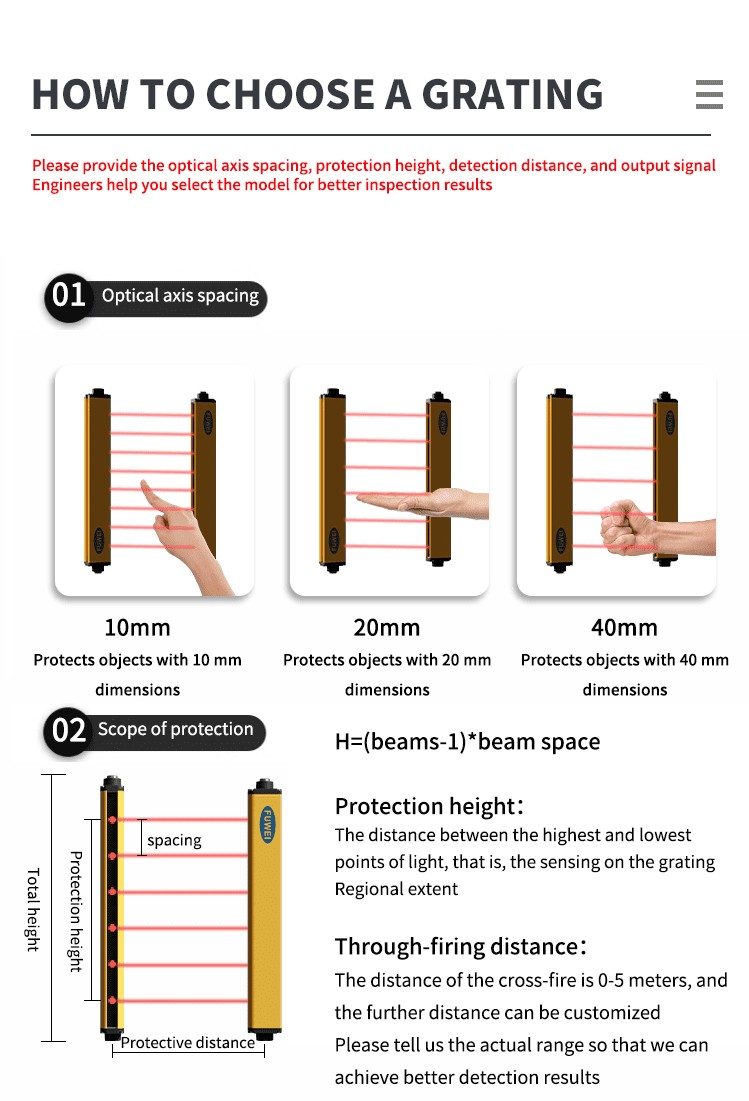

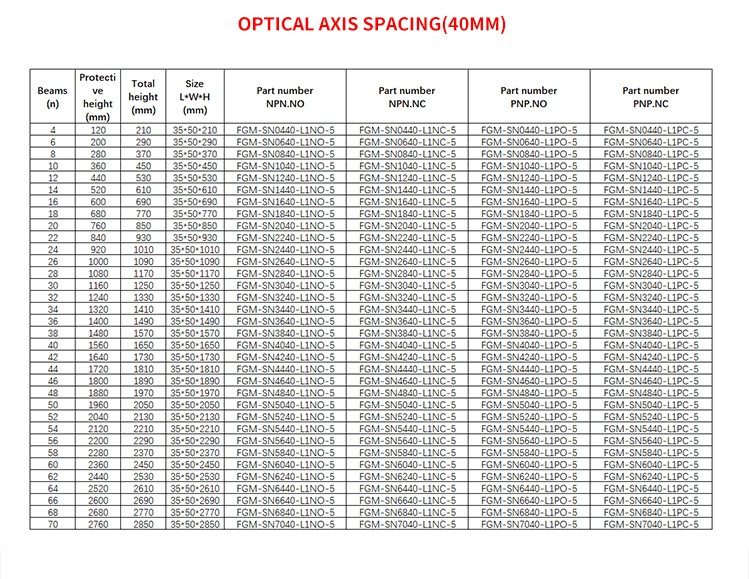

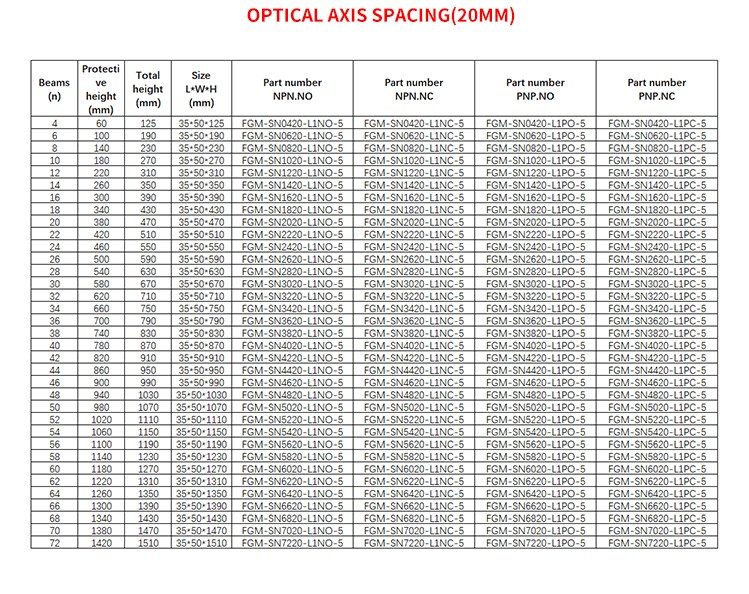

| Beam pitch |
10/20/40mm |
| Resolution ratio |
20mm/30mm/50mm |
| Shooting distance |
0.1~0.5m, 0.1~2m, 0.1~5m, 0.1~10m, 0.1~20m, 0.1~30m |

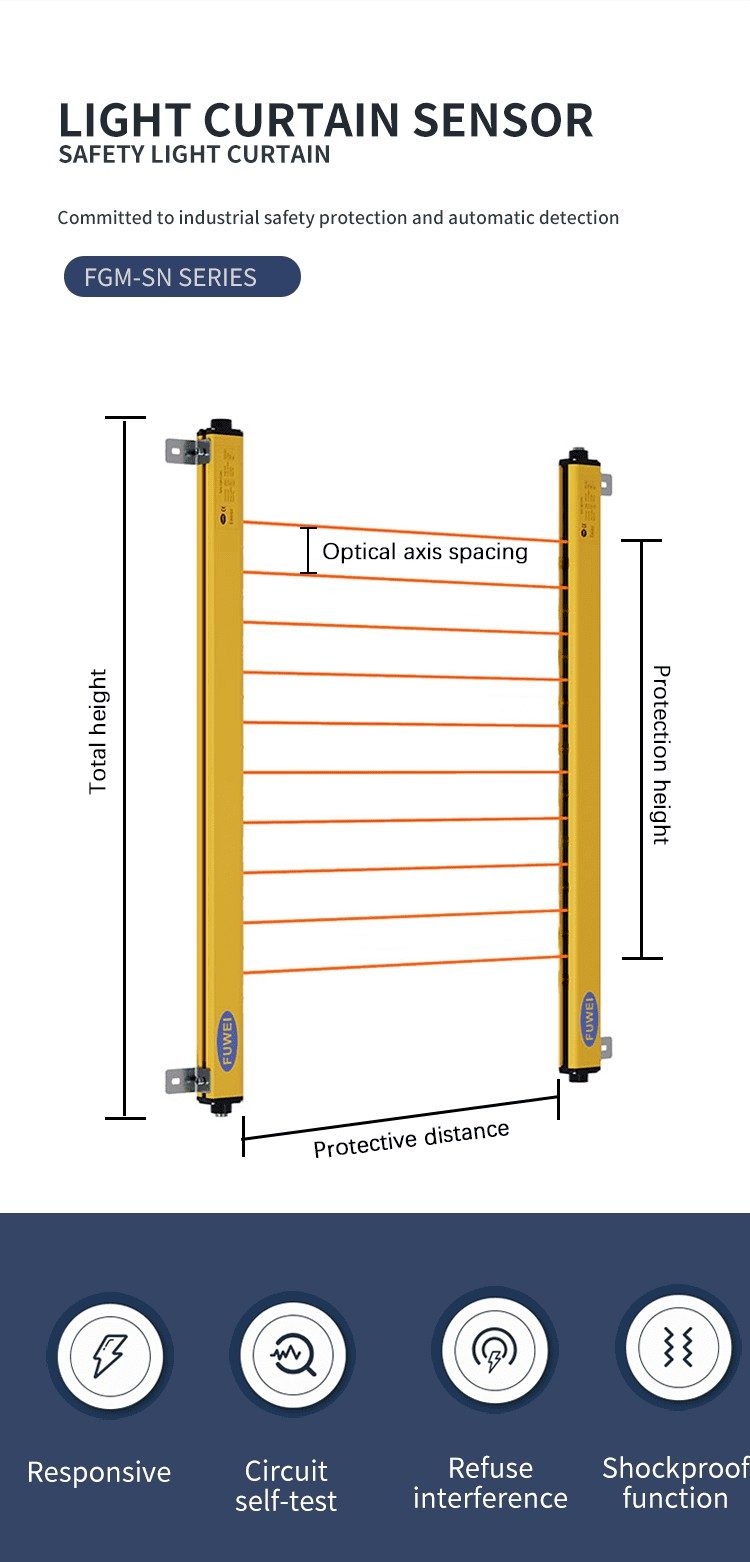

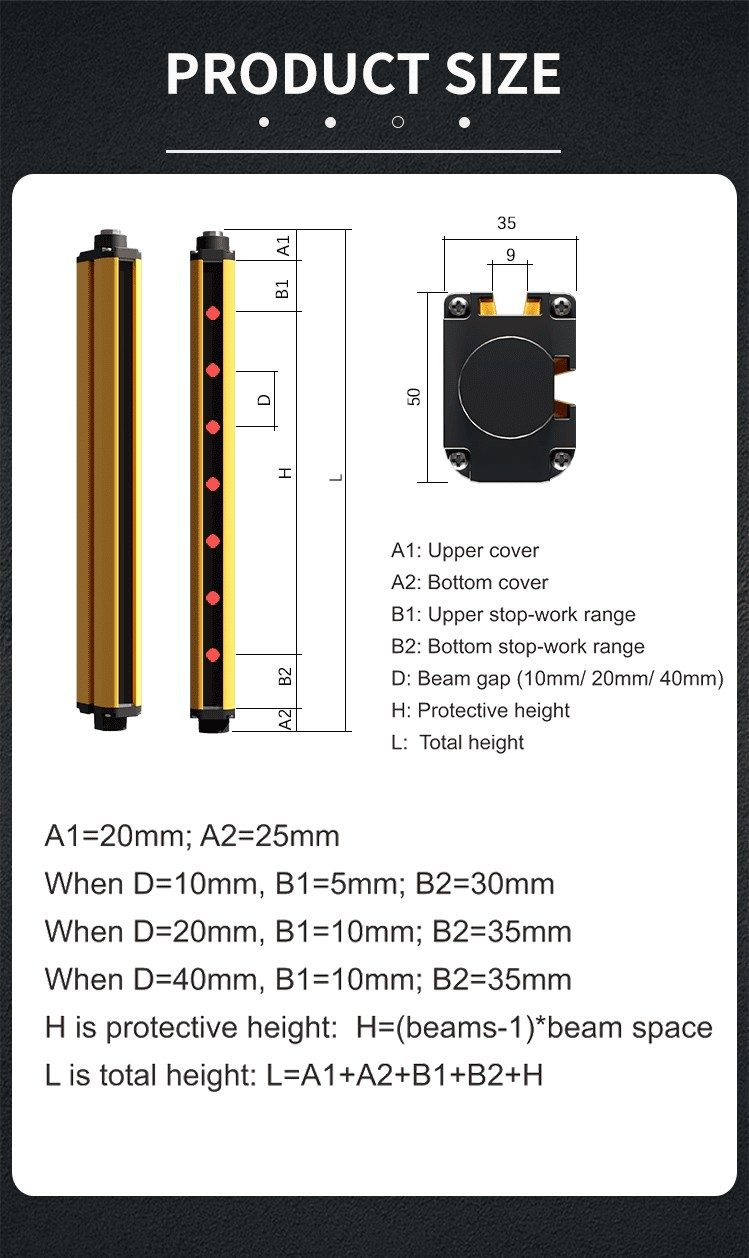

| Protective Height |
(N-1)beamgap, N is beam quantity. |
| Response Time |
(N * 0.1ms)+0.4ms (N is the number of optical axes) |

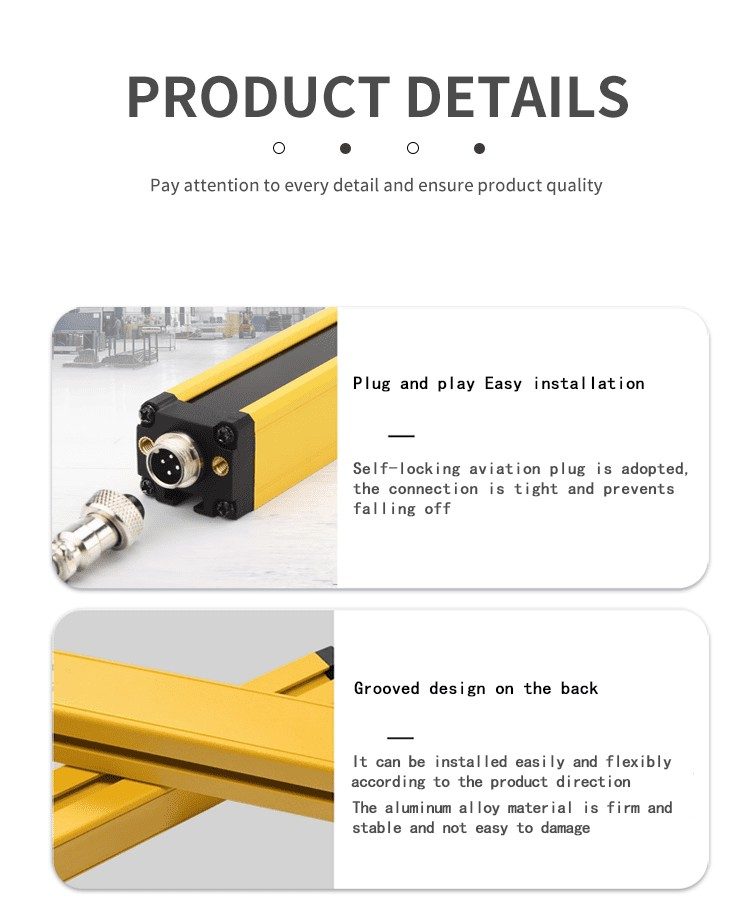

| Enclosure Material |
Aluminum alloy |

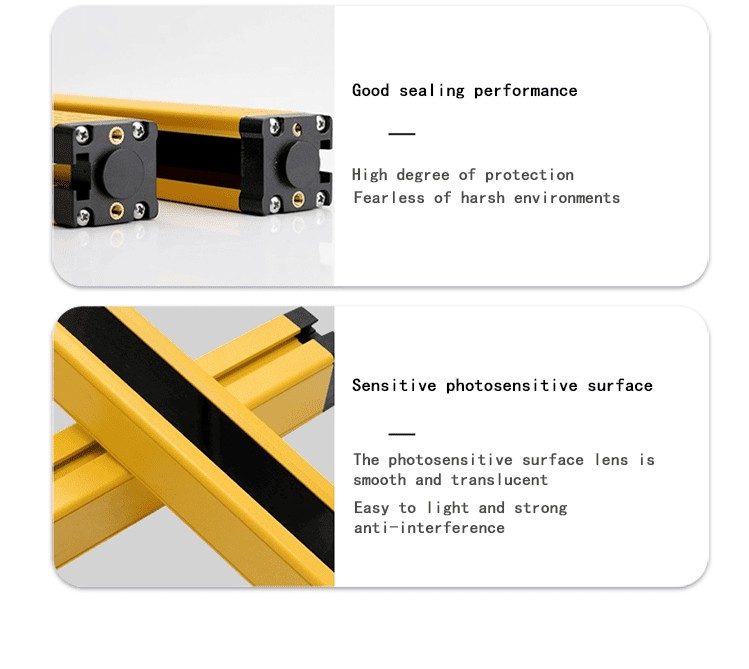

| Enclosure Rating |
IP65 |
| Packaging and Delivery |
| Selling Units |
Single item |
| Single package size |
110X11X5 cm |
| Single gross weight |
2.000 kg |
