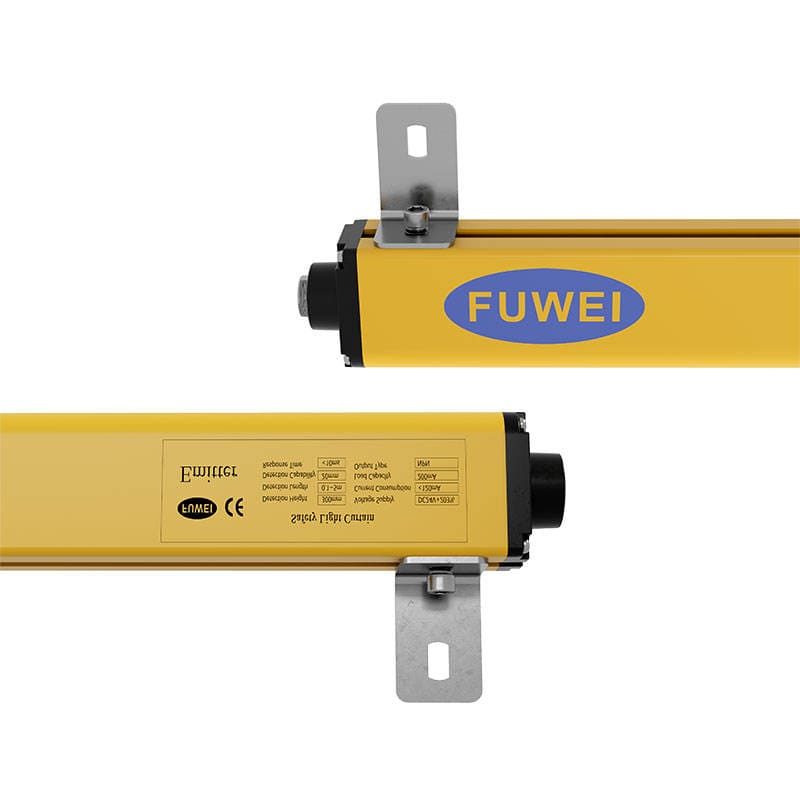

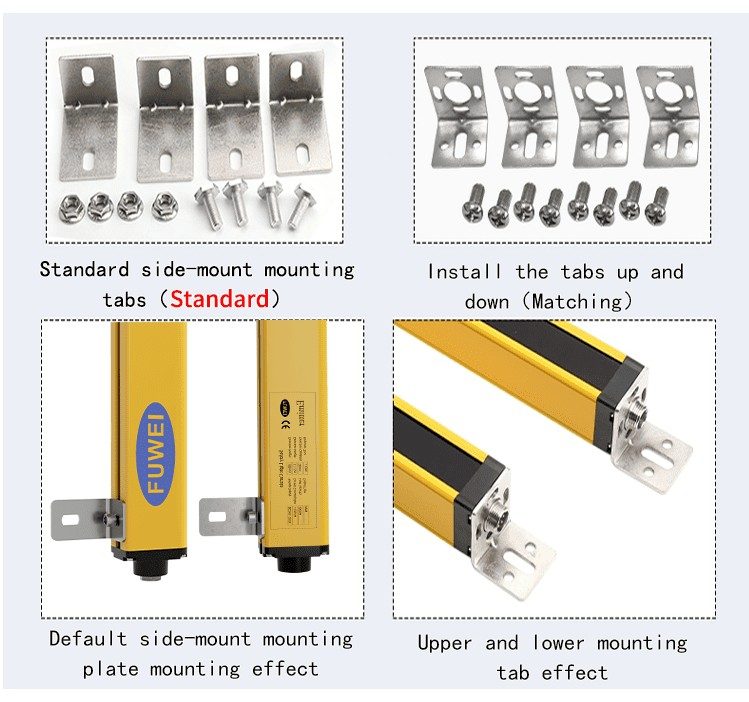

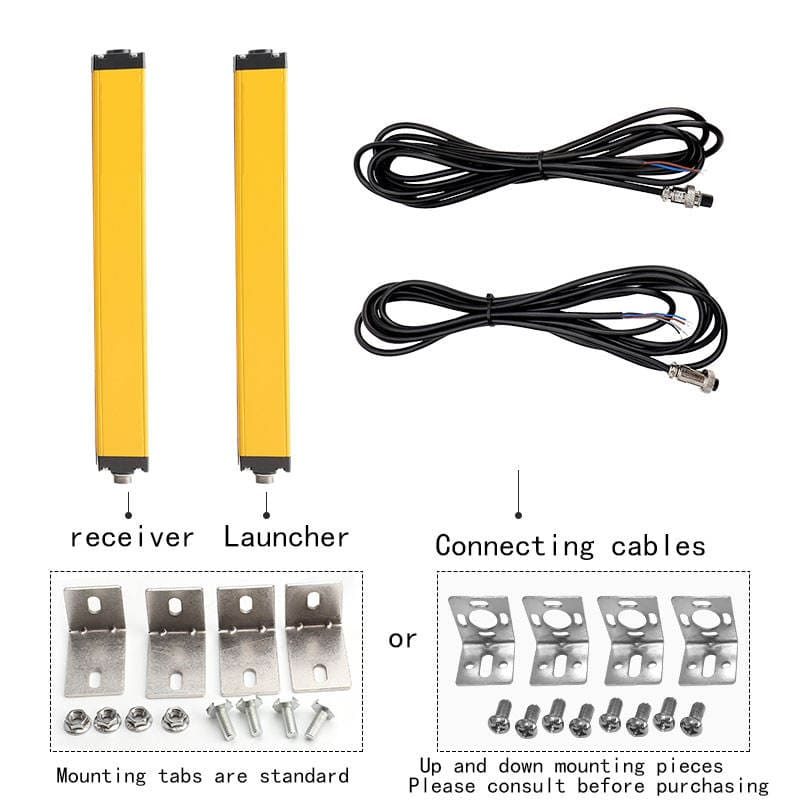

| Mounting Type |
Side mounting screws |
| Manufacturing Date Code |
2024 |

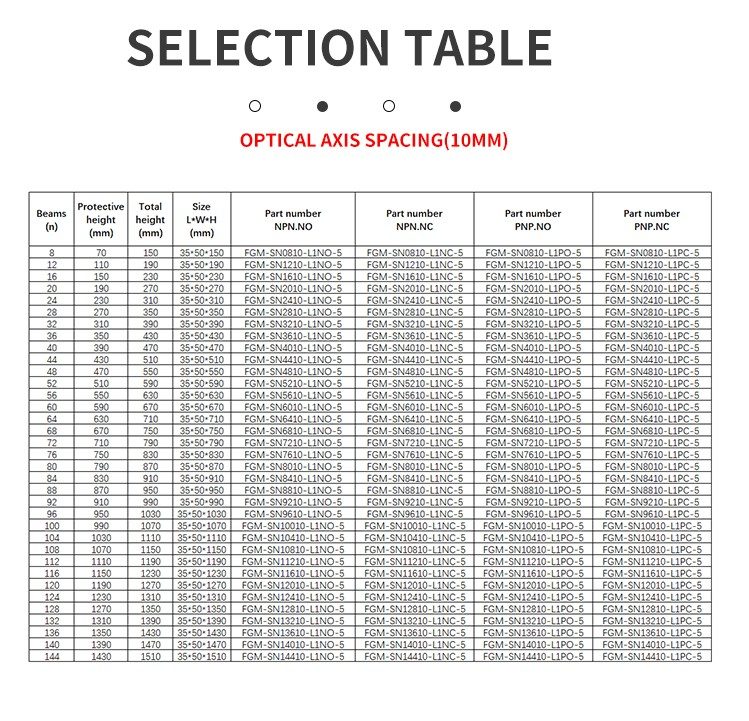

| Model Number |
FGM-SN4410-L1NO-5 |
| Brand Name |
FUWEI |

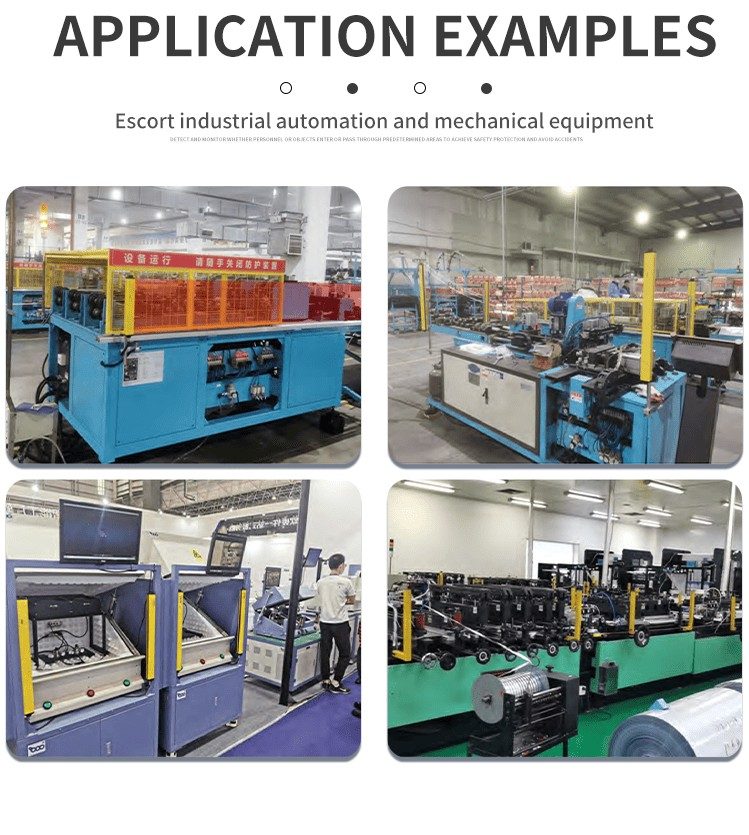

| Usage |
Machine safety protection |
| Description |
Machine safety protection |
| Type |

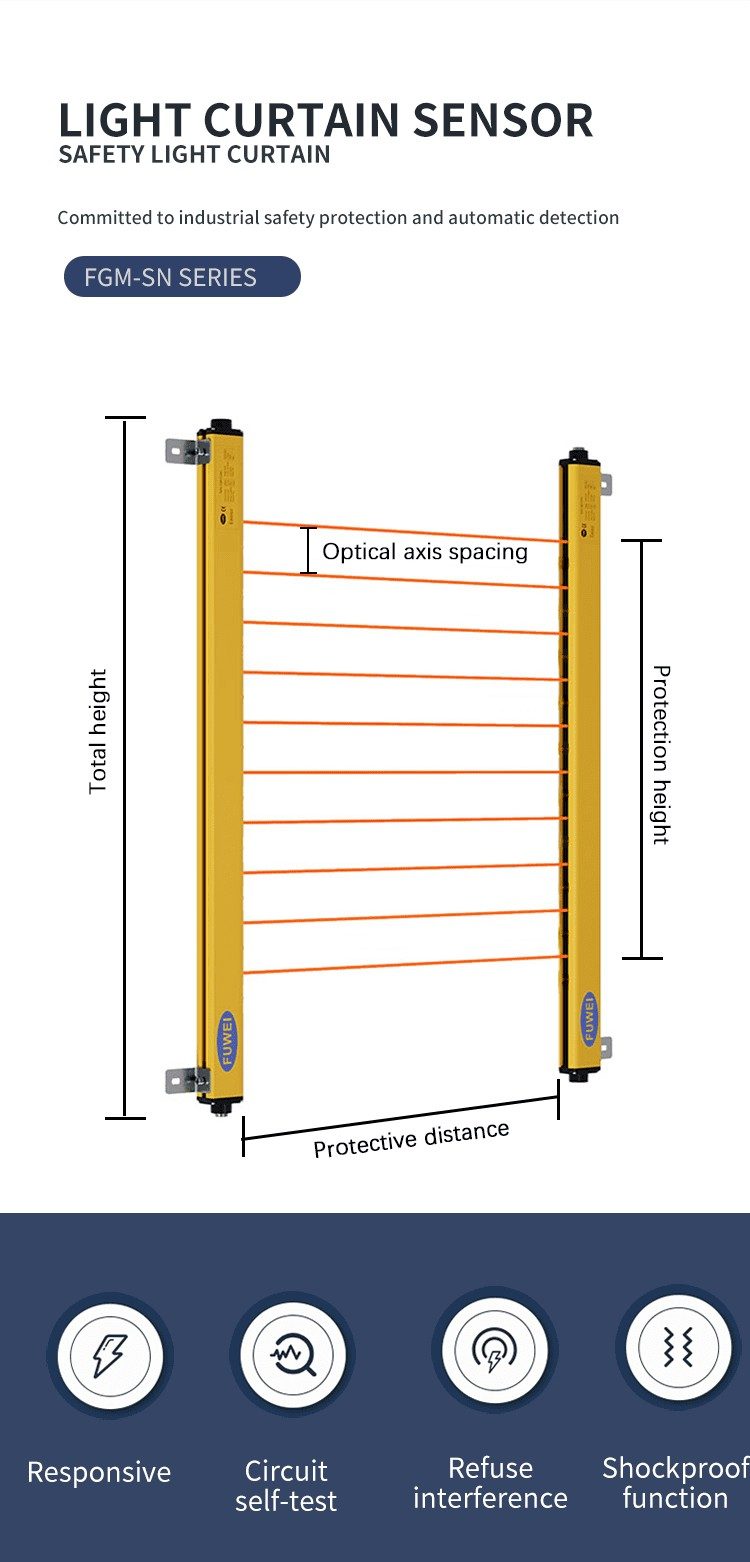

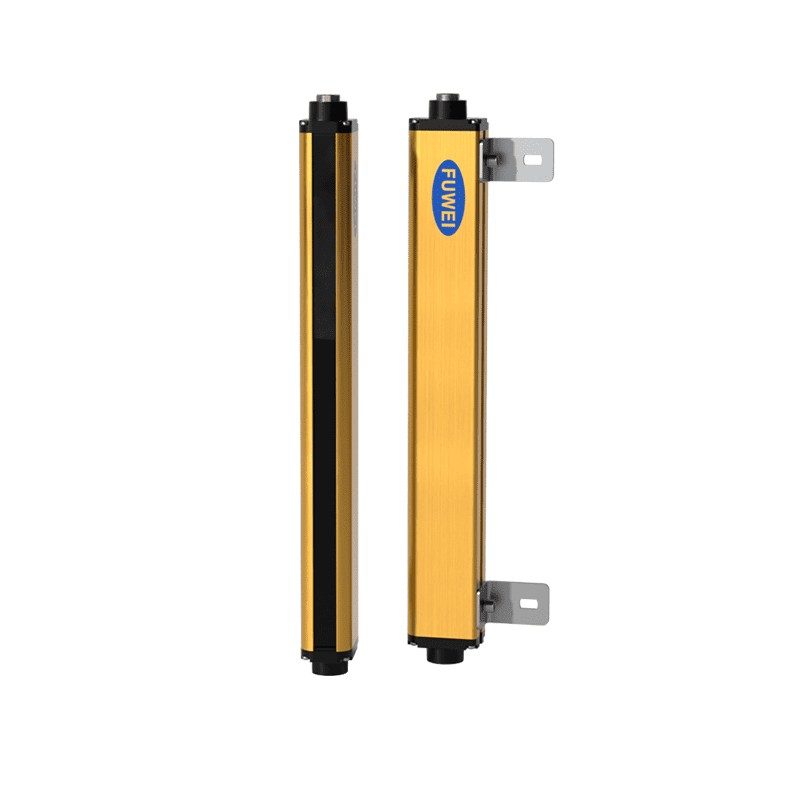

Infrared Safety Light Sensor |
| Series |
FGM-SN series |
| Place of Origin |
Guangdong, China |
| Theory |
Correlation infrared sensor |

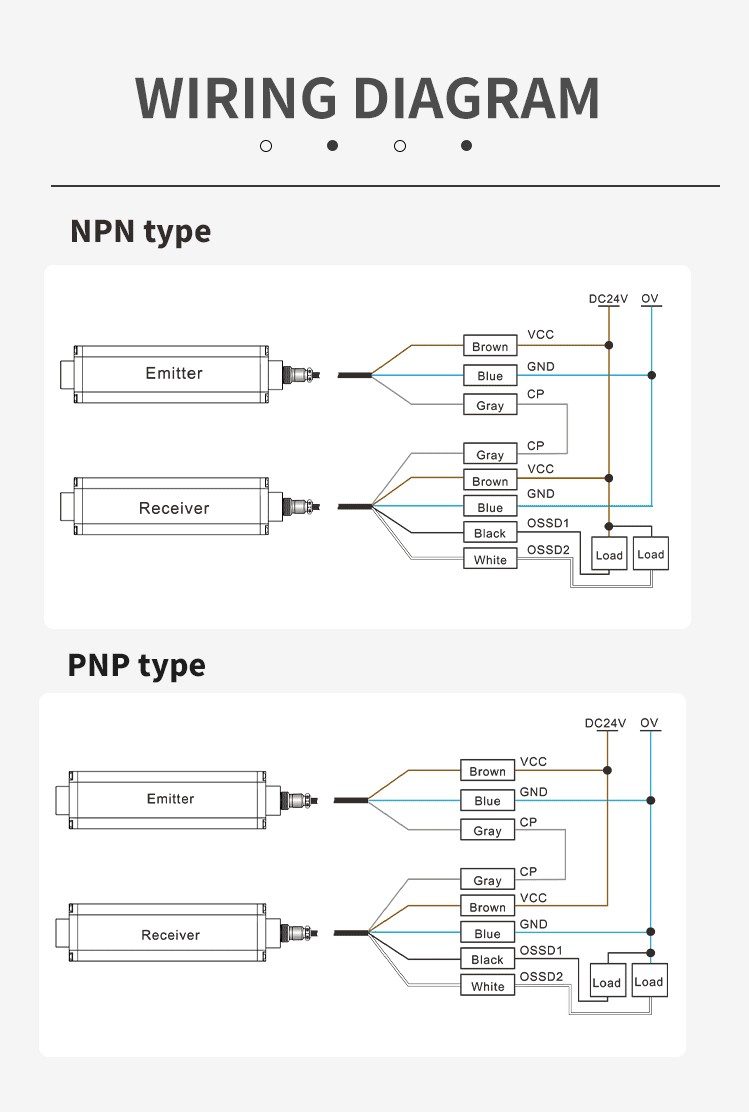

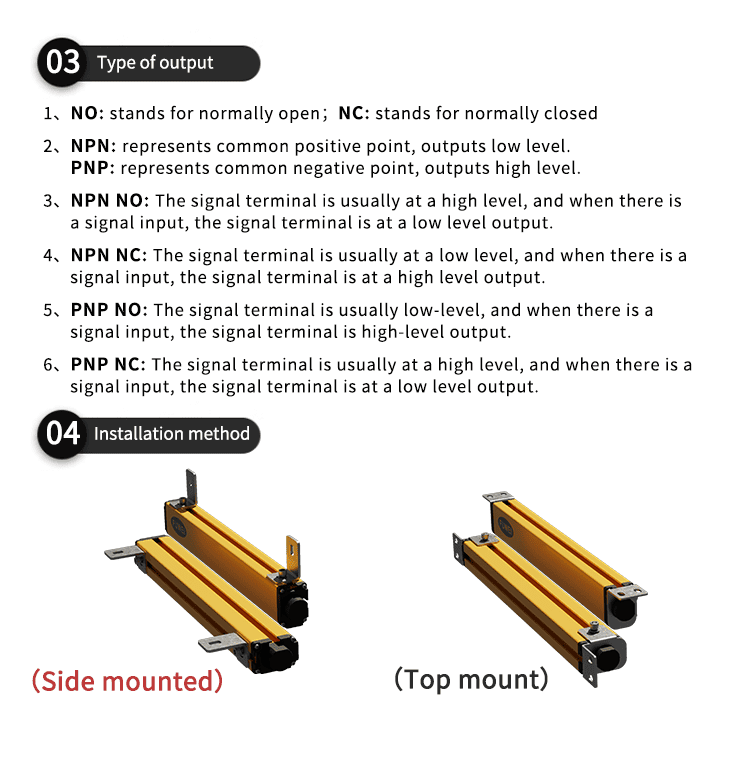

| Output |
NPN/PNP |
| Description |

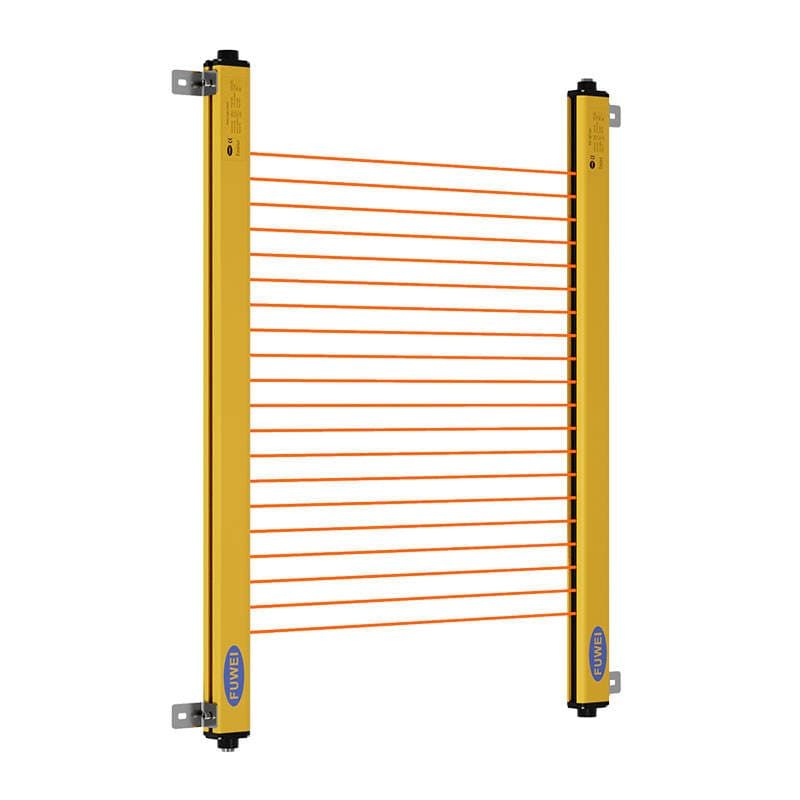

Safety light curtain sensors |

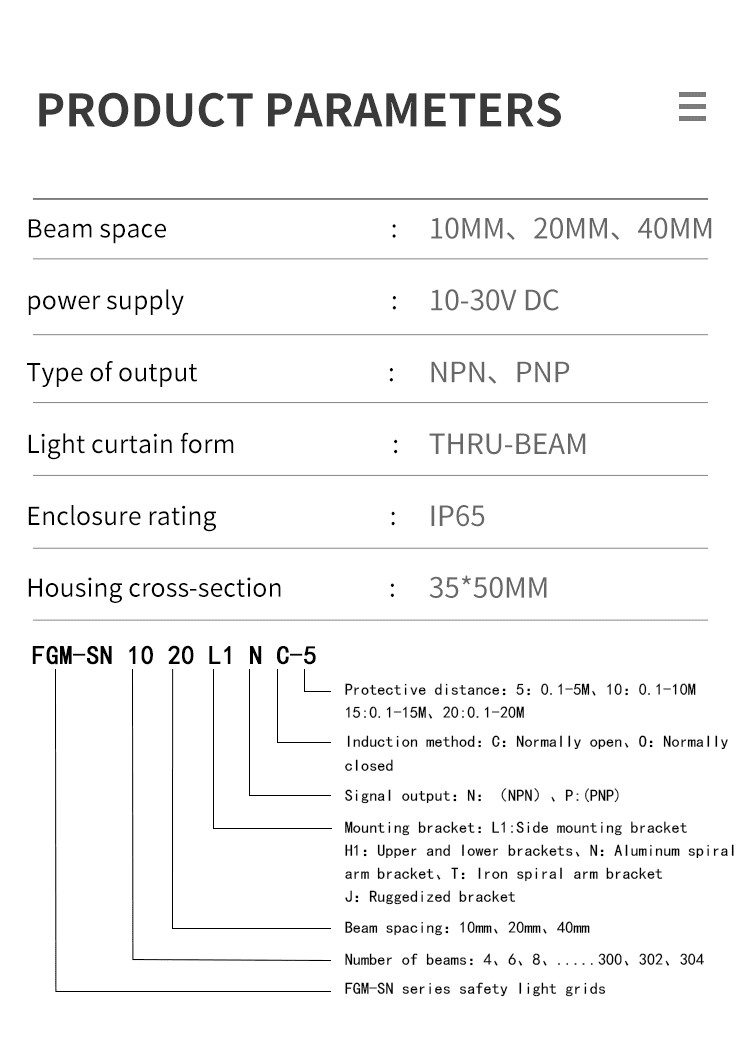

| Power Supply |
DC10-30V |

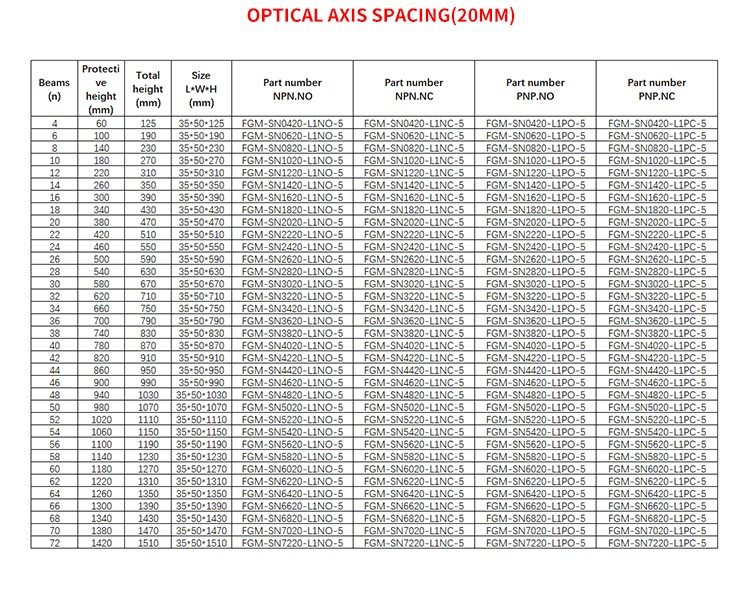

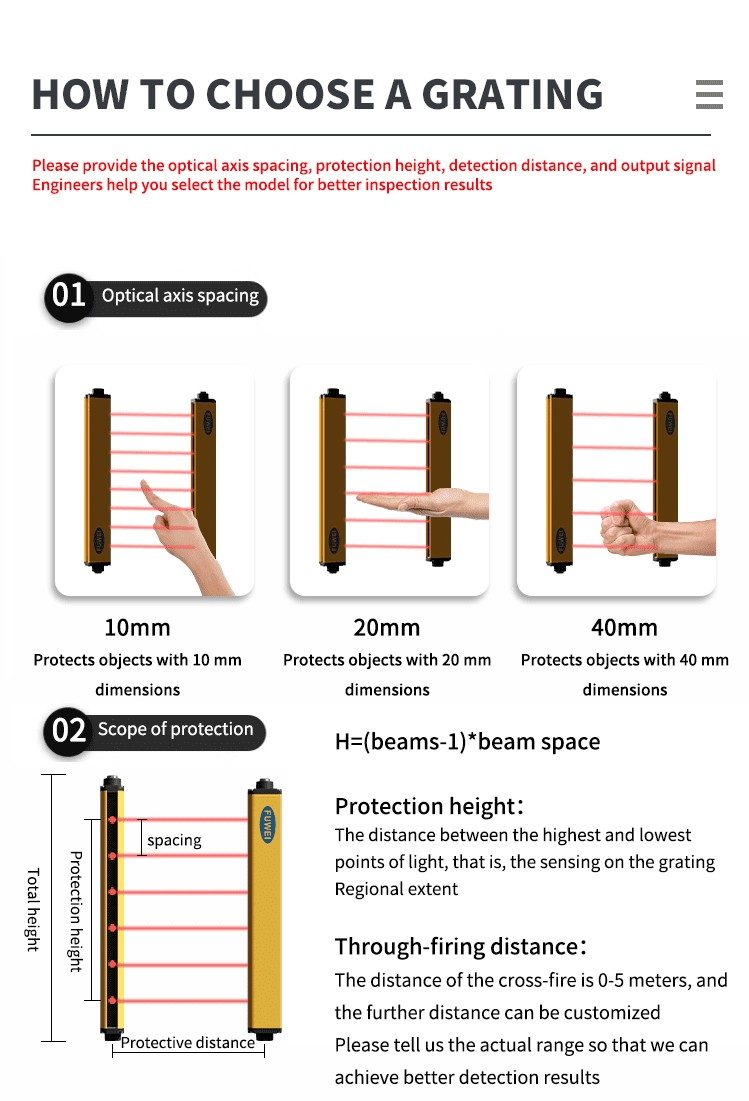

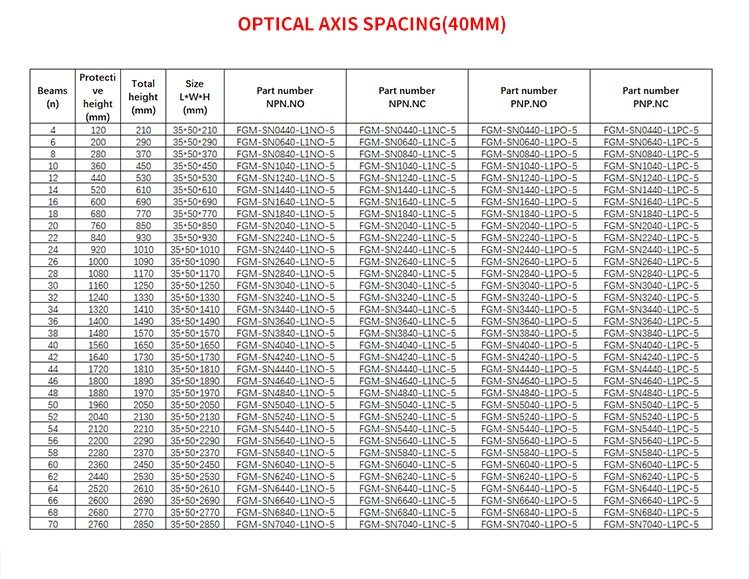

| Beam Space |
10mm / 20mm / 40mm |
| Resolution |
20mm / 30mm / 50mm |
| Sensing Distance |
0.1~5m |
| Anti-optical Interference |
10000 Lux (angle>5°) |

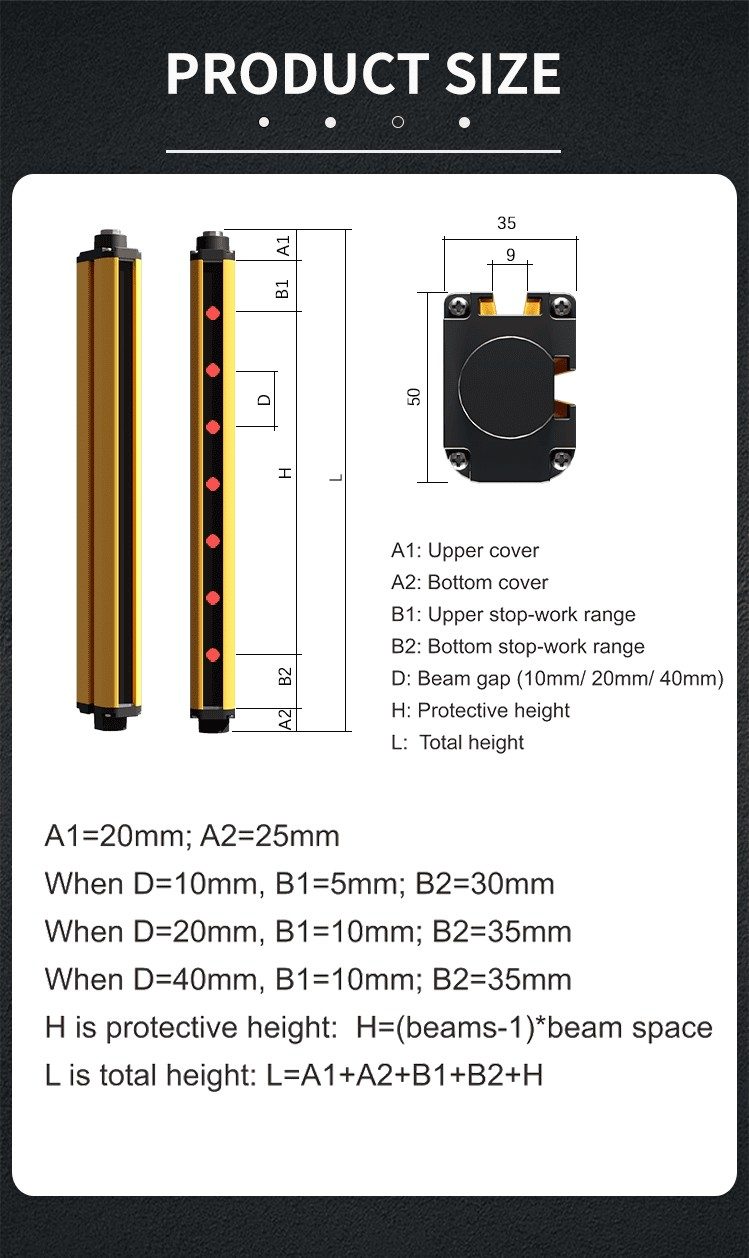

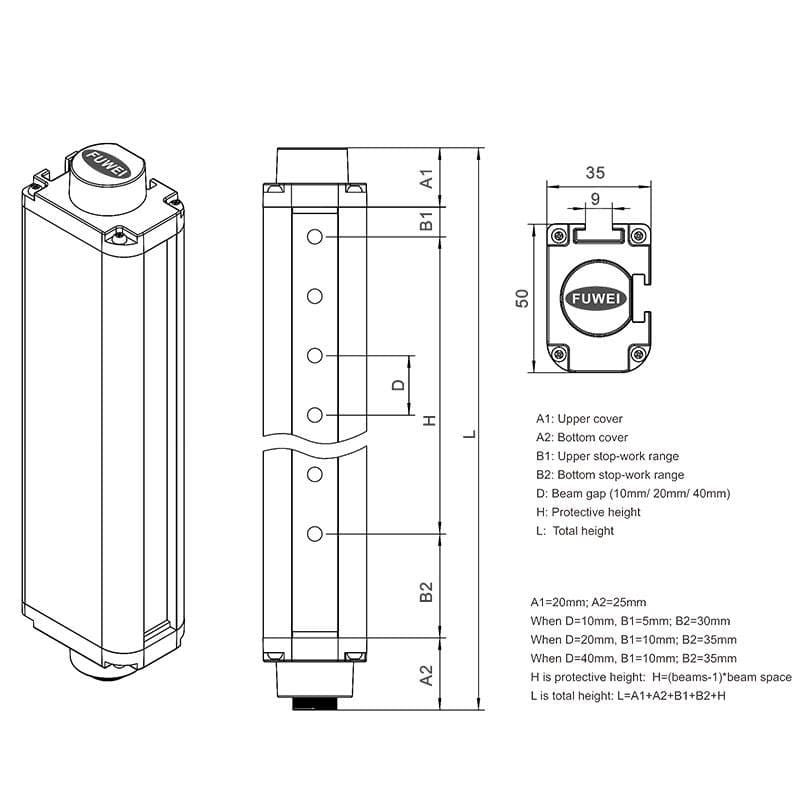

| Housing Cross-section |
35 × 50mm |

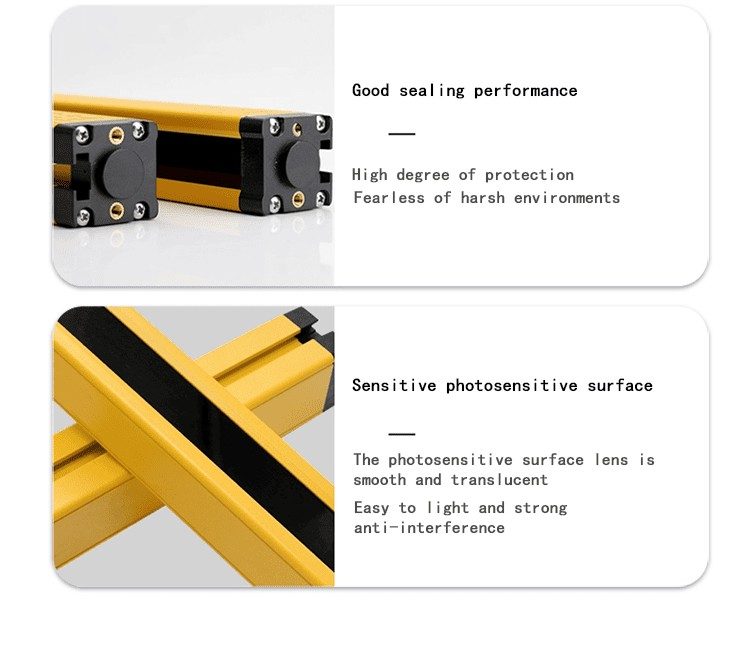

| Enclosure Rating |
IP65 |
| Ambient Operating Temperature |
-10°C ~ 55°C (with no freezing) |
| Packaging and Delivery |
| Selling Units |
Single item |
| Single Package Size |
100 × 15 × 10 cm |
| Single Gross Weight |
1.000 kg |
