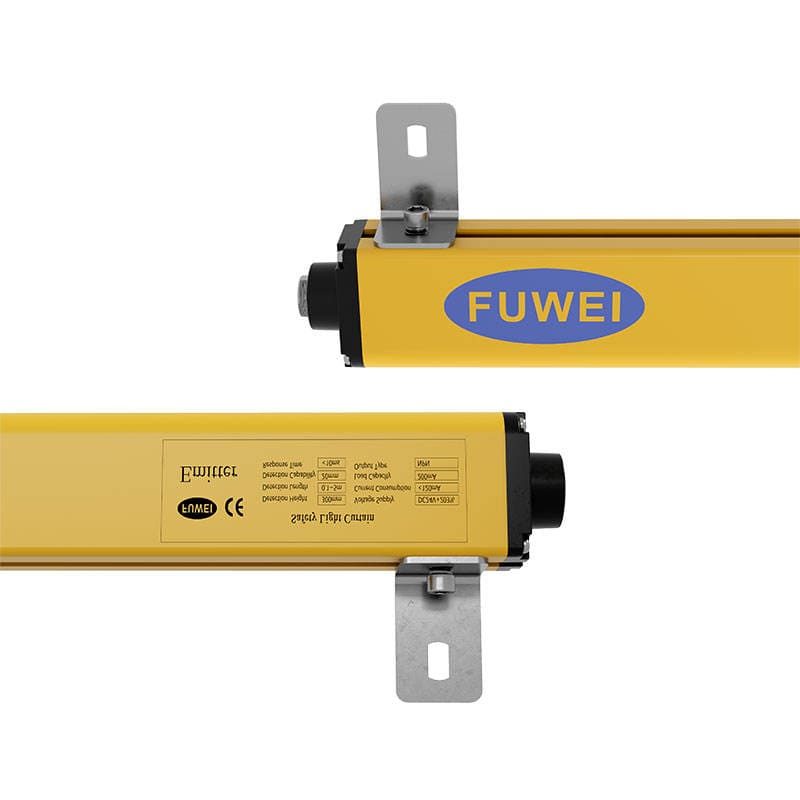

| Mounting Type |
Bolt bracket fixing installation |
| Manufacturing Date Code |
2024 |
| Model Number |
FGM-SN1640H1NC5 |
| Brand Name |
FUWEI |
| Usage |
Safety protection device |
| Description |
Bolt bracket fixing installation |
| Type |
Photoelectric Sensor |
| Series |
FGM-SN |
| Features |
Accurate sensing |
| Place of Origin |
Guangdong, China |
| Theory |
Principles of Infrared Optics |

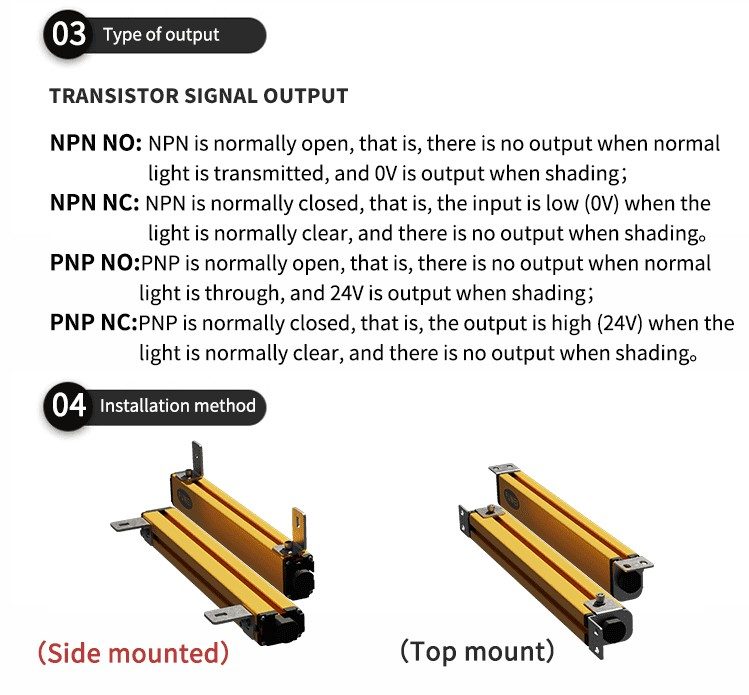

| Output |
NPN/PNP |
| Description |

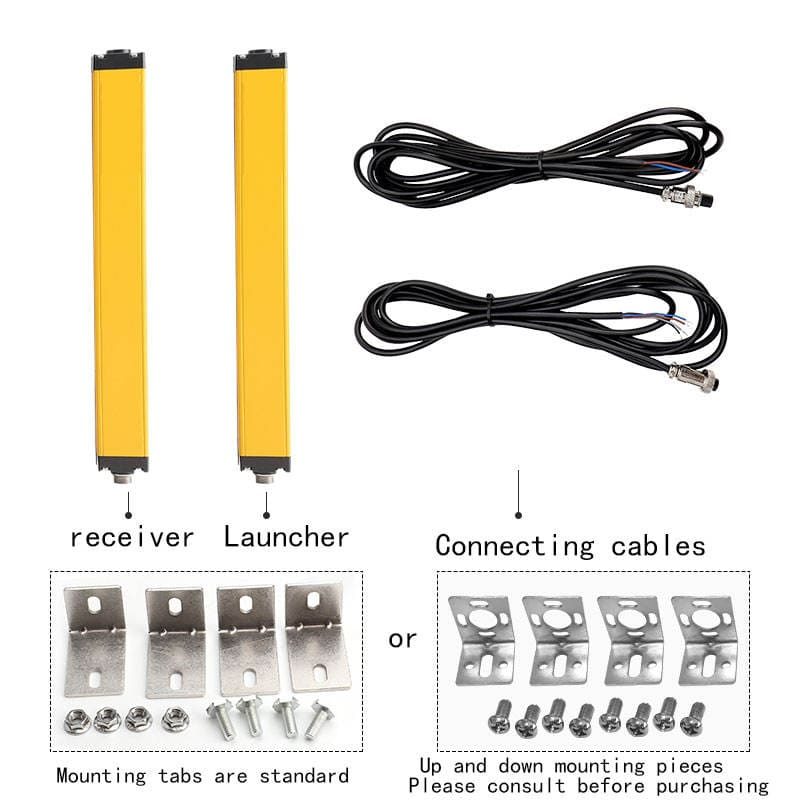

Safety light curtain |
| Material |
Metal |
| Working power supply |
DC10V~30V |

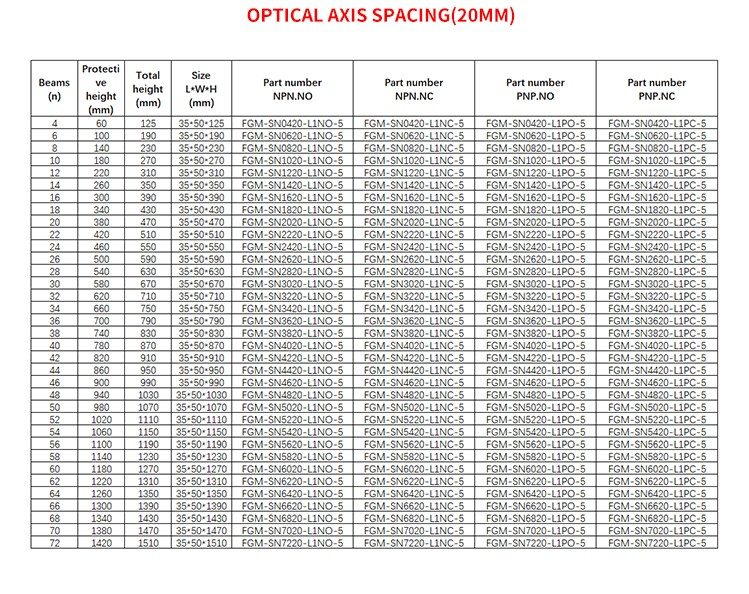

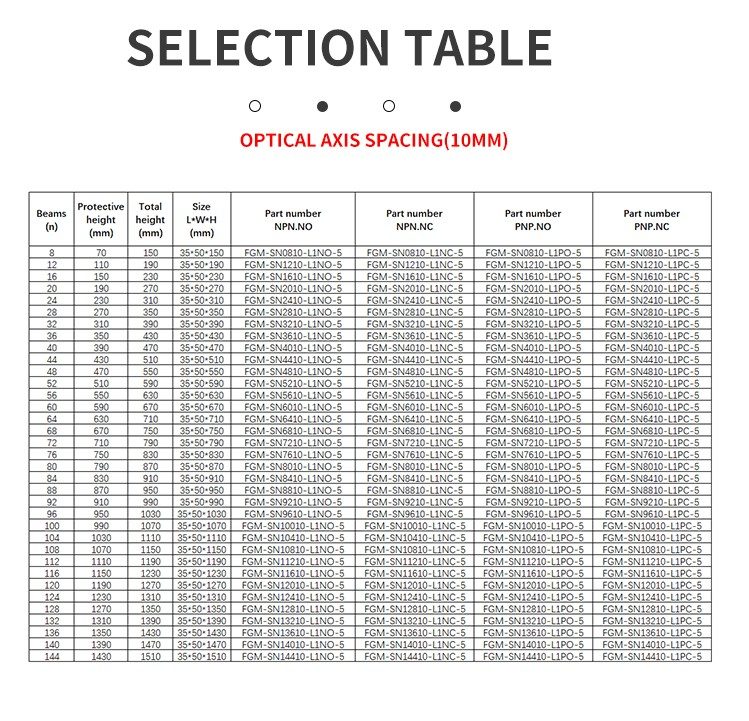

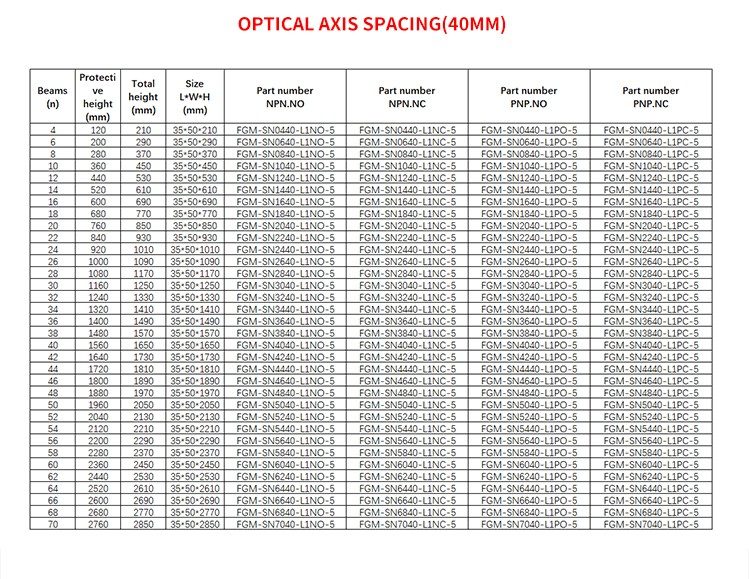

| Beam pitch |
5 / 10 / 15 / 20 / 30 / 40mm |
| Resolution ratio |
10 / 15 / 20 / 25 / 35 / 45mm |
| Shell material |
Aluminum alloy |
| Protection grade |
IP65 |

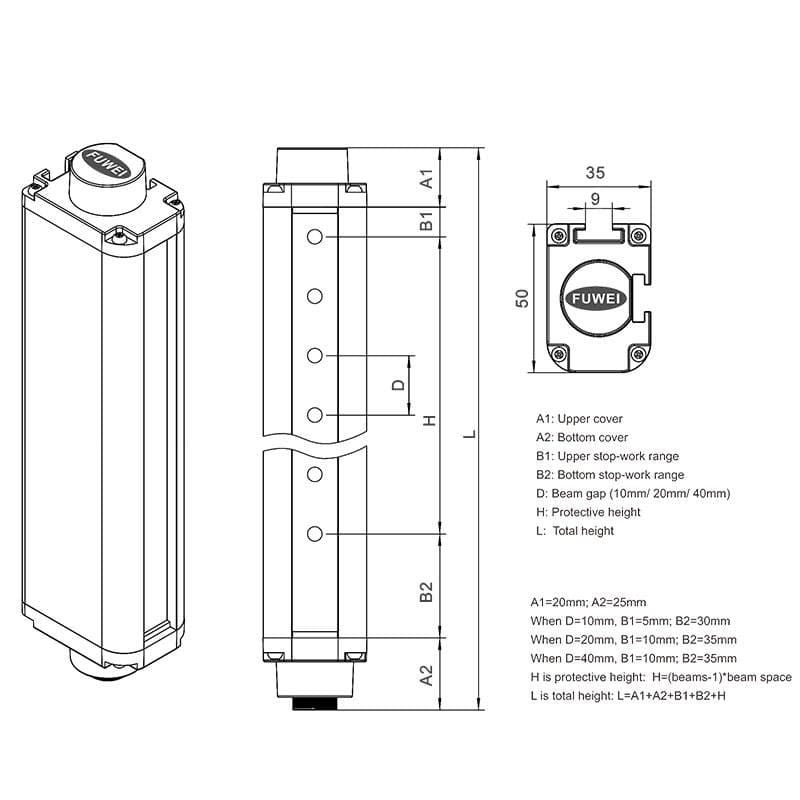

| Protective Height |
(N-1) × beam gap, N is beam quantity |
| Response Time |
(N × 0.1ms) + 0.4ms (N is number of optical axes) |
| Packaging and Delivery |
| Selling Units |
Single item |
| Single package size |
110 × 11 × 8 cm |
| Single gross weight |
2.000 kg |
