| Mounting Type |
Bolt Mounting |
| Manufacturing Date Code |
2024 |
| Model Number |

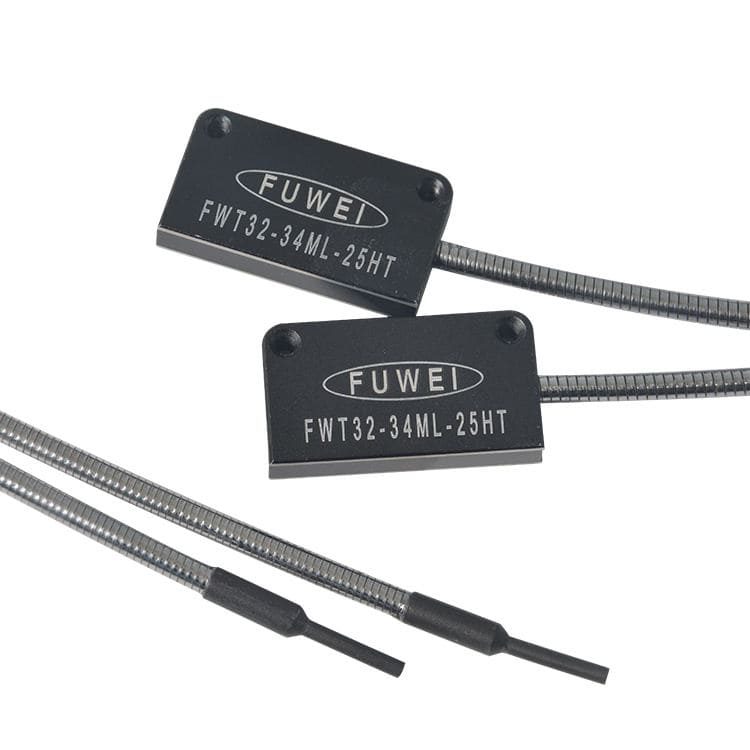

FWT32-34ML-25HT |
| Brand Name |
FUWEI |
| Usage |
Counting detection |
| Description |

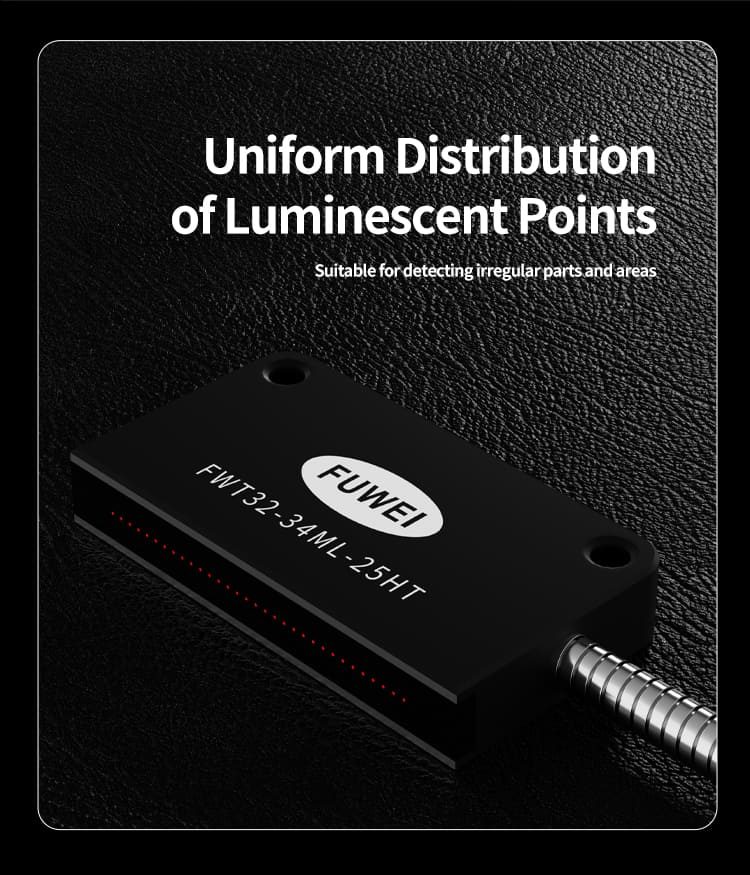

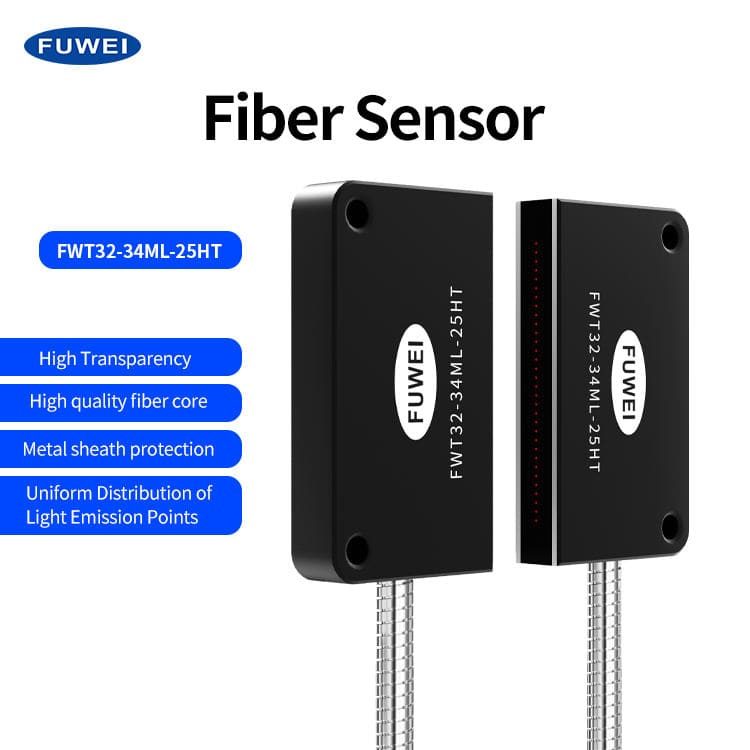

Area through beam fiber optic sensor |
| Type |
FIBER OPTIC SENSOR |
| Series |
FWT32-34ML-25 |
| Features |
25mm Effective detection width, metal sheath |
| Place of Origin |
Guangdong, China |

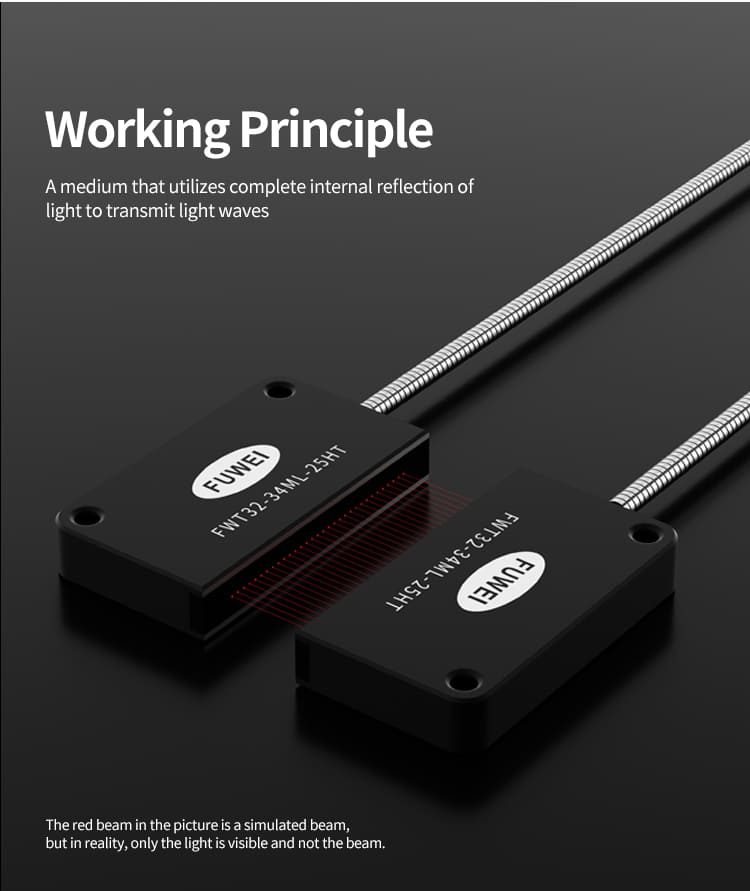

| Theory |
Optic Principle |
| Sensing Method |

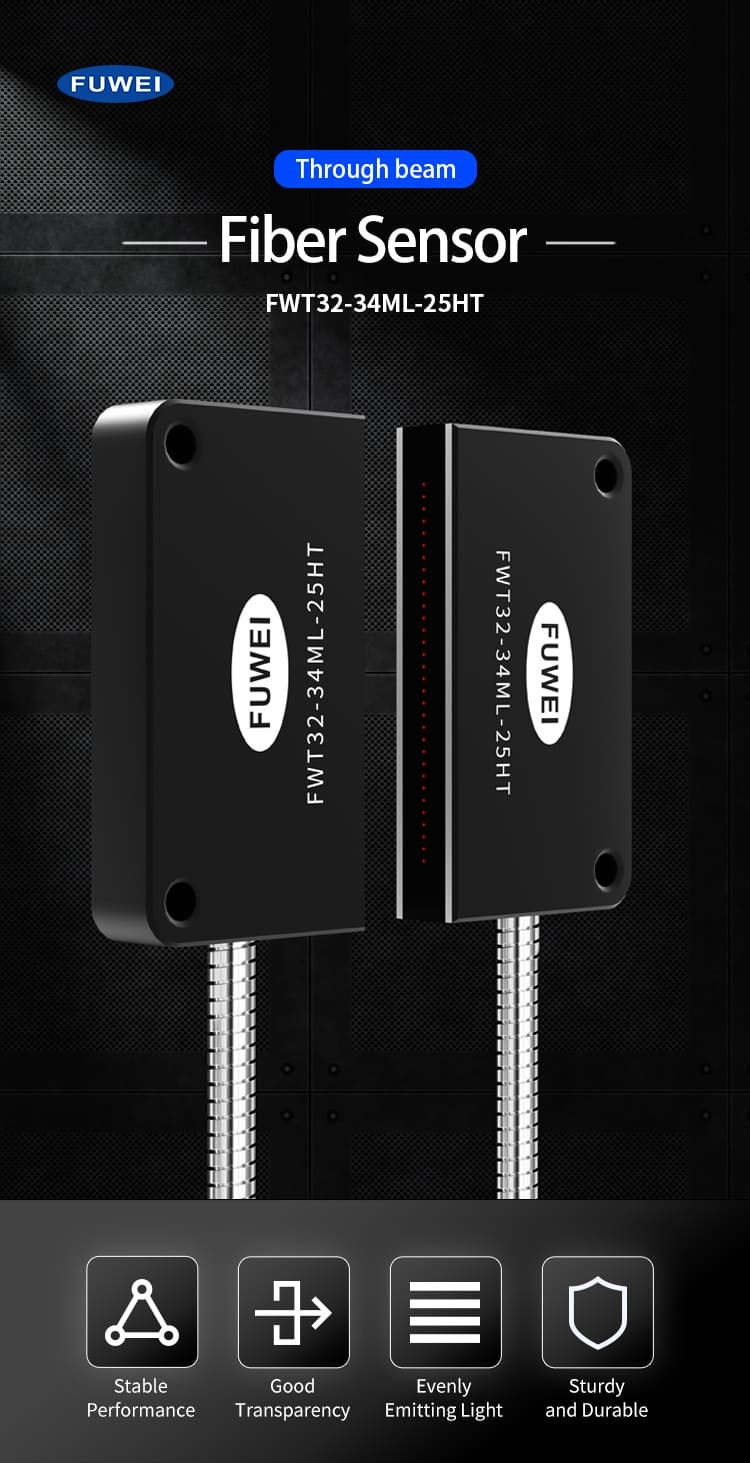

Thru-beam |
| Detection Range |
500mm |
| Surface Size |
25mm |

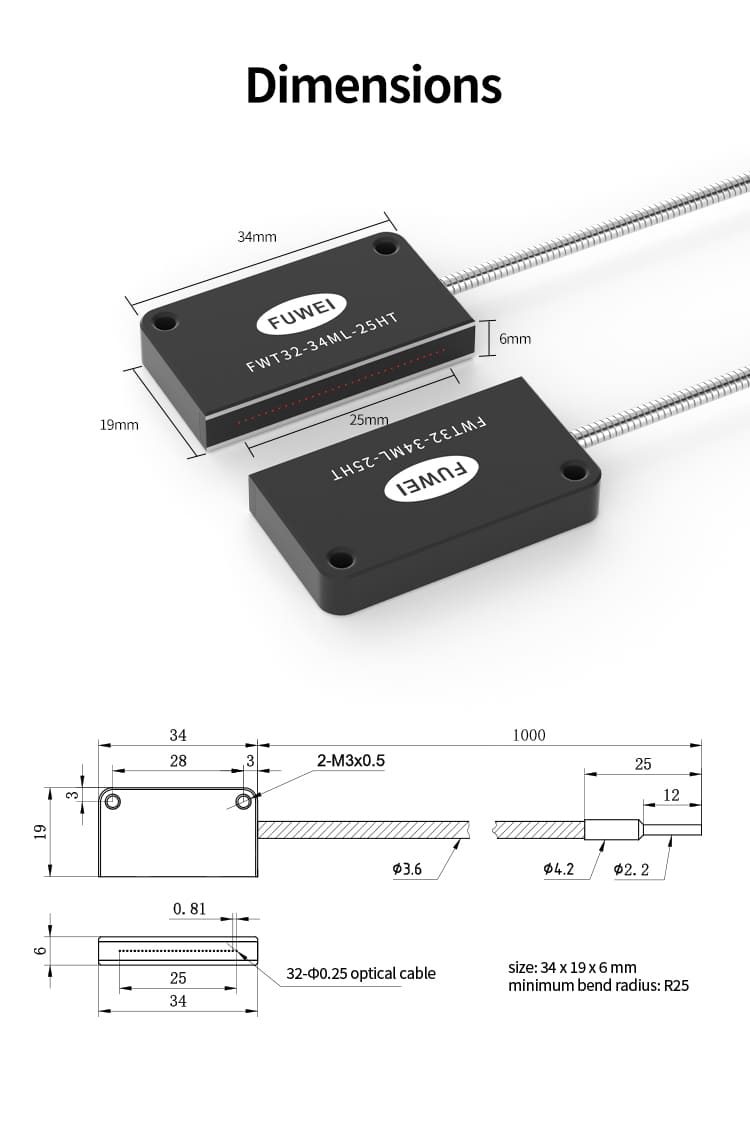

| Overall Dimension |
34×19×6mm |
| Bending Radius |
R25 |

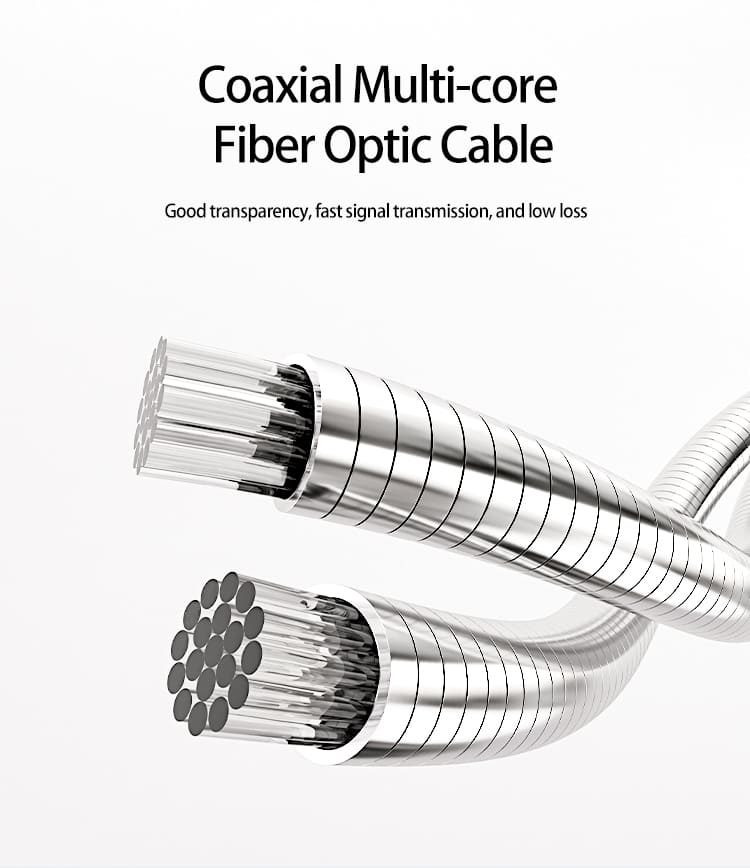

| Optical Fiber Wire Material |
Metal |
| Working Temperature |
-50℃ ~ 70℃ |

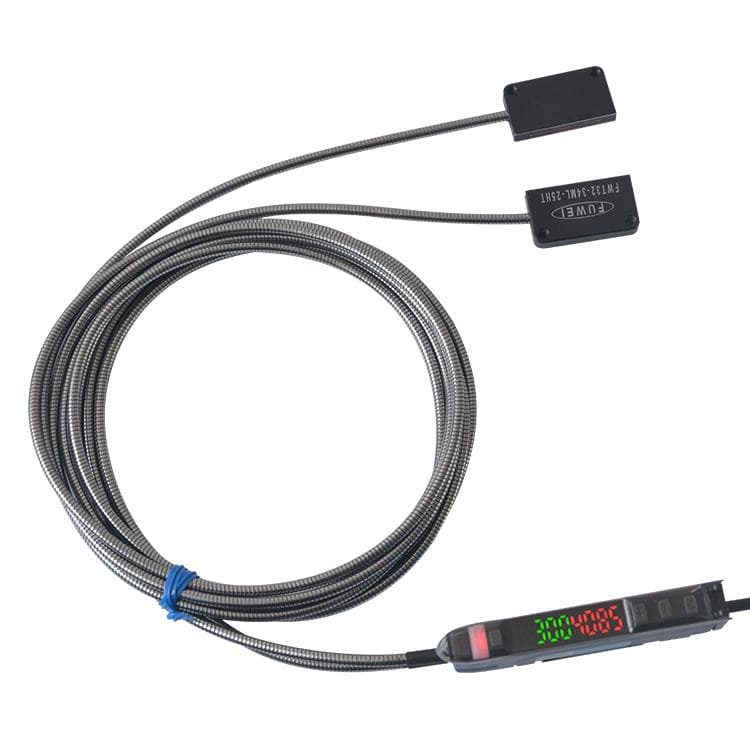

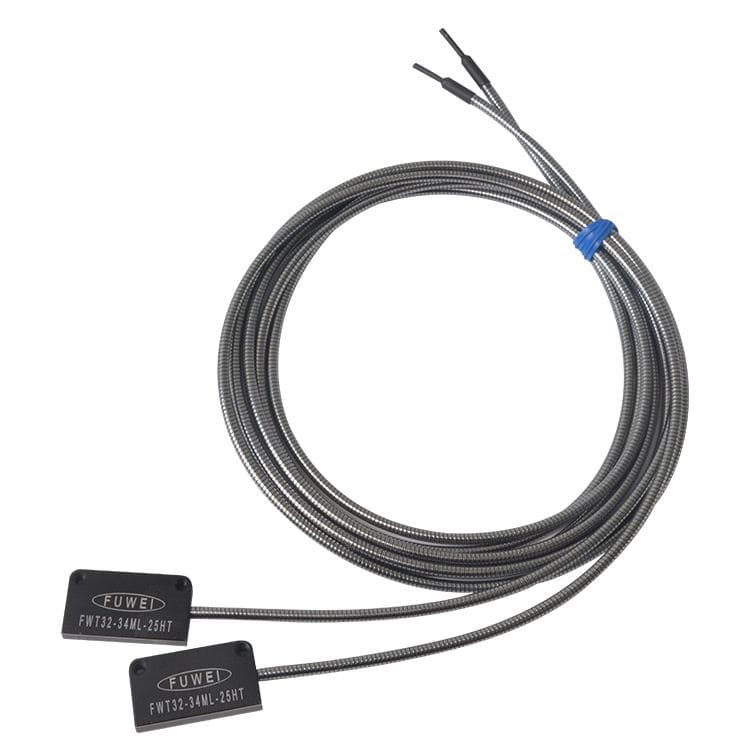

| Fiber Length |
1000mm |
| Min Detectable Object |
0.8mm |
| Selling Units |
Single item |
| Single Package Size |
16×15×5 cm |
| Single Gross Weight |
0.032 kg |
