| Key Attributes | |
|---|---|
| Mounting Type | Bolt Mounting |
| Manufacturing Date Code | 2024 |
| Model Number | FWT32-90ML-75HT |
| Brand Name | FUWEI |
| Usage | Counting detection |

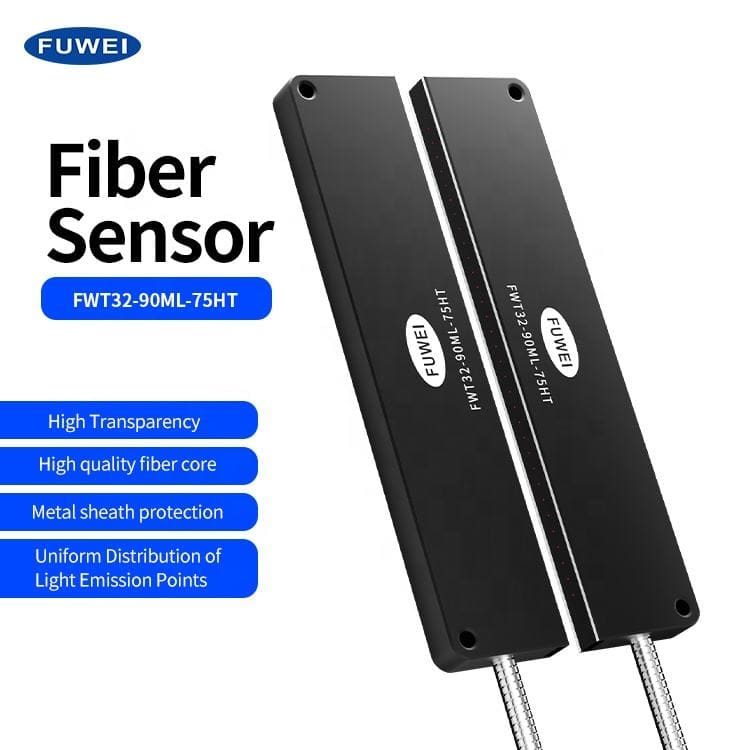

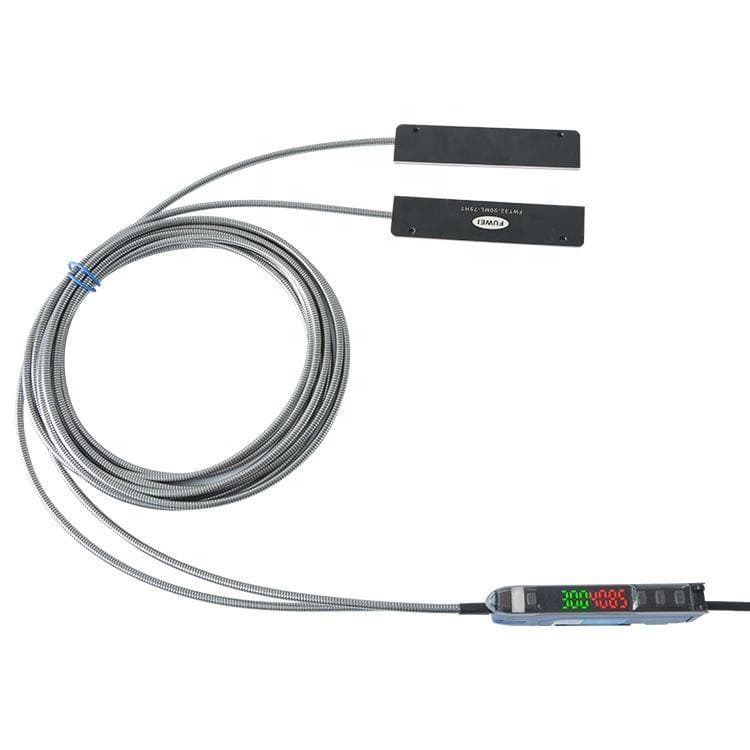

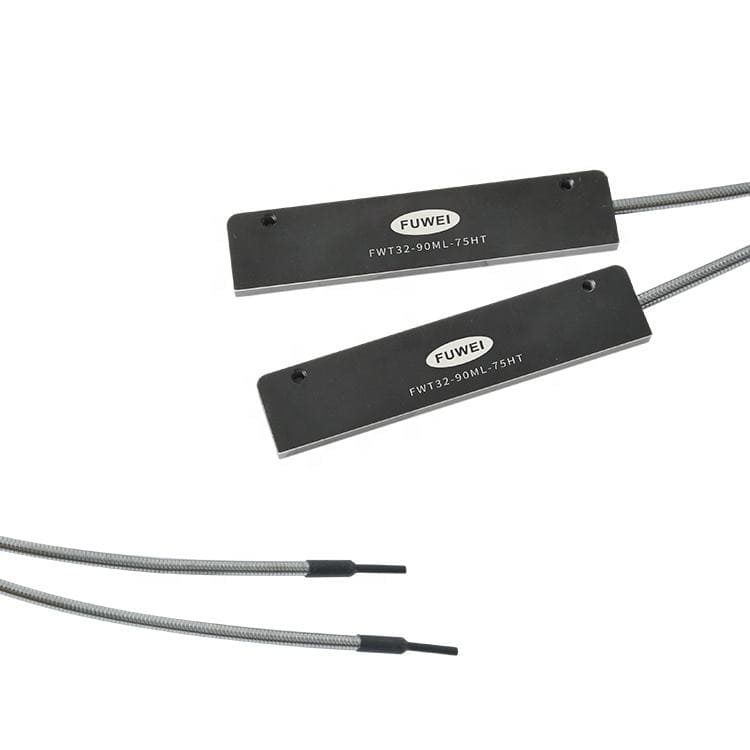

| Description | 75 Area Through Beam Fiber Optic Sensor |
| Type | FIBER OPTIC SENSOR |
| Series | FWT32-90ML-75HT |
| Features | Effective detection width, metal sheath |
| Place of Origin | Guangdong, China |

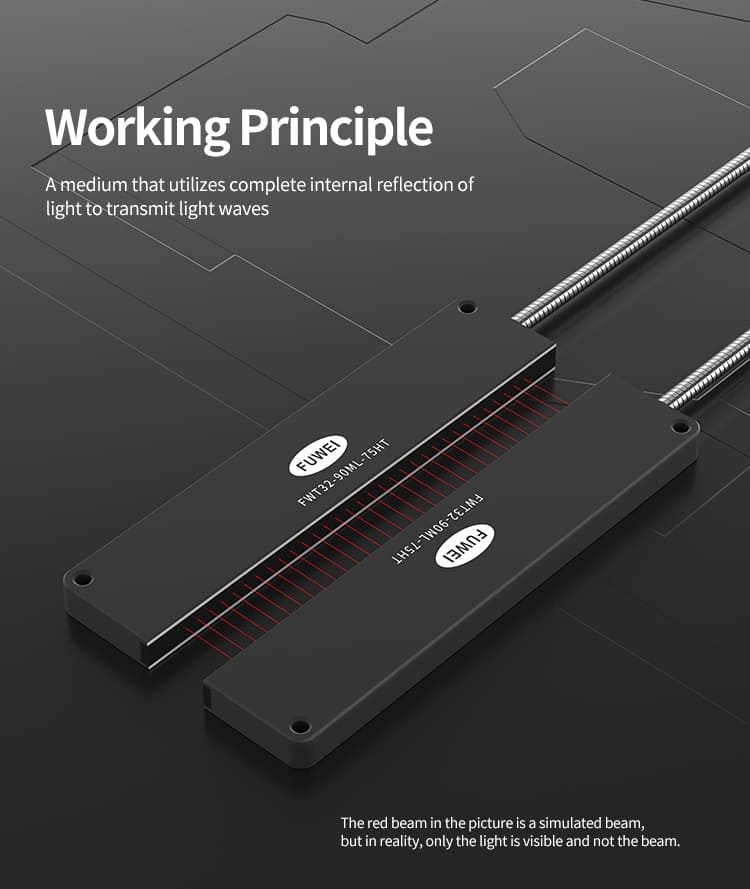

| Theory | Optic Principle |
| Detection range | 500mm |

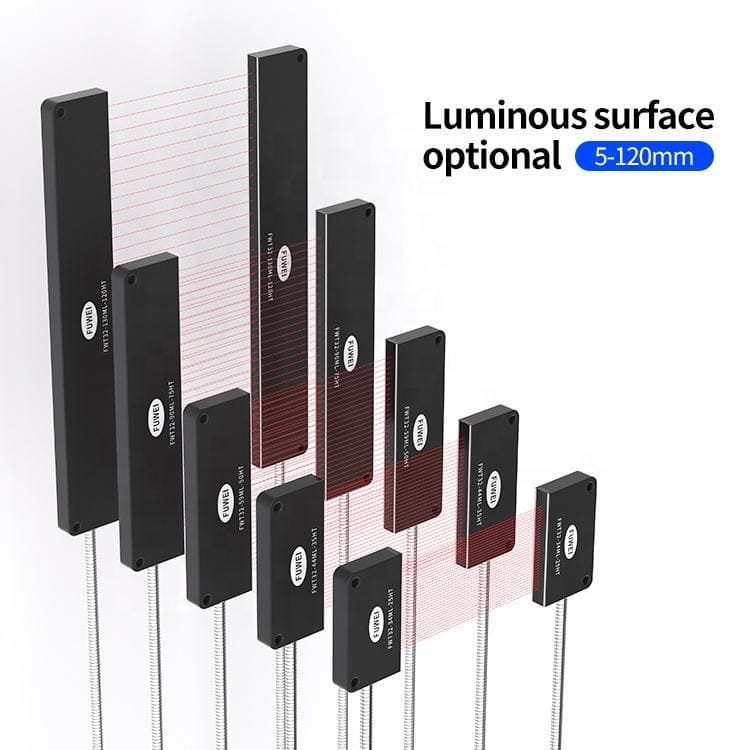

| Surface size | 75mm |

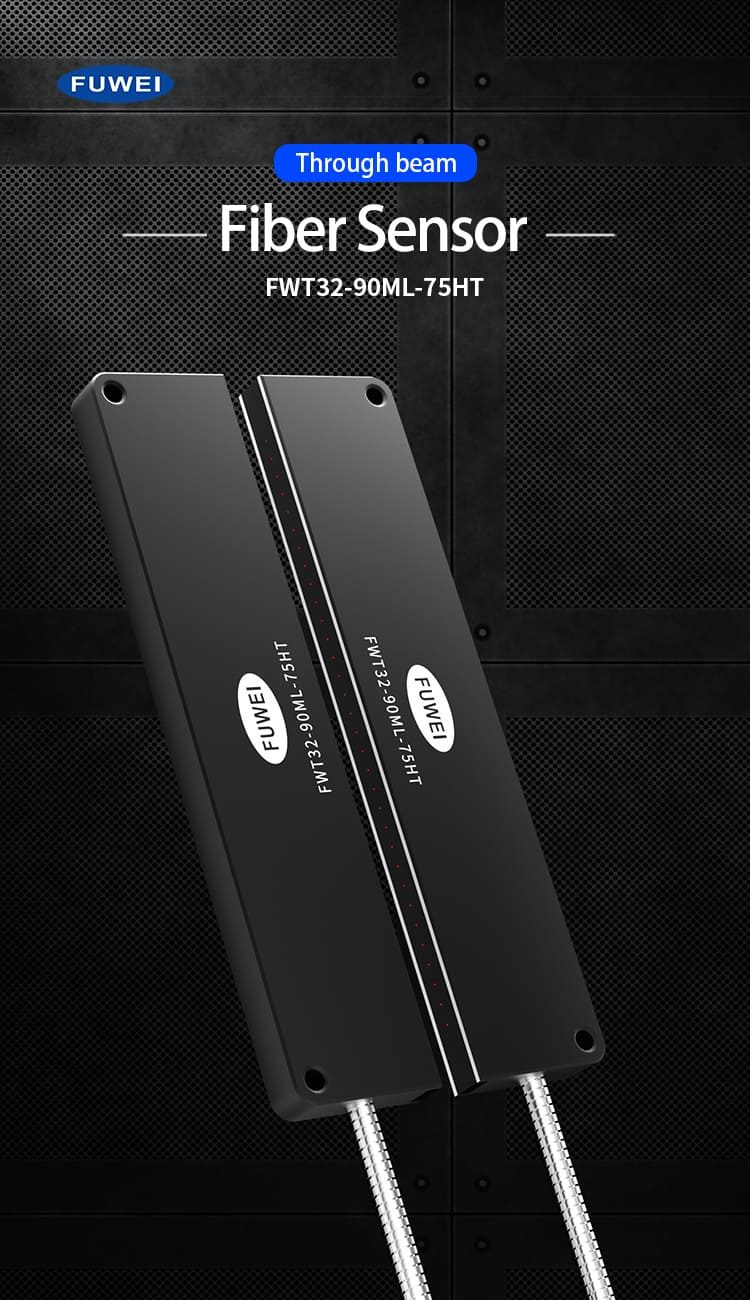

| Sensing method | Thru-beam |

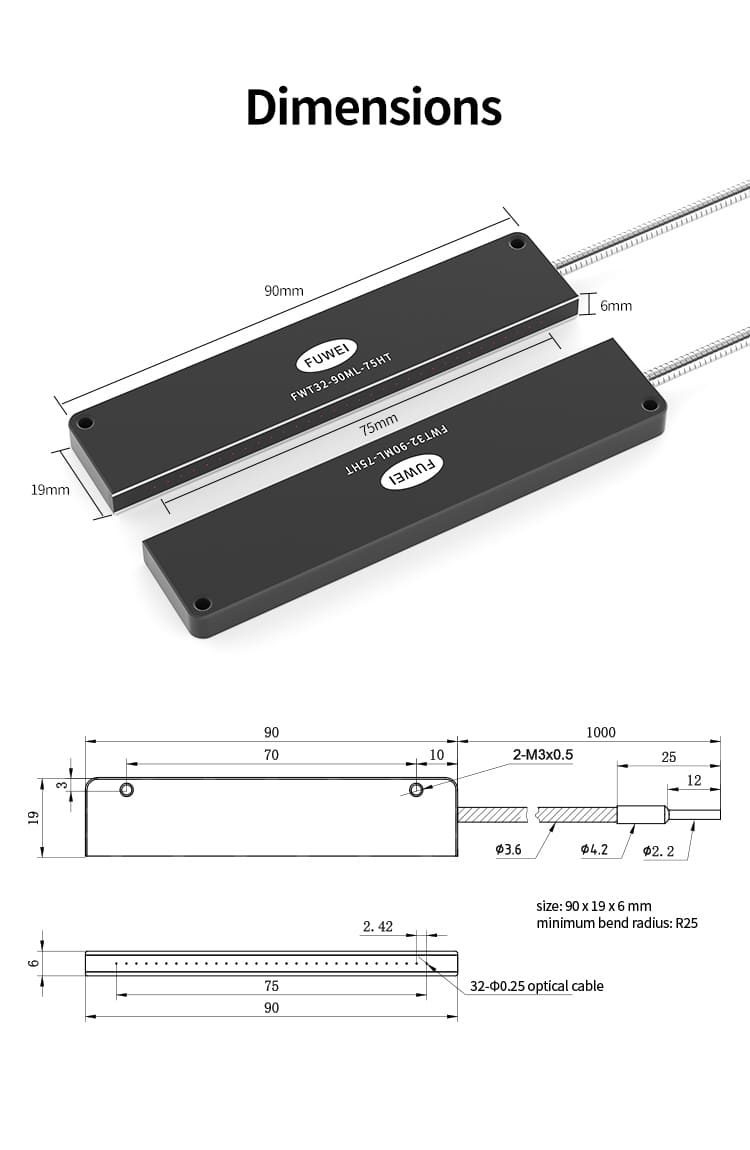

| Overall dimension | 90×19×6mm |
| Bending radius | R25 |
| Working temperature | -50℃~+70℃ |

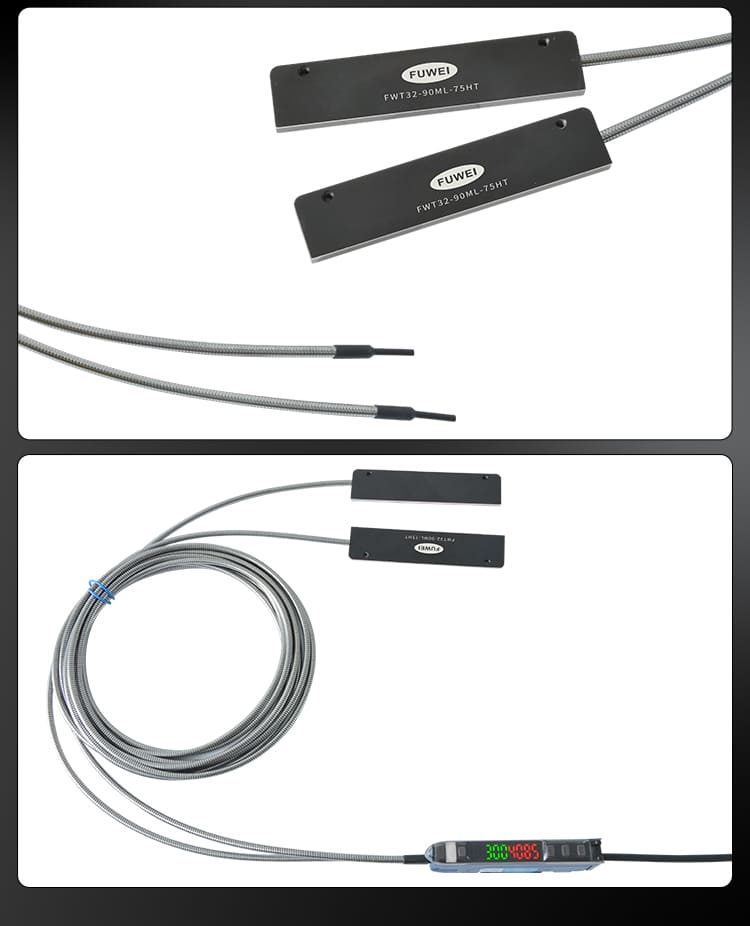

| Fiber length | 1000mm |
| Packaging and Delivery | |
| Selling Units | Single item |
| Single package size | 10×10×4 cm |
| Single gross weight | 0.300 kg |
