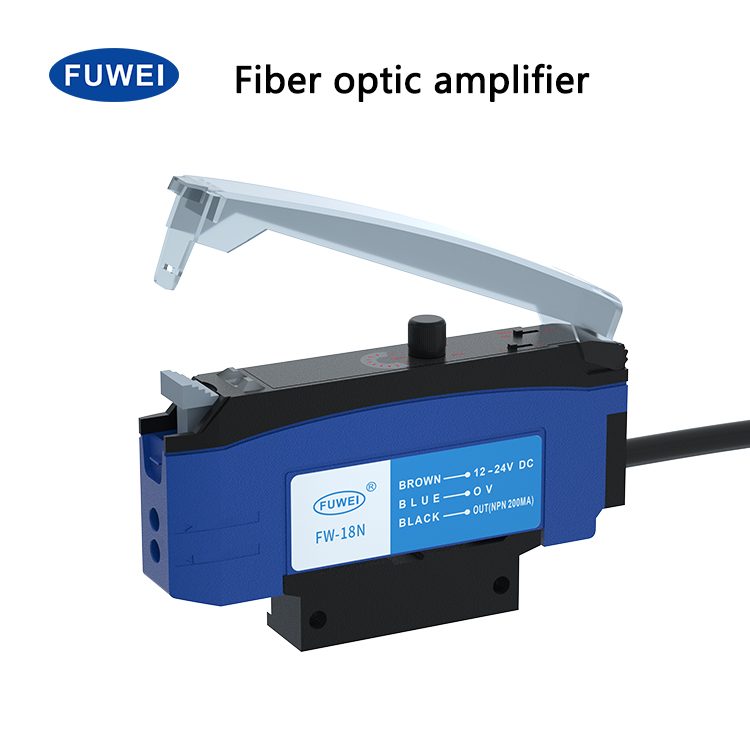

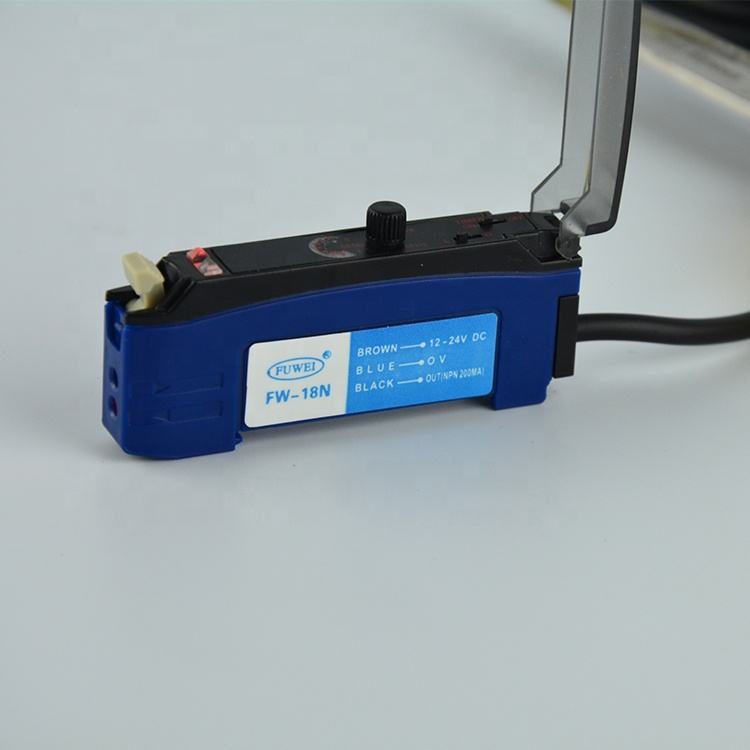

| Key Attributes – FUWEI FW-18N Fiber Optic Sensor | |
|---|---|
| Mounting Type | Base snap installation |
| Manufacturing Date | 2025 |
| Model Number | FW-18N |
| Brand Name | FUWEI |
| Usage | With or without judgment, detection in place |
| Description | Sensitive response, high switching frequency |
| Type | Fiber Optic Sensor |
| Series | FW-18N |
| Features | Sensitive response, high switching frequency |
| Place of Origin | Guangdong, China |
| Theory | Optic Principle |

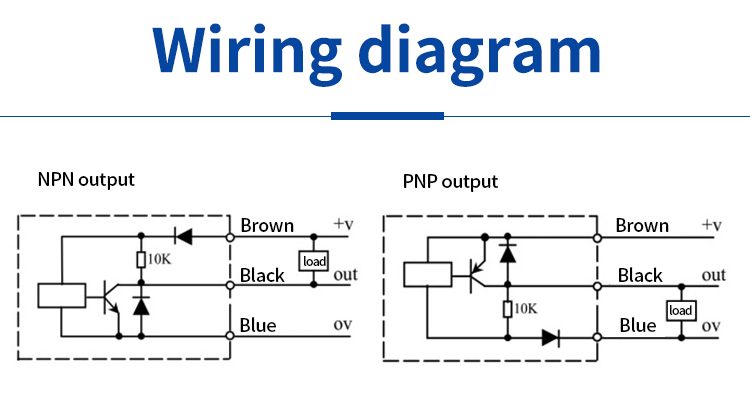

| Output | NPN/PNP optional |

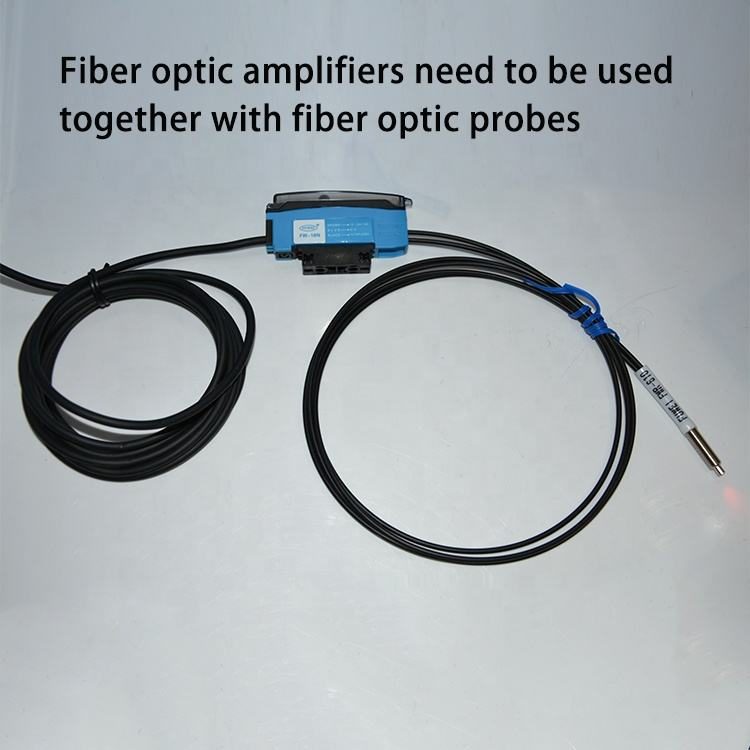

| Description | Fiber Optic Amplifier |
| Detection Distance | Diffuse reflection 200mm; Through Beam 1200mm |
| Switching Frequency | Normal 1KHZ; High speed 10KHZ |
| Response Time | Normal 500μs; High speed 50μs |
| Supply Voltage | 12-24VDC |

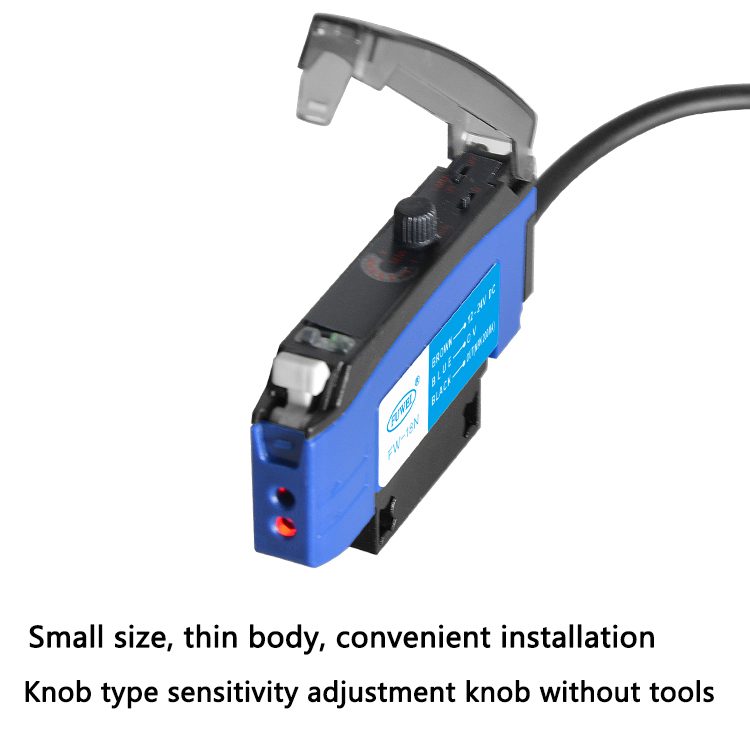

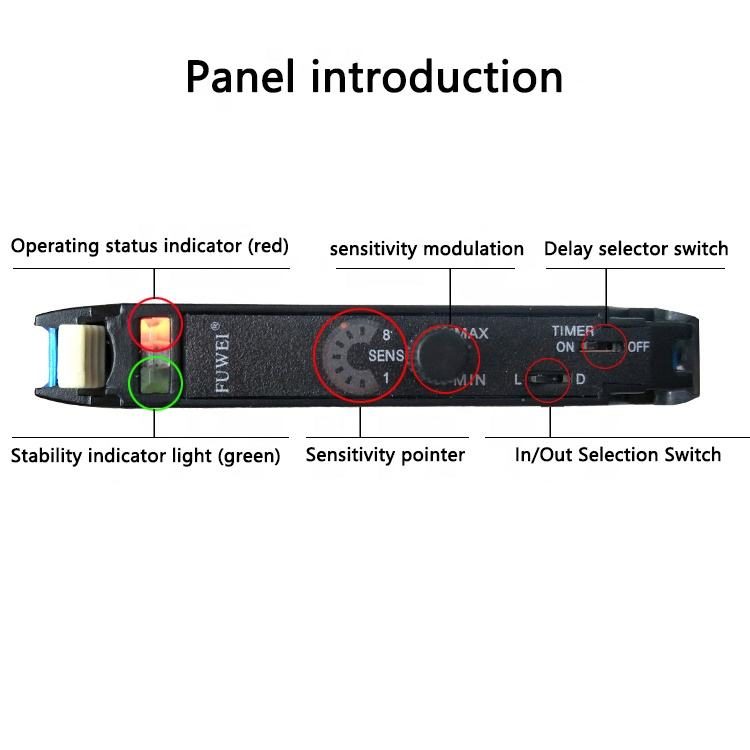

| Sensitivity | Potentiometer knob adjustment |
| Consumption Current | <20mA |

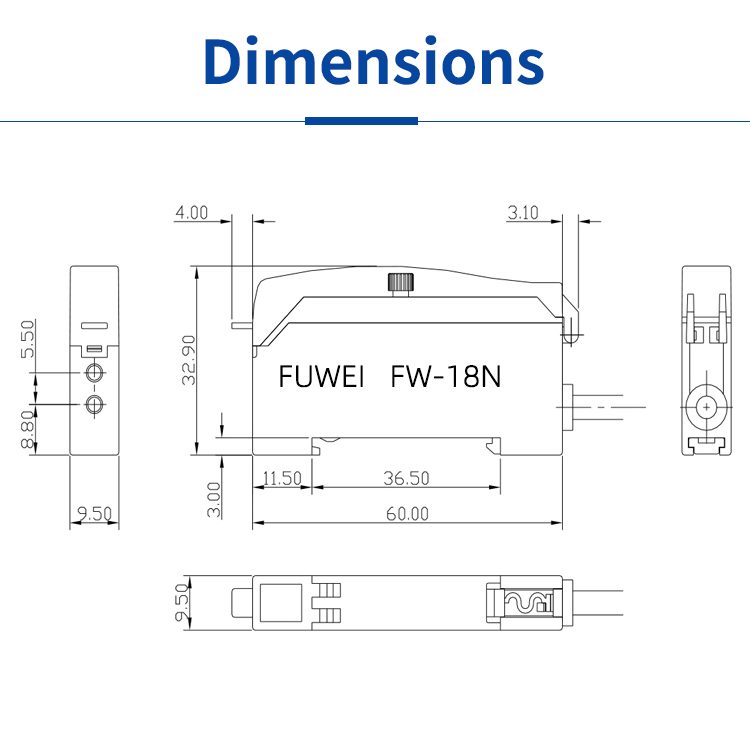

| Dimension | 60 × 32.9 × 9.5 mm |
| Packaging & Delivery | |
| Selling Units | Single item |
| Single Package Size | 16 × 15 × 6 cm |
| Single Gross Weight | 0.120 kg |
