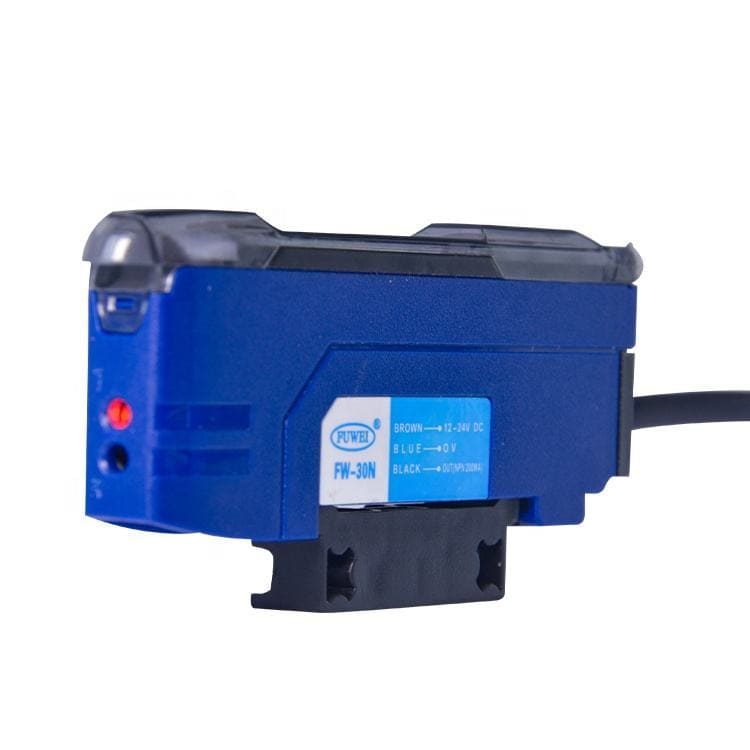

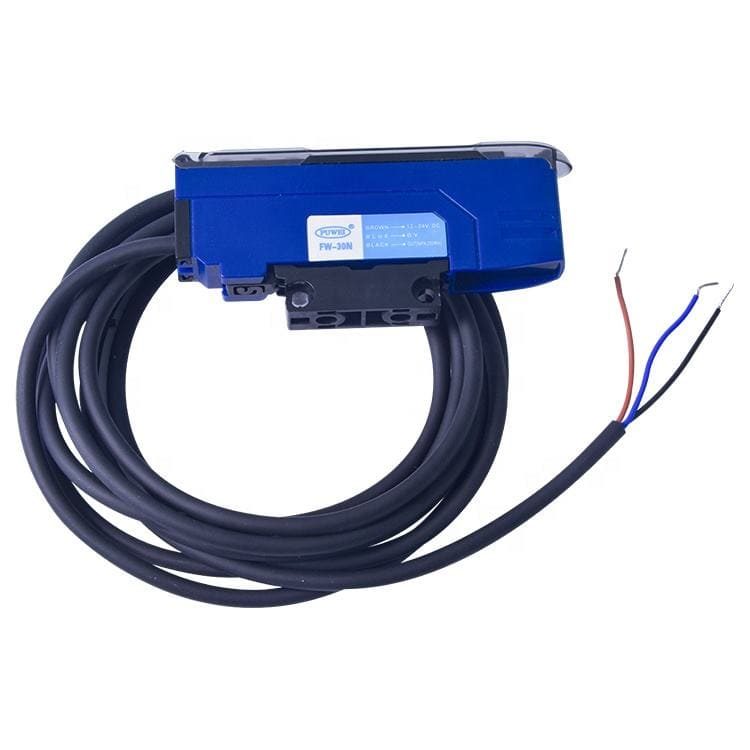

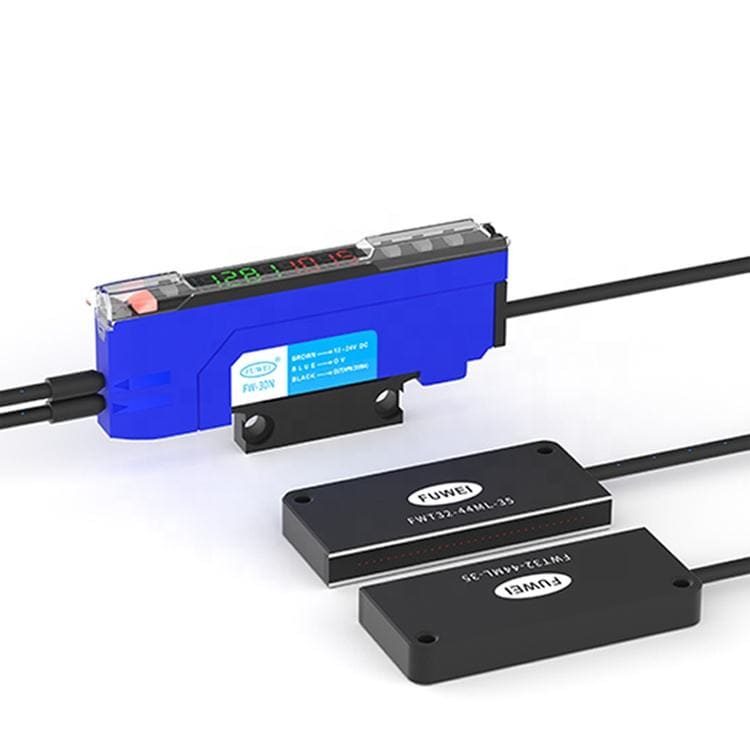

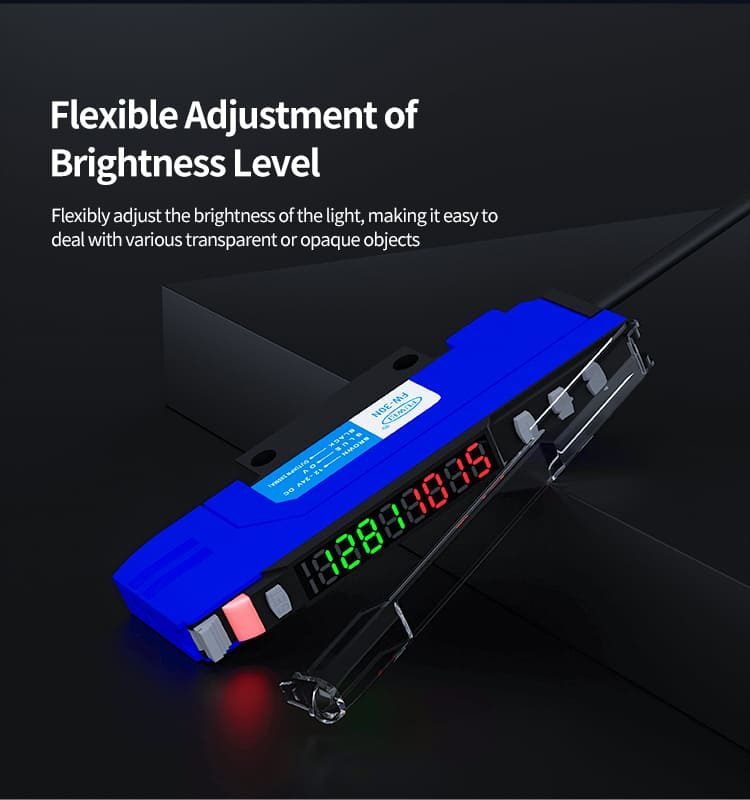

| Key Attributes – FUWEI FW-30N Fiber Optic Sensor | |
|---|---|
| Mounting Type | Base snap mount / DIN rail mount |
| Manufacturing Date | 2023-05 |
| Model Number | FW-30N |
| Brand Name | FUWEI |
| Usage | With or without judgment, detection in place |

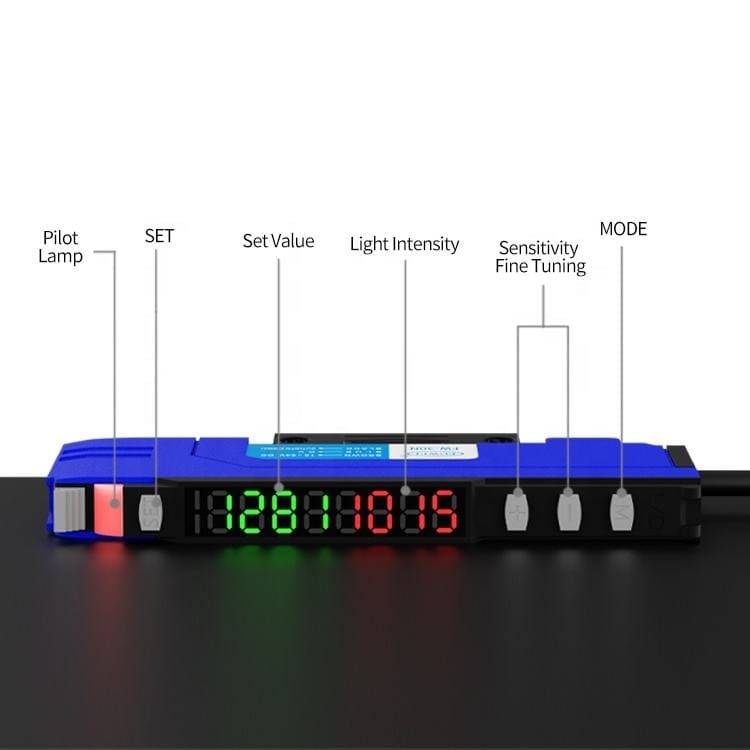

| Description | 8-digit display |
| Type | Fiber Optic Sensor |
| Series | FW-30N |
| Features | 8-digit display, simple and convenient operation |
| Place of Origin | Guangdong, China |
| Theory | Optic Principle |

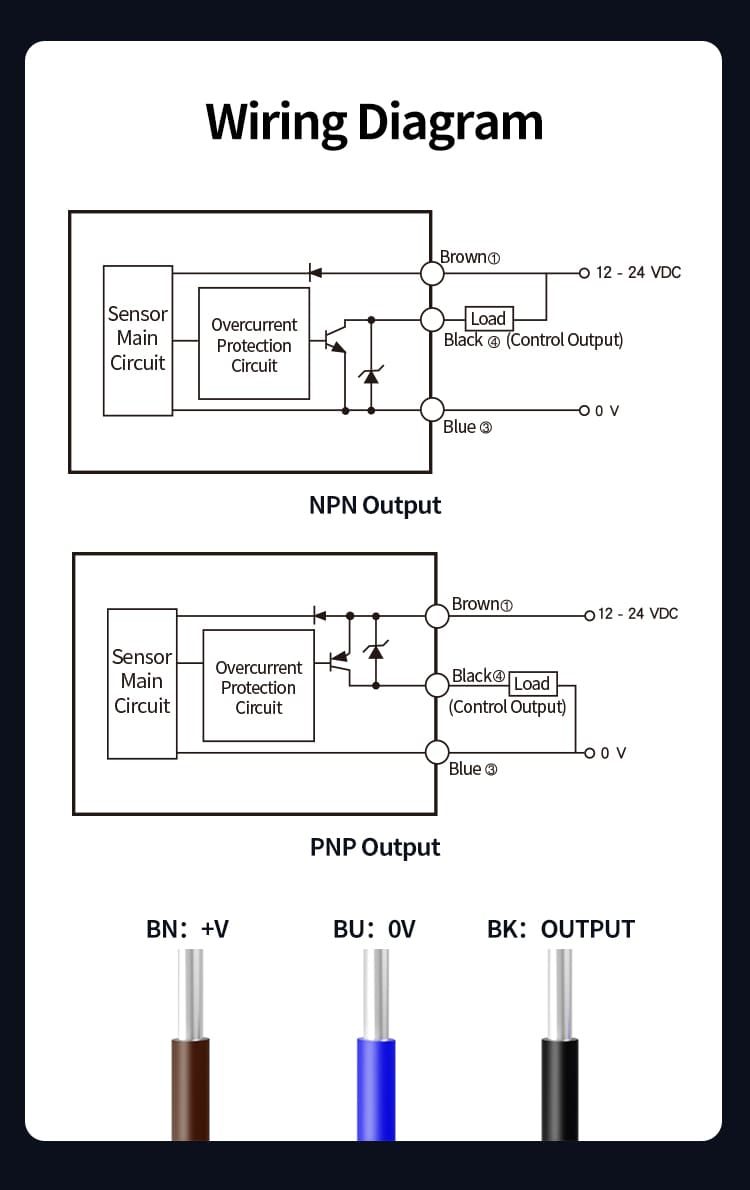

| Output | NPN, PNP |

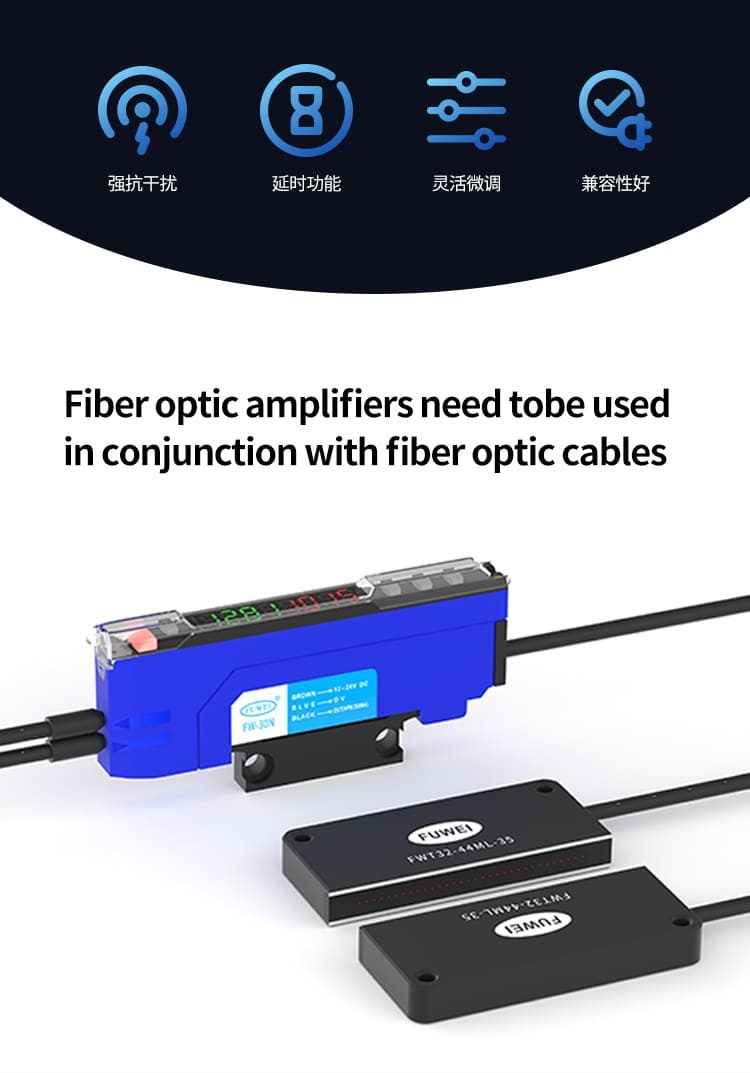

| Function | Fiber Optic Amplifier |
| Detection Distance | Diffuse reflection: 200mm; Through beam: 1200mm |
| Switching Frequency | 10 KHz |
| Supply Voltage | 12–24VDC |

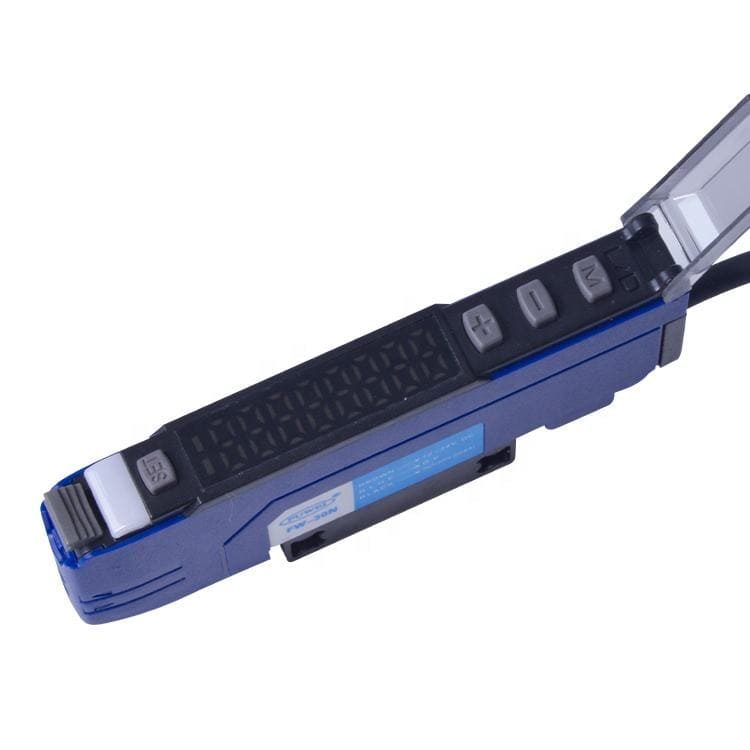

| Sensitivity | Key adjustment |
| Consumption Current | Below 20mA |

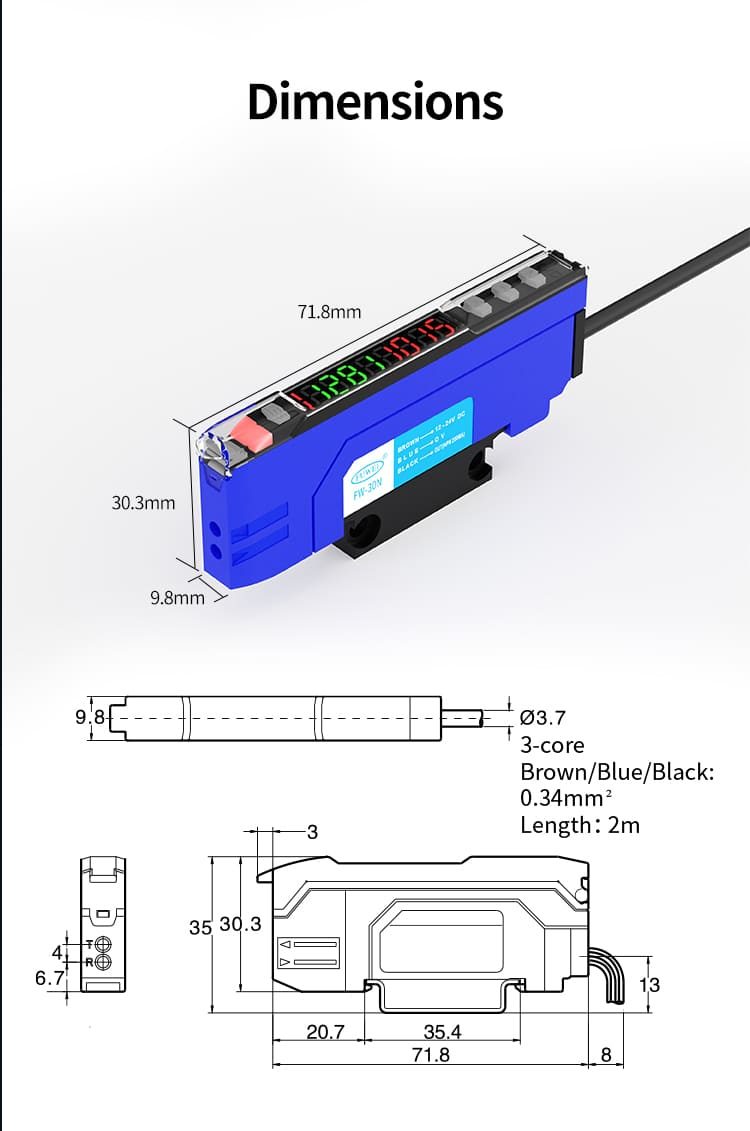

| Product Size | 71.8 × 30.3 × 10.5 mm |

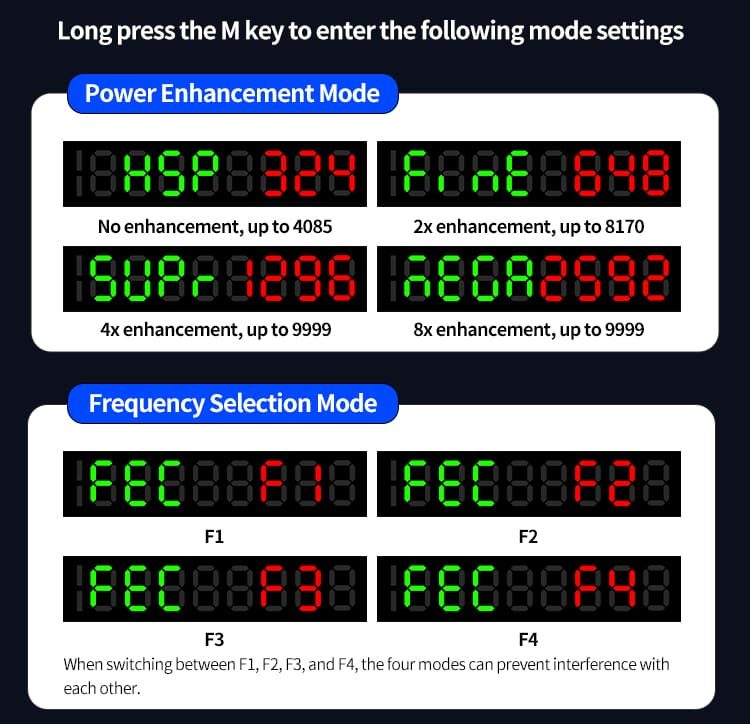

| Response Time | HSP: 25μs; FINE: 50μs; SUPR: 100μs; MEGA: 200μs |
| Packaging & Delivery | |
| Port of Dispatch | Guangzhou Nansha Port |
| Selling Units | Single item |
| Supply Capacity | 1000 pieces per week |
