| Key Attributes | |
|---|---|
| Mounting Type | Screw fixing |
| Manufacturing Date Code | 2024 |

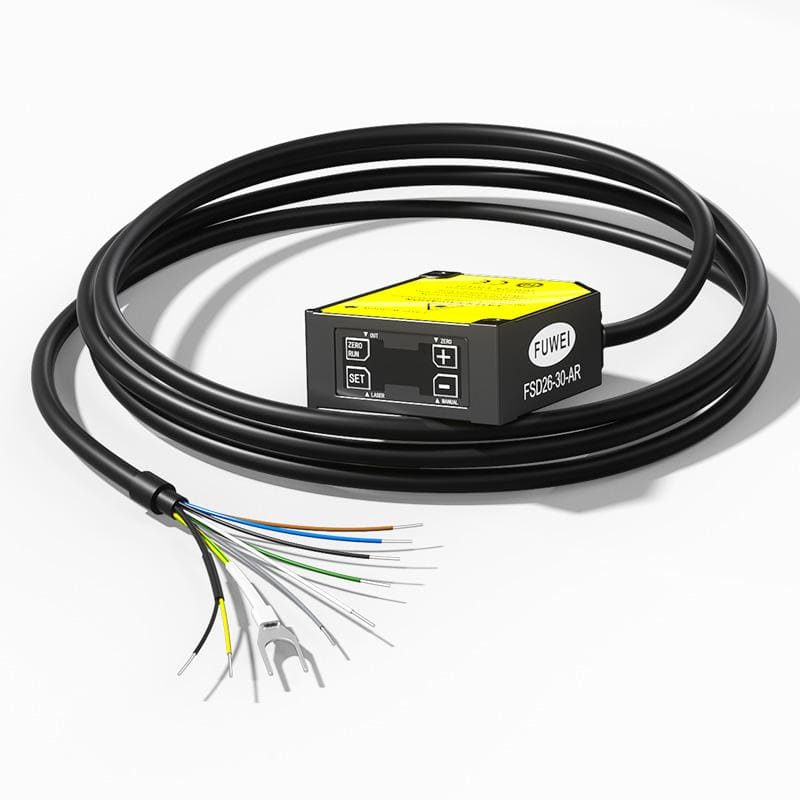

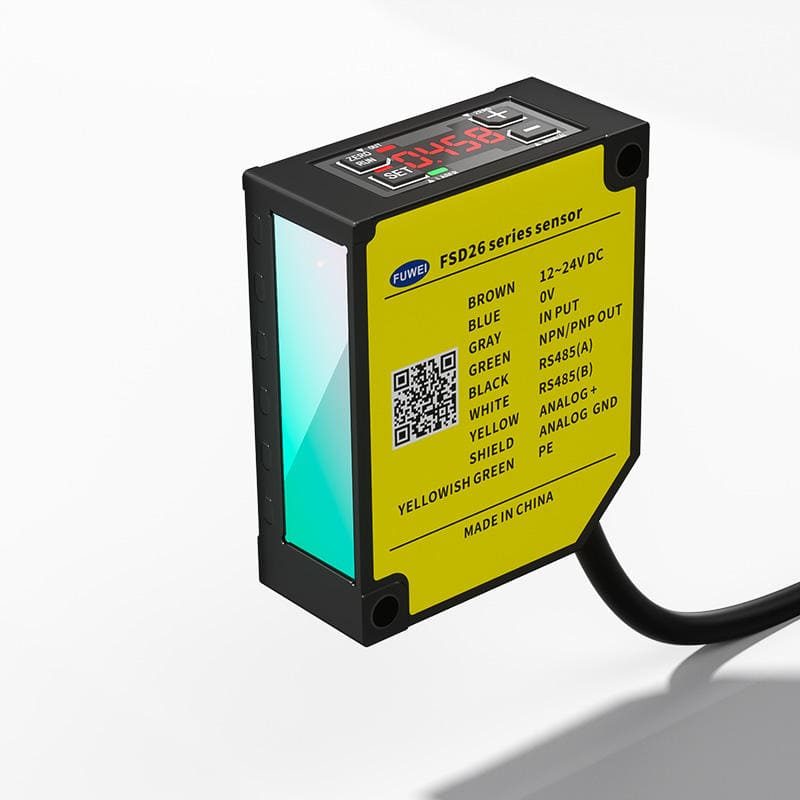

| Model Number | FSD26 |
| Brand Name | FUWEI |

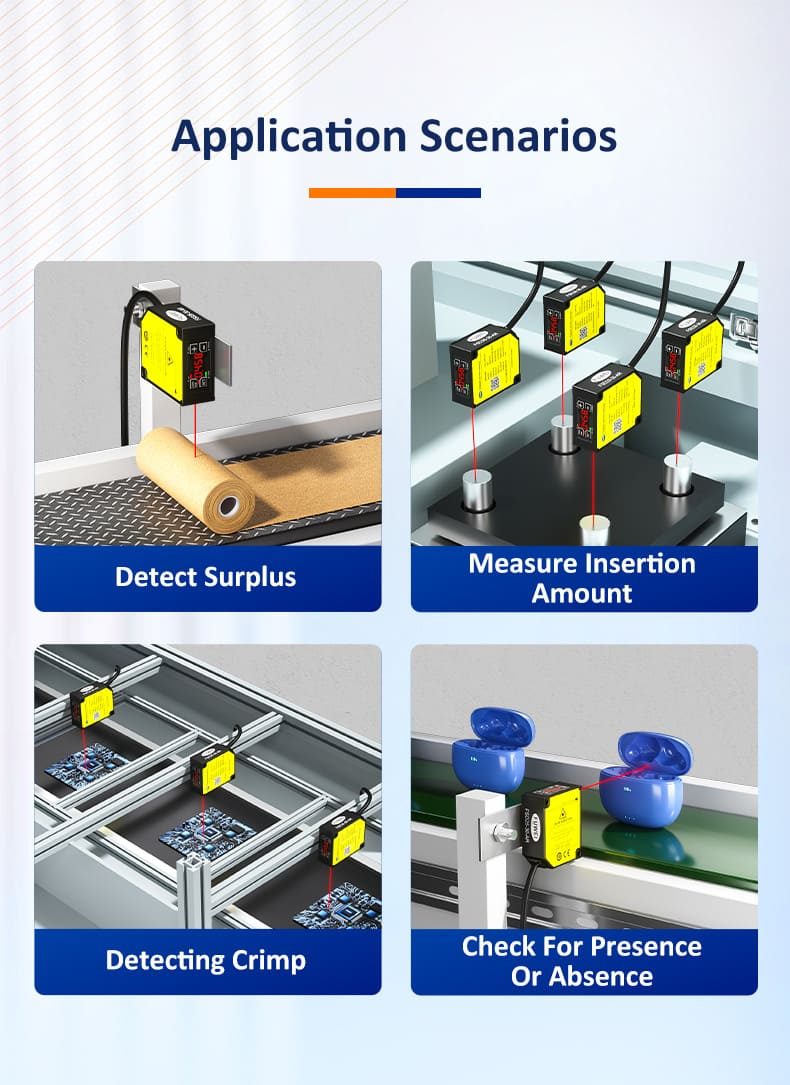

| Usage | Measuring Distance |
| Description | High precision laser displacement sensor |

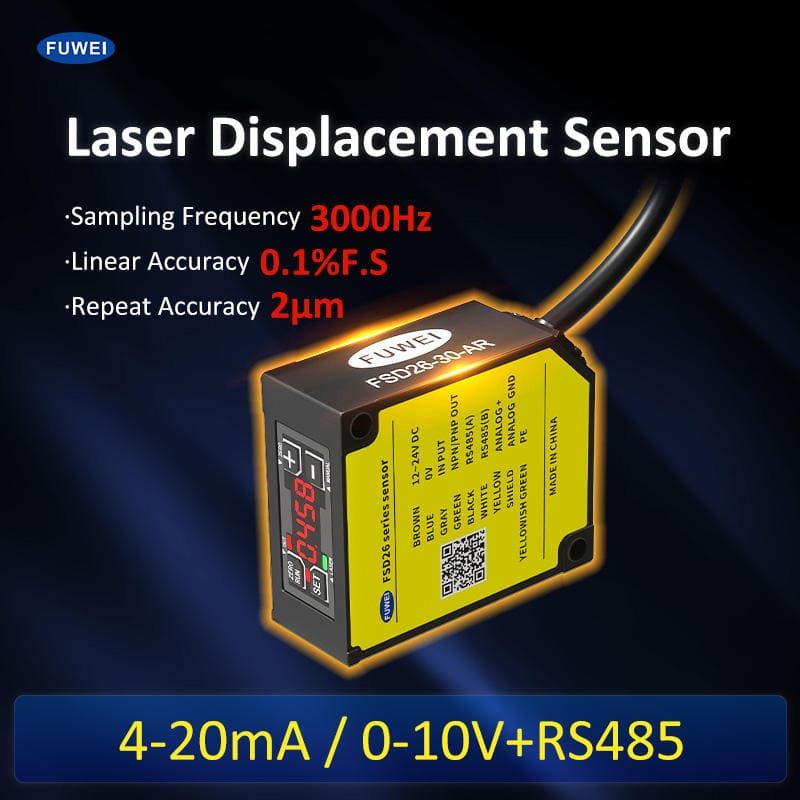

| Type | Laser Displacement Sensor |
| Series | FSD26 |
| Features | High precision measurement |
| Place of Origin | Guangdong, China |
| Theory | Laser triangulation principle measurement method |
| Output | Analog: 4…20mA (Load resistance <390Ω) |

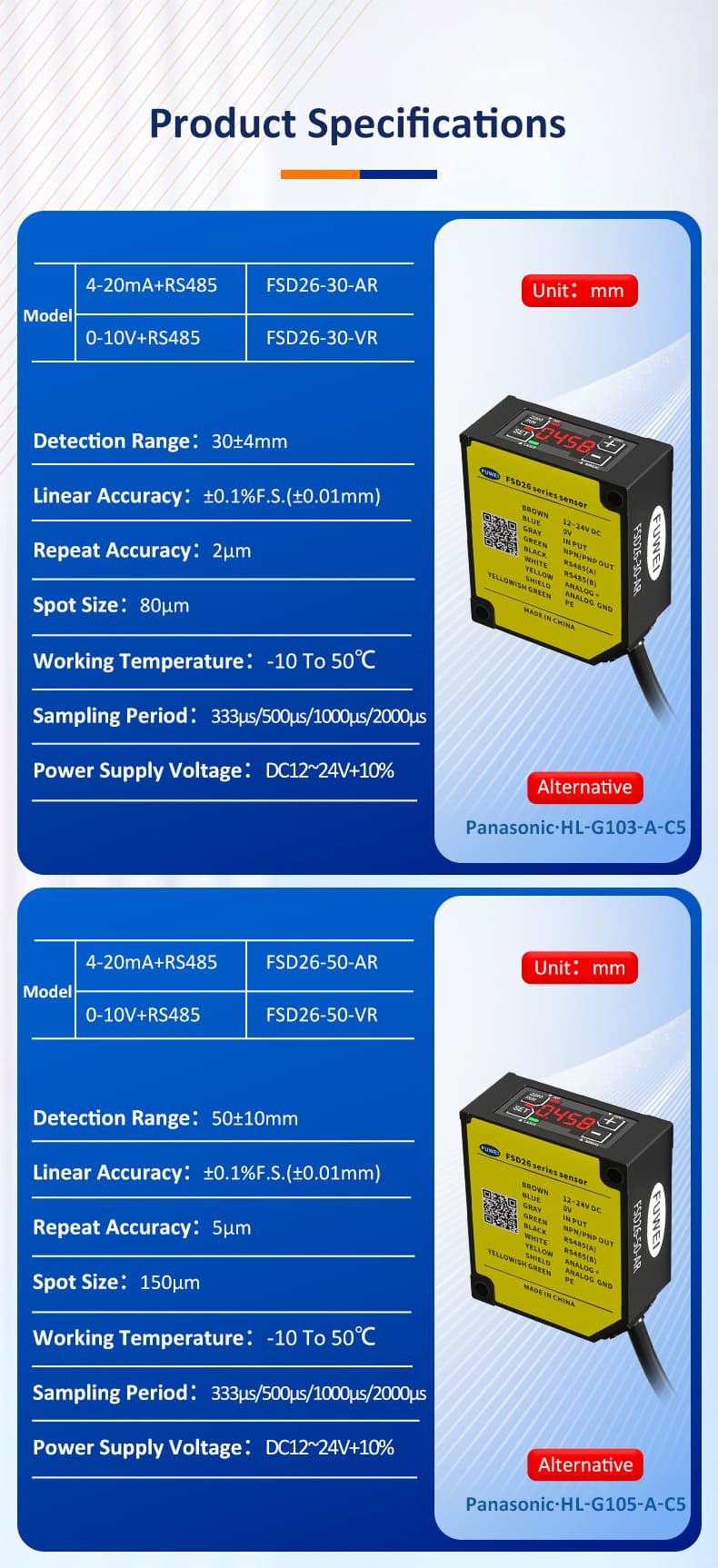

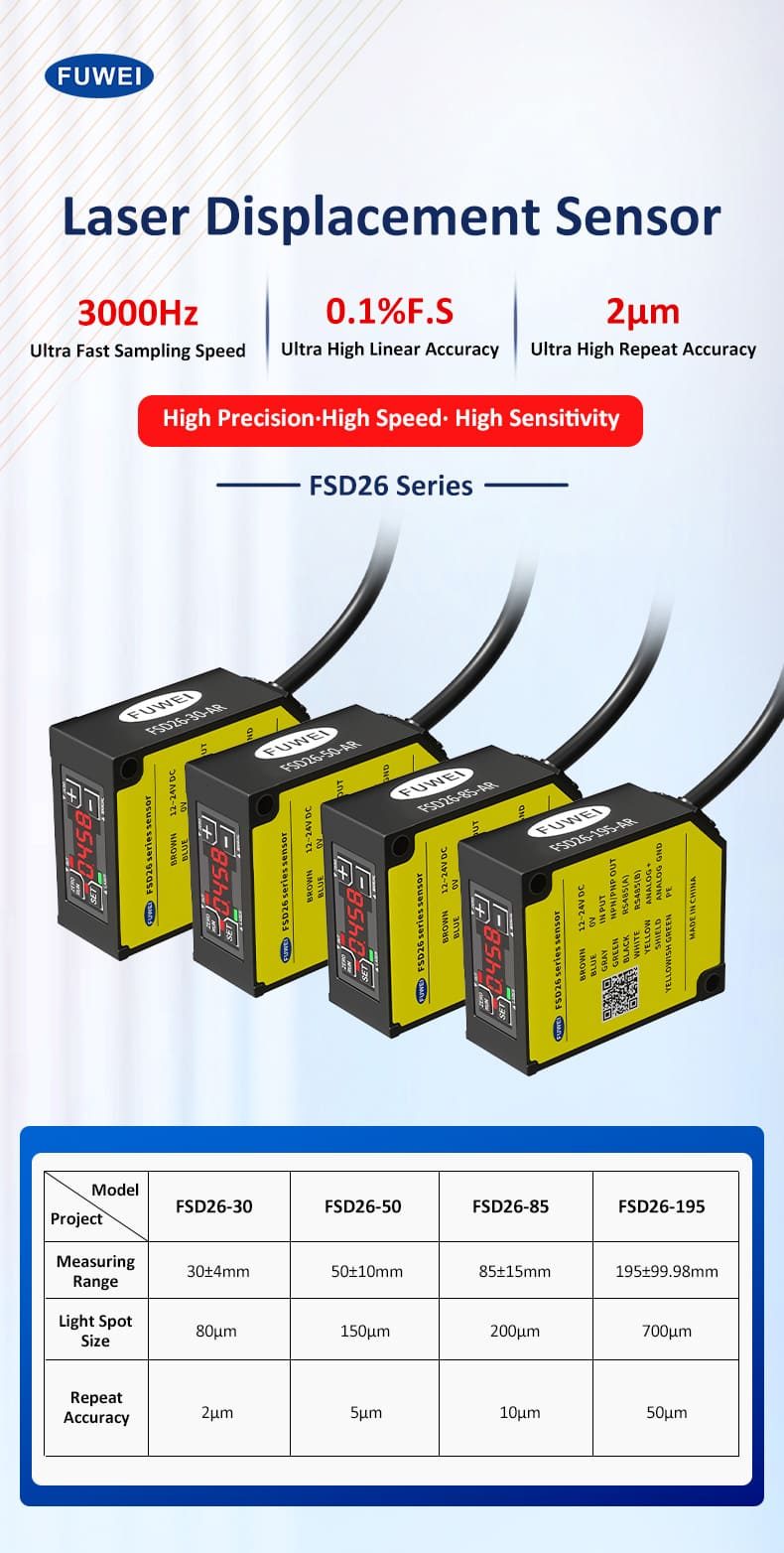

| Reference Distance | 30mm – 50mm – 85mm – 195mm |
| Short Circuit Protection | YES |

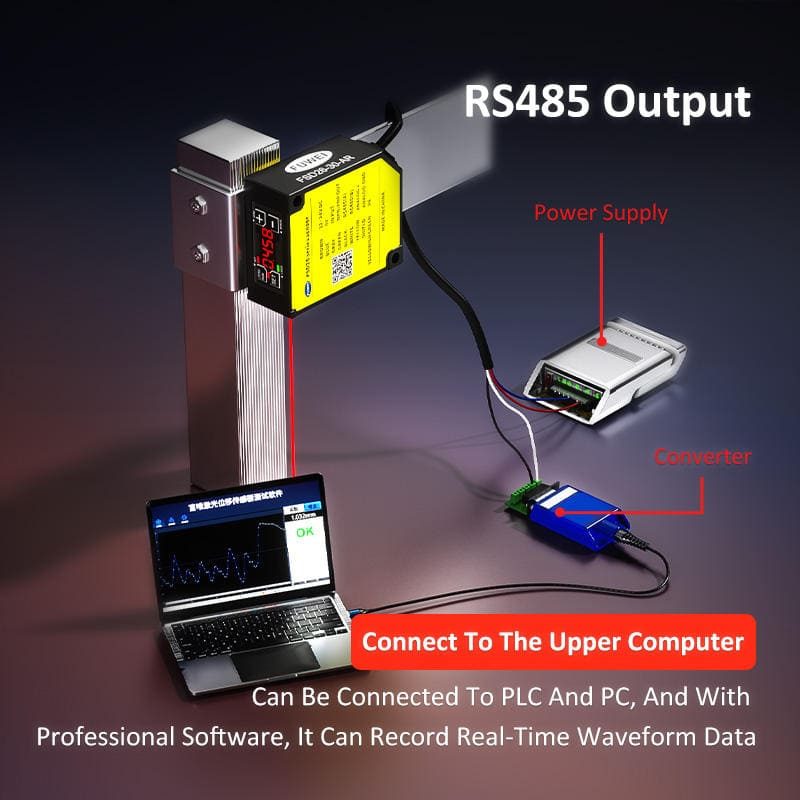

| Supply Voltage | RS485: 10-30VDC, 4-20mA: 12-24VDC |
| Use Environment | Working temperature: -10~50°C |
| ESD Protection | Contact discharge 4kV |
| Vibration | 0-55Hz |
| Impact | 500m/s² |
| IP Level | IP67, conforms to IEC 60529 standard |

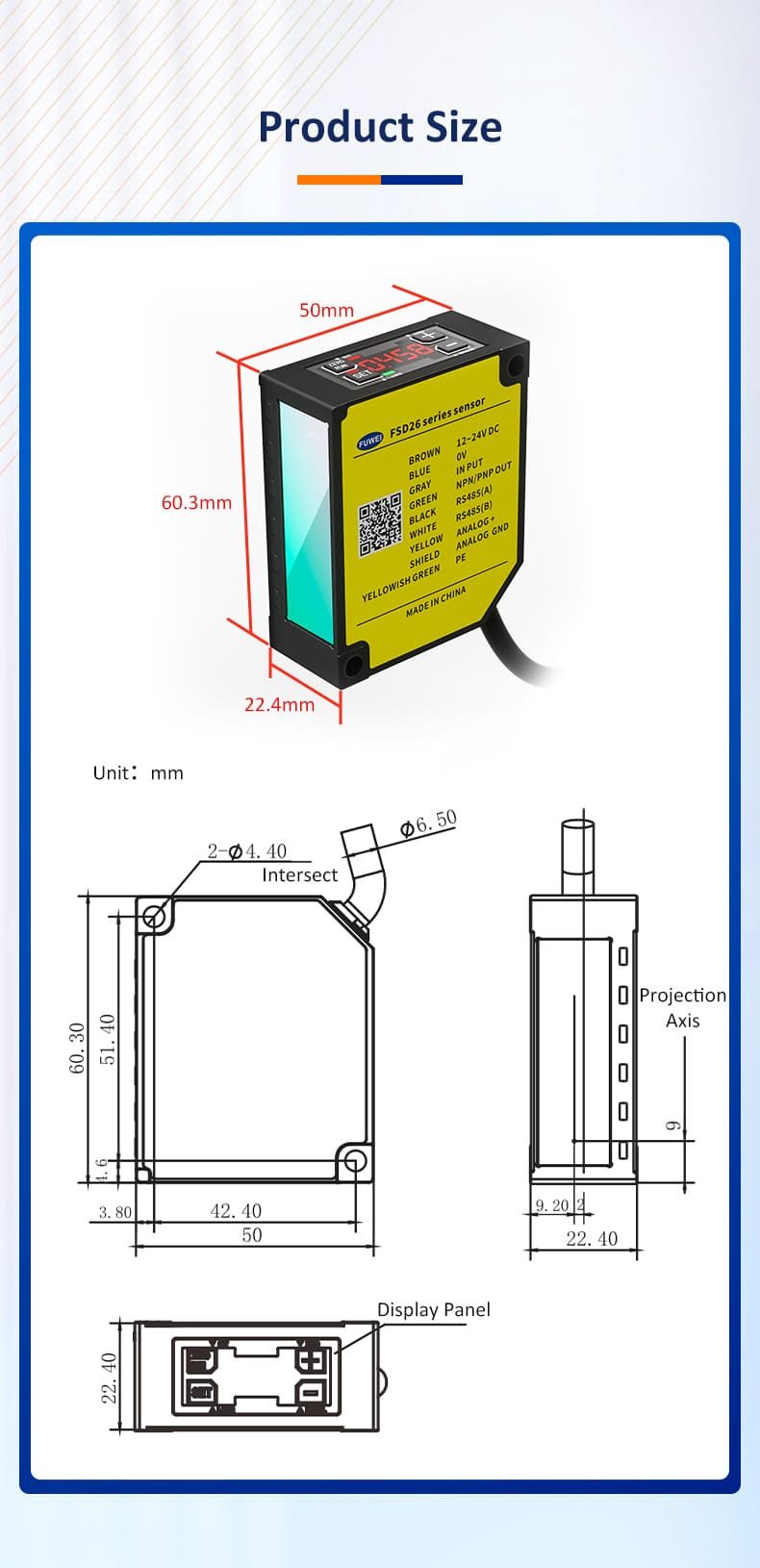

| Size | 60 × 50 × 22 mm |
| Protection Level | IP67 |
| Packaging and Delivery | |
| Selling Units | Single item |
| Single Package Size | 10 × 10 × 4 cm |
| Single Gross Weight | 0.500 kg |
