| Key Attributes | |
|---|---|
| Mounting Type | Screw fixing |
| Manufacturing Date Code | 20240106 |
| Model Number | FSD23-15-AV |
| Brand Name | FUWEI |
| Usage | Measuring Distance |
| Description | High precision laser displacement sensor |
| Type | Laser Displacement Sensor |
| Series | FSD23 |
| Features | High precision laser displacement sensor |
| Place of Origin | Guangdong, China |
| Theory | Laser triangulation principle measurement method |

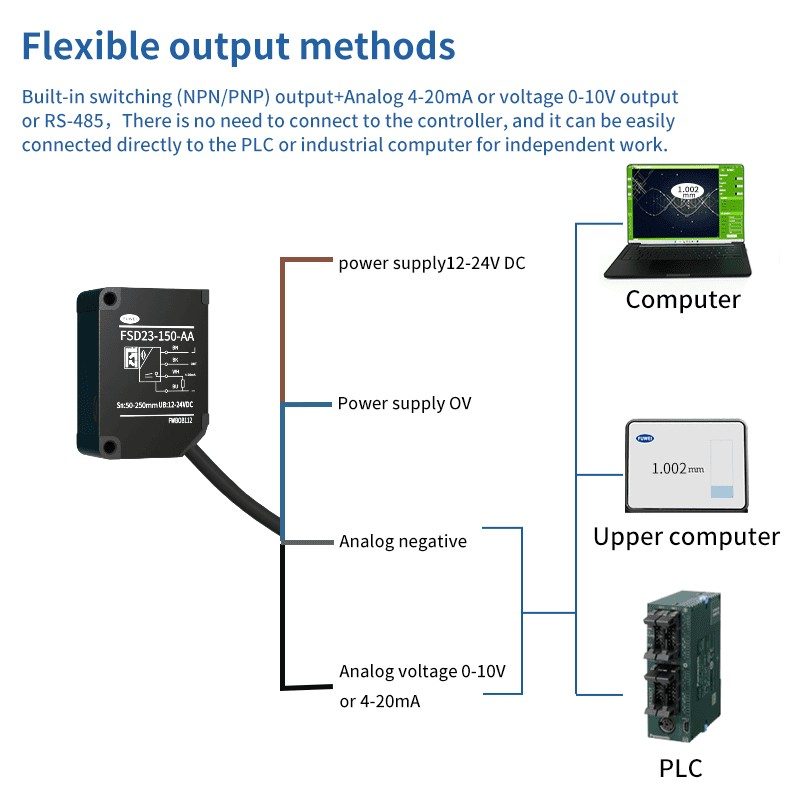

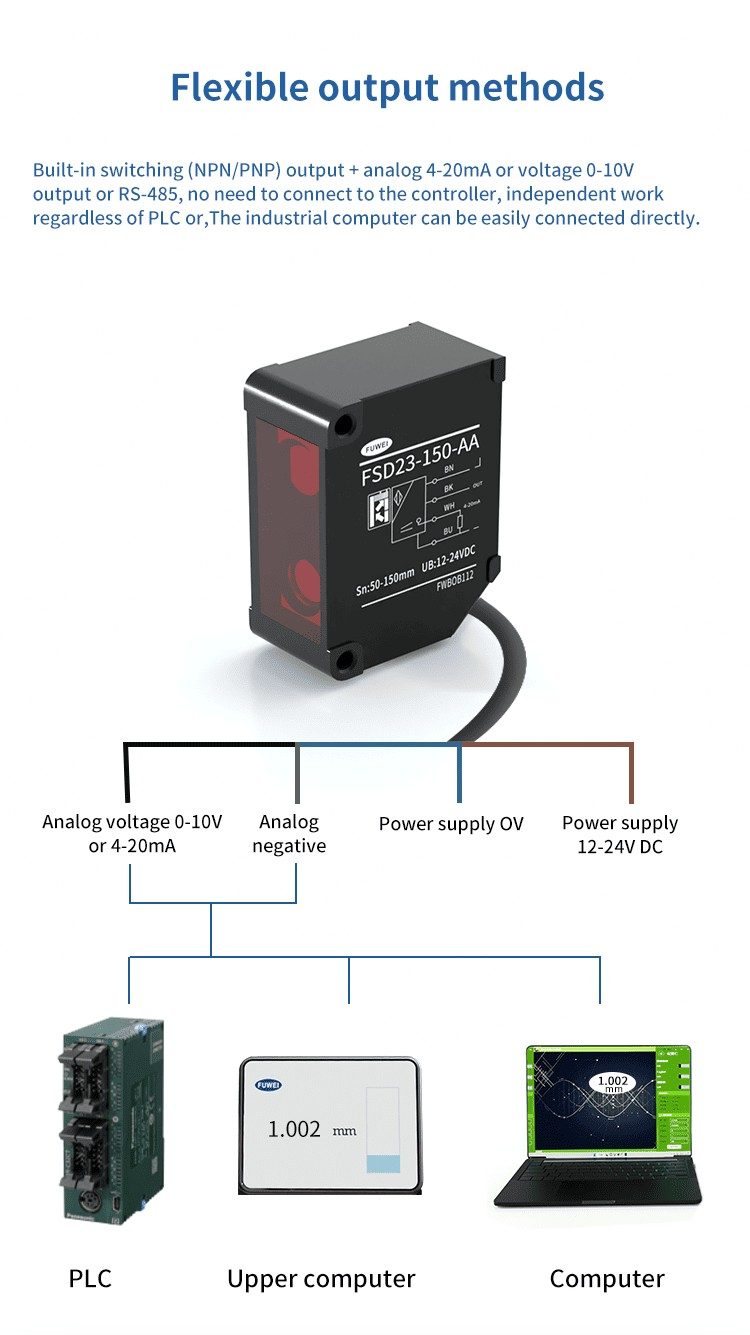

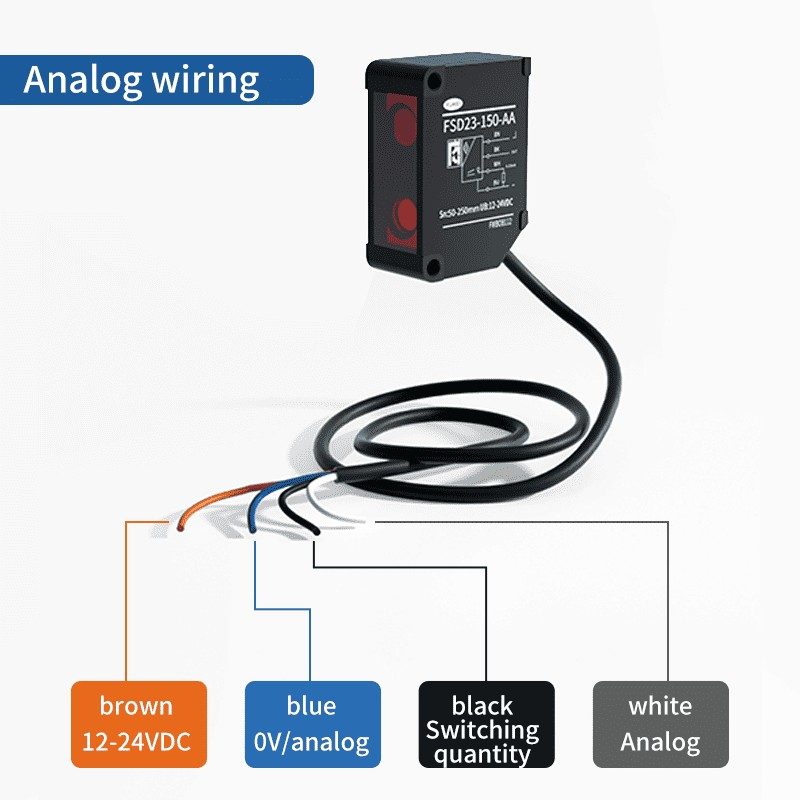

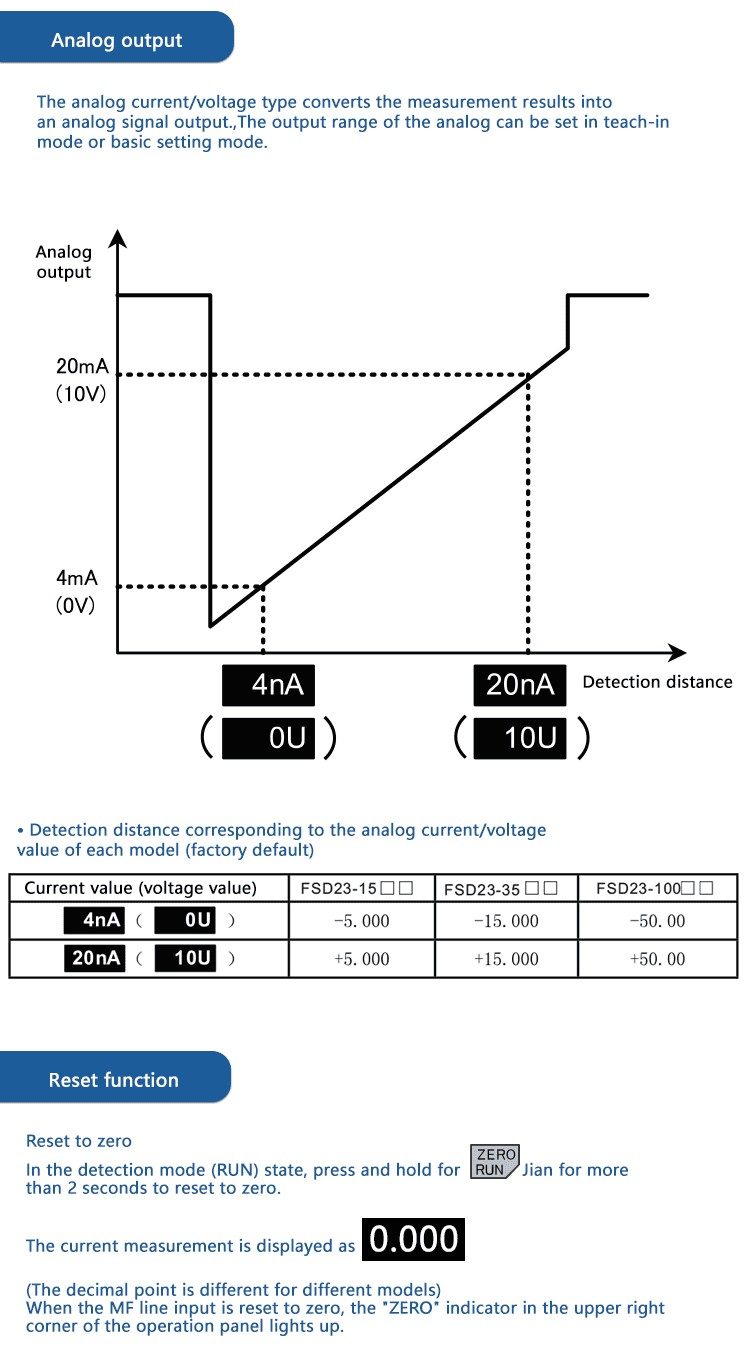

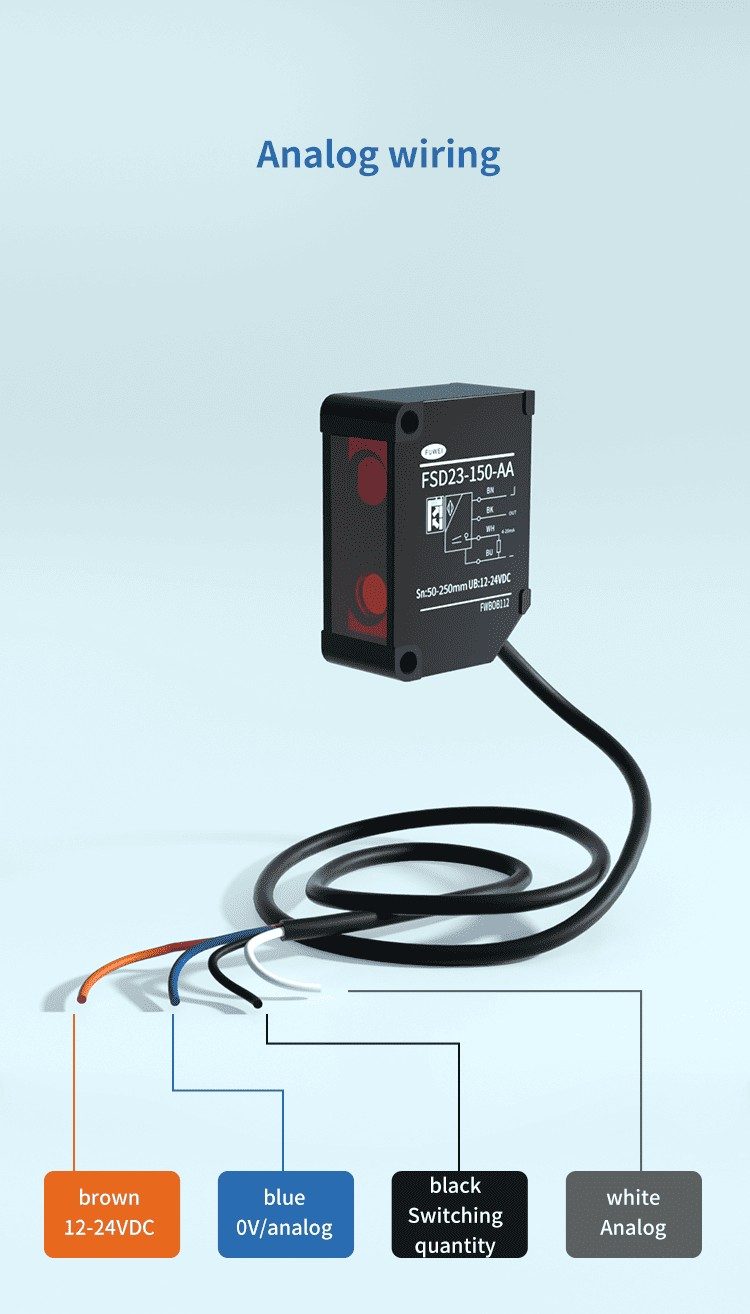

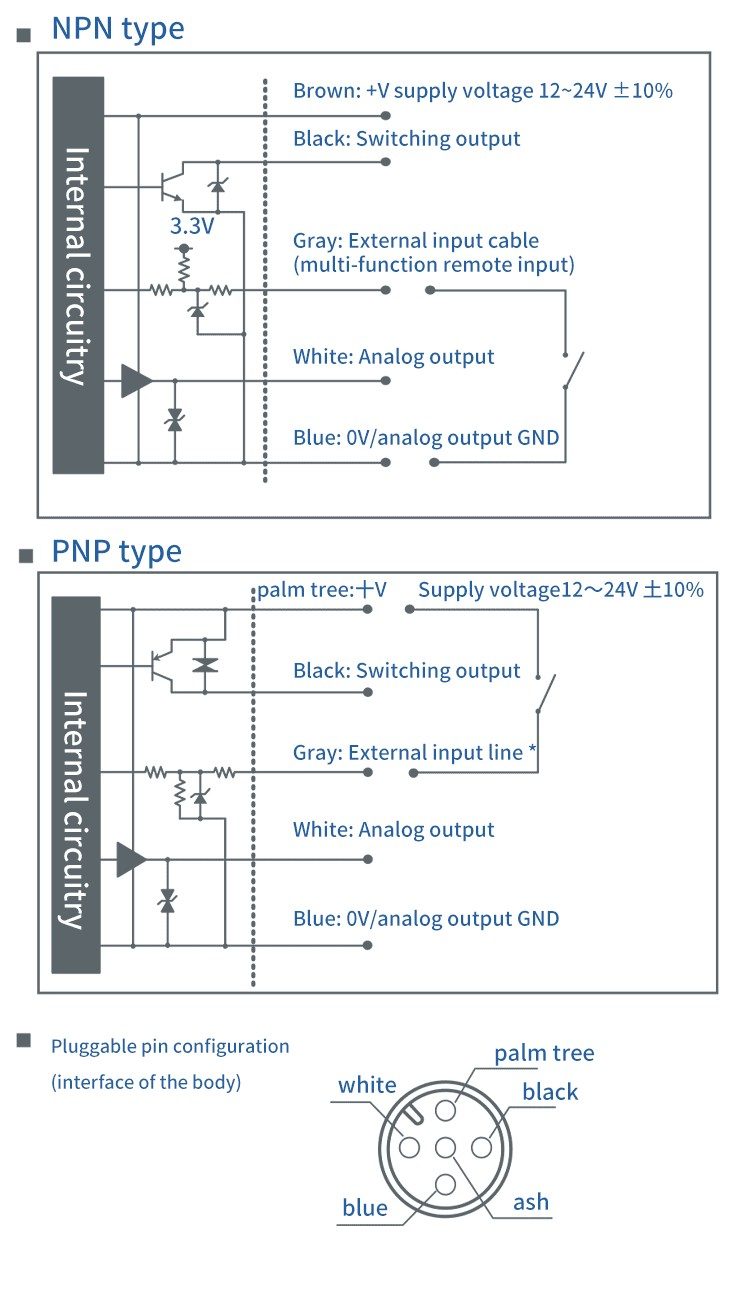

| Output | Analog voltage 0-10V/NPN/PNP |

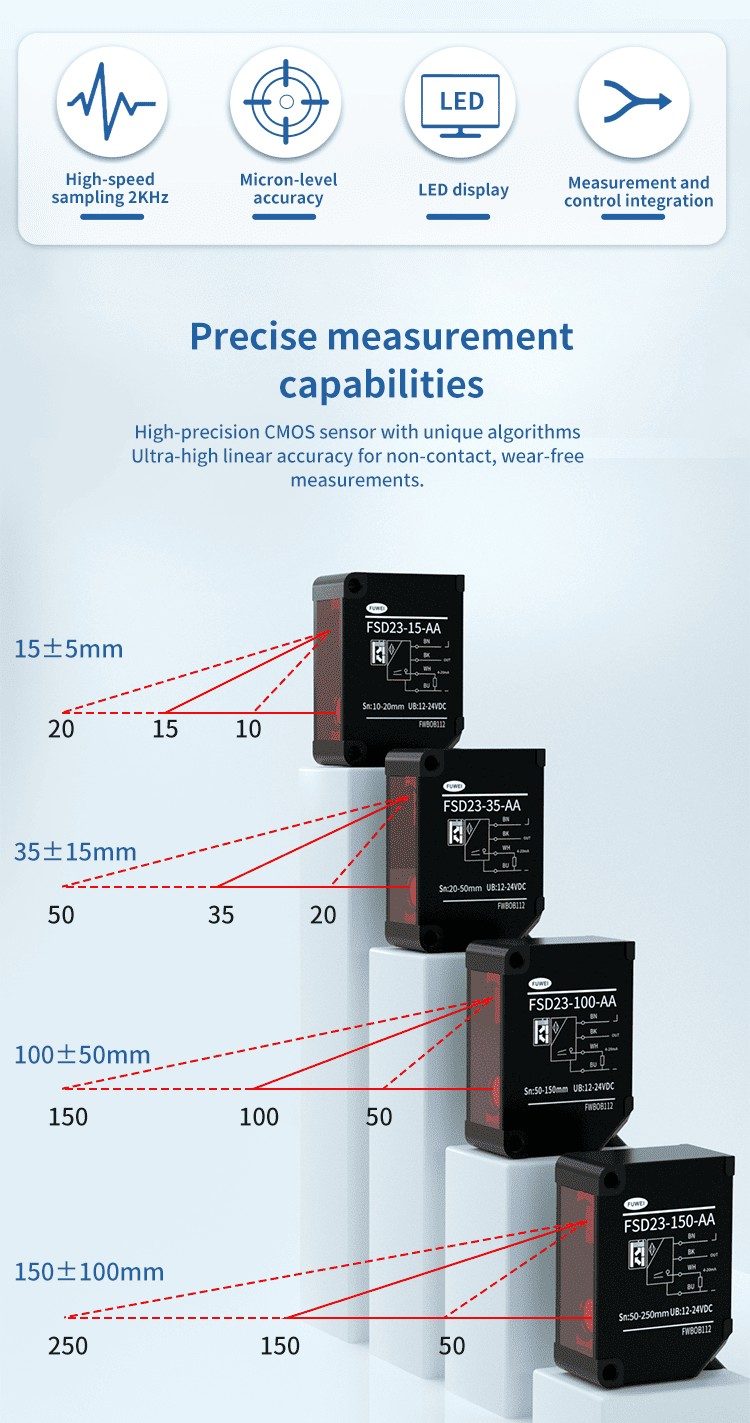

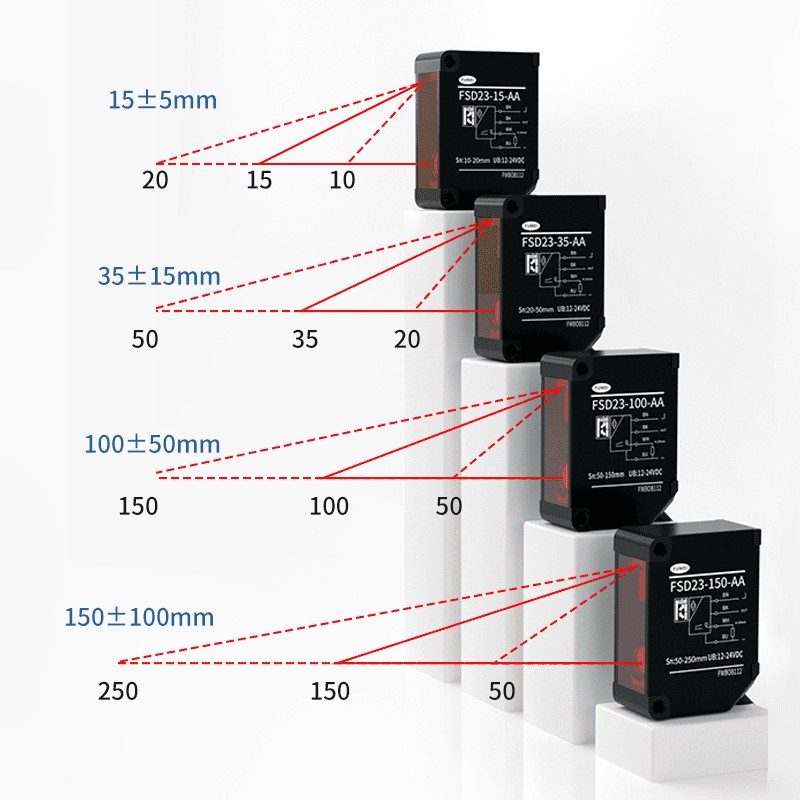

| Center of measurement range | 15mm |
| Measurement range | ±5mm |
| Spot size | 0.5*0.7mm |
| Linearity | ±0.1% F.S. |
| Repeatability | 1μm |
| Sampling period | 500μs / 1000μs / 2000μs / 4000μs / AUTO |
| Medium. Wavelength | Red laser Diode (wave length 650nm) |
| Current consumption | 70mA max |
| Material | Aluminum |
| Packaging and Delivery | |
| Selling Units | Single item |
| Single package size | 16X15X5 cm |
| Single gross weight | 0.310 kg |
