| Mounting Type |
Screw fixing |
| Manufacturing Date Code |
20240106 |
| Model Number |
FSD23-15-RS485 |
| Brand Name |
FUWEI |
| Usage |
Measuring Distance |
| Description |

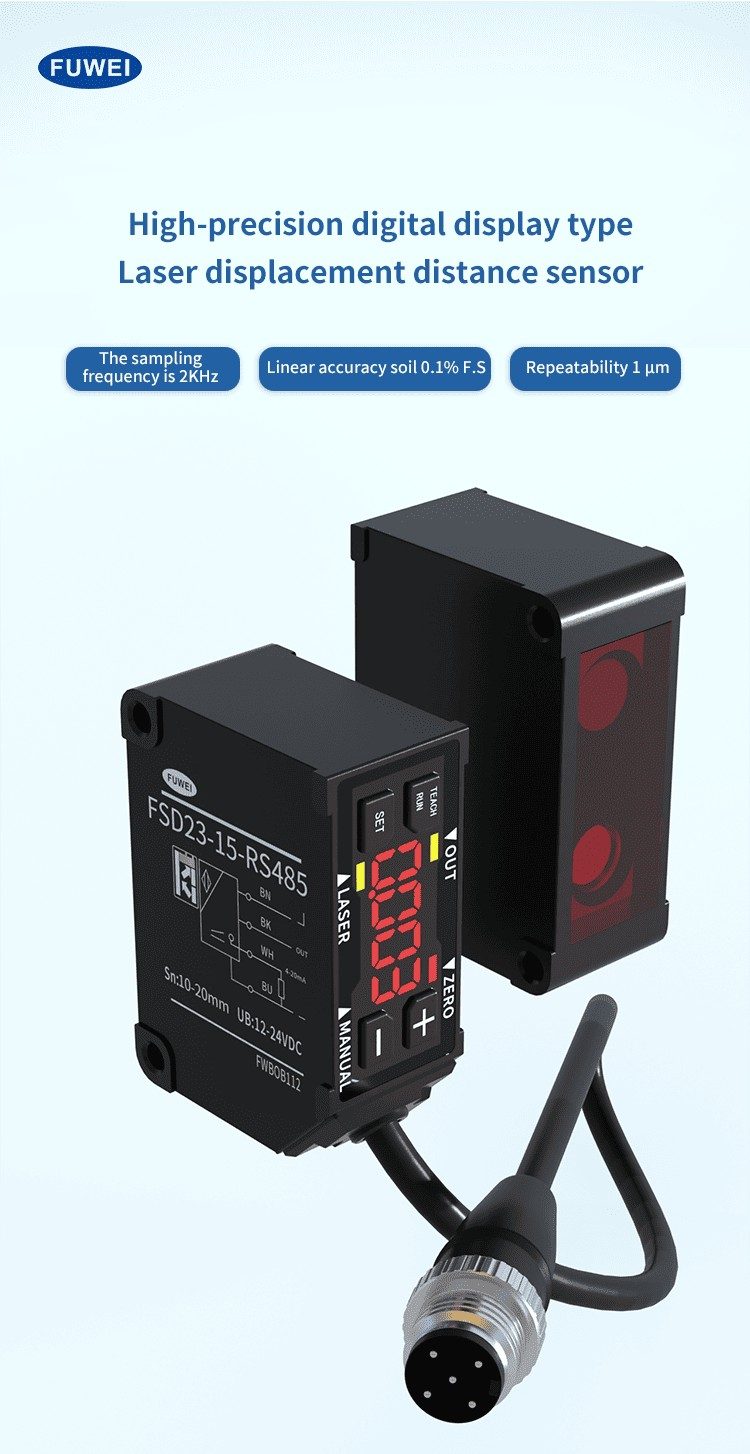

High precision laser displacement sensor |
| Type |
Laser Displacement Sensor |
| Series |
FSD23 |
| Features |
High precision laser displacement sensor |
| Place of Origin |
Guangdong, China |
| Theory |
Laser triangulation principle measurement method |

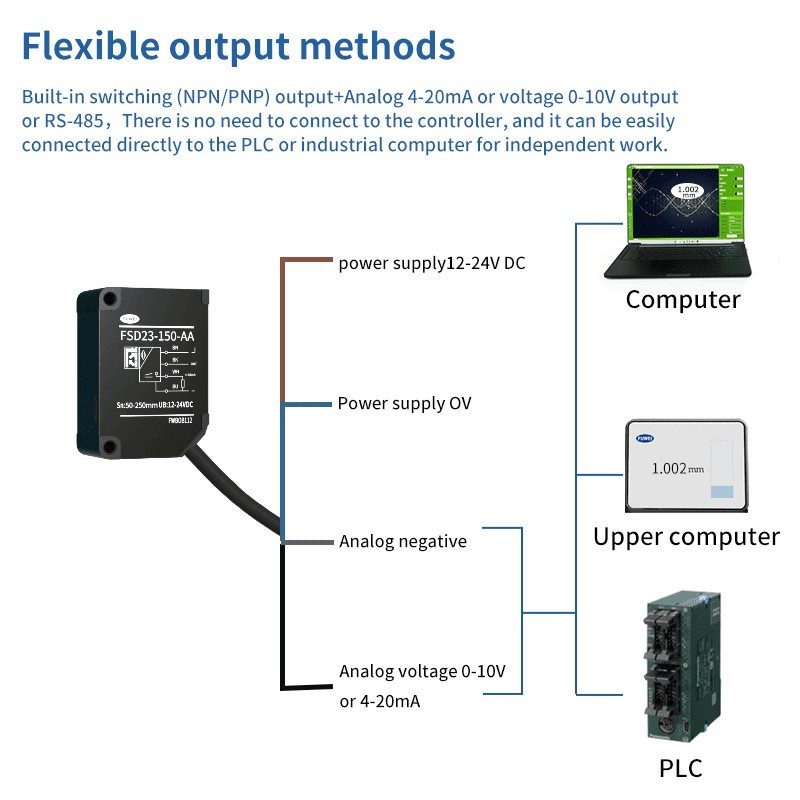

| Output |

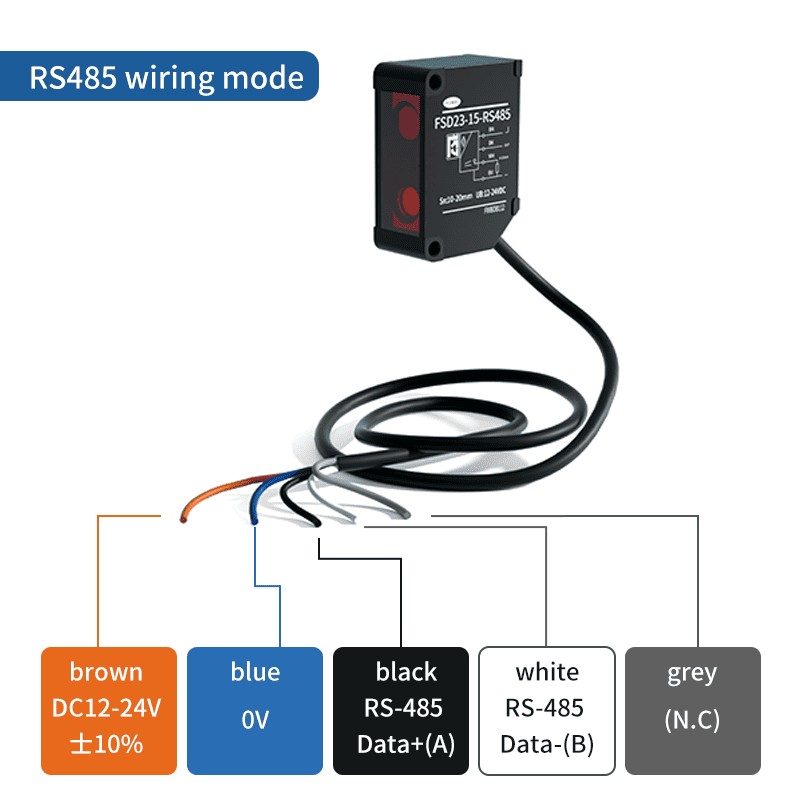

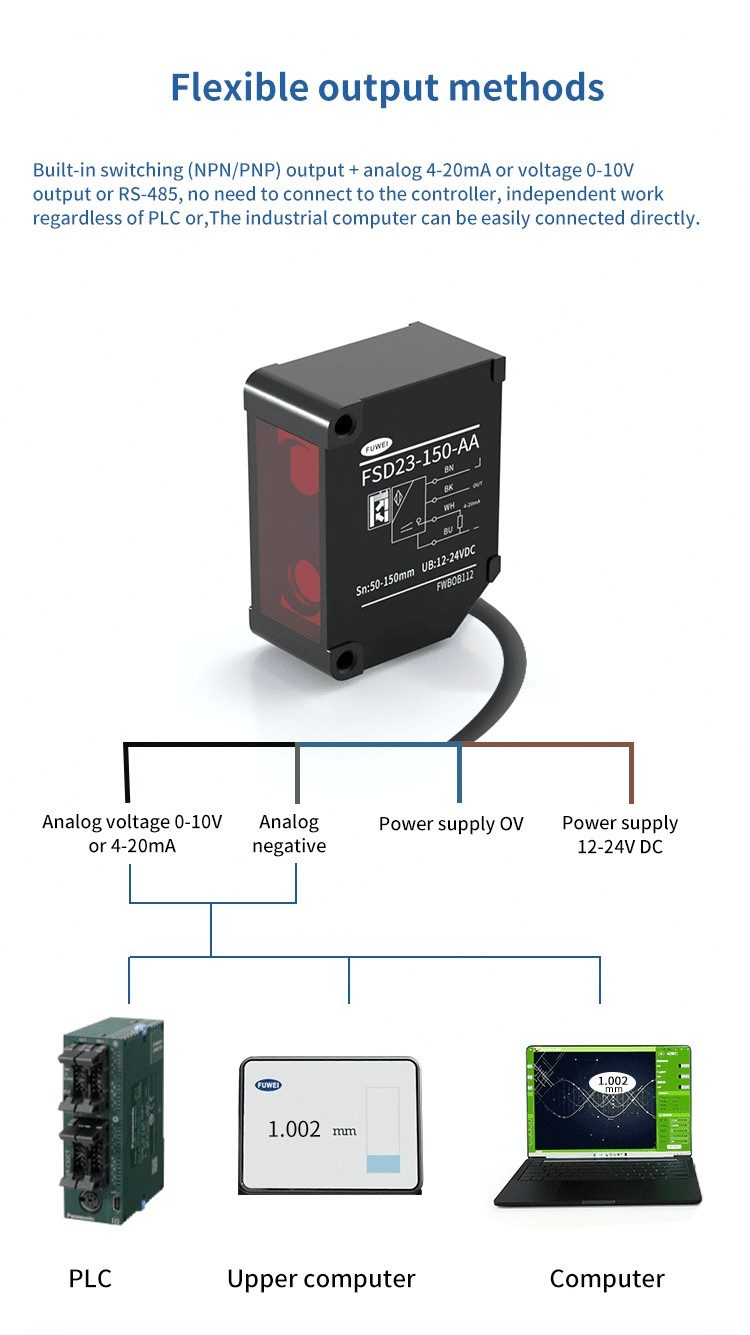

RS485 |

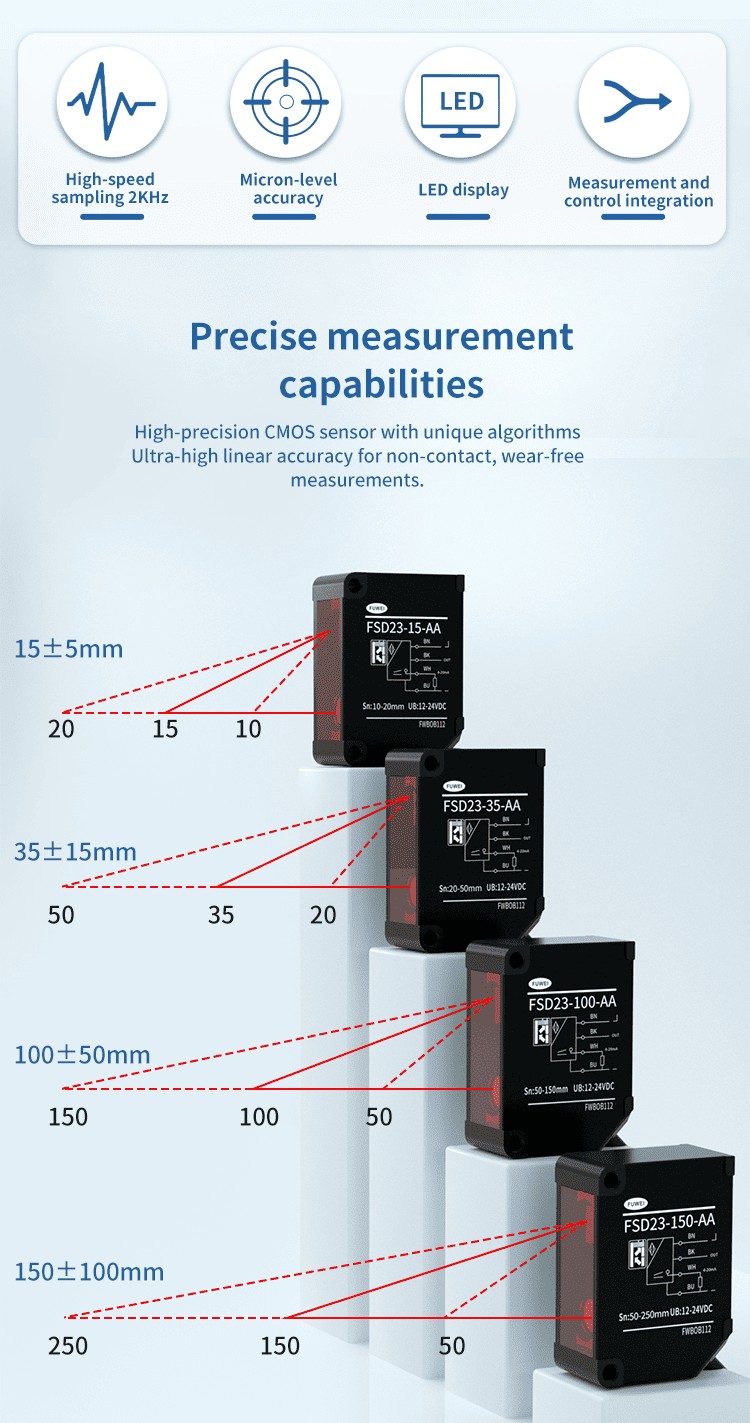

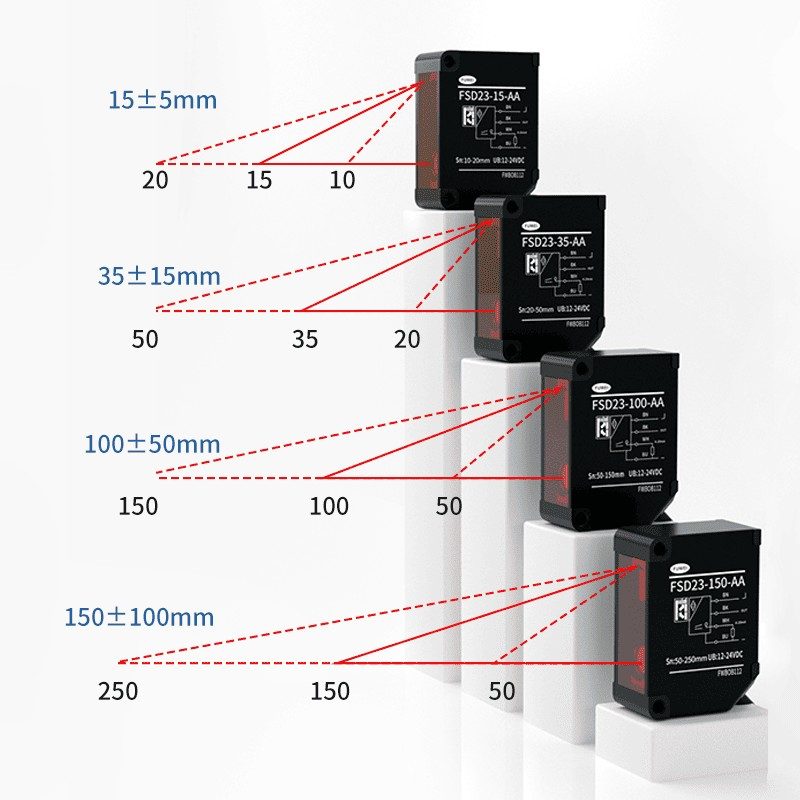

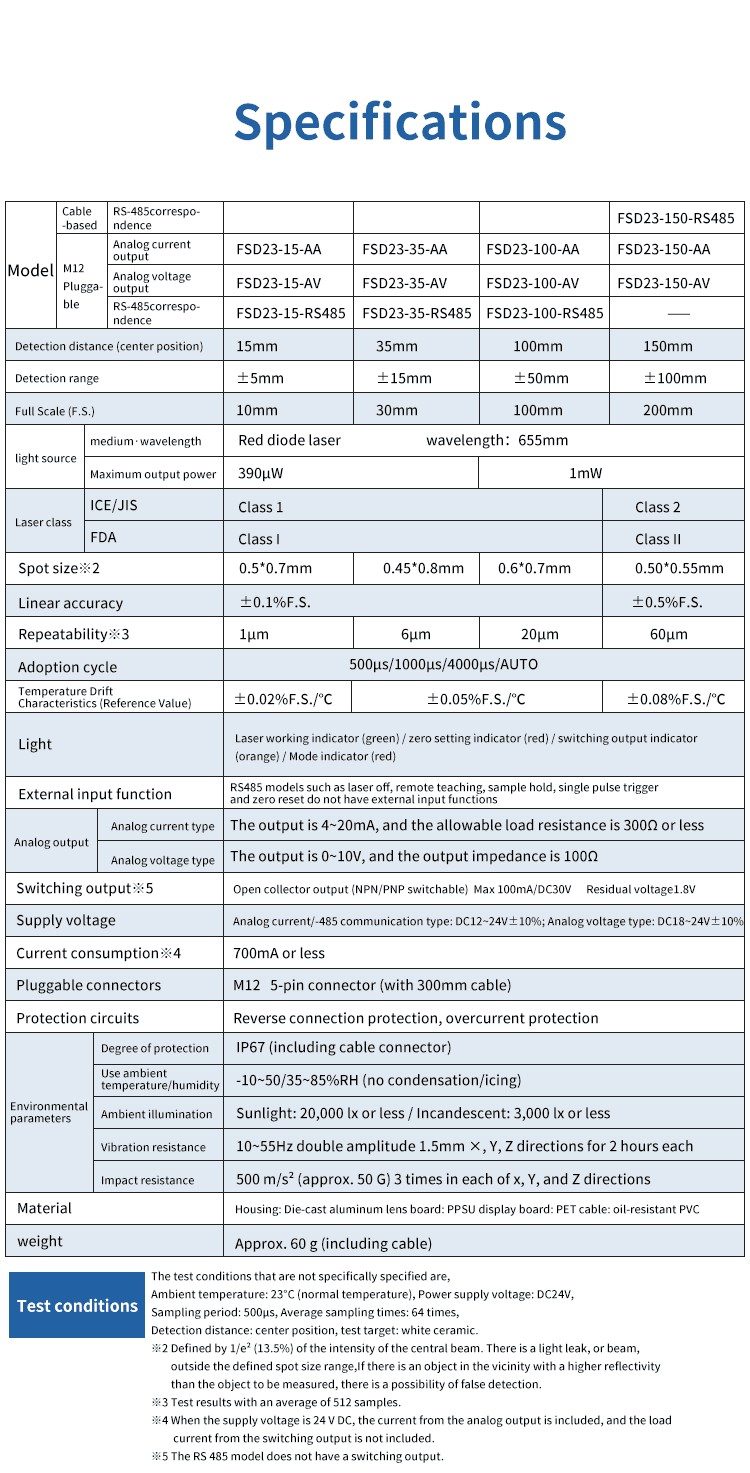

| Center of Measurement Range |
15 mm |
| Measurement Range |
±5 mm |
| Spot Size |
0.5 × 0.7 mm |
| Linearity |
±0.1% F.S. |
| Repeatability |
1 μm |
| Sampling Period |
500 μs / 1000 μs / 2000 μs / 4000 μs / AUTO |
| Medium / Wavelength |
Red laser diode (650 nm) |
| Current Consumption |
70 mA max |
| Material |
Aluminum |
| Packaging & Delivery |
| Selling Units |
Single item |
| Single Package Size |
16 × 15 × 5 cm |
| Single Gross Weight |
0.310 kg |
